Page 1
www.philips.com/welcome

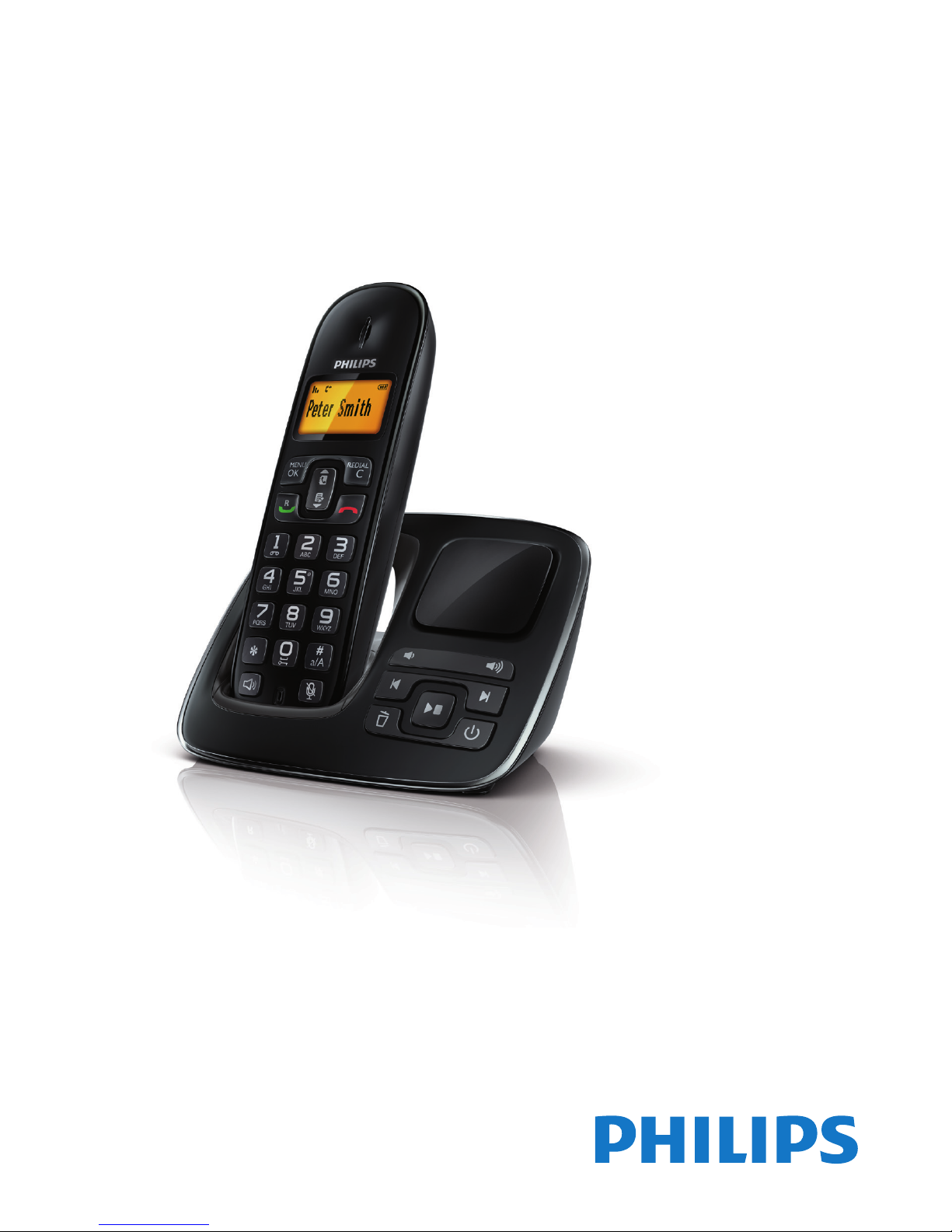

User manual
Register your product and get support at
CD191
CD196
Page 2
1EN
Contents
1 Important safety instructions 3
2 Your phone 4
What is in the box 4
Overview of the phone 5
Overview of the base station 5
Display icons 6
3 Get started 8
Connect the base station 8
Install the handset 8
Congure your phone (country
dependent) 9
Change the remote access PIN code 9
Charge the handset 10
Check the battery level 10
What is standby mode? 10
Check the signal strength 11
Switch the handset on or off 11
4 Calls 12
Make a call 12
End a call 12
Answer a call 12
Mute the microphone 13
Adjust the earpiece/speaker volume 13
Turn the speaker on or off 13
Make a second call 13
Answer a second call 13
Switch between two calls 13
Make a conference call with the
external callers 14
5 Text and numbers 15
Enter text and numbers 15
Switch between uppercase and
lowercase 15
6 Phonebook 16
View the phonebook 16
Search a record 16
Call from the phonebook 16
Access the phonebook during a call 16
Add a record 16
Edit a record 17
Delete a record 17
Delete all records 17
7 Call log 18
Call list type 18
View the call records 18
Save a call record to the phonebook 18
Return a call 18
Delete a call record 18
Delete all call records 19
8 Redial list 20
View the redial records 20
Redial a call 20
Save a call record to the phonebook 20
Delete a redial record 20
Delete all redial records 20
9 Phone settings 21
Sound settings 21
Name the handset 21
Set the date and time 21
Set the display language 21
10 Services 23
Call list type 23
Auto conference 23
Manage the carrier code 23
Manage the area code 23
Network type 24
Auto prex 24
Select the recall duration 24
Dial mode 25
Register the handsets 25
Page 3
2 EN
Unregister the handsets 25
Restore default settings 26
11 Telephone answering machine 27
Turn the answering machine on or off 27
Set the answering machine language 27
Set the answer mode 27
Announcements 28
Incoming messages (ICM) 28
Set the ring delay 29
Remote access 30
12 Technical data 32
13 Notice 33
Declaration of conformity 33
Use GAP standard compliance 33
Compliance with EMF 33
Disposal of your old product and
batteries 33
14 Frequently asked questions 35
15 Appendix 36
Text and number input tables 36
Page 4
3EN
1 Important safety
instructions
Power requirements
• This product requires an electrical supply
of 100-240 volts AC. In case of power
failure, the communication can be lost.
• The voltage on the network is classied
as TNV-3 (Telecommunication Network
Voltages), as dened in the standard EN
60950.
Warning
• The Electrical network is classied as hazardous. The
only way to power down the charger is to unplug the
power supply from the electrical outlet. Ensure that the
electrical outlet is always easily accessible.
To avoid damage or malfunction
Caution
• Use only the power supply listed in the user
instructions.
• Use only the batteries listed in the user instructions.
• Risk of explosion if battery is replaced by an incorrect
type.
• Dispose of used batteries according to the instructions.
• Always use the cables provided with the product.
• Do not allow the charging contacts or the battery to
come into contact with metal objects.
• Do not let small metal objects come into contact with
the product. This can deteriorate audio quality and
damage the product.
• Metallic objects may be retained if placed near or on
the handset receiver.
• Do not use the product in places where there are
explosive hazards.
• Do not open the handset, base station or charger as
you could be exposed to high voltages.
• For pluggable equipment, the socket-outlet shall
be installed near the equipment and shall be easily
accessible.
• This equipment is not designed to make emergency
calls when the power fails. An alternative has to be
made available to allow emergency calls.
• Do not allow the product to come into contact with
liquids.
• Do not use any cleaning agents containing alcohol,
ammonia, benzene, or abrasives as these may harm
the set.
• Do not expose the phone to excessive heat caused by
heating equipment or direct sunlight.
• Do not drop your phone or allow objects to fall on
your phone.
• Active mobile phones in the vicinity may cause
interference.
About operating and storage temperatures
• Operate in a place where temperature is
always between 0°C to +40°C (up to 90%
relative humidity).
• Store in a place where temperature is
always between -20°C and +45°C (up to
95% relative humidity).
• Battery life may be shorter in low
temperature conditions.
Page 5
4 EN
2 Your phone
Congratulations on your purchase and welcome
to Philips!
To fully benet from the support that Philips
offers, register your product at www.philips.
com/welcome.

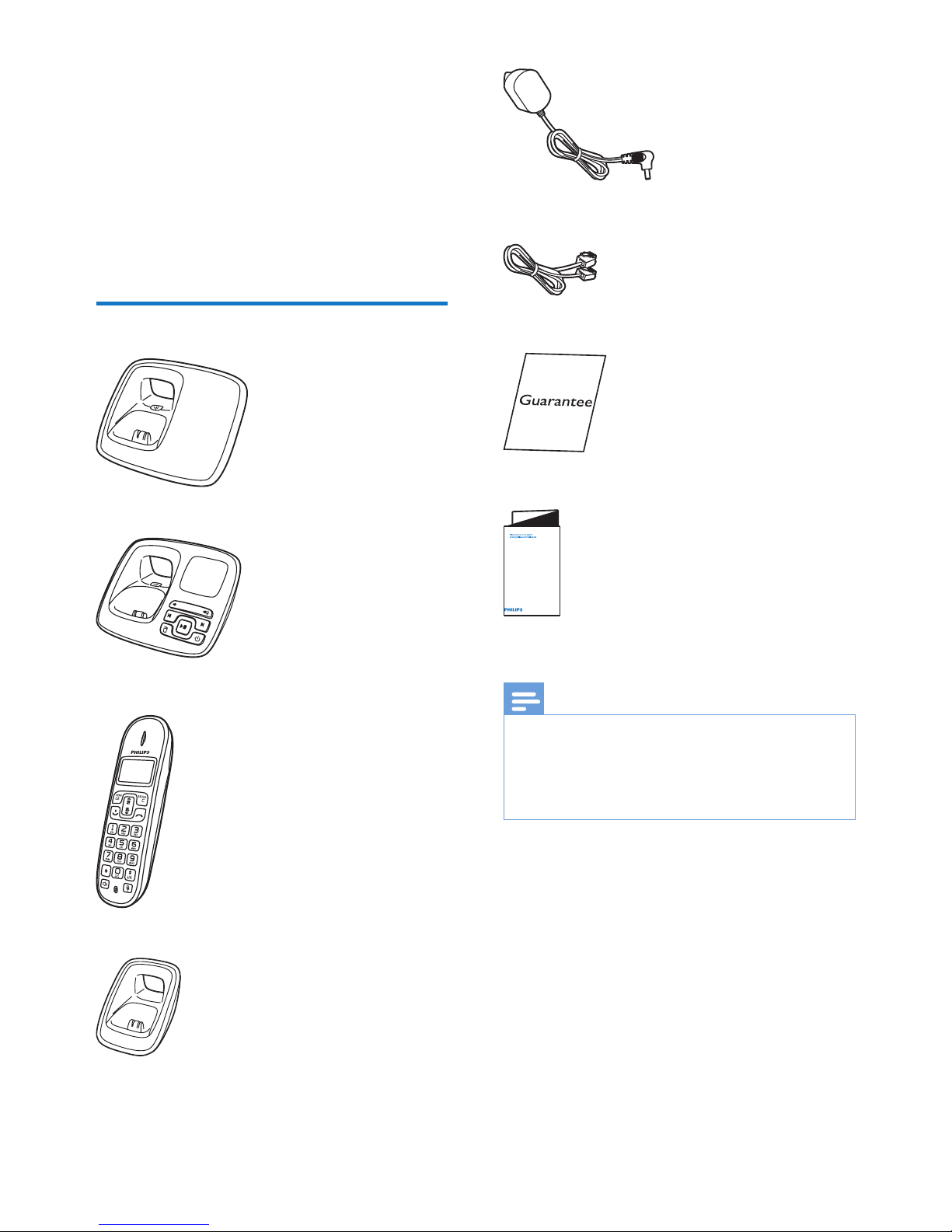

What is in the box
Base station (CD191)
Base station (CD196)
Handset**
Charger**
Power adapter**
Line cord*
Guarantee
Quick start guide
Note
• * In some countries, you have to connect the line
adapter to the line cord, then plug the line cord to the
telephone socket.
• ** In multi-handset packs, there are additional handsets
and chargers and power adapters.
4XLFNVWDUWJXLGH
Page 6
5EN
Overview of the phone
a Earpiece
b Loudspeaker
c Battery door
d
• Scroll up on the menu.
• Increase the earpiece/speaker volume.
• Access the phonebook.
e REDIAL/C
• Delete text or digits.
• Cancel operation.
• Access the redial list.
f
• End the call.
• Exit the menu/operation.
• Press and hold to switch the handset
on or off.
g
• Press to enter a space during text
editing.
• Press and hold to lock the keypad.
h
• Make a predial call.
• Press and hold to enter a pause.
a
b
d
e
f
g
h
i
j
k
l
m
o
n
c
• Switch to upper/lower case during
editing.
i
Mute or unmute the microphone.
j Microphone
k
• Turn the speaker phone is on/off.
• Make and receive calls through the
speaker.
l *
Set the dial mode (pulse mode or
temporary tone mode).
m
• Scroll down on the menu.
• Decrease the earpiece/speaker volume.
• Access the call log.
n
• Make and receive calls.
• Recall key
o MENU/OK
• Access the main menu.
• Conrm selection.
• Enter the options menu.
• Select the function displayed on the
handset screen directly above the key.
Overview of the base station
CD191
a
Page 7
6 EN
a
• Find handsets.
• Enter the registration mode.
CD196
a
• Find handsets
• Enter registration mode
b Speaker
c /
Decrease/increase the speaker volume.
d
Skip backward during playback.
e
Skip forward during playback.
f
Turn the answering machine on/off.
g
• Play messages.
• Stop messages playback.
h
• Delete the current playback message.
• Press and hold to delete all old
messages.
a
c
d
b
e
f
g
h
Display icons
In standby mode, the icons shown on the main
screen tell you what features are available on
your handset.
Icon Descriptions
When the handset is off the base
station/charger, the bars indicate the
battery level (from full to low).
When the handset is on the base
station/charger, the bars keep scrolling
until charging is complete.
The empty battery icon ashes and you
hear an alert tone.
The battery is low and needs recharging.
The number of bar indicates the link
status between the handset and base
station. The more bars are shown, the
better the signal or the connection is.
It remains steadily on when browsing
incoming calls in the call log.
It indicates an outgoing call in the redial
list.
It ashes when there is a new missed
call.
It remains steadily on when browsing the
missed calls in call log.
It ashes when there is a new missed call
or when browsing new missed calls.
It remains steadily on when browsing the
missed calls in call log that are already
read.
The speaker is on.
The ringer is off.
Answering machine: it ashes when
there is a new message. It displays when
the telephone answering machine is
turned on.
Page 8
7EN
It ashes when there is a new voice
message.
It remains steadily on when the voice
messages are already viewed in the call
log.
The icon is not shown when there is no
voice message.
/
It is displayed when you scroll up/down a
list/increase and decrease the volume.
There are more digits on the right. Press
REDIAL/C to read.
Page 9
8 EN
3 Get started
Caution
• Make sure that you have read the safety instructions in
the 'Important safety instruction' section before you
connect and install your handset.
Connect the base station
Warning
• Risk of product damage! Ensure that the power supply
voltage corresponds to the voltage printed on the back
or the underside of the phone.
• Use only the supplied power adapter to charge the
batteries.
Note
• If you subscribe to the digital subscriber line (DSL) high
speed internet service through your telephone line,
ensure you install a DSL lter between the telephone
line cord and the power socket.. The lter prevents
noise and caller ID problems caused by the DSL
interference. For more information on the DSL lters,
contact your DSL service provider.
• The type plate is located on the bottom of the base
station.
1 Connect each end of the power adapter
to:
• the DC input jack at the bottom of the
base station;
• the power socket on the wall.
2 Connect each end of the line cord to:
• the telephone socket at the bottom of
the base station;
• the telephone socket on the wall.
3 Connect each end of the power adapter
to (for multi handset version only):
• the DC input jack at the bottom of the
extra handset charger.
• the power socket on the wall.
Install the handset
The batteries are pre-installed in the handset.
Pull the battery tape off from the battery door
before charging.
Page 10
9EN
Caution
• Risk of explosion! Keep batteries away from heat,
sunshine or re. Never discard batteries in re.
• Use only the supplied batteries.
• Risk of decreased battery life! Never mix different
brands or types of batteries.
Note
• Charge the batteries for 8 hours before rst use.
• If the handset becomes warm when the batteries are
being charged, it is normal.
Warning
• Check the battery polarity when inserting in the
battery compar tment. Incorrect polarity may damage
the product.
The batteries are pre-installed in the handset.
Pull the battery tape off from the battery door
before charging.
Congure your phone
(country dependent)
1 When using your phone for the rst time,
you see a welcome message.
2 Press MENU/OK.
Set the country/language
Select your country/language, then press
MENU/OK to conrm.
» The country/language setting is saved.
Note
• The country/language setting option is country
dependent. If no welcome message is displayed, it
means the country/language setting is preset for your
country. Then you can set the date and time.
To re-set the language, see the following steps.
1 Select [Menu] > [Phone setup] >
[Language], then press MENU/OK to
conrm.
2 Select a language, then press MENU/OK
to conrm.
» The setting is saved.
Set the date and time
Tip
• To set the date and time later, press REDIAL/C to skip
this setting.
1 Press MENU/OK.
2 Select [Phone setup] > [Date & time],
then press MENU/OK to conrm.
3 Press the numeric buttons to enter the
date, then press MENU/OK to conrm.
» The time setting menu is displayed on
the handset.
4 Press the numeric buttons to enter the
time.
• If the time is in 12-hour format, press
/ to select [AM] or [PM].
5 Press MENU/OK to conrm.
Change the remote access
PIN code
Note
• The default answering machine remote access PIN
code is 0000 and it is important to change it to ensure
the security.
Page 11
10 EN
1 Press MENU/OK.
2 Select [Answ. Machine] > [Remote
access] > [Change PIN], then press
MENU/OK to conrm.
3 Enter the old PIN, then press MENU/OK
to conrm.
4 Enter the new PIN code, then press
MENU/OK to conrm.
5 Enter the new PIN code again, then press
MENU/OK to conrm.
» The setting is saved.
Charge the handset
Place the handset on the base station to
charge the handset. When the handset is
placed correctly on the base station, you hear a
docking sound.
» The handset starts charging.
Note
• Charge the batteries for 8 hours before rst use.
• If the handset becomes warm when the batteries are
being charged, it is normal.
You can activate or deactivate the docking tone
(see 'Set the docking tone' on page 21).
Your phone is now ready to use.
Check the battery level
The battery icon displays the current battery
level.
When the handset is off the base
station/charger, the bars indicate
the battery level (full, medium and
low).
When the handset is on the base
station/charger, the bars ash until
charging completes.
The empty battery icon ashes.
The battery is low and needs
recharging.
The handset turns off if the batteries are empty.
If you are on the phone, you hear warning
tones when the batteries are almost empty. The
call gets disconnected after the warning.
What is standby mode?
Your phone is in standby mode when it is idle.
The standby screen displays the handset name,
handset number, date and time.
Page 12
11EN
Check the signal strength
The number of bars indicates the
link status between the handset
and base station. The more
bars are shown, the better the
connection is.
• Make sure the handset is linked to the base
station before you make or receive calls
and carry out the phone functions and
features.
• If you hear warning tones when you are
on the phone, the handset is almost out
of battery or the handset is out of range.
Charge the battery or move the handset
nearer to the base station.
Switch the handset on or off
Press and hold to switch the handset on or
off.
Page 13
12 EN
4 Calls
Note
• When the power fails, the phone cannot access
emergency services.
Tip
• Check the signal strength before you make a call or
when you are in a call (see 'Check the signal strength'
on page 11).
Make a call
You can make a call in these ways:
• Quick call
• Dial before you call
• Redial the most recent number
• Call from the redial list.
• Call from the phonebook list
• Call from the call log
Quick call
1 Press or .
2 Dial the phone number.
» The number is dialed out.
» The duration of your current call is
displayed.
Dial before you call
1 Dial the phone number
• To erase a digit, press REDIAL/C.
• To enter a pause, press and hold .
2 Press or to dial out the call.
Redial the most recent number
1 Press REDIAL/C.
» The redial list is displayed and the most
recent number is highlighted.
2 Press or to dial out the call.
Call from the redial list
You can make a call from the redial list (see
'Redial a call' on page 20).
Call from the phonebook
You can make a call from the phonebook list
(see 'Call from the phonebook' on page 16).
Call from the call log
You can return a call from the received or
missed call log (see 'Return a call' on page 18).
Note
• The call timer displays the talk time of your current call.
Note
• If you hear warning tones, the handset is almost out
of battery or the handset is out of range. Charge the
battery or move the handset nearer to the base station.
End a call
You can end a call in these ways:
• Press ; or
• Place the handset to the base station
or charging cradle.
Answer a call
When there is an incoming call, press or
to answer the call.
Page 14
13EN
Warning
• When the handset rings or when the handsfree is
activated, keep the handset away from your ear to
avoid ear damage.
Note
• The caller ID service is available if you have registered
to the caller ID service with your service provider.
Tip
• When there is a missed call, a notication message
appears.
Turn off the ringer for all incoming
calls
When the phone rings, press REDIAL/C.
Mute the microphone
1 Press during a call.
» The handset displays [Mute on].
» The caller cannot hear you, but you
can still hear his voice.
2 Press again to unmute the microphone.
» You can now communicate with the
caller.
Adjust the earpiece/speaker
volume
Press / to adjust the volume during a call.
» The earpiece/speaker volume is
adjusted and the phone is back to the
call screen.
Turn the speaker on or off
Press .
Make a second call
Note
• This service is network dependent.
1 Press during a call.
» The rst call is put on hold.
2 Dial the second number.
» The number displayed on the screen is
dialed out.
Answer a second call
Note
• This service is network dependent.
When there is a periodical beep to notify you
of an incoming call, you can answer the call in
these ways:
1 Press and to answer the call.
» The rst call is put on hold, and you
are now connected to the second call.
2 Press and to end the current call and
answer the rst call.
Switch between two calls
1 Press and .
» The current call is put on hold, and you
are now connected to the other call.
Page 15
14 EN
Make a conference call with
the external callers
Note
• This service is network dependent. Check with the
service provider for additional charges.
When you are connected to two calls, press
, then .
» The two calls are combined and a
conference call is established.
Page 16
15EN
5 Text and
numbers
You can enter text and numbers for handset
name, phonebook records, and other menu
items.
Enter text and numbers
1 Press once or several times on the
alphanumeric key to enter the selected
character.
2 Press REDIAL/C to delete the character.
Press and to move the cursor left and
right.
3 Press to add a space.
Switch between uppercase
and lowercase
By default, the rst letter of each word in a
sentence is uppercase and the rest is lowercase.
Press and hold to switch between the
uppercase and lowercase letters.
Page 17
16 EN
6 Phonebook
This phone has a phonebook that stores up to
50 records. You can access the phonebook from
the handset. Each record can have a name up
to 14 characters long and a number up to 24
digits long.
There are 2 direct access memories (keys
and ). Depending on your country, keys
and are preset to the voice mail number and
information service number of your service
provider respectively. When you press and hold
on the key in standby mode , the saved phone
number is dialed automatically.
View the phonebook
Note
• You can view the phonebook on one handset only
each time.
1 Press or press MENU/OK >
[Phonebook] > [View] to access the
phonebook list.
2 Select a contact and view the available
information.
Search a record
You can search the phonebook records in these
ways:
• Scroll the contacts list.
• Enter the rst character of the contact.
Scroll the contact list
1 Press or press MENU/OK >
[Phonebook] > [View] to access the
phonebook list.
2 Press and to scroll through the
phonebook list.
Enter the rst character of a contact
1 Press or press MENU/OK >
[Phonebook] > [View] to access the
phonebook list.
2 Press the alphanumerical key that matches
the character.
» The rst record that starts with this
character is displayed.
Call from the phonebook
1 Press or press MENU/OK >
[Phonebook] > [View] to access the
phonebook list.
2 Select a contact in the phonebook list.
3 Press to make the call.
Access the phonebook during
a call
Press MENU/OK, select [Phonebook], then
press MENU/OK again to conrm.
1 Select the contact, then press MENU/OK
to view the number.
Add a record
Note
• If your phonebook memory is full, the handset displays
a notication message. Delete some records to add
new ones.
1 Press MENU/OK.
2 Select [Phonebook] > [Add new], then
press MENU/OK to conrm.
3 Enter the name, then press MENU/OK to
conrm.
Page 18
17EN
4 Enter the number, then press MENU/OK
to conrm
» Your new record is saved.
Tip
• Press and hold to insert a pause.
Note
• The phonebook overwrites the old number with the
new number.
Tip
• Press once or several times on the alphanumeric key to
enter the selected character.
• Press REDIAL/C to delete the character. Press and
to move the cursor left and right.
Edit a record
1 Press MENU/OK.
2 Select [Phonebook] > [Edit], then press
MENU/OK to conrm.
3 Select a contact, then press MENU/OK to
conrm.
4 Edit the name, then press MENU/OK to
conrm.
5 Edit the number, then press MENU/OK to
conrm.
» The record is saved.
Delete a record
1 Press MENU/OK.
2 Select [Phonebook] > [Delete], then press
MENU/OK to conrm.
3 Select a contact, then press MENU/OK to
conrm.
» The handset displays a conrmation
request.
4 Press MENU/OK to conrm.
» The record is deleted.
Delete all records
1 Press MENU/OK.
2 Select [Phonebook] > [Delete all], press
MENU/OK to conrm.
» The handset displays a conrmation
request.
3 Press MENU/OK to conrm.
» All records (except the 2 direct access
memory records) are deleted.
Page 19
18 EN
7 Call log
The call log stores the call history of all missed
or received calls. The incoming call history
includes the name and number of the caller,
call time and date. This feature is available if you
have registered to the caller ID service with
your service provider.
Your phone can store up to 20 call records. The
call log icon on the handset ashes to remind
you of any unanswered calls. If the caller allows
the display of his identity, you can view his
name or number. The call records are displayed
in chronological order with the most recent
received call at the top of the list.
Note
• Make sure that the number in the call list is valid before
you can call back directly from the call list.
The icons shown on the screen tell you
whether they are missed/received calls.
Icons Description
It remains steadily on when browsing
incoming calls in the call log.
It ashes when there is a new missed
call.
It remains steadily on when browsing
the missed calls in call log.
Call list type
You can set whether you can view all incoming
calls or missed calls from this menu.
Select the call list type
1 Press MENU/OK.
2 Select [Services] > [Call list type], then
press MENU/OK to conrm.
3 Select an option, then press MENU/OK to
conrm.
View the call records
1 Press .
» The incoming call log is displayed.
2 Select a record, then press MENU/OK
and [View] select for more available
information.
Save a call record to the
phonebook
1 Press .
» The incoming call log is displayed.
2 Select a record, then press MENU/OK to
conrm.
3 Select [Save number], then press MENU/
OK to conrm.
4 Enter and edit the name, then press
MENU/OK to conrm.
5 Enter and edit the number, then press
MENU/OK to conrm.
» The record is saved.
Return a call
1 Press .
2 Select a record on the list.
3 Press to make the call.
Delete a call record
1 Press .
» The incoming call log is displayed.
Page 20
19EN
2 Select a record, then press MENU/OK to
conrm.
3 Select [Delete], then press MENU/OK to
conrm
» The handset displays a conrmation
requests.
4 Press MENU/OK to conrm.
» The record is deleted.
Delete all call records
1 Press .
» The incoming call log is displayed.
2 Press MENU/OK to enter the options
menu.
3 Select [Delete all], then press MENU/OK
to conrm
» The handset displays a conrmation
requests.
4 Press MENU/OK to conrm.
» All records are deleted.
Page 21
20 EN
8 Redial list
The redial list stores the call history of dialed
calls. It includes the names and/or numbers you
have called. This phone can store up to 10 redial
records.
View the redial records
Press REDIAL/C.
Redial a call
1 Press REDIAL/C.
2 Select a record, then press .
» The number is dialed out.
Save a call record to the
phonebook
1 Press REDIAL/C to enter the list of dialed
calls.
2 Select a record, then press MENU/OK to
conrm.
3 Select [Save number], then press MENU/
OK to conrm.
4 Enter and edit the name, then press
MENU/OK to conrm.
5 Enter and edit the number, then press
MENU/OK to conrm.
» The record is saved.
Delete a redial record
1 Press REDIAL/C to enter the list of dialed
calls.
2 Select a record, then press MENU/OK to
conrm.
3 Select [Delete], then press MENU/OK to
conrm.
» The handset displays a conrmation
request.
4 Press MENU/OK to conrm.
» The record is deleted.
Delete all redial records
1 Press REDIAL/C to enter the list of dialed
calls.
2 Select a record, then press MENU/OK to
conrm.
3 Select [Delete all], then press MENU/OK
to conrm.
» The handset displays a conrmation
request.
4 Press MENU/OK to conrm.
» The record is deleted.
Page 22
21EN
9 Phone settings
You can customize the settings to make it your
own phone.
Sound settings
Set the handset's ringtone volume
You can select among 5 ringtone volume levels
or [Off].
1 Press MENU/OK.
2 Select [Phone setup] > [Sounds] >
[Ring volume], then press MENU/OK to
conrm.
3 Select a volume level, then press MENU/
OK to conrm.
» The setting is saved.
Set the handset's ringtone
You can select from 10 ringtones.
1 Press MENU/OK.
2 Select [Phone setup] > [Sounds] > [Ring
tones], then press MENU/OK to conrm.
3 Select a ringtone, then press MENU/OK
to conrm.
» The setting is saved.
Set the key tone
Key tone is the sound made when you press a
key on the handset.
1 Press MENU/OK.
2 Select [Phone setup] > [Sounds] > [Key
tone], then press MENU/OK to conrm.
3 Select [On]/[Off], then press MENU/OK
to conrm.
» The setting is saved.
Set the docking tone
Docking tone is the sound made when you
place the handset on the base station or
charger.
1 Press MENU/OK.
2 Select [Phone setup] > [Sounds] >
[Docking tone], then press MENU/OK to
conrm.
3 Select [On]/[Off], then press MENU/OK
to conrm.
» The setting is saved.
Name the handset
The name of the handset can be up to 10
characters. It is displayed on the handset screen
in standby mode.
1 Press MENU/OK.
2 Select [Phone setup] > [Phone name],
then press MENU/OK to conrm.
3 Enter or edit the name. To erase a
character, press REDIAL/C.
4 Press MENU/OK to conrm.
» The setting is saved.
Set the date and time
For information, see 'Set the date and time'
and 'Set the date and time format' in the Get
started section.
Set the display language
Note
• This feature only applies to models with multiple-
language support.
• Languages available vary from country to country.
1 Press MENU/OK.
Page 23
22 EN
2 Select [Phone setup] > [Language], then
press MENU/OK to conrm.
3 Select a language, then press MENU/OK
to conrm.
» The setting is saved.
Page 24
23EN
10 Services
The phone supports a number of features that
help you handle and manage the calls.
Call list type
You can set whether you can view all incoming
calls or missed calls from this menu.
Select the call list type
1 Press MENU/OK.
2 Select [Services] > [Call list type], then
press MENU/OK to conrm.
3 Select an option, then press MENU/OK to
conrm.
Auto conference
To join an external call with another handset,
press .
Activate/Deactivate auto conference
1 Press MENU/OK.
2 Select [Services] > [Conference], then
press MENU/OK to conrm.
3 Select [Auto]/[Off], then press MENU/OK
to conrm.
» The setting is saved.
Manage the carrier code
Note
• This feature only applies to models with carrier code
support.
You can dene a carrier code (up to 5 digits).
This carrier code is automatically removed from
an incoming call if it matches with the code you
dene. Then the phone number is saved in the
call log without a carrier code.
Activate auto removal of the carrier
code
1 Press MENU/OK.
2 Select [Services] > [Carrier code], then
press MENU/OK to conrm.
3 Enter the carrier code, then press MENU/
OK to conrm.
» The setting is saved.
Deactivate auto removal of the
carrier code
1 Press MENU/OK.
2 Select [Services] > [Carrier code], then
press MENU/OK to conrm.
3 Press REDIAL/C to delete the digits.
4 Press MENU/OK to conrm.
» The setting is saved.
Manage the area code
Note
• This feature only applies to models with area code
support.
You can dene an area code (up to 5 digits).
This area code is automatically removed from
an incoming call if it matches with the code you
dene. Then the phone number is saved in the
call log without an area code.
Activate auto removal of the area
code
1 Press MENU/OK.
Page 25
24 EN
2 Select [Services] > [Area code], then
press MENU/OK to conrm.
3 Enter the area code, then press MENU/
OK to conrm.
» The setting is saved.
Deactivate auto removal of the area
code
1 Press MENU/OK.
2 Select [Services] > [Area code], then
press MENU/OK to conrm.
3 Press REDIAL/C to delete the digits.
4 Press MENU/OK to conrm.
» The setting is saved.
Network type
Note
• This feature only applies to models with network type
support.
1 Press MENU/OK.
2 Select [Services] > [Network type], then
press MENU/OK.
3 Select a network type, then press MENU/
OK.
» The setting is saved.
Auto prex
This feature checks and formats your outgoing
call number before it is dialed out. The prex
number can replace the detect number you
set in the menu. For example, you set 604 as
the detect number and 1250 as the prex.
When you have dialed out a number such as
6043338888, your phone changes the number
to 12503338888 when it dials out.
Note
• The maximum length of a detect number is 5 digits. The
maximum length of an auto prex number is 10 digits.
Note
• This is a country dependent feature.
Set auto prex
1 Press MENU/OK.
2 Select [Services] > [Auto prex], then
press MENU/OK to conrm.
3 Enter the detect number, then press
MENU/OK to conrm.
4 Enter the prex number, then press
MENU/OK to conrm.
» The setting is saved.
Note
• To enter a pause, press and hold .
Note
• If the prex number is set and the detect number is left
empty, the prex number is added to all outgoing calls.
Note
• The feature is unavailable if the dialed number starts
with * and #.
Select the recall duration
Make sure that the recall time is set correctly
before you can answer a second call. In normal
case, the phone is already preset for the recall
duration. You can select among 3 options:
[Short], [Medium] and [Long]. The number of
Page 26
25EN
available options varies with different countries.
For details, consult your service provider.
1 Press MENU/OK.
2 Select [Services] > [Recall time], then
press MENU/OK to conrm.
3 Select an option, then press MENU/OK to
conrm.
» The setting is saved.
Dial mode
Note
• This feature only applies to models that support both
tone and pulse dial.
Dial mode is the telephone signal used in your
country. The phone supports tone (DTMF) and
pulse (rotary) dial. Consult the service provider
for detailed information.
Set the dial mode
1 Press MENU/OK.
2 Select [Services] > [Dial mode], then
press MENU/OK to conrm.
3 Select a dial mode, then press MENU/OK
to conrm.
» The setting is saved.
Note
• If your phone is in pulse dial mode, press * during a call
for temporary tone mode. Digits entered for this call
are then sent out as tone signals.
Register the handsets
You can register additional handsets to the base
station. The base station can register up to 4
handsets.
1 Press MENU/OK on the handset.
2 Select [Services] > [Register], then press
MENU/OK to conrm.
3 Enter the system PIN. Press REDIAL/C
to make corrections. Press MENU/OK to
conrm the PIN.
4 Press and hold on the base station for
5 seconds.
Note
• For models with an answering machine, you hear a
conrmation beep.
» Registration is complete in less than 2
minutes. The base automatically assigns
a handset number to the handset.
Note
• If the PIN is incorrect or no base is found within a
certain period, your handset displays a notication
message. Repeat the above procedure if registration
fails.
Note
• The preset PIN is 0000. No change can be made on it.
Unregister the handsets
1 If two handsets share the same base
station, you can unregister a handset with
another handset.
2 Press MENU/OK.
3 Select [Services] > [Unregister], then
press MENU/OK to conrm.
4 Enter the system PIN. (The preset PIN is
0000). Press REDIAL/C to remove the
number.
5 Select the handset number to be
unregistered.
6 Press MENU/OK to conrm.
» The handset is unregistered.
Page 27
26 EN
Tip
• The handset number displays beside the handset name
in standby mode.
Restore default settings
You can reset your phone settings to the
original factory settings.
1 Press MENU/OK.
2 Select [Services] > [Reset], then press
MENU/OK to conrm.
» The handset displays a conrmation
request.
3 Press MENU/OK to conrm.
» All settings are reset.
Page 28
27EN
11 Telephone
answering
machine
Note
• Available only for CD196.
Your phone includes a telephone answering
machine that records unanswered calls when
it is on. You can access the answering machine
remotely and change the settings through the
answering machine menu on the handset.
The button on the base station lights up
when the answer machine is on.
Turn the answering machine
on or off
You can turn the answering machine on or off
through the base station or the handset.
Through the base
Press to turn the answering machine on or
off in standby mode.
Note
• When the answering machine is switched on, it answers
incoming calls after a certain number of rings based on
the ring delay setting.
Through the handset
1 Press MENU/OK.
2 Select [Answ. Machine] > [Voice answer],
then press MENU/OK to conrm.
3 Select [Answer only]/[Record also]/[Off],
then press MENU/OK to conrm.
» The setting is saved.
Set the answering machine
language
Note
• This feature only applies to models with multiple-
language support.
The answering machine language is the language
for the announcements.
1 Press MENU/OK.
2 Select [Answ. Machine] > [Voice
language], then press MENU/OK to
conrm.
3 Select a language, then press MENU/OK
to conrm.
» The setting is saved.
Set the answer mode
You can set the answering machine and select if
the callers can leave messages. Select [Record
also]if you allow the callers to leave messages.
Select [Answer only] if you forbid the callers to
leave messages.
1 Press MENU/OK.
2 Select [Answ. Machine] > [Voice answer],
then press MENU/OK to conrm.
3 Select an answer mode, then press MENU/
OK to conrm.
» The setting is saved.
Note
• If the memory is full, the answering machine switches to
[Answer only] mode automatically.
Page 29
28 EN
Announcements
The announcement is the message your caller
hears when the answering machine picks up
the call. The answering machine has 2 default
announcements: the [Record also] mode and
[Answer only] mode.
Record an announcement
The maximum length of the announcement you
can record is 3 minutes. The newly recorded
announcement automatically replaces the old
one.
1 Press MENU/OK.
2 Select [Answ. Machine] >
[Announcement], then press MENU/OK
to conrm.
3 Select [Record also] or [Answer only],
then press MENU/OK to conrm.
4 Select [Record], then press MENU/OK to
conrm.
5 Start recording close to the microphone
after the beep.
6 Press MENU/OK to stop recording or the
recording stops after 3 minutes.
» You can listen to the newly recorded
announcement on the handset.
Note
• Make sure that you speak close to the microphone
when you record an announcement.
Listen to the announcement
1 Press MENU/OK.
2 Select [Answ. Machine] >
[Announcement], then press MENU/OK
to conrm.
3 Select [Record also] or [Answer only],
then press MENU/OK to conrm.
4 Select [Play], then press MENU/OK to
conrm.
» You can listen to the current
announcement.
Note
• You can no longer listen to the announcement when
you pick up an incoming call.
Restore the default announcement
1 Press MENU/OK.
2 Select [Answ. Machine] >
[Announcement], then press MENU/OK
to conrm.
3 Select [Record also] or [Answer only],
then press MENU/OK to conrm.
4 Select [Use default], then press MENU/
OK to conrm.
» The handset displays a conrmation
request.
5 Press MENU/OK to conrm.
» The default announcement is restored.
Incoming messages (ICM)
Each message can be up to 3 minutes long.
When you receive new messages, the new
message indicator ashes on the answering
machine and the handset displays a notication
message.
Page 30
29EN
Note
• If you pick up the phone when the caller leaves a
message, the recording stops and you can talk to the
caller directly.
Note
• If the memory is full, the answering machine switches
to [Answer only] automatically. Delete old messages to
receive new ones.
Listen to the incoming messages
You can listen to the incoming messages in the
sequence they are recorded.
From the base
• To start/Stop listening, press .
• To adjust the volume, press / .
• To play the previous message/replay the
current message, press .
• To play the next message, press .
• To delete the current message, press .
Note
• No deleted messages can be recovered.
From the handset
Select MENU/OK > [Answ. Machine] > [Play],
then press MENU/OK to conrm.
» New messages start playing. Old
messages start playing if there is no
new message.
• Press REDIAL/C to stop listening.
• Press MENU/OK to enter the options
menu.
• Press / to increase/decrease the
volume.
Delete an incoming message
From the base
Press when you listen to the message.
» The current message is deleted.
From the handset
1 When you listen to the message, press
MENU/OK to enter the options menu.
2 Select [Delete], then press MENU/OK to
conrm.
» The current message is deleted.
Delete all old incoming messages
From the base
Press and hold in standby mode.
» All old messages are permanently
deleted.
From the handset
1 Press MENU/OK.
2 Select [Answ. Machine] > [Delete all],
then press MENU/OK to conrm.
» The handset displays a conrmation
request.
3 Press MENU/OK to conrm.
» All old messages are permanently
deleted.
Note
• You can delete the read messages only. No deleted
messages can be recovered.
Set the ring delay
You can set the number of times the phone
rings before the answering machine picks up
the call.
1 Press MENU/OK.
2 Select [Answ. Machine] > [Ring delay],
then press MENU/OK to conrm.
3 Select a new setting, then press MENU/
OK to conrm.
» The setting is saved.
Page 31
30 EN
Note
• Make sure that the answering machine is switched on
before this feature can be applied.
Tip
• When you access the answering machine remotely,
you are recommended to set the ring delay to [Toll
saver] mode. This is a cost effective way to manage
your messages. When there are new messages, the
answering machine picks up the call after 3 rings; When
there is no messages, it picks up the call after 5 rings.
Remote access
You can operate your answering machine when
you are away from home. Simply make a call to
your phone with a touch tone phone and enter
your 4-digit PIN code.
Note
• The remote access PIN code is the same as your
system PIN. The preset PIN is 0000.
Activate/deactivate the remote access
You can allow or block remote access to the
answering machine.
1 Press MENU/OK.
2 Select [Answ. Machine] > [Remote
access], then press MENU/OK to conrm.
3 Select [On]/[Off], then press MENU/OK
to conrm.
» The setting is saved.
Change the PIN code
1 Press MENU/OK.
2 Select [Answ. Machine] > [Remote
access] > [Change PIN], then press
MENU/OK to conrm.
3 Enter the old PIN, then press MENU/OK
to conrm.
4 Enter the new PIN code, then press
MENU/OK to conrm.
5 Enter the new PIN code again, then press
MENU/OK to conrm.
» The setting is saved.
Access the answering machine
remotely
1 Make a call to your home number with a
touch tone phone.
2 Enter # when you hear the announcement.
3 Enter your PIN code.
» You now have access to your
answering machine, and you can listen
to the new messages.
Note
• You have 2 chances to enter the correct PIN code
before your phone hangs up.
4 Press a key to carry out a function. See the
Remote access commands table below for
a list of available functions.
Note
• When there is no message, the phone hangs up
automatically if no key is pressed for 8 seconds.
Remote access commands
Key Function
1 Repeat the current or listen to the
previous message.
2 Listen to messages.
3 Skip to the next message.
6 Delete the current message.
7 Switch the answering machine on.
(not available when you listen to the
messages).
Page 32
31EN
8 Stop listening to the message.
9 Switch the answering machine off.
(not available when you listen to the
messages).
Behavior of the LED display on the
base station
The table below shows you the current status
with different LED display behavior on the base
station.
LED
display
Message status
Steady on • There is no new message and
the memory is not full.
• The handset is switched on.
• Enter the paging mode
Flashing • There is a new message and the
memory is not full.
• There is an incoming call.
• Recording an incoming message/announcement.
• Message playback.
• Remote access/listen to messages from the handset.
Flashing
(Fast)
• There is no new message and
the memory is full.
• Enter the registration mode
Page 33
32 EN
12 Technical data
Display
• Amber LCD backlight
General telephone features
• Caller name & number identication
• Conference call and voicemails
• Maximum talk time: 20 hours
Phonebook list, Redial list and Call log
• Phonebook list with 50 entries
• Redial list with 10 entries
• Call log with 20 entries
Battery
• HFR: 2 x AAA NiMH 1.2V rechargeable
650mAh batteries
• SANIK: 2 x AAA NiMH 1.2V rechargeable
650mAh batteries
Power adapter
Base and charger:
• Philips: SSW-1920UK-2, Input: 100-240V
50/60Hz 0.2A; Output: 6V 500mA
• Philips: S003PB0600050, Input: 100-240V
50/60Hz 0.2A; Output: 6V 500mA
Power consumption
• Power consumption in standby mode:
0.6W (CD191) 0.65W (CD196)
Weight and dimensions (CD191)
• Handset: 131 grams
• 162.69 x 47.6 x 29.8 mm (H x W x D)
• Base: 105 grams
• 79 x 130.5 x 90.2 mm (H x W x D)
• Charger: 56 grams
• 77.8 x 40.3 x 82.4 mm (H x W x D)
Weight and dimensions (CD196)
• Handset: 131 grams
• 162.69 x 47.6 x 29.8 mm (H x W x D)
• Base: 138 grams
• 79 x 130.5 x 90.2 mm (H x W x D)
• Charger: 56 grams
• 77.8 x 40.3 x 82.4 mm (H x W x D)
Page 34
33EN
13 Notice
Declaration of conformity
Hereby Philips Consumer Lifestyle, declares
that the CD191/CD196 is in compliance with
the essential requirements and other relevant
provisions of Directive 1999/5/EC. You can nd
the Declaration of Conformity on www.p4c.
philips.com.
This product has been designed, tested and
manufactured according the European R&TTE
directive 1999/5/EC.
Use GAP standard
compliance
The GAP standard guarantees that all DECT™
GAP handsets and base stations comply with
a minimum operating standard irrespective of
their make. The handset and base station are
GAP compliant, which means they guarantee
the minimum functions: register a handset,
take the line, make a call and receive a call. The
advanced features may not be available if you
use them with other makes. To register and use
this handset with a GAP compliant base station
of different make, rst follow the procedure
described in the manufacturer's instructions,
then follow the procedure described in this
manual for registering a handset. To register a
handset from different make to the base station,
put the base station in registration mode, then
follow the procedure described in the handset
manufacturer's instructions.
Compliance with EMF
Koninklijke Philips Electronics N.V. manufactures
and sells many products targeted at consumers,
which, like any electronic apparatus, in
general have the ability to emit and receive
electromagnetic signals.
One of Philips’ leading Business Principles is to
take all necessary health and safety measures
for our products, to comply with all applicable
legal requirements and to stay well within
the EMF standards applicable at the time of
producing the products.
Philips is committed to develop, produce and
market products that cause no adverse health
effects. Philips conrms that if its products are
handled properly for their intended use, they
are safe to use according to scientic evidence
available today.
Philips plays an active role in the development
of international EMF and safety standards,
enabling Philips to anticipate further
developments in standardization for early
integration in its products.
Disposal of your old product
and batteries
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for the
environment and human health.
Page 35
34 EN
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed with normal household waste.
Please inform yourself about the local rules
on separate collection of batteries because
correct disposal helps to prevent negative
consequences for the environmental and
human health.
When this logo is attached to a product, it
means a nancial contribution has been paid to
the associated national recovery and recycling
system.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Page 36
35EN
14 Frequently
asked questions
No signal bar is displayed on the screen.
• The handset is out of range. Move it closer
to the base station.
• If the handset displays [Unregister],
register your handset.
Tip
• For further information, see the chapter 'Services',
section 'Register the handsets'.
If I fail to register the additional handsets to
the base station, what do I do?
Your base memory is full. Unregister the unused
handsets and try again.
No dialing tone
• Check your phone connections.
• The handset is out of range. Move it closer
to the base station.
No docking tone
• The handset is not placed properly on the
base station/charger.
• The charging contacts are dirty. Disconnect
the power supply rst and clean the
contacts with a damp cloth.
I cannot change the settings of my voice mail,
what do I do?
The voice mail service is managed by your
service provider but not the phone itself.
Contact your service provider to change the
settings.
The handset on the charger does not charge.
• Make sure the batteries are inserted
correctly.
• Make sure the handset is placed properly
on the charger. The battery icon animates
when charging.
• Make sure the docking tone setting is
turned on. When the handset is placed
correctly on the charger, you can hear a
docking tone.
• The charging contacts are dirty. Disconnect
the power supply rst and clean the
contacts with a damp cloth.
• Batteries are defective. Purchase new ones
from your dealer.
No display
• Make sure the batteries are charged.
• Make sure there is power and the phone is
connected.
Bad audio (crackles, echo, etc.)
• The handset is nearly out of range. Move it
closer to the base station.
• The phone receives interference from the
nearby electrical appliances. Move the base
station away from them.
• The phone is at a location with thick walls.
Move the base away from them.
The handset does not ring.
Make sure the handset ringtone is turned on.
The caller ID does not display.
• The service is not activated. Check with
your service provider.
• The caller's information is withheld or
unavailable.
Note
• If the above solutions do not help, disconnect the
power supply from both the handset and base station.
Try again after 1 minute.
Page 37
36 EN
15 Appendix
Text and number input tables
Key Upper case characters (for English/
French/ German/ Italian/Turkish/
Portuguese/Spanish/Dutch/Danish/
Finnish/Norwegian/ Swedish/ Romanian/
Polish/Czech/Hungarian/Slovakian/
Slovenian/Croatian/Lithuanian/Estonian/
Lativian/Bulgarian)
0 Space . 0 , / : ; " ' ! ¡ ? ¿ * + - % |
1 1 @ _ # = < > ( ) & £ $ ¥ ¤ § ...
2 A B C 2 Â Æ Á Ã Ä Å Ç Č
3 D E F 3 É Ê Ė Ę Δ Φ
4 G H I 4 Ğ Í Ï İ Γ
5 J K L 5 Λ
6 M N O 6 Ñ Ó Ô Õ Ö
7 P Q R S 7 Ş Š Π Θ Σ
8 T U V 8 Ù Ú Ü
9 W X Y Z 9 Ø Ω Ξ Ψ Ž
Key Lower case characters (for English/
French/ German/ Italian/Turkish/
Portuguese/Spanish/Dutch/Danish/
Finnish/Norwegian/ Swedish)
0 Space . 0 , / : ; " ' ! ¡ ? ¿ * + - % |
1 1 @ _ # = < > ( ) & £ $ ¥ [ ] { } ¤ § …
2 a b c 2 à â æ á ã ä å ç č
3 d e f 3 è é ê ë Δ Φ
4 g h i 4 ğ í ì ï į ı Γ
5 j k l 5 Λ
6 m n o 6 ñ ó ô õ ö ò
7 p q r s 7 β ş š Π Θ Σ
8 t u v 8 ù ú ü
9 w x y z 9 ø Ω Ξ Ψ ž
Key Upper case characters (for Greek)
0 Space . 0 , / : ; " ' ! ¡ ? ¿ * + - % \^ ~|
1 1 @ _ # = < > ( ) & € £ $ ¥ [ ] { } ¤ § ...
2 A B Г 2 A B C Æ Å Ç
3 Δ Ε Ζ 3 D E F É
4 Η Θ Ι 4 G H I
5 Κ Λ Μ 5 J K L
6 Ν Ξ Ο 6 M N O Ñ Ö
7 Π Ρ Σ 7 P Q R S ß
8 Τ Υ Φ 8 T U V Ü
9 Χ Ψ Ω 9 W X Y Z Ø
Key Lower case characters (for Greek)
0 Space . 0 , / : ; " ' ! ¡ ? ¿ * + - % \ ^ ~ |
1 1 @ _ # = < > ( ) & € £ $ ¥ [ ] { } ¤ §
…
2 α β γ 2 a b c à æ ä å
3 δ ε ζ 3 d e f è é
4 η θ ι 4 g h i ì
5 κ λ μ 5 j k l Λ
6 ν ξ ο 6 m n o ñ ö ò
7 π ρ σ ς 7 p q r s ß
8 τ υ φ 8 t u v ù ü
9 χ ψ ω 9 w x y z ø
Key Upper case characters (for Serbian)
0 Space . 0 , / : ; " ' ! ¡ ? ¿ * + - % \^ ~|
1 1 @ _ # = < > ( ) & € £ $ ¥ [ ] { } ¤ § ...
2 A B C Ђ Ć Č 2 А Б В Г
3 D E F Ј Đ 3 Д Е Ж З Δ Φ
4 G H I Љ 4 И Й К Л Γ
5 J K L Њ 5 М Н О П Λ
6 M N O Ћ 6 Р С Т У
7
P Q R S Җ Š 7 Ф Х Ц Ч Π Θ Σ ß
8 T U V 8 Ш Щ Ъ Ы
9 W X Y Z Ž 9 Ь Э Ю Я Ω Ξ Ψ
Key Lower case characters (for Serbian)
0 Space . 0 , / : ; " ' ! ¡ ? ¿ * + - % \ ^ ~ |
1 1 @ _ # = < > ( ) & € £ $ ¥ [ ] { } ¤ §
…
2 a b c Ђ Ć Č 2 А Б В Г
3 d e f Ј Đ 3 Д Е Ж З
4 g h i Љ 4 И Й К Л
5 j k l Њ 5 М Н О П
6 m n o Ћ 6 Р С Т У
Page 38
37EN
7
p q r S Җ Š 7 Ф Х Ц Ч Π Θ Σ ß
8 t u v ij 8 Ш Щ Ъ Ы
9 w x y Z Ž 9 Ь Э Ю Я Ω Ξ Ψ
Page 39
Specifications are subject to change without notice
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
0168
Loading...
