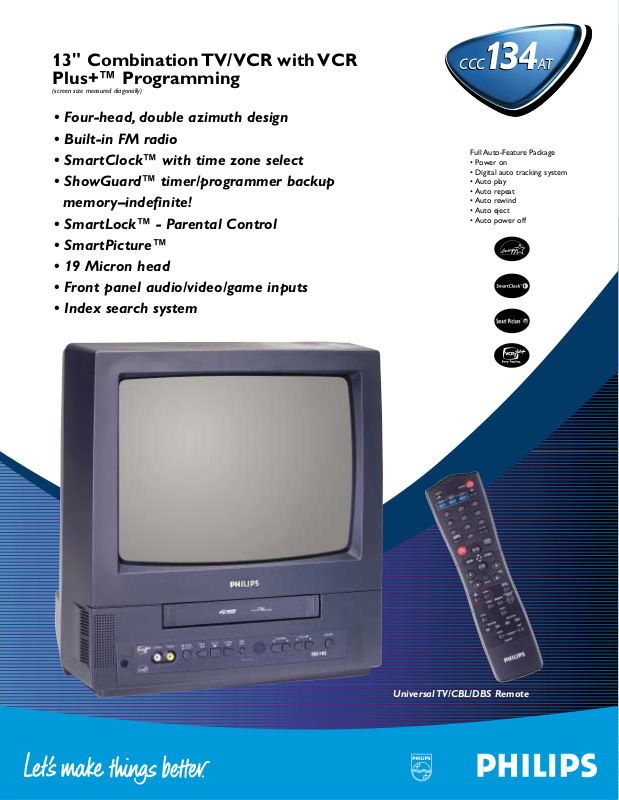

Philips CCC134AT User Manual

AA1000

CCC134AT

13" Combination TV/VCR with VCR Plus+™ Programming

(screen size measured diagonally)

• Four-head, double azimuth design

• Built-in FM radio

• SmartClock™ with time zone select

• ShowGuard™ timer/programmer backup memory–indefinite!

• SmartLock™ - Parental Control

• SmartPicture™

• 19 Micron head

• Front panel audio/video/game inputs

• Index search system

CCC134AT

Full Auto-Feature Package

• Power on

• Digital auto tracking system

• Auto play

• Auto repeat

• Auto rewind

• Auto eject

• Auto power off

Universal TV/CBL/DBS Remote

Front Panel Menu Access Daylight Savings Time Adjustment Built-in FM Radio Closed Caption Automatic Channel Setup Front Panel Audio/Video/Game Inputs 181-Channel FS Tuning Onscreen Real-Time Counter Bilingual (English/Spanish) Sleep/Wake Timer

Onscreen Function Display Earphone Jack A-B Repeat Play Indefinite Repeat Play Rapid Start Mechanism Memory Rewind/Off

Special Effects

15x Forward/Reverse Search

Search in forward or reverse mode at 15 times normal playing speed in SLP.The search feature provides continuous forward or reverse search with a single touch of the control. A second touch stops the search operation and returns the unit to the Play mode.

“Commercial” Skip Search

This feature allows short-distance “hops” in playback making it easier to find those elusive, previously recorded scenes.With just one touch of the SKIP SEARCH button on the remote you can fast forward the tape for 30 seconds and then return to the Play mode automatically.

Index Search System

Remote Control (Remote # N0350UD)

Universal TV/CBL/DBS Remote

Multifunction infrared remote controls all operating features and functions of this Combi, plus select functions of most Philips, Magnavox,and some competitive brand television sets, as well as some cable converter/decoders, and standard features of Philips, Magnavox,RCA, and Sony digital broadcast satellite receiver. Change channels fast with the numeric direct access keypad and heads-up onscreen display for confirmation.

Full Auto-Feature Package

• Power On • Digital Auto Tracking

• Auto Play • Auto Repeat

• Auto Rewind • Auto Eject

• Auto Power Off

UPC: 0 37849 90961 4 Product Dimensions: 15.2"W x 15.8"H x 14.8"D Product Weight: 24.3 lbs. Carton Dimensions: 17.1"W x 18.5"H x 16.8"D Carton Weight: 27.2 lbs. Master Pack: 1 Contains: 13" Combination TV/VCR,Universal TV/CBL/DBS Remote Control w/Batteries, Operating Instructions,Warranty Information

SmartClock, SmartLock, SmartPicture, and ShowGuard are trademarks of Philips Consumer Electronics. VCR Plus+ is a trademark of Gemstar Development Corporation.

As an ENERGY STAR®Partner,Philips has determined that this product meets the ENERGY STA R

guidelines for energy efficiency.

By using environmentally-friendly materials, Philips Consumer Electronics continues to demonstrate our commitment to a cleaner environment.This paper is made from at least 10% post-recycled stock, and the ink is vegetable based.

http://www.philipsusa.com

Specifications subject to change without notice.

Programming & Record/Playback Features

VCR Plus+™ Easy Taping

Simplifies VCR programming by allowing you to simply enter PlusCode® programming numbers found in many published television listings.When recording begins, your VCR automatically selects the proper TV channel and program length. Back-up memory logic retains the cable channel guide map indefinitely even during a power failure or when the VCR is disconnected from its power source.

One-Touch Record 8-Event/1-Year Smart Programming Remote Control Onscreen Menu Programming


4-Head, Double Azimuth Design

Combines direct drive cylinder and capstan motors with precision digital servo control to produce smooth "Still and Slow" effects in both SP and SLP speeds.Using the appropriate remote, you can enjoy other excellent special effects such as "Frame Advance," "Variable Slow Motion," and x2 Play.

SmartPicture™

Customize picture to your viewing preferences for maximum enjoyment with SmartPicture.A touch of the SmartPicture button on the remote control provides the option of selecting one of four factory preset positions including sports, movies, weak signal,or games.

SQPB (S-VHS Quasi-Playback)

A revolutionary video playback technology that allows you to watch videotapes recorded in the S-VHS (Super-VHS) mode without buying expensive SVHS equipment.

19 Micron Head Digital Auto Tracking System Auto Head Cleaner

Convenience

ShowGuard™ Timer/Programmer Backup Memory–Indefinite!

Now all your timer/programming is safe, regardless of power outages. Information is stored indefinitely in the system EEPROM.

SmartClock™ with Time Zone Select

This menu-driven feature automatically maintains the correct time, regularly checking and updating the time if necessary.It also resets the clock after a power failure.The menu-driven time zone feature allows selection of appropriate time for those who live in a time zone other than that of their cable service provider or broadcaster.

SmartLock™

Protect young children from harmful programming with V-chip technology based on the Motion Picture Association of America (MPAA) and the network television rating systems.

13" Combination TV/VCR with VCR Plus+™ Programming

CCC134AT

CCC

134AT
