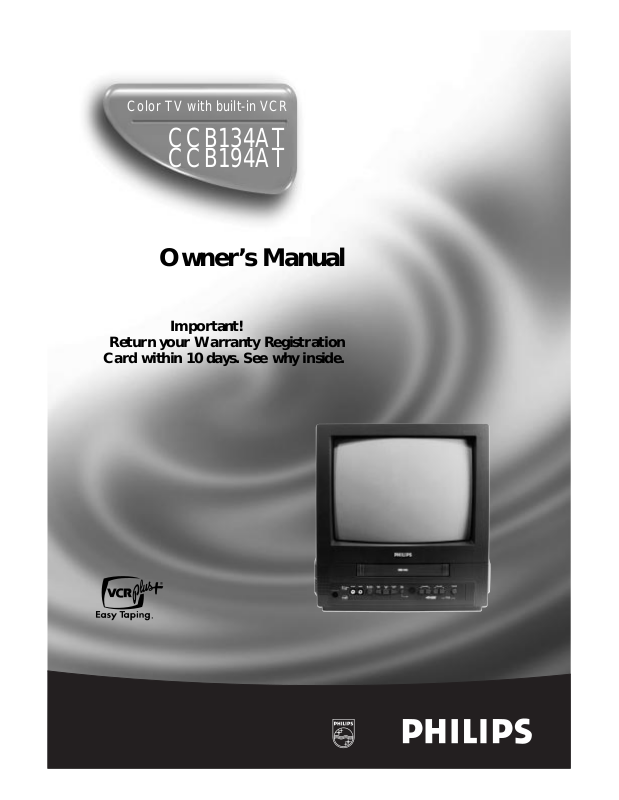

Owner’s Manual

Important!

Return your Warranty Registration

Card within 10 days. See why inside.

Color TV with built-in VCR

CCB134AT CCB194AT

Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS product. So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to

ensure you receive all the

benefits

you’re entitled to.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No. ________________ Serial No. ________________

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come. As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome-and thanks for investing in a PHILIPS product.

Sincerely,

Robert Minkhorst President and Chief Executive Officer

P.S. Remember, to get the most from your PHILIPS

product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Know these

safetysymbols

This “bolt of lightning” indi-

cates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point”

calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Hurry!

Warranty Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS warranty.

Owner Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

Visit our World Wide Web Site at http://www.philips.com

Introduction 3

• Before doing anything else, record the TV/VCR’s model and serial numbers in the spaces provided on page two. These numbers will help us assist you if you ever call for help.

• Your new product, its packaging, and this manual contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount that needs to be properly disposed. Your product uses batteries that should not be thrown away when depleted but should be disposed of as small chemical waste. Please find out about the local regulations on disposal of your old product, batteries, manual, and packaging whenever you replace existing equipment.

Helpful Hints

Safety Precautions

Warning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture. Federal Communications Commission (FCC)Warning: Any unauthorized changes or modifications to this equipment void the user’s authority to operate it. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This TV/VCR, equipped with a High Quality (HQ) system, is compatible with existing Video Home System (VHS) equipment. Note to the Cable TV System Installer: This reminder is provided to call the Cable TV system installer’s attention to Article 820-40 of the National Electrical Code, which provides guidelines for proper grounding – in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

Declaration of Conformity

Model Number: CCB134AT / CCB194AT Trade Name: Philips Responsible Party: Philips Consumer Electronics

P.O. Box 14810 Knoxville, TN 37914-1810 (865) 521-4316

As an E

NERGY STAR

Partner, Philips Consumer Electronics

has determined that this product meets the E

NERGY STAR

guidelines for energy efficiency. ENERGY STAR®is a U.S. regis-

tered mark. Using products with the E

NERGY STAR

label can save energy. Saving energy reduces air pollution and lowers utility bills. SmartClock

, SmartPictureTM, SmartLockTM, SmartSoundTM, Remote

Locator

and PlusCode®are registered trademarks of Gemstar Development Corporation. The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.

Welcome to your TV/VCR owner’s manual.

This manual describes two models: CCB134 and CCB194. Although the models may have a different appearance, both models operate exactly the same. The CCB134 is illustrated in this manual. This manual has seven sections: Setting Up Your TV/VCR; Description of Controls; Basic Operations; Recording Options; Playing Options; Additional Features; and Information You May Need. The instructions explain all of the TV/VCR’s features, which are listed below.

Features

• A-B Repeat Play

• Automatic Head Cleaner

• Automatic Tracking Adjustment

• Blue Background

• Closed Caption

• Daylight-Savings Time

• FM Radio

• Index Search

• 19 micron head, improves the picture quality during

playback of SLP tapes

• On-screen displays in English or Spanish

• On-screen Menu Programming, accessible with

remote control or front panel buttons

• One-Touch Recording

• Remote Control with ability to operate a Cable Box/Direct Broadcast System

• Remote Locator

• Repeat Play

• S-VHS Quasi Play Back (SQPB)

• ShowGuard

- Indefinite Timer Recording memory

• Skip Search

• Sleep Timer

• SmartClock

• SmartLock

• SmartPicture

• Smart Sound

• Timer Recording

• VCR Plus+ Programming System

• Wake Up Timer

4 Table of Contents

Setting Up Your TV/VCR

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Before Using the TV/VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hooking Up the TV/VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

Turning On the TV/VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Automatic Channel Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-11

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-17

Daylight-Savings Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Time Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Setting the Remote to Operate a Cable Box/DBS . . . . . . . . . . . . . . . . . . . . . . . . . .20-21

Description of Controls

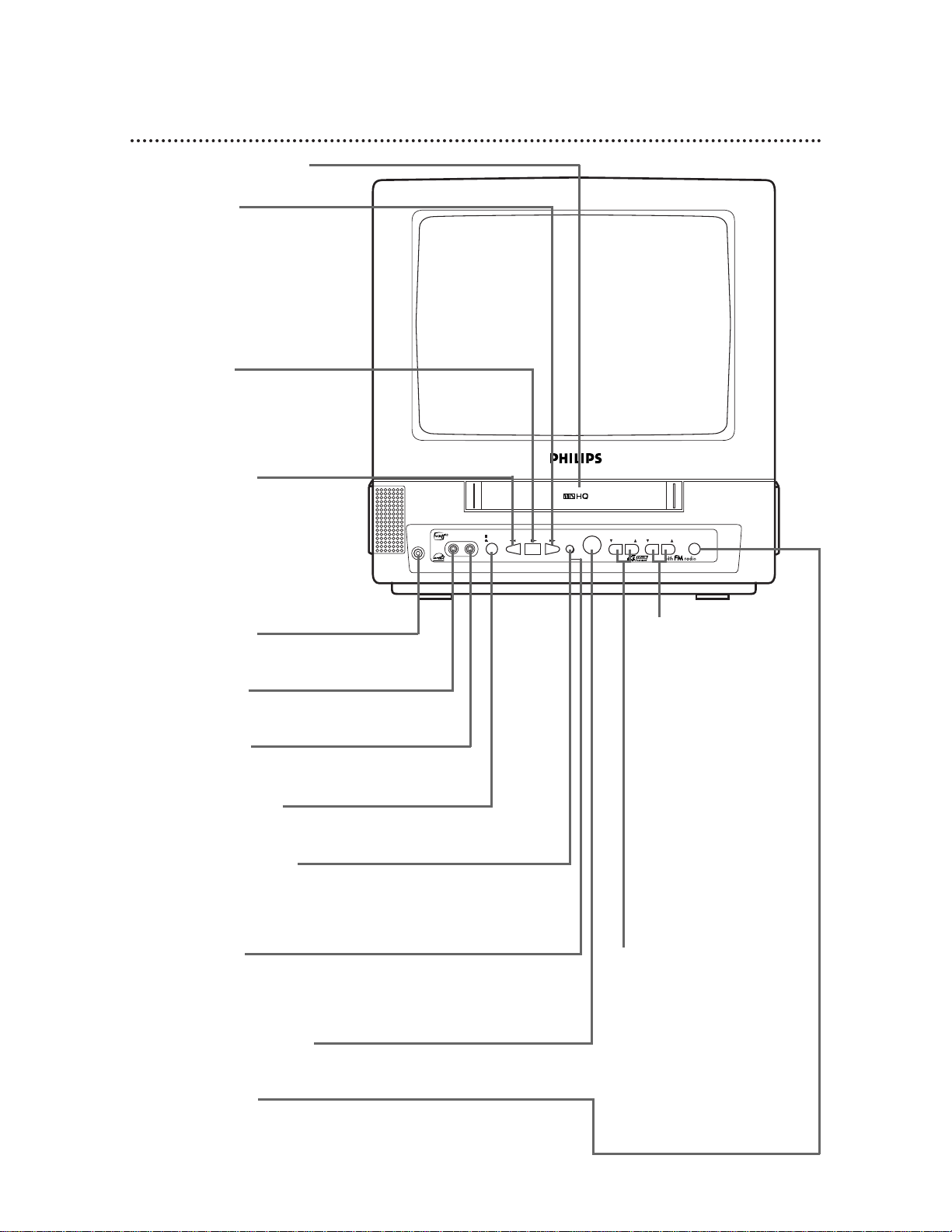

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

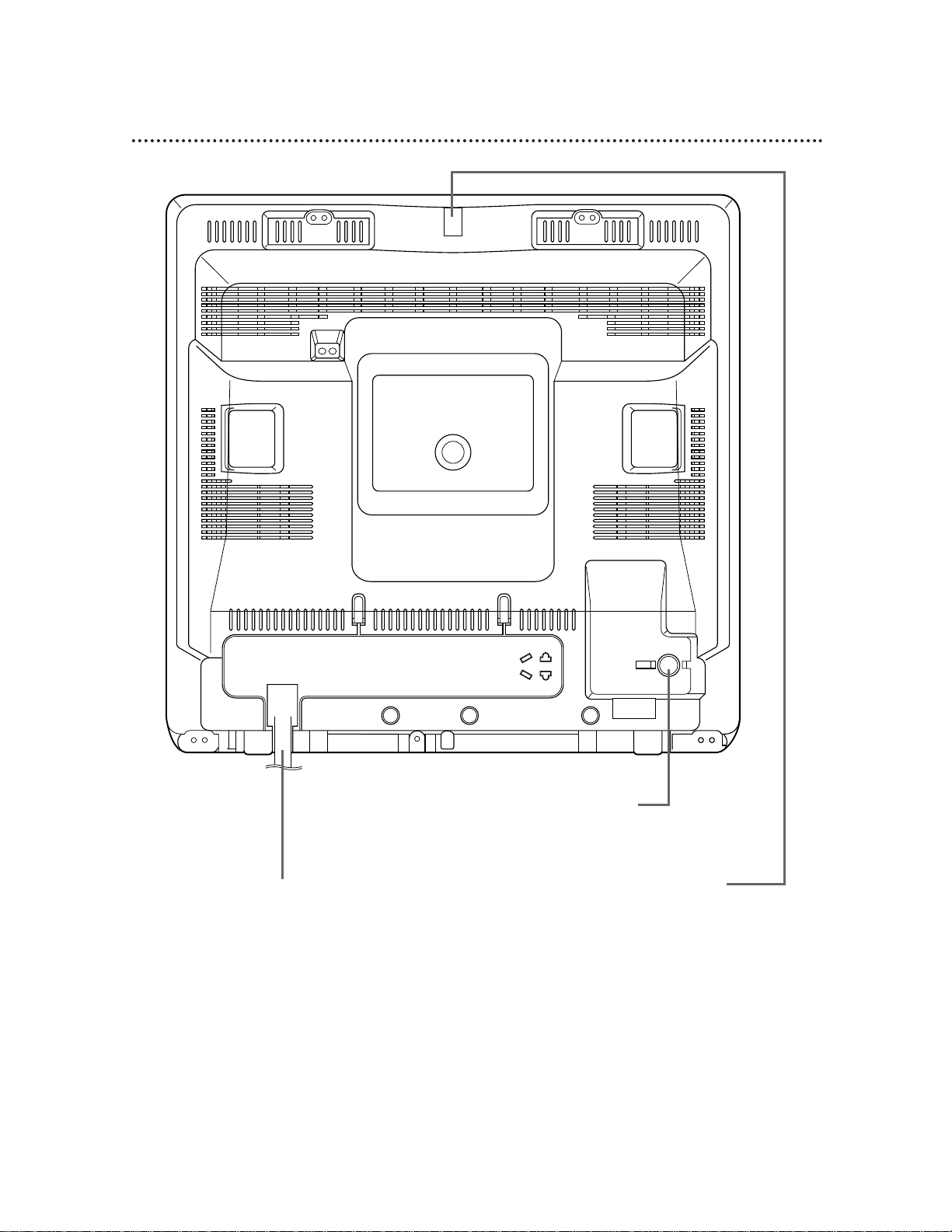

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

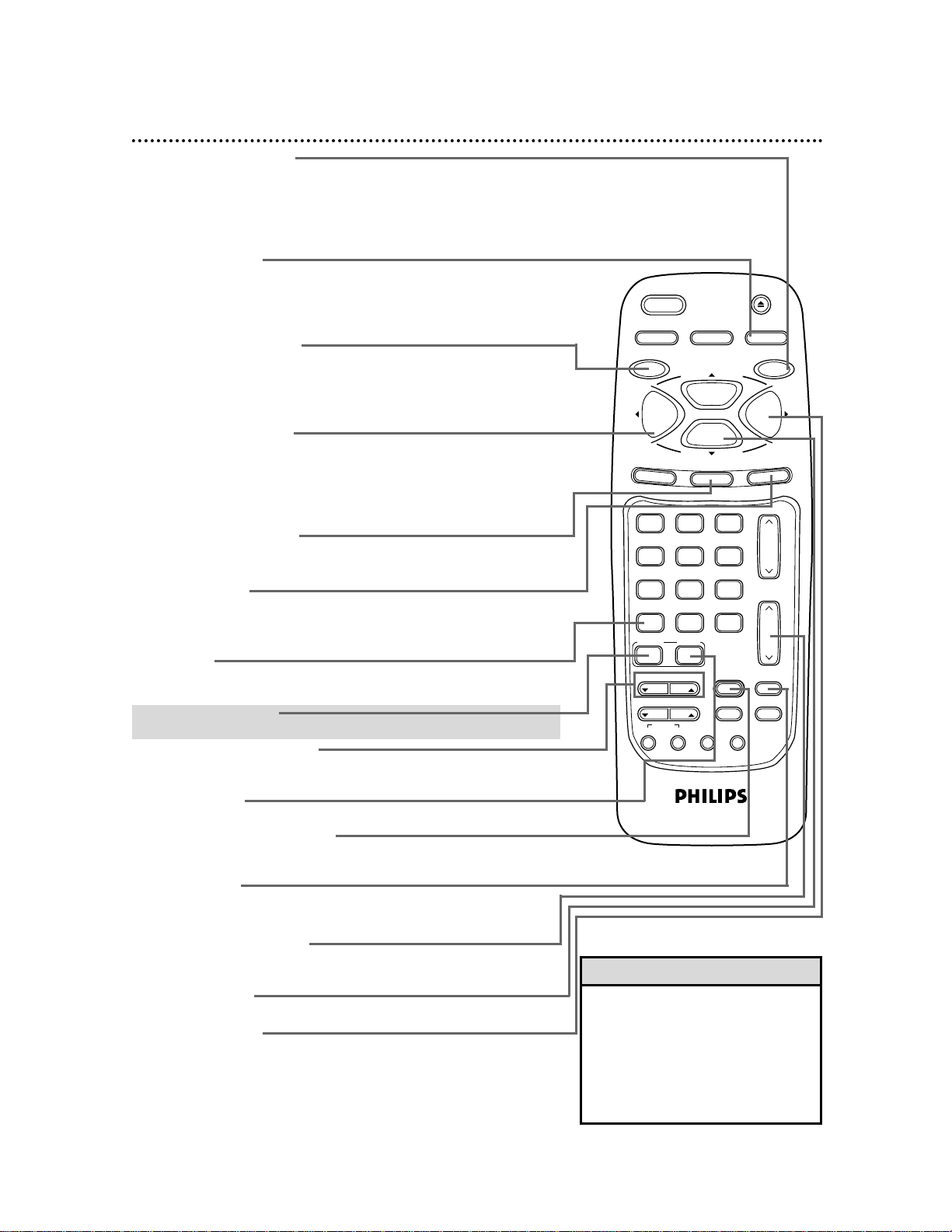

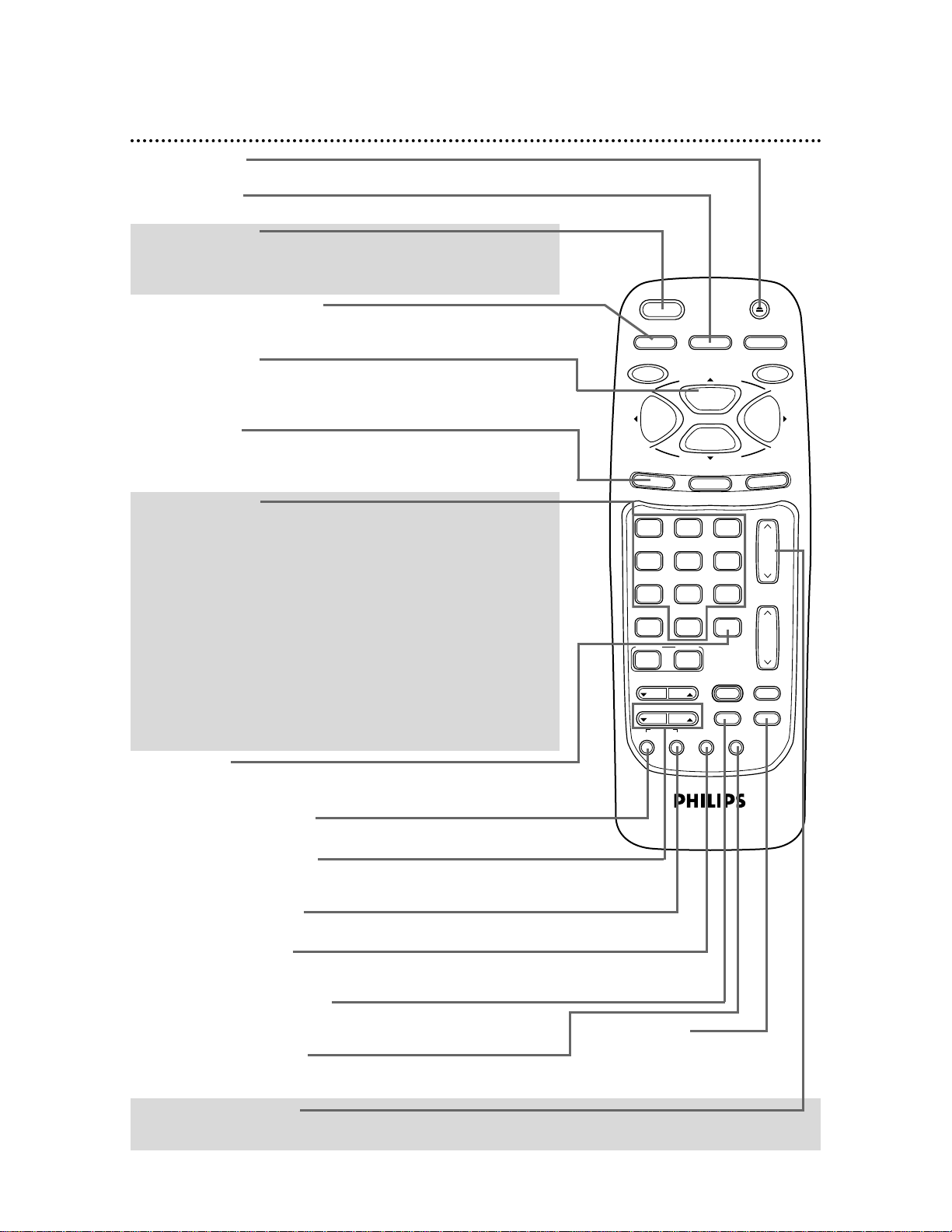

Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25

Adjusting the Picture Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26-27

On-Screen Status Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Basic Operations

Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Recording Options

One-Touch Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Rerecording (Tape Duplication) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Defeat Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-37

Setting Up the VCR Plus+ Programming System . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39

Timer Recording With the VCR Plus+ Programming System . . . . . . . . . . . . . . . . . .40-41

Playing Options

Real-Time Counter Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

A-B Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44-45

Playback Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Additional Features

Blue Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

SmartLock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48-51

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Wake Up Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Closed Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54-55

Volume Bar/Smart Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Automatic Operation Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

SmartPicture/FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Remote Locator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Index Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Information You May Need

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64-65

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

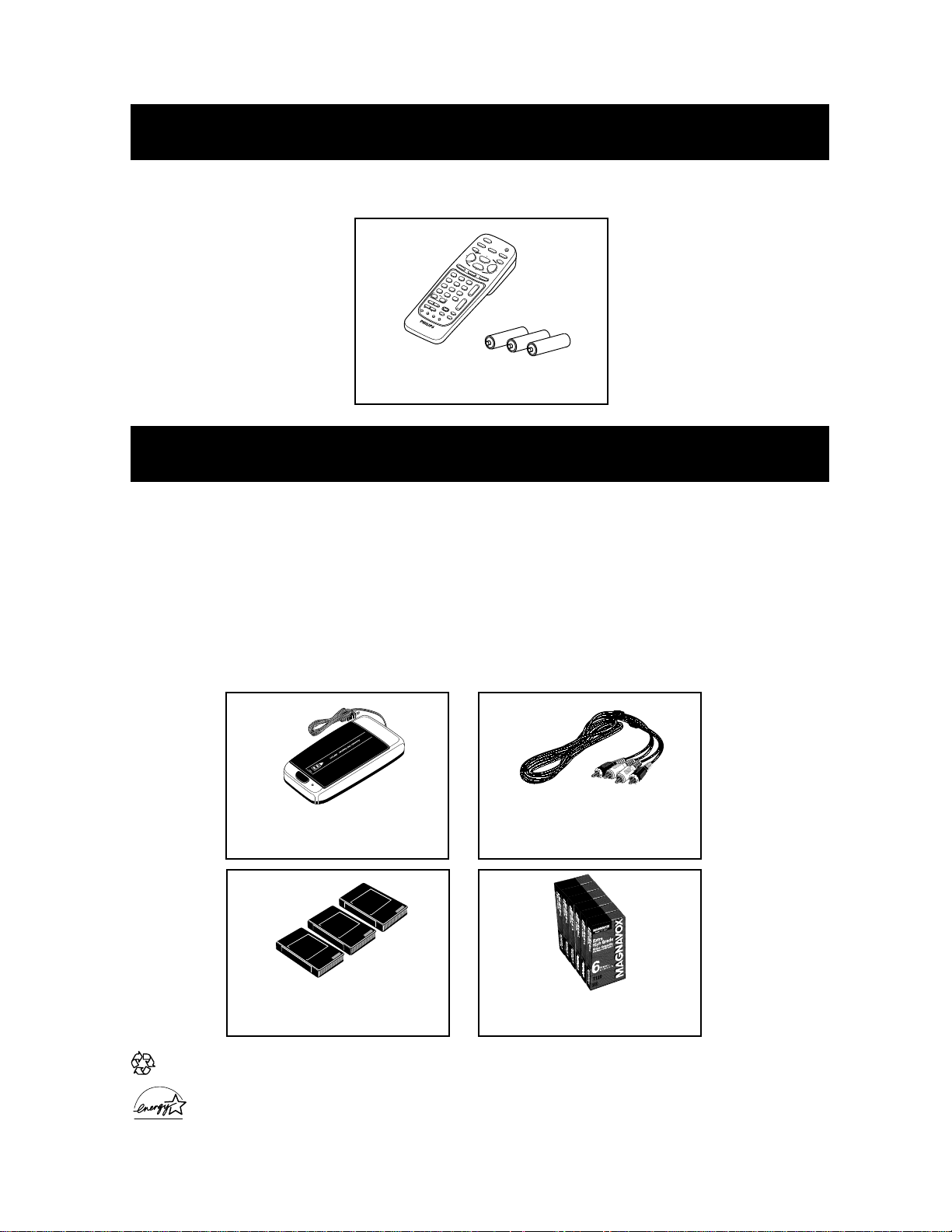

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

• The remote control and its batteries are supplied.

• Do not mix alkaline and manganese batteries.

• Do not mix old and new batteries.

Before Using the TV/VCR 5

Putting Batteries in the Remote Control

Remove the battery compartment lid on the bottom of the remote control by pressing in the tab, then pulling up the lid.

Place three AA batteries inside the battery compartment with their +and –ends aligned as indicated.

Replace the battery compartment lid.

Using the Remote Control

● Point the remote control at the TV/VCR’s remote sensor, then

press the COMBI button when using the remote control to operate the TV/VCR. Point the remote control at the Cable Box/DBS, then press the CABLE/DBS button when using the remote control to operate the Cable Box/DBS.

● Do not put objects between the remote control and the TV/VCR.

TV/VCR Maintenance

● In this TV/VCR, use only tapes with the mark. The use of

other tapes may result in poor picture quality and excessive deposits on the video heads, which may not be covered by the warranty if damage occurs.

● Make sure any light adhesive stick-on notes are removed from the

video cassette tape before putting the tape in the TV/VCR. Removable labels like these can jam the TV/VCR.

● Periodic maintenance is required to maintain your TV/VCR’s excel-

lent performance. This TV/VCR has an automatic head cleaning system. However, the video heads will eventually require cleaning or replacement. Only an authorized service center should perform this service.

Video cassette tapes have record tabs to ensure that recordings are not accidentally erased.

To prevent accidental erasure, break off the tab with a screwdriver.

To record again, cover the hole with cellophane tape.

Erasure Prevention

Helpful Hints

1 2

6 Hooking Up the TV/VCR

Hooking Up Your TV/VCR With a Cable Signal or Outdoor Antenna

Hooking Up Your TV/VCR With a Cable Box

To view any channel, set the TV/VCR to the Cable Box output channel (channel 03 or 04). Then, select channels at the Cable Box.

Hook up your TV/VCR using one of the connections shown.

Hooking Up Your TV/VCR With an Indoor Antenna

To install a rod antenna (not supplied), push the stem of the antenna into the antenna hole on the top of the TV/VCR. Connect the antenna wire to the ANT(enna) Jack on the back of the TV/VCR as shown. Extend the antenna and adjust its length, direction, and angle for the clearest picture.

ANT.

OUT

ANT.

Connect an RF coaxial cable (75ohm, not supplied) to the OUT Jack on the Cable Box and to the ANT(enna) Jack on the TV/VCR.

Connect a Cable signal or an antenna to the ANT(enna) Jack.

ANT.

Rod Antenna

(not supplied)

Connect the Cable signal to the IN Jack on the Cable Box.

RF coaxial cable

(not supplied)

CCB134

Hooking Up the TV/VCR (cont’d) 7

• Before connecting an antenna or cable signal to the ANT(enna) Jack, make sure the pin is not bent. If the pin is bent, straighten it as illustrated, then connect the antenna or cable signal to the ANT(enna) Jack.

• A rod antenna (not supplied) is available from Philips Service Solutions Group. The part number is 4835 303

37006. To order, call 1-800-851-8885. (This antenna will fit the CCB134 only.)

• Audio and video cables are not supplied.

Helpful Hints

Crooked Pin

Straight Pin

Bent pin

Plug

Cable

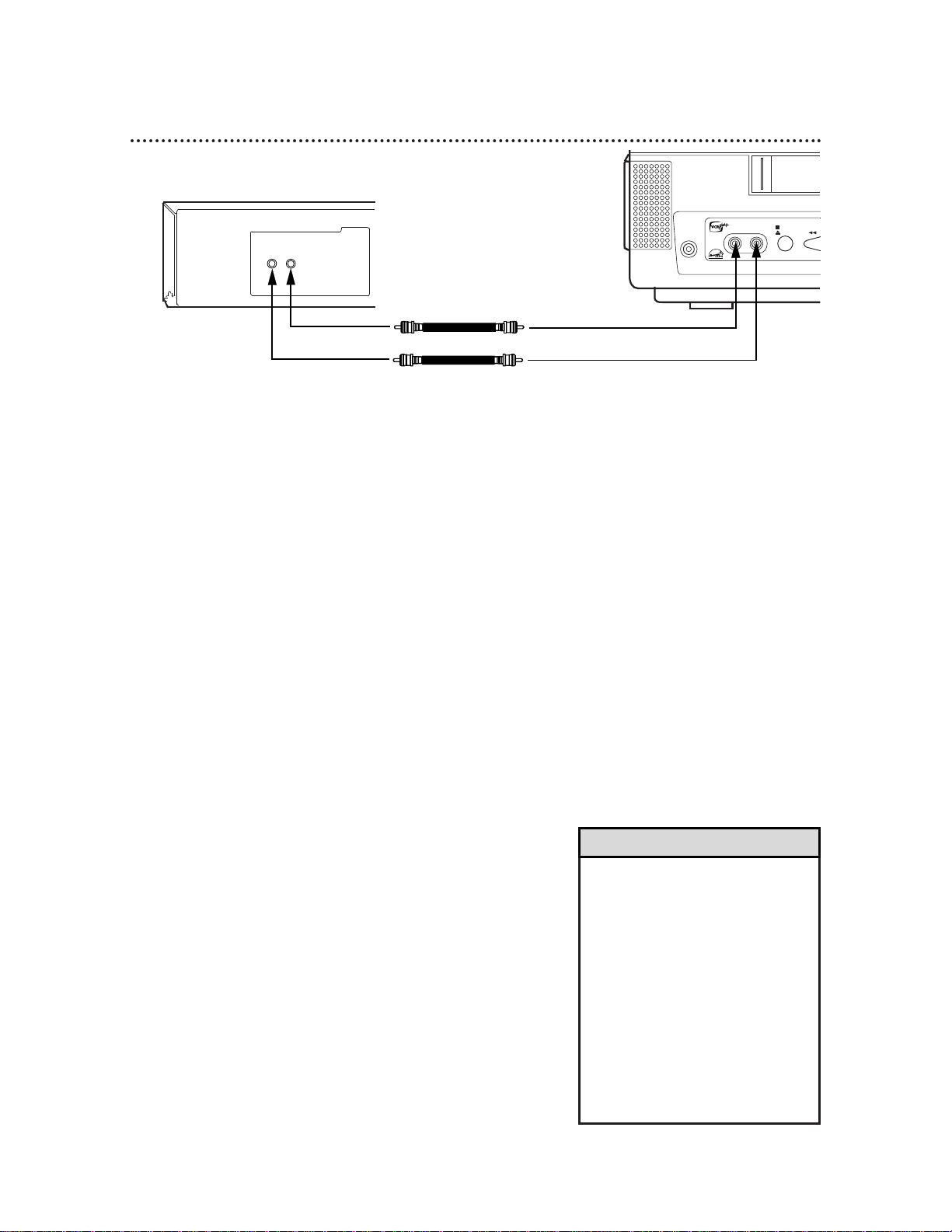

Hooking Up Your TV/VCR to Another Video Source (VCR or Camcorder)

You may need this connection if you want to copy tapes or view tapes from a camcorder.

Details are on page 32.

Plug in the TV/VCR’s power cord.

Before you turn on the TV/VCR, go to page eight.

EARPHONE

AUDIO VIDEO

STOP REW PLAY F.FWD CHANNEL VOLUME POWERREC

OTR

EJECT

OUT

VIDEO

OUT

3CH 4CH

AUDIO

ANT.

OUT

VIDEO

OUT

3CH 4CH

AUDIO

ANT.

VIDEOAUDIO

AUDIO/VIDEO In Jacks on front of TV/VCR

AUDIO/VIDEO OUT Jacks on VCR

Use an Audio cable to connect the AUDIO OUT Jack on the VCR to the AUDIO In Jack on the front of the TV/VCR.

Use a Video cable to connect the VIDEO OUT Jack on the VCR to the VIDEO In Jack on the front of the

CCB134

8 Turning On the TV/VCR

Before you turn on the TV/VCR, make sure batteries are in the remote control and the TV/VCR is hooked up correctly. The instructions on this page work only when you turn on the TV/VCR for the first time.

Press the COMBI button, then press the POWER button.

The TV/VCR will come on and the screen shown below will appear.

Press the PLAY/K button or the STOP/L button to select English or Spanish on-screen displays and menus.

Press the MENU button. The screen shown below will appear.

Press the F.FWD/B button to begin automatic channel setup. The TV/VCR will memorize all available channels. When

channels are set, CHANNELS ARE SET will appear on the screen briefly. Then the TV/VCR will go to the lowest channel programmed. (If you try to set up channels when there is no antenna or cable connected to the TV/VCR, programming will appear to take place, but eventually a NO TV SIGNALS ... message will appear on the screen. Connect an antenna or cable to the ANT(enna) jack on the TV/VCR, then press the F.FWD/B button again. You may need to follow the steps on page 10 instead.)

CONNECT ANTENNA OR CABLE TO TVCR

THEN PRESS B

TO END PRESS EXIT

SELECT LANGUAGE

> ENGLISH ON

ESPAÑOL

SELECT KL OR PRESS MENU TO CONTINUE

Use the CH(annel) mm/nnbutton or the Number buttons on the remote control to select a TV/VCR channel. Use the VOL(ume) mm/nnbutton to adjust the sound.

• If you do not see any on-screen displays when you turn on the TV/VCR, check your hookups, then try again. If you still do not see any on-screen displays, follow the steps on pages nine-10 to select a language and set up channels.

• To skip step 2, press the MENU button. All on-screen displays will be inEnglish. To skip step 4, press the STATUS/EXITbutton. Channels will not be set up, and CHANNELS NOT SET will appear on the screen briefly.

• You cannot set up channels if you are using a Cable Box.

• Line Input mode will always be stored in the TV/VCR’s memory as channel 00. When you select channel 00, A/V IN will appear on the screen briefly. Press the CH(annel)

mm/nn

button or the Number but-

tons to select another channel.

Helpful Hints

1 2

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS

VAR.SLOW

TRACKING

SMART


SOUND

COMBI

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

SKIP

SURF

/ENTER

F.ADV

INDEX

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

MUTE

SLOW

Language Selection 9

Follow the steps below to change the language of the on-screen displays and menus.

Press the PLAY/▲ button or the STOP/▼ button to choose SELECT LANGUAGE. Then, press the F.FWD/B button.

Press the PLAY/▲ button or the STOP/▼ button to select ENGLISH or ESPAÑOL (Spanish).

Press the STATUS/EXIT button.

SELECT LANGUAGE

> ENGLISH ON

ESPAÑOL

SELECT KL TO END PRESS EXIT

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING CH MEMORY REVIEW VOLUME BAR [ON] SET CLOCK REMOTE LOCATOR

SELECT KL CHOOSE B TO END PRESS EXIT

> PRIM. SETUP

VCR PROGRAM VCR SETUP CAPTION REMINDER BRIGHTNESS

PRESS B

• If you accidentally select Spanish and need English on-screen displays and menus:

1) Press the COMBI button, then press the MENU button.

2) Press the PLAY/o button or the STOP/p button to select PREPARACION, then press the F.FWD/B button.

3) Press the PLAY/o button or the STOP/p button to select SELECCION IDIOMA, then press the F.FWD/B button.

4) Press the PLAY/o button or the STOP/p button to select ENGLISH.

5) Press the STATUS/EXIT button.

Helpful Hint

2-4

SPEED

PLAY

STOP

STATUS/EXIT

SKIP

SURF

VCR PLUS+

/ENTER

F.ADV

INDEX

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

MUTE

SLOW

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS

VAR.SLOW

TRACKING

SMART


SOUND

COMBI

10 Automatic Channel Setup

Although the TV/VCR may automatically memorize the channels you receive when you turn it on for the first time, you may set up channels again by following the steps below.

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select PRIM. SETUP, then press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING CH MEMORY REVIEW VOLUME BAR [ON] SET CLOCK REMOTE LOCATOR

SELECT KL CHOOSE B TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select AUTO PROGRAMMING, then press the F.FWD/B button.

AUTO CH PROGRAMMING ... will appear on the screen. The TV/VCR distinguishes between TV channels and cable channels automatically, and the TV/VCR will memorize its available channels.

• Line Input mode will always be stored in the TV/VCR’s memory as channel 00. You cannot select AUTO PROGRAMMING at step 3 if the TV/VCR is on channel 00 (A/V IN).

Helpful Hint

Wait for a few minutes. When setup is complete, CHANNELS

ARE SET will appear on the screen. Then the programming of the lowest channel number placed in the TV/VCR’s memory will appear on the screen. Now, when you press the CH(annel) mm/

button, you will scan only through channels you receive.

Wait for the TV/VCR to set up channels.

2-3

> PRIM. SETUP

VCR PROGRAM VCR SETUP CAPTION REMINDER BRIGHTNESS

PRESS B

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS

VAR.SLOW

TRACKING

SMART


SOUND

COMBI

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

SKIP

SURF

/ENTER

F.ADV

INDEX

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

MUTE

SLOW

Automatic Channel Setup (cont’d) 11

Press the F.FWD/B button or the REW(ind)/{ button to select SAVED (to add that channel) or DELETED (to delete that channel).

Repeat steps 3-4 to add or delete other channels.

Press the STATUS/EXIT button.

Programming of the last channel you selected will appear.

Press the CH(annel) mm/nnbutton to select the channel you want to add or delete.

• Line Input mode will always be stored in the TV/VCR’s memory as channel 00. You cannot delete it.

• To review the channels memorized by the TV/VCR, follow these steps.

1) Press the COMBI button, then press the MENU button.

2) Press the PLAY/▲ button or the STOP/▼ button to select PRIM. SETUP. Press the F.FWD/B button.

3) Press the PLAY/▲ button or the STOP/▼ button to select CH MEMORY REVIEW. Press the F.FWD/B button. A list of programmed channels will appear on the screen.

4) If all the programmed channels don’t fit on the screen, press the F.FWD/B button. If you do not press the F.FWD/B button within 10 seconds, the remaining channels will appear on the screen. (If there are no remaining channels, the previous menu will appear.) Or press the REW(ind)/{ button to see the previous screen of channels.

5) Press the STATUS/EXIT button once or twice.

Helpful Hints

Press the COMBI button, then press the MENU button.

Press the PLAY/o button or the STOP/p button to select CHANNEL.

Adding/Deleting Channels

TO ADJUST PRESS { / B CH23

> CHANNEL

FM ANTENNA SMARTLOCK REVIEW EXIT PRIM. SETUP

SAVED

TO ADJUST PRESS { / B CH123

> CHANNEL

FM ANTENNA SMARTLOCK REVIEW EXIT PRIM. SETUP

SAVED

TO ADJUST PRESS { / B CH123

> CHANNEL

FM ANTENNA SMARTLOCK REVIEW EXIT PRIM. SETUP

SAVED

2,4

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS

VAR.SLOW

COMBI

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

/ENTER

SURF

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

MUTE

12 Setting the Clock

• Entries that do not match the TV/VCR’s calendar will cause a question mark (?) to appear on the screen.

• To make corrections while you are setting the clock, press the CLEAR button until the space for the number you want to correct is flashing. Then enter the correct number.

Helpful Hints

There are three ways to set the clock: Manually, with Automatic PBS Channel Selection, or with Manual PBS Channel Selection. With manual clock setting, you tell the TV/VCR the current time. With Automatic or Manual PBS Channel Selection, the TV/VCR gets the time from your local PBS station. If you use either Manual PBS Channel Selection or Automatic PBS Channel Selection, follow the steps on page 19 to have the TV/VCR maintain the clock according to your Time Zone.

Cable Box users must set the clock manually.

To set the clock manually, follow the steps on pages 12-13. To set the clock using Automatic PBS Channel Selection, follow the steps on pages 14-15. To set the clock using Manual PBS Channel Selection, follow the steps on pages 16-17. Before you begin, make sure:

● The TV/VCR is hooked up and turned on.

● Channels are set up.

● Tape playback is stopped. You can not use Automatic or Manual

PBS Channel Selection during tape playback.

● You make each entry within 60 seconds of the previous entry.

Manual Clock Setting

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING CH MEMORY REVIEW VOLUME BAR [ON] SET CLOCK REMOTE LOCATOR

SELECT KL CHOOSE B TO END PRESS EXIT

> PRIM. SETUP

VCR PROGRAM VCR SETUP CAPTION REMINDER BRIGHTNESS

PRESS B

Press the PLAY/▲ button or the STOP/▼ button to select SET CLOCK. Then, press the F.FWD/B button.

2-3

SET CLOCK

> AUTO CLOCK [ON]

SET MANUAL CLOCK DAYLIGHT SVG.TIME [ON] SET TIME ZONE

[AUTO]

TO CONTINUE PRESS MENU SELECT KL CHOOSE B

TO END PRESS EXIT

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS

VAR.SLOW

TRACKING

SMART


SOUND

COMBI

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

SKIP

SURF

/ENTER

F.ADV

INDEX

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

MUTE

SLOW

Setting the Clock (cont’d) 13

Press two Number buttons for the hour(s) and two Number buttons for the minute(s). Then press 1 for AM or 2 for PM. For example, for 9:30 PM, press 09, 30, 2.

SET MANUAL CLOCK

TIME 09 : 30 PM

MONTH – – / – – / – – – –

TO CORRECT PRESS CLEAR TO END PRESS EXIT

Press two Number buttons for the month, two Number buttons for the day, and two Number buttons for the year. For example, for July 1, 2000, press 07, 01, 00. The day of

the week will appear automatically.

Press the STATUS/EXIT button.

SET MANUAL CLOCK

TIME 09 : 30 PM DATE 07 / 01 / 2000

SATURDAY

TO CORRECT PRESS CLEAR TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select SET MANUAL CLOCK, then press the F.FWD/B button.

SET MANUAL CLOCK

TIME – – : – –

DATE – – / – – / – – – –

TO END PRESS EXIT

5-6

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

14 Setting the Clock (cont’d)

Automatic PBS Channel Selection

If ON appears beside AUTO CLOCK, press the MENU button. If OFF appears beside AUTO CLOCK, press the PLAY/▲ button or the STOP/▼ button to select AUTO CLOCK if necessary, then press the F.FWD/B button so that ON appears to the right of AUTO CLOCK. Then, press the MENU button.

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING CH MEMORY REVIEW VOLUME BAR [ON] SET CLOCK REMOTE LOCATOR

SELECT KL CHOOSE B TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select SET CLOCK. Then, press the F.FWD/B button.

AUTO CLOCK

AUTO CLOCK USES PBS CHANNEL DATA

> SET PBS CH. AUTO

SET PBS CH. MANUAL

SELECT KL CHOOSE B TO END PRESS EXIT

> PRIM. SETUP

VCR PROGRAM VCR SETUP CAPTION REMINDER BRIGHTNESS

PRESS B

2-4

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

SET CLOCK

> AUTO CLOCK [ON]

SET MANUAL CLOCK DAYLIGHT SVG.TIME [ON] SET TIME ZONE

[AUTO]

TO CONTINUE PRESS MENU SELECT KL CHOOSE B

TO END PRESS EXIT

Setting the Clock (cont’d) 15

When the TV/VCR finds the PBS channel, the time will appear on the screen. Press the STATUS/EXIT button.

NOW SEARCHING flashes on the TV/VCR screen.

● If CANNOT FIND CLOCK DATA flashes on the

TV/VCR screen, you will be prompted to turn off the TV/VCR. Turn off the TV/VCR. Leave it off for several min-

utes. When you turn on the TV/VCR again, the clock will be set.

• To display the time on the TV/VCR screen, press the STATUS/EXIT button. Details are on page 28.

• You cannot use the AUTO CLOCK feature if you don’t receive a PBS channel that carries a time signal in your area. Set the clock manually.

Helpful Hints

Press the PLAY/▲ button or the STOP/▼ button to select SET PBS CH. AUTO. Then, press the F.FWD/B button.

SET AUTO CLOCK

TIME – – : – – DATE – – / – – / – – – – NOW SEARCHING

TO END PRESS EXIT

SET AUTO CLOCK

TIME 06 : 30 PM DATE 07 / 01 / 2000

SATURDAY

TO END PRESS EXIT

SET AUTO CLOCK

TIME – – : – – DATE – – / – – / – – – –

CANNOT FIND CLOCK DATA TO END PRESS EXIT

Wait for the TV/VCR to find the time.

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

16 Setting the Clock (cont’d)

Manual PBS Channel Selection

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING CH MEMORY REVIEW VOLUME BAR [ON] SET CLOCK REMOTE LOCATOR

SELECT KL CHOOSE B TO END PRESS EXIT

AUTO CLOCK

AUTO CLOCK USES PBS CHANNEL DATA

> SET PBS CH. AUTO

SET PBS CH. MANUAL

SELECT KL CHOOSE B TO END PRESS EXIT

> PRIM. SETUP

VCR PROGRAM VCR SETUP CAPTION REMINDER BRIGHTNESS

PRESS B

Press the PLAY/▲ button or the STOP/▼ button to select SET CLOCK. Then, press the F.FWD/B button.

2-3

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

SET CLOCK

> AUTO CLOCK [ON]

SET MANUAL CLOCK DAYLIGHT SVG.TIME [ON] SET TIME ZONE

[AUTO]

TO CONTINUE PRESS MENU SELECT KL CHOOSE B

TO END PRESS EXIT

Setting the Clock (cont’d) 17

When the TV/VCR finds the clock data, the time will appear on the screen. Press the STATUS/EXIT button.

Use the Number buttons to select your PBS station.

● If CANNOT FIND CLOCK DATA flashes on the

TV/VCR screen and you know another PBS channel, press the PLAY/▲ button or the STOP/▼ button to choose SELECT NEW PBS CH. Then, press the F.FWD/B button. Repeat step 6.

● If CANNOT FIND CLOCK DATA flashes on the

TV/VCR screen and you do not know another channel, press the PLAY/▲ button or the STOP/▼ button to select SET PBS CH. AUTO. Then, press the F.FWD/B button. The TV/VCR will search for the PBS channel automati-

cally.

• If the PBS channel is found, the time will appear on the screen.

• If the PBS channel is not found, you will be prompted to turn off the TV/VCR. Leave it off for several minutes. When you turn on the TV/VCR again, the time will be set.

AUTO CLOCK (PBS) CH 02

TIME – – : – – DATE – – / – – / – – – –

SELECT CHANNEL NUMBER TO END PRESS EXIT

AUTO CLOCK (PBS) CH 12

TIME 06 : 30 PM DATE 07 / 01 / 2000

SATURDAY

TO END PRESS EXIT

NOW SEARCHING flashes on the TV/VCR screen.

AUTO CLOCK (PBS) CH 12

TIME – – : – – DATE – – / – – / – – – – NOW SEARCHING

TO END PRESS EXIT

• If you have an Antenna hookup, you may select channels 2-69 at step 6. If you have a cable connection (but no Cable Box), you may select channels 1-125 at step 6. Details about available memorized channels are on page 11.

• To display the time on the TV/VCR screen, press the STATUS/EXIT button. Details are on page 28.

Helpful Hints

Wait for the TV/VCR to find the time.

Press the PLAY/▲ button or the STOP/▼ button to select SET PBS CH. MANUAL. Then, press the F.FWD/B button.

5 8

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

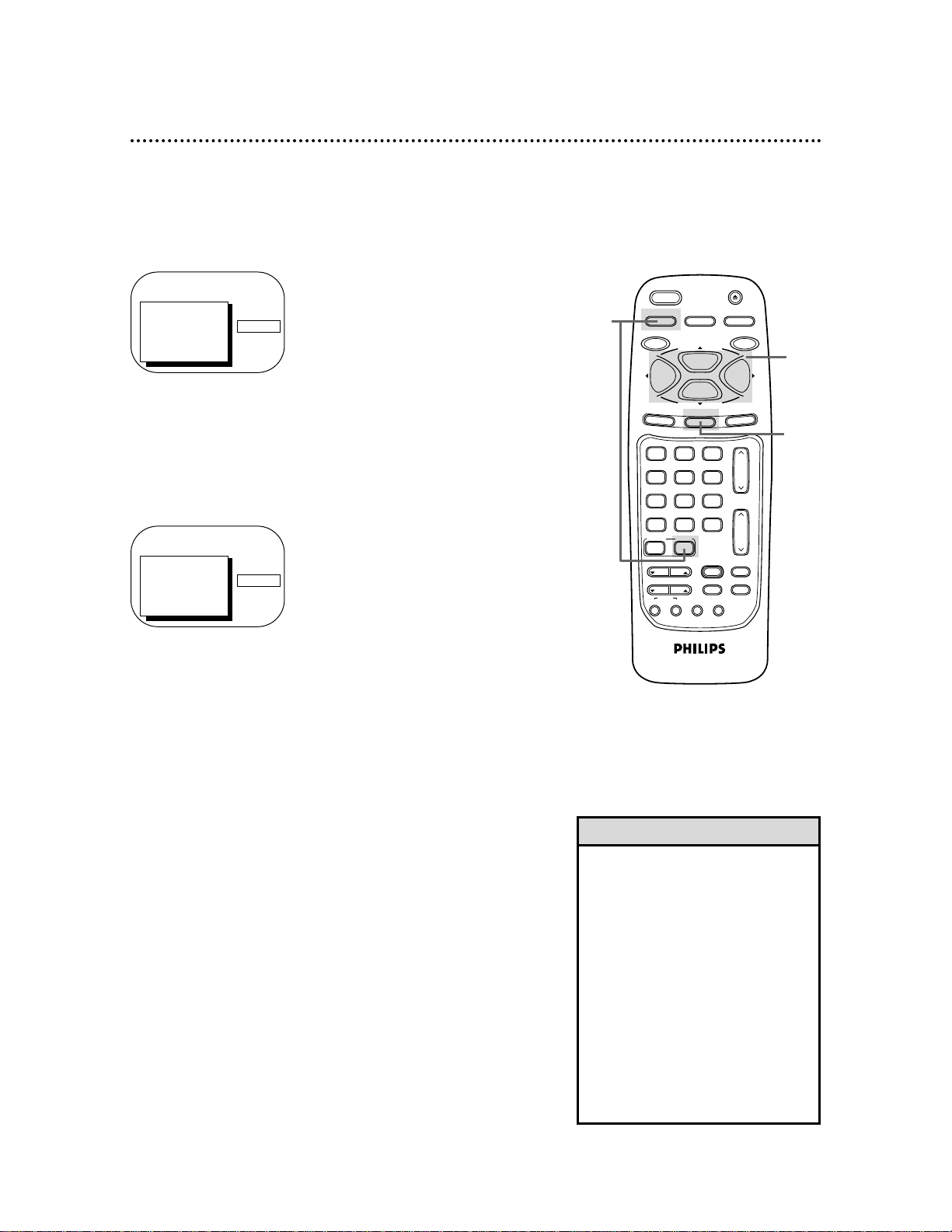

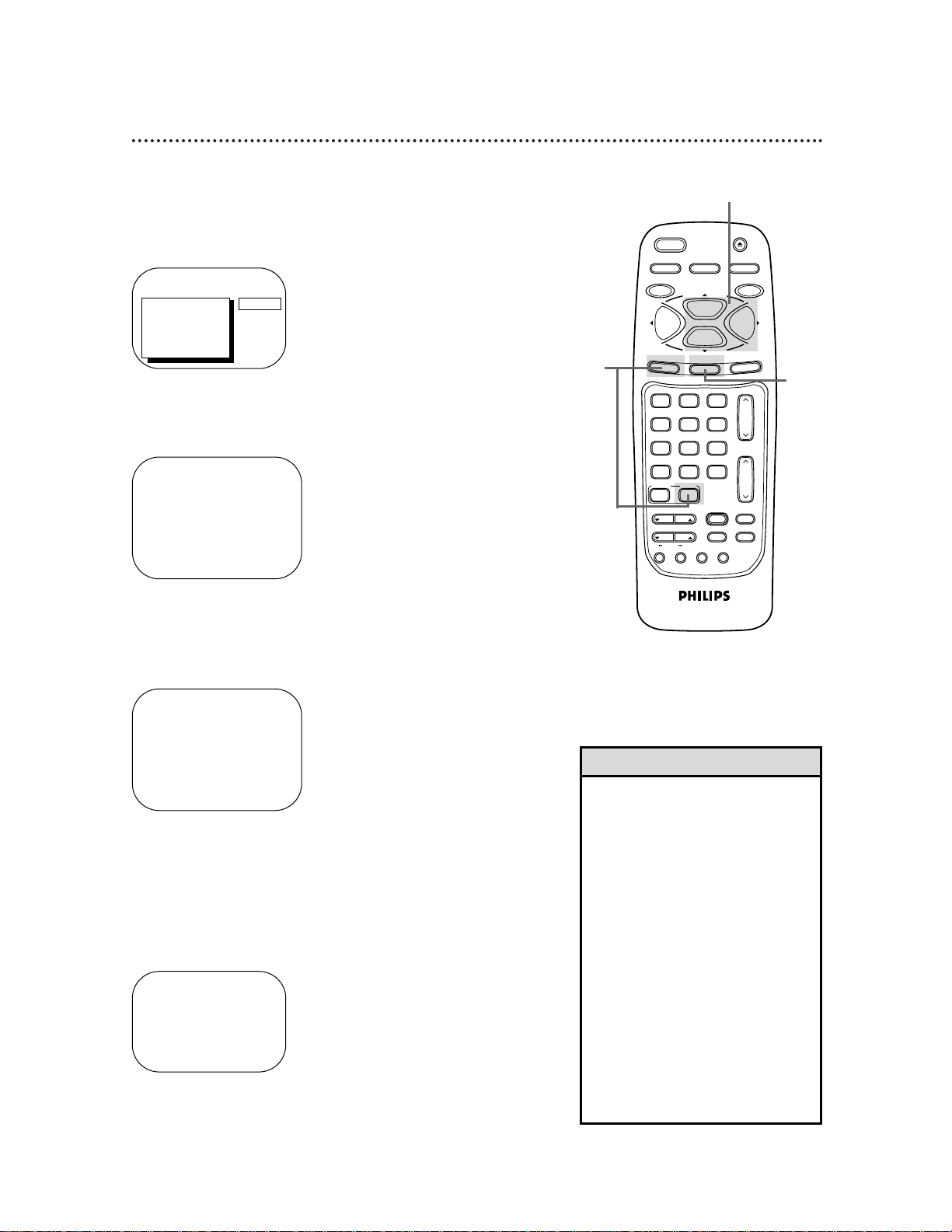

18 Daylight-Savings Time

Press the PLAY/▲ button or the STOP/▼ button to select DAYLIGHT SVG.TIME. Then, press the F.FWD/B button so that ON or OFF appears beside DAYLIGHT SVG. TIME (Daylight Savings Time).

Press the STATUS/EXIT button.

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING CH MEMORY REVIEW VOLUME BAR [ON] SET CLOCK REMOTE LOCATOR

SELECT KL CHOOSE B TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select SET CLOCK. Then, press the F.FWD/B button.

When the Daylight-Savings Time feature is ON, the TV/VCR clock will automatically move forward one hour on the first Sunday in April and move back one hour on the last Sunday in October. To turn Daylight-Savings Time ON or OFF, follow the steps below.

> PRIM. SETUP

VCR PROGRAM VCR SETUP CAPTION REMINDER BRIGHTNESS

PRESS B

SET CLOCK

> AUTO CLOCK [ON]

SET MANUAL CLOCK DAYLIGHT SVG.TIME [ON] SET TIME ZONE

[AUTO]

TO CONTINUE PRESS MENU SELECT KL CHOOSE B

TO END PRESS EXIT

2-4

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

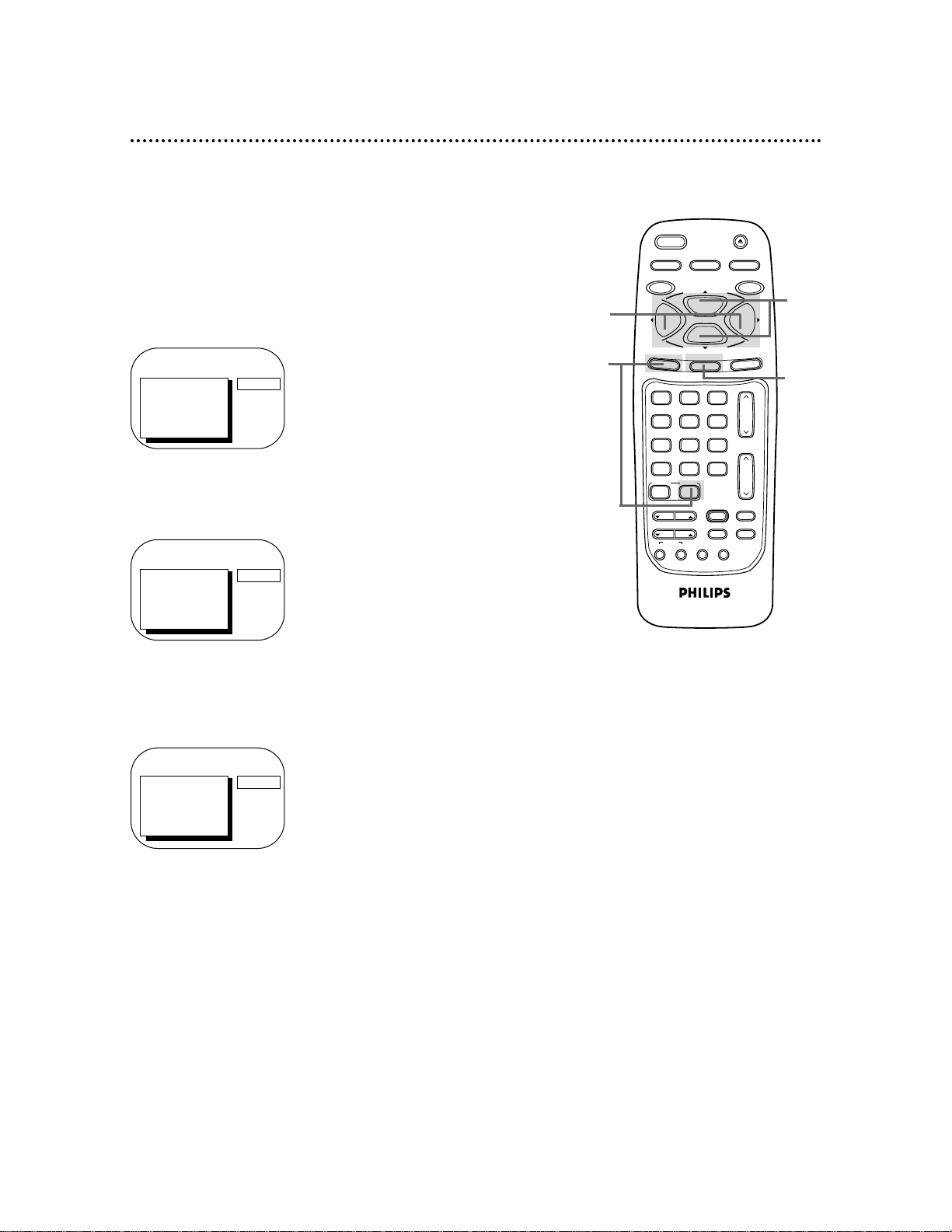

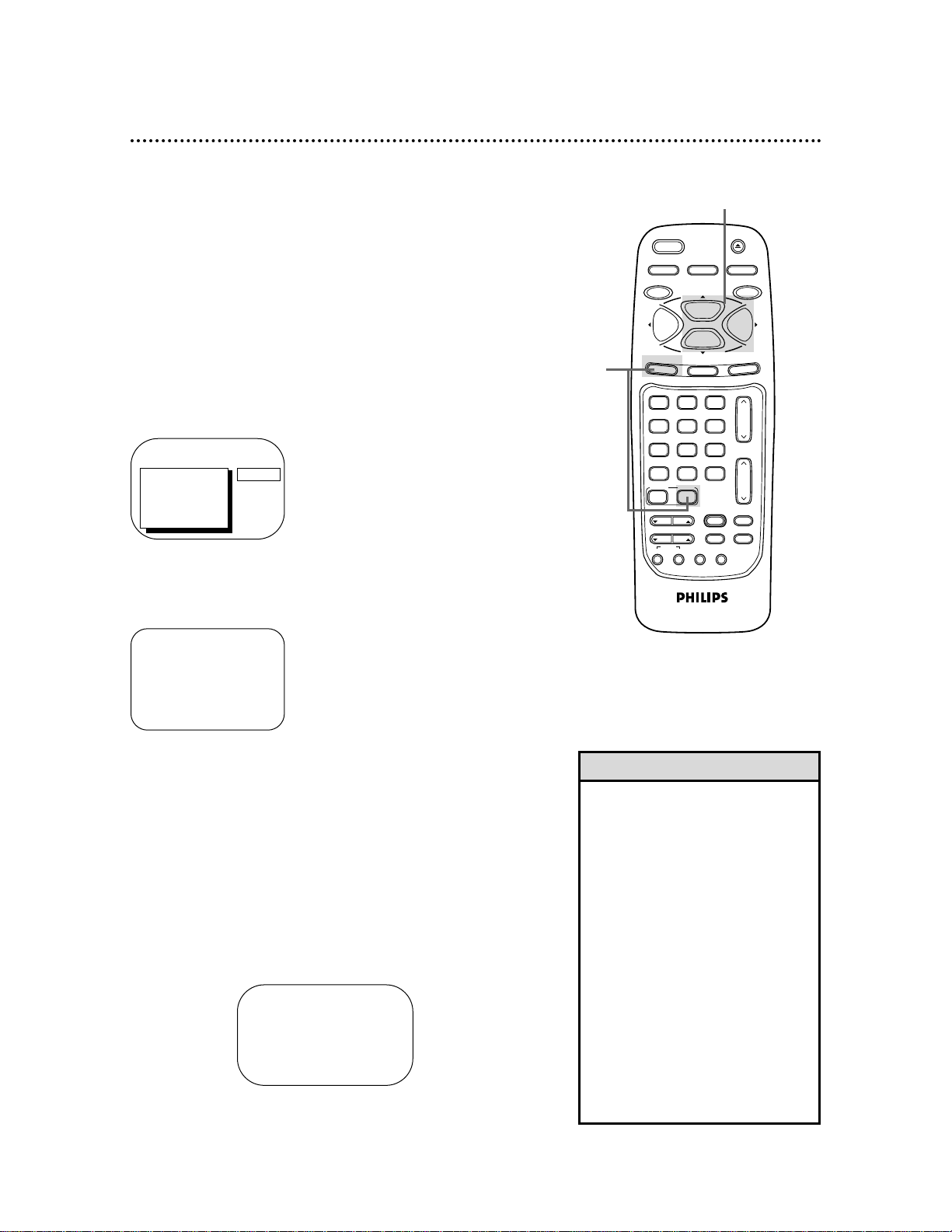

Time Zone 19

When you set the clock using AUTO CLOCK, specify your time zone. The TV/VCR will maintain the clock according to your time zone.

• If you select AUTO at step 5, the TV/VCR will set the clock according to the time zone data of the PBS station it finds.

• You cannot select SET TIME ZONE at step 4 if AUTO CLOCK is set to OFF.

• You may need to turn off the TV/VCR for several minutes to enable the TV/VCR clock to adjust to your time zone.

Helpful Hints

Press the PLAY/▲ button or the STOP/▼ button to select your time zone.

Press the MENU button, then press the STATUS/EXIT button.

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING CH MEMORY REVIEW VOLUME BAR [ON] SET CLOCK REMOTE LOCATOR

SELECT KL CHOOSE B TO END PRESS EXIT

SET TIME ZONE

> AUTO [ON]

ATLANTIC EASTERN CENTRAL MOUNTAIN PACIFIC ALASKA HAWAII

SELECT KL TO CONTINUE PRESS MENU

> PRIM. SETUP

VCR PROGRAM VCR SETUP CAPTION REMINDER BRIGHTNESS

PRESS B

Press the PLAY/▲ button or the STOP/▼ button to select SET CLOCK. Then, press the F.FWD/B button.

Press the PLAY/▲ button or the STOP/▼ button to select SET TIME ZONE. Then, press the F.FWD/B button.

SET CLOCK

> AUTO CLOCK [ON]

SET MANUAL CLOCK DAYLIGHT SVG.TIME [ON] SET TIME ZONE

[AUTO]

TO CONTINUE PRESS MENU SELECT KL CHOOSE B

TO END PRESS EXIT

2-5

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS

VAR.SLOW

TRACKING

SMART


SOUND

COMBI

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

SKIP

SURF

/ENTER

F.ADV

INDEX

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

MUTE

SLOW

Find your code.

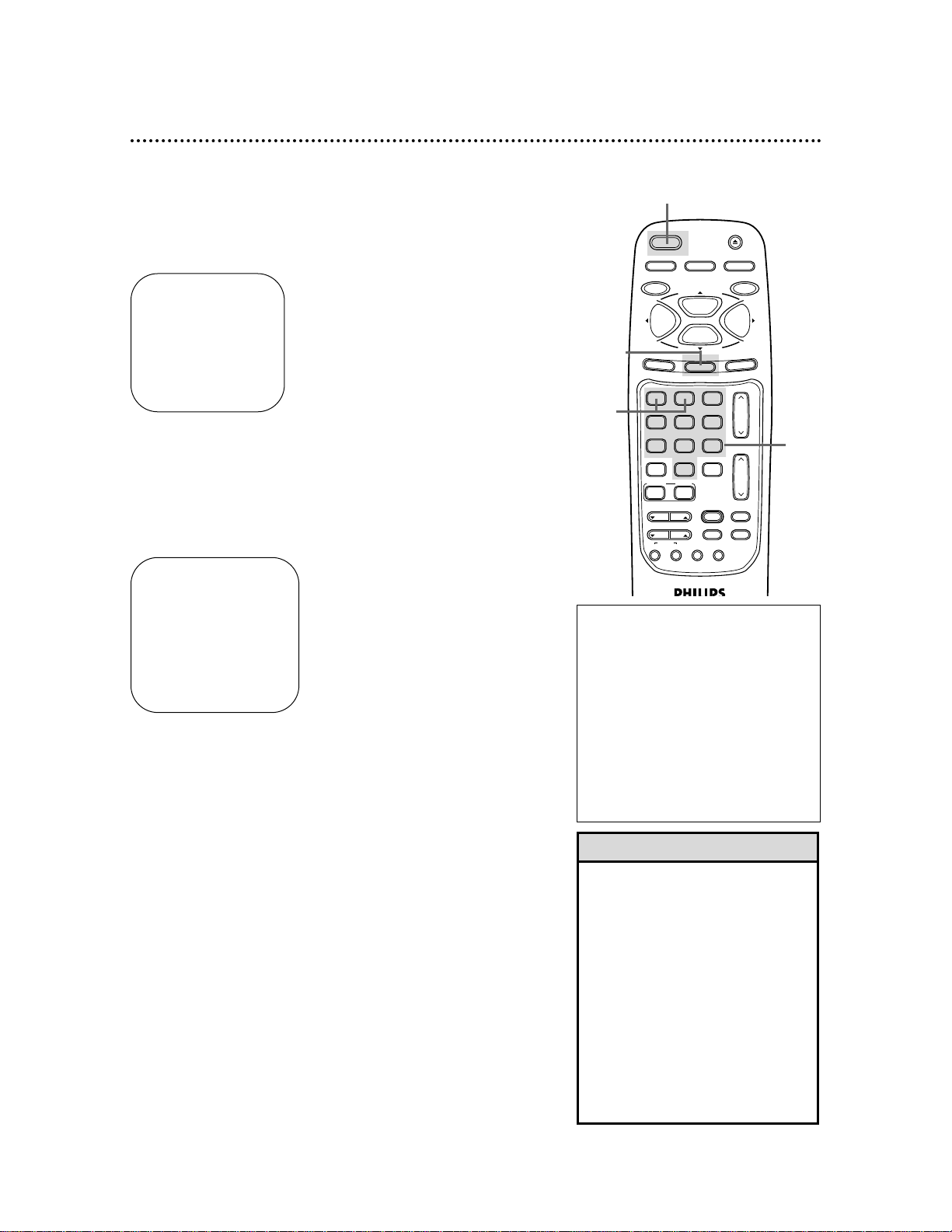

Setting the Remote to Operate a Cable Box/DBS

Within 30 seconds, press the CABLE/DBS button.

Press the MUTE button.

Your TV/VCR remote control may operate your Cable Box/DBS. If the remote control doesn’t operate your Cable Box/DBS now, follow the steps below to program your remote control.

Turn on your Cable Box/DBS. Point the remote control at your Cable Box/DBS and press the CABLE/DBS button. Then, press the POWER button. If your Cable Box/DBS turns off, try the other Cable Box/DBS buttons (see pages 24-25 for details). If your Cable Box/DBS doesn’t turn off, or if the other buttons don’t work, go to step 2.

Find the brand of your Cable Box/DBS on the lists below and remember the two-digit number beside it.

CABLE BOX CODES

DIRECT BROADCAST SYSTEM CODES

ARCHER..01, 05, 06, 44 CABLETENNA

.....

01, 44

CABLEVIEW

........

04, 30,

42, 44, 52

CENTURY

..................

CITIZEN

...............

04, 30,

42, 44, 52

CURTIS

................

08, 09

DIAMOND

............

01, 44

EAGLE

...........

26, 40, 62

EASTERN/REGENCY

...................................

GC BRAND

..........

04, 30,

42, 44, 52

GEMINI/JASCO

..........

GENERAL ELECTRIC

.............................

01, 57

GENERAL INSTRUMENT

.....

01, 02, 03, 04, 34, 83

HAMLIN

....

14, 15, 28, 41

JERROLD

.......

01, 02, 03, 04, 34, 83

MAGNAVOX

...........

94,95

MAGNAVOX

..............

MATSUSHITA

.......................

16, 17, 97

MOVIETIME

.........

42, 44

NOVAVISION

........

08, 09

NSC/NEC

...................

OAK

......................

11, 46

OAK SIGMA

.........

11, 46 PANASONIC..16, 17, 97 PHILIPS

.........

07, 23, 50

PIONEER

.............

05, 06 PULSAR

.........

04, 30, 42, 44, 52 QUEST

.................

05, 06

RCA

................

16, 17, 97 REALISTIC

.................

RECOTON

.................

REGAL

.....

14, 15, 28, 41

REMBRANDT

.........................

01, 42, 44

RCA

.........................

SAMSUNG

.............

05, 06, 40, 42 SCIENTIFIC ATLANTA

...............................

08, 09 SIGNAL

........................

SL MARX

.........

06, 40, 42,

44, 52

SPRUCER........

16, 17, 97

STANDARD COMPONENTS

...............................

42, 44 STARGATE

......

04, 06, 30, 40, 42, 44, 52 TELEVIEW

.......

06, 40, 42 TOCOM

......

01, 33, 34, 42

UNIKA

....................

01, 44

UNIVERSAL

.....

42, 44, 52

VIDEOWAY

......

07, 23, 50

VIEWSTAR

......

26, 40, 62

ZENITH

............

07, 23, 50

SONY

.......................

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

• Although the remote control that comes with your TV/VCR will work most Cable Boxes and DBSs, it is possible that the remote control will not operate your Cable Box or DBS.

• The remote control may only operate some features of your Cable Box or DBS. For example, some Cable Boxes may only be turned on at the Cable Box, therefore the remote control will not be able to turn on the Cable Box.

• Press the CABLE/DBS button before pressing any buttons to operate the Cable Box/DBS.

• If you had to program the remote control to operate your Cable Box or DBS here, whenever you replace the batteries in the remote control, you will have to program the remote control again.

Helpful Hints

Within 30 seconds, press the Number buttons to enter the two-digit code for your Cable Box/DBS. For example, if

you have a Zenith Cable Box, press Number buttons 0, 7.

Repeat step 1. If the remote control works your Cable

Box/DBS, you’re finished. If the remote control still doesn’t work your Cable Box/DBS, repeat steps 2-5, using a different code for your brand, if available.

There is no guarantee

that the remote control

will work your Cable

Box or DBS.

Setting the Remote to Operate a Cable Box/DBS (cont’d) 21

POWER

SLEEP/WAKE UP

REC/OTR

SPEED

PLAY

STOP

STATUS/EXIT

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

SOUND

COMBI

SKIP

SURF

VCR PLUS+

/ENTER

F.ADV

INDEX

CABLE/DBS


VAR.SLOW

TRACKING

SMART

CH.

VOL.

MUTE

SLOW

22 Front Panel

Cassette Compartment

Insert a video cassette tape here.

POWER Button

Press to turn the power on or off. Press to activate the Remote Locator.

Details are on page 59.

CHANNEL o/p Buttons

Press to scan through the TV/VCR channels. During tape playback, press to adjust the tracking. Details are on page 57. Press the CHANNEL o button and the VOLUME p button on the TV/VCR at the same time to display the pop up menu. Press again to remove the pop up menu.

STOP/EJECT Button

Press once to stop the tape. When playback is stopped, press to eject the tape. Press to select an item in the menu.

PLAY Button

Press to play a tape. Details are on page 29. Press to release Slow, Search

or Still mode and return to normal playback. Details are on page 46. Press to select an item in the menu.

REC(ord)/OTR Button

Press once to start a recording. Details are on page 30. Press repeatedly to start a One-Touch Recording (an immediate timed recording, 30 minutes to eight hours long) of the channel you are watching. Details

are on page 31.

REW(ind) Button

When tape playback is stopped, press to rewind the tape at high speed. During playback, press to rewind the tape while the picture stays on the screen. Press to change a setting of a menu item (for example, to adjust the BRIGHTNESS). Press to return to a previous menu.

F.FWD Button

When tape playback is stopped, press to fast forward the tape at high speed. During playback, press to fast forward the tape while the picture stays on the screen. Press to change a setting of a menu item (for example, to adjust the BRIGHTNESS) or to advance to the next menu.

REC(ord) Light

This light appears during a recording. It flashes slowly when the TV/VCR power is turned off to set a timer recording. It blinks rapidly when a recording is paused or when the power is off for a timer recording, but there is no tape in the TV/VCR.

Wireless Remote Sensor

Receives a signal from your remote control so you can operate the TV/VCR from a distance.

VOLUME o/p Buttons

Press to adjust the sound level. Press the CHANNEL o button and the VOLUME p button on the TV/VCR at the same time to display the main menu. Press again to remove the main menu. (Pressing CHANNEL o and VOLUME p will only access or remove the main menu, not later menus. To remove all menus, press the REW(ind) button as often as necessary to return to the main menu, then press the CHANNEL o and VOLUME p buttons to remove the main menu.)

EARPHONE Jack

Connect earphones (not supplied) here for personal listening.

AUDIO In Jack

Connect this jack to the audio out jack of a camcorder or a VCR. Details are on page 32.

VIDEO In Jack

Connect this jack to the video out jack of a camcorder or a VCR. Details are on page 32.

EARPHONE

AUDIO VIDEO

STOP REW PLAY F.FWD CHANNEL VOLUME POWERREC

OTR

EJECT

CCB134

Rear Panel 23

ANT(enna) Jack

Connect your antenna or cable here.

Details are on page six.

Antenna Hole

Connect the stem of an indoor antenna here. Details are on page six.

AC Power Cord

Connect to a standard AC outlet to supply power to the TV/VCR.

CCB134

ANT.

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

Number Buttons

Use to select channels and to program TV/VCR functions (such as setting the clock).

● Cable Users

Enter channel numbers as a two-digit number for the quickest results. For example, to select channel 6, press 0,6. If you only press the Number 6 button, channel 6 will be selected after a brief delay. (There also may be a brief delay when you select channels 10, 11, and 12.) If you want to select channels 100 and above, enter channel numbers as a three-digit number. For example, to select channel 117, press 1, 1, 7.

● Antenna Users

Enter channel numbers as a two-digit number for the quickest results. For example, to select channel 5, press 0,5. If you only press the Number 5 button, channel 5 will be selected after a brief delay. You may only select channels 2-69.

24 Remote Control Buttons

CH(annel) mm/nnButton

Press to scan through the channels at the TV/VCR or the Cable Box/DBS. When in FM mode, press to select an FM radio channel. Details are on page 58.

SURF Button

Press to return to the TV channel you were viewing immediately before switching to your current channel.

POWER Button

Press to turn on or off the TV/VCR, Cable Box, or Direct Broadcast System. (You must first press the COMBI or CABLE/DBS button.) Details are on pages five and 20-21.

MENU Button

Press to display the pop up menu. You also may use the buttons on the front panel of the TV/VCR to access the pop up menu.

Details are on page 22.

SPEED Button

Press to select the recording speed (SP or SLP).

PLAY/▲ Button

Press to play a tape. Details are on page 29. Press to release Slow, Search or Still mode and return to normal playback. Details are on page 46. Press to select an item in the menu.

SLEEP/WAKE UP Button

Press to set the Sleep Timer. Details are on page 52. Press to set the Wake Up Timer. Details are on page 53.

EJECT Button

Press to eject the tape.

SMART PICTURE Button

Press repeatedly to select a SmartPicture mode. Details are on page 58.

INDEX SEARCH Button

Press to fast forward or rewind to the starting points of programs that you have recorded on a tape. Details are on page 61.

SKIP SEARCH Button

Press during playback to fast forward past 30 seconds of the tape. Press up to six times in a row to skip up to three minutes of the tape.

TRACKING mm/nnButton

Press during tape playback to adjust the tracking. Details are on page 57.

F(rame). ADV(ance) Button

Press when in Still mode to advance the picture one frame at a time.

Details are on page 46.

SLOW Button

During tape playback, press to view the picture in slow motion.

Details are on page 46.

SMART SOUND Button

Press to turn the Smart Sound feature on or off. Details are on page 56.

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

• Press the COMBI button before pressing other TV/VCR buttons; press the CABLE/DBS button before pressing other Cable Box/DBS buttons.

• The buttons with a shaded description also may operate features of your Cable Box/DBS.

Helpful Hints

Remote Control Buttons (cont’d) 25

STOP/▼ Button

Press to stop the tape. Press to select an item in the menu.

PAUSE/STILL Button

During recording, press to temporarily stop the recording. Press again to resume recording. Details are on page 30. You cannot pause a One-Touch Recording. During tape playback, press to freeze the picture. Press again to resume playback. Details are on page 46.

F.FWD/B Button

When tape playback is stopped, press to fast forward the tape at high speed. During tape playback, press to fast forward the tape while the picture stays on the screen. Details are on page 46. Press to change the setting of an item in the menu or press to proceed to the next menu.

CLEAR Button

Press to erase incorrect data when programming TV/VCR functions. Also, press to reset the real-time counter to 0:00:00.

Details are on page 42.

MEMORY Button

Press to memorize a tape position at which the real-time counter was set to 0:00:00. Details are on page 42. Or, press to memorize the start and end positions on a tape when setting up A-B Repeat Play. Details are on pages 44-45.

VOL(ume)mm/nnButton

Press to adjust the sound level. If you press the VOL(ume) mm/

button when the sound is muted, the sound will be restored.

MUTE Button

Press to eliminate the TV/VCR’s sound. Press again to return to the previous volume level.

REW(ind)/{ Button

When tape playback is stopped, press to rewind the tape at high speed. During tape playback, press to rewind the tape while the picture stays on the screen. Details are on page 46. Press to change a setting of a menu item or to return to a previous menu.

REC(ord)/OTR Button

Press once to start a recording. Details are on page 30. Or, press repeatedly to start a One-Touch Recording (an immediate timed recording, 30 minutes to eight hours long) of the channel you are watching. Details are on page 31.

STATUS/EXIT Button

Press to see the status display. Press again to remove the status display. Details are on page 28. Press to remove the menu.

COMBI Button

Press to operate the TV/VCR.

CABLE/DBS Button

Press to operate the Cable Box or Direct Broadcast System.

VAR(iable). SLOW Button

During slow motion tape playback, press to vary the playback speed from 1/6 to 1/30 of normal speed. Details are on page 46.

VCR PLUS+/ENTER Button

Press to set a timer recording with the VCR Plus+ programming system. Details are on pages 38-41.

FM Button

Press to select FM radio mode. Press again to return to TV mode.

Details are on page 58.

TO ADJUST PRESS { / B

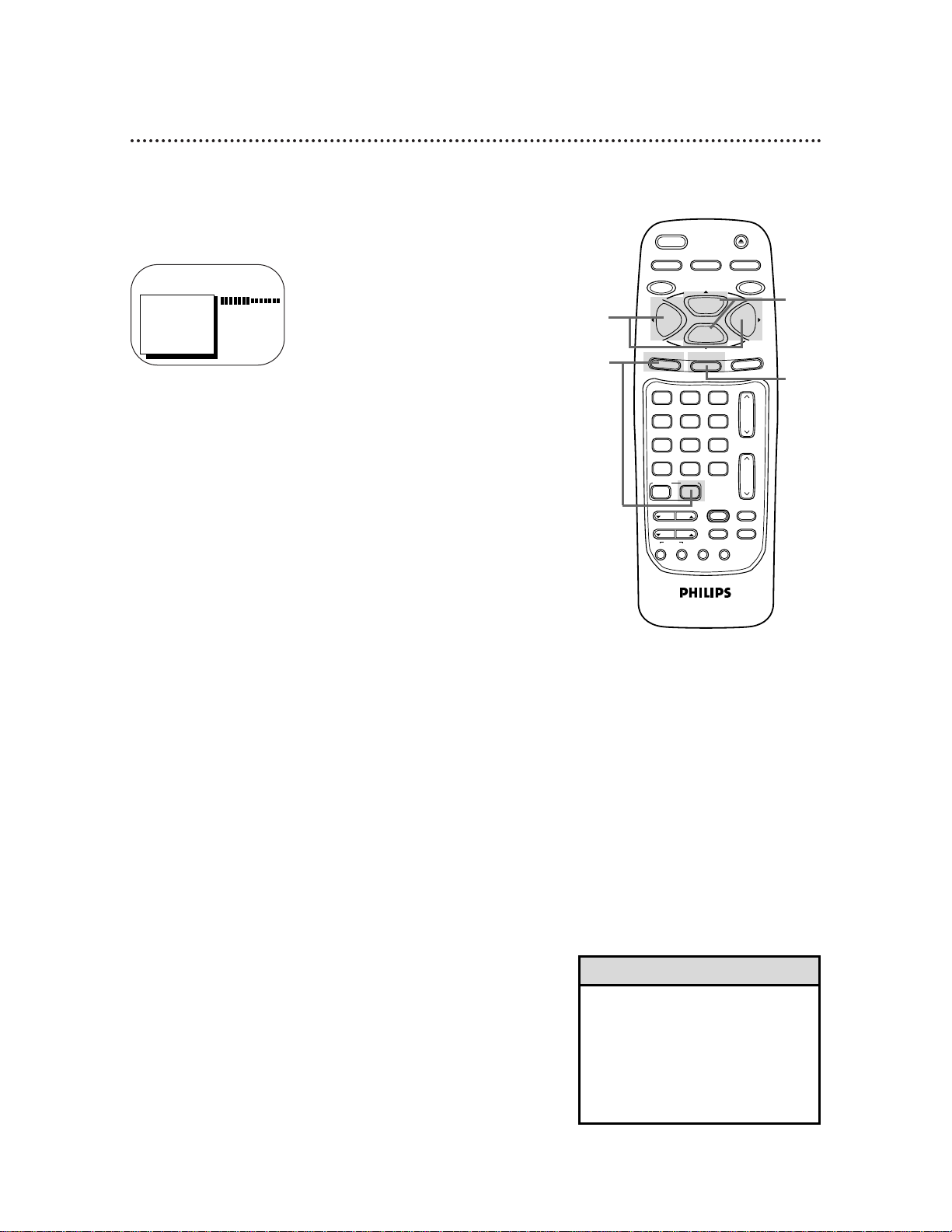

26 Adjusting the Picture Controls

Follow these steps to adjust the TV/VCR’s brightness, picture, color, tint, and sharpness.

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select the desired control (BRIGHTNESS, for example).

Press the REW(ind)/{ button or the F.FWD/B button to adjust the picture control. (Refer to the chart on page 27.)

When you finish, press the STATUS/EXIT button.

• The on-screen menus shown on page 27 will disappear if no adjustments are made within 60 seconds.

• The original settings will probably give you the best picture quality. To set the picture controls to the original settings, see page 58.

Helpful Hints

> BRIGHTNESS

PICTURE COLOR TINT SHARPNESS CHANNEL

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

3 1

EARPHONE

AUDIO VIDEO

STOP REW PLAY F.FWD CHANNEL VOLUME POWERREC

OTR

EJECT

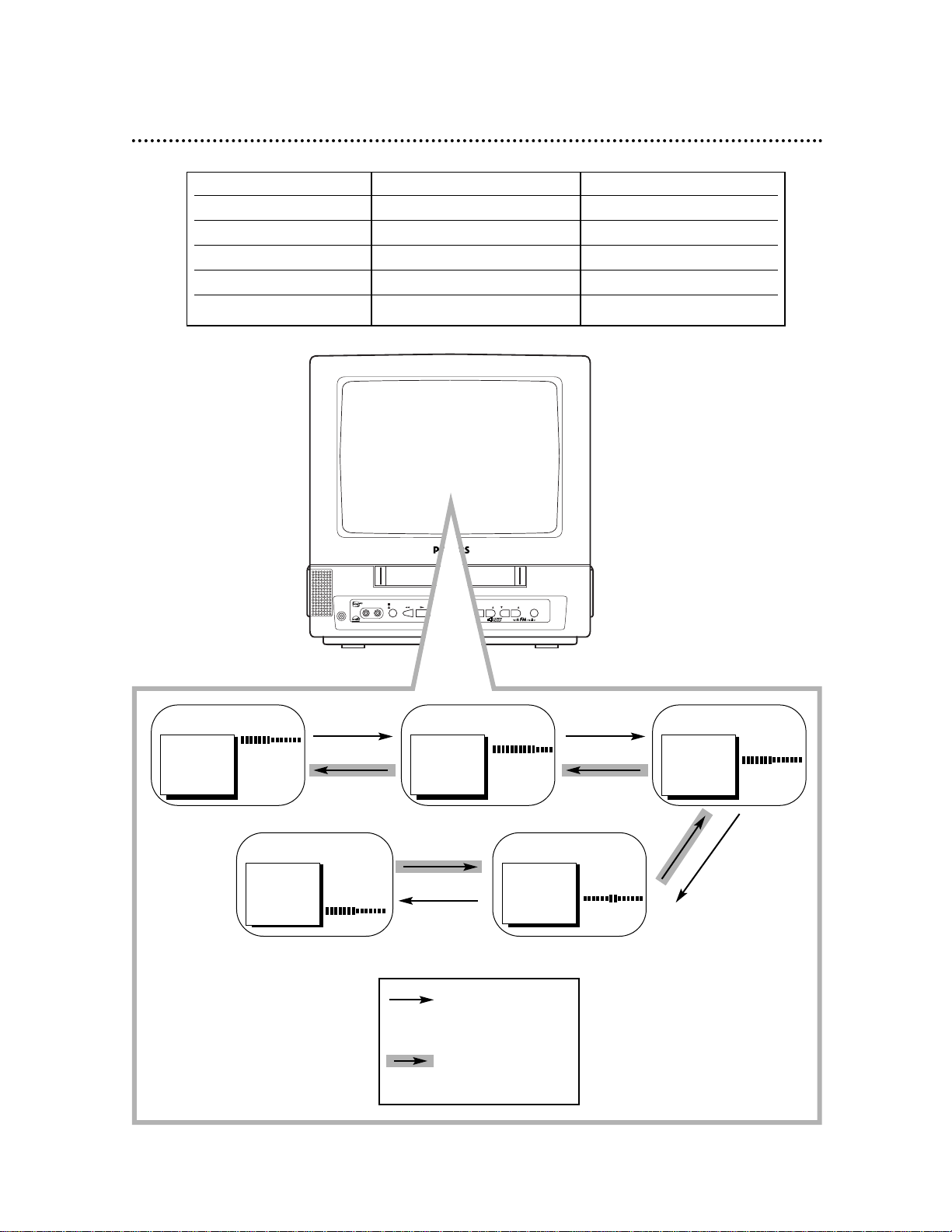

Adjusting the Picture Controls (cont’d) 27

Decrease Increase

BRIGHTNESS decreased brightness increased brightness

PICTURE decreased contrast increased contrast

COLOR paler more brilliant

TINT more purple more green

SHARPNESS softer clearer

Press the REW(ind)/{ button to decrease a picture control. Press

the F.FWD/B button to increase a picture control.

TO ADJUST PRESS { / B

TO ADJUST PRESS { / BTO ADJUST PRESS { / B

Press the STOP/▼ button

Press the PLAY/▲ button

> BRIGHTNESS

PICTURE COLOR TINT SHARPNESS CHANNEL

BRIGHTNESS

> PICTURE

COLOR TINT SHARPNESS CHANNEL

BRIGHTNESS PICTURE

> COLOR

TINT SHARPNESS CHANNEL

TO ADJUST PRESS { / B

BRIGHTNESS PICTURE COLOR

> TINT

SHARPNESS CHANNEL

TO ADJUST PRESS{ / B

BRIGHTNESS PICTURE COLOR TINT

> SHARPNESS

CHANNEL

CCB134

• You cannot view closed captions during recording or tape playback if COUNTER ONLY is set to ON. Details are on pages 54-55.

Helpful Hint

Press the COMBI button, then press the MENU button.

Current Tape Function

Time

Channel

Counter and Counter Memory

Tape Speed

12:00 AM STOP CH10

SLP M 1:23:45

A status display will appear when you press the STATUS/EXIT button or certain function buttons. The contents of the status display will vary. To choose the status display mode, follow the steps below.

If you select STATUS ON, then select COUNTER ONLY

OFF:

●Whenever you press the STOP/p button or the PLAY/o but-

ton, the status display will appear for five seconds. Portions of the status display also may appear when you press other function buttons.

If you select STATUS ON, then select COUNTER ONLY

ON:

●Whenever you press the PLAY/o button, the status display will

appear for five seconds. After five seconds, only the counter will remain on the screen. Portions of the status display also may appear when you press other function buttons.

If you select STATUS OFF:

●The status display will not appear when you press function but-

tons. You must press the STATUS/EXIT button to see the status display.

Press the PLAY/▲ button or the STOP/▼ button to select VCR SETUP, then press the F.FWD/B button.

Press the PLAY/▲ button or the STOP/▼ button to select ON-SCREEN MODE, then press the F.FWD/B button.

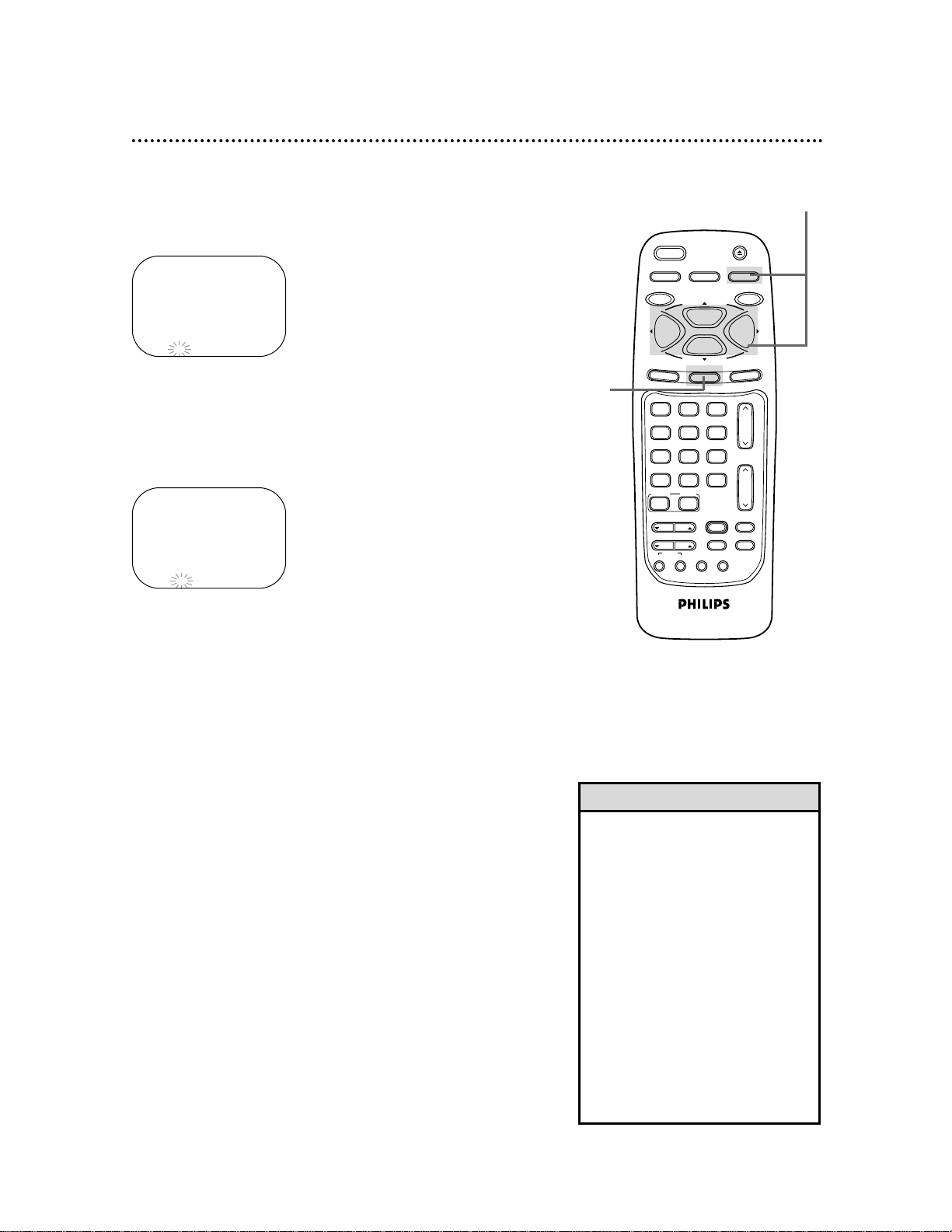

28 On-Screen Status Displays

Press the PLAY/o button or the STOP/p button to select STATUS, then press the F.FWD/B button so that ON or OFF appears beside STATUS.

If you set STATUS to OFF, go to step 6. If you set STATUS to ON, press the PLAY/o button or the STOP/p button to select COUNTER ONLY, then press the F.FWD/B button so that ON or OFF appears beside it.

Press the STATUS/EXIT button.

ON-SCREEN MODE

> STATUS [ON]

COUNTER ONLY [OFF]

SELECT KL CHOOSE B TO END PRESS EXIT

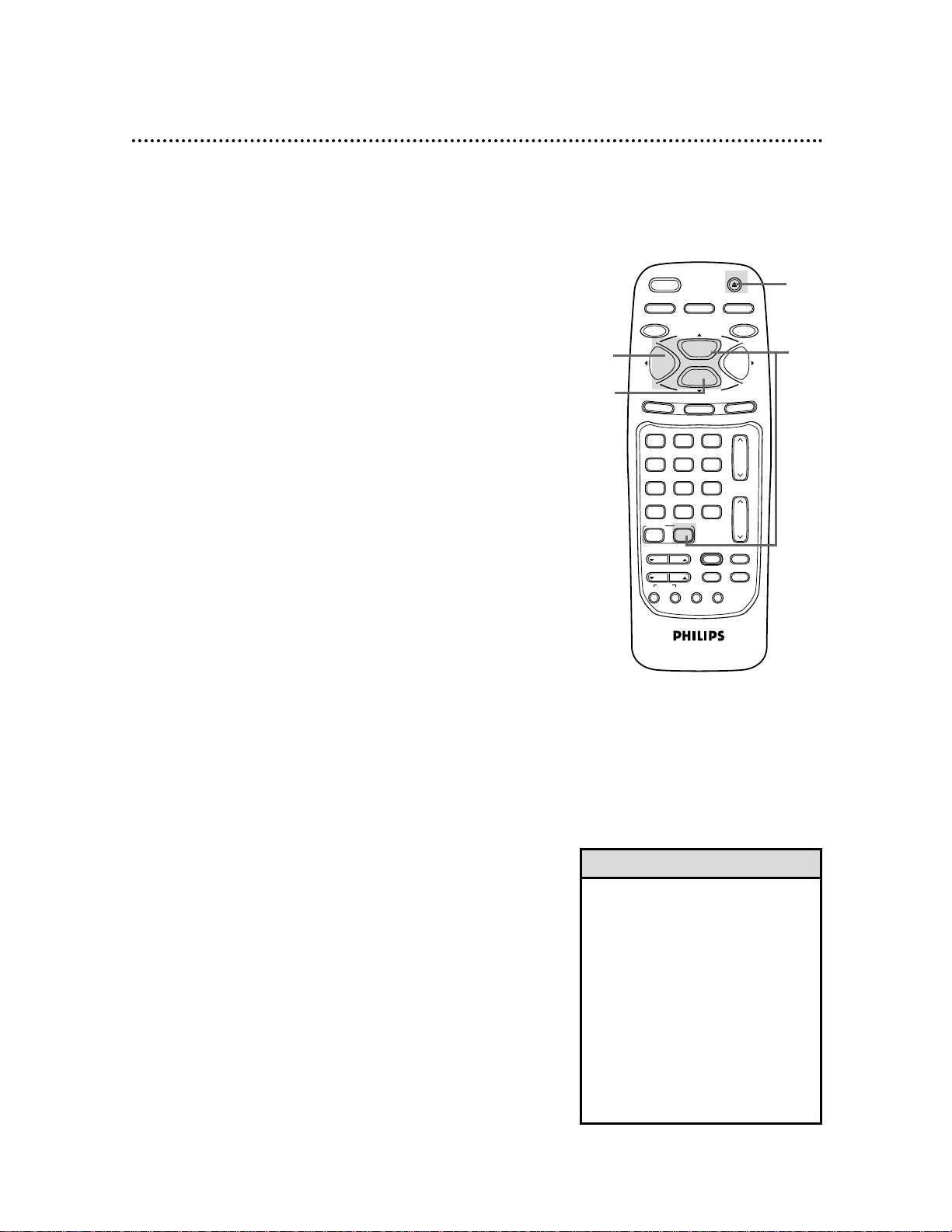

Playing 29

• If the tape you want to play is already in the TV/VCR, turn on the TV/VCR power, then press the COMBI button, then press the PLAY/▲ button.

• Playback features and options are on pages 42-46.

• When you play a tape recorded in S-VHS format on this unit, you can not get the high resolution that would be available on an S-VHS VCR. Noise lines (black and white streaks) may appear on the picture.

Helpful Hints

Follow the steps below to play a tape.

Insert a tape in the TV/VCR. The power will come on. If the

tape’s record tab has been removed, playback should start automatically.

If playback does not start automatically, press the COMBI button, then press the PLAY/▲ button to start playback.

Press the STOP/▼ button to stop playback.

Press the REW(ind)/{ button to rewind the tape.

Press the EJECT button to remove the tape.

Insert a tape in the TV/VCR.

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

S-VHS Quasi Play Back (SQPB)

This unit has a SQPB function that allows you to view a tape recorded in S-VHS format. A tape recorded in S-VHS format will play the same as a tape recorded in normal format. This unit detects whether the tape is recorded in S-VHS format or in normal format.

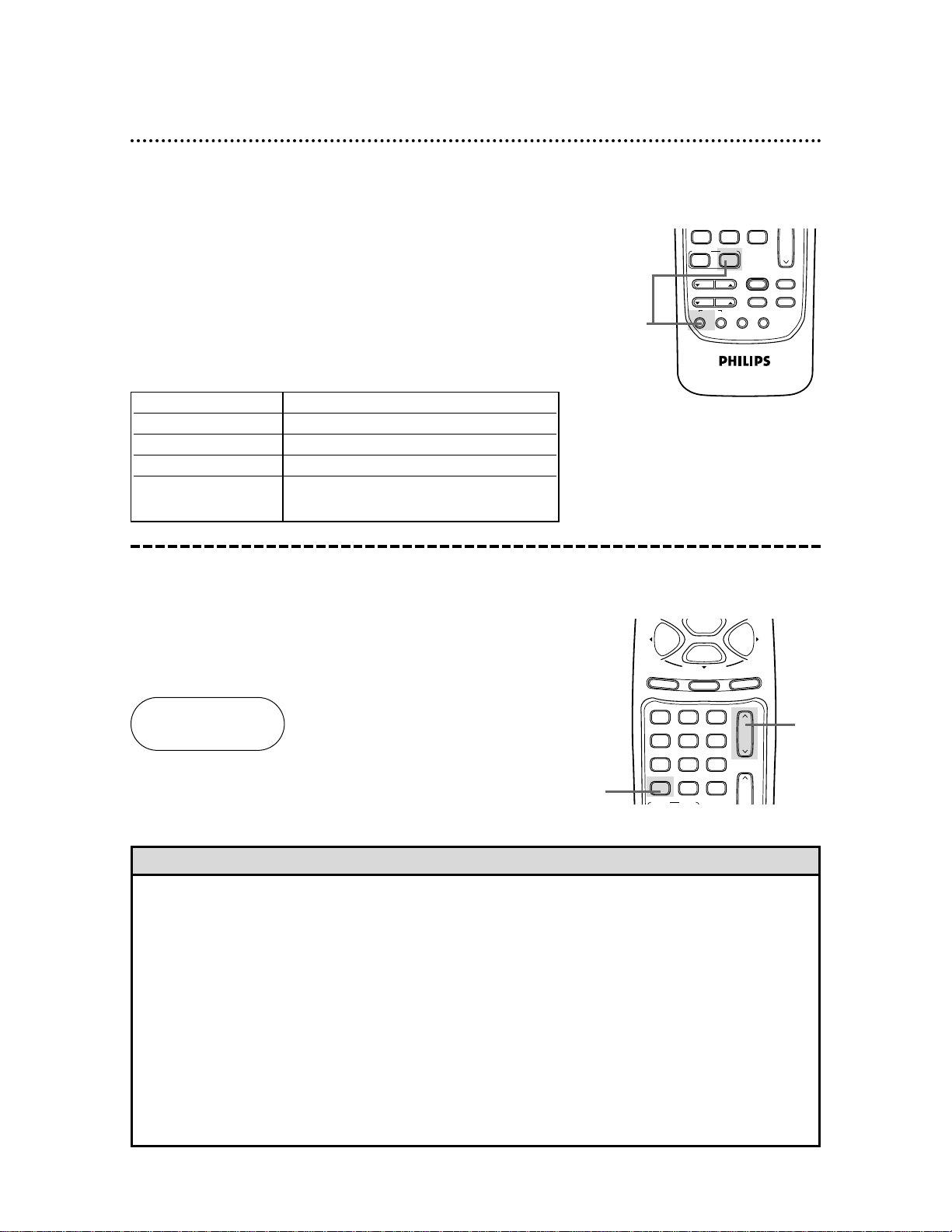

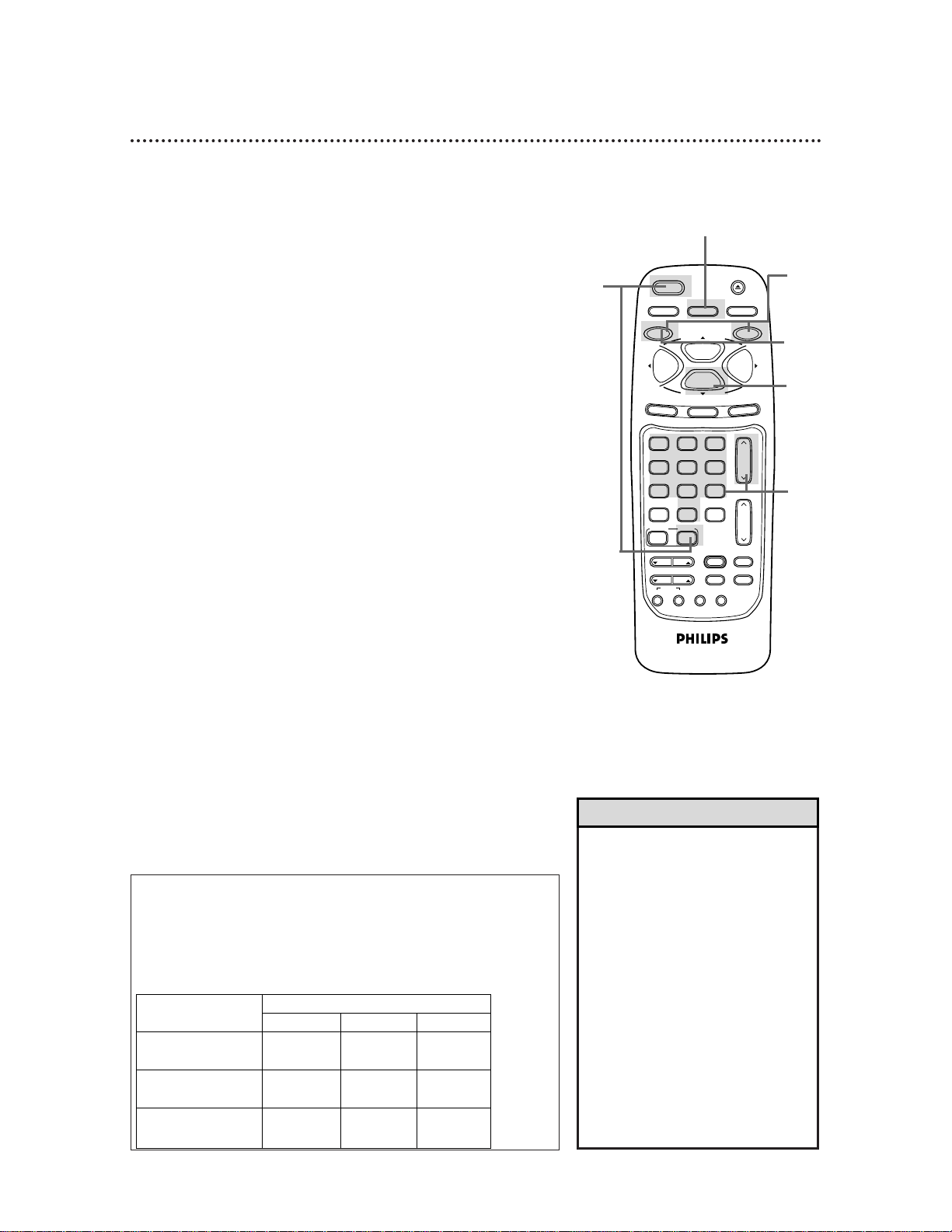

30 Recording

• You cannot record one channel while watching another.

• Recording options are on pages 31-41.

• You cannot record if DEFEAT RECORDING is set to ON. (REC DEFEATED will flash on the screen.) Details are on page 33.

• If you pause a recording for more than five minutes, the TV/VCR will switch to Stop mode automatically to protect the video cassette tape from damage.

• You can change the tape speed with the SPEEDbutton while a recording is in progress, but some distortion may appear on the tape.

Helpful Hints

Read and follow the steps below to record a TV program.

Press the COMBI button, then place a tape with its record tab intact (see page five) in the TV/VCR. The power will come on. Or, if the tape is already in the TV/VCR, press the POWER button to turn on the TV/VCR, if necessary.

Press the SPEED button until the desired tape speed appears on the TV/VCR screen. Details about tape speed are

given below.

To stop recording, press the STOP/▼ button.

Use the CH(annel) mm/nnbutton or the Number buttons to select the channel to be recorded. (Channels cannot be

changed during recording.)

Press the REC(ord)/OTR button once to start recording.

The REC(ord) light will glow.

● If there is not a tape in the TV/VCR, NO CASSETTE flashes on

the screen briefly.

● If the tape does not have a record tab, PROTECTED CAS-

SETTE CANNOT RECORD flashes on the screen briefly. The TV/VCR will eject the tape. Insert another tape.

To pause the recording (for example, during commercials), press the PAUSE/STILL button. The REC(ord) light will flash. To resume recording, press the PAUSE/STILL button again or the REC(ord)/OTR button. The REC(ord)

light will glow.

Cassette type / Playback Time Tape Speed T160 T120 T60 SP

(Standard Play) 2 hrs.

2 hrs. 1 hr.

40 mins.

LP(Long Play) 5 hrs.

4 hrs. 2 hrs.

(playback only) 20 mins.

SLP(Super Long Play)

8 hrs. 6 hrs. 3 hrs.

Tape Speeds

This chart shows the recording/playback time for three types of video cassettes (T160, T120, and T60). There are three playback speeds: SP, LP, and SLP. During playback, the VCR selects the tape speed automatically. When recording, you can change the tape speed using the SPEED button. You cannot record in LP speed.

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

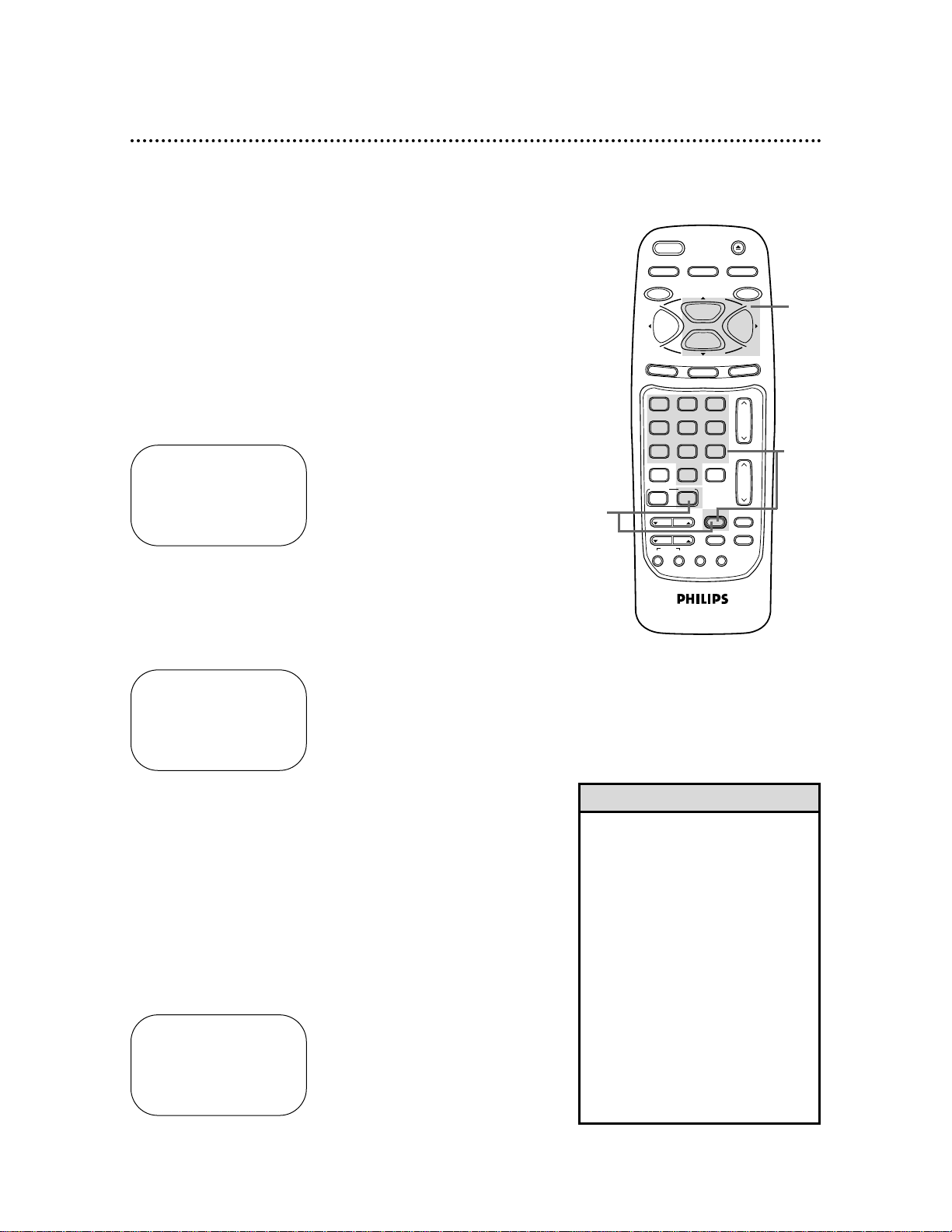

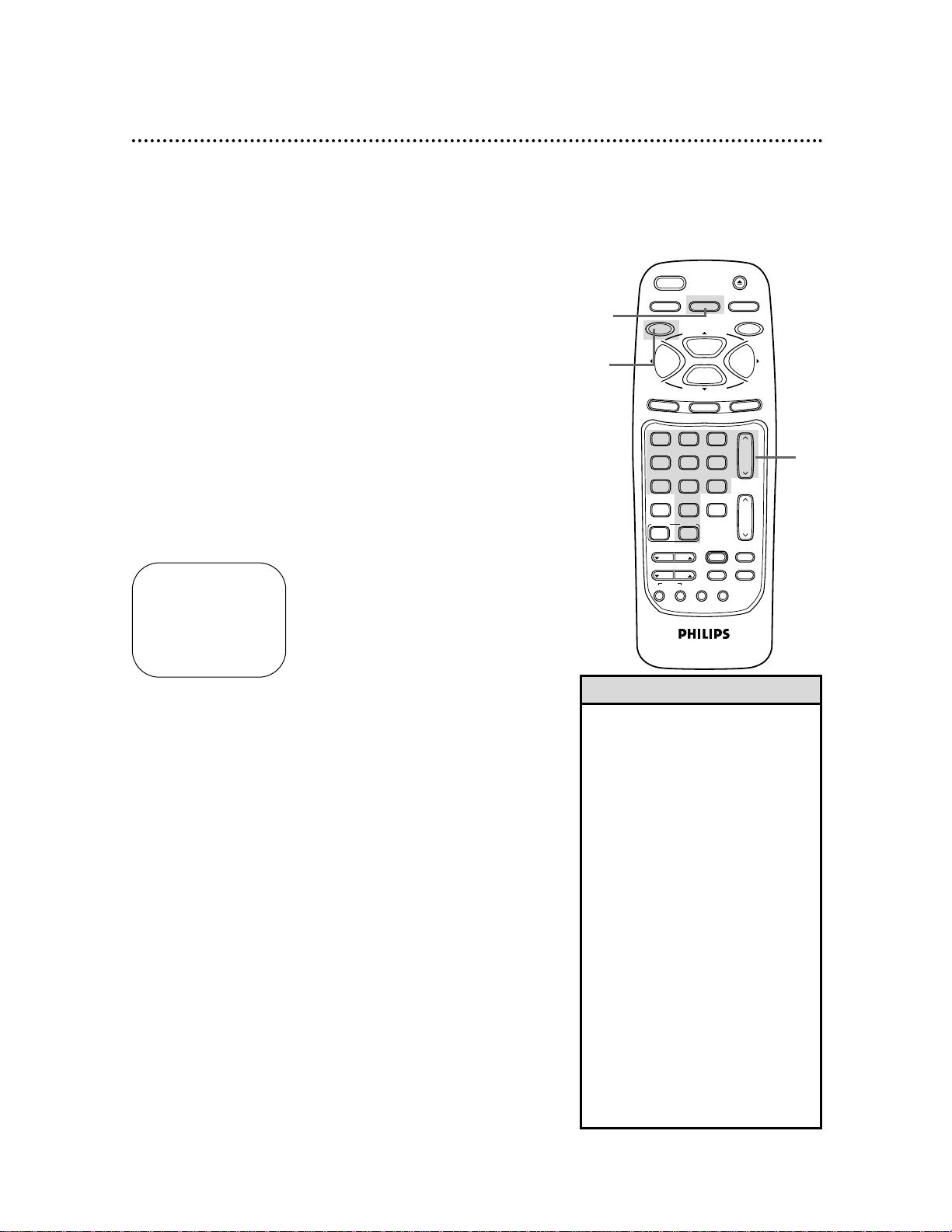

One-Touch Recording 31

The One-Touch Recording (OTR) function allows you to program an immediate timed recording from 30 minutes to eight hours long without setting the timer. Before you begin, make sure:

● Channels are set up.

● There is a tape in the TV/VCR. The record tab must be intact.

Press the COMBI button, then use the CH(annel) mm/

button or the Number buttons to select the channel you want to record.

Press the SPEED button until the desired recording speed (SP or SLP) appears on the screen. Details are on page 30.

Press the REC(ord)/OTR button repeatedly until the desired

recording length appears in the upper right corner of the screen. Recording will begin immediately. The REC(ord) light will appear.

OTR LENGTH 0:30 CH12

LENGTH : PRESS OTR CANCEL : PRESS CLEAR

To stop an OTR before recording is finished, press the STOP/EJECT button on the TV/VCR. Or, press the REC(ord)/OTR button, then press the CLEAR button, then press the STOP/▼ button on the remote control.

• To check the time remaining for an OTR after the OTRhas been set, press the STATUS/EXITbutton.

• To change the recording length while an OTR is in progress, press the REC(ord)/OTRbutton until the desired recording length appears on the screen.

• You can not pause an OTR.

• To cancel an OTR but continue recording, press the REC(ord)/OTR button, then press the CLEAR button.

• You cannot record if DEFEAT RECORDING is set to ON. Details are on page 33.

• You can change the tape speed with the SPEEDbutton while a recording is in progress, but some distortion may appear on the tape.

• If the end of the tape is reached during an OTR, the TV/VCR will eject the tape and turn itself off.

Helpful Hints

Press the STOP/EJECT button on the TV/VCR to stop the OTR.

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

2 3

32 Rerecording (Tape Duplication)

• Unauthorized recording of copyrighted television programs, video tapes, or other materials may infringe on the rights of copyright owners and violate copyright laws.

• If a program has copyright protection, it may not record clearly.

• Different brands of equipment may operate differently.

• Make sure all connections are secure. Otherwise, you may not record both picture and sound.

• Audio and video cables are not included.

Helpful Hints

Point the TV/VCR remote control at the TV/VCR. Press the SPEED button until the desired tape speed (SP or SLP) appears on the screen.

The source unit will play your tape. Insert a prerecorded tape in the source unit. If playback begins, press the STOP button on

the unit.

The TV/VCR will record your tape. Insert a blank tape in the TV/VCR. Make sure the tape’s record tab is intact. The TV/VCR

power will turn on automatically.

Point the TV/VCR remote control at the TV/VCR. Press the COMBI button, then press Number buttons 0, 0 so that A/V IN appears on the screen.

Press the PLAY button on the source unit and the REC(ord)/OTR button on your TV/VCR at the same time.

Copying will begin.

To stop copying, press the STOP/EJECT button on the TV/VCR, then stop the tape on the source unit.

Make the connections shown above, using audio and video cables. Make sure the source unit (VCR or camcorder) is connected to a power source.

EARPHONE

AUDIO VIDEO

STOP REW EJECT

VIDEO

OUT

AUDIO

Audio Cable (white) from AUDIO OUT to AUDIO In

Video Cable (yellow) from

VIDEO OUT to VIDEO In

AUDIO and VIDEO OUT Jacks on source unit

(VCR or Camcorder)

AUDIO and VIDEO In

Jacks on TV/VCR

CCB134

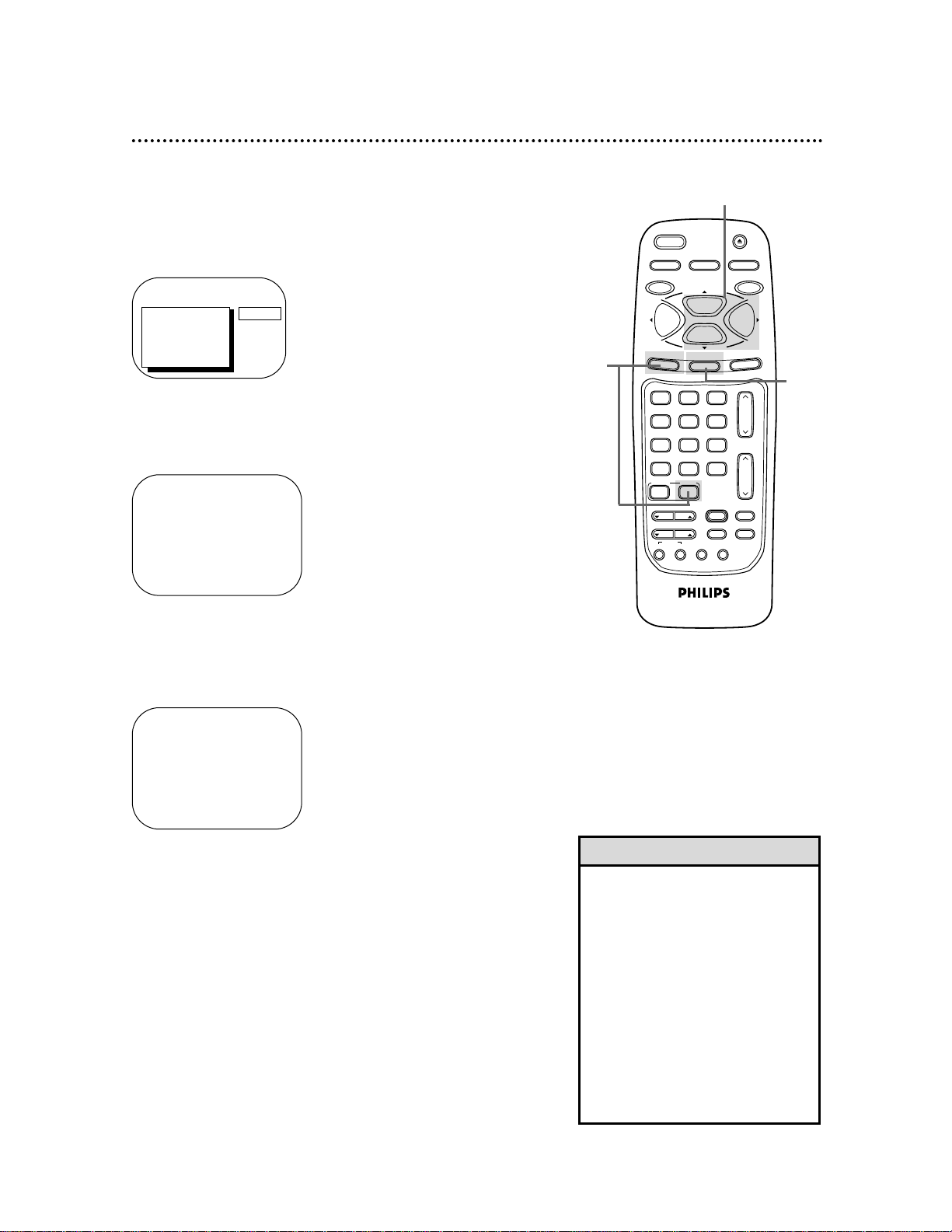

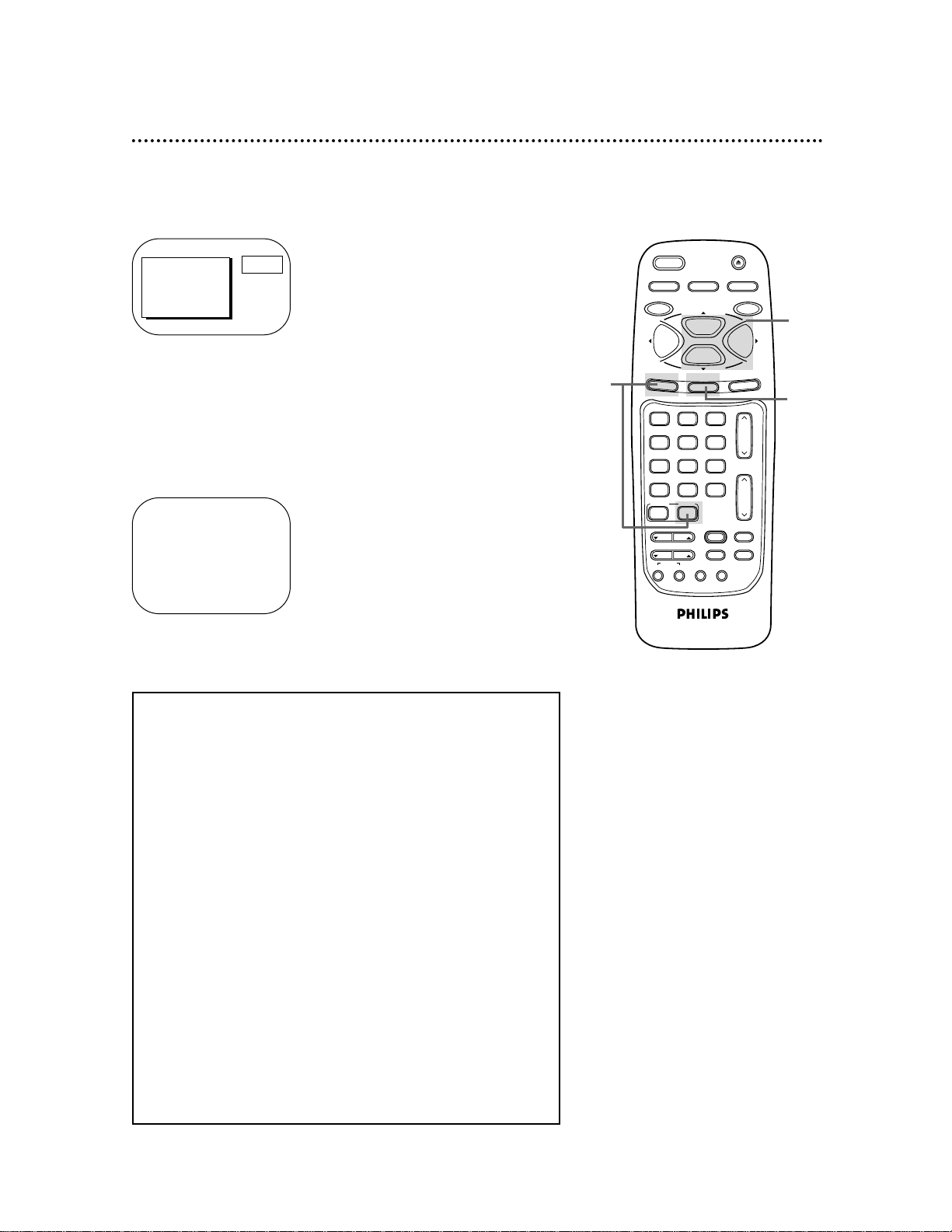

Defeat Recording 33

Follow the steps below to prevent accidental recording.

Press the PLAY/▲ button or the STOP/▼ button to select VCR SETUP, then press the F.FWD/B button.

Press the PLAY/▲ button or the STOP/▼ button to select DEFEAT RECORDING, then press the F.FWD/B button so that ON appears beside DEFEAT RECORDING.

Press the STATUS/EXIT button.

• You can not set DEFEAT RECORDING to ON while a recording is in progress.

• If you set DEFEAT RECORDING to ON after a timer recording has been set, the timer recording will not occur.

• You can not program a timer recording if DEFEAT RECORDING is set to ON.

• To set DEFEAT RECORDING to OFF, repeat steps 1-2 above. At step 3, press the PLAY/o button or the STOP/p button to select DEFEAT RECORDING, then press the F.FWD/B button so that OFF appears beside DEFEAT RECORDING. Press the STATUS/EXIT button.

Helpful Hints

VCR SETUP

> ONE TIME PLAY [ON]

REPEAT PLAY ON-SCREEN MODE DEFEAT RECORDING [OFF] BLUE BACKGROUND [ON] VCR PLUS+ REF. MAP

SELECT KL CHOOSE B TO END PRESS EXIT

VCR SETUP

ONE TIME PLAY [ON] REPEAT PLAY ON-SCREEN MODE

> DEFEAT RECORDING [ON]

BLUE BACKGROUND [ON] VCR PLUS+ REF. MAP

SELECT KL CHOOSE B TO END PRESS EXIT

Now, REC DEFEATED will flash on the screen when you press the REC(ord)/OTR button.

REC DEFEATED

Press the COMBI button, then press the MENU button.

> PRIM. SETUP

VCR PROGRAM VCR SETUP CAPTION REMINDER BRIGHTNESS

PRESS B

2-3

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

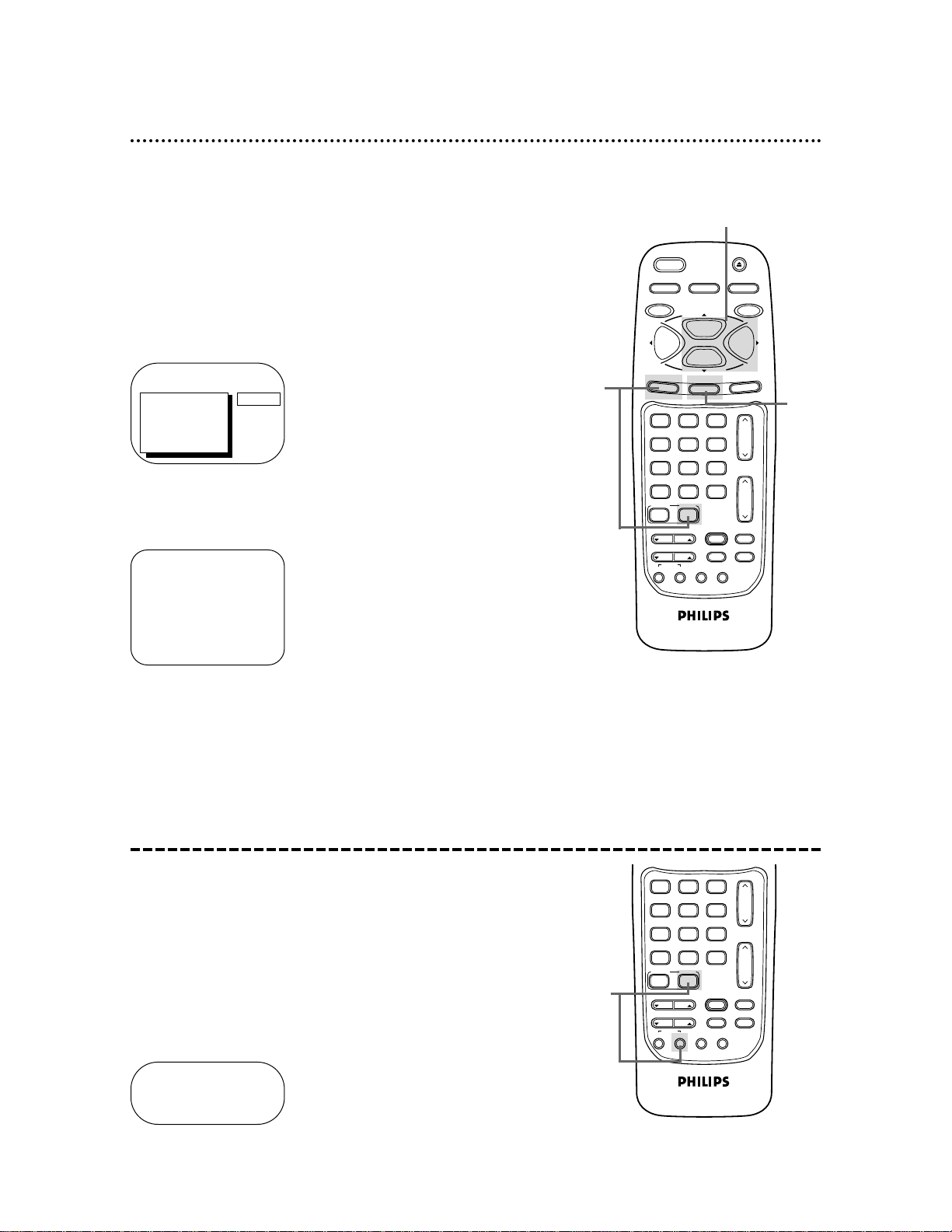

34 Timer Recording

Follow the steps below to program the TV/VCR to record TV programs while you’re away from home. The TV/VCR will turn itself on, record, and turn itself off automatically. Before you begin, make sure:

● The clock is set. If not, CLOCK MUST BE SET appears, fol-

lowed by the SET CLOCK menu.

● Channels are set up.

● There is a tape in the TV/VCR. (Make sure the tape’s record

tab is intact and the tape is long enough to record the program.)

Complete each step within 60 seconds of completing the previous step. If you don’t, you may start again at step 1.

Press the PLAY/▲ button or the STOP/▼ button to select VCR PROGRAM, then press the F.FWD/B button.

Press the PLAY/▲ button or the STOP/▼ button to select a ONCE, DAILY, OR WEEKLY recording. Then, press the F.FWD/B button.

●ONCE: The TV/VCR will record a TV program on any day you

choose, up to 12 months away.

●DAILY: The TV/VCR will record every day from Monday to

Friday – starting at the same time and recording the same channel for the same length of time.

● WEEKLY: The TV/VCR will record the same channel on the

same day, at the same time, and for the same length of time every week.

Press the COMBI button, then press the MENU button.

• With ShowGuard, you don’t have to worry about losing your timer recordings. If the power fails, programmed timer recordings will be restored when the clock is reset. (The clock will reset itself automatically if you are using the AUTO CLOCK feature. Details are on pages 14-17. If you are not using the AUTO CLOCK feature, reset the clock manually. Details are on pages 12-13.) The timer recording will not occur only if the timer recording was scheduled to take place during the power failure.

• You cannot set a timer recording if DEFEAT RECORDING is set to ON. Details are on page 33.

Helpful Hints

> PRIM. SETUP

VCR PROGRAM VCR SETUP CAPTION REMINDER BRIGHTNESS

PRESS B

DAILY PROGRAM (MON-FRI)

PROGRAM -1 2 3 4 5 6 7 8-

SELECT PROGRAM NUMBER TO END PRESS EXIT

Daily Recording (example)

VCR PROGRAM

> ONCE

DAILY(MON-FRI) WEEKLY PROGRAM REVIEW

SELECT KL CHOOSE B TO END PRESS EXIT

2-3

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

ONE TIME PROGRAM

PROGRAM 1 CHANNEL – – –

TO CORRECT PRESS CLEAR TO END PRESS EXIT

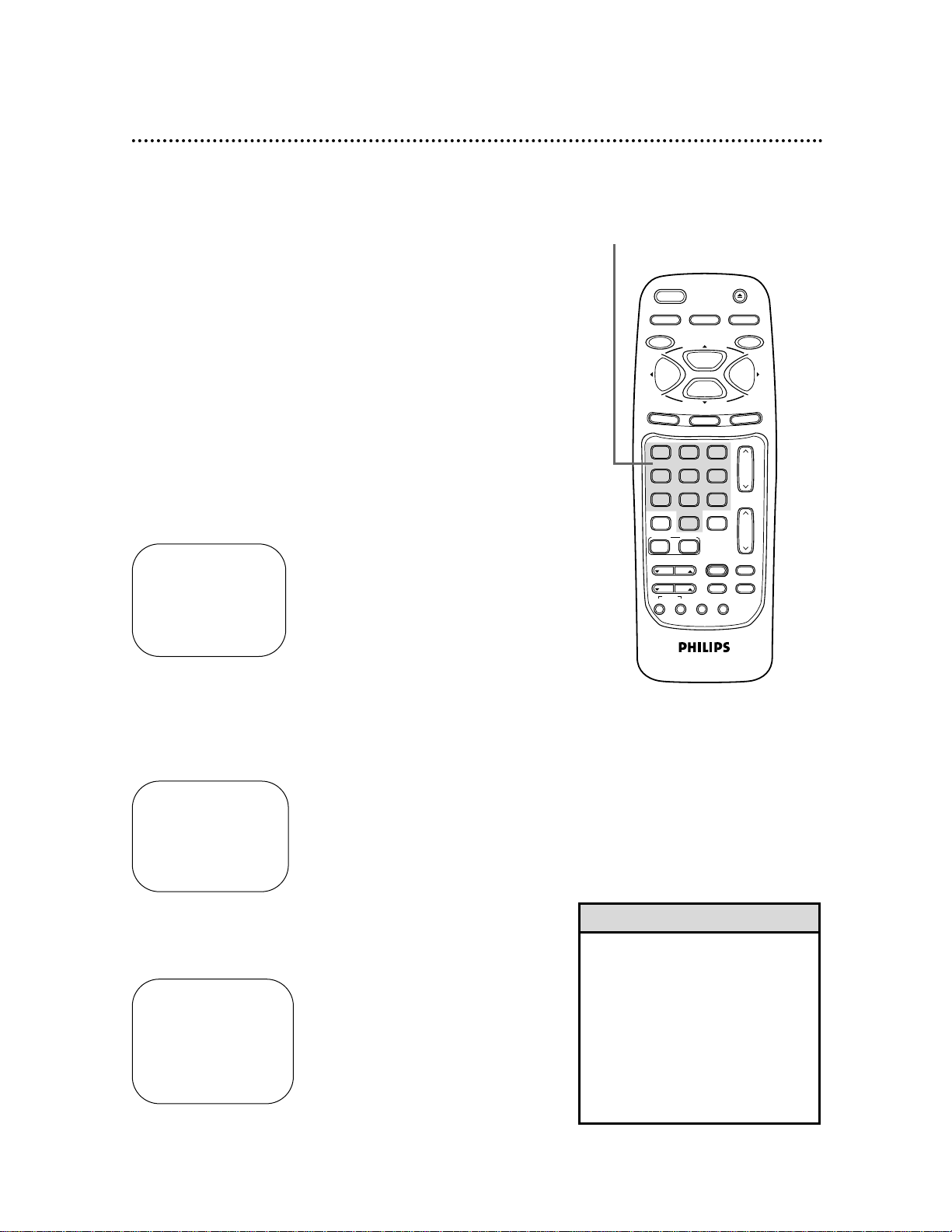

Timer Recording (cont’d) 35

Use the Number buttons to enter the channel of the TV program you want to record.

● If you are recording from line input, press 0, 0. A/V IN will

appear on the screen.

● If you are recording using a Cable Box, enter the Cable Box

output channel (03 or 04). Be sure to select the channel of the TV program at the Cable Box and leave the Cable Box on for the timer recording.

Use the Number buttons (1-8) to select a position in which to store the timer recording. Flashing numbers indi-

cate an open position (one in which a timer recording has not been stored yet).

NOTE: If you select a number that already has been used to store a timer recording, PREVIOUSLYSET PROGRAM will appear on the screen for a few seconds. Then information about the program in that position will appear on the screen. If this happens, press the STATUS/EXIT button. Then use the Number buttons to select another position.

Press two Number buttons for the hour(s) you want the recording to begin. Press two Number buttons for the minute(s) you want the recording to begin. Press 1 for AM or 2 for PM. For example, for 9:30 PM, press 09, 30, 2.

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10

TIME ON – – : – –

TO CORRECT PRESS CLEAR TO END PRESS EXIT

Follow the instructions in step 6 to set the recording’s stop time. (AM or PM will be set automatically.)

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10

TIME ON 09:30 PM TIME OFF – – : – –

TO CORRECT PRESS CLEAR TO END PRESS EXIT

• If the numbers entered do not match the TV/VCR’s clock or calendar, the entry will be rejected and a question mark will appear on the screen.

• To make corrections while you are programming a timer recording, press the CLEAR button until the cursor is flashing on the item you want to change. Then enter the correct information.

Helpful Hints

4-7

Instructions continue on page 36.

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

36 Timer Recording (cont’d)

Turn off the TV/VCR

for the recording.

Insert a tape in

the TV/VCR.

Leave the Cable

Box/DBS on

(if applicable).

Press the Number 1 button to record in SP speed or press the Number 2 button to record in SLP speed. Details

about tape speed are on page 30. You cannot use the SPEEDbutton at this time.

Press two Number buttons for the month and two Number buttons for the day you want the program to record. For example, for July 10, 2000, press 07, 10. The day of

the week and the year will be displayed automatically. (You cannot program the TV/VCR to record more than one year in advance.)

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10

TIME ON 09:30 PM TIME OFF 11:00 PM REC SPEED SLP

SP=1 SLP=2

TO CORRECT PRESS CLEAR TO END PRESS EXIT

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 10

TIME ON 09:30 PM TIME OFF 11:00 PM REC SPEED SLP START DATE 07/10/2000

MONDAY

TO CORRECT PRESS CLEAR TO END PRESS EXIT

Press the STATUS/EXIT button. PROGRAM WAS COM-

PLETED PLEASE TURN OFF FOR TIMER RECORDING will appear on the screen.

● If there is not a tape in the TV/VCR, PLEASE INSERT CAS-

SETTE also appears on the screen.

● If there is a tape without a record tab in the TV/VCR, PLEASE

REMOVE CASSETTE also appears on the screen. If this happens, insert a different tape.

● If PROGRAM NOTCOMPLETED appears, start again at step 1.

Press the POWER button to turn off the TV/VCR power.

The REC(ord) light will flash slowly if a tape is in the TV/VCR. If you forget to turn off the TV/VCR, PLEASE TURN OFF FOR TIMER RECORDING appears on the TV/VCR screen two minutes before a timer recording starts. The REC(ord) light will blink rapidly until you turn off the power for the recording.

• PROGRAM NOT COMPLETED CLASH may appear on the screen when you finish setting a timer recording. This means that the timer recording you just programmed and another timer recording overlap, and thus the current timer recording will not be carried out.

• To stop a started timer recording, press the STOP/EJECT button on the TV/VCR.

Please see page 64 for more Helpful Hints.

Helpful Hints

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

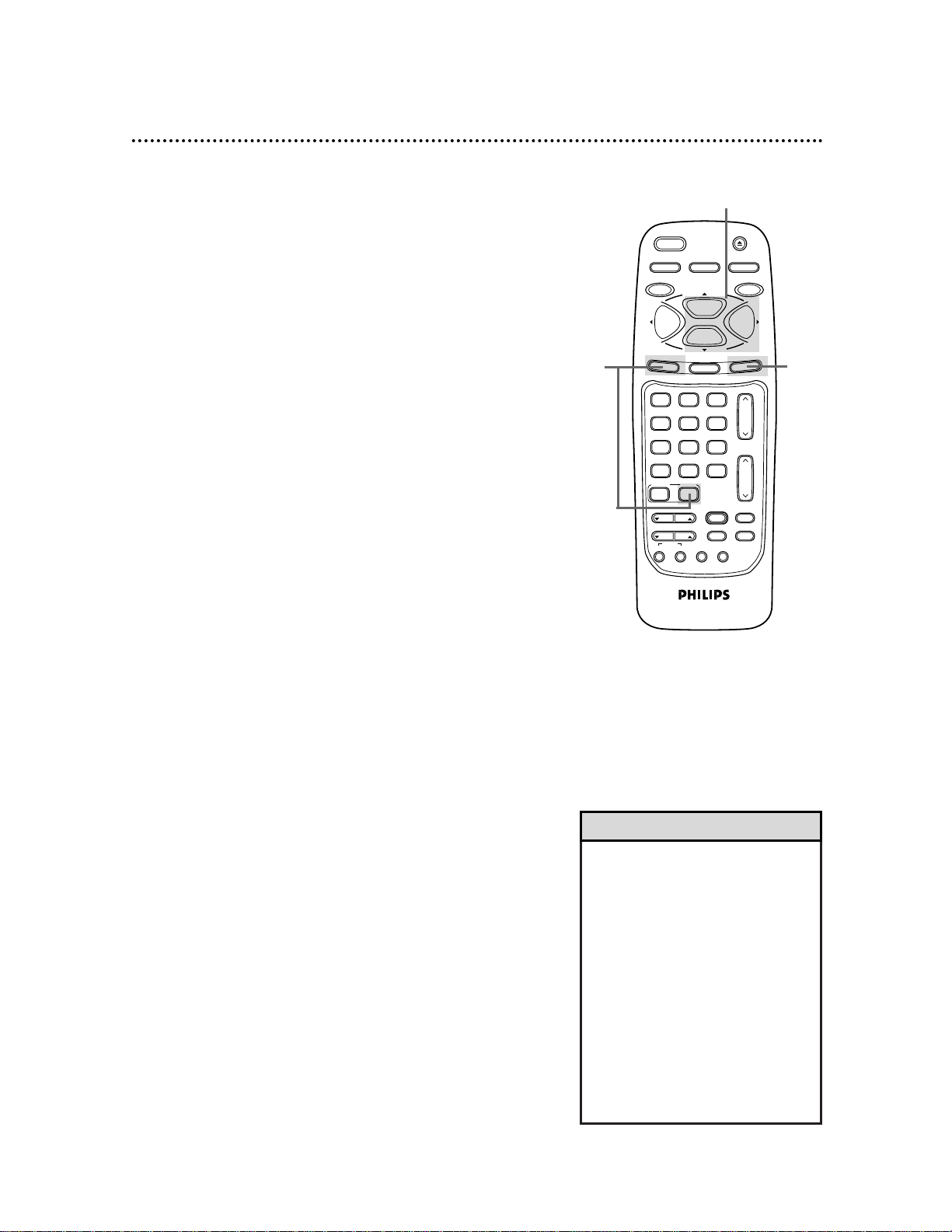

Helpful Hint

With the TV/VCR on, press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select PROGRAM REVIEW, then press the F.FWD/B button.

The timer recording information for the program in the lowest numbered position will appear on the screen. If no timer recordings are programmed, nothing will happen when you select PROGRAM REVIEW and press the F.FWD/B button.

Timer Recording (cont’d) 37

Repeat steps 1 - 4 to make sure you have cleared the correct position.

Checking or Clearing Timer Recordings

Press the PLAY/▲ button or the STOP/▼ button to select VCR PROGRAM, then press the F.FWD/B button.

Press the F.FWD/B button to display information about the next programmed timer recording. (If you do not press

a button within 10 seconds, information about the next programmed timer recording will appear.) This will continue until all positions have been displayed. Then, the menu will disappear. You can exit the Program Review at any time by pressing the STATUS/EXIT button.

To cancel the timer recording displayed, press the CLEAR button. Either the display will disappear or information

about other timer recordings will appear. If you do not press any other buttons, the display will disappear after all timer recordings have been displayed.

2-4

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

38 Setting Up the VCR Plus+ Programming System

First, fill in the boxes on this page. It will only take a few minutes, and you must do it if you want the VCR Plus+ programming system to work properly. Since the channel numbers of the stations you receive may not be the same as the station numbers, and since channel numbers differ from area to area, you must program the TV/VCR with your local channel information. To fill in the boxes, you will need 1) a cable channel line-up list, if applicable (you can request one from your cable company), and 2) a chart that lists VCR Plus+ channel numbers, which you can find in your TV guide or the TV listings of your local newspaper.

NOTE: If you are using a Cable Box/DBS, the Cable/TV channel must be 03 or 04 (the Cable Box/DBS output channel) for every VCR Plus+ channel.

TV Channels

Station

Call Letters

VCR PLUS+ CH.

CABLE/TV CH.

TV Channels

Station

Call Letters

CR PLUS+ CH.

CABLE/TV CH.

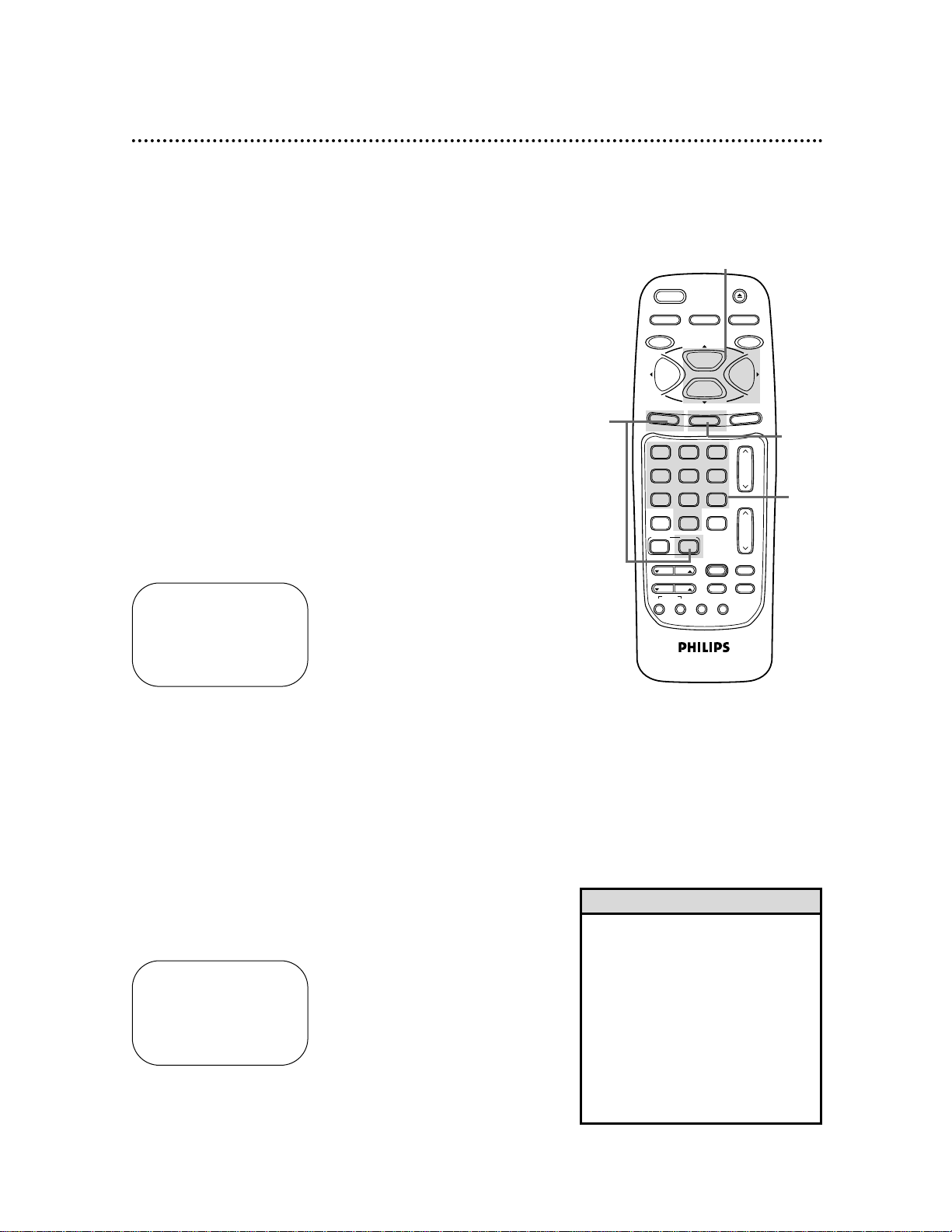

Setting Up the VCR Plus+ Programming System (cont’d) 39

Now, compare the channel numbers you have written in the VCR PLUS+ CH. and CABLE/TV CH. columns. You’ll notice that some stations have VCR Plus+ and Cable/TV channel numbers that are the same, and other stations have channel numbers that do not match. Where the channel numbers DO NOT match, you must tell the TV/VCR the VCR Plus+ and Cable/TV channel numbers according to the following steps.

● Make each entry within 60 seconds of the previous entry.

Look at the lists you filled in on page 38. For stations whose VCR Plus+ and Cable/TV channels do not match, press the PLAY/▲ button or the STOP/▼ button until the arrow is beside the VCR Plus+ channel you need. Then, press the Number buttons to enter the corresponding Cable/TV channel from your list. Continue this process until

you have entered all the stations on your list. Note: If you are using a Cable Box/DBS, the Cable/TV channel will be 03 or 04 (the Cable Box/DBS output channel) for every VCR Plus+ channel. You must set the Cable Box/DBS to the channel you want to record; leave the Cable Box/DBS on for the timer recording.

Press the STATUS/EXIT button.

• To correct a Cable/TV channel number, repeat the steps on this page.

• To clear a Cable/TV channel number, repeat steps 3-5 on this page. Then, press the CH(annel) mm/

button to select it. Press the CLEAR button, then press the STATUS/EXIT button.

• To select line input for the Cable/TV channel, press 0,0. A/V IN will appear on the screen.

Helpful Hints

Press the PLAY/▲ button or the STOP/▼ button to select VCR PLUS+ REF. MAP, then press the F.FWD/B button.

VCR PLUS+ CROSS REF. MAP

VCR PLUS+ CABLE/TV

124 – – – 125 – – –

01 – – – – B 23 02 – – –

03 – – – TO SELECT CH PRESS ▲▼ TO DELETE PRESS CLEAR TO END PRESS EXIT

VCR PLUS+ CROSS REF. MAP

VCR PLUS+ CABLE/TV

124 – – – 125 – – –

01 – – – – B – – –

02 – – –

03 – – –

TO SELECT CH PRESS ▲▼ THEN ENTER CH NO. TO END PRESS EXIT

Examine the lists on page 38.

Press the PLAY/▲ button or the STOP/▼ button to select VCR SETUP, then press the F.FWD/B button.

Press the COMBI button, then press the MENU button.

4-6

7 6

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS

VAR.SLOW

TRACKING

SMART


SOUND

COMBI

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

SKIP

SURF

/ENTER

F.ADV

INDEX

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

MUTE

SLOW

Press the COMBI button, then press the VCR PLUS+/ENTER button.

VCR PLUS+ PROGRAM

PLUS CODE : – – – – – – – –

TO END PRESS EXIT

40 Timer Recording With the VCR Plus+ Programming System

Follow the steps below to program a timer recording using the PlusCode programming numbers in your TV guide. Before you begin, make sure:

● The clock has been set. If not, CLOCK MUST BE SET appears.

● Channels are programmed.

● There is a tape in the TV/VCR (make sure the tape’s record tab

is intact and the tape is long enough to record the program).

● You have completed the steps on pages 38-39.

Complete each step within 60 seconds of completing the previous step. If you don’t, you may return to step 1.

Press the Number buttons to enter the PlusCode programming number of the program you wish to record (this number is different for every program). Finally, press the VCR PLUS+/ENTER button.

Press the PLAY/▲ button or the STOP/▼ button to select a ONCE, DAILY, OR WEEKLY recording. Then, press the F.FWD/B button.

● ONCE: The VCR will record a TV program on any day you

choose, up to 12 months away.

● DAILY: The VCR will record every day from Monday to Friday

– starting at the same time and recording for the same length of time.

● WEEKLY: The VCR will record on the same day, at the same

time, and for the same length of time every week.

• You cannot set a timer recording if DEFEAT RECORDING is set to ON. Details are on page 33.

• If CODE ERROR flashes after you enter the PlusCode programming number and press the VCR PLUS+/ENTER button, the number you entered was incorrect (for example, too short). If this happens, enter the correct number.

• CLASH may flash on the screen after you complete step 2. This means that the timer recording you just programmed and another timer recording overlap, and thus the current timer recording will not be carried out.

Helpful Hints

VCR PLUS+ PROGRAM

>ONCE

DAILY (MON - FRI) WEEKLY

SELECT ▲▼ CHOOSE B TO END PRESS EXIT

VCR PLUS+ PROGRAM PLUS CODE : 89687 – – –

TO SET PRESS VCR + TO CORRECT PRESS CLEAR

TO END PRESS EXIT

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

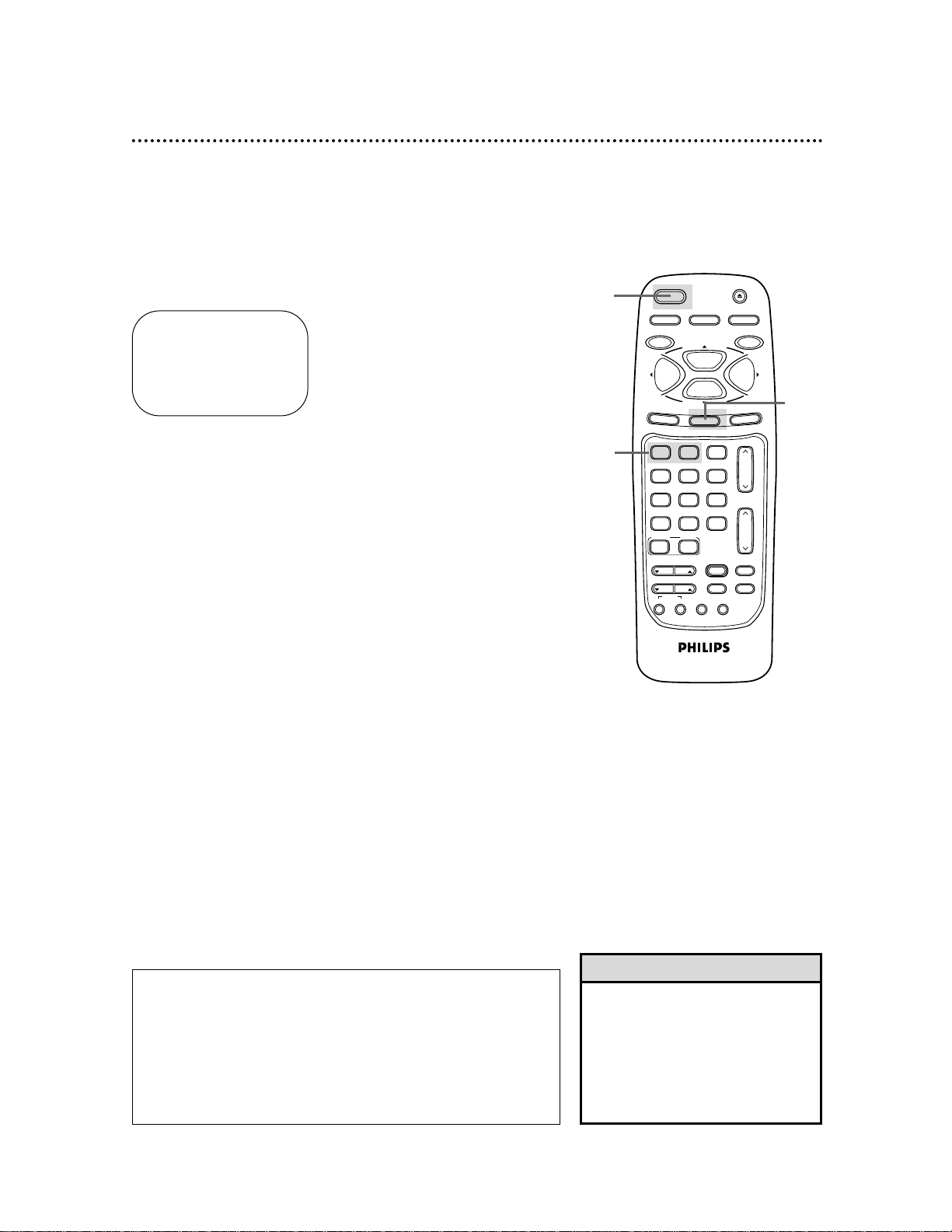

Timer Recording With the VCR Plus+ Programming System (cont’d) 41

• To exit the VCR Plus+ programming system at any time, press the STATUS/EXIT button. The display will disappear from the screen.

• To stop a started timer recording, press the STOP/EJECT button on the TV/VCR.

Helpful Hints

Press the Number 1 button to record in SP speed or the Number 2 button to record in SLP speed. Your selection

will appear to the right of REC SPEED on the screen, although SP=1 SLP=2 will continue to flash. For details about tape speed, see pages 30 and 63. You cannot use the SPEEDbutton at this time.

Turn off the TV/VCR for the

recording. Insert a tape in the

TV/VCR. Leave the Cable

Box/DBS on (if applicable).

Press the STATUS/EXIT button. PROGRAM WAS COM-

PLETED / PLEASE TURN OFF FOR TIMER RECORDING will appear on the screen.

● If there is not a tape in the TV/VCR, PLEASE INSERT CAS-

SETTE also appears on the screen.

● If there is a tape without a record tab in the TV/VCR, PLEASE

REMOVE CASSETTE also appears on the screen. If this happens, insert a different tape.

Press the POWER button to turn off the TV/VCR power.

ONE TIME PROGRAM

PROGRAM 1 CHANNEL 09

TIME ON 10:30 PM TIME OFF 11:30 PM REC SPEED SLP

SP=1 SLP=2

START DATE 07/10/2000

MONDAY

TO END PRESS EXIT

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

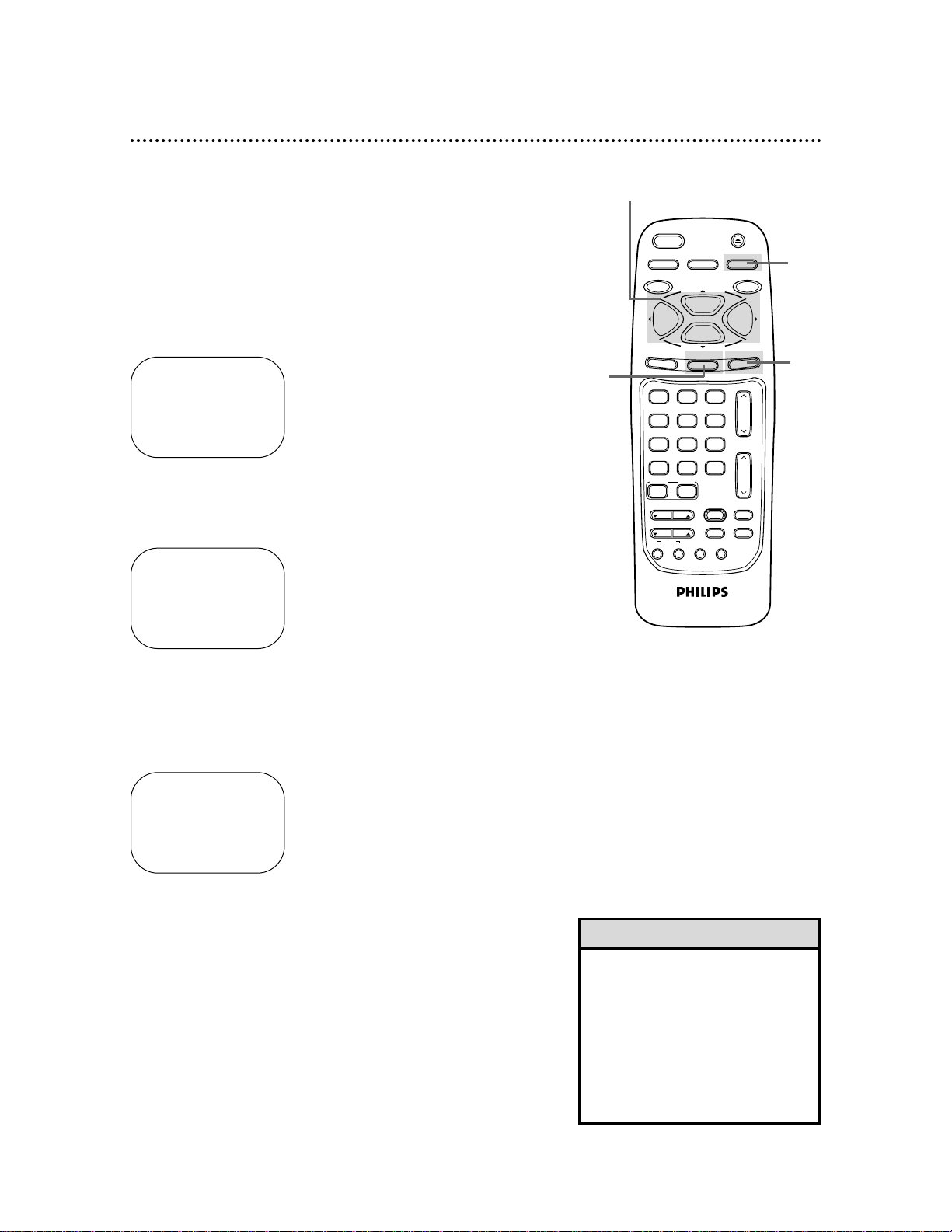

42 Real-Time Counter Memory

Follow the steps below to reset the real-time counter to zero at a tape location you want to refer to later.

Play, fast forward, or rewind a tape to the location that you would like to refer to later. Stop the tape.

Press the STATUS/EXIT button. The real-time counter will

appear on the screen.

While the counter remains on the screen, press the CLEAR button to reset the real-time counter to zero.

While the counter remains on the screen, press the MEMORY button so that M appears on the screen. To erase a

real-time counter memory, press the MEMORY button so that the M disappears from the screen.

01:08 PM STOP CH10

SLP 1 : 23 : 45

To go to a tape location where the real-time counter was reset to zero, press the REW(ind)/s button or the F.FWD/B button when playback is stopped. When the tape reaches the point at which the counter was set to zero, the tape will stop. Press the PLAY/o button to watch the tape.

• The real-time counter memory will not function during Repeat Play mode. Details are on page 43.

• You may only set one real-time counter memory at a time. If you set the real-time counter to zero at a second location, the previous realtime counter to zero setting will be lost.

Helpful Hints

0 : 00 : 00

M 0 : 00 : 00

4 3

1,5

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS

VAR.SLOW

TRACKING

SMART


SOUND

COMBI

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

SKIP

SURF

/ENTER

F.ADV

INDEX

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

MUTE

SLOW

Press the COMBI button, then press the MENU button.

Repeat Play 43

Follow the steps below to program the TV/VCR to play a tape over and over.

Press the PLAY/▲ button or the STOP/▼ button to select VCR SETUP, then press the F.FWD/B button.

Press the PLAY/▲ button or the STOP/▼ button to select REPEAT PLAY, then press the F.FWD/B button so that ON appears beside REPEAT PLAY.

Press the STATUS/EXIT button. Now, when a tape has fin-

ished playing, the TV/VCR will rewind it and start playback again. (TV programming will appear while the tape is rewinding.)

• The TV/VCR will stay in Repeat Play mode until you set ONE TIME PLAY to ON, even if the TV/VCRis turned off. To set ONE TIME PLAY to ON, follow steps 1-2 above. Then, press the PLAY/o button or the STOP/p button to select ONE TIME PLAY. Press the F.FWD/B button so that ON appears beside ONE TIME PLAY. Then, press the STATUS/EXIT button.

• The real-time counter memory will not function during Repeat Play mode.

Helpful Hints

> PRIM. SETUP

VCR PROGRAM VCR SETUP CAPTION REMINDER BRIGHTNESS

PRESS B

VCR SETUP

> ONE TIME PLAY [ON]

REPEAT PLAY ON-SCREEN MODE DEFEAT RECORDING [OFF] BLUE BACKGROUND [ON] VCR PLUS+ REF. MAP

SELECT KL CHOOSE B TO END PRESS EXIT

VCR SETUP

ONE TIME PLAY

> REPEAT PLAY [ON]

ON-SCREEN MODE DEFEAT RECORDING [OFF] BLUE BACKGROUND [ON] VCR PLUS+ REF. MAP

SELECT KL CHOOSE B TO END PRESS EXIT

2-3

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

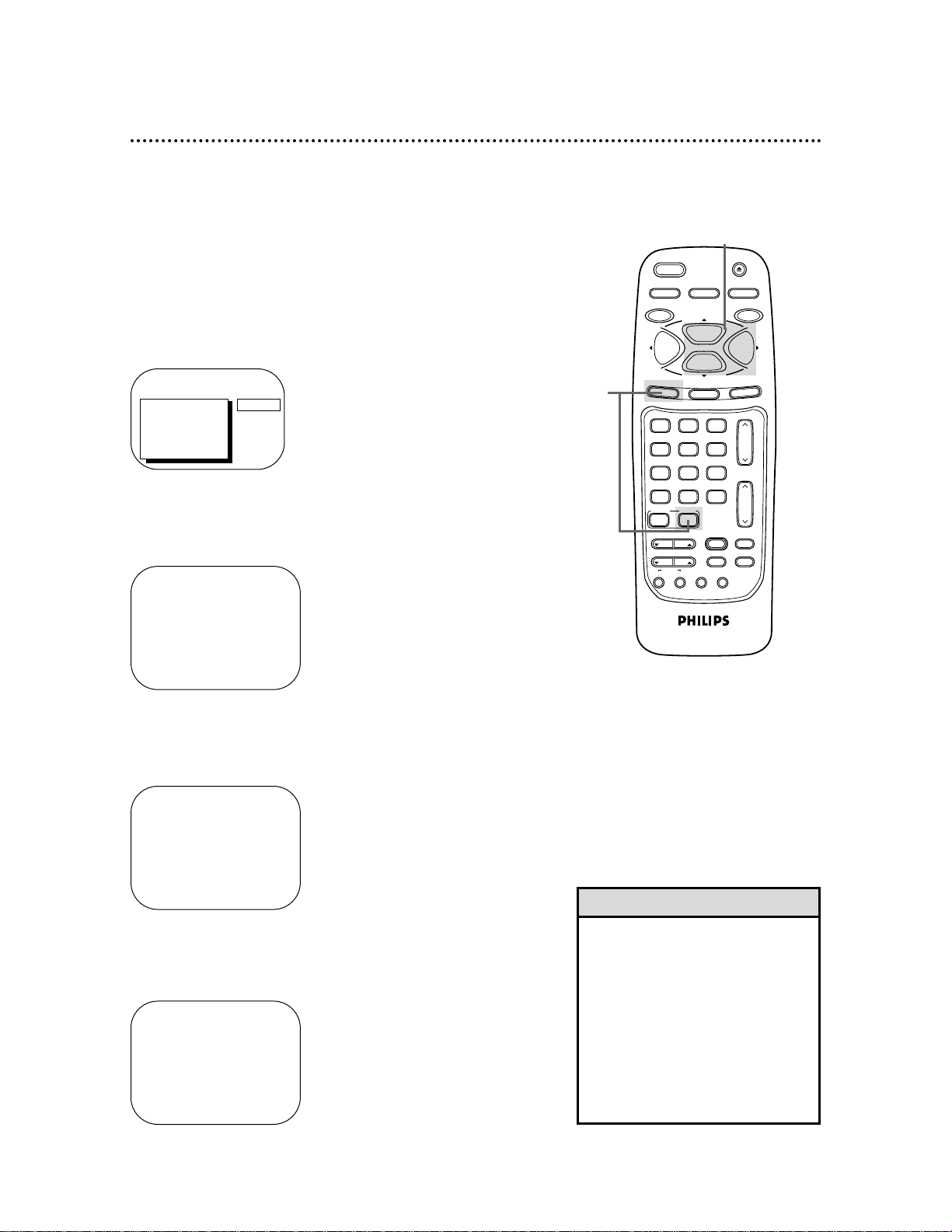

44 A-B Repeat Play

• To cancel A-B Repeat Play, set ONE TIME PLAY to ON. To set ONE TIME PLAY to ON, follow steps 2-3 above. Then, press the PLAY/o button or the STOP/p button to select ONE TIME PLAY. Press the F.FWD/B button so that ON appears beside ONE TIME PLAY. Then, press the STATUS/EXIT button.

• The end position (B) must be later on the tape than the start position (A).

Helpful Hints

Follow the steps below to program the TV/VCR to play the material between two specified points (A and B) on a tape over and over again.

Insert a tape in the TV/VCR.

Press the PLAY/▲ button or the STOP/▼ button to select VCR SETUP, then press the F.FWD/B button.

Press the F.FWD/B button repeatedly so that A-B appears beside REPEAT PLAY.

Press the PLAY/▲ button or the STOP/▼ button to select REPEAT PLAY.

Press the COMBI button, then press the MENU button.

Insert a tape in the TV/VCR.

> PRIM. SETUP

VCR PROGRAM VCR SETUP CAPTION REMINDER BRIGHTNESS

PRESS B

VCR SETUP

> ONE TIME PLAY [ON]

REPEAT PLAY ON-SCREEN MODE DEFEAT RECORDING [OFF] BLUE BACKGROUND [ON] VCR PLUS+ REF. MAP

SELECT KL CHOOSE B TO END PRESS EXIT

VCR SETUP

ONE TIME PLAY [ON]

> REPEAT PLAY

ON-SCREEN MODE DEFEAT RECORDING [OFF] BLUE BACKGROUND [ON] VCR PLUS+ REF. MAP

SELECT KL CHOOSE B TO END PRESS EXIT

VCR SETUP

ONE TIME PLAY

> REPEAT PLAY [A-B]

ON-SCREEN MODE DEFEAT RECORDING [OFF] BLUE BACKGROUND [ON] VCR PLUS+ REF. MAP

SELECT KL CHOOSE B TO END PRESS EXIT

3-5

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

Press the STATUS/EXIT button to remove the menu. A-

B REPEAT will appear on the screen. Beneath it, the letter A will flash beside the real-time counter.

A-B REPEAT

A 0:12:34

Play, fast forward, or rewind the tape to the position at which you want to begin playback. Stop the tape, then press the MEMORY button to set the start position (A).

The flashing A will become a flashing B.

A-B REPEAT

B 0:00:00

Play or fast forward the tape to the position at which you want playback to end. Stop the tape, then press the MEMORY button to set the end position (B).

● The length of time between the start position (A) and the end

position (B) must be at least three minutes.

The TV/VCR will immediately rewind the tape to the start position (A) and repeat playback to the end position (B) over and over. (TV programming will appear while the tape is rewinding.)

A-B Repeat Play (cont’d) 45

7-8

• The counter cannot be memorized or reset when you are using this feature.

• Positions A and B will be erased when you press the REC(ord)/OTR button.

• A-B REPEAT will not appear on the screen at step 6 if a tape is not in the TV/VCR. NO CASSETTE will flash on the screen briefly.

• You cannot rewind or fast forward beyond points A or B when you are using this feature.

• A-B Repeat Play will be retained if you turn off the TV/VCR power. However, if you eject the tape, A-B Repeat Play will be cancelled.

Helpful Hints

POWER

SLEEP/WAKE UP

REC/OTR

STATUS/EXIT

CABLE/DBS

COMBI

VAR.SLOW

TRACKING

SMART

SKIP


SOUND

SPEED

PLAY

STOP

VCR PLUS+

SURF

/ENTER

F.ADV

INDEX

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

MUTE

SLOW

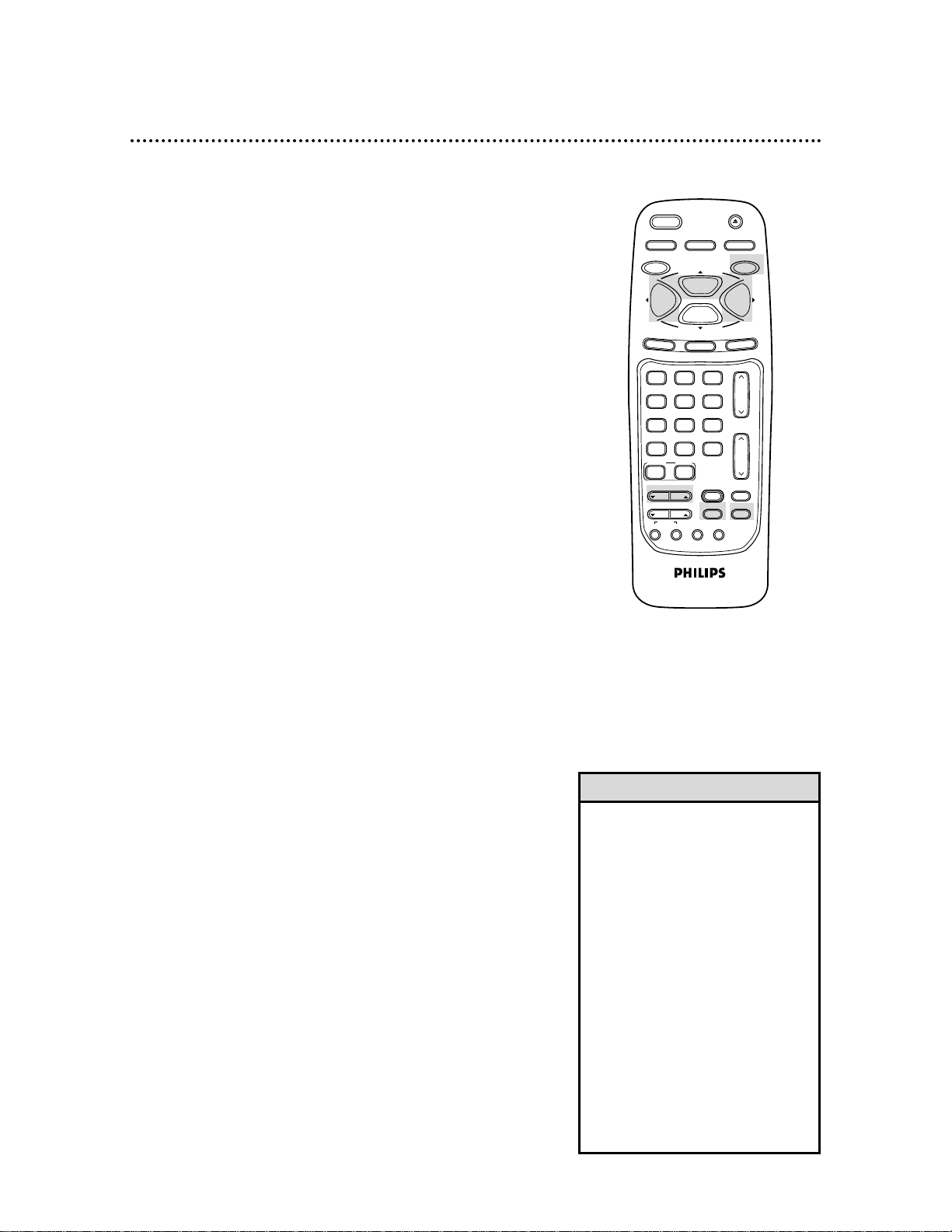

46 Playback Options

Forward and Reverse Searching (SP/LP/SLP)

During tape playback, press and release the F.FWD/B button or the REW(ind)/{ button. A fast forward or reverse picture search will begin.

To return to normal playback, press the PLAY/▲ button.

Super High Speed Searching (LP/SLP)

During tape playback, press the F.FWD/B button or the REW(ind)/{ button, then press again. The TV/VCR will now search in super high speed.

To return to normal playback, press the PLAY/▲ button.

Viewing a Still Picture

During tape playback, press the PAUSE/STILL button. A still picture will appear on the screen.

To advance the still picture frame-by-frame, press the F(rame). ADV(ance) button.

To release the still picture and return to normal playback, press the PLAY/▲ button or press the PAUSE/STILL button again.

Viewing a Slow Motion Picture

During tape playback, press the SLOW button. The tape will play in slow motion.

NOTE: You can control the speed of slow motion playback by pressing the VAR(iable). SLOW button.

To release Slow mode and return to normal playback, press the PLAY/▲ button.

• Slow and Still modes will automatically switch to Stop mode after five minutes to protect the TV/VCR and the tape from damage.

• SP/LP/SLP means this feature will work with tapes recorded in Standard Play, Long Play, or Super Long Play. For details about tape speed, see page 30.

• LP/SLP means this feature will work with tapes recorded in Long Play and Super Long Play. For details on tape speed, see page 30.

• During forward and reverse searching, horizontal noise bars will appear on the TV/VCR screen.

• Tapes recorded in SLP speed will have the clearest picture in Still mode.

Helpful Hints

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS

VAR.SLOW

TRACKING

SMART


SOUND

COMBI

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

SKIP

SURF

/ENTER

F.ADV

INDEX

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

MUTE

SLOW

Press the PLAY/oobutton or the STOP/ppbutton to select VCR SETUP, then press the F.FWD/BBbutton.

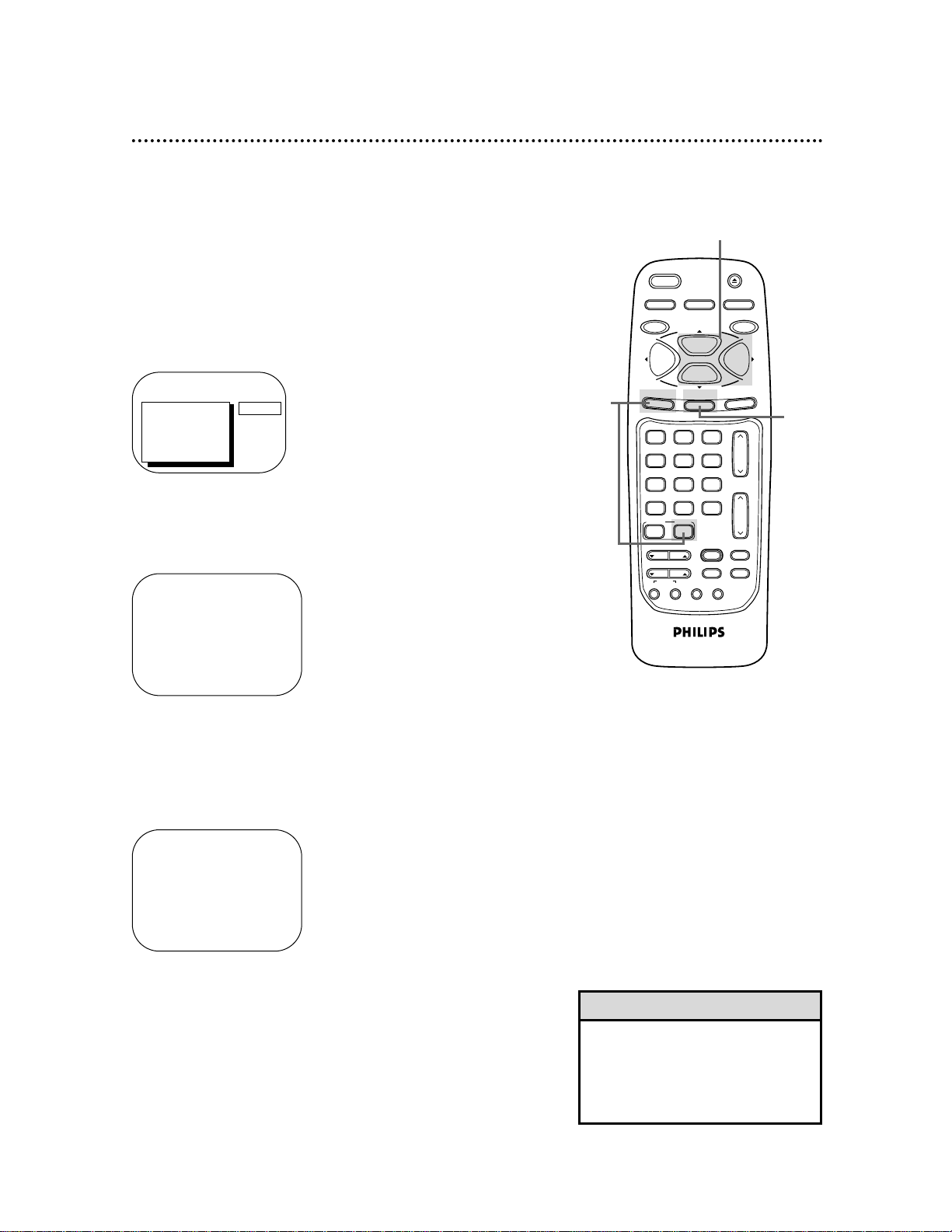

Blue Background 47

If you want the TV screen to be solid blue when a weak signal is received, set BLUE BACKGROUND to ON. The screen will be blue and the sound will be muted. Or, if you want to receive the weak signal, set BLUE BACKGROUND to OFF. When you select a channel that is receiving a weak signal, you will see and hear the static in the TV programming. To set BLUE BACKGROUND to ON or OFF, follow the steps below.

Press the COMBI button, then press the MENU button.

> PRIM. SETUP

VCR PROGRAM VCR SETUP CAPTION REMINDER BRIGHTNESS

PRESS B

VCR SETUP

> ONE TIME PLAY [ON]

REPEAT PLAY ON-SCREEN MODE DEFEAT RECORDING [OFF] BLUE BACKGROUND [ON] VCR PLUS+ REF. MAP

SELECT KL CHOOSE B TO END PRESS EXIT

VCR SETUP

ONE TIME PLAY [ON] REPEAT PLAY ON-SCREEN MODE DEFEAT RECORDING [OFF]

> BLUE BACKGROUND [ON]

VCR PLUS+ REF. MAP

SELECT KL CHOOSE B TO END PRESS EXIT

Press the PLAY/oobutton or the STOP/ppbutton to select BLUE BACKGROUND. Then, press the F.FWD/BBbutton repeatedly so that OFF (or ON) appears beside BLUE BACKGROUND.

Press the STATUS/EXIT button.

2-3

• A blue screen may appear briefly between channel changes if BLUE BACKGROUND is set to ON. To avoid having the brief blue screen, set BLUE BACKGROUND to OFF.

Helpful Hint

SPEED

PLAY

STOP

STATUS/EXIT

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS


VAR.SLOW

TRACKING

SMART

SOUND

COMBI

CH.

SURF

SKIP

VCR PLUS+

/ENTER

F.ADV

VOL.

MUTE

SLOW

INDEX

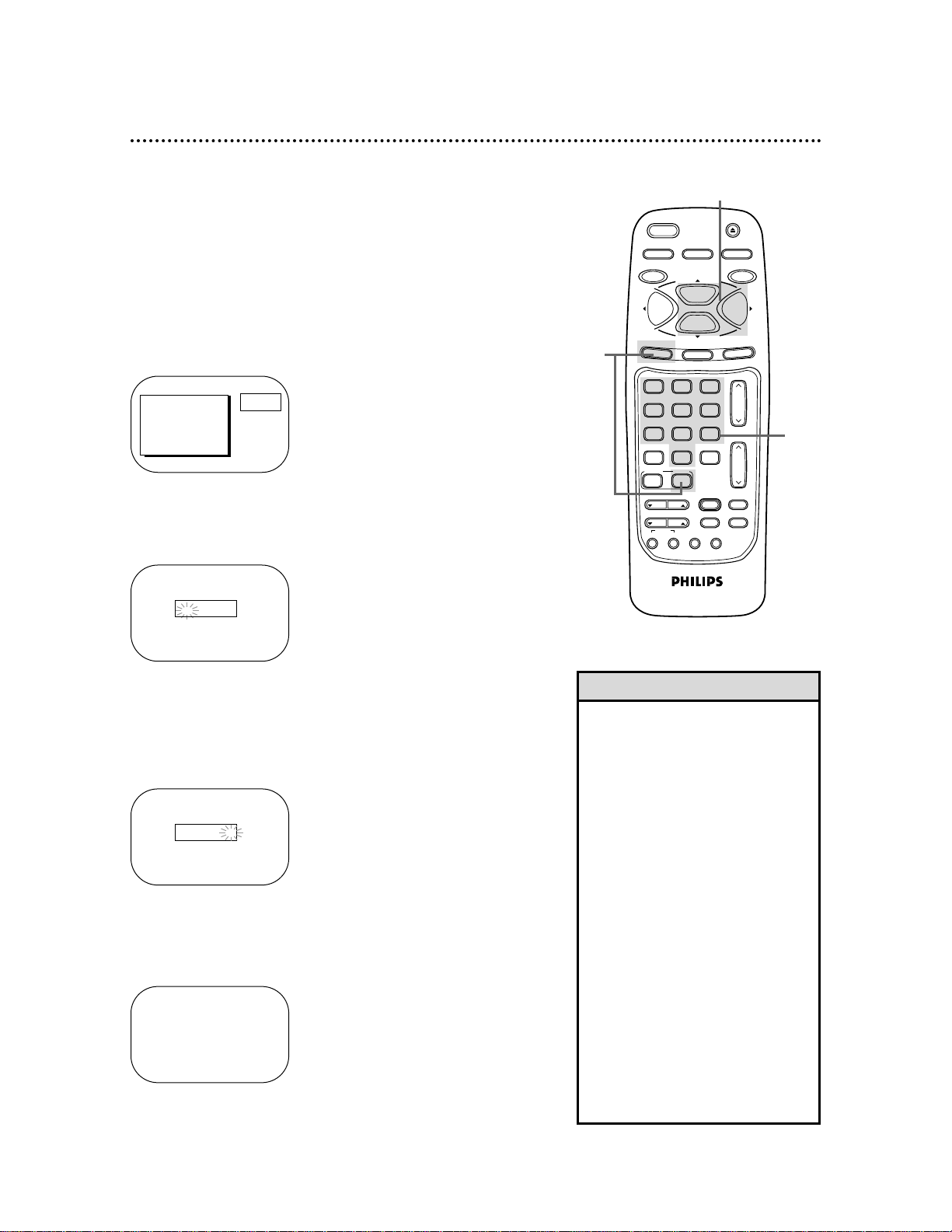

48 SmartLock

SmartLock enables parents to prevent their children from watching inappropriate material on TV. SmartLock reads the ratings for programming (except for news and sports programs, unedited movies on premium cable channels, and Emergency Broadcast System signals), then denies access to programming if the program’s rating meets or exceeds the limitations you select. The ratings are defined on page 51. To block ratings, follow the steps below.

• If the “Incorrect Access Code...” message appears after step 3, enter the correct access code.

• Programming may be rated by the Motion Picture Association of America (MPAA) or according to the Television Parental Guidelines. In order to block any inappropriate programming, set your limits in both places (Movie Ratings and Parental Guidelines). You will complete steps 1-7 twice, choosing Movie Ratings at step 5 the first time, then choosing Parental Guidelines at step 5 the second time.

• You can not view tape playback if the rating of the tape is blocked.

• If you enter the access code once, you may change channels without seeing the “CHANNEL XX BLOCKED” message again. If you turn off the TV/VCR power, you will be asked for the access code again when you tune to a blocked channel.

Helpful Hints

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select SMARTLOCK. Then, press the F.FWD/B button.

SMARTLOCK

Enter Your Access Code

> SMARTLOCK

REVIEW EXIT PRIM. SETUP VCR PROGRAM VCR SETUP

PRESS B

Use the Number buttons to enter your access code.

The default code is 0711. If you have not set up your personal access code, you should use 0711. (To set up your personal access code, see page 50.)

SMARTLOCK

> BLOCK

CHANGE CODE

SELECT KL CHOOSE B TO END PRESS EXIT

_ _ _ _

2,4

Press the PLAY/▲ button or the STOP/▼ button to select BLOCK. Then, press the F.FWD/B button.

SMARTLOCK

Enter Your Access Code

X X X -

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

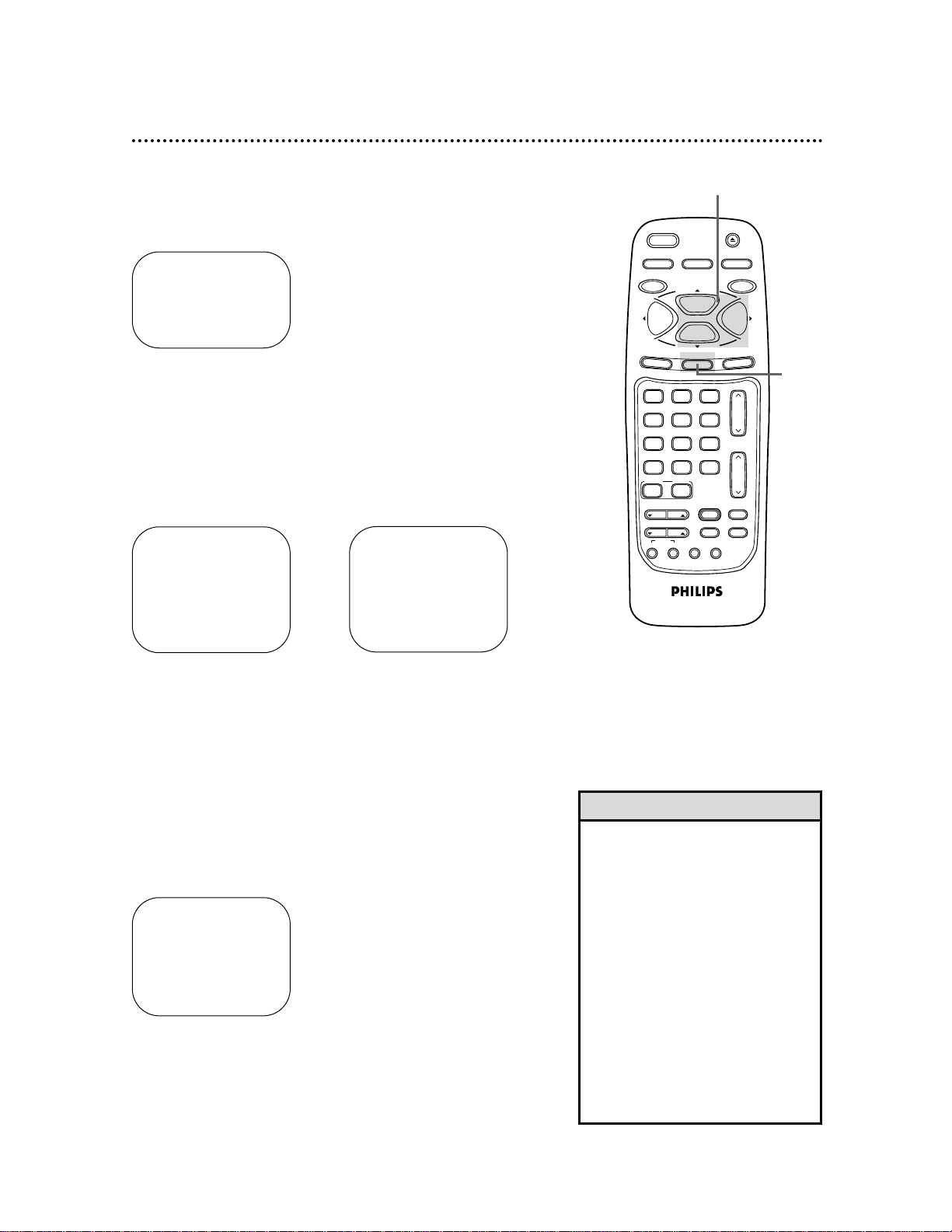

SmartLock (cont’d) 49

Press the PLAY/▲ button or the STOP/▼ button to select Movie Ratings or Parental Guidelines. Then, press the F.FWD/B button.

BLOCK

> Movie Ratings

Parental Guidelines

SELECT KL CHOOSE B TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select the rating you want to block. Then, press the F.FWD/B button so that ON appears beside the rating.

For example, if you set PG to ON, you may not view PG programming because the block is on. Programs with a PG or higher rating will be blocked. A “CHANNEL XX BLOCKED...” message will appear when someone tries to access such programming.

MOVIE RATINGS

> G [OFF]

PG [OFF] PG-13 [OFF] R [OFF] NC-17 [OFF] X [OFF]

SELECT KL CHOOSE B TO END PRESS EXIT

PARENTAL GUIDELINES

> TV-Y [OFF]

TV-Y7

- - - - - - - - - - - - - - - -

TV-G [OFF] TV-PG

TV-14 > TV-MA >

SELECT KL CHOOSE B TO END PRESS EXIT

Press the STATUS/EXIT button.

●More specific sub-ratings are available for TV-Y7, TV-PG, TV-14,

and TV-MA. (See example below.) When you press the F.FWD/B button to turn on TV-Y7, TV-PG, TV-14 or TV-MA, additional sub-ratings will appear. If you select the rating category, such as TV-PG, and turn it on or off, the specific sub-ratings, such as V for violence, will turn on or off automatically. You can always turn specific sub-ratings on or off by selecting them individually. However, you may only set a sub-rating to ON if the rating category is set to ON.

●Ratings are defined on page 51.

• If the “CHANNEL XX BLOCKED...” or “PLAYBACK BLOCKED...” message appears and you want to view this programming, enter your access code. The channel/tape will remain blocked until you enter the correct code. If you do not know the code, you must select another channel using the CH(annel) o/p buttons or press the STOP/p button to stop tape playback.

• Ratings will remain blocked even after a power failure.

• You cannot access the menu when the “CHANNEL XX BLOCKED...” or “PLAYBACK BLOCKED...” message appears.

Helpful Hints

5-6

TV-PG

> TV-PG [OFF]

D [OFF] L [OFF] S [OFF] V [OFF]

SELECT KL CHOOSE B TO END PRESS EXIT

Example

of specific

sub-ratings

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

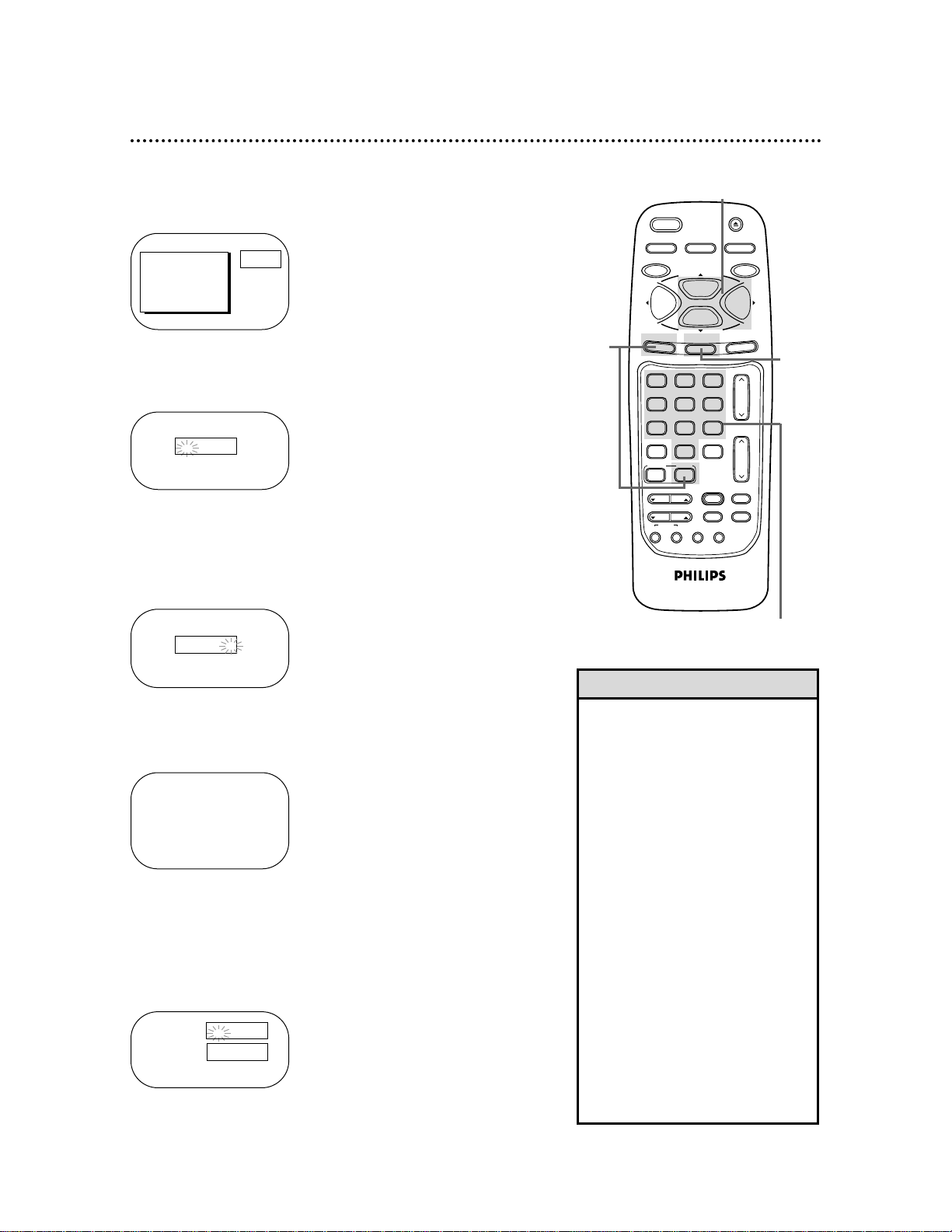

To change the access code, follow these steps.

50 SmartLock (cont’d)

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select SMARTLOCK. Then, press the F.FWD/B button.

SMARTLOCK

Enter Your Access Code

> SMARTLOCK

REVIEW EXIT PRIM. SETUP VCR PROGRAM VCR SETUP

PRESS B

Use the Number buttons to enter your old access code.

The default code is 0711. If you have never set up your personal access code, use 0711 now. After you enter the code, the SMARTLOCK menu will appear.

_ _ _ _

SMARTLOCK

Enter Your Access Code

X X X -

SMARTLOCK

BLOCK

> CHANGE CODE

SELECT KL CHOOSE B TO END PRESS EXIT

Press the PLAY/▲ button or the STOP/▼ button to select CHANGE CODE. Then, press the F.FWD/B button.

Use the Number buttons to enter your desired access code in the New Code space. Then, enter the same code in the Confirm Code space.

Your new access code should be recorded. You will return to the SMARTLOCK menu.

Press the STATUS/EXIT button.

2,4

• In order to protect the privacy of the access code, an X will appear on the screen instead of the number you enter.

• If a “Wrong Code...” message appears on the screen after you complete step 5, you entered the wrong numbers in the Confirm Code space. Repeat the steps on this page.

• You cannot use the default code after you set up your personal access code.

• If a power failure occurs, the default code, 0711, will be the active access code again.

• If you connect the power cord to an AC outlet that is controlled by a wall switch, your personal access code will be erased every time you turn off the power at the wall switch. The default code will be the active code again.

Helpful Hints

New Code Confirm Code

_ _ _ _ _ _ _ _

3,5

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS

VAR.SLOW

TRACKING

SMART


EJECT

SPEED

MEMORY

PAUSE/STILL

PLAY

F.FWDREW

STOP

SKIP

SURF

VCR PLUS+

/ENTER

F.ADV

INDEX

CLEAR

SOUND

COMBI

STATUS/EXIT

CH.

VOL.

MUTE

SLOW

SmartLock (cont’d) 51

To check the SmartLock settings, follow these steps.

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select REVIEW. Then, press the F.FWD/B button so that the SmartLock settings appear.

Ratings that are blocked will appear on the screen. An “X” will appear if a specific sub-rating is blocked, such as V for Violence in the TV-14 category.

Press the STATUS/EXIT button.

BLOCKED RATINGS Movie Ratings G PG-13 NC-17 Parental Guidelines

TV-Y7

- - - - - - - - - - - - - - - - - - - -

TV-G

D L S V TV-PG x x TV-14 x x x x TV-MA – x x x

> REVIEW

EXIT PRIM. SETUP VCR PROGRAM VCR SETUP CAPTION

PRESS B

RATING EXPLANATIONS

For Movie Ratings

• G - General Audience

• PG - Parental Guidance suggested.

• PG-13 - Unsuitable for children under 13

• R - Restricted; under 17 requires accompanying parent or adult guardian

• NC-17 - No one under 17 admitted

• X - Mature audience only

For Parental Guidelines

• V - Violence

• S - Sexual situations

• L - Language

• D - Inappropriate dialogue

• FV - Fantasy Violence may frighten children under seven; TV-Y7 category only. Some cartoons may have this rating.

• TV-Y - Appropriate for all children

• TV-Y7 - Appropriate for children seven and older

• TV-G - General Audience

• TV-PG - Parental Guidance suggested.

• TV-14 - Unsuitable for children under 14

• TV-MA - Mature audience only

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS

VAR.SLOW

TRACKING

SMART


SOUND

COMBI

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

SKIP

SURF

/ENTER

F.ADV

INDEX

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

MUTE

SLOW

52 Sleep Timer

Use the sleep timer to program the TV/VCRto shut off in a certain amount of time.

Press the COMBI button, then press the SLEEP/WAKE UP button.

• To cancel the sleep timer, press the COMBI button, then press the SLEEP/WAKE UP button. Press the PLAY/o button or the STOP/p button to select SLEEP, then press the REW(ind)/ssbutton or the F.FWD/BBbutton to select OFF. Press the STATUS/EXIT button.

• To see how much time remains before the TV/VCR shuts itself off, press the SLEEP/WAKE UP button, then press the PLAY/o button or the STOP/p button to select SLEEP. To remove the display, press the STATUS/EXIT button.

Helpful Hints

Press the PLAY/oobutton or the STOP/ppbutton to select SLEEP. Then press the REW(ind)/ssbutton or the F.FWD/BBbutton to select 30 MIN(utes), 60 MIN(utes), 90 MIN(utes), 120 MIN(utes) or OFF. (You can not set the sleep

timer during a recording.)

Press the STATUS/EXIT button. The TV/VCR will shut itself

off after the specified amount of time. One minute before the TV/VCR shuts itself off, the seconds will count down on the screen. GOOD NIGHT appears on the TV/VCR screen 10 seconds before the TV/VCR shuts itself off.

2 3

TO ADJUST PRESS { / B

–TIMER–

> SLEEP

WAKE UP ON-TIME

OFF

TO ADJUST PRESS { / B

–TIMER–

> SLEEP

WAKE UP ON-TIME

30 MIN

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS

VAR.SLOW

TRACKING

SMART


SOUND

COMBI

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

SKIP

SURF

/ENTER

F.ADV

INDEX

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

MUTE

SLOW

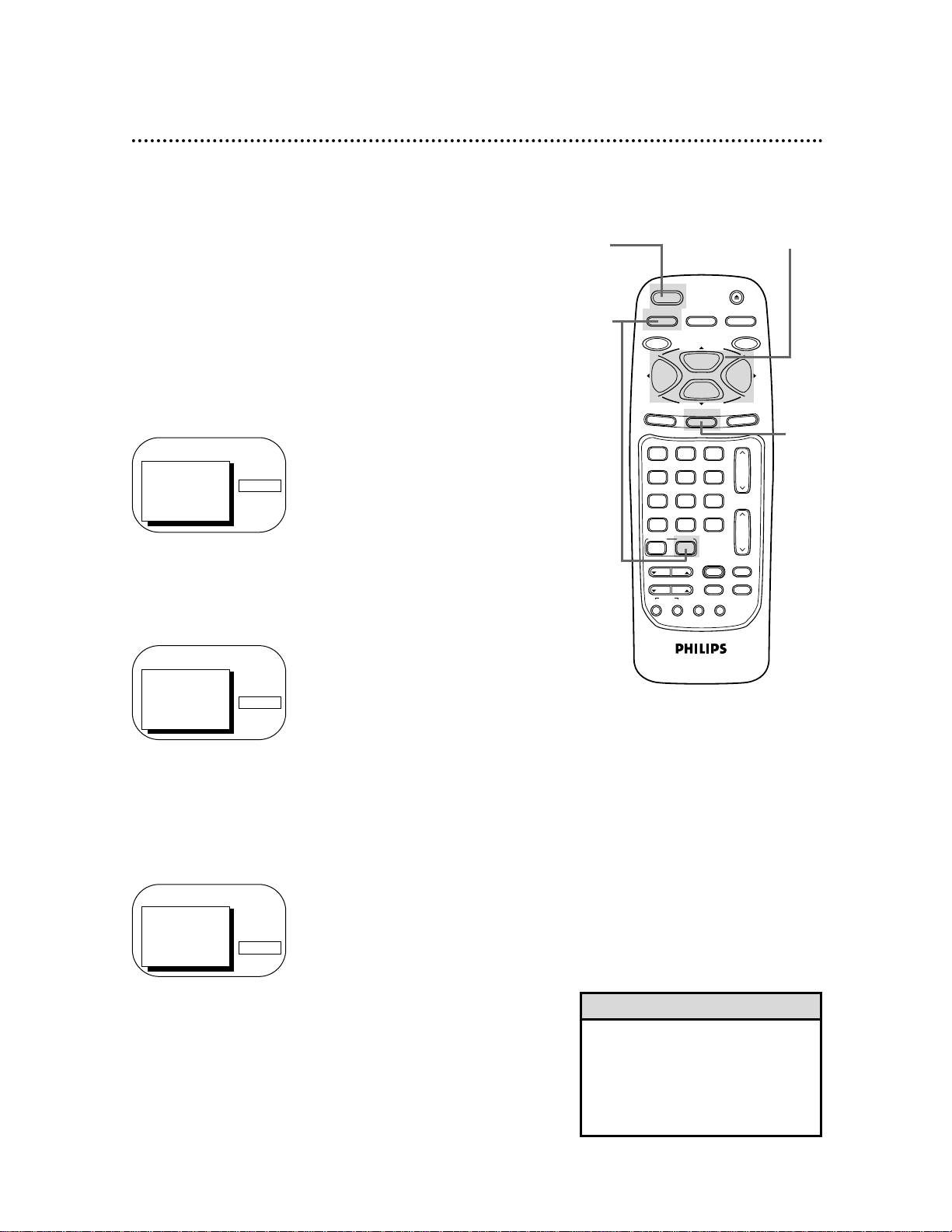

Wake Up Timer 53

The Wake Up Timer turns on the TV/VCR automatically at a specified time within the next 24 hours. You may set the TV/VCR to turn on at a TV channel (the channel at which the TV/VCR was set last) or with VCR playback. To set the Wake Up Timer, follow the steps below. Before you begin:

● Make sure the clock is set. If the clock has never been set,

CLOCK MUST BE SET will appear on the screen at step 2. Then the SET CLOCK menu will appear.

● Make sure a tape is in the TV/VCR if you want the TV/VCR to

start tape playback at the specified time.

● Make sure no timer recordings are set for the time at which you

want the TV/VCR power to come on.

Press the COMBI button, then press the SLEEP/WAKE UP button.

• To cancel the Wake Up Timer, follow step 1 above. At step 2, press the REW(ind)/ssbutton or the F.FWD/BBbutton to select OFF at WAKE UP. Press the STATUS/EXIT button.

Helpful Hint

Press the PLAY/oobutton or the STOP/ppbutton to select WAKE UP. Then, press the REW(ind)/ssbutton or the F.FWD/BBbutton to select TV ON or VCR ON.

Press the STATUS/EXIT button.

Press the POWER button to turn off the TV/VCR. The TV/VCR will turn itself on at the specified time.

2-3

TO ADJUST PRESS { / B

–TIMER–

> SLEEP

WAKE UP ON-TIME

OFF

TO ADJUST PRESS { / B

–TIMER–

SLEEP

> WAKE UP

ON-TIME

TV ON

Press the PLAY/oobutton or the STOP/ppbutton to select ON-TIME. Then, press the REW(ind)/ssbutton or the F.FWD/BBbutton to select your desired wake up time. Each

press of the F.FWD/BBbutton or the REW(ind)/ssbutton will increase (or decrease) the time by 10 minutes.

TO ADJUST PRESS { / B

–TIMER–

SLEEP WAKE UP

> ON-TIME

12:00 AM

SPEED

PLAY

STOP

STATUS/EXIT

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS


VAR.SLOW

TRACKING

SMART

SOUND

COMBI

SKIP

SURF

VCR PLUS+

/ENTER

F.ADV

INDEX

CH.

VOL.

MUTE

SLOW

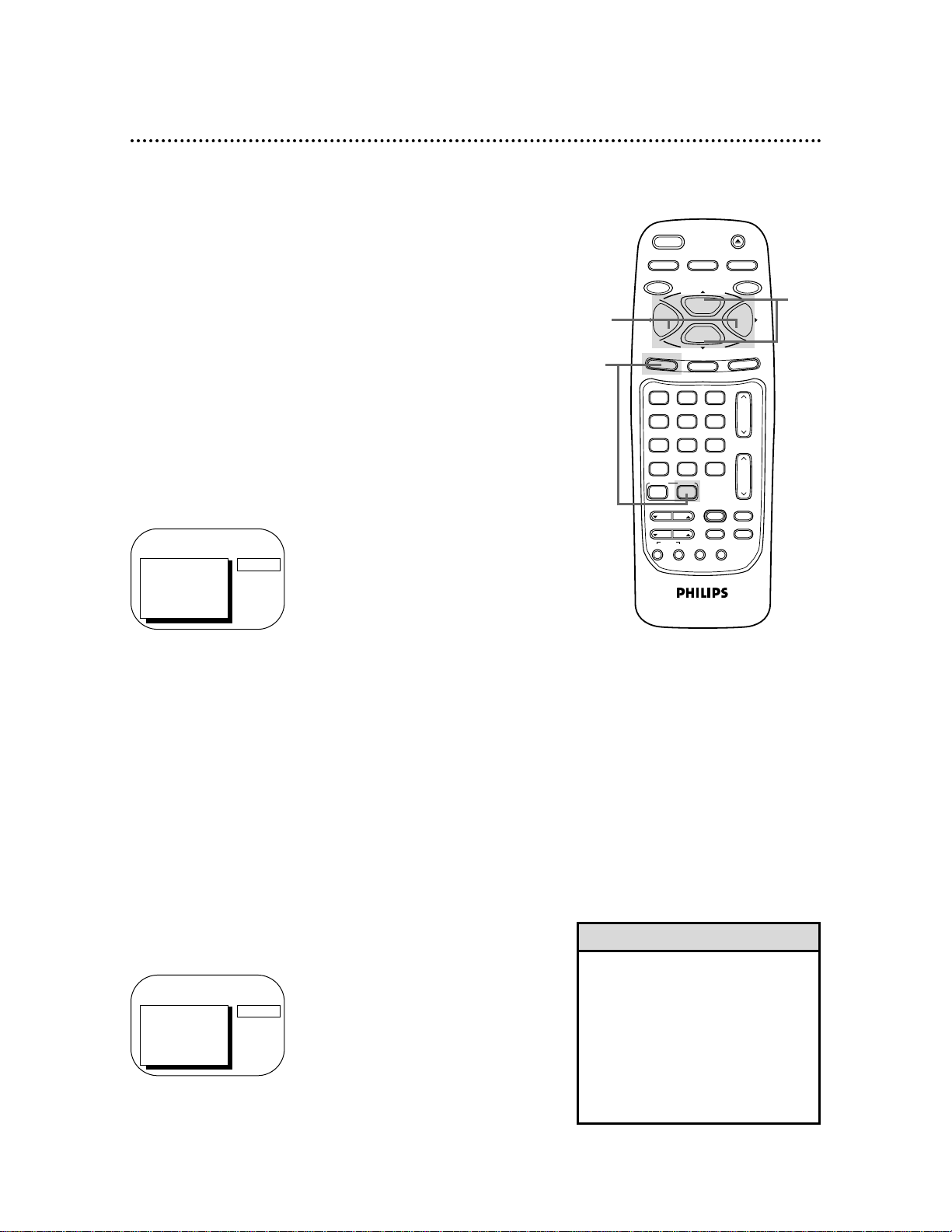

When you watch a program that is being broadcast with closed captions, you can access on-screen boxes containing the program’s dialogue (for example, what a character is saying), dialogue in a foreign language, or information (such as a channel guide, schedule, or announcements). Follow the steps below to select closed captions. Not all TV programs and commercials are broadcast with closed captions. Similarly, all types of closed captions (second language, half-screen text, etc.) are not always broadcast. If closed captioning is not broadcast, you cannot receive it. This does not indicate a problem with the TV/VCR. Refer to your area’s TV program listings for the shows offered with closed captions.

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select CAPTION.

Press the REW(ind)/{ button or the F.FWD/B button to select your desired mode.

The selected closed caption mode will appear beside CAPTION on the screen.

● CAPTION1 displays standard closed captions (what a character

is saying).

● CAPTION2 displays foreign language closed captions (foreign

language words showing what a character is saying).

● TEXT1 and TEXT2 display half-screen text (such as a channel

guide, schedule, or announcement).

● CAPTION MUTE displays standard closed captions (what a

character is saying) when you eliminate the TV/VCR’s sound by pressing the MUTE button.

● OFF turns closed captions off. Captions will not appear on the

screen.

TO ADJUST PRESS { / B

> CAPTION

REMINDER BRIGHTNESS PICTURE COLOR TINT

CAPTION1

Example: CAPTION1 Menu Screen

54 Closed Caption

TO ADJUST PRESS { / B

> CAPTION

REMINDER BRIGHTNESS PICTURE COLOR TINT

OFF

3 1

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

• To cancel closed captions, follow steps 1-2. At step 3, press the REW(ind)/{ button or the F.FWD/B button to select OFF. Press the STATUS/EXIT button.

• If you select CAPTION MUTE, closed captions may be delayed briefly if VOLUME BAR is set to ON. Details are on page 56.

Helpful Hints

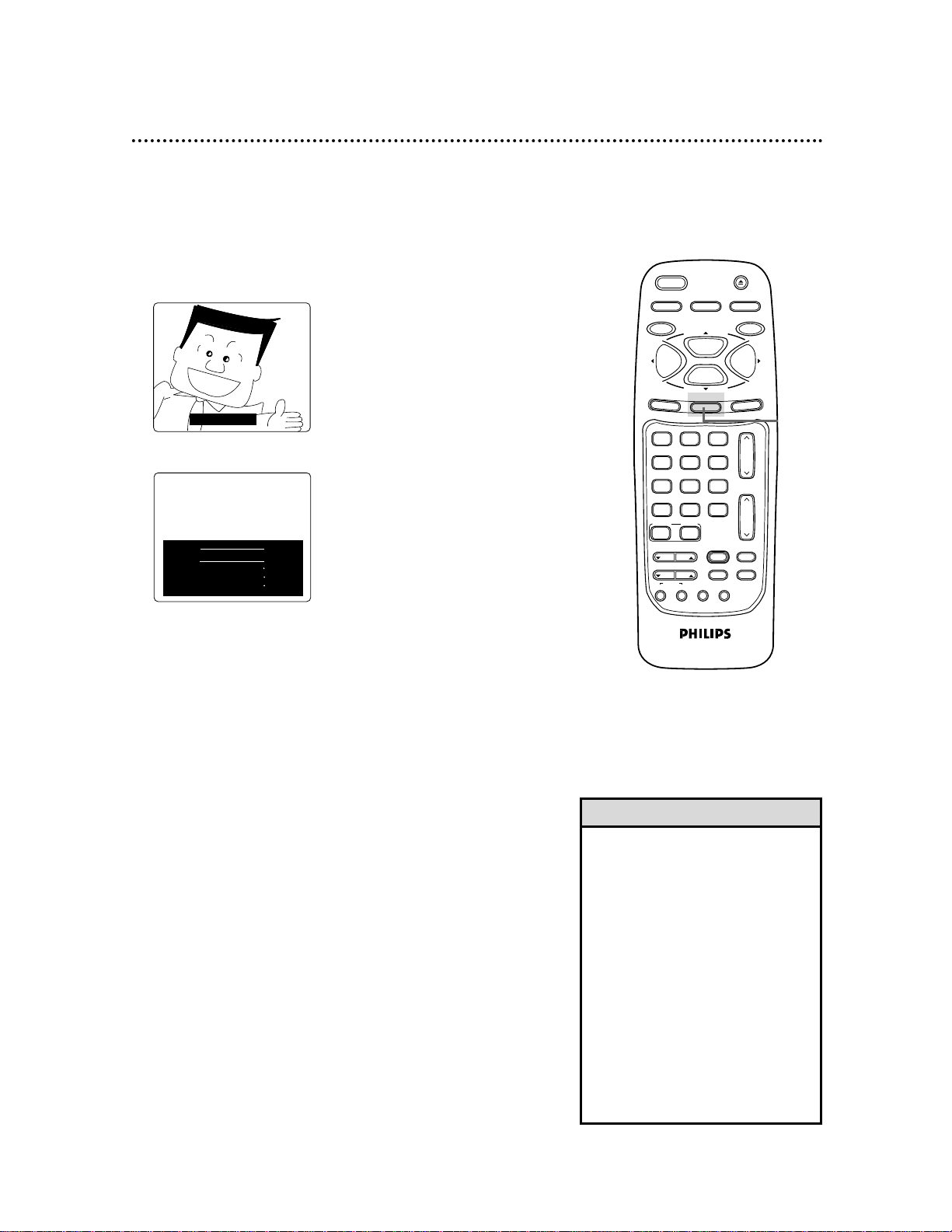

Closed Caption (cont’d) 55

• You cannot view closed captions during recording or tape playback if COUNTER ONLY is set to ON. Details are on page 28.

• Abbreviations, symbols, and other grammatical shortcuts are often used in order to keep pace with the on-screen action. This does not indicate a problem with the TV/VCR.

• When you change channels, the closed captions may be delayed for a few seconds.

• When you adjust the volume or mute the volume, closed captions may be delayed for a few seconds. Details are on page 56.

Helpful Hints

HELLOHELLO

WORLD WEATHERWORLD WEATHER

NYLNYL LOSLOS LONDONLONDON

CLOUDCLOUD RAINRAIN CLOUDCLOUD

5 C 5 C 8 C 8 C 7 C 7 C

23:0023:00 20:0020:00 4:00 4:00

Standard Closed Captions

Half-screen text

Press the STATUS/EXIT button. The type of closed captions

you selected at step 3 will appear on the screen if available.

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

Volume Bar

Usually, the volume bar appears when you press the VOL(ume)

mm/nn

button. If you do not need it, set the VOLUME BAR to OFF. For example, when you watch a program that is being broadcast with closed captions, you may choose to set the VOLUME BAR to OFF so the captions can remain on the screen. The captions will remain on the screen even when you press the VOL(ume) mm/

button or the MUTE button.

56 Volume Bar/Smart Sound

Press the PLAY/▲ button or the STOP/▼ button to select VOLUME BAR, then press the F.FWD/B button. Each press

of the F.FWD/B button will turn the VOLUME BAR ON or OFF.

Press the STATUS/EXIT button.

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING CH MEMORY REVIEW VOLUME BAR [ON] SET CLOCK REMOTE LOCATOR

SELECT KL CHOOSE B TO END PRESS EXIT

> PRIM. SETUP

VCR PROGRAM VCR SETUP CAPTION REMINDER BRIGHTNESS

PRESS B

2-3

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

Smart Sound

The Smart Sound feature stabilizes the TV/VCR volume. For example, when Smart Sound is turned On, the volume will not increase suddenly during commercials or loud segments of programming. The volume will stay at the same level.

Press the COMBI button, then press the SMART SOUND button on the remote control to select ON (or OFF). The

on-screen display shown below will appear for 10 seconds.

SMART SOUND

CABLE/DBS


VAR.SLOW

TRACKING

SMART

SOUND

COMBI

SKIP

VCR PLUS+

SURF

/ENTER

F.ADV SLOW

INDEX

CH.

VOL.

MUTE

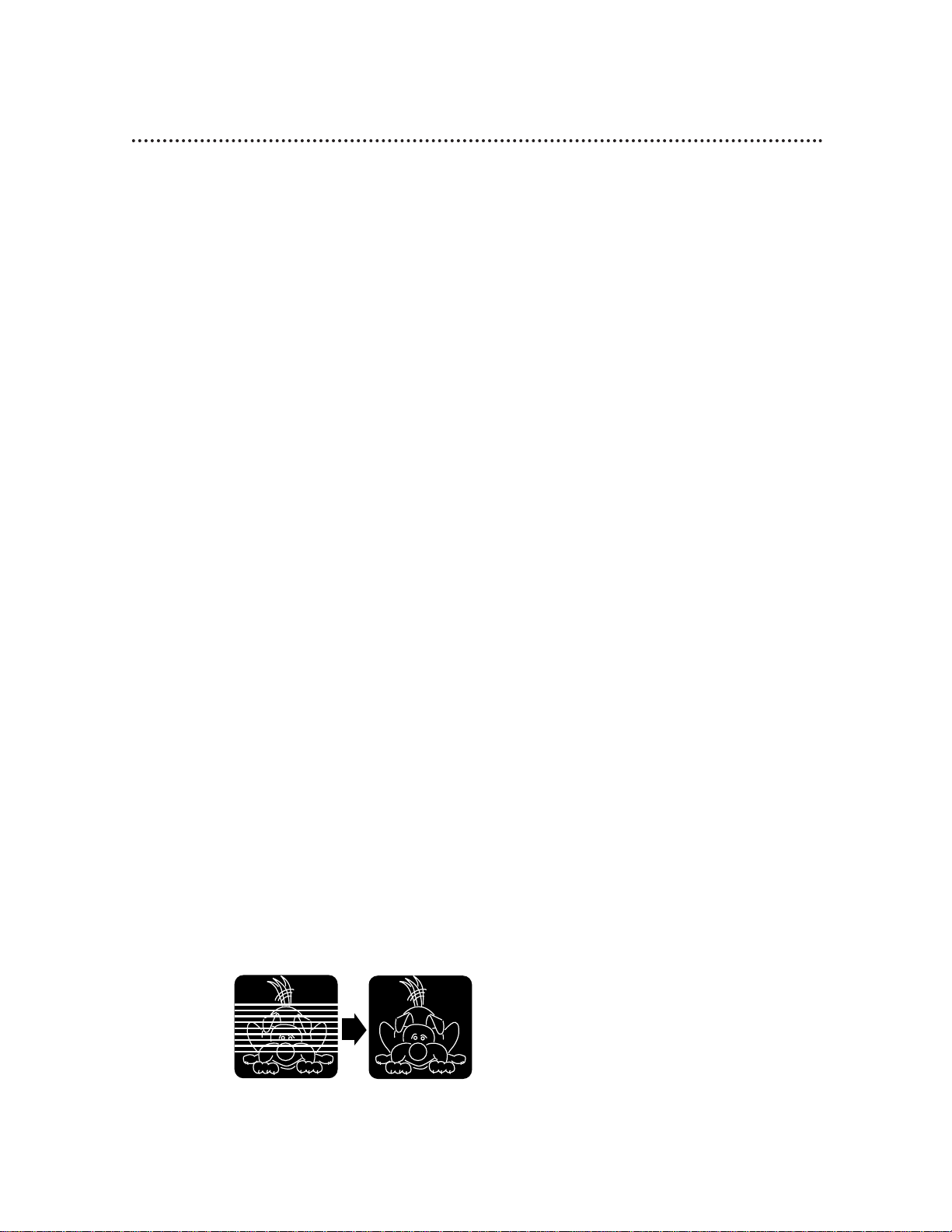

Automatic Operation Features 57

The following playback features will always operate.

Automatic Playback

When you put a tape in the TV/VCR, the power will come on automatically. If the tape’s record tab is missing, playback will begin. If a timer recording is set, the power will not come on automatically when you insert a tape with the record tab intact. If a timer recording is set and the TV/VCR power is off, the TV/VCR will eject the tape if the record tab is missing.

Automatic Rewind, Eject, Off

When a tape is played, fast forwarded, or recorded to its end, the TV/VCR will rewind the tape, stop, turn itself off, and eject the tape. If a real-time counter memory is set, the TV/VCR may only rewind the tape to the point at which the real-time counter is set to zero. The TV/VCR will not turn itself off or eject the tape.

Memory Rewind, Power Off

When the POWER button is pressed while the TV/VCR is rewinding a tape, REW → POWER OFF will appear on the screen. The TV/VCR will turn itself off when the tape has finished rewinding. If a real-time counter memory is set, the TV/VCR may only rewind the tape to the point at which the counter was set to zero, then turn itself off.

Tape Eject

A tape can be ejected with the TV/VCR power on or off (but the TV/VCR must be plugged in). If a timer recording is programmed, a tape can not be ejected when the power is off. Turn on the TV/VCR power, then eject the tape. Be sure to insert a tape and turn off the TV/VCR power for the timer recording.

Automatic Tracking Adjustment

The TV/VCR automatically adjusts the tracking to give you the best possible picture quality. With some recordings, however, you may get a better picture using the manual tracking controls (see below).

Manual Tracking

To adjust the tracking manually, press the CHANNEL o/p buttons on the TV/VCR or the TRACKING mm/nnbutton on the remote control. Tracking returns to Automatic Tracking Adjustment when a tape is inserted or when the STOP/p button is pressed.

Before

Tracking

Adjustment

After

Tracking

Adjustment

58 SmartPicture/FM Radio

SmartPicture

The SmartPicture feature allows you to improve the TV/VCR’s picture when viewing sports, a movie, or video games; to improve the picture when the antenna/cable signal is weak; or to reset the picture controls to their original settings.

Press the COMBI button, then press the SMART PICTURE button repeatedly until the SmartPicture mode you want appears on the screen. Your selection will remain on the screen

for about 10 seconds, then disappear.The following options will be available.

SPORTS Use to watch a sports program.

MOVIE Use to watch a movie.

WEAK SIGNAL Use when the picture is weak.

VIDEO GAMES Use when playing a video game.

TV RESET

Use to reset the picture controls to their original settings.

Press the FM button to select FM mode. The radio frequency

appears on the TV/VCR screen, moving around the screen every few seconds.

Press the CH(annel) m/n button until your desired radio frequency appears.

FM Radio

• To exit FM mode and return to TV mode, press the FM button.

• If you turn off the TV/VCR in FM mode, the TV/VCR will be in TV mode when you turn on the TV/VCR again.

• You may get better FM reception by repositioning the TV/VCR.

• The TV/VCR’s FM radio has a built-in antenna with a band range of 88.0 ~ 108.0MHz.

• You cannot record the FM radio station.

• You cannot switch to FM mode during tape playback, although tape playback is allowed while in FM mode.

• You must be in TV mode in order to select Line Input mode (A/V IN).

• If you receive a weak radio signal, you may go to TV mode and switch between the internal (INT) and external (EXT) antennas. When you select the external antenna, make sure your antenna or cable is connected to the ANT(enna) Jack on the TV/VCR. Details are on page six.

1) Press the FM button to return to TV mode if necessary.

2) Press the COMBI button, then press the MENU button.

3) Press the PLAY/▲ button or the STOP/▼ button to select FM ANTENNA.

4) Press the REW(ind)/{ button or the F.FWD/ B button to select INT or EXT.

5) Press the STATUS/EXIT button.

Helpful Hints

Follow the steps below to listen to FM radio stations.

FM 88.0MHz

CABLE/DBS

VAR.SLOW

TRACKING

SMART


SOUND

COMBI

SKIP

SURF

VCR PLUS+

/ENTER

F.ADV SLOW

INDEX

VOL.

MUTE

CABLE/DBS

COMBI

PLAY

STOP

STATUS/EXIT

SURF

F.FWDREW

CLEAR

CH.

VOL.

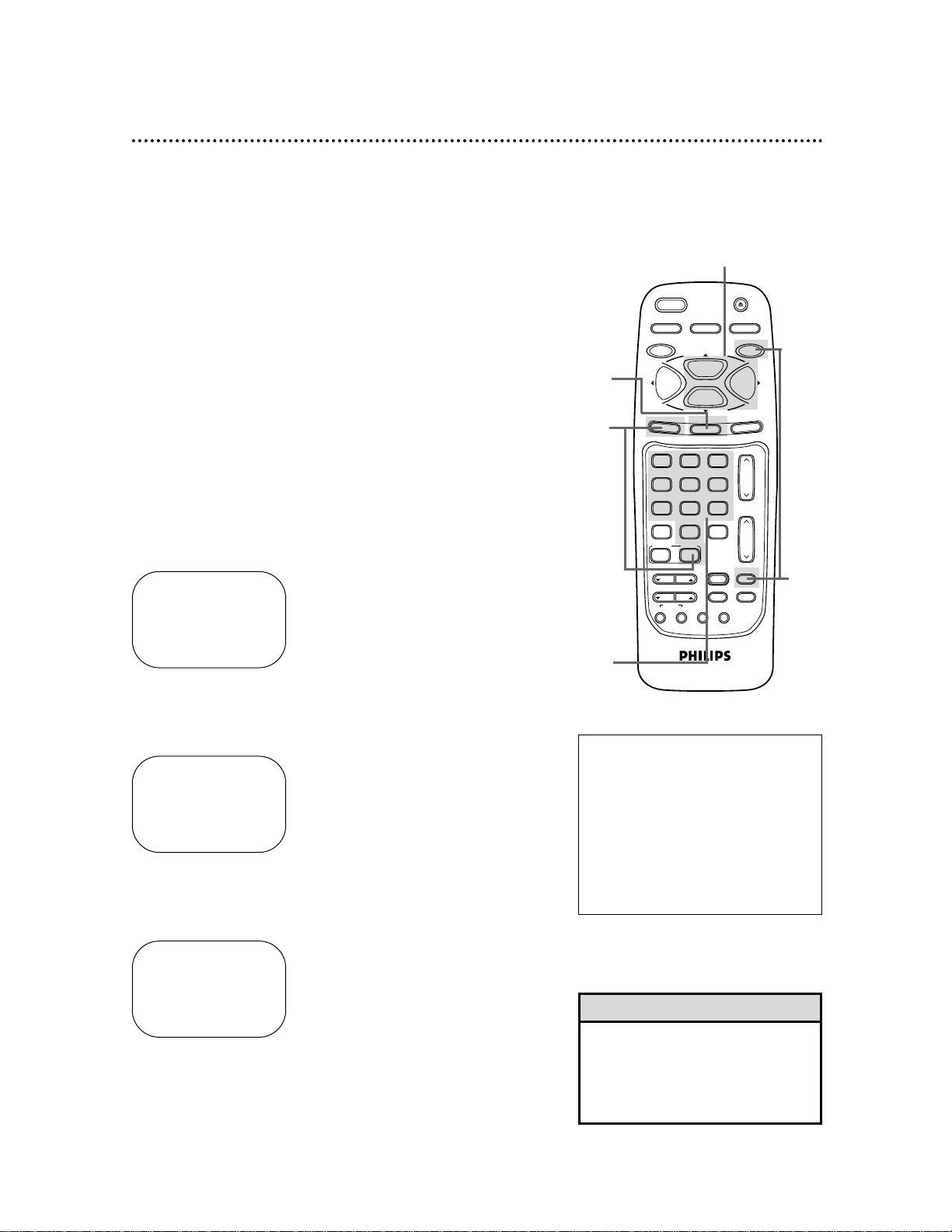

Remote Locator 59

Your TV/VCR can find your remote control for you. When you press the POWER button on the TV/VCR to turn on the TV/VCR, your remote control beeps and LOCATING REMOTE appears on the screen. The remote control will beep for about 30 seconds. Or, press any button on the remote control to stop the beeping.

If another remote control beeps...

The TV/VCR may find other remote controls. If this occurs, you can program the TV/VCR to find only its remote control. Follow the steps below.

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select PRIM. SETUP, then press the F.FWD/B button.

Press the PLAY/▲ button or the STOP/▼ button to select REMOTE LOCATOR, then press the F.FWD/B button.

Press the MUTE button, then press the PAUSE/STILL button.

Press one Number button (0 - 9) to enter a single-digit code

for your remote control. Your remote control will beep briefly.

Press the STATUS/EXIT button.

YOUR REMOTE LOCATOR CODE HAS BEEN CHANGED

NEW CODE IS 3

TO END PRESS EXIT

If another remote control beeps ...

YOUR REMOTE LOCATOR CODE IS 4

PRESS ANY DIGIT TO CHANGE CODE

TO END PRESS EXIT

PRESS MUTE THEN PAUSE KEY

TO CHANGE CODE FROM 4

TO END PRESS EXIT

2-3

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

• The volume will be delayed while the LOCATING REMOTE message appears on the screen. Press the STATUS/EXIT button to remove the message and restore the volume.

Helpful Hint

60 Reminder

The channel number will remain on the screen at all times when you set REMINDER to ON. The exception is when closed captioning is selected or during tape playback. Set REMINDER to ON or OFF by following the steps below.

Press the COMBI button, then press the MENU button.

Press the PLAY/▲ button or the STOP/▼ button to select REMINDER.

Press the REW(ind)/{ button or the F.FWD/B button to select ON or OFF. Each press of the REW(ind)/{ button or

the F.FWD/B button turns REMINDER ON or OFF.

Press the STATUS/EXIT button.

TO ADJUST PRESS { / B

> REMINDER

BRIGHTNESS PICTURE COLOR TINT SHARPNESS

OFF

TO ADJUST PRESS { / B

CH12

> REMINDER

BRIGHTNESS PICTURE COLOR TINT SHARPNESS

TO ADJUST PRESS { / B

> REMINDER

BRIGHTNESS PICTURE COLOR TINT SHARPNESS

OFF

VAR.SLOW

CABLE/DBS

COMBI

VOL.

CH.

SURF

TRACKING

F.ADV

SLEEP/WAKE UP

REC/OTR

POWER

SPEED

STATUS/EXIT

STOP

PLAY

F.FWDREW

MEMORY

SLOW

MUTE

VCR PLUS+

/ENTER


SKIP

INDEX

SOUND

EJECT

CLEAR

PAUSE/STILL

SMART

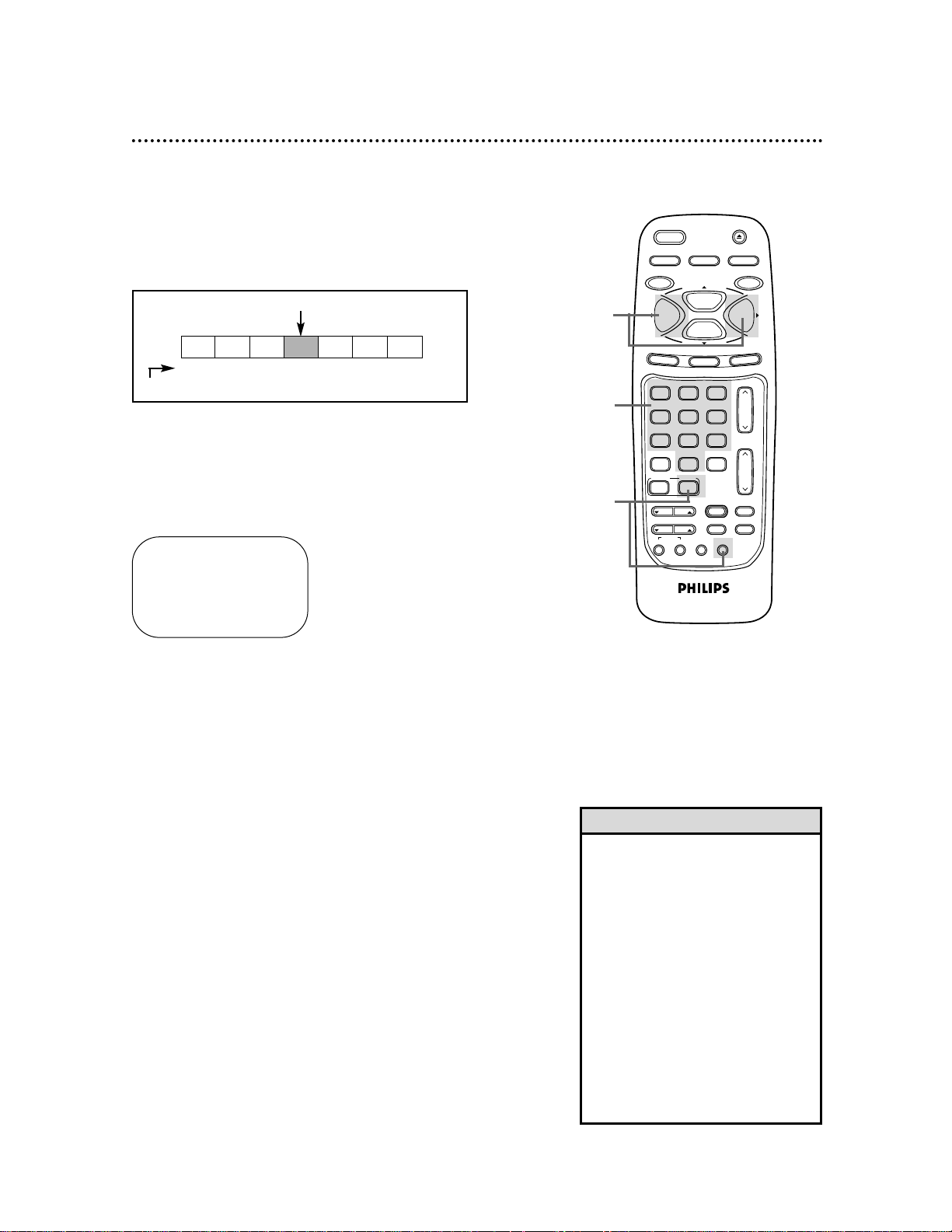

Index Search 61

This feature allows you to index the starting points of programs that you have recorded on a tape. Then, you can easily rewind or fast forward to that point.

Example:

If you are watching program number 4 and you want to fast forward to program number 7, skip three programs.

Pro. 1 Pro. 2 Pro.3 Pro. 4 Pro. 5 Pro. 6 Pro. 7

CURRENT PLAYBACK PROGRAM

4 3 2 1 1 2 3

INDEX MARK

Beginning of tape

End of tape

Press the COMBI button, then press the INDEX SEARCH button to bring up the index search display. There must be

a tape in the TV/VCR.

Within 10 seconds, use the Number buttons to enter the number of programs that you want to skip. Enter a zero

before single-digit numbers. For example, to skip three programs, press Number buttons 0, 3. If you do not make an entry within 10 seconds, the TV/VCR will exit Index Search mode.

Within 10 seconds, press the F.FWD/B button or the REW(ind)/{ button to skip forward or backward. The

TV/VCR will fast forward or rewind to the beginning of the desired program, then begin playback. (The program numbers count down on the screen as the searching progresses. TV programming will appear during the search.)

• Up to 20 index marks may be searched.

• This function will not operate in recording mode.

• Press the STOP/p button to stop the search.

• An index mark will be made automatically when a recording begins.

• The index mark is not made at a point at which recording is paused.

• The time gap between index marks should be greater than 1 minute for SP recording, 2 minutes for LP recording, and 3 minutes for SLP recording.

Helpful Hints

INDEX SEARCH 00

ENTER INDEX NUMBER

SPEED

PLAY

STOP

STATUS/EXIT

VCR PLUS+

SKIP

SURF

/ENTER

F.ADV

INDEX

EJECT

MEMORY

PAUSE/STILL

F.FWDREW

CLEAR

CH.

VOL.

MUTE

SLOW

POWER

SLEEP/WAKE UP

REC/OTR

CABLE/DBS

VAR.SLOW

TRACKING

SMART


SOUND

COMBI

62 Specifications

General

CRT: 13-inch in line gun (CCB134)

19-inch in line gun (CCB194) Television system: NTSC-M Closed caption system: Section 15.119, FCC

(Federal Communications Commission) Standard Video Heads: Four heads Tape width: 1/2 inch (12.65 mm) Tape speed

SP: 33.35 mm/sec. LP: 16.67 mm/sec.

SLP: 11.12 mm/sec. Operating Temperature: 41˚F (5˚C) to 104˚F (40˚C) Relative Humidity: 10% to 75% Power requirement: AC 120V, 60Hz Power consumption: 65W (CCB134)

90W (CCB194) Sound output: 1W Dimensions:

15-3/4" (H) x 15-3/16" (W) x 14-13/16" (D)

(CCB134)

400mm x 386mm x 377mm 19-5/8" (H) x 19-3/8" (W) x 18-11/16" (D)

(

CCB194

)

498mm x 492mm x 474mm Weight: 24.3 lbs (11.0 kg) (CCB134) Weight: 44.1 lbs (20.0 kg) (CCB194)

Tuner Broadcast Channels

VHF 2-13, UHF 14-69

Cable TV Channels

1-125

FM Radio Channels

88.0 ~ 108.0 MHz

Terminals

Antenna In: VHF/UHF 75 ohms unbalanced Video In: RCA connector Audio In: RCA connector Earphone: 3.5 mm CES

Electrical Specifications

Video input level: 0.5~2.0Vp-p Audio input level: -10dBv Video S/N ratio

SP: More than 42dBµ

Audio S/N ratio

SP: More than 38dB

Designs and specifications are subject to change without notice and without our legal obligation.

AUDIO In Jack: jack located on the front of the TV/VCR which is used to record audio from another source.

Automatic Channel Setup:

process in which the TV/VCR scans all available channels and places the ones you receive in its memory. Then, when you push the CHANNEL o/p buttons, you only scan through channels you receive.

Bands:

settings that allow you to tune channels.

• Antenna – VHF (very high frequency; channels 2-13) and UHF

(ultra high frequency; channels 14-69).

• Cable – all standard channels can be received without a Cable

Box.

Brightness:

adjusting increases or decreases the brightness of

the color on the screen.

Color

: adjusting pales or brightens the TV/VCR color.

Dubbing:

copying a tape using a VCR.

HQ:

high quality; a feature in the TV/VCR circuitry which pro-

vides enhanced picture detail.

Line Input:

The channel to which you set your TV/VCR during

dubbing. The line input channel is always channel 00 (A/V IN).

Mode:

a TV/VCR operation.

OTR:

One-Touch Recording; a timed recording that starts immediately and records for 30 minutes to eight hours, whichever you specify.

Picture:

adjusting increases or decreases the contrast of the pic-

ture on the screen.

Sharpness:

adjusting softens or clarifies the picture on the screen.

Tape Speeds:

how fast the tape travels during playback or

recording.

• SP (standard play) – fastest tape speed (recording time for a

T120 tape is approximately two hours); best picture quality.

• LP (long play) – average tape speed; playback only.

• SLP (super long play) – slowest tape speed (recording time for

a T120 tape is approximately six hours).

Tint

: adjusting changes the tints of the picture on the TV/VCR

from purple to green.

VIDEO In Jack:

jack located on the front of the TV/VCR which

is used to record video from another source.

Glossary 63

64 Helpful Hints

Location

For safe operation and satisfactory performance of your TV/VCR, remember the following:

• Shield it from direct sunlight and keep it away from sources of intense heat.

• Avoid dusty or humid places.

• Avoid places with insufficient ventilation. Do not block the ventilation openings at the top and bottom of the TV/VCR. Do not place the TV/VCR on a carpet, as this will block the ventilation openings.

• Avoid locations subject to strong vibrations.

• Do not place the TV/VCR near strong magnetic fields.

• Do not move the TV/VCR from a cold place to a hot place, or vice versa.

Electrical Shock and Fire Hazards

• Do not handle the power cord with wet hands.

• Do not pull the power cord when disconnecting the TV/VCR from the AC (alternating current) wall outlet. Grasp it by the plug.

• If water is spilled on the TV/VCR, unplug the power cord immediately and take the TV/VCR to an authorized service center.

• Do not put your fingers or objects into the TV/VCR cassette compartment.

• Do not place anything on top of the TV/VCR.

Dew Warning (Moisture Condensation)

• Moisture may condense inside the unit when it is moved from a cold place to a warm place, after heating a cold room, or when the humidity is high. There is no warning that moisture has accumulated in your TV/VCR. If you try to play a tape in a TV/VCR in which moisture has accumulated, the tape and the TV/VCR could be damaged. If you think moisture may have accumulated inside the TV/VCR, keep the TV/VCR power on (but do not play a tape) for at least two hours. This will allow the TV/VCR to dry.

TV/VCR will not perform a timer recording.

• Make sure the recording start and stop times are set correctly. Details are on pages 34-37. Midnight is 12 a.m. Noon is 12 p.m.

• Make sure the TV/VCR power is off.

• Make sure the clock is set. Details are on pages 12-17.

• Make sure there is a tape in the TV/VCR. The tape must have a record tab.

• Make sure DEFEAT RECORDING is set to OFF. Details are on page 33.

TV/VCR will not record.

• Make sure the tape has a record tab. Details are on page five.

• Make sure DEFEAT RECORDING is set to OFF. Details are on page 33.

• Plug the power cord into an active AC outlet. Details are on page seven.

• Check your hookups. Details are on pages six-seven.

• Set up the channels. Details are on page 10.

If you are having problems with your product, check this list of problems and possible solutions before requesting service. You may be able to solve the problem yourself. If you need to call a customer service representative, please know the model number and serial number of your product before you call. This information is displayed on the back of the product. Also, please take a moment to identify the problem you are having, and be prepared to explain this to the representative. If you believe the representative will need to help you with operations, please stay near the product. Our representatives will be happy to assist you.

Helpful Hints (cont’d) 65

The remote control is not available, or the remote control will not access the pop up menu.

• Use the buttons on the front panel of the TV/VCR to access the pop up menu. Details are on page 22. You can not enter numbers (for example, to program a timer recording) using the front panel buttons.

TV/VCR has no power.

• Make sure the power plug is connected completely to an AC (alternating current) outlet.

Channel reception is poor.

• Check connections, then set up the channels again. Details are on page 10.

TV/VCR does not have a picture.

• Adjust the antenna. Details are on page six.

• Adjust the TV/VCR picture controls. Details are on pages 26-27.

TV/VCR has poor sound or no sound.

• Adjust the volume.

• Press the MUTE button to restore the volume.

Tape playback is poor or tape is destroyed.

• Adjust the tracking. Details are on page 57.

• If moisture has accumulated in your TV/VCR, keep the power on for at least two hours, but do not try to play a tape. Details are on page 64.

TV/VCR does not display closed captions.

• Make sure COUNTER ONLY is set to OFF. Details are on page 28.

• Make sure closed captioning is available for the program. Refer to the TV listings in your local newspaper.

Remote control does not operate TV/VCR.

• Press the COMBI button, then try the other TV/VCR buttons.

• Aim the remote control directly at the TV/VCR’s remote sensor. Details are on pages five and 22.

• Remove all obstacles between the remote control and the TV/VCR.

• Inspect and replace the batteries in the remote control. Details are on page five.

Number buttons won’t work for channels above 69.

• Enter channel numbers as a two-digit number. If you want to select channels 100 and above, enter channel numbers as a three-digit number. Details are on page 24.

A tape can’t be inserted into the TV/VCR.

• Insert the tape window side up, with the record tab facing you.

• Make sure a tape isn’t already in the TV/VCR by pressing the STOP/EJECT button on the TV/VCR.

• Gently push on the center of the tape. Never force a tape into the TV/VCR.

• If a timer recording is set and the TV/VCR power is off, the TV/VCR will eject the tape if the record tab is missing.

A tape can’t be removed from the TV/VCR.

• Make sure the power plug is connected completely to an AC (alternating current) outlet.

• If a timer recording is programmed, turn on the TV/VCR power, then eject the tape. Be sure to insert a tape and turn off the TV/VCR power for the timer recording.

TV/VCR ejects the tape when you try to start a recording.

• Make sure the tape has a record tab. Details are on page five.

The cylinder rotates when tape playback is stopped.

• To enable the quick play mechanism, the cylinder will rotate for about five minutes. This is normal. The quick play mechanism switches the tape mechanism from Stop to Play in just one second.

66 Limited Warranty

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For 90 days thereafter, all parts will be repaired or replaced, and labor is free. From 90 days to one year from the day of purchase, all parts will be repaired or replaced, but you pay for all labor charges. From one to two years from the day of pur- chase, you pay for the replacement or repair of all parts except the picture tube, and for all labor charges. After two years from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics.

• reception problems caused by signal conditions or cable or antenna systems outside the unit.

• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• damage caused by the use of non-VHS tapes or tapes that have not been tested and labeled for use in two, four, six, and eight hour VHS recorders.

• a product that is used for commercial or institutional purposes.

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the prod-

uct, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase. Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS...

Take the product to a Philips factory service center (see enclosed list) or authorized service center for repair. When the product has been repaired, you must pick up the unit at the center. Centers may keep defective parts.

(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking) 1-800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER...

Please record below the model and serial numbers found on the product. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL # __________________________________ SERIAL # __________________________________

This warranty gives you specific legal rights. You may have other rights which vary from state to state.

TV/VCR COMBINATION

90 Days Free Labor/One Year Free Parts Exchange (Two Years Free Exchange on Color Picture Tube)

This product must be carried in for repair.

Philips Service Solutions Group, P.O. Box 2976, Longview, Texas 75606, (903) 242-4800

EL4963E008 / MAC 6108/ 3-00

a-b repeat play . . . . . . . . .44-45

accessories . . . . . . . . . . . . . . .68

ant(enna) jack . . . . . . . . . . .6, 23

audio jack . . . . . . . . . . .7, 22, 32

automatic

playback . . . . . . . . . . . . . . .57

rewind . . . . . . . . . . . . . . . .57

batteries . . . . . . . . . . . . . . . . . .5

blue background . . . . . . . . . . .47

brightness, adjusting . . . . .26-27

cable/dbs button . . . . .20-21, 25

channel

above 100 . . . . . . . . . . . . .24

adding . . . . . . . . . . . . . . . .11

buttons . . . . . . . . . .22, 24, 57

deleting . . . . . . . . . . . . . . .11

reviewing . . . . . . . . . . . . . .11

setup . . . . . . . . . . . . . . . . .10

clear button . . . . . . . . . . . . . .25

clock . . . . . . . . . . . . . . . . .12-17

closed caption system . . . .54-55

color, adjusting . . . . . . . . .26-27

combi button . . . . . . . . . . . . .25

connections . . . . . . . . . . .6-7, 32

contents, table of . . . . . . . . . . .4

controls

remote . . . . . . . . . . . . .24-25

tv/vcr . . . . . . . . . . . . . . . . .22

counter only mode . . . . . . . . .28

daylight-savings time . . . . . . . .18

defeat recording . . . . . . . . . . .33

duplication . . . . . . . . . . . . . . .32

earphone jack . . . . . . . . . . . . .22

erasure prevention . . . . . . . . . .5

f.adv button . . . . . . . . . . .24, 46

fast forward search . . . . . . . . .46

f.fwd button . . . . . . . . . . . . . .22

f.fwd/B button . . . . . . . . .25, 46

fm button . . . . . . . . . . . . .25, 58

fm radio . . . . . . . . . . . . . . . . .58

front panel . . . . . . . . . . . . . . .22

glossary . . . . . . . . . . . . . . . . .63

helpful hints . . . . . . . . . . . .64-65

hookups . . . . . . . . . . . . .6-7, 32

index search . . . . . . . . . . . . . .61

language selection . . . . . . . . . . .9

line input mode . . . . . .10, 32, 63

long play . . . . . . . . . . . . . .30, 63

lp . . . . . . . . . . . . . . . . . .30, 63

memory

button . . . . . . . .25, 42, 44-45

real-time counter . . . . . . . .42

rewind, power off . . . . . . .57

button . . . . . . . . . . . . . . . .24

front panel button access . .22

mute button . . . . . . . . . . . . . .25

number buttons . . . . . . . . . . .24

one-touch recording . . . . . . . .31

pause/still button . . . . . . .25, 46

picture, adjusting . . . . . . . .26-27

play button . . . . . . . . . . . .22, 24

playback options . . . . . . . . . . .46

playing . . . . . . . . . . . . . . . . . .29

power

button . . . . . . . . . . . . .22, 24

cord . . . . . . . . . . . . . . . .7, 23

real-time counter memory . . .42

rear panel . . . . . . . . . . . . . . . .23

rec/otr button . . . . . . . . .22, 25

rec(ord) light . . . . . . . . . . . . .22

recording . . . . . . . . . . . . . . . .30

reminder . . . . . . . . . . . . . . . .60

remote

control

buttons . . . . . . . . . .24-25

using . . . . . . . . . . . . . . . .5

locator . . . . . . . . . . . . . . . .59

sensor . . . . . . . . . . . . . . . .22

repeat play . . . . . . . . . . . . . . .43

rerecording . . . . . . . . . . . . . .32

rew(ind) button . . . . . . . . . . .22

rew(ind)/{ button . . . . . .25, 46

rewinding . . . . . . . . . . . . . . . .46

safety precautions . . . . . . . . . .3

searching . . . . . . . . . . . . . . . .46

sensor (remote) . . . . . . . . . . .22

sharpness, adjusting . . . . . .26-27

showguard . . . . . . . . .34, 37, 64

skip search button . . . . . . . . .24

sleep timer . . . . . . . . . . . . . . .52

slow

button . . . . . . . . . . . . .24, 46

motion playback . . . . . . . . .46

slp . . . . . . . . . . . . . . . . . .30, 63

smart sound . . . . . . . . . . . . . .56

smartclock . . . . . . . . . . . . .14-17

smartlock . . . . . . . . . . . . .48-51

smartpicture

button . . . . . . . . . . . . . . . .24

setting . . . . . . . . . . . . . . . .58

sp . . . . . . . . . . . . . . . . . .30, 63

specifications . . . . . . . . . . . . .62

sqpb . . . . . . . . . . . . . . . . . . . .29

standard play . . . . . . . . . .30, 63

status display . . . . . . . . . . . . .28

status/exit button . . . . . . .25, 28

still picture . . . . . . . . . . . . . . .46

stop/p button . . . . . . . . . . . .25

stop/eject button . . . . . . . . . .22

super high speed searching . . .46

super long play . . . . . . . . .30, 63

surf button . . . . . . . . . . . . . . .24

table of contents . . . . . . . . . . .4

tape

duplication . . . . . . . . . . . . .32

speed . . . . . . . . . . . . . .30, 63

time

setting . . . . . . . . . . . . . .12-17

zone . . . . . . . . . . . . . . . . . .19

timer recording

cancelling . . . . . . . . . . . . . .37

reviewing . . . . . . . . . . . . . .37

setting . . . . . . . . . . . . . .34-36

with vcr plus+ programming

system . . . . . . . . . . . . . .40-41

tint, adjusting . . . . . . . . . . .26-27

tracking . . . . . . . . . . . . . . . . .57

var.slow button . . . . . . . .25, 46

vcr plus+

/enter button . . . . . . . .25, 40

programming system . . .38-41

timer recording . . . . . . .40-41

video jack . . . . . . . . . . .7, 22, 32

volume bar . . . . . . . . . . . . . . .56

wake up timer . . . . . . . . . . . .53

warranty . . . . . . . . . . . . . . . . .66

Index 67

IB8227E001

Printed In Malaysia

0EMN01687 / T5111UM * * * * *

SUPPLIED ACCESSORIES

OPTIONAL ACCESSORIES

The following items are supplied with your TV/VCR; they are provided to help you use or set up your TV/VCR.

The following additional items are not provided with your TV/VCR, but they are designed for use with your new TV/VCR. To order these optional accessories, contact us at:

Philips Parts & Accessories Marketing Department

401 East Old Andrew Johnson Highway

P.O. Box 555

Jefferson City, TN 37760

1-800-851-8885.

VHS Cassette Rewinder

#M61117

Three Cassette Storage Cases (plastic)

Fits VHS and Beta cassettes

#M61104

Six High-grade, VHS, T-120 Cassettes

#MHG1206

Monaural Audio and Video Cables (6 feet)

Color-coded for easy connection

#M61103

Remote Control 4835 218 37288

Three AA Batteries 4835 138 17012

As an ENERGY STAR®Partner, Philips Consumer Electronics has determined that this product meets the E

NERGY STAR

guidelines for energy efficiency.

NERGY STAR

is a U.S. registered mark.

This owner’s manual is made of recycled paper.

CABLE/DBS

VAR.SLOW

TRACKING


SMART

SOUND

SKIP

INDEX SEARCH

POWER

SLEEP/WAKE UP

REC/OTR

EJECT

SPEED

MEMORY

PAUSE/STILL

PLAY

STOP

F.FWDREW

STATUS/EXIT

CLEAR

CH.

COMBI

SURF

VOL.

VCR PLUS+ /ENTER

MUTE

F.ADV

SLOW

Philips CCB 194AT, CCB 134AT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
