Philips CCA131AT, CCA132AT User Manual

Owner’s Manual

Important!

Return your Warranty Registration

Card within 10 days. See why inside.

Color TV with built-in VCR

CCA132AT

Once your PHILIPS MAGNAVOX purchase is registered, you’re eligible to receive all the privileges
of owning a PHILIPS MAGNAVOX product. So complete and return the Warranty Registration
Card enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to

ensure you receive all the

benefits

you’re entitled to.

For Customer Use

Enter below the Serial No.
which is located on the rear of
the cabinet. Retain this infor­mation for future reference.

Model No. ______________
Serial No. ________________

Congratulations on your purchase, and
welcome to the “family!”

Dear PHILIPS MAGNAVOX product owner:

Thank you for your confidence in PHILIPS MAGNAVOX. You’ve
selected one of the best-built, best-backed products available
today. And we’ll do everything in our power to keep you happy
with your purchase for many years to come.
As a member of the PHILIPS MAGNAVOX “family,” you’re enti­tled to protection by one of the most comprehensive warranties
and outstanding service networks in the industry.
What’s more, your purchase guarantees you’ll receive all the infor­mation and special offers for which you qualify, plus easy access to
accessories from our convenient home shopping network.
And most importantly you can count on our uncompromising
commitment to your total satisfaction.
All of this is our way of saying welcome-and thanks for investing in
a PHILIPS MAGNAVOX product.

Sincerely,

Robert Minkhorst
President and Chief Executive Officer

P.S. Remember, to get the most from your PHILIPS

MAGNAVOX product, you must return your
Warranty Registration Card within 10 days. So
please mail it to us right now!

Know these

safetysymbols

This “bolt of lightning” indi-

cates uninsulated material
within your unit may cause an
electrical shock. For the safety of
everyone in your household,
please do not remove product
covering.

The “exclamation point”

calls attention to features
for which you should read the
enclosed literature closely to
prevent operating and mainte­nance problems.

WARNING: TO PREVENT
FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS EQUIP­MENT TO RAIN OR MOIS­TURE.

CAUTION: To prevent electric
shock, match wide blade of plug
to wide slot, and fully insert.

ATTENTION: Pour éviter les
choc électriques, introduire la
lame la plus large de la fiche dans
la borne correspondante de la
prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

R

E

G

I

S

T

R

A

T

I

O

N

N

E

E

D

E

D

W

I

T

H

I

N

1

0

D

A

Y

S

Hurry!

t

s

Warranty
Verification

Registering your product within
10 days confirms your right to max­imum protection under the
terms and conditions of your
PHILIPS MAGNAVOX warranty.

Owner
Confirmation

Your completed Warranty
Registration Card serves as
verification of ownership in the
event of product theft or loss.

Model
Registration

Returning your Warranty
Registration Card right away guar­antees you’ll receive all the informa­tion and special offers which you
qualify for as the owner of your
model.

Visit our World Wide Web Site at http://www.philipsmagnavox.com

Introduction 3

• Before doing anything else, record
the TV/VCR’s model and serial num­bers in the spaces provided on page
two. These numbers will help us
assist you if you ever call for help.

• Your new product, its packaging,
and this manual contain materials
that can be recycled and reused.
Specialized companies can recycle
your product to increase the
amount of reusable materials and
to minimize the amount that needs
to be properly disposed.
Your product uses batteries that
should not be thrown away when
depleted but should be disposed of
as small chemical waste.
Please find out about the local regu­lations on disposal of your old prod­uct, batteries, manual, and packag­ing whenever you replace existing
equipment.

Helpful Hints

Features

• A-B Repeat Play

• Automatic Channel Setup

• Automatic Operation Features

• Automatic Tracking Adjustment

• Blue Background

• Closed Caption

• Daylight-Savings Time

• High Quality (HQ) System

• On-screen displays in English or Spanish

• On-screen Menu Programming, accessible with remote control
or front panel buttons

• One-Touch Recording

• Real-Time Counter

• Remote Control

• Repeat Play

• Sleep Timer

• SmartClock

TM

• SmartLock

TM

• Special Effects Playback: Forward and Reverse Searching; Still

• Timer Recording

Safety Precautions

Warning: To prevent fire or shock hazard, do not expose this
equipment to rain or moisture.
FCC Warning: Any unauthorized changes or modifications to this
equipment void the user’s authority to operate it.
This TV/VCR, equipped with a High Quality (HQ) system, is com­patible with existing Video Home System (VHS) equipment.

Philips Consumer Electronics Company recommends that
you use only video cassette tapes that are labeled with the
mark. The use of other tapes may result in poor picture quality
and excessive deposits on the video heads, which may not be cov­ered by the warranty if damage occurs.

Note to the Cable TV System Installer: This reminder is
provided to call the Cable TV system installer’s attention to
Article 820-40 of the National Electrical Code, which provides
guidelines for proper grounding – in particular, specifying that the
cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as possible.

As an ENERGY STAR®Partner, Philips Consumer
Electronics Company has determined that this product

meets the ENERGY STAR®guidelines for energy efficiency.
ENERGY STAR®is a U.S. registered mark.
Using products with the ENERGY STAR®label can save energy.
Saving energy reduces air pollution and lowers utility bills.

SmartClockTMand SmartLockTMare trademarks of Philips
Consumer Electronics Company.
Copyright 1999 Philips Consumer Electronics Company. All rights
reserved.

Welcome to your TV/VCR owner’s manual.

This manual has seven sections: Setting Up Your TV/VCR; Description of Controls; Basic Operations;
Recording Options; Playing Options; Additional Features; and Information You May Need. The instructions
explain all of the TV/VCR’s features, which are listed below.

This owner’s manual is made of recycled paper.

4 Table of Contents

Setting Up Your TV/VCR

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Before Using the TV/VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hooking Up the TV/VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

Turning On the TV/VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Automatic Channel Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-11

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-17

Daylight-Savings Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Time Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Description of Controls

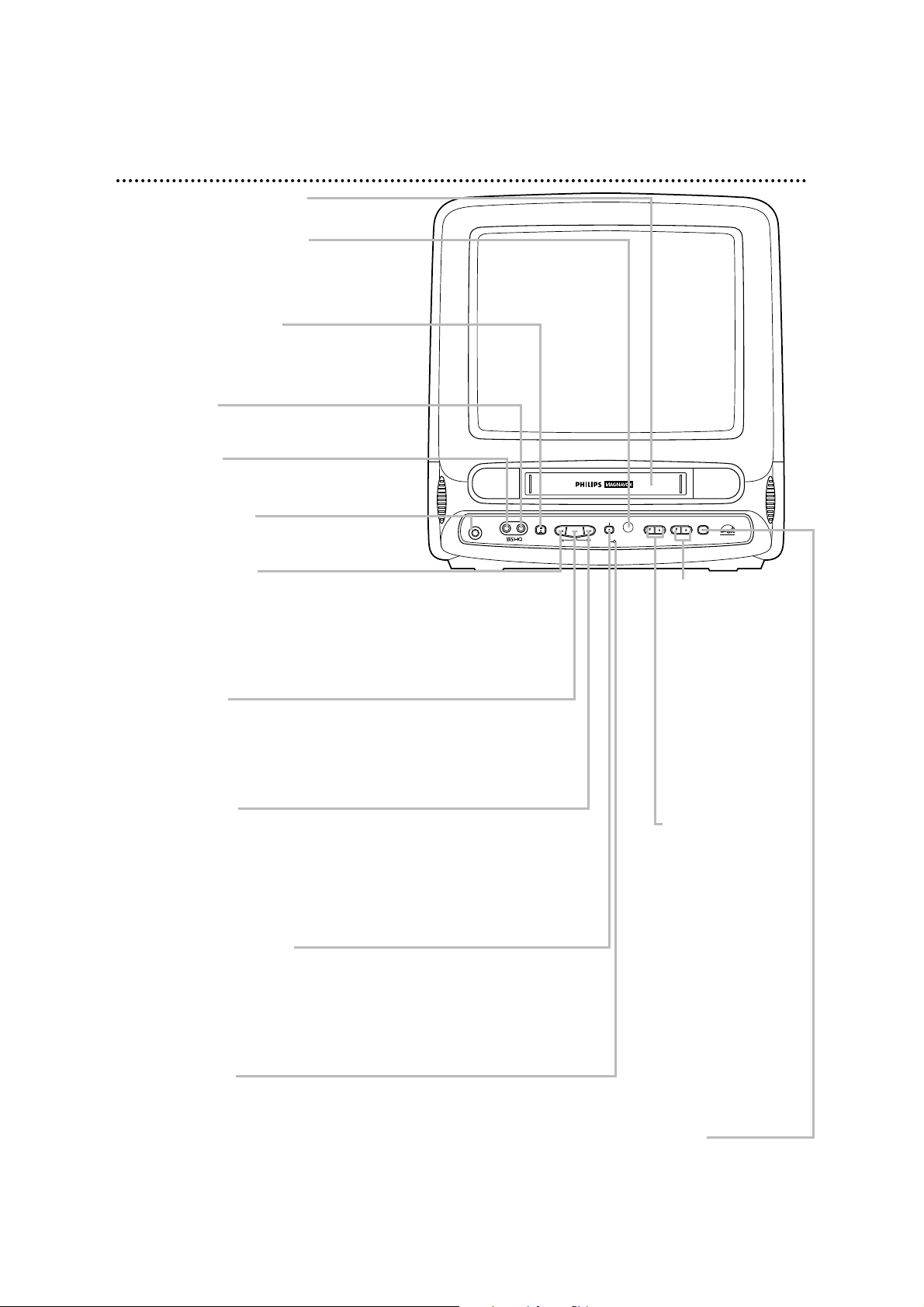

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

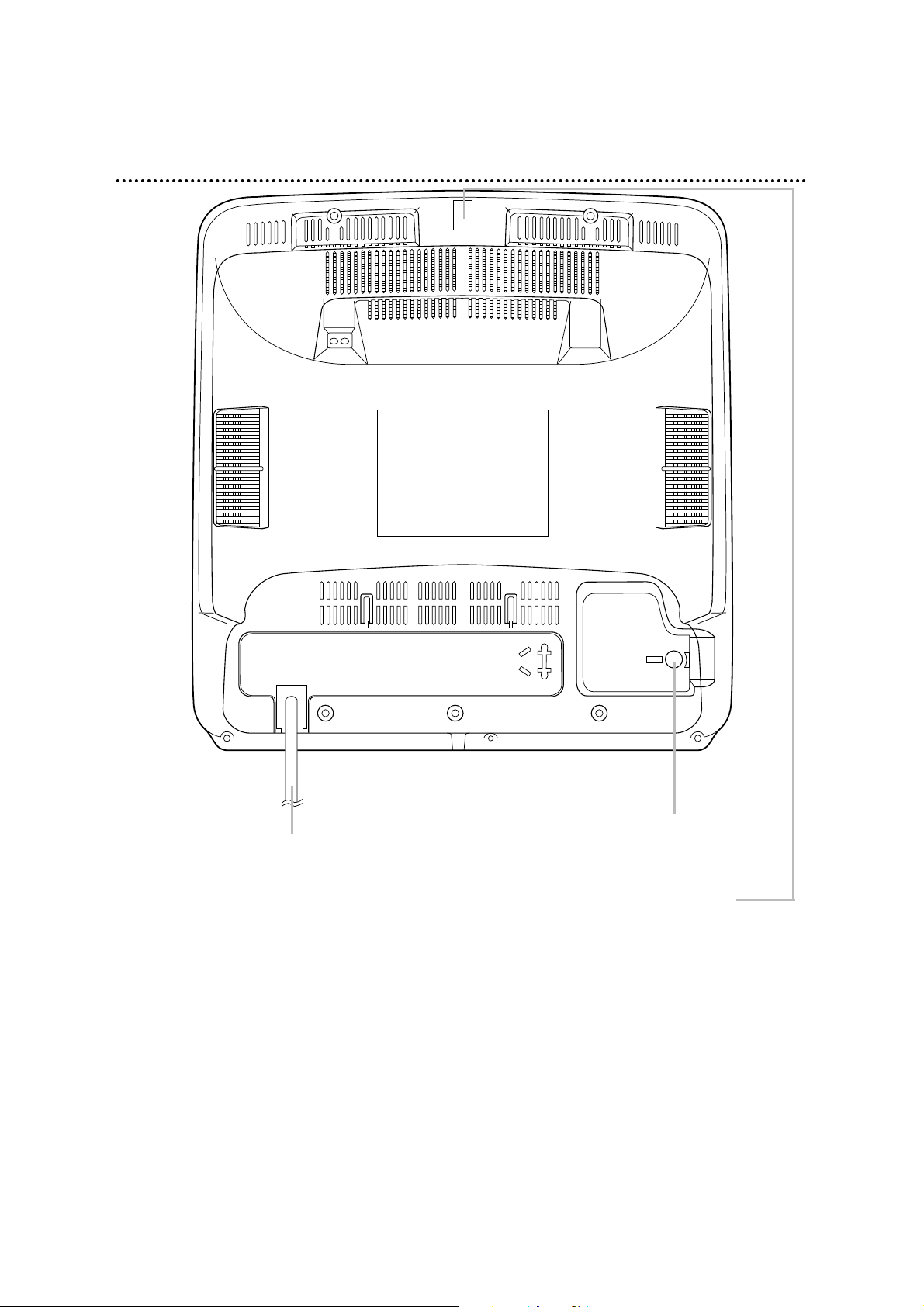

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

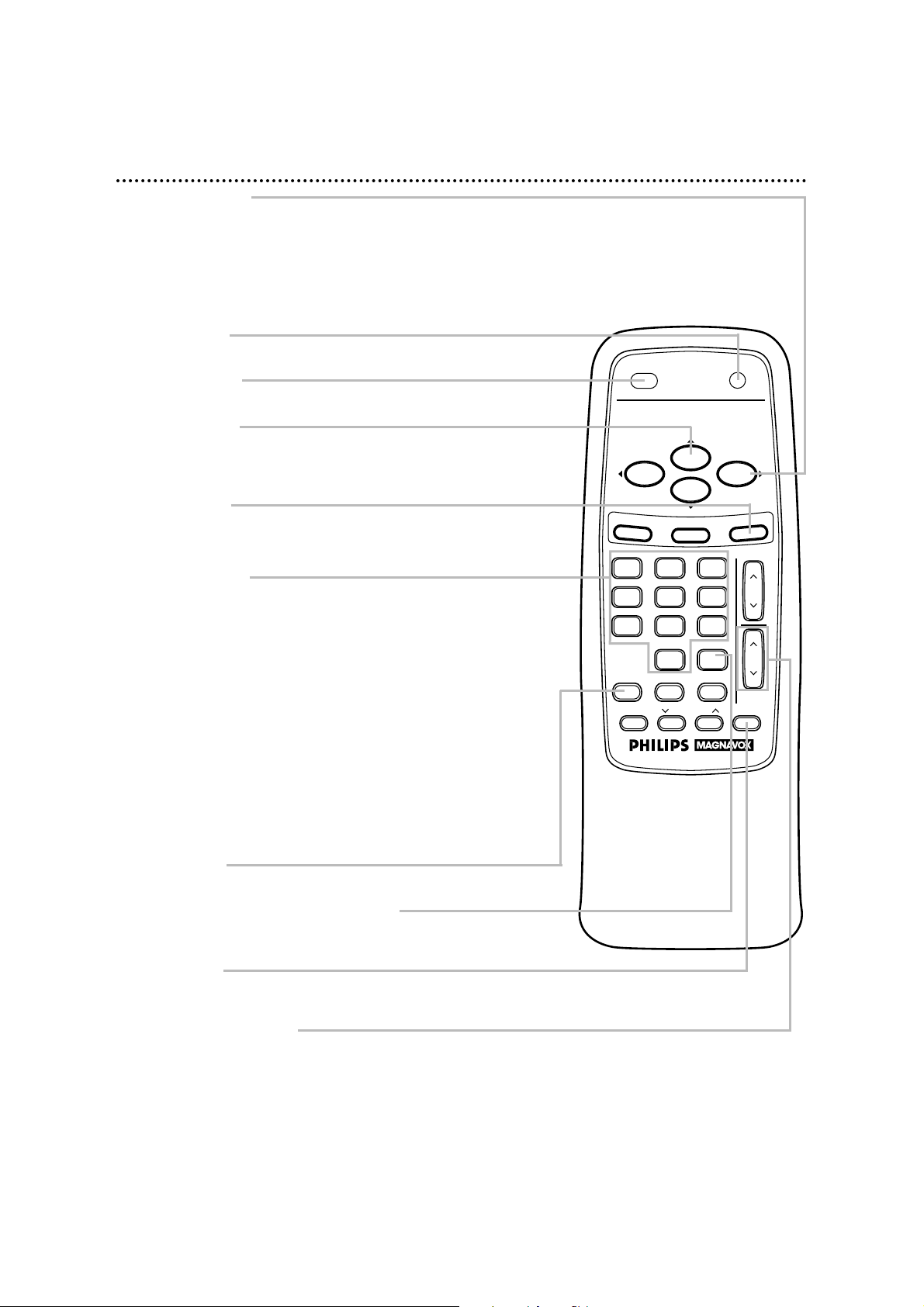

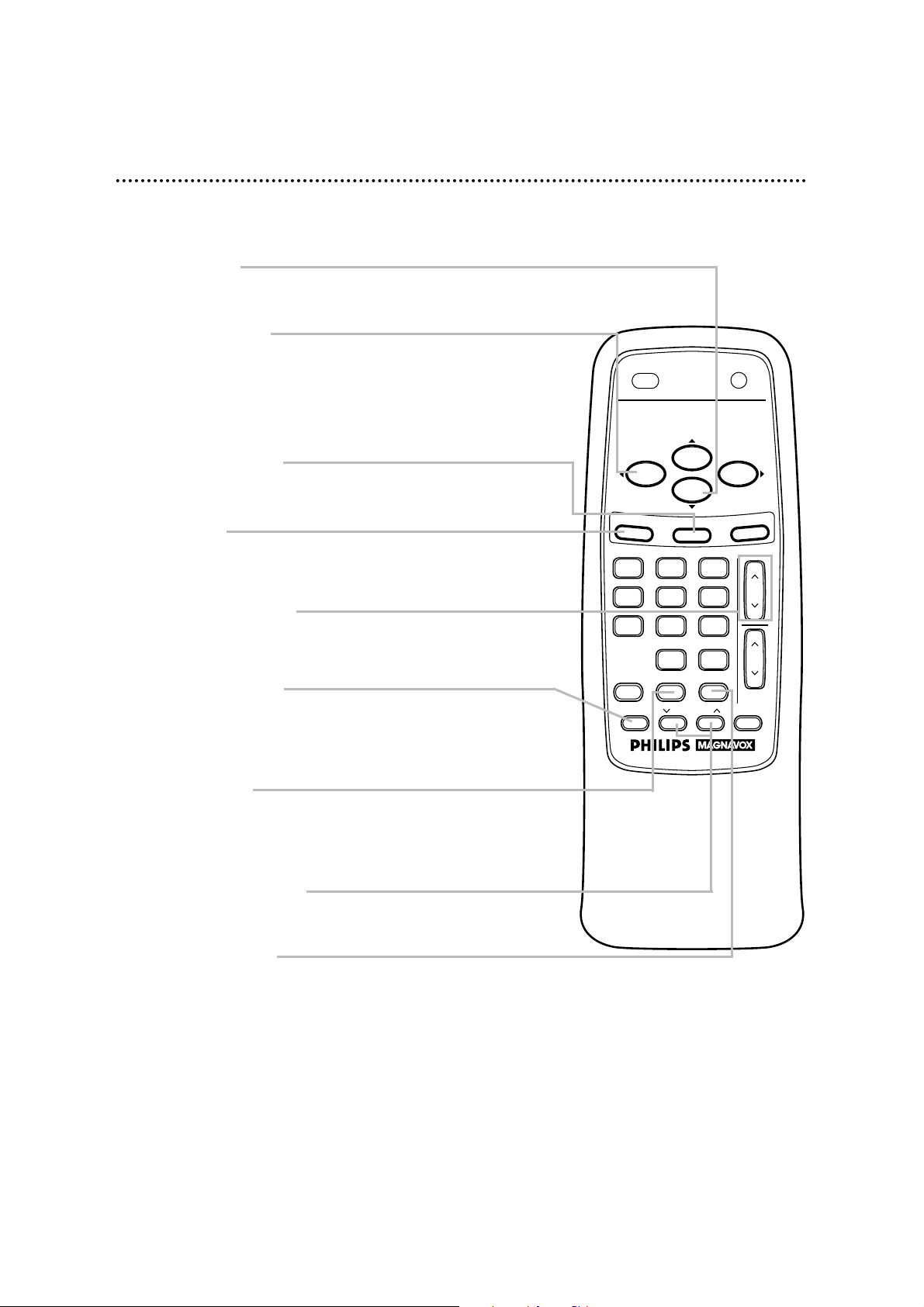

Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22-23

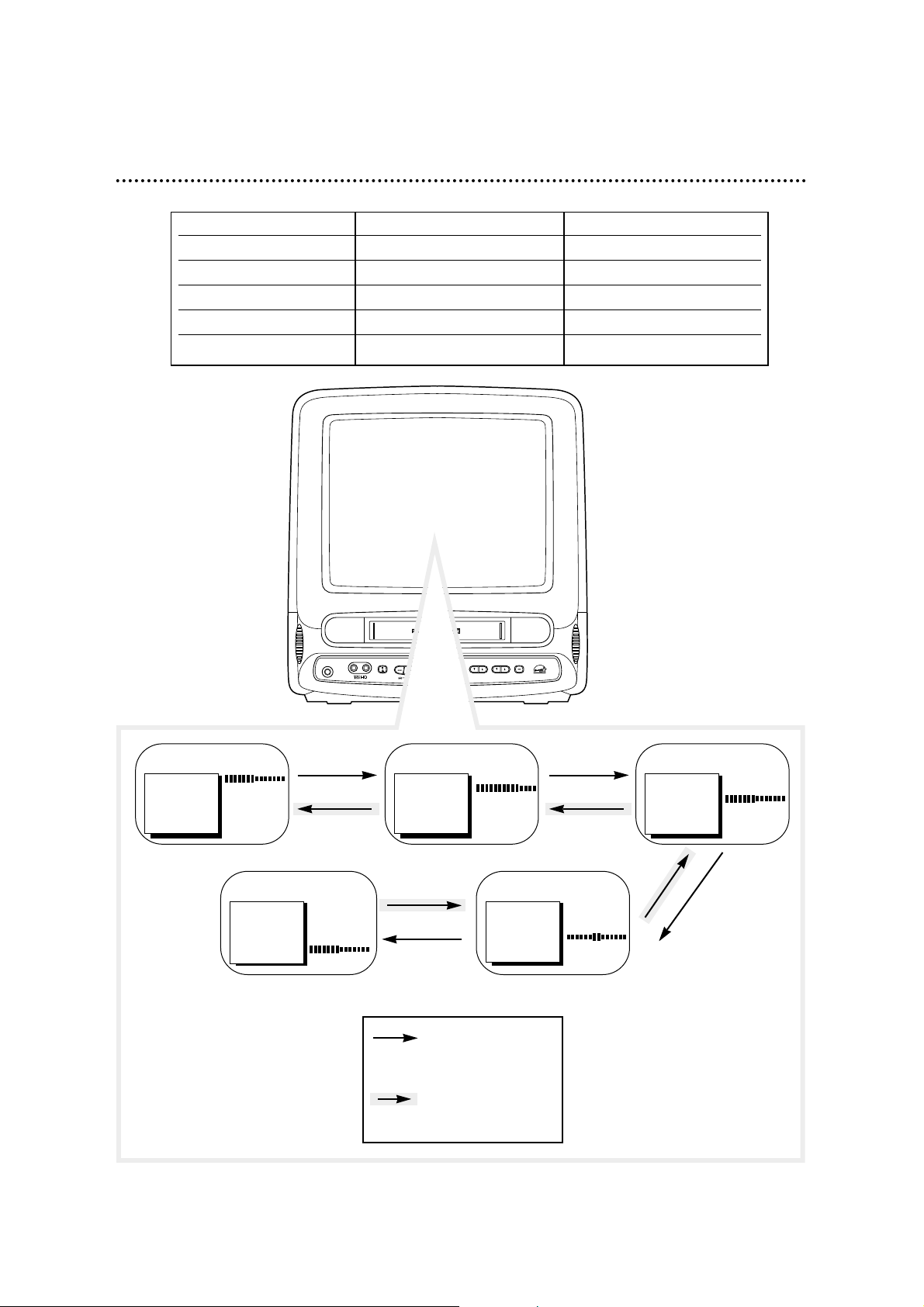

Adjusting the Picture Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25

On-Screen Status Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Basic Operations

Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Recording Options

One-Touch Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Rerecording (Tape Duplication) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-35

Defeat Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Playing Options

Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

A - B Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39

Real-Time Counter Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Playback Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Additional Features

SmartLock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-44

Blue Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Volume Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Closed Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48-49

Automatic Operation Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Information You May Need

Specifications / Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52-53

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

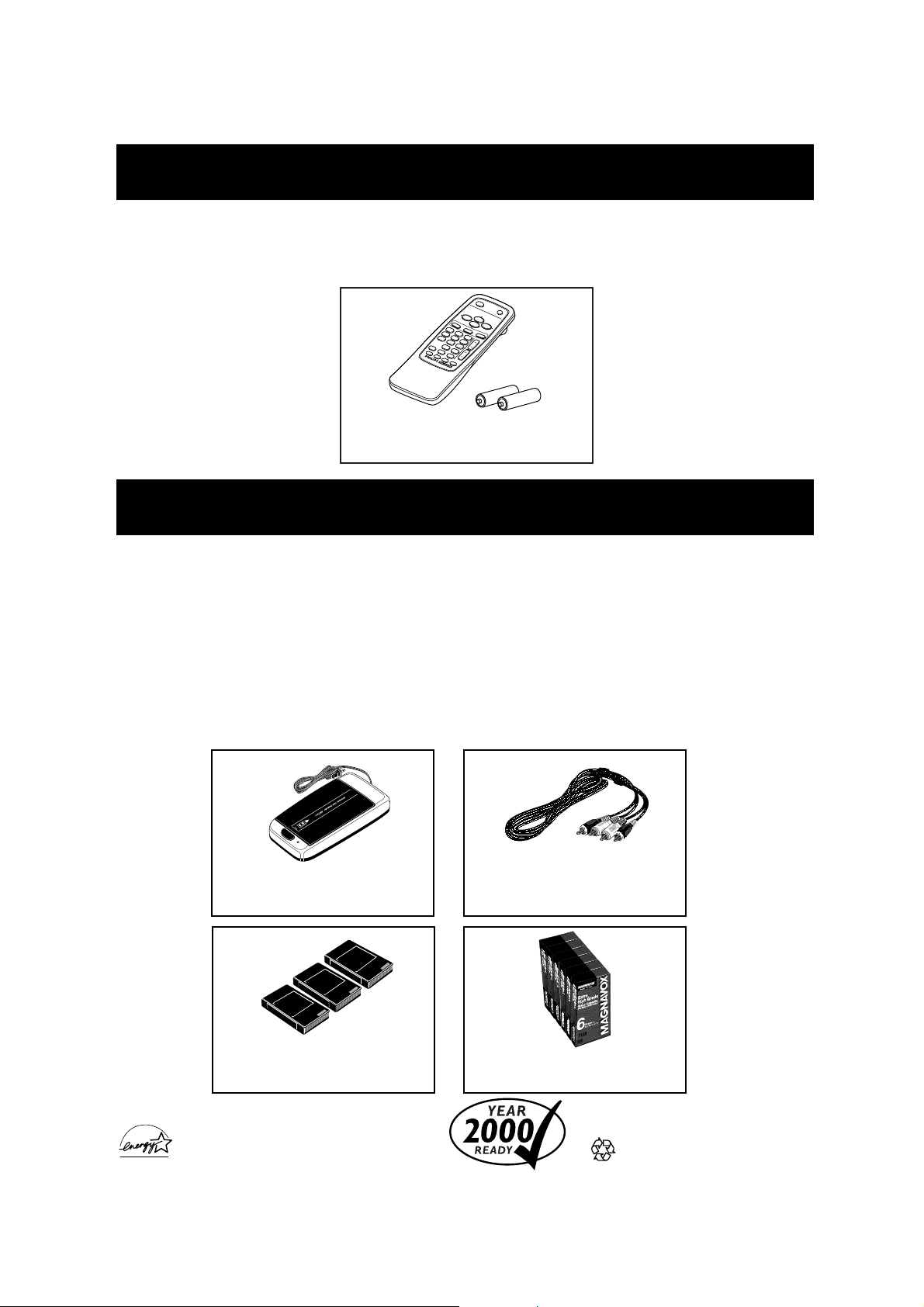

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

• The remote control and its batteries
are supplied.

• Do not mix alkaline and man­ganese batteries.

• Do not mix old and new batteries.

Before Using the TV/VCR 5

Putting Batteries in the Remote Control

1

Remove the battery compartment lid on the bottom of
the remote control by sliding it in the direction of the
arrow.

2

Place two AA batteries inside the battery compartment
with their +and –ends aligned as indicated.

3

Replace the battery compartment lid.

Using the Remote Control

● Point the remote control at the TV/VCR’s remote sensor.

● Do not put objects between the remote control and the

TV/VCR.

TV/VCR Maintenance

● In this TV/VCR, use only tapes with the mark.

● Make sure any light adhesive stick-on notes are removed from

the video cassette tape before putting the tape in the TV/VCR.
Removable labels like these can jam the TV/VCR.

● Periodic maintenance is required to maintain your TV/VCR’s

excellent performance. This TV/VCR has an automatic head
cleaning system. However, the video heads will eventually
require cleaning or replacement. Only an authorized service cen­ter should perform this service.

Video cassette tapes have record tabs to ensure that recordings
are not accidentally erased.

1

To prevent accidental erasure, break off the tab with a
screwdriver.

2

To record again, cover the hole with cellophane tape.

Erasure Prevention

Helpful Hints

1
2

1
2

3

6 Hooking Up the TV/VCR

ANT.

ANT.

Hooking Up Your TV/VCR
With a Cable Signal or
Outdoor Antenna

ANT.

IN

OUT

ANT.

Connect an RF coaxial cable (75­ohm, not supplied) to the OUT Jack
on the Cable Box and to the
ANT(enna) Jack on the TV/VCR.

Connect a Cable signal
or an antenna to the
ANT(enna) Jack.

Hooking Up Your TV/VCR
With a Cable Box

To view any channel, set the
TV/VCR to the Cable Box output
channel (channel 03 or 04). Then,
select channels at the Cable Box.

1

Hook up your TV/VCR using one of the connections shown.

A.

B.

ANT.

ANT.

Rod Antenna

(not supplied)

Hooking Up Your TV/VCR
With an Indoor Antenna

To install a rod antenna (not sup­plied), push the stem of the antenna
into the antenna hole on the top of
the TV/VCR. Connect the antenna
wire to the ANT(enna) Jack on the
back of the TV/VCR as shown.
Extend the antenna and adjust its
length, direction, and angle for the
clearest picture.

C.

Connect the Cable signal to
the IN Jack on the Cable Box.

RF coaxial cable

(not supplied)

Hooking Up the TV/VCR (cont’d) 7

EARPHONE

AUDIO

VIDEO

STOP/EJECT REW PLAY F.FWD

REC/OTR CHANNEL VOLUME POWER

OUT

IN

VIDEO

IN

OUT

3CH
4CH

AUDIO

ANT.

OUT

IN

VIDEO

IN

OUT

3CH
4CH

AUDIO

ANT.

VIDEOAUDIO

• Before connecting an antenna or cable signal to the ANT(enna) Jack, make sure the pin is not bent. If the pin is
bent, straighten it as illustrated, then connect the antenna or cable signal to the ANT(enna) Jack.

• A rod antenna (not supplied) is available from Philips Service Solutions Group. The part number is 4835 303

37006. To order, call 1-800-851-8885.

• Audio and video cables are not supplied.

Helpful Hints

Crooked Pin

Straight Pin

Bent pin

Plug

Cable

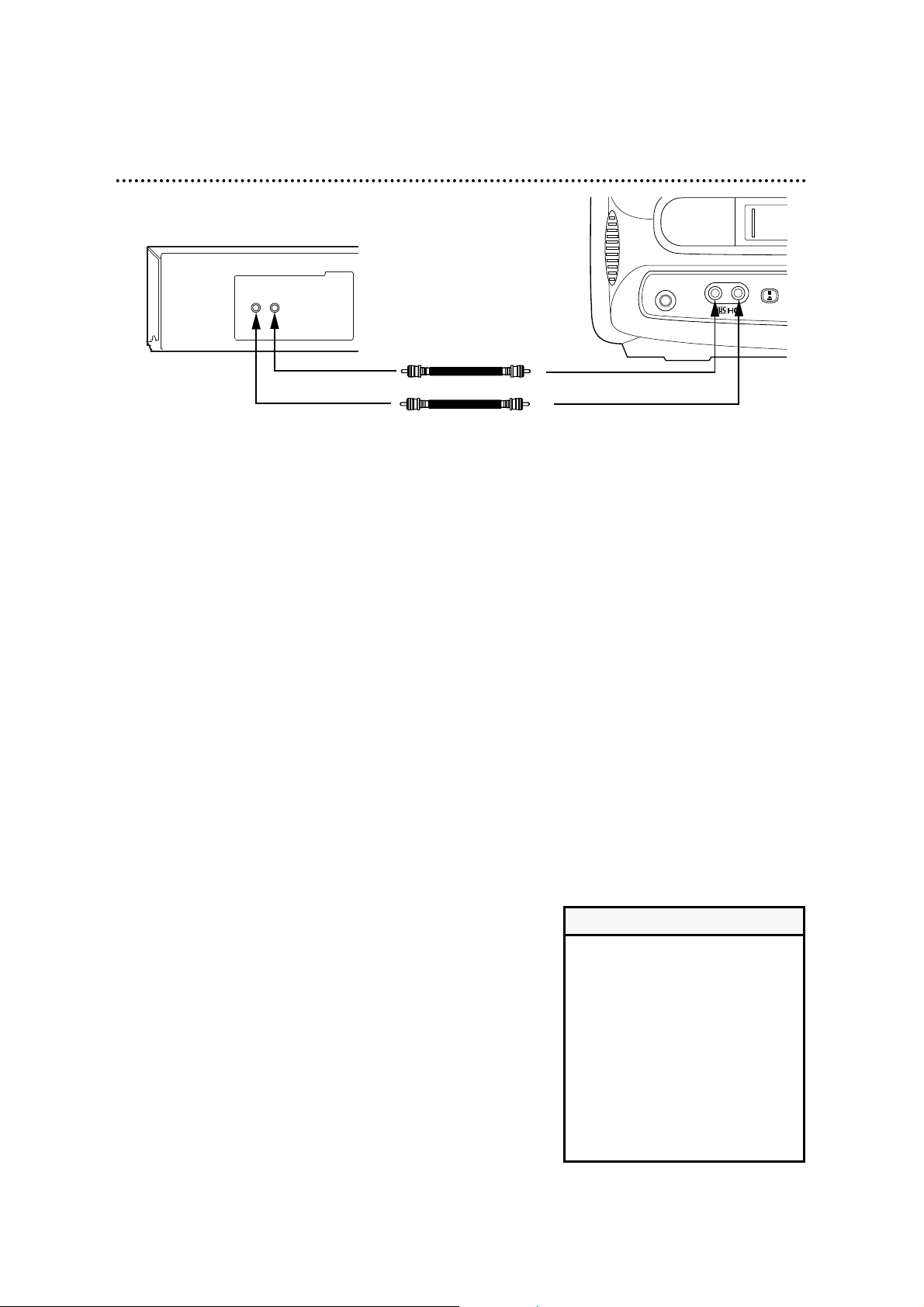

Hooking Up Your
TV/VCR to Another
Video Source
(VCR or Camcorder)

You may need this connection
if you want to copy tapes.

Details are on page 31.

AUDIO/VIDEO Jacks
on front of TV/VCR

AUDIO/VIDEO OUT
Jacks on VCR

Use an Audio cable to connect the AUDIO
OUT Jack on the VCR to the AUDIO Jack
on the front of the TV/VCR.

Use a Video cable to connect the VIDEO OUT Jack on
the VCR to the VIDEO Jack on the front of the TV/VCR.

2

Plug in the TV/VCR.

3

Before you turn on the TV/VCR, go to page eight.

D.

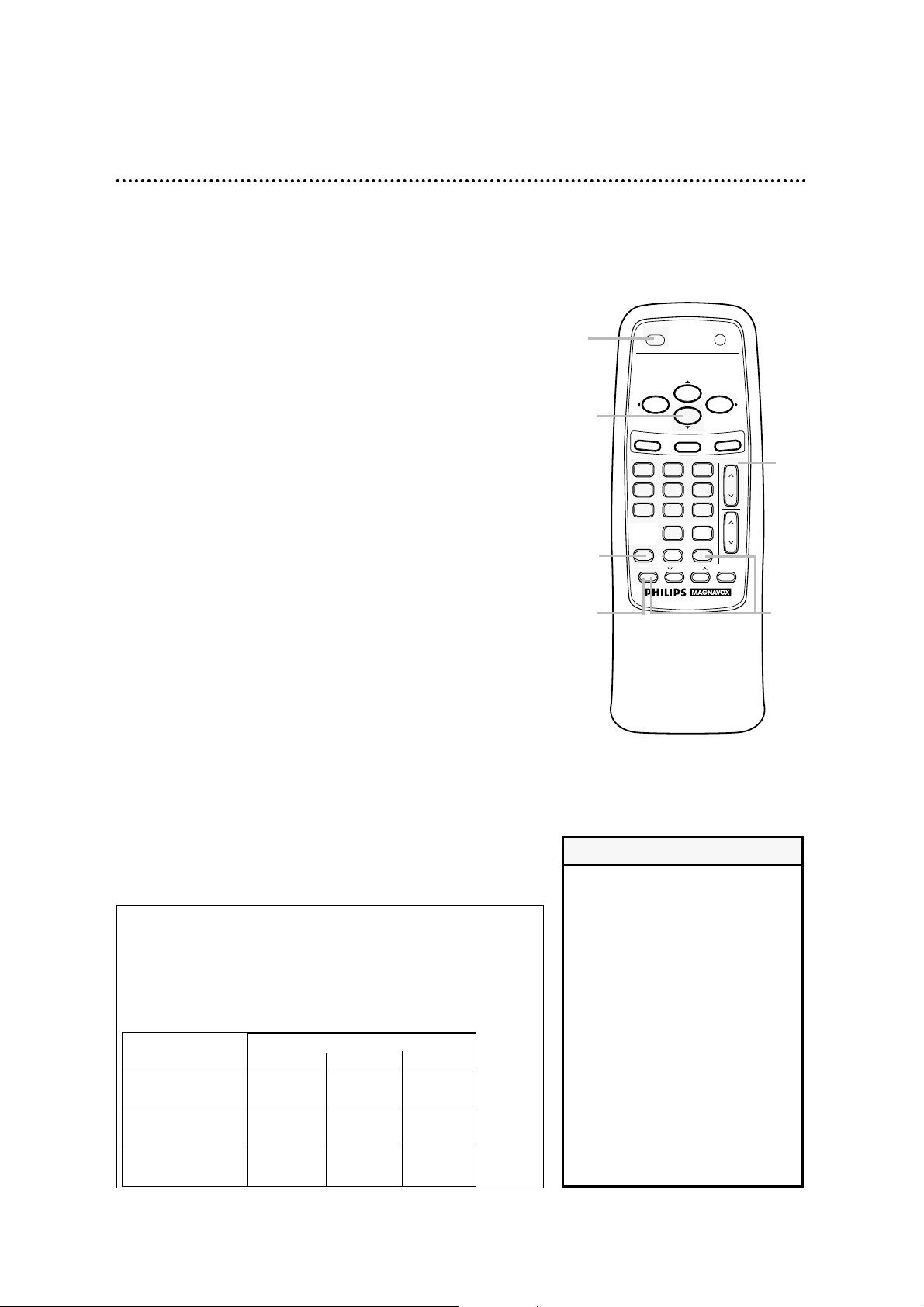

8 Turning On the TV/VCR

Before you turn on the TV/VCR, make sure there are batteries in
the remote control and the TV/VCR is hooked up correctly.
The instructions on this page work only when you turn on the
TV/VCR for the first time.

1

Press the POWER button. The TV/VCR will come on and the

screen shown below will appear.

2

Press the PLAY/K button or the STOP/L button to select

English or Spanish on-screen displays.

3

Press the MENU button. The screen shown below will appear.

4

Press the F.FWD/B button to begin automatic channel
setup. The TV/VCR will memorize all available channels. When

channels are set, CHANNELS ARE SET will appear on-screen
briefly. Then the TV/VCR will go to the lowest channel pro­grammed.
(If you try to set up channels when there is no antenna or cable
connected to the TV/VCR, programming will appear to take place,
but eventually a NO TV SIGNALS ... message will appear on­screen. Connect an antenna or cable to the ANT(enna) jack on
the TV/VCR, then press the F.FWD/B button again. You may
need to follow the steps on page 10 instead.)

CONNECT ANTENNA OR CABLE
TO TVCR

THEN PRESS B

TO END PRESS EXIT

SELECT LANGUAGE

> ENGLISH ON

ESPAÑOL

SELECT KL OR
PRESS MENU TO CONTINUE

5

Use the CH(annel) m/n button or the Number buttons
on the remote control to select a TV/VCR channel. Use
the VOL(ume) m/n button to adjust the sound.

• If you do not see any on-screen dis­plays when you turn on the TV/VCR,
check your hookups, then try again.
If you still do not see any on-screen
displays, follow the steps on pages
nine - 10 to select a language and
set up channels.

• To skip step 2, press the MENU
button. All on-screen displays will be
inEnglish. To skip step 4, press the
STATUS/EXITbutton. Channels will
not be set up, and CHANNELS
NOT SET will appear on-screen
briefly.

• You cannot set up channels if you
are using a Cable Box.

• Line Input mode will always be
stored in the TV/VCR’s memory as
channel 00. When you select chan­nel 00, A/V IN will appear on­screen briefly. Press the CH(annel)
m/n button or the Number but­tons to select another channel.

Helpful Hints

1
2

3

4

5

VOL

.

CH.

321
654
987

0

POWER

STATUS/EXIT

TRACKINGREC/OTR

SPEED

MEMORY

ALT. CH

PAUSE/STILL

MUTE

F.FWDREW

PLAY

STOP

SLEEP

MENU

CLEAR

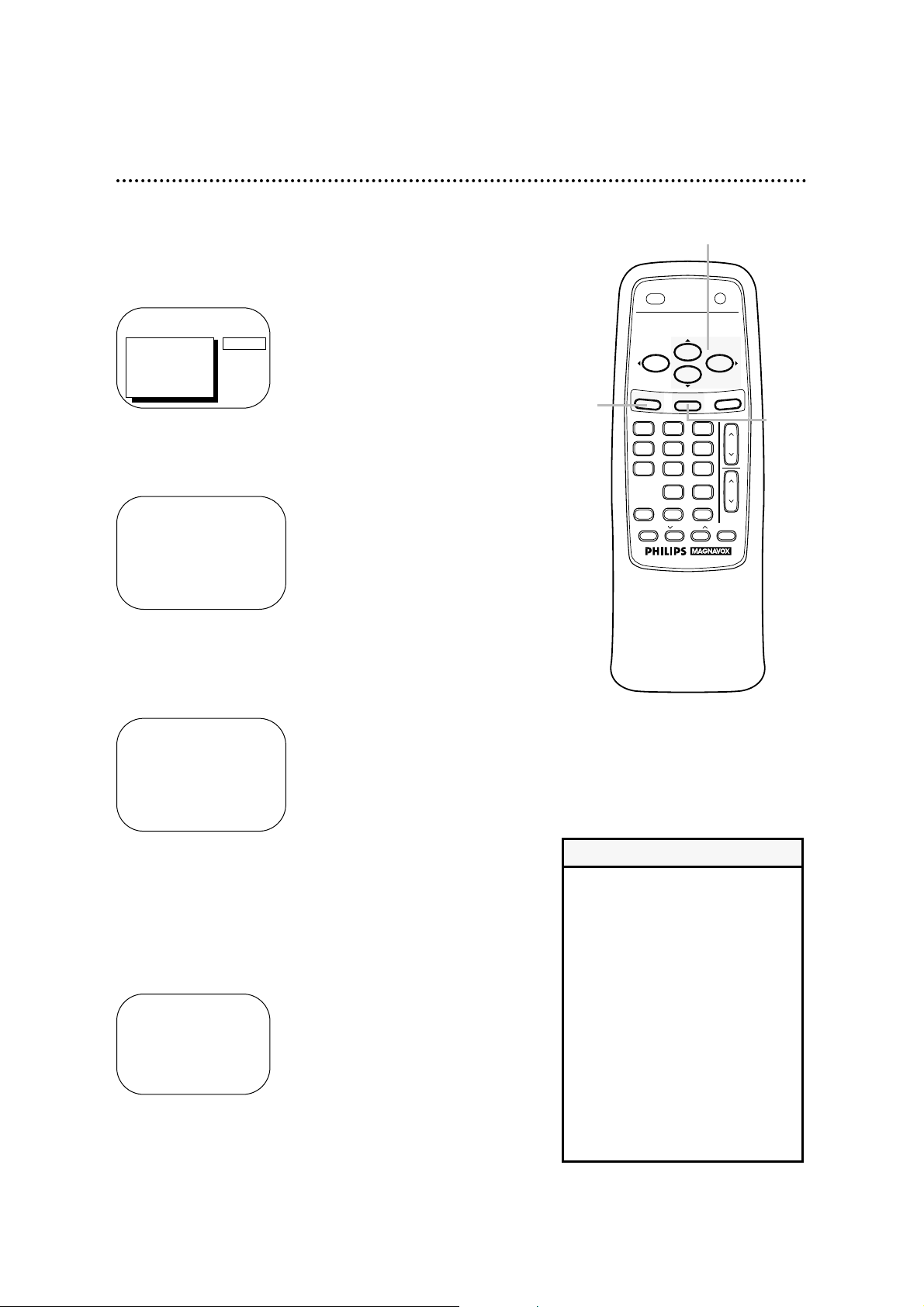

Language Selection 9

Follow the steps below to change the language of the on-screen
displays and menus.

3

Press the PLAY/▲ button or the STOP/▼ button to
choose SELECT LANGUAGE. Then, press the F.FWD/B
button.

4

Press the PLAY/▲ button or the STOP/▼ button to select
ENGLISH or ESPAÑOL (Spanish).

5

Press the STATUS/EXIT button.

SELECT LANGUAGE

> ENGLISH ON

ESPAÑOL

SELECT KL
TO END PRESS EXIT

1

Press the MENU button.

2

Press the PLAY/▲ button or the STOP/▼ button to select
PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING
CH MEMORY REVIEW
VOLUME BAR [ON]
SET CLOCK

SELECT KL CHOOSE B
TO END PRESS EXIT

> PRIM. SETUP

VCR PROGRAM
VCR SETUP
CAPTION
REMINDER
BRIGHTNESS

PRESS B

2-4

• If you accidentally select Spanish
and need English on-screen displays
and menus:

1) Press the MENU button.

2) Press the PLAY/o button or the
STOP/p button to select PREPARA­CION, then press the F.FWD/B
button.

3) Press the PLAY/o button or the
STOP/p button to select SELEC­CION IDIOMA, then press the
F.FWD/B button.

4) Press the PLAY/o button or the
STOP/p button to select ENGLISH.

5) Press the STATUS/EXIT button.

Helpful Hint

1

5

SPEED

POWER

MENU

MEMORY

PLAY

STOP

STATUS/EXIT

0

TRACKINGREC/OTR

321
654
987

ALT. CH

PAUSE/STILL

F.FWDREW

SLEEP

CLEAR

MUTE

CH.

VOL

.

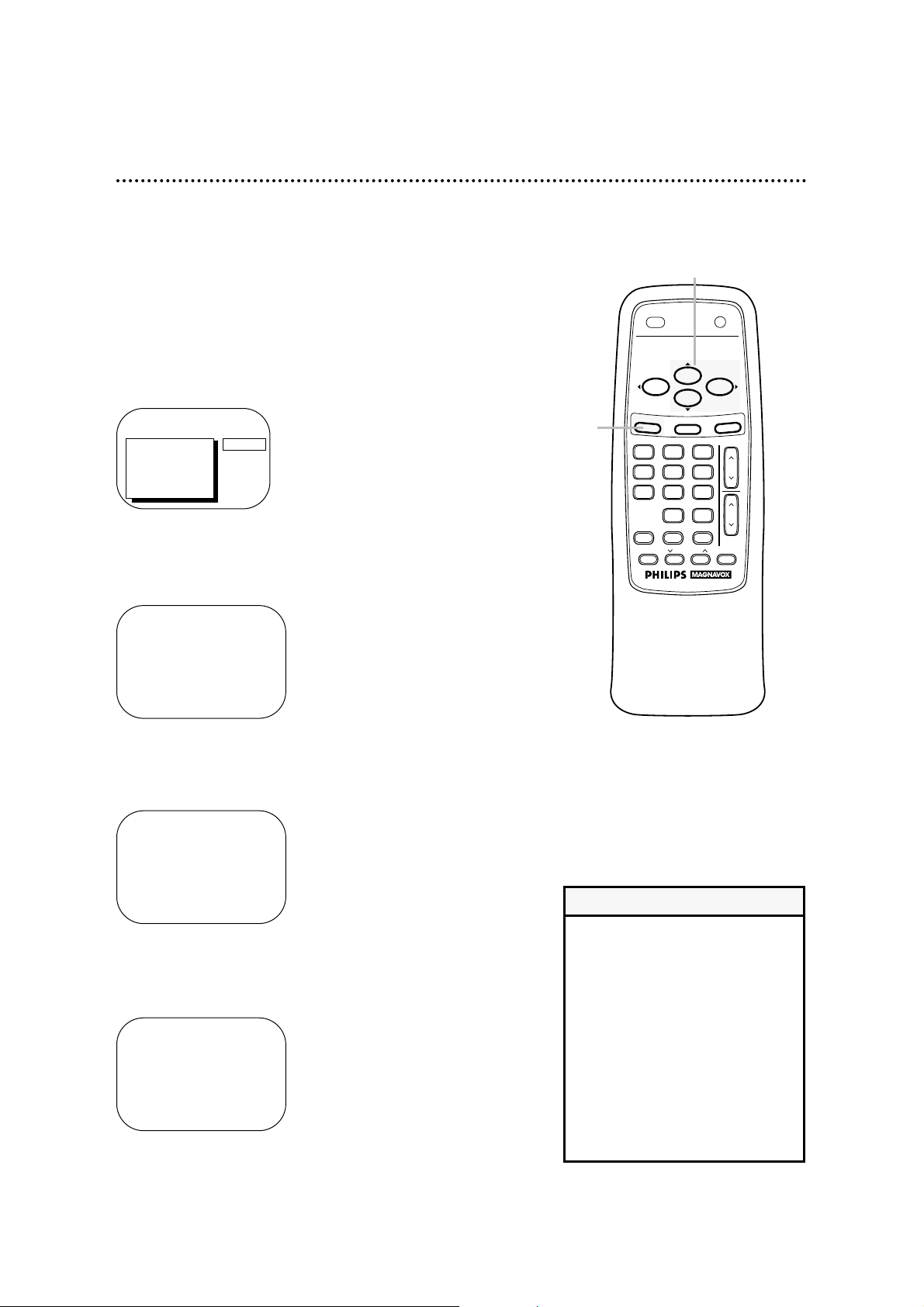

10 Automatic Channel Setup

Although the TV/VCR may automatically memorize the channels
you receive when you turn it on for the first time, you may set up
channels again by following the steps below.

1

Press the MENU button.

2

Press the PLAY/▲ button or the STOP/▼ button to select
PRIM. SETUP, then press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING
CH MEMORY REVIEW
VOLUME BAR [ON]
SET CLOCK

SELECT KL CHOOSE B
TO END PRESS EXIT

3

Press the PLAY/▲ button or the STOP/▼ button to select
AUTO PROGRAMMING, then press the F.FWD/B but­ton. AUTO CH PROGRAMMING ... will appear on-screen. The

TV/VCR distinguishes between TV channels and cable channels
automatically, and the TV/VCR will memorize its available chan-

• Line Input mode will always be
stored in the TV/VCR’s memory as
channel 00. You cannot delete it.

Helpful Hints

4

Wait for a few minutes. When setup is complete, CHANNELS

ARE SET will appear on-screen. Then the programming of the
lowest channel number placed in the TV/VCR’s memory will
appear on-screen. Now, when you press the CH(annel) m/n but-
ton, you will scan only through channels you receive.

4

Wait for the TV/VCR to set up
channels.

1

2-3

> PRIM. SETUP

VCR PROGRAM
VCR SETUP
CAPTION
REMINDER
BRIGHTNESS

PRESS B

POWER

PLAY

STOP

MENU

STATUS/EXIT

0

MEMORY

SPEED

TRACKINGREC/OTR

321
654
987

ALT. CH

PAUSE/STILL

F.FWDREW

SLEEP

CLEAR

MUTE

CH.

VOL

.

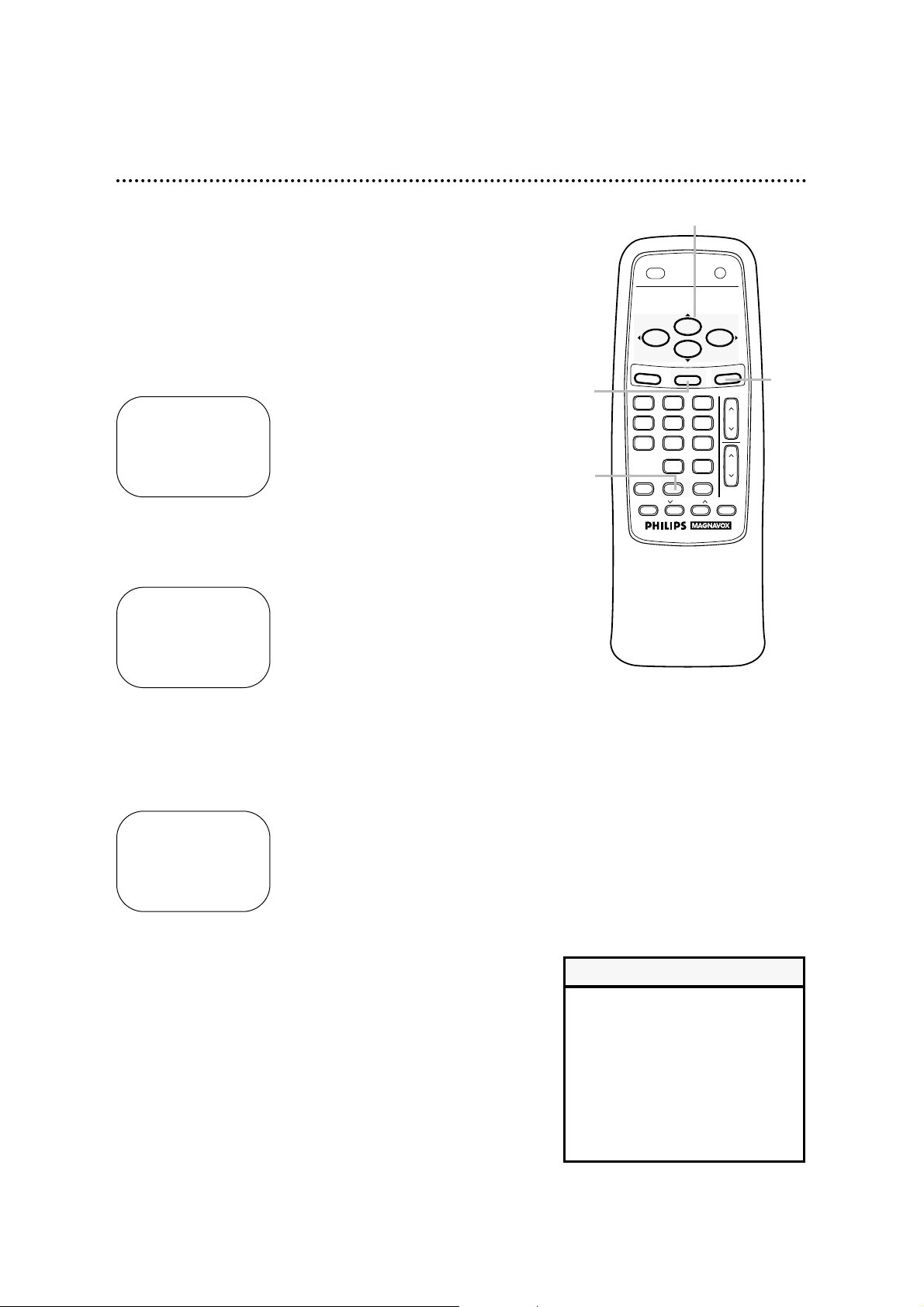

Automatic Channel Setup (cont’d) 11

4

Press the F.FWD/B button or the REW(ind)/{ button to
select SAVED (to add that channel) or DELETED (to
delete that channel).

Repeat steps 3-4 to add or delete other channels.

5

Press the STATUS/EXIT button.

Programming of the channel you added or deleted will appear.

3

Press the CH(annel) m/n button to select the channel
you want to add or delete.

• To review the channels memorized
by the TV/VCR, follow these steps.

1) Press the MENU button.

2) Press the PLAY/▲ button or the
STOP/▼ button to select PRIM.
SETUP. Press the F.FWD/B button.

3) Press the PLAY/▲ button or the
STOP/▼ button to select CH MEM­ORY REVIEW. Press the F.FWD/B
button. A list of programmed chan­nels will appear on the screen.

4) If all the programmed channels
don’t fit on the screen, press the
F.FWD/B button. If you do not
press the F.FWD/B button within
10 seconds, the remaining channels
will appear on the screen. (If there
are no remaining channels, the pre­vious menu will appear.) Or press
the REW(ind)/{ button to see the
previous screen of channels.

5) Press the STATUS/EXIT button
once or twice.

Helpful Hint

1

Press the MENU button.

2

Press the PLAY/o button or the STOP/p button to select
CHANNEL.

Adding/Deleting Channels

TO ADJUST PRESS { / B

CH23

> CHANNEL

SMARTLOCK
REVIEW
EXIT
PRIM. SETUP

VCR PROGRAM

SAVED

TO ADJUST PRESS { / B

CH123

> CHANNEL

SMARTLOCK
REVIEW
EXIT
PRIM. SETUP

VCR PROGRAM

SAVED

TO ADJUST PRESS { / B

CH123

> CHANNEL

SMARTLOCK
REVIEW
EXIT
PRIM. SETUP

VCR PROGRAM

SAVED

1

2,4

3

5

VOL

.

CH.

321
654
987

0

POWER

STATUS/EXIT

TRACKINGREC/OTR

SPEED

MEMORY

ALT. CH

PAUSE/STILL

MUTE

F.FWDREW

PLAY

STOP

SLEEP

MENU

CLEAR

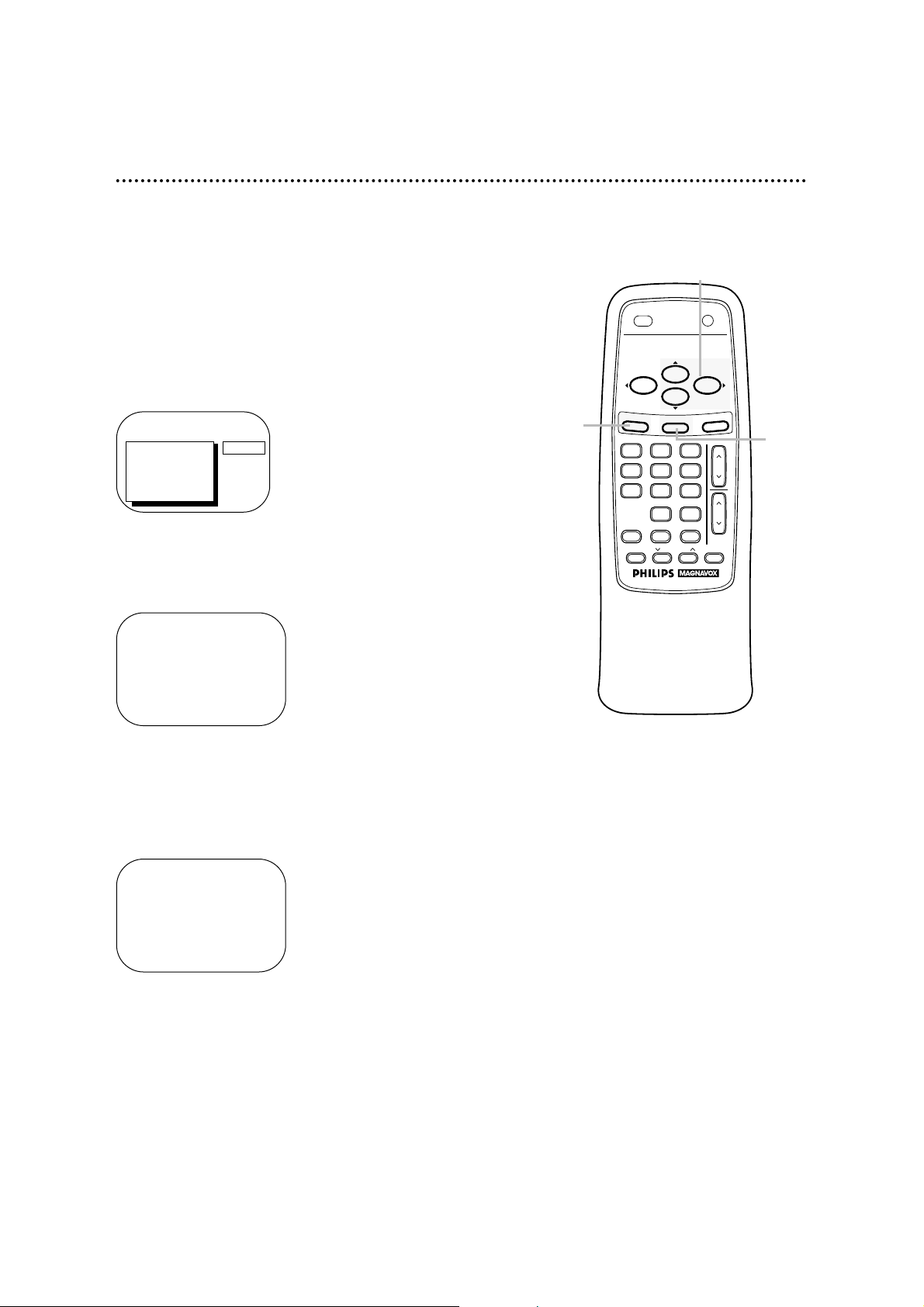

12 Setting the Clock

• Entries that do not match the
TV/VCR’s calendar will cause a
question mark (?) to appear on the
screen.

• To make corrections while you are
setting the clock, press the CLEAR
button until the space for the num­ber you want to correct is flashing.
Then enter the correct number.

Helpful Hints

There are three ways to set the clock: Manually, with Automatic
PBS Channel Selection, or with Manual PBS Channel Selection.
With manual clock setting, you tell the TV/VCR the current time.
With Automatic or Manual PBS Channel Selection, the TV/VCR
gets the time from your local PBS station.
If you use either Manual PBS Channel Selection or Automatic PBS
Channel Selection, follow the steps on page 19 to have the
TV/VCR maintain the clock according to your Time Zone.

Cable Box users must set the clock manually.

To set the clock manually, follow the steps on pages 12-13. To set
the clock using Automatic PBS Channel Selection, follow the steps
on pages 14-15. To set the clock using Manual PBS Channel
Selection, follow the steps on pages 16-17.
Before you begin, make sure:

● The TV/VCR is hooked up and turned on.

● Channels are set up.

● You make each entry within 60 seconds of the previous entry.

Manual Clock Setting

1

Press the MENU button.

2

Press the PLAY/▲ button or the STOP/▼ button to select
PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING
CH MEMORY REVIEW
VOLUME BAR [ON]
SET CLOCK

SELECT KL CHOOSE B
TO END PRESS EXIT

> PRIM. SETUP

VCR PROGRAM
VCR SETUP
CAPTION
REMINDER
BRIGHTNESS

PRESS B

SET CLOCK

> AUTO CLOCK [ON]

SET MANUAL CLOCK
DAYLIGHT SVG.TIME [ON]
SET TIME ZONE

[AUTO]

TO CONTINUE PRESS MENU
SELECT KL CHOOSE B

TO END PRESS EXIT

3

Press the PLAY/▲ button or the STOP/▼ button to select
SET CLOCK. Then, press the F.FWD/B button.

2-3

1

POWER

PLAY

STOP

MENU

STATUS/EXIT

321
654
987

ALT. CH

0

MEMORY

SPEED

PAUSE/STILL

TRACKINGREC/OTR

F.FWDREW

SLEEP

CLEAR

MUTE

CH.

VOL

.

Setting the Clock (cont’d) 13

5

Press two Number buttons for the hour(s) and two
Number buttons for the minute(s). Then press 1 for AM
or 2 for PM. For example, for 9:30 PM, press 09, 30, 2.

SET MANUAL CLOCK

TIME 09 : 30 PM

MONTH – – / – – / – –

TO CORRECT PRESS CLEAR
TO END PRESS EXIT

6

Press two Number buttons for the month, two Number
buttons for the day, and two Number buttons for the
year. For example, for July 1, 1999, press 07, 01, 99. The day of

the week will appear automatically.

7

Press the STATUS/EXIT button.

SET MANUAL CLOCK

TIME 09 : 30 PM
DATE 07 / 01 / 99

THURSDAY

TO CORRECT PRESS CLEAR
TO END PRESS EXIT

4

If ON appears beside AUTO CLOCK, press the F.FWD/B
button so that OFF appears to the right of AUTO
CLOCK, then press the MENU button. If OFF appears
beside AUTO CLOCK, press the MENU button.

SET MANUAL CLOCK

TIME – – : – –

DATE – – / – – / – –

TO END PRESS EXIT

5-6

7

4

VOL

.

CH.

321
654
987

0

POWER

STATUS/EXIT

TRACKINGREC/OTR

SPEED

MEMORY

ALT. CH

PAUSE/STILL

MUTE

F.FWDREW

PLAY

STOP

SLEEP

MENU

CLEAR

• This VCR is ready for the year 2000
and the years beyond. To set a date in
the year 2000, enter 00 for the year
in step 6.

Helpful Hint

14 Setting the Clock (cont’d)

Automatic PBS Channel Selection

4

If ON appears beside AUTO CLOCK, press the MENU
button. If OFF appears beside AUTO CLOCK, press the
F.FWD/B button so that ON appears to the right of
AUTO CLOCK, then press the MENU button.

1

Press the MENU button.

2

Press the PLAY/▲ button or the STOP/▼ button to select
PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING
CH MEMORY REVIEW
VOLUME BAR [ON]
SET CLOCK

SELECT KL CHOOSE B
TO END PRESS EXIT

3

Press the PLAY/▲ button or the STOP/▼ button to select
SET CLOCK. Then, press the F.FWD/B button.

2-3

AUTO CLOCK
AUTO CLOCK USES
PBS CHANNEL DATA

> SET PBS CH. AUTO

SET PBS CH. MANUAL

SELECT KL CHOOSE B
TO END PRESS EXIT

> PRIM. SETUP

VCR PROGRAM
VCR SETUP
CAPTION
REMINDER
BRIGHTNESS

PRESS B

1

4

SET CLOCK

> AUTO CLOCK [ON]

SET MANUAL CLOCK
DAYLIGHT SVG.TIME [ON]
SET TIME ZONE

[AUTO]

TO CONTINUE PRESS MENU
SELECT KL CHOOSE B

TO END PRESS EXIT

POWER

SLEEP

SPEED

MENU

0

MEMORY

PLAY

STOP

STATUS/EXIT

PAUSE/STILL

TRACKINGREC/OTR

321
654
987

ALT. CH

F.FWDREW

CLEAR

CH.

VOL

.

MUTE

Setting the Clock (cont’d) 15

7

When the TV/VCR finds the PBS channel, the time will
appear on-screen. Press the STATUS/EXIT button.

6

NOW SEARCHING flashes on the TV/VCR screen.
However, you may see the message: “PLEASE TURN OFF TO
SET AUTO CLOCK. PLEASE WAIT SEVERAL MINUTES.”
If this message appears, turn off the TV/VCR for several minutes.
When you turn on the TV/VCR, the time will be set. If the time is
not set, repeat steps 1-5. Or, follow the steps on pages 12-13 to
set the clock manually or pages 16-17 to set the clock with
Manual PBS Channel Selection.

● If CANNOT FIND CLOCK DATA flashes on the

TV/VCR screen, you will be prompted to turn off the
TV/VCR. Turn off the TV/VCR. Leave it off for several min-

utes. When you turn on the TV/VCR again, the clock will be
set.

• To display the time on the TV/VCR
screen, press the STATUS/EXIT but­ton. Details are on page 26.

• You cannot use the AUTO CLOCK
feature if you don’t receive a PBS
channel that carries a time signal in
your area. Set the clock manually.

Helpful Hints

5

Press the PLAY/▲ button or the STOP/▼ button to
select SET PBS CH. AUTO. Then, press the F.FWD/B
button.

SET AUTO CLOCK

TIME – – : – –
DATE – – / – – / – –
NOW SEARCHING

TO END PRESS EXIT

SET AUTO CLOCK

TIME 06 : 30 PM
DATE 07 / 01 / 99

THURSDAY

TO END PRESS EXIT

SET AUTO CLOCK

TIME – – : – –
DATE – – / – – / – –

CANNOT FIND CLOCK DATA
TO END PRESS EXIT

6

Wait for the TV/VCR to find
the time.

7

5

POWER

MENU

MEMORY

SPEED

PLAY

STOP

STATUS/EXIT

0

TRACKINGREC/OTR

321
654
987

ALT. CH

PAUSE/STILL

F.FWDREW

SLEEP

CLEAR

MUTE

CH.

VOL

.

16 Setting the Clock (cont’d)

Manual PBS Channel Selection

4

If ON appears beside AUTO CLOCK, press the MENU
button. If OFF appears beside AUTO CLOCK, press the
F.FWD/B button so that ON appears to the right of
AUTO CLOCK, then press the MENU button.

1

Press the MENU button.

2

Press the PLAY/▲ button or the STOP/▼ button to select
PRIM. SETUP. Then, press the F.FWD/B button.

PRIMARY SETUP

> SELECT LANGUAGE

AUTO PROGRAMMING
CH MEMORY REVIEW
VOLUME BAR [ON]
SET CLOCK

SELECT KL CHOOSE B
TO END PRESS EXIT

AUTO CLOCK
AUTO CLOCK USES
PBS CHANNEL DATA

> SET PBS CH. AUTO

SET PBS CH. MANUAL

SELECT KL CHOOSE B
TO END PRESS EXIT

> PRIM. SETUP

VCR PROGRAM
VCR SETUP
CAPTION
REMINDER
BRIGHTNESS

PRESS B

3

Press the PLAY/▲ button or the STOP/▼ button to select
SET CLOCK. Then, press the F.FWD/B button.

2-3

1

4

SET CLOCK

> AUTO CLOCK [ON]

SET MANUAL CLOCK
DAYLIGHT SVG.TIME [ON]
SET TIME ZONE

[AUTO]

TO CONTINUE PRESS MENU
SELECT KL CHOOSE B

TO END PRESS EXIT

POWER

PLAY

STOP

MENU

STATUS/EXIT

321
654
987

ALT. CH

0

MEMORY

SPEED

PAUSE/STILL

TRACKINGREC/OTR

F.FWDREW

SLEEP

CLEAR

MUTE

CH.

VOL

.

Setting the Clock (cont’d) 17

8

When the TV/VCR finds the clock data, the time will
appear on-screen. Press the STATUS/EXIT button.

6

Use the Number buttons to select your PBS station. If you

make a mistake, press the CLEAR button, then enter the correct
number.

● If CANNOT FIND CLOCK DATA flashes on the

TV/VCR screen and you know another PBS channel,
press the PLAY/▲ button or the STOP/▼ button to
choose SELECT NEW PBS CH. Then, press the
F.FWD/B button. Repeat step 6.

● If CANNOT FIND CLOCK DATA flashes on the

TV/VCR screen and you do not know another channel,
press the PLAY/▲ button or the STOP/▼ button to
select SET PBS CH. AUTO. Then, press the F.FWD/B
button. The TV/VCR will search for the PBS channel automati-

cally.

• If the PBS channel is found, the time will appear on-screen.

• If the PBS channel is not found, you will be prompted to turn
off the TV/VCR. Leave it off for several minutes. When you turn
on the TV/VCR again, the time will be set.

AUTO CLOCK (PBS) CH 02

TIME – – : – –
DATE – – / – – / – –

SELECT CHANNEL NUMBER
TO END PRESS EXIT

AUTO CLOCK (PBS) CH 12

TIME 06 : 30 PM
DATE 07 / 01 / 99

THURSDAY

TO END PRESS EXIT

7

NOW SEARCHING flashes on the TV/VCR screen.

AUTO CLOCK (PBS) CH 12

TIME – – : – –
DATE – – / – – / – –
NOW SEARCHING

TO END PRESS EXIT

7

• If you have an Antenna hookup, you
may select channels 2-69 at step 6.
If you have a cable connection, you
may select channels 1-125 at step

6. Details about available memo­rized channels are on page 11.

• To display the time on the TV/VCR
screen, press the STATUS/EXIT but­ton. Details are on page 26.

Helpful Hints

Wait for the TV/VCR to
find the time.

5

Press the PLAY/▲ button or the STOP/▼ button to
select SET PBS CH. MANUAL. Then, press the F.FWD/B
button. The default channel (02) flashes.

6

5

8

SPEED

MENU

POWER

0

MEMORY

PLAY

STOP

STATUS/EXIT

PAUSE/STILL

TRACKINGREC/OTR

321
654
987

ALT. CH

F.FWDREW

SLEEP

CLEAR

MUTE

CH.

VOL

.
