OWNER’S MANUAL

Outdoor Charcoal Barbecue Grill

Model No. CBC608A

WARNING

FOR YOUR SAFETY:

For Outdoor Use Only

(outside any enclosure)

WARNING

FOR YOUR SAFETY:

1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.

2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.

3. Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death.

Table of Contents

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Exploded View & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Save these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or her to read and save for future reference.

Manufactured in China for: Blue Rhino Global Sourcing, LLC 104 Cambridge Plaza Drive, Winston-Salem, NC 27104 USA

1.800.762.1142, www.bluerhino.com

Outdoor Charcoal Grill Model No. CBC608A

WARNING

FOR YOUR SAFETY

1. This grill is for outdoor use only, and shall not be used in a building, garage, or any other enclosed area.

2. This grill is NOT for commercial use.

3. Do not use grill for indoor cooking or heating. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

4. Do not use gasoline, kerosene, or alcohol for lighting.

5. Do not use in an explosive atmosphere. Keep grill area clear and free from combustible materials, gasoline and other flammable vapors and liquids.

6. Do not store or use gasoline or other flammable liquids or vapors within 25 feet (7.62 m) of this appliance.

7. Instant light charcoal can burn at very high temperatures during initial startup. Make sure lid is open until charcoal turns to hot coals.

8. Keep all combustible items and surfaces at least 21 inches (53 cm) away from the grill at all times. DO NOT use this grill or any gas product under any overhead or near any unprotected combustible constructions.

9. Do not alter grill in any manner.

17. Do not use in or on boats or recreational vehicles.

18. Position grill so wind can not carry ashes to combustible surfaces.

19. Do not use in high winds.

20. Never lean over the grill when lighting.

21. Do not leave a lit grill unattended, especially keep children and pets away from grill at all times.

22. Do not attempt to move grill when in use. Allow the grill to cool before moving or storing.

23. Always open grill lid carefully and slowly as heat and steam trapped within grill can severely burn you.

24. Always place your grill on a hard, non combustible level surface. An asphalt or blacktop surface may not be acceptable for this purpose.

25. Do not remove the ashes until they are completely and fully extinguished.

26. Live hot briquettes and coals can create a fire hazard.

27. Always empty the ash catcher and grill after each use. Do not remove the ashes until they are completely and fully extinguished.

10. Do not use the grill unless it is completely assembled and all parts are securely fastened and tightened.

11. This grill should be thoroughly cleaned and inspected on a regular basis.

12. Use only Blue Rhino Global Sourcing, LLC. factory authorized parts. The use of any part that is not factory authorized can be dangerous. This will also void your warranty. Contact 1.800.762.1142.

13. Do not use this appliance without reading “Operating Instructions” in this manual.

14. Do not touch metal parts of grill until it has completely cooled (about 45 min.) to avoid burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).

15. Never touch grates (charcoal or cooking), ashes or coals to see if they are hot.

16. Do not use on wooden decks, wooden furniture or other combustible surfaces.

28. Do not place fuel (charcoal briquets, wood or lump charcoal) directly into bottom of grill. Place fuel only on the charcoal pan/grid.

29. Check to make sure the air vents are free of debris and ash before and while you are using the grill.

30. Make sure ash catcher is securely and completely in place before using the grill.

31. Always wear protective gloves when adding fuel to retain desired heat level.

32. Keep all electrical cords away from a hot grill.

33. Always use a meat thermometer to ensure food is cooked to a safe temperature.

34. Deaths, serious injury or damage to property may occur if the above is not followed exactly.

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

page no.

Exploded View

1. Lid Handle . . . . . . . . . . . . . . . . . . . . . . . . 55-14-793

2. Air Vent Assembly . . . . . . . . . . . . . . . . . . 55-14-794

3. Lid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-787

4. Warming Rack . . . . . . . . . . . . . . . . . . . . . 55-14-790

5. Cooking Grid . . . . . . . . . . . . . . . . . . . . . . 55-14-789

6. Charcoal Grid. . . . . . . . . . . . . . . . . . . . . . 55-14-791

7. Top Hinge* (2) . . . . . . . . . . . . . . . . . . . . . 55-14-081

8. Bottom Hinge (2) . . . . . . . . . . . . . . . . . . . 55-14-792

9. Bottom Bowl . . . . . . . . . . . . . . . . . . . . . . 55-14-788

10. Charcoal Grid Support Rod (2) . . . . . . . . . 55-14-806

11. Adjustable Grid Kit . . . . . . . . . . . . . . . . . . 55-15-107

12. Slide . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-796

13. Ash Receiver Assembly . . . . . . . . . . . . . . 55-14-797

14. Ash Receiver Handle*. . . . . . . . . . . . . . . . 55-13-263

15. Left Side Shelf . . . . . . . . . . . . . . . . . . . . . 55-15-111

16. Right Side Shelf. . . . . . . . . . . . . . . . . . . . 55-15-113

17. Control Panel . . . . . . . . . . . . . . . . . . . . . . 55-15-108

18. Adjustable Knob. . . . . . . . . . . . . . . . . . . . 55-15-106

19. Left Cart Frame . . . . . . . . . . . . . . . . . . . . 55-14-800

20. Plastic Foot (2). . . . . . . . . . . . . . . . . . . . . 55-14-795

21. Link Beam (2) . . . . . . . . . . . . . . . . . . . . . 55-14-802

22. Bottom Shelf . . . . . . . . . . . . . . . . . . . . . . 55-14-798

23. Right Cart Frame . . . . . . . . . . . . . . . . . . . 55-14-801

24. Front Panel . . . . . . . . . . . . . . . . . . . . . . . 55-14-799

25. Axle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-808

26. Wheel (2). . . . . . . . . . . . . . . . . . . . . . . . . 55-14-987

27. Hub Cap (2) . . . . . . . . . . . . . . . . . . . . . . . 55-14-938

*Pre-assembled

Hardware

A. Extra Small Screw 1 pc

M4x15 Philips Truss Head Screw

B. Small Screw 3 pcs

M5x10 Philips Truss Head Screw

C. Medium Screw 13 pcs

M6x15 Philips Truss Head Screw

D. Large Screw 4 pcs

M6x20 Philips Truss Head Screw

E. Extra Large Screw** 4 pcs

M6x72 Philips Truss Head Screw

J. Small Washer 2 pcs

ø5.3 Zinc Plated Washer

K. Large Washer 25 pcs

ø6.4 Zinc Plated Washer

L. Heat Resistant Washer 6 pcs

ø6.4 Heat Resistant Washer

M. Small Lock Washer 3 pcs

ø5.3 Zinc Plated Lock Washer

N. Large Lock Washer 23 pcs

ø6.4 Zinc Plated Lock Washer

F. Nut** 2 pcs

M10 Zinc Plated Hex Nut

G. Cap Nut 2 pcs

M5 Aluminum Cap Nut

H. Small Wing Nut 1 pc

M5 Zinc Plated Wing Nut

I. Large Wing Nut 5 pcs

M6 Zinc Plated Wing Nut

O. Pins** 2 pcs

P. Cotter Pins** 2 pcs

Q. Rubber Spacer** 2 pcs

Tools Included

R. Screwdriver** 1 pc

S. Wrench** 2 pcs

** Not shown at actual size.

Outdoor Charcoal Grill Model No. CBC608A

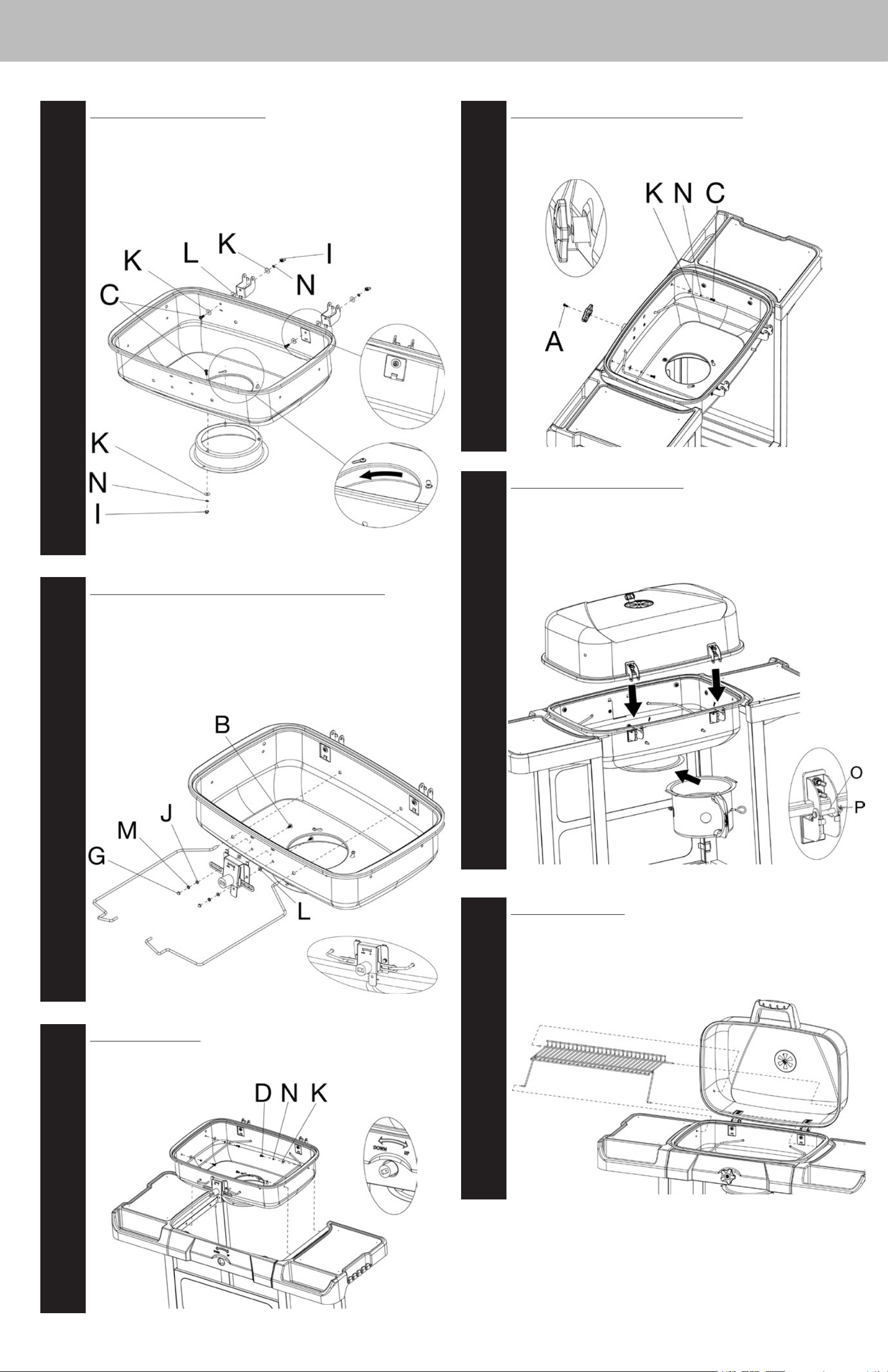

Assembly Instructions

DO NOT RETURN PRODUCT TO STORE. For assistance call 1.800.762.1142 toll free. Please have your owner’s manual and serial

number available for reference.

For Easiest Assembly:

• To avoid losing any small components or hardware, assemble your product on a hard level surface that does not have cracks or openings.

• Clear an area large enough to layout all components and hardware.

• When applicable, tighten all hardware connections by hand first. Once the step is completed, go back and fully tighten all hardware.

• Follow all steps in order to properly assemble your product.

Step

Attach plastic feet

Insert 2 plastic feet into left cart frame.

Step

Attach side shelves

Attach side shelves to cart frame using 4 sets of medium screws (C), large lock washers (N), and large washer (K).

Step

Assemble frame

A. Attach left and right side frames to link beams using 4 sets of extra large

screws (E), large lock washers (N), and large washers (K).

B. Attach wheels to right cart frame using wheel axle and 2 sets of rubber spacers

(Q), and nuts (F).

C. Snap hub caps onto wheels.

Step

Attach control panel

Attach control panel to cart fram using 2 sets of medium screw (C), large lock washer (N) and large washer (K).

Step

Attach front panel and bottom grid

A. Slide front panel into clips on inside of front legs. Fasten with 2 sets of medium

screws (C), large lock washers (N), and large washers (K).

B. Place bottom shelf onto link beams.

Step

Note: image is shown from back.

Attach lid handle and air vent assembly

A. Attach lid handle to lid using 2 sets of heat resistant washers (L), large washers

(K), large lock washers (N), large wing nuts (I).

B. Attach air vent assembly to lid using small screw (B), small lock washer (M) and

small wing nut (H).
