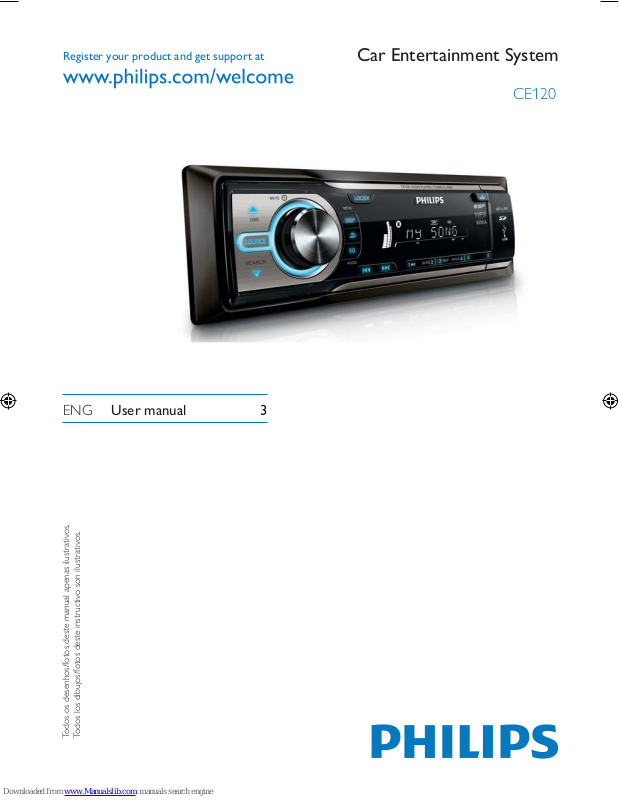

Register your product and get support at
Car Entertainment System
CE120
ENG User manual 3
Todos os desenhos/fotos deste manual apenas ilustrativos.
Todos los dibujos/fotos deste instructivo son ilustrativos.
7 Adjust system settings 21
Contents
1 Important 4
Safety 4
Notice 4
2 Your Car Entertainment System 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
Overview of the remote control 8
Select blackout setting 21
Turn demo mode on/off 21
Change button backlight color 21
Select start volume 21
Turn beep sound on/off 22
Turn display scroll on/off 22
Select shock-protect setting 22

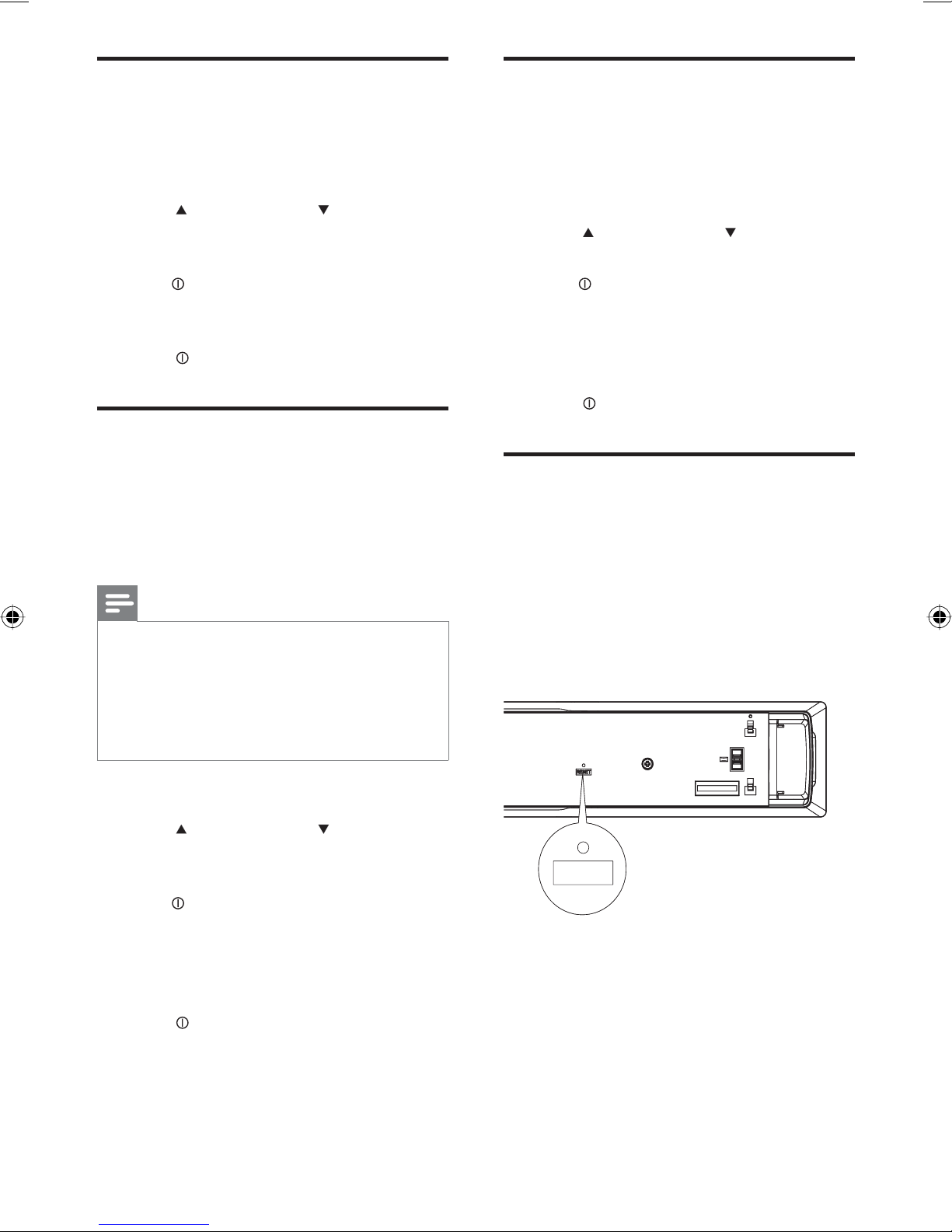

Reset 22
8 Others 24

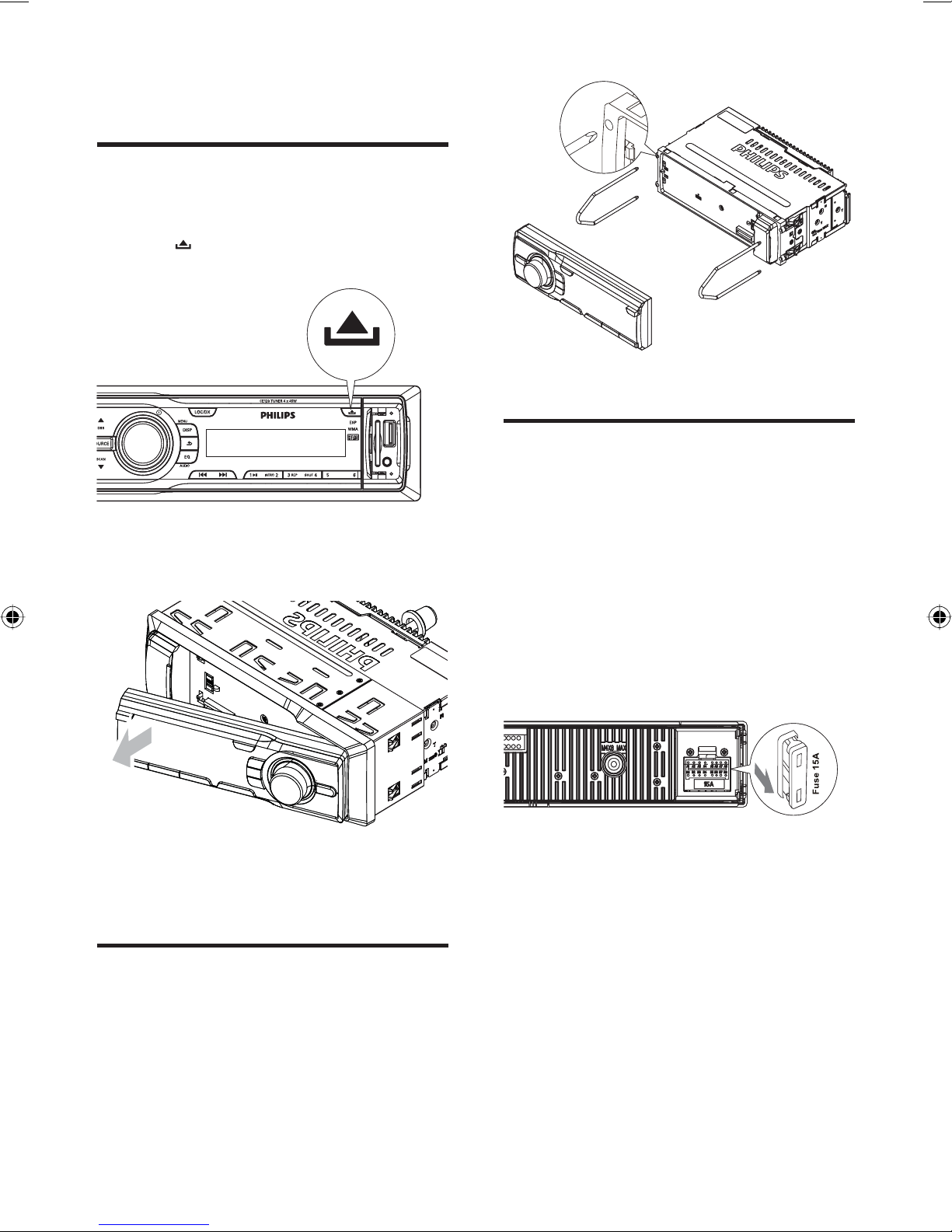

Detach the front panel 24
Remove the unit 24
Replace fuse 24
3 Get started 10
Install the car audio 10
Install remote control battery 15
Turn on 15
Set clock 15
9 Product information 25
10 Troubleshooting 27
English
4 Listen to radio 16
Tune to a radio station 16
Store radio stations in memory 16
Tune to a preset station 16
5 Play from USB/SD/MMC device 17
Insert USB device 17
Insert SD/MMC card 17
Control play 18
Search for an MP3/WMA track 18
View play information 18
Repeat play 18
Random play 18
Intro play 19
Listen to other devices 19
6 Adjust sound 20
Adjust volume 20
Mute 20
Toggle Dynamic Bass Boost on/off 20
Select preset equalizer 20
Other sound settings 20
11 Glossar y
28
ENG
3
1 Important
Notice
Safety
•
Read and understand all instructions
before you use your unit. If damage is
caused by failure to follow instructions, the
warranty does not apply.
•
This unit is designed for negative ground
(earth) 12 V DC operation only.
•
To ensure safe driving, adjust the volume to
a safe and comfortable level.
•
Improper fuses can cause damage or
fi re. When you need to change the fuse,
consult a professional.
•
Use only the supplied mounting hardware
for a safe and secure installation.
•
To avoid short circuit, do not expose the
unit, remote control or remote control
batteries to rain or water.
•
Never insert objects into the ventilation
slots or other openings on the unit.
•
Clean the unit and frame with a soft,
damp cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the unit.
•
Never place any objects other than discs
into the unit.
•
Never use solvents such as benzene,
thinner, cleaners available commercially, or
anti-static sprays intended for discs.
•
Visible and invisible laser radiation when
open. Avoid exposure to beam.
•
Risk of damage to the unit screen! Never
touch, push, rub or strike the screen with
any object.
The making of unauthorized copies of copyprotected material, including computer
programs, fi les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
4
ENG
This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirements
of the following directives and guidelines:
<2004/108/EC + 2006/95/EC>
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Any changes or modifi cations made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2008 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifi cations are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
English
ENG
5
2 Your Car
a Carry case with front panel stored inside
b In-car audio system
Entertainment
System
Congratulations on your purchase, and
welcome to Philips! To fully benefi t from the
support that Philips offers, register your product
at www.Philips.com/welcome.
Introduction
With the in-car audio system, you can enjoy
your drive while you listen to:
FM or AM (MW) radio
•
Audio from a USB drive
•
Audio from a SD/MMC card
•
Audio from external devices
•
c Trim plate
d Remote control
e Standard connector
f Disassembly tool x 2 pcs
g Rubber cushion
h Screw x 4 pcs
i Mounting bolt
j User manual
k Quick Start Guide
What’s in the box
Check and identify the contents of your
package:
a
a
c
c
i
i
f
f
de
de
g
g
jk
jk
b
b
h
h
6
ENG
Overview of the main unit
a
a
MUTE
MUTE
SEARCH
SEARCH
t
s
t
a DBB
•
•
•
b MENU / DISP
•
•
•
c LOC/DX
•
s
Select radio band.
Select MP3/WMA folder.
Turn on or off Dynamic Bass Boost
(DBB) sound.
Display radio frequency and clock.
Display track, elapsed time, artist,
album, title, folder, fi le and clock.
Access system menu.
Select radio sensitivity.
r
r
bec
bec
q
q
d
d
p
p
o
n
m
o
n
i SD/MMC card slot
j 6
•
k 5
•
l SHUF, 4
•
•
m 3, REP
•
•
l
m
l
Select preset station no. 6.
Select preset station no. 5.
Select random play mode.
Select preset station no. 4
Select repeat play mode.
Select preset station no. 3
k
k
f
f
j
j
i
i
g
g
h
h
English
d
e Display panel
f
g USB socket
h External equipment socket
•
Return to previous menu.
•
Stop searching.
•
Disable screen blackout.
•
Unlock the front panel.
n INTRO, 2
Turn intro play on or off.
•
Select preset station no. 2
•
o 1 ,
p
•
Start play
•
Pause or resume play.
•
Select preset station no. 1
/
•
Tune for radio station
Skip/search for MP3/WMA track.
•
ENG
7
q EQ / AUDIO
Select equalizer (EQ) setting.
•
Access audio setting menu.
•
r MUTE
•
•
•
•
•
Turn the unit on or off.
Turn mute on or off.
Adjust volume.
Confi rm selection.
Select characters inMP3/WMA search
mode
a SOURCE
•
Select audio source.
b VOLUME +/-
•
Adjust volume.
c EQ
Select EQ setting.
•
d DBB
Turn on or off Dynamic Bass Boost
•
(DBB) sound.
s SOURCE
Select connected device.
•
t
SEARCH
•
Select radio band.
•
Store radio station automatically.
•
Select MP3/WMA folder.
•
Search for MP3/WMA track or folder
Overview of the remote
control
q
q
p
p
o
o
n
n
m
m
l
l
k
k
j
j
a
a
b
b
c
c
d
d
e
e
f
f
g
g
e 3, REP
Select repeat play mode.
•
Select preset station no. 3.
•
f SEARCH
Store radio stations automatically.
•
Search a track or folder.
•
g DISP
Display radio frequency and clock.
•
Display track, elapsed time, artist,
•
album, title, folder, fi le and clock.
h 6
Select preset station no. 6.
•
i 5
Select preset station no. 5.
•
j SHUF, 4
Select random play mode.
•
Select preset station no. 4.
•
k 1 ,
l INTRO, 2
•
Start play.
•
Pause or resume play.
•
Select preset station no. 1.
•
Turn intro play on or off.
•
Select preset station no. 2.
8
ENG
h
h
i
i
m AUDIO
Access audio setting menu.
•
n Navigation buttons
-
•
/
Tune for radio station
Skip/search for MP3/WMA track.
-
•
/
Select radio band.
Select MP3/WMA folder.
- SEL
•
Confi rm selection.
o MENU
Access system menu.
•
English
p
q
PWR ,
Turn the unit on or off.
•
Mute or unmute volume.
•
Return to previous menu.
•
Disable screen blackout.
•
ENG
9
3 Get started
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for
the model and serial number of your unit. The
model number and serial number are on the
back or side of your unit. Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Install the car audio
•
When you connect other devices to this
unit, ensure that the rating of the car circuit
is higher than the total fuse value of all the
connected devices.
Notes on speaker connection
Never connect speaker wires to the metal
•
body or chassis of the car.
Never connect speaker wires with stripes
•
to one another.

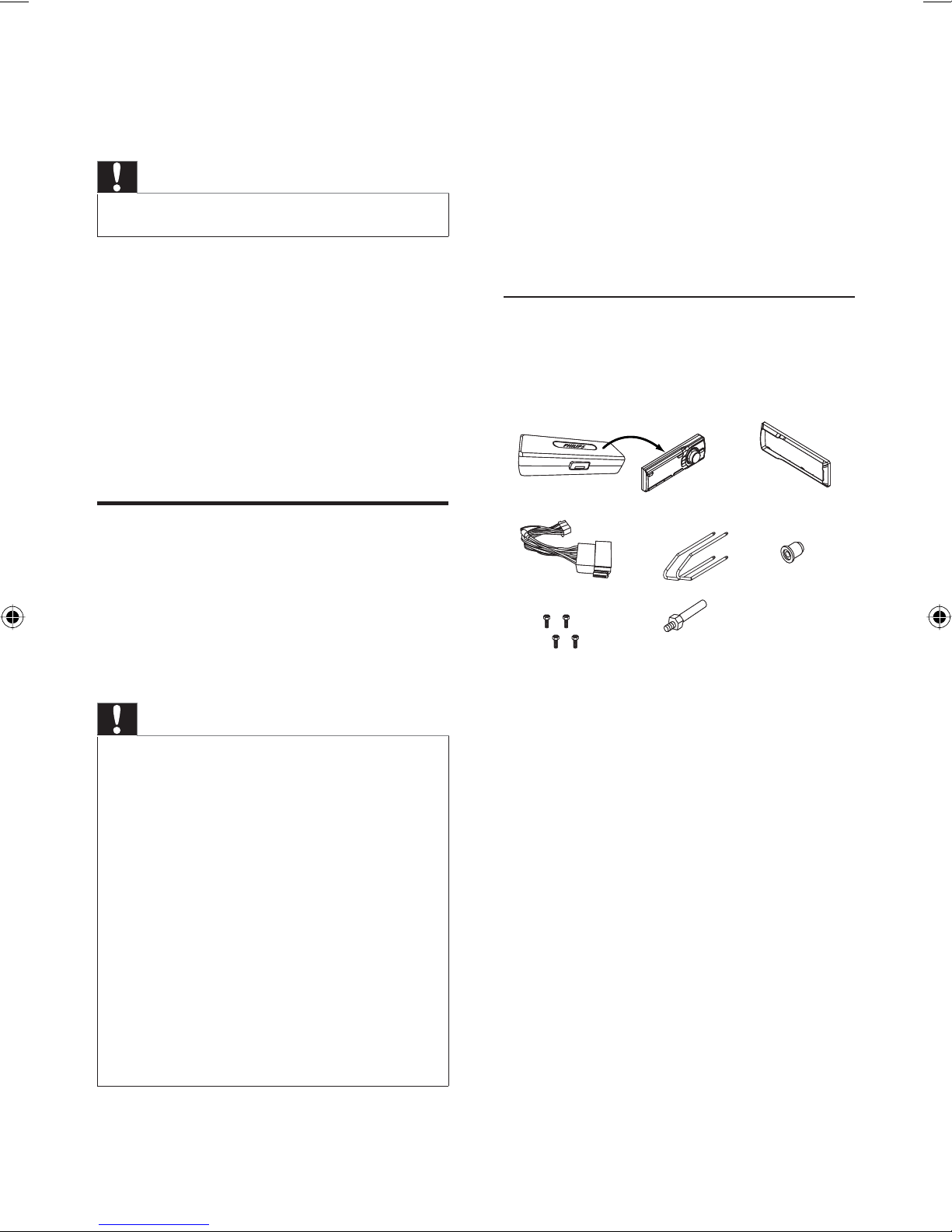

Overview of parts
These are the supplied par ts needed to
connect and install this unit.
a
a
c
c
d
d
b
b
e
e
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground (earth) 12 V
•
DC operation only.
•
Always install this unit in the car dashboard. Other
locations can be dangerous as the rear of the unit heats
up during use.
•
To avoid short-circuit: before you connect, ensure that
the ignition is off.
•
Ensure that you connect the yellow and red power
supply leads after all other leads are connected.
•
Ensure that all loose leads are insulated with electrical
tape.
•
Ensure that the leads do not get caught under screws
orin parts that will move (e.g. seat rail).
•
Ensure that all ground (earth) leads are run to a
common ground (earth) point.
•
Use only the supplied mounting hardware for a safe
and secure installation.
•
Improper fuses can cause damage or fi re. When you
need to change the fuse, consult a professional.
g
f
f
g
a Carry case with front panel stored inside
b Trim plate
c Standard connector
d Disassembly tool x 2 pcs
e Rubber cushion
f Screw x 4 pcs
g Mounting bolt
Note on the power supply lead (yellow)
10
ENG
Connect wires: ISO connectors
Caution
Ensure that all loose leads are insulated with electrical
•
tape.
1 Pull out the ISO connectors from car
dashboard and connect them to the bigger
end of the supplied standard connector.
English
123 123
2 Connect the other end of the supplied
standard connector to the unit.
3 Connect the antenna and amplifi er as
illustrated, if applicable.
Connector Connect to
1 Antenna Antenna
2 Rear line out
(right)
3 Rear line out
(left)
Connect wires: without ISO
connectors
Caution
Ensure that all loose leads are insulated with electrical
•
tape.
1 Cut off the bigger end of the supplied
standard connector.
Amplifi er line in
(right)
Amplifi er line in
(left)
ENG
11
2 Check the car’s wiring carefully and
connect them to the supplied standard
connector.
9
9
8
8
7
7
6
6
1
1
2
2
3
3
4
4
5
5
Connector Connect to
1 Black wire A metal surface of the car
First connect the black
ground (earth) lead, then
connect the yellow and red
power supply leads.
2 Blue wire The electric antenna
control lead or power
supply lead of the antenna
booster
If there is no electric
antenna or antenna booster,
or it is manually operated
telescopic antenna, it is not
necessary to connect this
lead.
3 Yellow wire The +12V car battery
which is live at all times .
4 Orange/
White
5 Red wire The +12V power terminal
6 Green and
green/black
wires
7 White and
white/black
wires
8 Gray and
gray/black
wires
9 Purple and
purple/black
wires
illumination switch .
which is live in the
accessory (ACC) position
of the ignition switch
If there is no accessory
position, connect to the
+12V car battery terminal
that is always live. Be
sure to connect the black
ground (earth) lead to a
metal surface of the car
fi rst.
Left speaker (Rear)
Left speaker (Front)
Right speaker (Front)
Right speaker (Rear)
12
ENG
3 Connect the supplied standard connector
to the unit.
Attach the front panel
1 Attach the trim plate.
English
4 Connect the antenna and amplifi er as
illustrated, if applicable.
2 Insert the left side of the panel in the
chassis until it is correctly engaged.
3 Press the right side of the panel until it is
locked into place.
Mount into the dashboard
123 123
Connector Connect to
1 Antenna Antenna
2 Rear line out
(right)
3 Rear line out
(left)
Amplifi er line in (right)
Amplifi er line in (left)
1 Ensure that car dashboard opening is
within these measurements:
ENG
13
5 mm
5 mm
183 mm
183 mm
52mm
52mm
2 Remove the mounting sleeve with the
supplied disassembly tools.
4 If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
If you disconnect the car battery in
•
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
If the car battery is not disconnected,
•
to avoid short-circuit, ensure that bare
wires do not touch each other.
3 Install the sleeve into the dashboard and
bend the tabs outward to fi x the sleeve.
Skip this step if the unit is not fi xed by
•
sleeve but supplied screws.
5 Connect the supplied mounting bolt to the
unit.
6 Place the supplied rubber cushion over the
end of the mounting bolt.
14
ENG
7 Slide the unit into the dashboard until you
hear a click sound.
1 Open the battery compartment.
2 Insert 1 CR2025 batteries with correct
polarity (+/-) as indicated.
Close the battery compartment.
English
8 Reconnect the negative terminal of the car
battery.
Install remote control battery
Caution
Risk of explosion! Keep batteries away from heat,
•
sunshine or fi re. Never discard batteries in fi re.
•
Risk of decreased battery life! Never mix different
brands or types of batteries.
•
Risk of product damage! When the remote control is
not used for long periods, remove the batteries.
•
Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
Turn on
Press to turn on the unit.
1
•
To turn off the unit, press
seconds.
Set clock
1
Press MENU / DISP for 3 seconds.
2 Press DBB or SEARCH repeatedly until
the currently clock is displayed.
3 Tur n in clockwise direction to set hour.
4 Press to confi rm.
5 Tur n in anti-clockwise direction to set
minute.
6 Press to confi rm.
View clock
for 3
For fi rst-time use:
1 Remove the protective tab to activate the
remote control battery.
To replace the remote control battery:
1 Press MENU / DISP repeatedly until the
clock is displayed.
ENG
15
4 Listen to radio
»
The six strongest stations of the
selected band are saved in preset
channels 1-6 automatically.
Tune to a radio station
1
Press SOURCE to select Radio.
2 Press DBB or SEARCH to select band:
[FM1] , [FM2] , [FM3] , [AM1] , or [AM 2] .
3 Press LOC/DX to select radio sensitivity:
[LOCAL] (local): Only station with strong
signal can be broadcast.
[DX] (distance): Stations with strong and
weak signals can be broadcast.
4 Press or to tune to a radio station
manually.
The radio station is broadcast.
»
To search for radio station
•
automatically, press
seconds.
Select stereo/mono broadcasting
or for 3
Store stations manually
1 Tune to the station that you want to store
(see ‘Tune to a radio station’ on page 16 ) .
2 Press one of the numbered buttons 1 to 6
for over 2 seconds.
The station is saved in the selected
»
channel.
Tune to a preset station
Press DBB or SEARCH to select band.
1
2 Press the number button 1 to 6 to select
the preset station.
For stations with weak signals: to improve the
reception, change to monaural sound.
1 Press MENU / DISP for 3 seconds.
2 Press DBB or SEARCH repeatedly until
[STEREO] or [MONO] is displayed.
3 Tur n to select a setting:
•
[STEREO] : stereo broadcast.
•
[MONO] : mono broadcast.
4 Press to confi rm.
Store radio stations in
memory
You can store up to 6 stations in each band.
Store stations automatically
1 Press SEARCH for 3 seconds.
16
ENG
5 Play from USB/
SD/MMC device
Note
Ensure that the USB or SD/MMC device contains
•
playable music.
Insert USB device
Open the cover marked on the
1
front panel.
English
Remove the USB device
1 Press to turn off the unit.
2 Remove the USB device.
2 Insert the USB device into the USB socket.
The unit starts playing from the USB
»
device automatically.
Insert SD/MMC card
Open the cover marked on the
1
front panel.
2 Insert the SD or MMC card into the card
slot.
The unit starts playing from the SD/
»
MMC card automatically.
ENG
17
[FOLDER SCH] : search by folder
»
sequence.
2 Tur n to select [FILE SCH] , then press
to confi rm.
3 Tur n to enter character, then press .
4 Repeat step 3 to enter more characters.
5 Press for 3 seconds to start searching.
A list of matching tracks are displayed
»
when search is fi nished.
6 Press DBB or SEARCH to skip over
the list.
7 Press to select a track.
Remove the SD/MMC card
1 Press to turn off the unit.
2 Press the card until you hear a click sound.
»
The card is now disengaged.
3 Remove the SD or MMC card.
Control play
•
To select a folder, press DBB or SEARCH
.
•
To skip to a track, press
•
To search within a track, press
for 3 seconds.
•
To pause, press 1 ,
again.
Search for an MP3/WMA
or .
or
. To resume, press 1 ,
View play information
1
During play USB/SD/MMC device, press
MENU / DISP repeatedly to view:
Track number and elapsed play time
•
Artist
•
Album
•
Title
•
Folder
•
File
•
Clock
•
Repeat play
During play, press 3, REP repeatedly to select:
[REP 1] (repeat one track): play the
•
current track repeatedly.
[REP FOLD] (repeat one folder): play all
•
tracks in the current folder repeatedly.
[REP ALL] (repeat all tracks): play all tracks
•
repeatedly.
[REP OFF] (repeat off): cancel repeat play.
•
track
Press SEARCH for 3 seconds.
1
»
Search menu is displayed.
»
[FILE SCH] : search by track name.
18
ENG
Random play
You can play the tracks in random order.
1 During play, press SHUF, 4 to select:
•
[SHUF ON] : start random play for
all tracks.
[SHUF OFF] : cancel random play.
•
Intro play
You can play the fi rst 10 seconds of each track.
1 During play, press INTRO, 2 to select:
•
[INT ON] : After the fi rst 10 seconds
of each track have been played, play
stops.
[INT OFF] : Cancel intro play and
•
start normal play.
Listen to other devices
You can connect an external sound device to
the unit.
English
1 Connect the device to the unit by using a
3.5 mm plug.
2 Press SOURCE repeatedly until [MP3
LINK] is displayed.
3 Operate the device (refer to the
instructions supplied with the device).
ENG
19
6 Adjust sound
Adjust volume
1
Tur n clockwise/anticlockwise to
increase/decrease volume.
Mute
You can turn off the sound of your audio.
1 During play, press MUTE .
•
To turn the sound back on, press
MUTE
again.
[OPTIMAL] (optimal)
•
Other sound settings
You can also adjust other sound settings:
[BAS] (bass) range: -7 to +7
•
[TRE] (treble) range: -7 to +7
•
[LOUD] (loudness): OFF, ON.
•
[BAL] (balance) range: 10Lto 10R. (L = left
•
speaker, R = right speaker)
[FAD] (fader) range: 10R to 10F. (R = rear
•
speaker, F = front speaker)
Note
Only when you selected the [USER] equalizer, the
•
sound value adjusted can be retained.
Toggle Dynamic Bass Boost
on/off
1
Press DBB for 3 seconds to display the
current setting.
»
[DBB ON] : The Dynamic Bass Boost
(DBB) function is on.
»
[DBB OFF] : The DBB function is off.
2 Press DBB again for 3 seconds to change
the DBB setting.
Select preset equalizer
1
Press EQ/Audio .
»
The current Equalizer setting is
displayed.
2 Press EQ/Audio again repeatedly to select
a preset EQ:
•
[USER] (user)
•
[FLAT] (fl at)
•
[POP] (pop)
•
[TECHNO] (techno)
•
[ROCK] (rock)
•
[CLASSIC] (classic)
•
[JAZZ] (jazz)
1 Press EQ/Audio for 3seconds.
2 Press DBB or SEARCH repeatedly to
select the item to be adjusted.
3 Tur n to select a value.
4 Press to confi rm.
20
ENG
7 Adjust system
Change button backlight
color
settings
Select blackout setting
You can set the screen to turn off automatically
after the unit is idle for 10 or 20 seconds.
1 Press MENU / DISP for 3 seconds.
2 Tur n to select a setting:
[BKO 10 S] : Turn off the screen
•
automatically 10 seconds after last
operation.
[BKO 20 S] : Turn off the screen
•
automatically 20 seconds after last
operation.
[BKO OFF] : Never turn off the
•
screen.
3 Press to confi rm.
You can select blue or red for the button
backlight color.
1 Press MENU / DISP for 3 seconds.
2 Press DBB or SEARCH repeatedly
to until [KEY BLUE] or [KEY RED] is
displayed.
3 Tur n to select a setting:
[KEY BLUE] : Backlight turns blue
•
[KEY RED] : Backlight turns red.
•
Select start volume
Each time you turn on the unit, it can play at the
last listened volume or at the preset volume.
1 Press MENU / DISP for 3 seconds.
2 Press DBB or SEARCH repeatedly to
until [V - LAST] or [V - ADJ] is displayed.
English
Turn demo mode on/off
When demo mode is on, when the unit is
idle for more than 2 minutes, all functions are
displayed.
1 Press MENU / DISP for 3 seconds.
2 Press DBB or SEARCH repeatedly to
until [DEMO] is displayed.
The screen shows current Demo
»
mode setting.
3 Tur n to select a setting:
[DEMO ON] : Turn on the demo
•
mode.
[DEMO OFF] : Turn off the demo
•
mode.
4 Press to confi rm.
3 Tur n to select a setting:
[V - LAST] : Each time you turn on
•
the unit, the volume remains from its
previous use.
[V - ADJ] : Each time you turn on the
•
unit, the volume is at the preset level.
4 Press to confi rm.
Store preset volume
You can turn on the unit at a preset volume.
1 Select [V - ADJ] as the star t volume (see
‘Select start volume’ on page 21 ) .
2 Press MENU / DISP for 3 seconds.
3 Press DBB or SEARCH repeatedly to
until [A-VOL] is displayed.
4 Tur n to select a value: 0 - 47.
5 Press to confi rm.
ENG
21
Turn beep sound on/off
Select shock-protect setting
Each time you press a button, the unit beeps.
You can turn off/on this beep sound.
1 Press MENU / DISP for 3 seconds.
2 Press DBB or SEARCH repeatedly
to until [BEEP ON] or [BEEP OFF] is
displayed.
3 Tur n to select a setting:
[BEEP ON] : Turn on the beep sound.
•
[BEEP OFF] : Turn off the beep sound.
•
4 Press to confi rm.
Turn display scroll on/off
For track information that is longer than the
display panel: you can select to cut off the
remainder of the text, or scroll to display the
full text.
You can select the shock protection setting,
depending on the stability of your car and the
condition of the road..
1 Press MENU / DISP for 3 seconds.
2 Press DBB or SEARCH repeatedly until
[ESP] is displayed.
3 Tur n to select a setting:
[ESP 12] : select when the road is
•
smooth and there are few bumps.
[ESP 45] select when the road is
•
bumpy and unstable.
4 Press to confi rm the selection.
Reset
You can reset the unit to its default setting.
1 Detach the front panel (see ‘Detach the
front panel’ on page 24 ) .
Note
If any special characters are present in the MP3 track
•
name or album name, it may not display correctly on
the screen because these characters are not suppor ted.
•
Some WMA is protected by Digital Rights Management
(DRM), it cannot be played on the unit.
•
Folders/fi les exceed the supported limit of the unit are
not displayed or played.
1 Press MENU / DISP for 3 seconds.
2 Press DBB or SEARCH repeatedly
to until [ROLL ON] or [ROLL OFF] is
displayed.
3 Tur n to select a setting:
[ROLL ON] (scroll on): Auto scroll
•
during play.
[ROLL OFF] (scroll off): No auto
•
scroll display.
4 Press to confi rm.
2 Press the reset button by using a ball-point
pen or a similar tool.
All settings are erased except clock.
»
RESETRESET
22
ENG
Default settings
Sound settings
Equalizer User
Bass 0
Treble 0
Loudness OFF
Balance 0
Fader 0
System settings
Source Radio, FM1, 87.5
Demo Off
Blackout Off
Key color Blue
Clock Current time
ESP 10S
Local/Distance Distance
Beep On
Stereo/Mono Stereo
V-Last/Adj V-Last
Volume 20
Auto scroll On
English
ENG
23
8 Others
Detach the front panel
You can detach the front panel to deter theft.
1 Press to release the panel.
Replace fuse
If there is no power, the fuse may broke and
need to be replaced.
2 Pull the panel towards you to detach it
from the chassis.
3 Store the panel in the supplied carry case
to protect it from dirt or damage.
Remove the unit
1 Detach the front panel and take out the
unit. (see ‘Remove the unit’ on page 24 )
2 Check the electric connection .
3 Buy a fuse that matches the voltage of the
damaged fuse (15A)
4 Replace the fuse.
If the fuse is broken again after replacement,
there might have internal malfunction. In such
case, consult your Philips dealer.
To repair or replace the unit, remove it from
the dashboard.
1 Detach the front panel.
2 Remove the unit with the removal keys.
24
ENG
9 Product
information
Note
Product information is subject to change without prior
•
notice.
General
Power supply 12 V DC (11 V - 16
V), negative ground
Fuse 15 A
Suitable speaker
impedance
Maximum power
output
Continuous power
output
Pre-Amp output
voltage
Aux-in level
Dimensions (W x H
x D)
Weight 1.0 kg
Radio
4 - 8
45 W x 4 channels
22 W x 4 channels (4
10% T.H.D.)
2.0 V ( USB play
mode; 1 kHz, 0 dB, 10
k
load)
500 mV
188 x 58 x 128 MM
Frequency range
- FM
Frequency range
- AM(MW)
Usable sensitivity
- FM
Usable sensitivity
- AM(MW) (S/N =
20 dB)
Frequency
response
Stereo separation 30 db (1 kHz)
Signal/noise ratio >75 dB
Compatible USB devices:
•
USB fl ash memory (USB 2.0 or
USB1.1)
•
USB fl ash players (USB 2.0 or USB1.1)
•
memory cards
Supported formats:
•
USB or memory fi le format FAT12,
FAT16, FAT32 (sector size: 512 bytes)
•
MP3 bit rate (data rate): 32-320 Kbps
and variable bit rate
•
WMA v9 or earlier
•
Directory nesting up to a maximum
of 8 levels
•
Number of albums/ folders: maximum
99
•
Number of tracks/titles: maximum 999
•
ID3 tag v2.0 or later
•
File name in Unicode UTF8
(maximum length: 128 bytes)
Unsupported formats:
•
Empty albums: an empty album is an
album that does not contain MP3/
WMA fi les, and is not be shown in the
display.
•
Unsupported fi le formats are skipped.
For example, Word documents (.doc)
or MP3 fi les with extension .dlf are
ignored and not played.
•
AAC, WAV, PCM audio fi les
87.5 - 108.0 MHz
(Europe)
87.5 - 107.9 MHz
(American)
522 - 1620 KHz (Europe)
530 - 1710 HKz
(American)
3.2 uV
30 uV
20 Hz - 20 KHz
English
ENG
25
•
DRM protected WMA fi les (.wav,
.m4a, .m4p, .mp4, .aac)
WMA fi les in Lossless format
•
26
ENG
10 Troubleshooting
Caution
Never remove the casing of this unit. •
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this unit,
check the following points before requesting
service. If the problem remains unsolved, go to
the Philips web site (www.Philips.com/support).
When you contact Philips, ensure that your
unit is nearby and the model number and serial
number are available (see ‘Get started’ on page
10 ) .
No power or no sound.
•
Car engine is not on. Turn the car engine
on.
•
Cable is not correctly connected. Check
connections .
•
Fuse is burnt. Replace fuse (see ‘Replace
fuse’ on page 24 ) .
•
Volume is too low. Adjust volume (see
‘Adjust volume’ on page 20 ) .
•
If the above solutions cannot help, press
the RESET button.
Noise in broadcasts.
•
Signals are too weak. Select other stations
with stronger signals.
•
Check the connection of the car antenna.
•
Change broadcast from Stereo to mono
(see ‘Select stereo/mono broadcasting’ on
page 16 ) .
Preset stations lost.
•
Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
Display show ERR-12
•
USB/SD/MMC data error. Check the USB
device or SD/MMC card.
English
ENG
27
11 Glossary
M
MMC
MultimediaCard. A type of memory card with a
fl ash memory.
MP3
A fi le format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more data
than a regular CD.
S
SD
Secure Digital. A type of memory card with a
fl ash memory.
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
28
ENG
29
© 2008 Koninklijke Philips Electronics N.V.
All rights reserved.
Loading...
