Philips Calculite C4CIN, Lightolier Calculite C4CIN Specification

Calculite

®

HID Surface Cylinder C4CIN

Page 1 of 4 T4 Ceramic Metal Halide, Inno

37"

(940 mm)

10'

(3657 mm)

Cable Pendant Kit

Stem Kit

10 1/2"

(267 mm)

9" (229 mm)

to the center

of 4" octagon

outlet box

9-3/4" (248 mm)

Wall Mount Kit

9"

(229 mm)

2-1/4"

(57 mm)

8

4

7

6

5

3

2

1

3" (76 mm) Dia.

5-7/8" (149 mm) Dia.

Surface Cylinder (Complete Unit)

C4CIN20T4EU
C4CIN20T4EUA
C4CIN20BT5PGJ5E1
C4CIN20BT5PGJ5E1A
C4CIN20T4GU65EU
C4CIN20T4GU65EUA

C4CIN39T4EU
C4CIN39T4EUA
C4CIN39BT5PGJ5E1
C4CIN39BT5PGJ5E1A
C4CIN39T4GU65EU
C4CIN39T4GU65EUA

Electronic 120V/277V Painted Aluminum 20W T4.5
Electronic 120V/277V Satin Aluminum 20W T4.5
Electronic 120V Painted Aluminum 22W Philips MiniMasterColor PGJ5
Electronic 120V Satin Aluminum 22W Philips MiniMasterColor PGJ5
Electronic 120V/277V Painted Aluminum 20W GE ConstantColor
Electronic 120V/277V Satin Aluminum 20W GE ConstantColor

Electronic 120V/277V Painted Aluminum 39W T4.5
Electronic 120V/277V Satin Aluminum 39W T4.5
Electronic 120V Painted Aluminum 39W Philips MiniMasterColor
Electronic 120V Satin Aluminum 39W Philips MiniMasterColor
Electronic 120V/277V Painted Aluminum 39W GE ConstantColor
Electronic 120V/277V Satin Aluminum 39W GE ConstantColor

Housing

Features

1. Glass Shroud: Clear glass cylinder provides visual interest and a

contemporary decorative element.

2. Glass Diffuser: Etched glass cylindrical diffuser provides cutoff to the light

source delivering smooth even illumination.

3. Cylinder Base Cover: Powder coated (to match base) die-cast cover is
removable to access wiring and ballast.

4. Cylinder Base: Powder coated matte silver die-cast aluminum base
suppor ts glass cylinder and conceals electrical components.

5. Reflector: Highly polished specular aluminum. Precisely controls and directs
light downward providing high-efficiency optics.

6. Lamp Shield: High-temperature glass as required by code; captive during
re-lamping. Light diffusion provides exceptionally smooth beam.

7. So cket : G8.5 pulse rated socket.

8. Electronic Ballast: 20W / 39W electronic universal (120/277V).

Electrical

Electronic Ballast: 120V/277V dual voltage, encased, high power factor,

T.H.D. <15%, thermally and transient protected, RMI/RFI complies with FCC
Part 18 non-cosumer limits, shut-down circuit at end of lamp life, sound
rating “A”,-5°. F minimum starting temperature, Type 1 outdoor rating.

Ballast ANSI Code Voltage Max. Amps Input Watts

20W MH M156 120/277 0.21/0.10 23
39W MH M130 120/277 0.39/0.17 44

Lamping (Ceramic Metal Halide)

Options and Accessories

CA4CWBS: Wall Mount Kit – Silver Cast aluminum back plate, suitable for

mounting over 4" octagon outlet box.

CACPS: 120" Cable Pendant Kit – Silver Cast aluminum back plate, suitable

for mounting over 4" octagon outlet box. Provided with (3) 0.050"
cables, power cable and 6 1/2" decorative plate. Installs over 4”
octagon outlet box. Cable can be cut to length on site.
Damp location only.

CACSS: Stem Kit – Silver (45° Swivel, 37" Long) Provided with 5/8" dia.

Stem and 5 1/2" Canopy. Self-aligning swivel provides max. 45°
vertical tilting. Installs over 4" octagonal outlet box. Stem can be
cut to length on site. Damp location only.

Labels

UL Listed (Suitable for wet locations), CSA, I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2011 Philips Group • H1111

Calculite

®

HID Surface Cylinder C4CIN

Page 2 of 4 T4.5 Ceramic Metal Halide, Inno

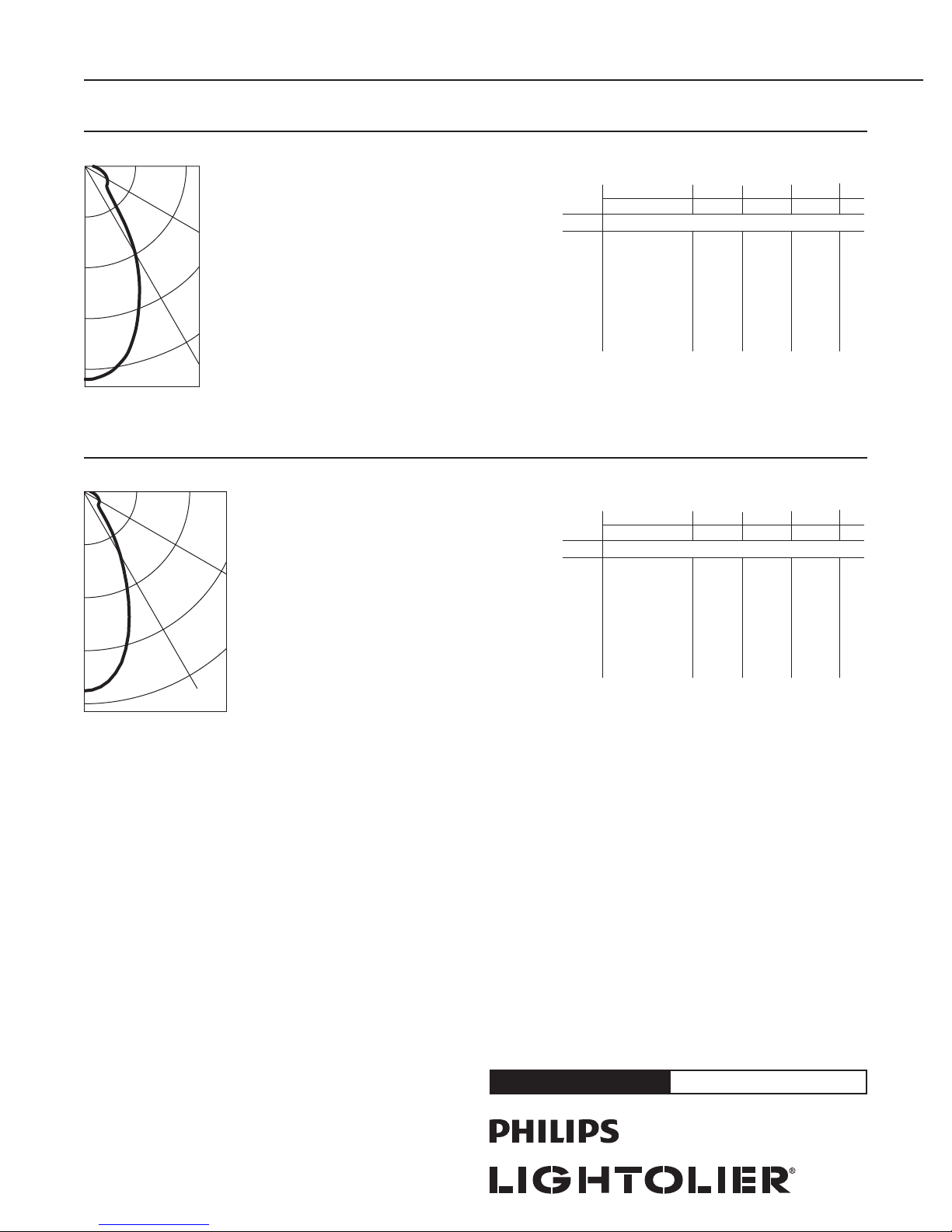

20W T4.5 G.E. Ceramic MH, Lumen Rating = 1700 LMS., Aromat 20W Electronic Ballast

ANGLE MEAN CP LUMENS
0 492
5 487 46
10 472

125

250

375

500

** EFFICIENCY = 41.5% ** CERTIFIED TEST REPORT NO. 2615FR DATE: MAY 7, 2004
SC..9 COMPUTED BY LSI PROGRAM **TEST-LITE**

15 441 124
20 392
25 331 153

60°

30 268
35 198 125
40 129
45 86 71
50 66
55 59 54
60 56
65 52 52
70 48
75 43 45
80 37
85 32 35
90 26

30°

39W T4.5 Philips Ceramic MH, Lumen Rating = 3300 LMS., Aromat 39W Electronic Ballast

ANGLE ME AN CP LUMENS
0 1018
5 1007 96
10 974

250

500

750

1,000

** EFFICIENCY = 43.6% ** CERTIFIED TEST REPORT NO. 2614FR DATE: MAY 5, 2004
SC = .9 COMPUTED BY LSI PROGRAM **TEST-LITE**

15 905 254
2 0 801

60°

2 5 678 313
3 0 549
3 5 404 25 4
4 0 262
4 5 174 144
5 0 133
5 5 121 110
6 0 114
6 5 107 106
7 0 98
7 5 87 92
8 0 77
8 5 66 72

30°

9 0 54

LUMINANCE SU MMARY - CD. / SQ. M.
ANGLE MEAN CD/SQ M
45 6702
55 5702
65 6829
75 9096
85 20303

ZONAL LU MENS AN D PERCENTAGES
ZONE LUMENS % LAMP %LUMI NAIRE
0-3 0 322 19 45.8 3
0 -40 4 47 26. 33 6 3.51
0 -60 57 2 33. 68 81.25
0 -90 70 4 41.45 100
4 0-90 257 15.12 36.4 9
6 0-90 132 7.77 18.75
90-180 0 0 0
0-180 704 41.45 100

LUMINANCE SU MMARY - CD. / SQ. M.
ANGLE MEAN CD/SQ M
45 13544
55 115 86
65 13906
75 185 35
85 4171 0

ZONAL LU MENS AN D PERCENTAGES
ZONE LUMENS % LAMP %LUMI NAIRE
0-3 0 662 20.0 9 46.0 3
0 -40 916 27.79 63.67
0 -60 1170 35.47 8 1.28
0 -90 1440 4 3.64 100
4 0-90 5 23 15.85 36. 33
6 0-90 2 69 8.17 18.72
90-180 0 0 0
0-180 144 0 43. 64 100

CEILING 80% 70% 5 0% 30%

WALL 70 50 3 0 10 50 10 50 10 50 10 0

CEILING 80% 70% 5 0% 30%

WALL 70 50 3 0 10 50 10 50 10 50 10 0

Coefficients of Utilization

Zonal C avity Me thod - Ef fective F loor Cavit y Reflec tance = 20%

RCR

0 .49 .49 . 49 .49 .4 8 .48 .46 .46 .44 .44 .41
1 .46 .44 . 42 .41 .4 3 .40 .41 .39 .40 .38 .36
2 .42 .40 . 37 .35 .3 9 .35 .37 .34 .3 6 .3 3 .32
3 .40 .36 . 33 .31 .3 5 .31 .3 4 . 30 .33 . 30 .29
4 .37 .33 . 30 .28 .3 3 .28 .32 .28 .31 .27 .26
5 .35 .31 . 28 .25 .3 0 .25 .29 .25 .29 .25 .24
6 .33 .29 . 25 .23 .2 8 .23 .27 .23 .27 .23 .22
7 .31 .26 . 23 .21 .2 6 .21 .26 .21 .25 .21 .20
8 .29 .25 . 22 .20 .24 . 20 .24 .20 .23 .19 .19
9 .28 .23 . 20 .18 .2 3 .18 .22 .18 .22 .18 .17
10 .26 .22 .19 .17 .21 .17 .21 .17 .21 .17 .16

LUMINAIRE INPUT WATTS = 23

Coefficients of Utilization

Zonal C avity Me thod - Ef fective F loor Cavit y Reflec tance = 20%

RCR

0 .52 .52 .52 .52 .51 .51 .4 8 . 48 .46 .46 .44
1 .48 .46 .44 .43 .45 .42 .4 3 . 41 .42 .40 .3 8
2 .45 .42 .39 .37 .41 .37 . 39 . 36 .38 .35 .33
3 .42 .38 .35 .33 .37 .32 . 36 . 32 .35 .31 .30
4 .39 .35 .32 .30 .35 .29 . 33 . 29 .33 .29 .27
5 .37 .32 .29 .27 .32 .27 . 31 . 26 .30 .26 .25
6 .35 .30 .27 .25 .30 .24 . 29 . 24 .28 .24 .23
7 .33 .28 .25 .23 .28 .22 . 27 . 22 .26 .22 .21
8 .31 .26 .23 .21 .26 .21 . 25 . 21 .25 .20 .20
9 .29 .24 .21 .19 .24 .19 . 24 .19 .23 .19 .18
10 .28 .23 . 20 .18 .2 2 .18 .22 .18 .22 .18 .17

LUMINAIRE INPUT WATTS = 44
