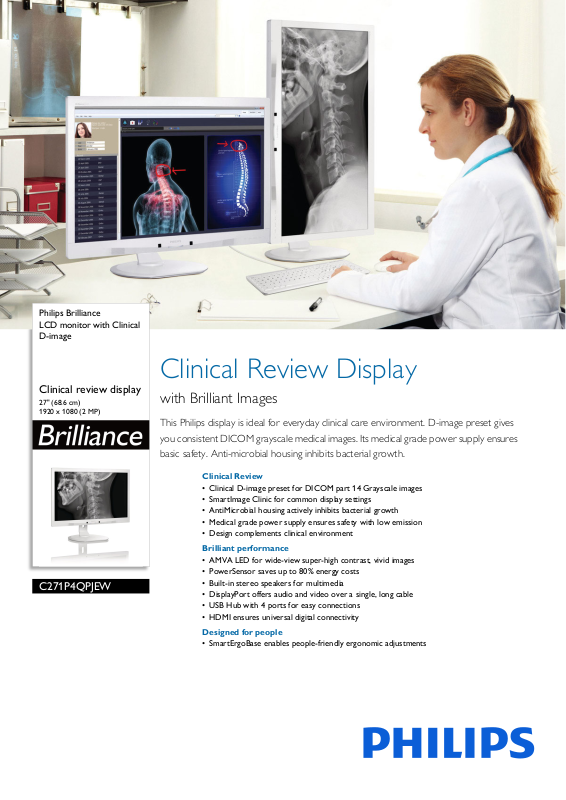

Philips Brilliance
LCD monitor with Clinical
D-image
Clinical review display
27" (68.6 cm)
1920 x 1080 (2 MP)
C271P4QPJEW
Clinical Review Display
with Brilliant Images
This Philips display is ideal for everyday clinical care environment. D-image preset gives
you consistent DICOM grayscale medical images. Its medical grade power supply ensures
basic safety. Anti-microbial housing inhibits bacterial growth.
Clinical Review
• Clinical D-image preset for DICOM part 14 Grayscale images
• SmartImage Clinic for common display settings
• AntiMicrobial housing actively inhibits bacterial growth
• Medical grade power supply ensures safety with low emission
• Design complements clinical environment
Brilliant performance
• AMVA LED for wide-view super-high contrast, vivid images
• PowerSensor saves up to 80% energy costs
• Built-in stereo speakers for multimedia
• DisplayPort offers audio and video over a single, long cable
• USB Hub with 4 ports for easy connections
• HDMI ensures universal digital connectivity
Designed for people
• SmartErgoBase enables people-friendly ergonomic adjustments
C271P4QPJEW/75
LCD monitor with Clinical D-image
Clinical review display 27" (68.6 cm), 1920 x 1080 (2 MP)
Highlights
Clinical D-image
Monitors must show medical images
consistently with high quality to achieve
reliable interpretations. The rendering of
medical Grayscale images on standard
monitors is mostly inconsistent at best, making
them unsuitable for usage in a clinical
environment. Philips clinical review displays
with clinical D-image preset are factory
calibrated to give DICOM part 14 compatible
Grayscale standard display performance. By
using high quality LCD panels with LED
technology, Philips offers you consistent and
reliable performance at an affordable price
point. Further info on http://medical.nema.org/
SmartImage Clinic
SmartImage is an exclusive, leading edge Philips
te
chnology that analyzes the content displayed
on your screen, and based on different
applications/images displayed on a monitor,
SmartImage optimizes display content by
dynamically adjusting brightness, contrast,
color and sharpness in real time.
AntiMicrobial housing
antimicrobial additive in its housing material
making it an integral part of the display housing.
Your well being along with your patients is
now assured by this protective shield that
impedes the growth of most common
microorganisms such as "Staphylococcus
aureus (Gastroenteritis)", "Escherichia coli (E
Coli)" and "Klebsiella (Pneumonia)", for
example.
Medical grade power supply
Basic safety, essential performance and
reli
ability are essential requirements in a
professional clinical environment. Unlike
standard displays, Philips clinical review
displays employ special medical grade power
supplies in order to meet these requirements.
It complies with EN/IEC 60601-1 standard
ensuring basic safety and essential
performance. Additionally it also complies with
EN/IEC 60601-1-2 collateral standard for
medical grade electromagnetic tests and
compatibility. Many countries, hospitals and
clinics mandate compliance to these standards
as a requirement.
AMVA LED display
PowerSensor
PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared
signals to determine if user is present and
automatically reduces monitor brightness
when user steps away from the desk, cutting
energy costs by up to 80 percent and
prolonging monitor life
DisplayPort
DisplayPort is a digital link from PC to Monitor
w
ithout any conversion. With higher
capabilities than DVI standard, it is fully capable
to support up to 15meter cables and 10.8
Gbps/sec data transfer. With this high
performance and zero latency, you get the
fastest imaging and refresh rates - making
DisplayPort the best choice for not only
general office or home use, but also for the
demanding media and more. It also keeps
interoperability in mind via use of various
adapters.
SmartErgoBase
Germs have become a growing problem in
hospitals and clinical environments worldwide
as they can cause life-threatening infections.
Philips clinical review displays take care of this
challenge by using JIS Z2801 compliant
Philips AMVA LED display uses an advanced
multi-domain vertical alignment technology
which gives you super-high static contrast
ratios for extra vivid and bright images. While
standard office applications are handled with
ease, it is especially suitable for photos, webbrowsing, movies, gaming, and demanding
graphical applications. It's optimized pixel
management technology gives you 178/178
degree extra wide viewing angle, resulting in
crisp images even in 90 degree pivot mode
The SmartErgoBase is a monitor base that
delivers ergonomic display comfort and
provides cable management. The base's
people-friendly height, swivel, tilt and rotation
angle adjustments position the monitor for
maximum comfort that can ease the physical
strains of a long workday; cable management
reduces cable clutter and keeps the workspace
neat and professional.
C271P4QPJEW/75
LCD monitor with Clinical D-image
Clinical review display 27" (68.6 cm), 1920 x 1080 (2 MP)
Specifications
Picture/Display
• LCD panel type: AMVA LCD
• Backlight type: W-LED system
• Panel Size: 27 inch / 68.6 cm
• Effective viewing area: 597.6 (H) x 336.15 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 12 ms
• Brightness: 300 cd/m²
• Contrast ratio (typical): 5,000:1
• Pixel pitch: 0.311 x 0.311 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Display colors: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz
(V)
•sRGB
• Picture enhancement
• DICOM: Clinical D-image, DICOM part-14
• DICOM calibrated brightness: 260 cd/m²
: SmartImage Clinic
Connectivity
• Signal Input: DisplayPort 1.2, HDMI, DVI-D (digital,
HDCP), VGA (Analog )
• USB: USB 2.0 x 4
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
• Built-in speakers: 2Wx2
Convenience
• User convenience: SmartImage Clinic,
PowerSensor, Menu, Power On/Off, 4:3 / Wide
• Control software: SmartControl Premium
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 8/7/Vista
sR
ench, German, Italian,
Stand
• Height adjustment: 150 mm
• Pivot: 90 degree
• Swivel: -65/65 degree
• Tilt: -5/20 degree
Power
• On mode: 26 W (typ.) (EnergyStar 6.0 test
method)
• Standby mode: 0.4 W (typ.)
• Off mode: Zero watts with Zero switch
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• External power supply: 100-240VAC, 50-60Hz
(Medical c
ert.: IEC60601-1 / EN60601-1)
Dimensions
• Product with stand(max height): 639 x 577 x
191 mm
• Product without stand (mm): 639 x 405 x 64 mm
• Packaging in mm (WxHxD): 750 x 234 x 490 mm
Weight
• Product with stand (kg): 7.90 kg
• Product without stand (kg): 5.10 kg
• Product with packaging (kg): 10.35 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Anti-Microbial
• Anti-microbial housing
• JISZ2801Anti-microbial housing
Sustainability
• Environmental and energy: EnergyStar 6.0, EPEAT
Gold*, PowerSensor, RoHS
• Recyclable packaging material: 100 %
• Specific Substances: PVC / BFR free housing,
ry free, Lead free
Mercu
Compliance and standards
• EMC: IEC/EN60601-1-2, CE Mark
• Safety: IEC/EN60601-1, CE Mark, GOST
• Ergonomic/Others: JIS Z2801, Energy Star, TUV
o, TUV/GS, TCO 6.0, ISO 13485 certified,
Erg
WEEE
Cabinet
• Front bezel: White
• Rear cover: White
•Foot: White
• Finish: Texture
•
Issue date 2022-04-21
Version: 3.0.1
12 NC: 8670 001 07259
EAN: 87 12581 69894 2
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* Please note: This display is not certified to be used in patient vicinity.
Any use for primary diagnostics is the sole responsibility of the
hospital or clinic operator only.
* DICOM is the registered trademark of the NEMA for its standards
publications relating to digital communications of medical
information.
* EPEAT Gold is valid only where Philips registers the product. Please
visit www.epeat.net for registration status in your country.
* "AMVA" word mark / trademark and related patents on technologies
belong to their respective owners.
