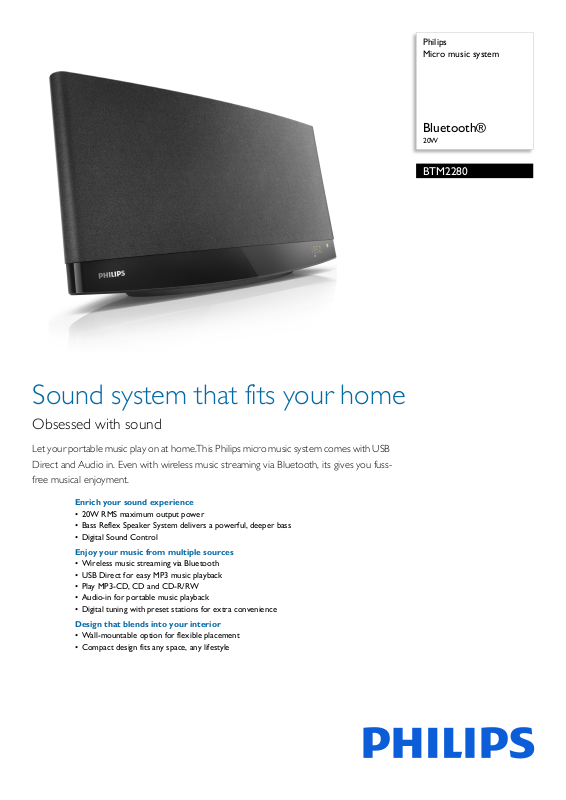

Page 1
Philips
Micro music system
Bluetooth®
20W
BTM2280
Sound system that fits your home
Obsessed with sound
Let your portable music play on at home.This Philips micro music system comes with USB
Direct and Audio in. Even with wireless music streaming via Bluetooth, its gives you fussfree musical enjoyment.
Enrich your sound experience
• 20W RMS maximum output power
• Bass Reflex Speaker System delivers a powerful, deeper bass
• Digital Sound Control
Enjoy your music from multiple sources
• Wireless music streaming via Bluetooth
• USB Direct for easy MP3 music playback
• Play MP3-CD, CD and CD-R/RW
• Audio-in for portable music playback
• Digital tuning with preset stations for extra convenience
Design that blends into your interior
• Wall-mountable option for flexible placement
• Compact design fits any space, any lifestyle
Page 2
Micro music system
Wall-mountable
Bluetooth® 20W
BTM2280/12
Highlights
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep bass
experience from a compact loudspeaker box system.
It differs from a conventional loudspeaker box
system in the addition of a bass pipe that is
acoustically aligned to the woofer to optimize the
low frequency roll-off of the system. The result is
deeper controlled bass and lower distortion. The
system works by resonating the air mass in the bass
pipe to vibrate like a conventional woofer.
Combined with the response of the woofer, the
system extends the overall low frequency sounds to
create a whole new dimension of deep bass.
Wall-mountable
USB Direct for easy MP3 music
Thanks to the complete file transferability, you can
easily enjoy the convenience and fun of accessing
more digital music via the built-in USB Direct.
Digital Sound Control
Digital Sound Control offers you a choice of pre-set
balanced, clear, powerful, warm and bright controls
you can use to optimise the frequency ranges for
different musical styles. Each mode uses graphic
equalizing technology to automatically adjust the
sound balance and enhance the most important
sound frequencies in your chosen music style.
Ultimately, Digital Sound Control makes it easy for
you get the most out of your music by precisely
adjusting the sound balance to match the type of
music you are playing.
Wireless music streaming
Specifications
Sound
• Volume control: up/down
• Maximum output power (RMS): 20W
• Sound Enhancement: Digital Sound Control
Loudspeakers
• No. of built-in speakers: 2
• Speaker drivers: 2.75" woofer
• Speaker types: bass reflex speaker system
Audio playback
• Disc playback modes: fast forward/backward, next/
previous track search, repeat/shuffle/program
• Playback media: CD, CD-R/RW, MP3-CD, USB
ash drive
fl
• USB Direct playback modes: fast backward/fast
orward, play/pause, previous/next, repeat, shuffle,
f
stop
Tuner/Reception/Transmission
• Tuner bands: FM mono, FM stereo
• Station presets: 20
• Antenna: FM antenna (75 ohm)
• Tuner enhancement: auto digital tuning, auto scan,
y set (plug & play)
Eas
Connectivity
• Headphone: 3.5 mm
• USB: USB host
• Audio in (3.5mm)
• Bluetooth: Bluetooth V2.1, Yes
• Bluetooth profiles: A2DP
The perfect combination of a slim and versatile
design, your Philips audio system is cleverly designed
to blend into your living space. The base of the audio
system is a stand so the system can sit securely and
nicely on any shelf or cabinet. When wall mounted
you have all the same flexibility of the freestanding
stand.
Bluetooth is a short range wireless communication
technology that is both robust and energy-efficient.
The technology allows easy wireless connection to
iPod/iPhone/iPad or other Bluetooth devices, such as
smartphones, tablets or even laptops. So you can
enjoy your favorite music, sound from video or game
wireless on this speaker easily.
Convenience
• Alarms: CD Alarm, Radio Alarm, USB alarm
• Clock: On main display, sleep timer
• Charging device: iPad,
• Display type: LED display
•Loader type: slot
iPhone, iPod
Accessories
• Included accessories: AC-DC Adapter, FM antenna
• Remote control: 21-key remote
• User Manual: Multi languages
Dimensions
• Set dimensions (W x D): 420 x 99 mm
• Set height (with stand): 223 mm
• Packaging width: 460 mm
• Packaging height: 142 mm
• Packaging depth: 265 mm
• Gross weight: 4.2 kg
• Net weight: 3.3 kg
Power
• Power supply: 110-240V, 50/60 Hz
•
Issue date 2013-11-20
Version: 1.0.5
12 NC: 8670 001 05532
EAN: 87 12581 69447 0
© 2013 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
