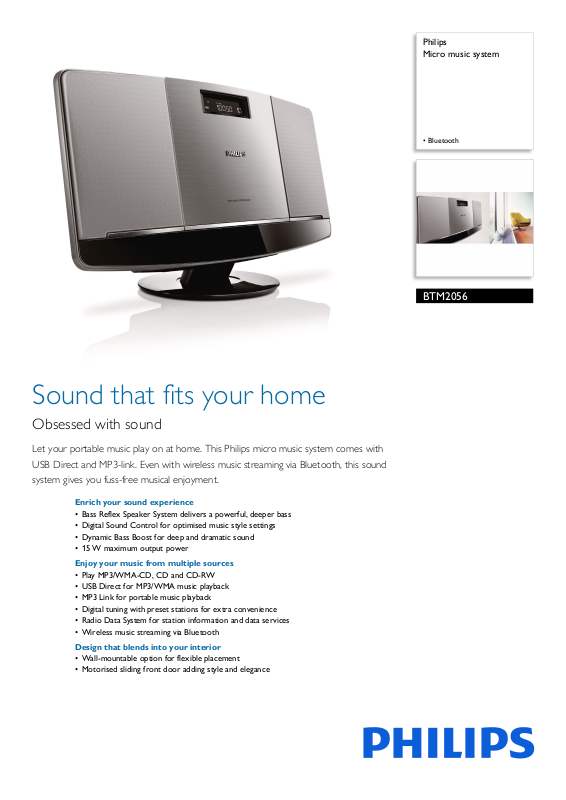

Page 1
Philips
Micro music system
•Bluetooth
BTM2056
Sound that fits your home
Obsessed with sound
Let your portable music play on at home. This Philips micro music system comes with
USB Direct and MP3-link. Even with wireless music streaming via Bluetooth, this sound
system gives you fuss-free musical enjoyment.
Enrich your sound experience
• Bass Reflex Speaker System delivers a powerful, deeper bass
• Digital Sound Control for optimised music style settings
• Dynamic Bass Boost for deep and dramatic sound
• 15 W maximum output power
Enjoy your music from multiple sources
• Play MP3/WMA-CD, CD and CD-RW
• USB Direct for MP3/WMA music playback
• MP3 Link for portable music playback
• Digital tuning with preset stations for extra convenience
• Radio Data System for station information and data services
• Wireless music streaming via Bluetooth
Design that blends into your interior
• Wall-mountable option for flexible placement
• Motorised sliding front door adding style and elegance
Page 2
Micro music system
Wall-mountable
Bluetooth
Highlights
BTM2056/05
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep
bass experience from a compact loudspeaker
box system. It differs from a conventional
loudspeaker box system in the addition of a
bass pipe that is acoustically aligned to the
woofer to optimise the low frequency roll-off
of the system. The result is deeper controlled
bass and lower distortion. The system works
by causing the air mass in the bass pipe to
vibrate like a conventional woofer. Combined
with the response of the woofer, the system
extends the overall low frequency sounds to
create a completely new dimension of deep
bass.
Dynamic Bass Boost
Dynamic Bass Boost maximises your music
enjoyment by emphasising the bass content of
the music throughout the range of volume
settings - from low to high – at the touch of a
button! Bottom-end bass frequencies usually
get lost when the volume is set at a low level.
To counteract this, Dynamic Bass Boost can be
switched on to boost bass levels, so you can
enjoy consistent sound even when you turn
down the volume.
USB Direct
favourite music in the superior sound quality
delivered by the audio system, the MP3 link is
also extremely convenient as all you have to do
is to plug your portable MP3 player into the
audio system.
Radio Data System (RDS)
The Radio Data System (RDS) lets you tune
i
nto radio stations without having to
remember the frequencies. In standard mode.
RDS displays the station name instead of the
transmission frequency, facilitating quick and
easy tuning. RDS also allows stations to send
text messages such as news and station
information directly to the radio display.
Commonly used in Europe, RDS text is sent
out on the same frequency the radio station
broadcasts on. You can choose either the basic
RDS display (station name) or subscribe to
additional text-based services.
Wall-mountable
Digital Sound Control
Digital Sound Control offers you a choice of
pre-set Jazz, Rock, Pop and Classical controls
you can use to optimise the frequency ranges
for different musical styles. Each mode uses
graphic equalizing technology to automatically
adjust the sound balance and enhance the most
important sound frequencies in your chosen
music style. Ultimately, Digital Sound Control
makes it easy for you get the most out of your
music by precisely adjusting the sound balance
to match the type of music you are playing.
With the USB Direct mode, simply plug in your
USB device to the USB port on your Philips
device and your digital music will be played
directly from the Philips device.
MP3 Link
The MP3 link connectivity allows direct
playback of MP3 content from portable media
players. Besides the benefit of enjoying your
The perfect combination of a slim and versatile
design, your Philips audio system is cleverly
designed to blend into your living space. The
base of the audio system is a stand so the
system can sit securely and nicely on any shelf
or cabinet. When wall mounted you have all
the same flexibility of the freestanding stand.
Wireless music streaming
Your speaker supports Bluetooth music
streami
ng. It lets you enjoy your favourite
tunes in high-quality music wirelessly from
your Bluetooth-enabled devices.
Page 3
Micro music system
Bluetooth
Specifications
BTM2056/05
Sound
• Sound enhancement: digital sound control,
Dynamic Bass Boost
• Volume control: up/down
• Total Sound Power (RMS): 15 W
Loudspeakers
• No. of built-in speakers: 2
• Speaker drivers: 2.75" woofer
• Speaker types: bass reflex speaker system
Audio playback
• Disc playback modes: fast forward/reverse, next/
previous track search, repeat/shuffle/programme
• Playback media: CD, CD-R/RW, MP3-CD, USB
ive, WMA-CD
flash dr
• USB Direct playback modes: fast reverse/fast
d, play/pause, previous/next, repeat, shuffle,
forwar
stop
Tuner/Reception/Transmission
• Tuner bands: FM mono, FM stereo
• Station presets: 20
• RDS: programme type, radio text, RDS clock set,
ation name
st
• Antenna: FM antenna (75 ohm)
• Tuner enhancement: auto digital tuning, auto scan,
y set (plug and play)
Eas
Connectivity
• Headphones: 3.5 mm
• MP3 Link: 3.5 mm stereo line in
• USB: USB host
• Bluetooth profiles: A2DP
Convenience
• Alarms: CD Alarm, Radio Alarm, USB alarm
• Clock: On main display, sleep timer
• Display type: LCD display
• Loader type: front, motorised
Accessories
• Included accessories: AC-DC Adapter, FM
antenna, Quick Use Guide, Screws for wall
mounting x 2
• Remote control: 31-key remote
• User Manual: 16 languages
Dimensions
•Set dimensions (W x D): 400 x 98 mm
• Set height (with stand): 235 mm
• Packaging width: 456 mm
• Packaging height: 251 mm
• Packaging depth: 197 mm
•Gross weight: 4.2 kg
• Net weight: 3.3 kg
Power
• Power supply: 110-240V, 50/60 Hz
•
Issue date 2013-05-29
Version: 1.0.7
12 NC: 8670 001 00091
EAN: 08 71258 16770 15
© 2013 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
