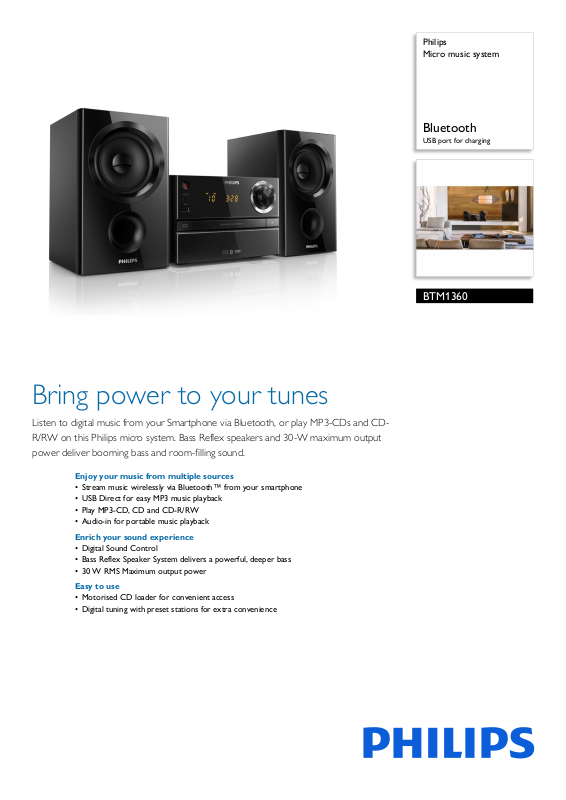

Page 1
Philips
Micro music system
Bluetooth
USB port for charging
BTM1360
Bring power to your tunes
Listen to digital music from your Smartphone via Bluetooth, or play MP3-CDs and CDR/RW on this Philips micro system. Bass Reflex speakers and 30-W maximum output
power deliver booming bass and room-filling sound.
Enjoy your music from multiple sources
• Stream music wirelessly via Bluetooth™ from your smartphone
• USB Direct for easy MP3 music playback
• Play MP3-CD, CD and CD-R/RW
• Audio-in for portable music playback
Enrich your sound experience
• Digital Sound Control
• Bass Reflex Speaker System delivers a powerful, deeper bass
• 30 W RMS Maximum output power
Easy to use
• Motorised CD loader for convenient access
• Digital tuning with preset stations for extra convenience
Page 2
BTM1360/05
Micro music system
Bluetooth USB port for charging
Highlights
Stream music via Bluetooth™
Bluetooth is a short range wireless communication
technology that is both robust and energy-efficient.
The technology allows easy wireless connection to
iPod/iPhone/iPad or other Bluetooth devices, such as
smartphones, tablets or even laptops. So you can
easily enjoy your favourite music, sound from video
or game wirelessly on this speaker.
USB Direct for easy MP3 music
Thanks to the complete file transferability, you can
easily enjoy the convenience and fun of accessing
more digital music via the built-in USB Direct.
Audio-in
The Audio-in connectivity allows direct playback of
Audio-in content from portable media players.
Besides the benefit of enjoying your favourite music
in the superior sound quality delivered by the audio
system, the Audio in is also extremely convenient as
all you have to do is to plug your portable MP3 player
into the audio system.
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep bass
experience from a compact loudspeaker box system.
It differs from a conventional loudspeaker box
system in the addition of a bass pipe that is
acoustically aligned to the woofer to optimise the
low frequency roll-off of the system. The result is
deeper controlled bass and lower distortion. The
system works by causing the air mass in the bass pipe
to vibrate like a conventional woofer. Combined
with the response of the woofer, the system extends
the overall low frequency sounds to create a
completely new dimension of deep bass.
Digital Sound Control
Digital Sound Control offers you a choice of pre-set
balanced, clear, powerful, warm and bright controls
you can use to optimise the frequency ranges for
different musical styles. Each mode uses graphic
equalising technology to automatically adjust the
sound balance and enhance the most important
sound frequencies in your chosen music style.
Ultimately, Digital Sound Control makes it easy for
you get the most out of your music by precisely
adjusting the sound balance to match the type of
music you are playing.
Specifications
Sound
• Sound enhancement: digital sound control
• Maximum output power (RMS): 30 W
Loudspeakers
• Speaker drivers: 3.5" woofer
• Speaker types: bass reflex speaker system
Audio playback
• Disc playback modes: fast forward/reverse, next/
previous track search, repeat/shuffle/programme
• Playback media: CD, CD-R/RW, MP3-CD, USB
ash drive
fl
• USB Direct playback modes: fast reverse/fast
orward, play/pause, previous/next, repeat, shuffle,
f
stop, programme play
Tuner/Reception/Transmission
• Tuner bands: FM mono, FM stereo
• Station presets: 20
• Antenna: FM fixed pigtail antenna
• Tuner enhancement: auto digital tuning, auto scan
Connectivity
• USB: USB host
• Audio in (3.5 mm)
• Bluetooth profiles: A2DP, AVRCP
• USB: USB host, USB 500 mAh Charging
Convenience
• Alarms: CD Alarm, Radio Alarm, USB alarm
• Clock: On main display, sleep timer
• Display type: LED display
• Loader type: tray
Accessories
• Included accessories: User Manual
• Remote control: 21-key remote
Dimensions
• Main unit width: 180 mm
• Main unit height: 119 mm
• Main unit depth: 220.4 mm
• Main speaker dimensions (W x D): 127 x 160 mm
• Main speaker height: 170 mm
• Packaging width: 659 mm
• Packaging height: 234 mm
• Packaging depth: 180 mm
• Gross weight: 4.6 kg
• Net weight: 3.94 kg
Power
• Power supply: 100-240 VAC, 50/60 Hz
•
Issue date 2016-12-07
Version: 1.0.6
12 NC: 8670 001 38425
EAN: 48 95185 62363 4
