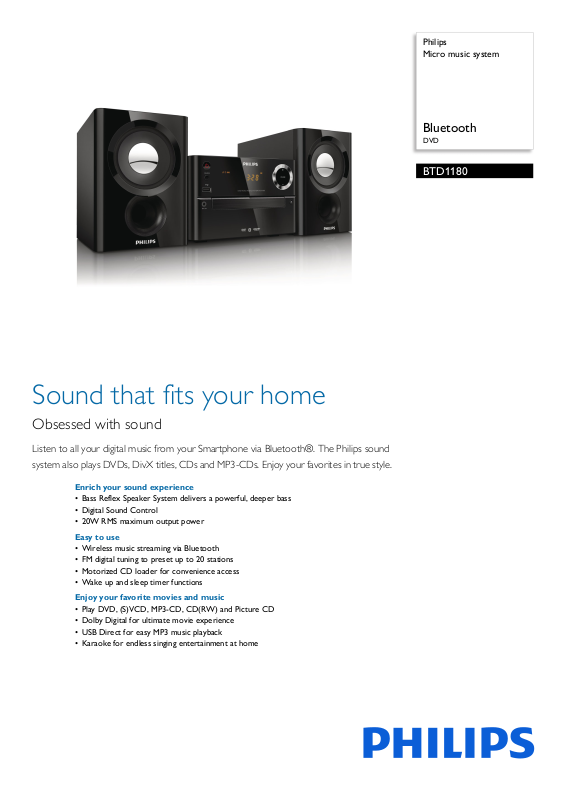

Philips
Micro music system
Bluetooth
DVD
BTD1180
Sound that fits your home
Obsessed with sound
Listen to all your digital music from your Smartphone via Bluetooth®. The Philips sound
system also plays DVDs, DivX titles, CDs and MP3-CDs. Enjoy your favorites in true style.
Enrich your sound experience
• Bass Reflex Speaker System delivers a powerful, deeper bass
• Digital Sound Control
• 20W RMS maximum output power
Easy to use
• Wireless music streaming via Bluetooth
• FM digital tuning to preset up to 20 stations
• Motorized CD loader for convenience access
• Wake up and sleep timer functions
Enjoy your favorite movies and music
• Play DVD, (S)VCD, MP3-CD, CD(RW) and Picture CD
• Dolby Digital for ultimate movie experience
• USB Direct for easy MP3 music playback
• Karaoke for endless singing entertainment at home
Page 2
Micro music system
Bluetooth DVD
Highlights
BTD1180/98
Wireless music streaming
Bluetooth is a short range wireless
communication technology that is both robust
and energy-efficient. The technology allows
easy wireless connection to iPod/iPhone/iPad
or other Bluetooth devices, such as
smartphones, tablets or even laptops. So you
can enjoy your favorite music, sound from
video or game wireless on this speaker easily.
Bass Reflex Speaker System
box system. It differs from a conventional
loudspeaker box system in the addition of a
bass pipe that is acoustically aligned to the
woofer to optimize the low frequency roll-off
of the system. The result is deeper controlled
bass and lower distortion. The system works
by resonating the air mass in the bass pipe to
vibrate like a conventional woofer. Combined
with the response of the woofer, the system
extends the overall low frequency sounds to
create a whole new dimension of deep bass.
Digital Sound Control
Digital Sound Control offers you a choice of
pre-se
t balanced, clear, powerful, warm and
bright controls you can use to optimise the
frequency ranges for different musical styles.
Each mode uses graphic equalizing technology
to automatically adjust the sound balance and
enhance the most important sound
frequencies in your chosen music style.
Ultimately, Digital Sound Control makes it
easy for you get the most out of your music by
precisely adjusting the sound balance to match
the type of music you are playing.
Karaoke for endless singing
Karaoke for endless singing entertainment at
home
USB Direct for easy MP3 music
Thanks to the complete file transferability, you
can easily enjoy the convenience and fun of
accessing more digital music via the built-in
USB Direct.
Bass Reflex Speaker System delivers a deep
bass experience from a compact loudspeaker
Page 3
Micro music system
Bluetooth DVD
Specifications
BTD1180/98
Sound
• Sound Enhancement: Digital Sound Control
• Sound System: Dolby Digital
• Maximum output power (RMS): 20W
Loudspeakers
• Speaker drivers: 3.5" woofer
Video Playback
• Playback Media: DivX, DVD-Video, Picture CD,
Video CD/SVCD, DVD+R/+RW, DVD-R/-RW
• Disc Playback Modes: A-B Repeat, Angle, PBC,
w Motion, Zoom, Parental control, Disc Menu,
Slo
Fast Backward, Fast Forward, OSD, Resume
Playback from Stop
•DVD Region.: 3
• Video Enhancement: Progressive Scan
Audio Playback
• Playback Media: MP3-CD, CD, CD-R, CD-RW
• Disc Playback Modes: Repeat/one/all/program, Fast
rward/Backward, Next/Previous Track Search
Fo
• Loader Type: Motorised, Tray
• USB Direct Modes: Fast Backward/Fast Forward,
Play/Pause, Previou
Stop
s/Next, Program Play, Repeat,
Still Picture Playback
• Picture Compression Format: JPEG
• Picture Enhancement: Slideshow with MP3
back
play
• Playback Media: Picture CD, CD-R/RW, DVD+R/
+RW
• Tuner Enhancements: Auto Store
• Station presets: 20
Connectivity
• Video Output - Analog: Composite CVBS (yellow
cinch), Component Y Pb Pr (cinch)
• Audio Connections: Analogue Audio In (L/R)
• USB: USB host
• Bluetooth profiles: A2DP
• Microphone: Microphone socket
Convenience
• Alarms: CD Alarm, Sleep timer, Radio Alarm, USB
alarm
• Clock: On main display
• Indications: DIM mode
Accessories
• Included accessories: Composite video cable (Y),
AC Power Cord
• User Manual: Multi-languages
•Remote control
Dimensions
•Gross weight: 6.7 kg
• Main unit depth: 220.4 mm
• Main unit height: 119 mm
• Main unit width: 180 mm
• Main speaker dimensions (W x D): 127 x 160 mm
• Main speaker height: 170 mm
• Packaging depth: 231 mm
• Packaging height: 174 mm
• Packaging width: 653 mm
Tuner/Reception/Transmission
• Tuner Bands: FM Stereo
• Auto digital tuning
Power
• Power supply: 110-240V, 50/60 Hz
•
Issue date 2014-01-28
Version: 2.0.2
12 NC: 8670 001 02393
EAN: 08 71258 16852 87
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
