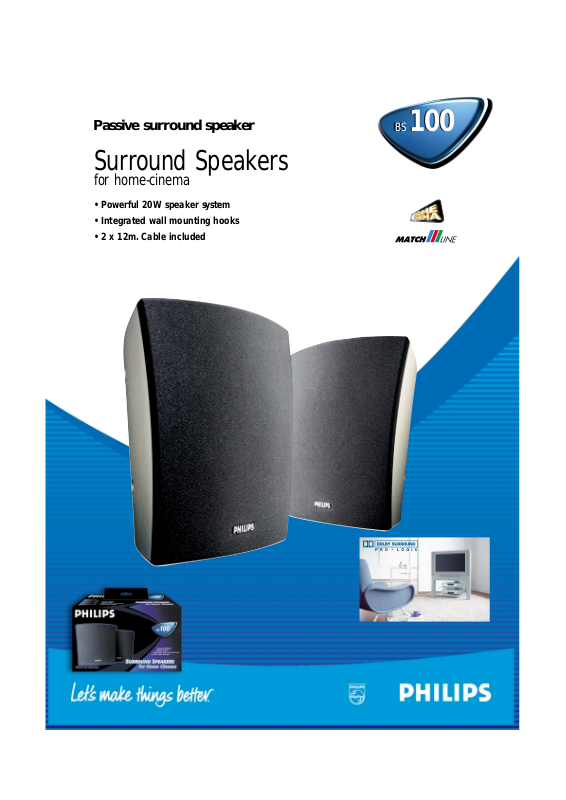

Philips BS100 User Manual

Passive surround speaker

BS 100

Surround Speakers

for home-cinema

• Powerful 20W speaker system

• Integrated wall mounting hooks

• 2 x 12m. Cable included

Surround speakers for home cinema

The SBC BS100 is the ideal extension for your Dolby Surround TV set.Adding these two back-speakers will enable you to enjoy the superb 3 dimensional sound as the Dolby laboratories intended it to be.

Powerful 20W speaker system

The SBC BS100 delivers 20W of powerful,high quality sound for full home cinema enjoyment.

Elegant design and finishing

This elegantly styled set of speakers with a black-cloth front cover and a silver metallic housing will enhance any interior design.

Integrated wall mounting hooks

The speakers have convenient integrated hooks so they can be easily be mounted to walls.

Rubber feet

The rubber feet ensure that the speakers will not scratch your furniture when you choose to place your speakers there.

2 x 12m. Cable included

A set of extra long cables is included to make sure that you will be able to position the speakers in the optimal position to enjoy Dolby surround sound effects.

Click-fit cable connection

The click-fit cable connection ensures you in a very convenient way of a noise-free cable connection.

Standard product information

System information

• Speakers 4” Full Range

• Output power 2* 10W RMS

• Maximum output power 2* 20W RMS

• Frequency range 70 - 22 000 Hz

• Impedance 16 Ohm

• Type of connector Click - Fit

• Length of cord 2* 12 meter

• Cabinet material ABS

• Weight (excl. cables)

• Type number SBC BS100/00

• 12NC 9082 100 00551

• EAN 87 10101 68394 2

Packaging information

• T ype Giftbox

• Material Corrugated Cardboard

• Dimensions 33.3* 20.1* 10.1 cm

Inner carton

• Quantity N.A.

• EAN N.A.

Outer carton

• Quantity 8

• EAN 87 10101 87790 7

• Country of origin PRC

Compatibility overview

• Philips TV modelnumbers 36PW9525 32PW9546 (High Gloss Ebony)* 32PW9536 (High Gloss Crystal Green)* 32PW9525 32PW9515 32PW6615 29PT9415 28PW9536 (High Gloss Crystal Green)* 28PW9525 28PW9515 28PW6615 * Not on some early series with different TV

cable connection

COMPATIBILITY REQUIREMENTS

• Power output TV amplifier 2* 10W RMS

• Impedance TV amplifier 4-16 Ohms

Philips Accessories & Recordable Media

http://www.philips.com

Passive surround speaker

BS 100
