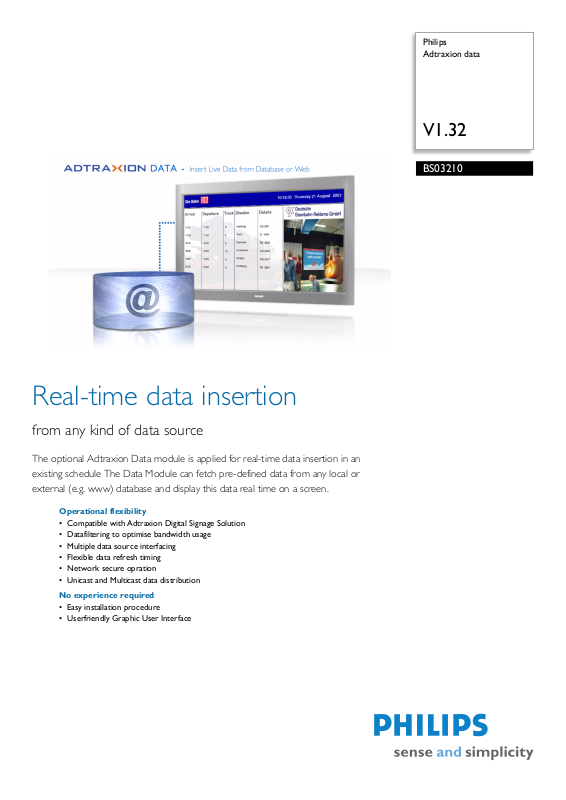

Philips BS03210 BROCHURE

Philips Adtraxion data

V1.32

BS03210

Real-time data insertion

from any kind of data source

The optional Adtraxion Data module is applied for real-time data insertion in an existing schedule The Data Module can fetch pre-defined data from any local or external (e.g. www) database and display this data real time on a screen.

Operational flexibility

• Compatible with Adtraxion Digital Signage Solution

• Datafiltering to optimise bandwidth usage

• Multiple data source interfacing

• Flexible data refresh timing

• Network secure opration

• Unicast and Multicast data distribution

No experience required

• Easy installation procedure

• Userfriendly Graphic User Interface

Adtraxion data

V1.32

BS03210/00

Specifications Product highlights

Dimensions

• Box dimensions (W x H x D): 235

x 50 x 145 mm

•

Adtraxion compatible

This optional software module can easily be integrated in the Adtraxion software suite and enhances the system functionality

Datafiltering

The datafilter scans the adressed database on the specific data that is required for the application. Only the specified data will be distracted from the database and travel over the network. This avoids unnessecary network traffic.

Multiple data source

The multiple data source interfaces allow the system to communicate with different kinds of data sources like databases (e.g.ODBC) and web environments (e.g.XML)

Flexible refresh

The data that needs to be displayed is retrieved from a database. As the change interval of the data is not always similar the Adtraxion Data module allows you to pre define the timing interval in which new data is retrieved. This ranges from every second to every day or week

Network secure opration

To prevent unauthorised network activites different levels of security are implemented. All components of the Adtraxion software suite are based on proprietary protocols. Also a proprietary encryption is implemented as well as dedicated firewall settings.

Unicast and Multicast

Data can be distributed via unicast which means that a connection is made with individual players in the network or via multicast where all players in the network are adressed simultaneously.

Easy installation procedure

Installation of the Adtraxion software modules is made easy through the installation wizard

Userfriendly GUI

Navigation through the software is made easy by implementing a clear, userfriendly Graphic User Interface

Date of issue 2007-02-23

Version: 1.0

12 NC: 8639 000 16399 EAN: 87 10895 91069 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
