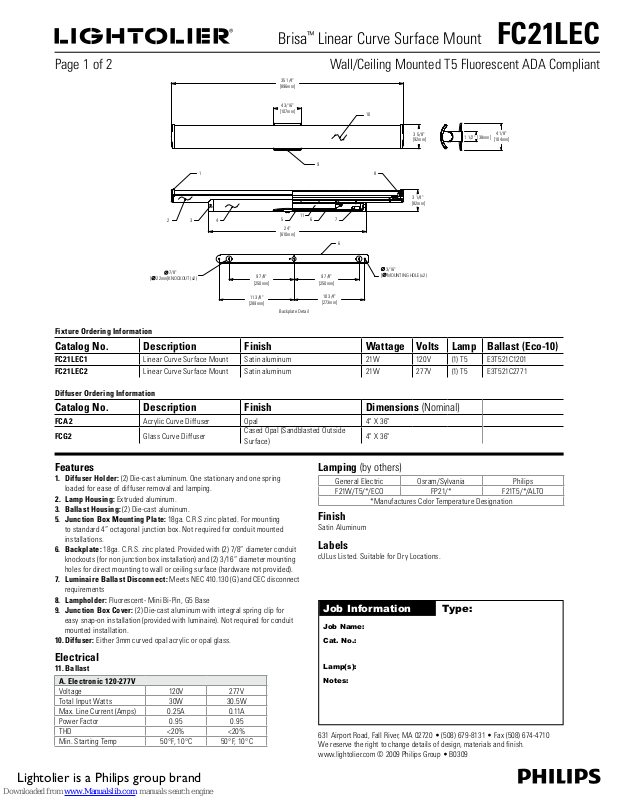

Brisa
Linear Curve Surface Mount FC21LEC
Page 1 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant
35 1/4"
[896mm]
4 3/16"
[107mm]
10
4 1/8"
[104mm]
2
7/8"
[ 22mm]KNOCKOUT (x2)
3 5/8"
[92mm]
1
9 7/8"
[250mm]
5
24"
[610mm]
Backplate Detail
4
3
11 3/8"
[289mm]
9
11
6
7
6
9 7/8"
[250mm]
10 3/4"
[273mm]
8
3/16"
[ MOUNTING HOLE (x2)
3 1/4"
[82mm]
1 1/2" [38mm]
Fixture Ordering Information
Catalog No. Descriptio n Finish Wattage Volts Lamp Ballast (Eco-10)
FC21LEC1
FC21LEC2
Diffuser Ordering Information
Catalog No. Descriptio n Finish
FCA 2
FCG2
Linear Curve Surface Mount Satin aluminum 21W 120V (1) T5 E3T521C1201
Linear Curve Surface Mount Satin aluminum 21W 277V (1) T5 E3T521C2771
Dimensions (Nominal)
Acrylic Curve Dif fuser Opal 4" X 36"
Glass Cur ve Diffuser
Cased Opal (Sandblasted Outside
Surface)
4" X 36"
Features
1. Diffuser Holder: (2) Die-cast aluminum. One stationary and one spring
loaded for ease of diffuser removal and lamping.
2. Lamp Housing: E xtruded aluminum.
3. Ballast Housing: (2) Die-cast aluminum.
5. Junction Box Mounting Plate: 18ga. C.R.S zinc plated. For mounting
to standard 4” octagonal junction box. Not required for conduit mounted
installations.
6. Backplate: 18ga. C.R.S. zinc plated. Provided with (2) 7/8” diameter conduit
knockouts (for non junction box installation) and (2) 3/16” diameter mounting
holes for direct mounting to wall or ceiling surface (hardware not provided).
7. Luminaire Ballast Disconne ct: Meets NEC 410.130 (G) and CEC disconnect
requirements
8. Lampholder: Fluorescent- Mini Bi-Pin, G5 Base
9. Junction Box Cover: (2) Die-cast aluminum with integral spring clip for
easy snap-on installation (provided with luminaire). Not required for conduit
mounted installation.
10. Diffuser: Either 3mm curved opal acrylic or opal glass.
Electrical
11. Ballast
A. Electronic 120-277V
Voltage 120V 277V
Total Input Watts 30W 30.5W
Max. Line Current (Amps) 0.25A 0.11A
Power Factor 0.95 0.95
THD <20% <20%
Min. Starting Temp 50°F, 10°C 50°F, 10°C
Lamping (by others)
General Electric Osram/Sylvania Philips
F21W/T5/*/ECO FP21/* F21T5/*/ALTO
*Manufactures Color Temperature Designation
Finish
Satin Aluminum
Labels
cULus Listed. Suitable for Dry Locations.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0309
Lightolier is a Philips group brand
™
Brisa
Linear Curve Surface Mount FC21LEC
Page 2 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant
FC21U-FCA2
75
150
225
300
DECOR ATIV E LUMINAIRE C AT. # FC21U/FC A2, 21W SYLVANIA T-5 LAM PS.
LUMEN RATI NG = 1890 LMS. BA LLAST/ ADVANCE IC N-2S28
Candl epower Sum mary
Angle Along 22.5. 45 6 7.5 Across .
90°
0 303 30 3 303 303 303
5 305 3 02 30 0 302 30 0 29
10 296 29 3 291 294 292 83
15 276 2 75 2 74 276 274 127
25 276 275 274 276 274 127
35 247 247 246 248 248 155
45 210 211 211 214 214 16 4
55 165 167 169 174 175 152
60°
65 114 117 124 131 134 123
75 60 66 79 9 0 95 84
85 13 25 44 58 63 49
90 3 18 41 60 67
95 14 25 61 85 94 56
105 45 24 39 64 76 51
115 51 38 46 52 54 47
125 51 57 56 62 64 52
135 50 56 66 69 70 4 9
145 55 55 73 76 76 42
155 55 53 66 74 76 3 0
165 48 47 46 62 67 15
0°
30°
175 69 63 55 40 40
180 55 55 55 55 55
Outpu t
Lumens
Ceiling 80% 70% 50% 30% 10%
Wall 70 50 3 0 10 70 5 0 30 10 50 30 10 50 30 10 50 30 10 0
RCR Zonal C avity Met hod - Effec tive Floor Re flectan ce = 20%
0 .78 .78 .78 .78 .74 .74 .74 .74 .67 .67 . 67 .60 . 60 .60 . 54 .54 .54 .51
1 .71 .6 8 .65 .6 2 .67 . 65 .62 .59 .58 .56 . 54 .52 .51 . 49 .47 .46 .45 .42
2 .65 .5 9 .54 .50 .61 .56 .52 .48 .51 .47 .45 .46 . 43 .41 .41 .39 . 37 .35
3 .59 .5 2 .47 .42 . 56 .49 .45 .41 .4 5 .41 .3 8 .41 . 37 .35 . 37 .34 .32 .30
4 .54 .4 6 .40 .36 .51 .44 .39 .3 4 .40 .3 5 .32 .3 6 .33 .3 0 .33 . 30 .27 .25
5 .49 .4 0 .34 .30 .46 .39 .33 .2 9 .35 .31 .27 .32 .28 .25 . 29 .26 .23 .21
6 .45 .3 6 .30 .26 .43 .35 .29 .2 5 .31 .2 7 .23 .2 9 .25 .2 2 .26 . 23 .20 .18
Room C avity Rati o
7 .42 . 32 .27 . 23 .39 .31 .26 .2 2 .28 . 24 .20 . 26 .22 .19 . 23 .20 .18 .16
8 .3 8 .29 .23 .19 .3 6 . 28 .2 2 .19 .25 .21 .18 .23 .19 .16 . 21 .18 .15 .14
9 .35 .2 6 .21 .17 . 33 .25 .20 .16 . 23 .18 .15 .21 .17 .14 .19 .16 .13 .12
10 .3 3 .24 .18 .15 .31 .2 3 .18 .14 .21 .16 .13 .19 .15 .12 .17 .14 .12 .10
Deter mined In Acc ordance Wi th Current I ES Published Pr ocedures
Zonal L ume ns and P ercentag es
Zone Lumen s % Lam p % Luminaire
0-3 0 238 12.62 18.18
0-4 0 393 20.83 30.01
0-6 0 709 37.56 54.10
0-9 0 965 51.07 73.57
40- 90 5 71 30.24 43.57
60- 90 25 5 13.52 19.47
90-180 34 6 18 .34 26.4 3
0-180 1311 6 9.41 100.00
** Effic iency = 69.4% **
TESTED A CCORDING TO IE S PROCEDURE S. TEST DISTANCE E XCEEDS FIVE
TIMES T HE GREATEST LUM INOUS OPENIN G OF LUMINAIR E.
Coef fici ent s of Ut iliza tion
Luminai re Input Wat ts = 27.0
Cert ified Test Repo rt no. 3627FR
Compu ted by LSI Pr ogram **TEST-L ITE**
SC= 1.3
Prep ared For:
Light olier
Fall River, MA
Lightolier is a Philips group brand
Job Information Type:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0309
