Philips Brilliance 241P3LYEB Specifications

Download

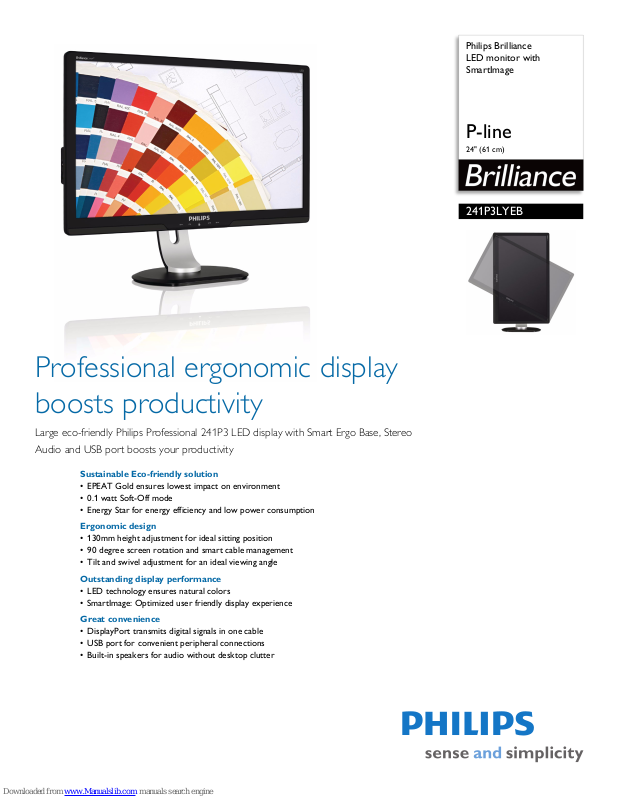

Page 1

Philips Brilliance LED monitor with SmartImage

P-line

24" (61 cm)

241P3LYEB

Professional ergonomic display boosts productivity

Large eco-friendly Philips Professional 241P3 LED display with Smart Ergo Base, Stereo Audio and USB port boosts your productivity

Sustainable Eco-friendly solution

• EPEAT Gold ensures lowest impact on environment

• 0.1 watt Soft-Off mode

• Energy Star for energy efficiency and low power consumption

Ergonomic design

• 130mm height adjustment for ideal sitting position

• 90 degree screen rotation and smart cable management

• Tilt and swivel adjustment for an ideal viewing angle

Outstanding display performance

• LED technology ensures natural colors

• SmartImage: Optimized user friendly display experience

Great convenience

• DisplayPort transmits digital signals in one cable

• USB port for convenient peripheral connections

• Built-in speakers for audio without desktop clutter

Page 2

LED monitor with SmartImage

P-line 24" (61 cm)

Highlights

241P3LYEB/00

LED technology

White LED's are solid state devices which light up to full startup time. LED's are free from mercury content which allows for eco-friendly recycling and disposal process. LED's allow for better dimming control of LCD backlight, resulting in super high contrast ratio. It also gives superior color reproduction thanks to consistent brightness across the screen.

EPEAT Gold

Philips EPEAT GOLD certified monitors ensure prote and are highly energy efficient ensuring low emissions of climate changing green house gases. EPEAT program helps purchasers evaluate, compare and select Monitors based on 51 environmental criteria supported by US EPA. GOLD certification ensures that at least 30% of plastic used is Post Consumer Resin, which ensures reduction in use of toxic and hazardous materials. EPEAT Gold is valid only where Philips registers the product. Please visit www.epeat.net for registration status in your country.

DisplayPort

DisplayPort is a direct drive digital link with twow any conversion. With higher capabilities than DVI standard, it is fully capable to support up to 15meter cables and 10.8 Gbps/sec data transfer. With this high performance and zero latency, you get the fastest imaging and refresh rates making DisplayPort the best choice for not only general office or home use, but also for the demanding 3-D gaming and movies, video editing and more. It also keeps interoperability in mind via use of various adapters.

, consistent brightness faster saving

ction for human health and environment,

ay connection from PC to Monitor without

SmartImage

SmartImage is an exclusive leading edge Philips technology that analyzes the content displayed on your screen and gives you optimized display performance. This user friendly interface allows you to select various modes like Office, Image, Entertainment, Economy etc., to fit the application in use. Based on the selection, SmartImage dynamically optimizes the contrast, color saturation and sharpness of images and videos for ultimate display performance. The Economy mode option offers you major power savings. All in real time with the press of a single button!

Built-in speakers

A pair of high quality stereo speakers built into a di

splay device. It can be visible front firing, or invisible down firing, top firing, rear firing, etc depending on model and design.

130mm height adjustment

The Super Ergo Base is a 'people friendly' Philips moni

tor base that tilts, swivels,is height adjustable and Pivots to 90degree, so each user can position the monitor for maximum viewing comfort and efficiency

ScreenRotate

ScreenRotate makes it possible to use a monitor i

n either the landscape and portrait mode; to change orientation for a better view of a selected document or image, the monitor is rotated to the desired orientation.

Screen tilt and swivel

Screen tilt and swivel is a mechanism built into the b

ase permits the monitor to swivel and tilt

backward or forward.

USB 2.0 port

USB port allows user to conveniently connect their plug and play multimedia devices such as USB memory devices, camera, portable HDD, Web camera, PDA, Printer and many other devices which has USB connection available. The conveniently located USB 2.0 port on the monitor allows USB 2.0 signals to pass thru to the computer. Note that many devices like cameras and HDD may need to be powered On independently, as they have higher power requirements than the monitor USB port can provide

Energy Star 5.0

Energy Star is a US EPA s efficiency program also adopted by many other countries. Energy Star certification ensures that you are buying a product which meets the latest power efficiency standards which operates with maximum power efficiency at all operational levels. New Philips monitors are certified for Energy Star 5.0 specifications and meet or exceed the standard. For example, in sleep mode Energy Star 5.0 requires less than 1watt power consumption, whereas Philips monitors consume less than 0.5watts. Further details can be obtained from www.energystar.gov

ponsored energy

DisplayPort

Page 3

LED monitor with SmartImage

P-line 24" (61 cm)

Specifications

241P3LYEB/00

Picture/Display

• LCD panel type: TFT-LCD

• Backlight type: W-LED system

• Panel Size: 24 inch / 61 cm

• Aspect ratio: 16:9

• Effective viewing area: 531.4 (H) x 298.9 (V)

• Optimum resolution: 1920x 1080 @ 60Hz

• Response time (typical): 5 ms

• Brightness: 250 cd/m²

• Contrast ratio (typical): 1000:1

• SmartContrast:

• Pixel pitch: 0.276 x 0.276 mm

• Viewing angle: 170º (H) / 160º (V), @ C/R > 10

• Picture enhancement: SmartImage

• Display colors: 16.7 M

• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz (V)

•sRGB

20,000,000:1

Connectivity

• Signal Input: VGA (Analog ), DVI-D (digital, HDCP), DisplayPort

• USB: USB 2.0 x 1

• Sync Input: Separate Sync,

• Audio In/Out: Earphone out (3.5 mm jac audio-in

Sync on Green

k)x 1, PC

Convenience

• Built-in Speaker: 1.5Wx2

• User convenience: SmartImage, Volume, Power On/

f, SmartPower, Menu

• OSD Languages: English, Fre Italian, Russian, Simplified Chinese, Portuguese

• Other convenience: VESA mount (100x100mm),

sington lock

Ken

• Plug & Play Compatibility: DDC/CI, Mac OS X,

GB, Windows 7/Vista/XP

nch, German, Spanish,

Stand

• Height adjustment: 130 mm

• Pivot: 90 degree, clockwise, auto pivot

• Swivel: -65/+65 degree

• Tilt: -5/20 degree

Power

• ECO mode: 14 W (typ.)

• On mode: 18.9 W (EnergyStar 5.0 test method)

• Standby mode: 0.5 W

• Off mode: 0.3 W

• Power LED indicator: Operation - White, Standby de- White (blinking)

• Power supply: 100-240VAC, 50/60Hz, Built-in

Dimensions

• Product with stand (mm): 570 x 507 x 220 mm

• Product without stand (mm): 570 x 353 x 62 mm

• Packaging in mm (WxHxD): 670 x 413 x 268 mm

Weight

• Product with stand (kg): 6.7 kg

• Product without stand (kg): 4.5 kg

• Product with packaging (kg): 8.6 kg

Operating conditions

• Temperature range (operation): 0°C to 40°C °C

• Temperature Range (storage): -20°C to 60°C °C

• Relative humidity: 20%-80 %

• MTBF: 30,000 hour(s)

Sustainability

• Environmental and energy: EnergyStar 5.0, EPEAT

Gold, RoHS

• Recyclable packaging material: 100 %

Compliance and standards

• Regulatory Approvals: BSMI, CE Mark, FCC Class B,

GOST, SEMKO, TCO 5.1, TUV Ergo, TUV/GS, UL/ cUL

Cabinet

• Color: Black

• Finish: Texture

•

Issue date 2011-02-10

Version: 1.0.1

12 NC: 8670 000 72717 EAN: 87 12581 58472 6

Specifications are subject t Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

o change without notice.
