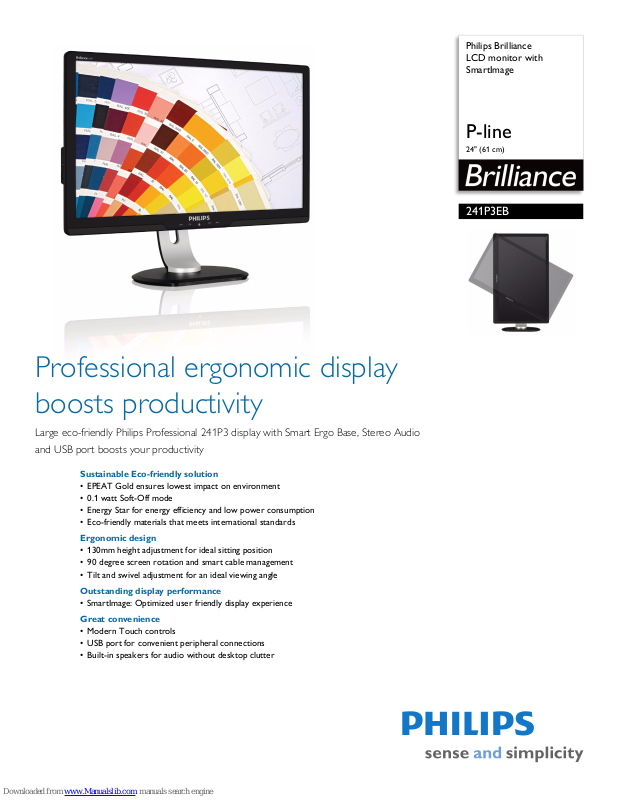

Page 1
Philips Brilliance
LCD monitor with
SmartImage
P-line
24" (61 cm)
241P3EB
Professional ergonomic display
boosts productivity
Large eco-friendly Philips Professional 241P3 display with Smart Ergo Base, Stereo Audio
and USB port boosts your productivity
Sustainable Eco-friendly solution
• EPEAT Gold ensures lowest impact on environment
• 0.1 watt Soft-Off mode
• Energy Star for energy efficiency and low power consumption
• Eco-friendly materials that meets international standards
Ergonomic design
• 130mm height adjustment for ideal sitting position
• 90 degree screen rotation and smart cable management
• Tilt and swivel adjustment for an ideal viewing angle
Outstanding display performance
• SmartImage: Optimized user friendly display experience
Great convenience
• Modern Touch controls
• USB port for convenient peripheral connections
• Built-in speakers for audio without desktop clutter
Page 2
LCD monitor with SmartImage
P-line 24" (61 cm)
Highlights
241P3EB/27
EPEAT Gold
Philips EPEAT GOLD certified monitors ensure
prote
ction for human health and environment,
and are highly energy efficient ensuring low
emissions of climate changing green house gases.
EPEAT program helps purchasers evaluate,
compare and select Monitors based on 51
environmental criteria supported by US EPA.
GOLD certification ensures that at least 30% of
plastic used is Post Consumer Resin, which
ensures reduction in use of toxic and hazardous
materials. EPEAT Gold is valid only where
Philips registers the product. Please visit
www.epeat.net for registration status in your
country.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface allows
you to select various modes like Office, Image,
Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the contrast,
color saturation and sharpness of images and
videos for ultimate display performance. The
Economy mode option offers you major power
savings. All in real time with the press of a single
button!
ScreenRotate
ScreenRotate makes it possible to use a monitor
in
either the landscape and portrait mode; to
change orientation for a better view of a
selected document or image, the monitor is
rotated to the desired orientation.
130mm height adjustment
The Super Ergo Base is a 'people friendly' Philips
moni
tor base that tilts, swivels,is height
adjustable and Pivots to 90degree, so each user
can position the monitor for maximum viewing
comfort and efficiency
Screen tilt and swivel
Screen tilt and swivel is a mechanism built into
t
he base permits the monitor to swivel and tilt
backward or forward.
Built-in speakers
A pair of high quality stereo speakers built into
a di
splay device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
Energy Star 5.0
Energy Star is a US EPA sponsored energy
e
fficiency program also adopted by many other
countries. Energy Star certification ensures that
you are buying a product which meets the latest
power efficiency standards which operates with
maximum power efficiency at all operational
levels. New Philips monitors are certified for
Energy Star 5.0 specifications and meet or
exceed the standard. For example, in sleep
mode Energy Star 5.0 requires less than 1watt
power consumption, whereas Philips monitors
consume less than 0.5watts. Further details can
be obtained from www.energystar.gov
USB 2.0 port
USB port allows user to conveniently connect
their plug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available. The
conveniently located USB 2.0 port on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered On
independently, as they have higher power
requirements than the monitor USB port can
provide
Touch controls
Touch controls are intelligent, touch sensitive
icon
s that replace protruding buttons that lets
the user adjust the monitor to their
requirement. Responding to your lightest
touch,Touch control gives the monitor a
modern feel
Eco-friendly materials
With sustainability as a strategic driver of its
busine
ss, Philips is committed to use ecofriendly materials across its new product range.
Lead-free materials are used across the range.
All body plastic parts, metal chassis parts and
packing material uses 100% recyclable material.
Substantial reduction in mercury content in
lamps has been achieved. We strictly adhere to
RoHs standards which ensure that all hazardous
material is removed. You can read more about
sustainability and Philips @ http://
www.asimpleswitch.com/global/
Page 3
LCD monitor with SmartImage
P-line 24" (61 cm)
Specifications
241P3EB/27
Picture/Display
• LCD panel type: TFT-LCD
• Panel Size: 24 inch / 61 cm
• Aspect ratio: 16:9
• Effective viewing area: 531.4 (H) x 298.9 (V)
• Optimum resolution: 1920x 1080 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast: 500,000:1
• Pixel pitch: 0.276 x 0.276 mm
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz (V)
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• USB: USB 2.0 x 1
• Sync Input: Separate Sync,
• Audio In/Out: Earphone out (3.5 mm jac
audio-in
Sync on Green
k)x 1, PC
Convenience
• Built-in Speaker: 1.5Wx2
• User convenience: SmartImage, Volume, Power On/
f, SmartPower, Menu
Of
• OSD Languages: English, Fre
Italian, Russian, Simplified Chinese, Portuguese
• Other convenience: VESA mount (100x100mm),
sington lock
Ken
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7/Vista/XP
sR
nch, German, Spanish,
• Standby mode: 0.1 W
• Off mode: 0.1 W
• Power LED indicator: Operation - White, Standby
de- White (blinking)
mo
• Power supply: 100-240VAC, 50/60Hz, Built-in
Dimensions
• Product with stand (mm): 570 x 507 x 220 mm
• Product with stand in inch: 22.44 x 19.96 x 8.66 inch
• Product without stand (mm): 570 x 353 x 62 mm
• Product without stand in inch: 22.44 x 13.90 x
2.44 inch
• Packaging in mm (WxHxD): 670 x 413 x 268 mm
• Packaging in inch (WxHxD): 26.38 x 16.26 x
10.55 inch
Weight
• Product with stand (kg): 6.7 kg
• Product with stand (lb): 14.74 lb
• Product without stand (kg): 4.5 kg
• Product without stand (lb): 9.9 lb
• Product with packaging (kg): 8.6 kg
• Product with packaging (lb): 18.92 lb
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature Range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 50,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 5.0, EPEAT
Gold, RoHS
• Recyclable packaging material: 100 %
Stand
• Height adjustment: 130 mm
• Pivot: 90 degree, clockwise, auto pivot
• Swivel: -65/+65 degree
• Tilt: -5/20 degree
Power
• ECO mode: 21 W (typ.)
• On mode: 28 W (EnergyStar 5.0 test method)
Issue date 2011-01-13
Version: 1.1.3
12 NC: 8670 000 72703
UPC: 6 09585 20553 6
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class B,
GOST, SEMKO, TCO 5.1, TUV Ergo, TUV/GS, UL/
cUL
Cabinet
• Color: Black
• Finish: Texture
•
