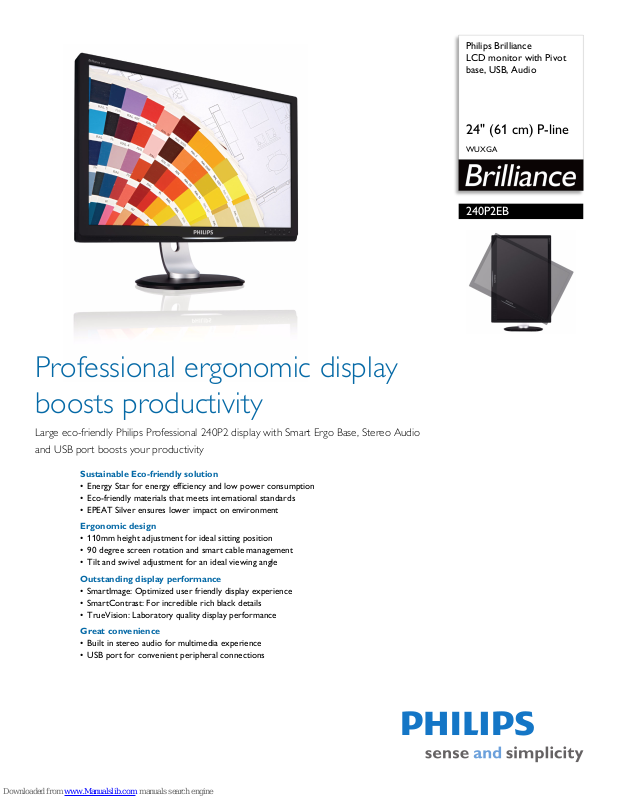

Page 1
Philips Brilliance
LCD monitor with Pivot
base, USB, Audio
24" (61 cm) P-line
WUXGA
240P2EB
Professional ergonomic display
boosts productivity
Large eco-friendly Philips Professional 240P2 display with Smart Ergo Base, Stereo Audio
and USB port boosts your productivity
Sustainable Eco-friendly solution
• Energy Star for energy efficiency and low power consumption
• Eco-friendly materials that meets international standards
• EPEAT Silver ensures lower impact on environment
Ergonomic design
• 110mm height adjustment for ideal sitting position
• 90 degree screen rotation and smart cable management
• Tilt and swivel adjustment for an ideal viewing angle
Outstanding display performance
• SmartImage: Optimized user friendly display experience
• SmartContrast: For incredible rich black details
• TrueVision: Laboratory quality display performance
Great convenience
• Built in stereo audio for multimedia experience
• USB port for convenient peripheral connections
Page 2
LCD monitor with Pivot base, USB, Audio
24" (61 cm) P-line WUXGA
Highlights
240P2EB/27
Built-in stereo audio
A pair of high quality stereo speakers built into
a
display device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
110mm height adjustment
The Super Ergo Base is a 'people friendly' Philips
m
onitor base that tilts, swivels,is height
adjustable and Pivots to 90degree, so each user
can position the monitor for maximum viewing
comfort and efficiency
Screen tilt and swivel
Screen tilt and swivel is a mechanism built into
the
base permits the monitor to swivel and tilt
backward or forward.
ScreenRotate
ScreenRotate makes it possible to use a monitor
in
either the landscape and portrait mode; to
change orientation for a better view of a
selected document or image, the monitor is
rotated to the desired orientation.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface allows
you to select various modes like Office, Image,
Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the contrast,
color saturation and sharpness of images and
videos for ultimate display performance. The
Economy mode option offers you major power
savings. All in real time with the press of a single
button!
TrueVision
TrueVision is industry-leading, proprietary
Philips testing and algorithm technology for
monitor adjustment and fine tuning, an extensive
process that ensures ultimate display
performance in compliance with a standard
four-times more stringent than Microsoft's Vista
requirements from each and every monitor that
leaves the factory - not just a few review
samples. Only Philips goes to these lengths to
deliver this exacting level of color accuracy and
display quality in every new monitor.
EPEAT Silver
Philips EPEAT Silver certified monitors ensure
p
rotection for human health and environment,
and are highly energy efficient ensuring low
emissions of climate changing green house gases.
EPEAT program helps purchasers evaluate,
compare and select Monitors based on 51
environmental criteria supported by US EPA.
EPEAT Silver is valid only where Philips registers
the product. Please visit www.epeat.net for
registration status in your country.
USB 2.0 port
USB port allows user to conveniently connect
their plug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available. The
conveniently located USB 2.0 port on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered On
independently, as they have higher power
requirements than the monitor USB port can
provide
Eco-friendly materials
With sustainability as a strategic driver of its
busine
ss, Philips is committed to use ecofriendly materials across its new product range.
Lead-free materials are used across the range.
All body plastic parts, metal chassis parts and
packing material uses 100% recyclable material.
Substantial reduction in mercury content in
lamps has been achieved. We strictly adhere to
RoHs standards which ensure that all hazardous
material is removed. You can read more about
sustainability and Philips @ http://
www.asimpleswitch.com/global/
Built-in Audio
Page 3
LCD monitor with Pivot base, USB, Audio
24" (61 cm) P-line WUXGA
Specifications
240P2EB/27
Picture/Display
• LCD panel type: TFT-LCD
• Panel Size: 24 inch / 61 cm
• Aspect ratio: 16:10
• Optimum resolution: 1920 x 1200 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 300 cd/m²
• SmartContrast: 500,000:1
• Pixel pitch: 0.270 x 0.270 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 5
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 24 -94 kHz (H) / 48 -85 Hz (V)
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• USB: USB 2.0 x 1
• Sync Input: Separate Sync,
• Audio In/Out: Stereo Audio
Sync on Green
Convenience
• Built-in Audio: 1.5Wx2
• User convenience: SmartImage, V
Menu, Auto, Power On/Off
• OSD Languages: English, Fre
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: VESA mount (100x100mm),
sington lock
Ken
• Plug & Play Compatibility: DDC/CI, Windows 7/
ista/XP, Mac OS X, sRGB
V
olume, Brightness,
nch, German, Italian,
Stand
• Height adjustment: 110 mm
•Pivot
• Swivel: -65/65 degree
• Tilt: -5/20 degree
Power
• ECO mode: <30.7 W
• On mode: <34.8 W (EnergyStar 5.0 test method)
•Standby mode: <0.8 W
• Off mode: <0.5 W
• Power LED indicator: Operation - White, Standby
de- White (blinking)
mo
• Power supply: Built-in, 100-240VAC, 50/60Hz
Dimensions
• Product with stand (mm): 559 x 512 x 220 mm
• Product with stand in inch: 22.01 x 20.16 x 8.66 inch
• Product without stand (mm): 559 x 381 x 75 mm
• Product without stand in inch: 22.01 x 15.00 x
2.95 inch
• Packaging in mm (WxHxD): 690 x 456 x 277 mm
• Packaging in inch (WxHxD): 27.17 x 17.95 x
10.91 inch
Weight
• Product with stand (kg): 7.61 kg
• Product with stand (lb): 16.74 lb
• Product without stand (kg): 5.41 kg
• Product without stand (lb): 11.90 lb
• Product with packaging (kg): 10.30 kg
• Product with packaging (lb): 22.66 lb
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature Range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 50,000 hour(s)
Sustainability
• Environmental and energy: RoHS, EPEAT Silver,
EnergyStar 5.0
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC, Class B,
GOST, SEMKO, TCO 5.0, TUV/GS, TUV Ergo, UL/
cUL
Cabinet
• Color: Black/Black
• Finish: Texture
•
Issue date 2010-10-18
Version: 3.0.3
12 NC: 8670 000 66055
UPC: 6 09585 19367 3
© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
