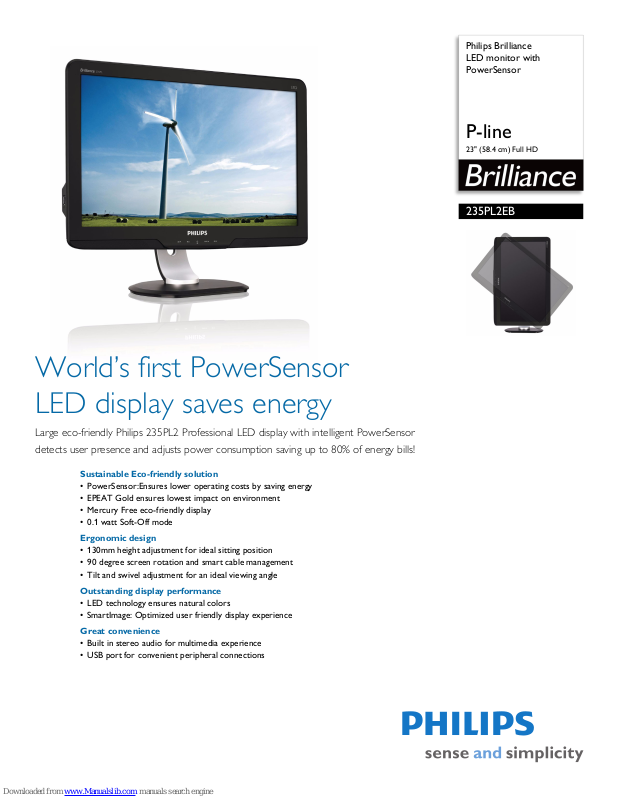

Philips Brilliance
LED monitor with
PowerSensor
P-line
23" (58.4 cm) Full HD
235PL2EB
World’s first PowerSensor
LED display saves energy
Large eco-friendly Philips 235PL2 Professional LED display with intelligent PowerSensor
detects user presence and adjusts power consumption saving up to 80% of energy bills!
Sustainable Eco-friendly solution
• PowerSensor:Ensures lower operating costs by saving energy
• EPEAT Gold ensures lowest impact on environment
• Mercury Free eco-friendly display
• 0.1 watt Soft-Off mode
Ergonomic design
• 130mm height adjustment for ideal sitting position
• 90 degree screen rotation and smart cable management
• Tilt and swivel adjustment for an ideal viewing angle
Outstanding display performance
• LED technology ensures natural colors
• SmartImage: Optimized user friendly display experience
Great convenience
• Built in stereo audio for multimedia experience
• USB port for convenient peripheral connections
Page 2
LED monitor with PowerSensor
4:3 wide
P-line 23" (58.4 cm) Full HD
Highlights
235PL2EB/00
PowerSensor
PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared signals
to determine if user is present and automatically
reduces monitor brightness when user steps
away from the desk, cutting energy costs by up
to 80 percent and prolonging monitor life.
LED technology
White LED's are solid state devices which light
up to full
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
EPEAT Gold
Philips EPEAT GOLD certified monitors ensure
prote
and are highly energy efficient ensuring low
emissions of climate changing green house gases.
EPEAT program helps purchasers evaluate,
compare and select Monitors based on 51
environmental criteria supported by US EPA.
GOLD certification ensures that at least 30% of
plastic used is Post Consumer Resin, which
ensures reduction in use of toxic and hazardous
materials. EPEAT Gold is valid only where
Philips registers the product. Please visit
www.epeat.net for registration status in your
country.
, consistent brightness faster saving
ction for human health and environment,
Mercury Free
Philips monitors with LED backlighting are free
of
Mercury content, one of the most toxic
natural substances which affects humans and
animals. This allows for a eco-friendly display
through out its life-cycle from manufacturing to
disposal. Being at the forefront of sustainability
and with our longstanding commitment to
reduce the environmental impact of our
products, we enable consumers to make simple,
responsible choices about the products they buy
and the impact they have before, during and at
the end of their life cycle.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface allows
you to select various modes like Office, Image,
Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the contrast,
color saturation and sharpness of images and
videos for ultimate display performance. The
Economy mode option offers you major power
savings. All in real time with the press of a single
button!
ScreenRotate
ScreenRotate makes it possible to use a monitor
i
n either the landscape and portrait mode; to
change orientation for a better view of a
selected document or image, the monitor is
rotated to the desired orientation.
Screen tilt and swivel
Screen tilt and swivel is a mechanism built into
the b
ase permits the monitor to swivel and tilt
backward or forward.
130mm height adjustment
The Super Ergo Base is a 'people friendly' Philips
mon
itor base that tilts, swivels,is height
adjustable and Pivots to 90degree, so each user
can position the monitor for maximum viewing
comfort and efficiency
Built-in stereo audio
A pair of high quality stereo speakers built into
a display devi
invisible down firing, top firing, rear firing, etc
depending on model and design.
USB 2.0 port
USB port allows user to conveniently connect
their plug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available. The
conveniently located USB 2.0 port on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered On
independently, as they have higher power
requirements than the monitor USB port can
provide
ce. It can be visible front firing, or
Built-in Audio
Page 3
LED monitor with PowerSensor
P-line 23" (58.4 cm) Full HD
Specifications
235PL2EB/00
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 23 inch / 58.4 cm
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• SmartContrast:
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 -83 kHz (H) / 56 -75 Hz (V)
•sRGB
20,000,000:1
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• USB: USB 2.0 x 1
• Sync Input: Separate Sync,
• Audio In/Out: Stereo Audio, Earphone out (3.5 mm
1, PC audio-in
jack)x
Sync on Green
Convenience
• Built-in Audio: 1.5Wx2
• User convenience: SmartImage, Volume, Power On/
werSensor, Menu
Off, Po
• OSD Languages: English, Fre
Italian, Russian, Simplified Chinese, Portuguese
• Other convenience: VESA mount (100x100mm),
sington lock
Ken
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7/Vista/XP
sR
nch, German, Spanish,
Stand
• Height adjustment: 130 mm
• Pivot: Yes (auto pivot)
• Swivel: -65/65 degree
• Tilt: -5/20 degree
Power
• ECO mode: 17.74 W
• On mode: 22.47 W (EnergyStar 5.0 test method)
• Standby mode: 0.1 W
• Off mode: 0.1 W
• Power LED indicator: Operation - White, Standby
de- White (blinking)
mo
• Power supply: Built-in, 100-240VAC, 50/60Hz
Dimensions
• Product with stand (mm): 566 x 517 x 250 mm
• Product without stand (mm): 566 x 360 x 57 mm
• Packaging in mm (WxHxD): 672 x 268 x 434 mm
Weight
• Product with stand (kg): 6.40 kg
• Product without stand (kg): 4.20 kg
• Product with packaging (kg): 8.10 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature Range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EPEAT Gold, RoHS,
EnergyStar 5.0
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC, Class B,
GOST, SEMKO, TCO 5.0, TUV/GS, TUV Ergo, UL/
cUL
Cabinet
• Color: Black/Black
• Finish: Texture
•
Issue date 2010-10-14
Version: 1.0.1
12 NC: 8670 000 67404
EAN: 87 12581 56187 1
© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
