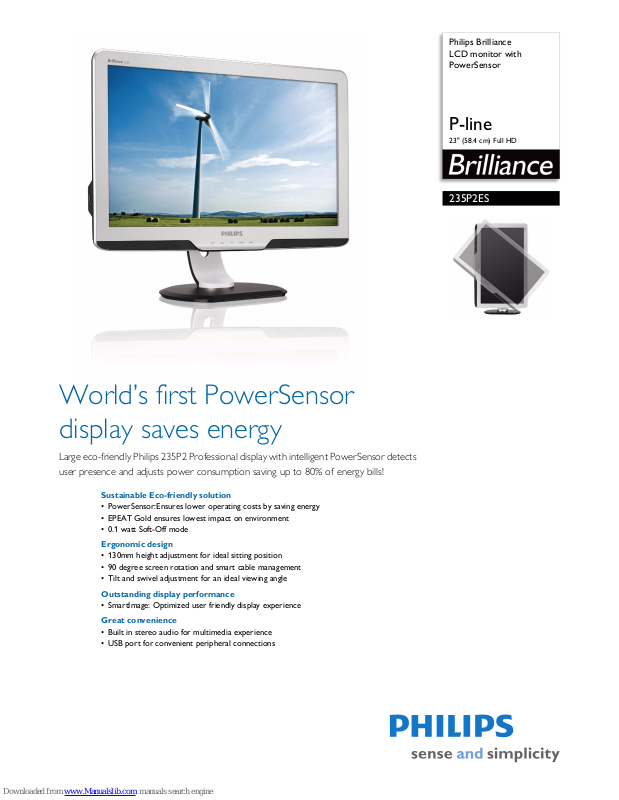

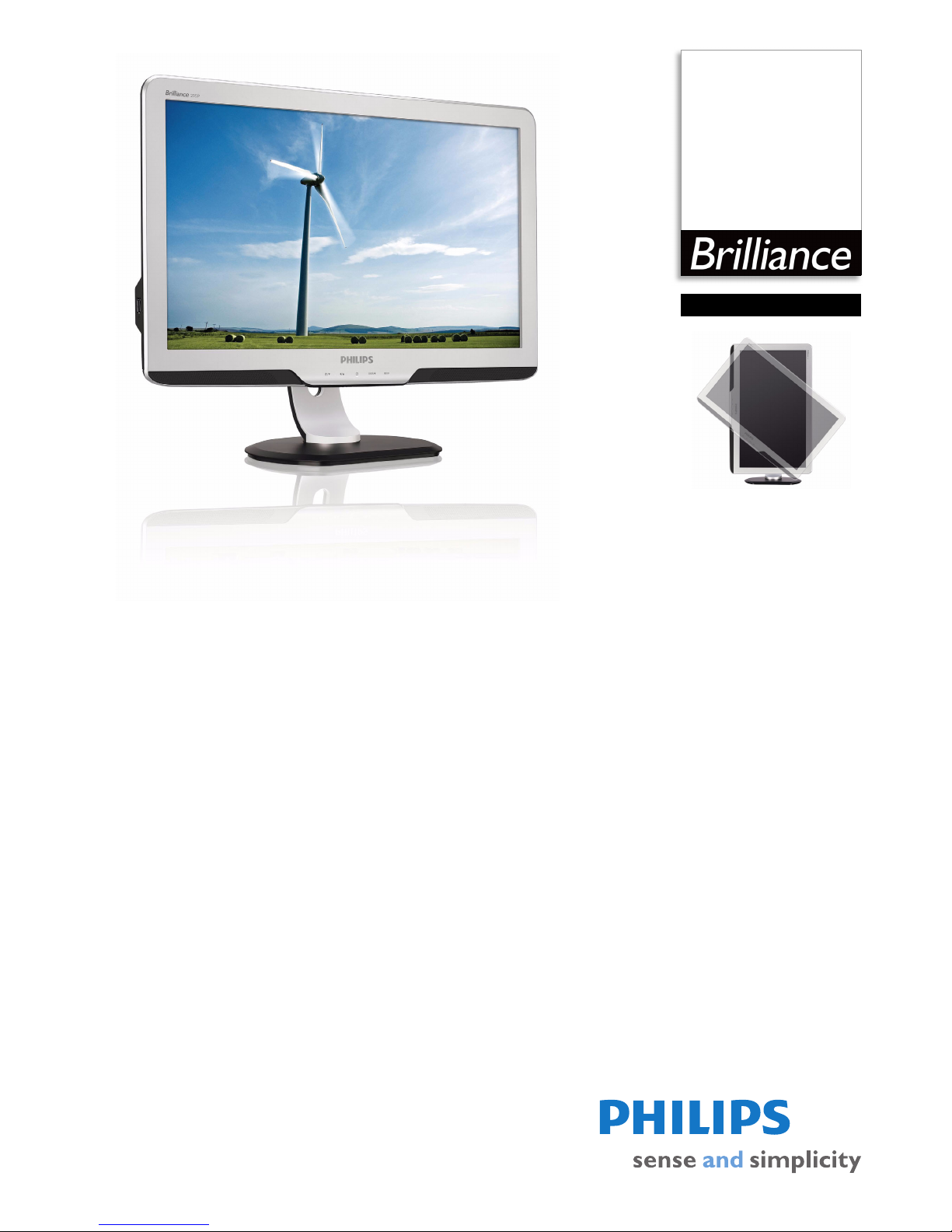

Page 1
Philips Brilliance
LCD monitor with
PowerSensor
P-line
23" (58.4 cm) Full HD
235P2ES
World’s first PowerSensor
display saves energy
Large eco-friendly Philips 235P2 Professional display with intelligent PowerSensor detects
user presence and adjusts power consumption saving up to 80% of energy bills!
Sustainable Eco-friendly solution
• PowerSensor:Ensures lower operating costs by saving energy
• EPEAT Gold ensures lowest impact on environment
• 0.1 watt Soft-Off mode
Ergonomic design
• 130mm height adjustment for ideal sitting position
• 90 degree screen rotation and smart cable management
• Tilt and swivel adjustment for an ideal viewing angle
Outstanding display performance
• SmartImage: Optimized user friendly display experience
Great convenience
• Built in stereo audio for multimedia experience
• USB port for convenient peripheral connections
Page 2
235P2ES/00

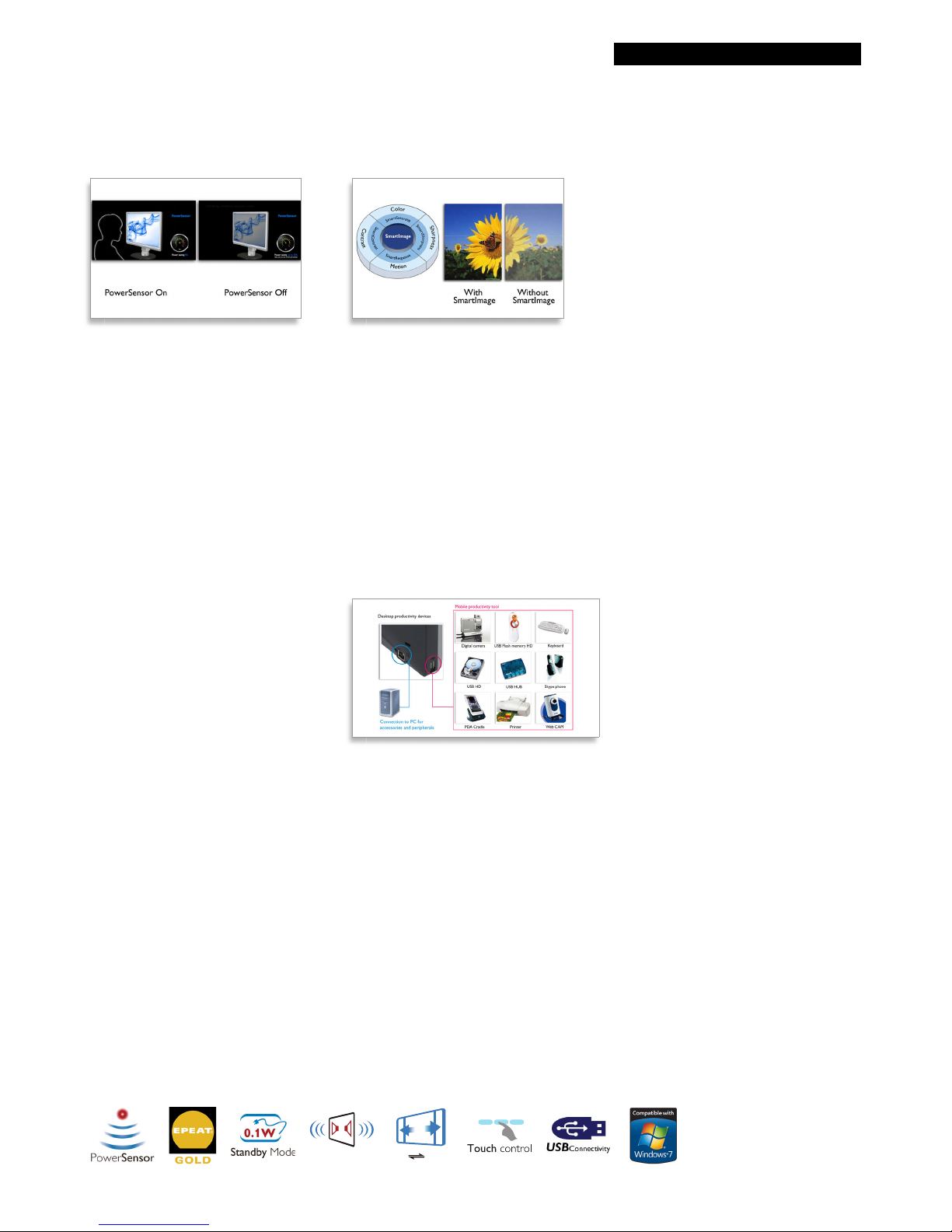

Highlights
LCD monitor with PowerSensor
P-line 23" (58.4 cm) Full HD
PowerSensor
PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared
signals to determine if user is present and
automatically reduces monitor brightness
when user steps away from the desk, cutting
energy costs by up to 80 percent and
prolonging monitor life.
EPEAT Gold
Philips EPEAT GOLD certified monitors
e
nsure protection for human health and
environment, and are highly energy efficient
ensuring low emissions of climate changing
green house gases. EPEAT program helps
purchasers evaluate, compare and select
Monitors based on 51 environmental criteria
supported by US EPA. GOLD certification
ensures that at least 30% of plastic used is Post
Consumer Resin, which ensures reduction in
use of toxic and hazardous materials. EPEAT
Gold is valid only where Philips registers the
product. Please visit www.epeat.net for
registration status in your country.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Image, Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
USB 2.0 port
USB port allows user to conveniently connect
their plug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available.
The conveniently located USB 2.0 port on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered
On independently, as they have higher power
requirements than the monitor USB port can
provide
ScreenRotate
ScreenRotate makes it possible to use a
moni
tor in either the landscape and portrait
mode; to change orientation for a better view
of a selected document or image, the monitor
is rotated to the desired orientation.
Screen tilt and swivel
Screen tilt and swivel is a mechanism built into
t
he base permits the monitor to swivel and tilt
backward or forward.
130mm height adjustment
The Super Ergo Base is a 'people friendly'
Phil
ips monitor base that tilts, swivels,is height
adjustable and Pivots to 90degree, so each user
can position the monitor for maximum viewing
comfort and efficiency
Built-in stereo audio
A pair of high quality stereo speakers built into
a displa
y device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
Built-in Audio
4:3 wide
Page 3
Issue date 2010-09-28
Version: 1.0.2
12 NC: 8670 000 68246
EAN: 87 12581 56450 6
© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
235P2ES/00
Specifications
LCD monitor with PowerSensor
P-line 23" (58.4 cm) Full HD
Picture/Display
• LCD panel type: TFT-LCD
• Panel Size: 23 inch / 58.4 cm
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast: 500,000:1
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
kHz (H) / 56 -75 Hz (V)
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• USB: USB 2.0 x 1
• Sync Input: Separate Sync, Sync on Green
• Audio In/Out: Stereo Audio, Earphone out (3.5
mm jack)x 1,
PC audio-in
Convenience
• Built-in Audio: 1.5Wx2
• User convenience: Smart
Image, Volume, Power
On/Off, PowerSensor, Menu
• OSD Languages: English, F
rench, German, Spanish,
Italian, Russian, Simplified Chinese, Portuguese
• Other convenience: VESA mount (100x100mm),
Ke
nsington lock
• Plug & Play Compatibility: DDC/CI, Mac OS X,
sR
GB, Windows 7/Vista/XP
Stand
• Height adjustment: 130 mm
• Pivot: Yes (auto pivot)
• Swivel: -65/65 degree
• Tilt: -5/20 degree
Power
• On mode: 28.62 W (EnergyStar 5.0 test method)
• Standby mode: 0.1 W
• Off mode: 0.1 W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50/60Hz
Dimensions
• Product with stand (mm): 566 x 517 x 250 mm
• Product without stand (mm): 566 x 360 x 57 mm
• Packaging in mm (WxHxD): 672 x 268 x 434 mm
Weight
• Product with stand (kg): 6.40 kg
• Product without stand (kg): 4.20 kg
• Product with packaging (kg): 8.10 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature Range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 50,000 hour(s)
Sustainability
• Environmental and energy: EPEAT Gold, RoHS,
EnergyStar 5.0
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC, Class
B, GOST, SEMKO, TCO 5.0, TUV/GS, TUV Ergo,
UL/cUL
Cabinet
• Color: Silver/Black
• Finish: Texture
•
