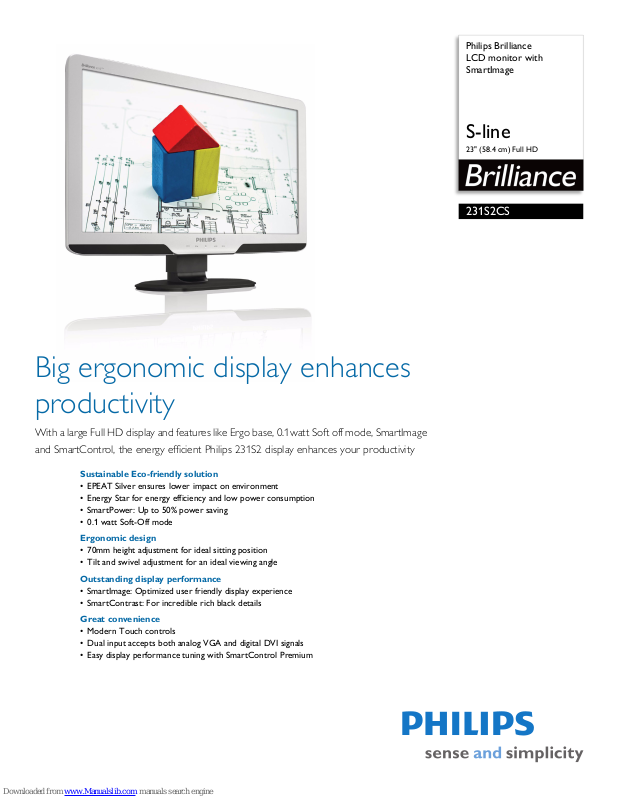

Philips Brilliance
LCD monitor with
SmartImage
S-line
23" (58.4 cm) Full HD
231S2CS
Big ergonomic display enhances
productivity
With a large Full HD display and features like Ergo base, 0.1watt Soft off mode, SmartImage
and SmartControl, the energy efficient Philips 231S2 display enhances your productivity
Sustainable Eco-friendly solution
• EPEAT Silver ensures lower impact on environment
• Energy Star for energy efficiency and low power consumption
• SmartPower: Up to 50% power saving
• 0.1 watt Soft-Off mode
Ergonomic design
• 70mm height adjustment for ideal sitting position
• Tilt and swivel adjustment for an ideal viewing angle
Outstanding display performance
• SmartImage: Optimized user friendly display experience
• SmartContrast: For incredible rich black details
Great convenience
• Modern Touch controls
• Dual input accepts both analog VGA and digital DVI signals
• Easy display performance tuning with SmartControl Premium
Page 2
LCD monitor with SmartImage
S-line 23" (58.4 cm) Full HD
Highlights
231S2CS/00
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface allows
you to select various modes like Office, Image,
Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the contrast,
color saturation and sharpness of images and
videos for ultimate display performance. The
Economy mode option offers you major power
savings. All in real time with the press of a single
button!
SmartPower
SmartPower is an artificial intelligent technology
w
hich dynamically analyzes the content of the
screen image to achieve power saving. The
backlight intensity can be controlled
automatically and pre-set by the system to
reduce the power consumption by up to 50%,
which saves substantially on energy costs
Dual input
Dual input provides connectors to
accommodate input of both analog VGA and
digital DVI signals.
EPEAT Silver
Philips EPEAT Silver certified monitors ensure
p
rotection for human health and environment,
and are highly energy efficient ensuring low
emissions of climate changing green house gases.
EPEAT program helps purchasers evaluate,
compare and select Monitors based on 51
environmental criteria supported by US EPA.
EPEAT Silver is valid only where Philips registers
the product. Please visit www.epeat.net for
registration status in your country.
Energy Star 5.0
Energy Star is a US EPA sponsored energy
e
fficiency program also adopted by many other
countries. Energy Star certification ensures that
you are buying a product which meets the latest
power efficiency standards which operates with
maximum power efficiency at all operational
levels. New Philips monitors are certified for
Energy Star 5.0 specifications and meet or
exceed the standard. For example, in sleep
mode Energy Star 5.0 requires less than 1watt
power consumption, whereas Philips monitors
consume less than 0.5watts. Further details can
be obtained from www.energystar.gov
Screen tilt and swivel
Screen tilt and swivel is a mechanism built into
the b
ase permits the monitor to swivel and tilt
backward or forward.
70mm height adjustment
The Compact Ergo Base is a 'people friendly'
Phil
ips monitor base that tilts, swivels and is
height adjustable so each user can position the
monitor for maximum viewing comfort and
efficiency
Touch controls
Touch controls are intelligent, touch sensitive
icon
s that replace protruding buttons that lets
the user adjust the monitor to their
requirement. Responding to your lightest
touch,Touch control gives the monitor a
modern feel
SmartContrast
SmartContrast is a Philips technology that
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos or
when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
Page 3
LCD monitor with SmartImage
S-line 23" (58.4 cm) Full HD
Specifications
231S2CS/00
Picture/Display
• LCD panel type: TFT-LCD
• Panel Size: 23 inch / 58.4 cm
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast: 500000:1
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 -83 kHz (H) / 56 -75 Hz (V)
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• Sync Input: Separate Sync,
Sync on Green
Convenience
•User convenience: SmartImage, Brightness, Power
On/Off, SmartPower, Menu
• OSD Languages: English, Fre
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: VESA mount (100x100mm),
sington lock
Ken
• Plug & Play Compatibility: DDC/CI, Mac OS X,
ndows 7/Vista/XP, sRGB
Wi
nch, German, Italian,
Stand
• Height adjustment: Up to 70 mm
• Swivel: -65 / 65 degree
• Tilt: -5 / 20 degree
Power
• On mode: 28.62 W (EnergyStar 5.0 test method)
• Standby mode: 0.1 W
• Off mode: 0.1 W
• Power LED indicator: Operation - White, Standby
mo
de- White (blinking)
• Power supply: Built-in, 100-240VAC, 50/60Hz
Dimensions
• Product with stand (mm): 566 x 499 x 249 mm
• Product without stand (mm): 566 x 360 x 50 mm
• Packaging in mm (WxHxD): 615 x 478 x 171 mm
Weight
• Product with stand (kg): 4.57 kg
• Product without stand (kg): 4.19 kg
• Product with packaging (kg): 6.40 kg
Operating conditions
• Temperature range (operation): 0 to 40 °C
• Temperature Range (storage): -20 to 60 °C
• Relative humidity: 20%-80 %
• MTBF: 50,000 hour(s)
Sustainability
• Environmental and energy: RoHS, EPEAT Silver,
EnergyStar 5.0
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, GOST, CE Mark, FCC,
Class B, SEMKO, TCO 5.0, TUV/GS, TUV Ergo, UL/
cUL
Cabinet
• Color: Silver/Black
• Finish: Texture
•
Issue date 2010-12-10
Version: 2.0.5
12 NC: 8670 000 65362
EAN: 87 12581 55311 1
© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
