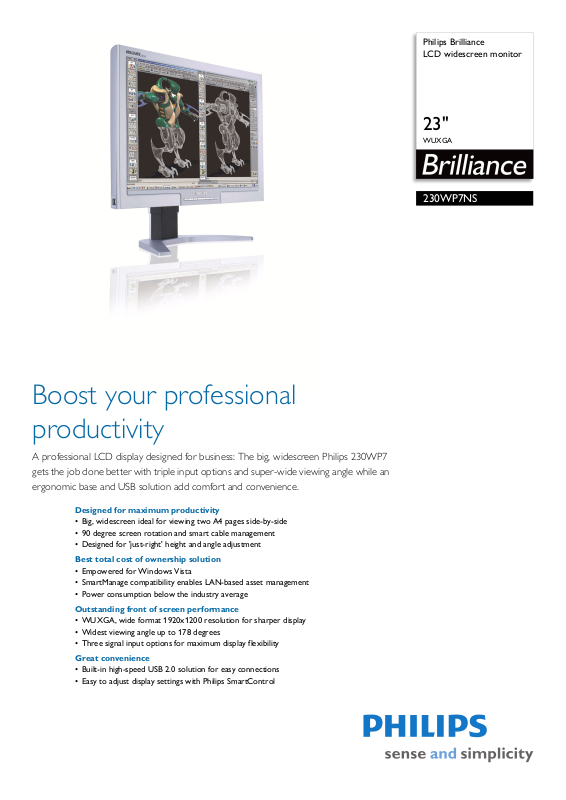

Philips Brilliance
LCD widescreen monitor
23"
WUXGA
230WP7NS
Boost your professional
productivity
A professional LCD display designed for business: The big, widescreen Philips 230WP7
gets the job done better with triple input options and super-wide viewing angle while an
ergonomic base and USB solution add comfort and convenience.
Designed for maximum productivity
• Big, widescreen ideal for viewing two A4 pages side-by-side
• 90 degree screen rotation and smart cable management
• Designed for 'just-right' height and angle adjustment
Best total cost of ownership solution
• Empowered for Windows Vista
• SmartManage compatibility enables LAN-based asset management
• Power consumption below the industry average
Outstanding front of screen performance
• WUXGA, wide format 1920x1200 resolution for sharper display
• Widest viewing angle up to 178 degrees
• Three signal input options for maximum display flexibility
Great convenience
• Built-in high-speed USB 2.0 solution for easy connections
• Easy to adjust display settings with Philips SmartControl
Page 2
LCD widescreen monitor
USB
Connectivity
23" WUXGA
Highlights
230WP7NS/00
Super Ergo Base
The Super Ergo base is a monitor base that
d
elivers ergonomic display comfort and
provides intelligent cable management. The
base's people-friendly height, swivel, tilt and
rotation angle adjustments position the
monitor for maximum comfort that can ease
the physical strains of a long workday;
intelligent cable management reduces cable
clutter and keeps the workspace neat and
professional.
Windows Vista ready
Philips Vista-ready monitors are empowered
for vi
brant, exciting display of this new, visually
sophisticated and demanding Windows
operating system, designed to enhance your
entertainment experience, make you more
productive and help you control your
computing experience at home and in the
office, making viewing, finding and organising
information for work or play quick, efficient
and easy.
SmartManage enabled
SmartManage is a system for monitoring,
managing and
as well as delivering remote support to users
who experience difficulties - all accomplished
over a LAN.
WUXGA, wide format 1920 x 1200
Wide format of Ultra Extended Graphics
Array,
displaying 1920 x 1200 resolution, or
approximately 2.3 million pixels.
Widest viewing angle (178°)
The widest viewing angle up to 178 degree
prov
ides the clearest display from any angles.
Triple input
Triple input is a means for displaying digital and
ana
logue signals. A triple input monitor
provides one D-Sub (VGA) and one DVI-I
interface connector. The DVI-I interface
connector accepts either a digital or an
analogue signal input via optional adapter for
checking status of display devices
a display specification that is capable of
maximum display flexibility and 'insurance'
from your monitor obsolete.
USB connectivity solution
The universal serial bus or USB is a standard
p
rotocol for linking PCs and peripherals.
Because it delivers high speed at a low cost,
USB has become the most popular method for
connecting peripheral devices to a computer.
By placing a USB 2.0 solution in a monitor,
Philips provides a conveniently located, easyto-use, high-speed USB connection for reading,
writing, loading and transferring programs,
data, digital media or music files to, from or
among your PC and one or more USB devices.
SmartControl
PC software for fine tuning display
p
erformance and settings. Philips offers users
two choices for display setting adjustment.
Either navigate the multilevel On Screen
Display menu through buttons on the display
itself or use the Philips SmartControl software
to easily adjust the various display settings in a
familiar way.
Page 3
LCD widescreen monitor
23" WUXGA
Specifications
230WP7NS/00
Picture/Display
• LCD panel type: 1920 x 1200 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 23" / 58.4 cm
• Effective viewing area: 495.4 x 309.6 mm
• Pixel pitch: 0.258 x 0.258 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 700:1
• Display colours: 16.7 M
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Response time (typical): 12 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1920 x 1200 @ 60Hz
al input)
(digit
• Recommended Resolution: 1920 x 1200 @ 60Hz
al input)
(digit
• Video Dot Rate: 205 MHz
• Horizontal Scanning Frequency: 30 - 94 kHz
• Vertical Scanning Frequency: 56 - 85 Hz
• Aspect ratio: 16:10
•sRGB
Connectivity
• Signal Input: Analogue (VGA), DVI-I, DVI-D
• USB: 4 x USB 2.0
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Green
Convenience
• Convenience Enhancements: On-screen Display,
SmartManage enabled
• Monitor Controls: Auto, Brightness Control (Up/
), Left/Right, Menu (OK), Power On/Off
Down
• OSD Languages: English, Fr
Russian, Spanish
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC/CI, Windows 98/
2000/XP/Vista
ME/
• Regulatory Approvals: CE Mark, Energy Star, FCC-
ench, German, Italian,
n lock compatible
, CSA, SEMKO, TCO '03, TÜV/GS, TÜV Ergo
B, UL
•Swivel: +/- 45°
• Tilt: -5° to 25°
• Pivot: 90° (counter-clockwise)
• VESA Mount: 100 x 100 mm
Accessories
• Included Accessories: AC Power Cord, DVI-D
cable, USB cable, VGA cable
• User Manual
Dimensions
•Box dimensions (W x H x D):
655 x 547 x 305 mm
• Box dimensions in inch (W x H x D):
.8 x 21.5 x 12 inch
25
•Set dimensions (W x H x D):
8 x 380.4 x 87.6 mm
54
• Set dimensions in inch (W
21.6 x 15 x 3.5 inch
• Set dimensions with stand (W x H x D):
8 x 422.6 x 215.3 mm
54
•Set dimensions with st
21.6 x 16.6 x 8.5 inch
• Height adjustment range: 130 mm
• Height adjustment range (inch): 5.1 inch
• MTBF: 50,000 hrs
• Relative Humidity: 20% - 80%
• Temperature range (operation): 0°C to 35°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 9.6 kg
• Product weight (+stand) (lb): 21.1 lb
• Weight incl. Packaging: 11.8 kg
• Weight incl. Packaging (lb): 26 lb
x H x D):
and in inch (W x H x D):
Power
• Complies with: Energy Star
• Consumption: 75 W (Typical)
• Off Mode: < 2 W
• Power LED indicator: Stand by/sleep - Amber,
eration - green
Op
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
