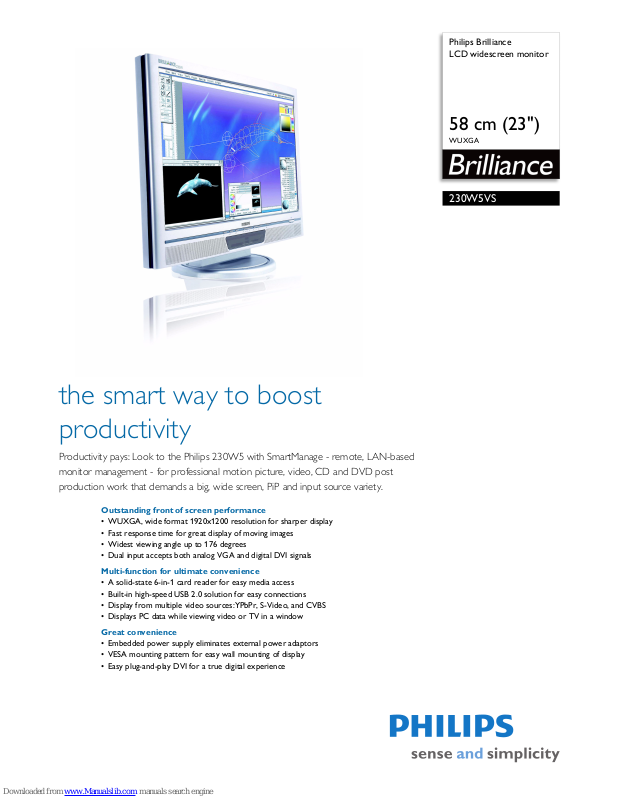

Page 1
Philips Brilliance
LCD widescreen monitor
58 cm (23")
WUXGA
230W5VS
the smart way to boost
productivity
Productivity pays: Look to the Philips 230W5 with SmartManage - remote, LAN-based
monitor management - for professional motion picture, video, CD and DVD post
production work that demands a big, wide screen, PiP and input source variety.
Outstanding front of screen performance
• WUXGA, wide format 1920x1200 resolution for sharper display
• Fast response time for great display of moving images
• Widest viewing angle up to 176 degrees
• Dual input accepts both analog VGA and digital DVI signals
Multi-function for ultimate convenience
• A solid-state 6-in-1 card reader for easy media access
• Built-in high-speed USB 2.0 solution for easy connections
• Display from multiple video sources:YPbPr, S-Video, and CVBS
• Displays PC data while viewing video or TV in a window
Great convenience
• Embedded power supply eliminates external power adaptors
• VESA mounting pattern for easy wall mounting of display
• Easy plug-and-play DVI for a true digital experience
Page 2
Issue date 2011-06-07
Version: 3.0.4
12 NC: 8639 000 15335
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
Highlights
230W5VS/27
LCD widescreen monitor
58 cm (23") WUXGA
Specifications
WUXGA, wide format 1920 x 1200
Wide format of Ultra Extended Graphics Array, a
display specification that is capable of displaying 1920
x 1200 resolution, or approximately 2.3 million
pixels.
Fast response time
Response time measures signal reaction speed in
milliseconds. On/off response time measures the
time required for the screen to turn from
completely white to completely black and vice versa.
Fast on/off response time improves display of text.
Gray-to-grey response time measures the average
time of transition between several sets of random
gray levels - Lower numbers mean faster transitions.
Faster is better because a fast response time
eliminates visible image artifacts that could dampen
your experience when viewing fast moving images or
objects.
Widest viewing angle
The widest viewing angle up to 176 degree provides
the clearest display from any angle.
Dual input
Dual input provides connectors to accommodate
input of both analog VGA and digital DVI signals.
Universal card reader (UCR)
A UCR is a device that reads data from portable
media and transfers data to PC. It reads data from
SD/MMC, Memory Stick, Smart Media and two types
of Compact Flash memory cards without an
additional peripheral.
USB connectivity solution
The universal serial bus or USB is a standard
protocol for linking PCs and peripherals. Because it
delivers high speed at a low cost, USB has become
the most popular method for connecting peripheral
devices to a computer. By placing a USB 2.0 solution
in a monitor, Philips provides a conveniently located,
easy-to-use, high-speed USB connection for reading,
writing, loading and transferring programs, data,
digital media or music files to, from or among your
PC and one or more USB devices.
Video connection
Plugs to accomodate signal input from a variety of
sources
Picture in Picture
PIP enables the viewing of a small television or video
window at a selected location in a full-screen display.
Embedded power supply
An embedded power supply is a power adaptor built
into the body of a display device that replaces a bulky
external power adaptor.
VESA mounting holes
A unified industry standard for wall mounting IT
equipment set by the Video Electronics Standards
Association.
In-box DVI cable
A DVI cable is shipped with the product to provide
high quality digital display.
Large viewing area
Viewing area is the visible portion of a monitor
screen available for displaying data.
Screen tilt and swivel
Screen tilt and swivel is a mechanism built into the
base permits the monitor to swivel and tilt backward
or forward.
Widescreen
A big, widescreen display that improves productivity
by displaying two A4 pages side-by-side.
Front connections
A USB 2.0 hub and an universal card reader (UCR)
located on the front side of monitor for convenient
and efficient access.
SmartManage enabled
SmartManage is a system for monitoring, managing
and checking status of display devices as well as
delivering remote support to users who experience
difficulties - all accomplished over a LAN.
USB
Connectivity
Picture/Display
• LCD panel type: 1920 x 1200 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 23" / 58.4 cm
• Effective viewing area: 495.4 x 309.6 mm
• Pixel pitch: 0.258 (H) x 0.258 (V) mm
• Brightness: 250 cd/m²
• Contrast ratio (typical): 500:1
• Display colors: 16 M
• Viewing angle: @ C/R > 10
• Viewing angle (H / V): 176 / 176 degree
• Response time (typical): 16 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1920 x 1200 @ 60Hz
• Optimum resolution: 1920 x 1200 @ 60Hz
• Factory Preset Modes: 20 modes
• User definable modes: 15 modes
• Horizontal Scanning Frequency: 30 - 94; 28 - 94
(YPb
Pr) kHz
• Refresh Rate (V): 56 - 85 Hz
• Aspect ratio: 16:10
• Picture enhancement: Pictur
e in Picture,
Progressive scan
Connectivity
• Audio input for PC: 3.5mm Phone Jack x 2
• Audio input for video: Audio Left/Right (RCA x 2)
• AV 1: CVBS in, S-Video, YPbPr
• Other connections: Stereo line out
• Signal Input: VGA (Analog ), DVI-I
• USB: USB 2.0
• Other video input: Component Video, S-Video
Convenience
• Built-in Audio: 3W RMSx2 stereo speakers
• User convenience: On-screen Display
• Monitor Controls: Auto, Brightness Control, Left/
Ri
ght, Menu (OK), Power On/Off, Up/Down,
Volume control
• OSD Languages: English, Fr
ench, German, Italian,
Simplified Chinese, Spanish, Japanese
• Other convenience: Kensington lock
• Plug & Play Compatibility: DDC CI, Windows 98/
ME/
2000/XP
• Regulatory approvals: CE Mark, FCC-B, UL, CSA,
NUT
EK, Energy Star, SEMKO, TCO '03, TÜV/GS,
TÜV Ergo
• Swivel: +/- 170°
• Tilt: -5 degree to +20 degree
• VESA Mount: 100 x 100 mm
Accessories
• User Manual
• Included accessories: AC Power
Cord, PC audio
cable, USB cable, VGA cable, DVI-D cable
Dimensions
• Dimensions (with base) (W x H x D):
548 x 452 x 250 mm
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -20°C to 60°C
•Weight: 9 kg
Power
• Complies with: Energy Star, NUTEK
• Consumption (On mode
): 90W (Typical)
• Consumption (Off Mode): < or = 2 W
• Power LED indicator: Operation - Blue, Stand by/
slee
p - Amber
• Power supply: Built-in
•
