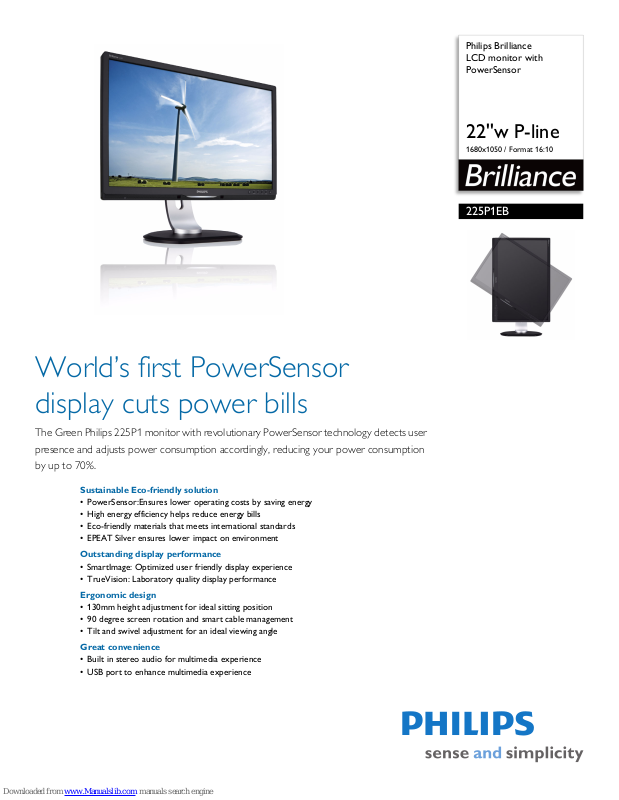

Page 1
Philips Brilliance
LCD monitor with
PowerSensor
22''w P-line
1680x1050 / Format 16:10
225P1EB
World’s first PowerSensor
display cuts power bills
The Green Philips 225P1 monitor with revolutionary PowerSensor technology detects user
presence and adjusts power consumption accordingly, reducing your power consumption
by up to 70%.
Sustainable Eco-friendly solution
• PowerSensor:Ensures lower operating costs by saving energy
• High energy efficiency helps reduce energy bills
• Eco-friendly materials that meets international standards
• EPEAT Silver ensures lower impact on environment
Outstanding display performance
• SmartImage: Optimized user friendly display experience
• TrueVision: Laboratory quality display performance
Ergonomic design
• 130mm height adjustment for ideal sitting position
• 90 degree screen rotation and smart cable management
• Tilt and swivel adjustment for an ideal viewing angle
Great convenience
• Built in stereo audio for multimedia experience
• USB port to enhance multimedia experience
Page 2
LCD monitor with PowerSensor
22''w P-line 1680x1050 / Format 16:10
Highlights
225P1EB/27
PowerSensor
PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared signals
to determine if user is present and automatically
reduces monitor brightness when user steps
away from the desk, cutting energy costs by up
to 70 percent and prolonging monitor life.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface allows
you to select various modes like Office, Image,
Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the contrast,
color saturation and sharpness of images and
videos for ultimate display performance. The
Economy mode option offers you major power
savings. All in real time with the press of a single
button!
Built-in stereo audio
A pair of high quality stereo speakers built into
a di
splay device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
USB port for multimedia
The universal serial bus or USB is a standard
protocol for linking PCs and peripherals.
Because it delivers high speed at a low cost, USB
has become the most popular method for
connecting peripheral devices to a computer. A
port located on a monitor directly in the user's
line of sight provides easy, high-speed
connectivity for USB devices at a convenient
location. (USB 2.0 support is dependent on your
PC's USB configuration; when connected to a
PC that supports USB 2.0, your monitor is USB
2.0 compatible)
130mm height adjustment
The Super Ergo Base is a 'people friendly' Philips
moni
tor base that tilts, swivels,is height
adjustable and Pivots to 90degree, so each user
can position the monitor for maximum viewing
comfort and efficiency
ScreenRotate
ScreenRotate makes it possible to use a monitor
i
n either the landscape and portrait mode; to
change orientation for a better view of a
selected document or image, the monitor is
rotated to the desired orientation.
High energy efficiency
Philips has taken a lead in ensuring that all its
pro
ducts switch to energy efficient solutions. By
using efficient power supplies and reduction in
components, Philips has ensured that your
monitor typically consumes about 50% less
power than its equivalent previous generation
model. Energy saving is further enhanced by
using only 0.5 watts in sleep mode. Lower
power consumption results in fewer CO2
emissions. You can read more about Philips and
energy efficiency @ www.philips.com/about/
sustainability/oursustainabilityfocus/
energyefficiency/index.page
Eco-friendly materials
With sustainability as a strategic driver of its
busine
ss, Philips is committed to use ecofriendly materials across its new product range.
Lead-free materials are used across the range.
All body plastic parts, metal chassis parts and
packing material uses 100% recyclable material.
Substantial reduction in mercury content in
lamps has been achieved. We strictly adhere to
RoHs standards which ensure that all hazardous
material is removed. You can read more about
sustainability and Philips @ http://
www.asimpleswitch.com/global/
EPEAT Silver
Philips EPEAT Silver certified monitors ensure
pro
tection for human health and environment,
and are highly energy efficient ensuring low
emissions of climate changing green house gases.
EPEAT program helps purchasers evaluate,
compare and select Monitors based on 51
environmental criteria supported by US EPA.
EPEAT Silver is valid only where Philips registers
the product. Please visit www.epeat.net for
registration status in your country.
Page 3
LCD monitor with PowerSensor
22''w P-line 1680x1050 / Format 16:10
Specifications
225P1EB/27
Picture/Display
• LCD panel type: TFT-LCD
• Panel Size: 22 inch / 55.9 cm
• Aspect ratio: 16:10
• Pixel pitch: 0.282 x 0.282 mm
• Brightness: 250 cd/m²
• SmartContrast: 25000:1
• Response time (typical): 5 ms
• Optimum resolution: 1680 x 1050 @ 60Hz
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Display colors: 16.7 M
• Picture enhancement: SmartImage
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz (V)
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• USB: USB 2.0 x 1
• Sync Input: Separate Sync,
• Audio In/Out: Stereo Audio
Sync on Green
Convenience
• Built-in Audio: 1.5 W x 2
• User convenience: Sensor, SmartI
Menu, Audio, Power On/Off
• OSD Languages: English, Fre
Italian, Russian, Simplified Chinese, Portuguese
• Other convenience: VESA mount (100x100mm),
sington lock
Ken
• Plug & Play Compatibility: DDC/CI, Mac OS X,
ws 7/Vista/XP/2000/98, sRGB
Windo
mage, Brightness,
nch, German, Spanish,
Stand
• Height adjustment: 130 mm
• Pivot: 90
• Swivel: -65/+65 degree
• Tilt: -5/20 degree
Power
• ECO mode: <17.5W
• On mode: 22.37W (EnergyStar 5.0 test method)
•Standby mode: <0.5 W
•Off mode: < 0.5 W
• Power LED indicator: Operation - White, Standby
de- White (blinking)
mo
• Power supply: Built-in, 100-240VAC, 50/60Hz
Dimensions
• Product with stand (mm): 589 x 502 x 220 mm
• Product with stand in inch: 22.97 x 19.58 x 8.58 inch
• Product without stand (mm): 346 x 502 x 58 mm
• Product without stand in inch: 13.49 x 19.58 x
2.26 inch
• Packaging in mm (WxHxD): 410 x 658 x 272 mm
• Packaging in inch (WxHxD): 15.99 x 25.67 x
10.6 inch
Weight
• Product with stand (kg): 6.47 kg
• Product with stand (lb): 14.23 lb
• Product without stand (kg): 4.15 kg
• Product without stand (lb): 9.13 lb
• Product with packaging (kg): 7.58 kg
• Product with packaging (lb): 16.68 lb
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature Range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 50,000 hour(s)
Sustainability
• Environmental and energy: EPEAT Silver, RoHS,
EnergyStar 5.0
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC, Class B,
GOST, SEMKO, TCO '03, TUV/GS, TUV Ergo, UL/
cUL
Cabinet
• Color: Black
• Finish: Texture
•
Issue date 2010-10-18
Version: 6.0.1
12 NC: 8670 000 57725
UPC: 6 09585 17957 8
© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
