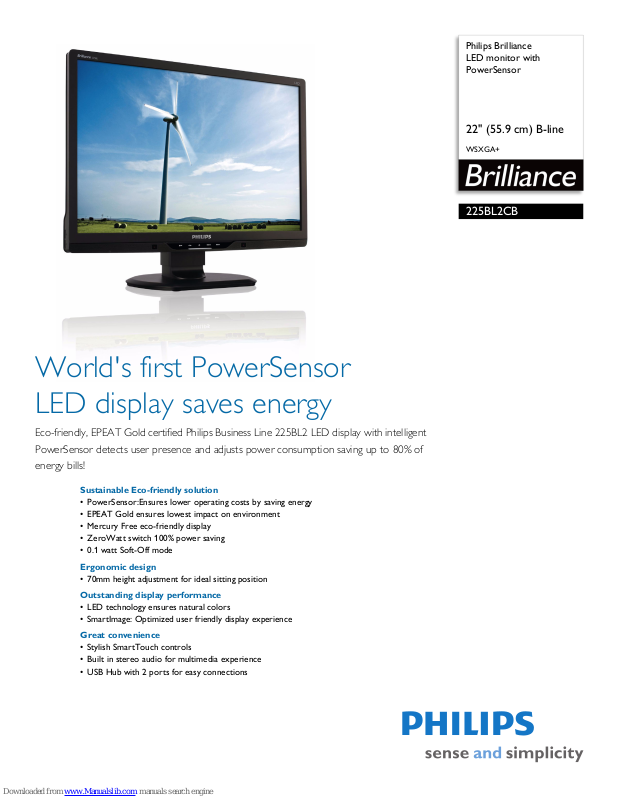

Page 1
Philips Brilliance
LED monitor with
PowerSensor
22'' (55.9 cm) B-line
WSXGA+
225BL2CB
World's first PowerSensor
LED display saves energy
Eco-friendly, EPEAT Gold certified Philips Business Line 225BL2 LED display with intelligent
PowerSensor detects user presence and adjusts power consumption saving up to 80% of
energy bills!
Sustainable Eco-friendly solution
• PowerSensor:Ensures lower operating costs by saving energy
• EPEAT Gold ensures lowest impact on environment
• Mercury Free eco-friendly display
• ZeroWatt switch 100% power saving
• 0.1 watt Soft-Off mode
Ergonomic design
• 70mm height adjustment for ideal sitting position
Outstanding display performance
• LED technology ensures natural colors
• SmartImage: Optimized user friendly display experience
Great convenience
• Stylish SmartTouch controls
• Built in stereo audio for multimedia experience
• USB Hub with 2 ports for easy connections
Page 2
LED monitor with PowerSensor
Built-in Audio
22'' (55.9 cm) B-line WSXGA+
Highlights
225BL2CB/27
PowerSensor
PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared signals
to determine if user is present and automatically
reduces monitor brightness when user steps
away from the desk, cutting energy costs by up
to 80 percent and prolonging monitor life.
LED technology
White LED's are solid state devices which light
up to full
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
Mercury Free
Philips monitors with LED backlighting are free
of
natural substances which affects humans and
animals. This allows for a eco-friendly display
through out its life-cycle from manufacturing to
disposal. Being at the forefront of sustainability
and with our longstanding commitment to
reduce the environmental impact of our
products, we enable consumers to make simple,
responsible choices about the products they buy
and the impact they have before, during and at
the end of their life cycle.
, consistent brightness faster saving
Mercury content, one of the most toxic
EPEAT Gold
Philips EPEAT GOLD certified monitors ensure
p
rotection for human health and environment,
and are highly energy efficient ensuring low
emissions of climate changing green house gases.
EPEAT program helps purchasers evaluate,
compare and select Monitors based on 51
environmental criteria supported by US EPA.
GOLD certification ensures that at least 30% of
plastic used is Post Consumer Resin, which
ensures reduction in use of toxic and hazardous
materials. EPEAT Gold is valid only where
Philips registers the product. Please visit
www.epeat.net for registration status in your
country.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface allows
you to select various modes like Office, Image,
Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the contrast,
color saturation and sharpness of images and
videos for ultimate display performance. The
Economy mode option offers you major power
savings. All in real time with the press of a single
button!
Zero Switch
In line with Philips' commitment to "Sense and
Sim
plicity" we enable you to make a responsible
choice to switch OFF your monitor at any given
time. At the touch of a single ON/OFF button
which is conveniently located at the back of the
monitor, the monitors' energy consumption is
reduced to Zero. In the OFF mode, the monitor
is completely cut off from AC power and
thereby reducing your carbon footprint even
further.
2 Ports USB 2.0 HUB
USB Hub allows user to conveniently connect
their pl
ug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available. The
conveniently located USB 2.0 Hub on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered On
independently, as they have higher power
requirements than the monitor USB Hub can
provide.
SmartTouch controls
SmartTouch controls are intelligent, touch
sensitive
Responding to your lightest touch, SmartTouch
controls, for example, power up your monitor
or brighten and sharpen your display with
SmartImage Lite. When activated, SmartTouch
icons glow to indicate that your commands have
been implemented.
70mm height adjustment
The Compact Ergo Base is a 'people friendly'
Phil
height adjustable so each user can position the
monitor for maximum viewing comfort and
efficiency
icons that replace protruding buttons.
ips monitor base that tilts, swivels and is
Page 3
LED monitor with PowerSensor
22'' (55.9 cm) B-line WSXGA+
Specifications
225BL2CB/27
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 22 inch / 55.9 cm
• Aspect ratio: 16:10
• Optimum resolution: 1680 x 1050 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• SmartContrast:
• Pixel pitch: 0.282 x 0.282 mm
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 -83 kHz (H) / 56 -75 Hz (V)
•sRGB
20,000,000:1
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• USB: USB 2.0 x 2
• Sync Input: Separate Sync,
• Audio In/Out: Stereo Audio
Sync on Green
Convenience
• Built-in Audio: 1.5Wx2
•User convenience: SmartImage, Vo
PowerSensor, Menu, Power On/Off
• OSD Languages: English, Fre
Italian, Russian, Simplified Chinese, Portuguese
• Other convenience: VESA mount (100x100mm),
sington lock
Ken
• Plug & Play Compatibility: DDC/CI, Windows 7/
sta/XP/2000/98, Mac OS X, sRGB
Vi
lume,
nch, German, Spanish,
Stand
• Height adjustment: 70 mm
• Swivel: -65/65 degree
• Tilt: -5/20 degree
Power
• Smart Power Mode: 12W (Min.)
• On mode: 22.5W (EnergyStar 5.0 test method)
• Standby mode: < 0.1 W
• Off mode: 0 W (with Zero Power Switch)
• Power LED indicator: Operation - White, Standby
de- White (blinking)
mo
• Power supply: Built-in, 100-240VAC, 50/60Hz
Dimensions
• Product with stand (mm): 484 x 505 x 249 mm
• Product with stand in inch: 19.06 x 19.88 x 9.80 inch
• Product without stand (mm): 351 x 505 x 59 mm
• Product without stand in inch: 13.82 x 19.88 x
2.32 inch
• Packaging in mm (WxHxD): 468 x 565 x 175 mm
• Packaging in inch (WxHxD): 18.43 x 22.24 x
6.89 inch
Weight
• Product with stand (kg): 5.17 kg
• Product with stand (lb): 11.37 lb
• Product without stand (kg): 4.15 kg
• Product without stand (lb): 9.13 lb
• Product with packaging (kg): 6.92 kg
• Product with packaging (lb): 15.22 lb
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature Range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EPEAT Gold, RoHS,
EnergyStar 5.0
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC, Class B,
GOST, SEMKO, TCO 5.0, TUV/GS, TUV Ergo, UL/
cUL
Cabinet
• Color: Black/Black
• Finish: Texture
•
Issue date 2010-09-15
Version: 2.0.2
12 NC: 8670 000 62232
UPC: 6 09585 18960 7
© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
