Philips Brilliance 221P3LPYEB Specifications

Download

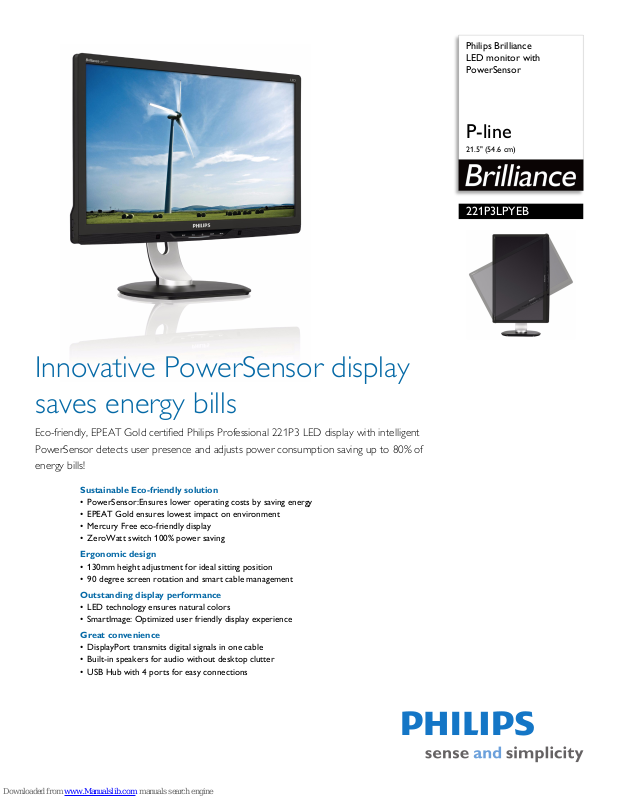

Page 1

Philips Brilliance LED monitor with PowerSensor

P-line

21.5" (54.6 cm)

221P3LPYEB

Innovative PowerSensor display saves energy bills

Eco-friendly, EPEAT Gold certified Philips Professional 221P3 LED display with intelligent PowerSensor detects user presence and adjusts power consumption saving up to 80% of energy bills!

Sustainable Eco-friendly solution

• PowerSensor:Ensures lower operating costs by saving energy

• EPEAT Gold ensures lowest impact on environment

• Mercury Free eco-friendly display

• ZeroWatt switch 100% power saving

Ergonomic design

• 130mm height adjustment for ideal sitting position

• 90 degree screen rotation and smart cable management

Outstanding display performance

• LED technology ensures natural colors

• SmartImage: Optimized user friendly display experience

Great convenience

• DisplayPort transmits digital signals in one cable

• Built-in speakers for audio without desktop clutter

• USB Hub with 4 ports for easy connections

Page 2

LED monitor with PowerSensor

PowerSensor

P-line 21.5" (54.6 cm)

Highlights

221P3LPYEB/00

PowerSensor

PowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if user is present and automatically reduces monitor brightness when user steps away from the desk, cutting energy costs by up to 80 percent and prolonging monitor life.

LED technology

White LED's are solid state devices which light up to full startup time. LED's are free from mercury content which allows for eco-friendly recycling and disposal process. LED's allow for better dimming control of LCD backlight, resulting in super high contrast ratio. It also gives superior color reproduction thanks to consistent brightness across the screen.

DisplayPort

DisplayPort is a direct drive digital link with twow any conversion. With higher capabilities than DVI standard, it is fully capable to support up to 15meter cables and 10.8 Gbps/sec data transfer. With this high performance and zero latency, you get the fastest imaging and refresh rates making DisplayPort the best choice for not only general office or home use, but also for the demanding 3-D gaming and movies, video editing and more. It also keeps interoperability in mind via use of various adapters.

, consistent brightness faster saving

ay connection from PC to Monitor without

EPEAT Gold

Philips EPEAT GOLD certified monitors ensure p

rotection for human health and environment, and are highly energy efficient ensuring low emissions of climate changing green house gases. EPEAT program helps purchasers evaluate, compare and select Monitors based on 51 environmental criteria supported by US EPA. GOLD certification ensures that at least 30% of plastic used is Post Consumer Resin, which ensures reduction in use of toxic and hazardous materials. EPEAT Gold is valid only where Philips registers the product. Please visit www.epeat.net for registration status in your country.

Zero Switch

In line with Philips' commitment to "Sense and S

implicity" we enable you to make a responsible choice to switch OFF your monitor at any given time. At the touch of a single ON/OFF button which is conveniently located at the back of the monitor, the monitors' energy consumption is reduced to Zero. In the OFF mode, the monitor is completely cut off from AC power and thereby reducing your carbon footprint even further.

ScreenRotate

ScreenRotate makes it possible to use a monitor i

n either the landscape and portrait mode; to change orientation for a better view of a selected document or image, the monitor is rotated to the desired orientation.

130mm height adjustment

The Super Ergo Base is a 'people friendly' Philips moni

tor base that tilts, swivels,is height adjustable and Pivots to 90degree, so each user can position the monitor for maximum viewing comfort and efficiency

SmartImage

SmartImage is an exclusive leading edge Philips technology that analyzes the content displayed on your screen and gives you optimized display performance. This user friendly interface allows you to select various modes like Office, Image, Entertainment, Economy etc., to fit the application in use. Based on the selection, SmartImage dynamically optimizes the contrast, color saturation and sharpness of images and videos for ultimate display performance. The Economy mode option offers you major power savings. All in real time with the press of a single button!

4 Ports USB 2.0 HUB

USB Hub allows user to conveniently connect their pl

ug and play multimedia devices such as USB memory devices, camera, portable HDD, Web camera, PDA, Printer and many other devices which has USB connection available. The conveniently located USB 2.0 Hub on the monitor allows USB 2.0 signals to pass thru to the computer. Note that many devices like cameras and HDD may need to be powered On independently, as they have higher power requirements than the monitor USB Hub can provide.

DisplayPort

Page 3

LED monitor with PowerSensor

P-line 21.5" (54.6 cm)

Specifications

221P3LPYEB/00

Picture/Display

• LCD panel type: TFT-LCD

• Backlight type: W-LED system

• Panel Size: 21.5 inch / 54.6 cm

• Effective viewing area: 476.6 (H) x 268.1 (V)

• Aspect ratio: 16:9

• Optimum resolution: 1920 x 1080 @ 60Hz

• Response time (typical): 5 ms

• Brightness: 250 cd/m²

• Contrast ratio (typical): 1000:1

• SmartContrast:

• Pixel pitch: 0.248 x 0.248 mm

• Viewing angle: 176º (H) / 170º (V), @ C/R > 5

• Picture enhancement: SmartImage

• Display colors: 16.7 M

• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz (V)

•sRGB

20,000,000:1

Connectivity

• Signal Input: VGA (Analog ), DVI-D (digital, HDCP), DisplayPort

• USB: USB 2.0 x 4

• Sync Input: Separate Sync,

• Audio In/Out: Earphone out (3.5 mm jac audio-in

Sync on Green

k)x 1, PC

Convenience

• Built-in Speaker: 1.5 W x 2

• User convenience: SmartImage, Volume, Power On/

werSensor, Menu

Off, Po

• OSD Languages: English, Fre Portuguese, Russian, Simplified Chinese, Spanish

• Other convenience: VESA mount (100x100mm),

sington lock

Ken

• Plug & Play Compatibility: DDC/CI, Mac OS X,

GB, Windows 7/Vista/XP

nch, German, Italian,

Stand

• Height adjustment: 130 mm

• Pivot: 90 degree, anti-clockwise, auto pivot

• Swivel: -65/+65 degree

• Tilt: -5/20 degree

Power

• ECO mode: 13.5 W (typ.)

• On mode: 17.8 W (EnergyStar 5.0 test method)

• Standby mode: 0.5W

• Off mode: 0 W (AC switch)

• Power LED indicator: Operation - White, Standby de- White (blinking)

• Power supply: Built-in, 100-240VAC, 50/60Hz

Dimensions

• Product with stand (mm): 507 x 487 x 220 mm

• Product without stand (mm): 507 x 323 x 59 mm

• Packaging in mm (WxHxD): 565 x 377 x 262 mm

Weight

• Product with stand (kg): 5.64 kg

• Product without stand (kg): 3.51 kg

• Product with packaging (kg): 7.43 kg

Operating conditions

• Temperature range (operation): 0°C to 40°C °C

• Temperature Range (storage): -20°C to 60°C °C

• Relative humidity: 20%-80 %

• MTBF: 30,000 hour(s)

Sustainability

• Environmental and energy: EnergyStar 5.0, EPEAT

Gold, RoHS

• Recyclable packaging material: 100 %

Compliance and standards

• Regulatory Approvals: BSMI, CE Mark, FCC Class B,

GOST, SEMKO, TCO 5.1, TUV Ergo, TUV/GS, UL/ cUL

Cabinet

• Color: Black

• Finish: Texture

•

Issue date 2011-01-13

Version: 2.0.2

12 NC: 8670 000 70618 EAN: 87 12581 57823 7

Specifications are subject t Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

o change without notice.
