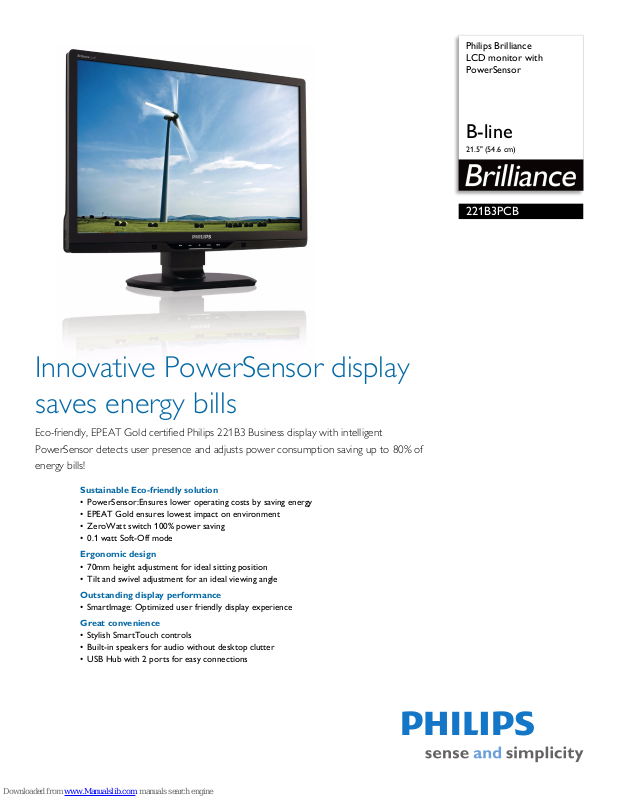

Page 1
Philips Brilliance
LCD monitor with
PowerSensor
B-line
21.5" (54.6 cm)
221B3PCB
Innovative PowerSensor display
saves energy bills
Eco-friendly, EPEAT Gold certified Philips 221B3 Business display with intelligent
PowerSensor detects user presence and adjusts power consumption saving up to 80% of
energy bills!
Sustainable Eco-friendly solution
• PowerSensor:Ensures lower operating costs by saving energy
• EPEAT Gold ensures lowest impact on environment
• ZeroWatt switch 100% power saving
• 0.1 watt Soft-Off mode
Ergonomic design
• 70mm height adjustment for ideal sitting position
• Tilt and swivel adjustment for an ideal viewing angle
Outstanding display performance
• SmartImage: Optimized user friendly display experience
Great convenience
• Stylish SmartTouch controls
• Built-in speakers for audio without desktop clutter
• USB Hub with 2 ports for easy connections
Page 2
LCD monitor with PowerSensor
PowerSensor
B-line 21.5" (54.6 cm)
Highlights
221B3PCB/27
PowerSensor
PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared signals
to determine if user is present and automatically
reduces monitor brightness when user steps
away from the desk, cutting energy costs by up
to 80 percent and prolonging monitor life.
Zero Switch
In line with Philips' commitment to "Sense and
S
implicity" we enable you to make a responsible
choice to switch OFF your monitor at any given
time. At the touch of a single ON/OFF button
which is conveniently located at the back of the
monitor, the monitors' energy consumption is
reduced to Zero. In the OFF mode, the monitor
is completely cut off from AC power and
thereby reducing your carbon footprint even
further.
EPEAT Gold
Philips EPEAT GOLD certified monitors ensure
prote
ction for human health and environment,
and are highly energy efficient ensuring low
emissions of climate changing green house gases.
EPEAT program helps purchasers evaluate,
compare and select Monitors based on 51
environmental criteria supported by US EPA.
GOLD certification ensures that at least 30% of
plastic used is Post Consumer Resin, which
ensures reduction in use of toxic and hazardous
materials. EPEAT Gold is valid only where
Philips registers the product. Please visit
www.epeat.net for registration status in your
country.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface allows
you to select various modes like Office, Image,
Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the contrast,
color saturation and sharpness of images and
videos for ultimate display performance. The
Economy mode option offers you major power
savings. All in real time with the press of a single
button!
2 Ports USB 2.0 HUB
USB Hub allows user to conveniently connect
their pl
ug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available. The
conveniently located USB 2.0 Hub on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered On
independently, as they have higher power
requirements than the monitor USB Hub can
provide.
SmartTouch controls
SmartTouch controls are intelligent, touch
sensitive
Responding to your lightest touch, SmartTouch
controls, for example, power up your monitor
or brighten and sharpen your display with
SmartImage Lite. When activated, SmartTouch
icons glow to indicate that your commands have
been implemented.
70mm height adjustment
The Compact Ergo Base is a 'people friendly'
Phil
height adjustable so each user can position the
monitor for maximum viewing comfort and
efficiency
Screen tilt and swivel
Screen tilt and swivel is a mechanism built into
the b
backward or forward.
icons that replace protruding buttons.
ips monitor base that tilts, swivels and is
ase permits the monitor to swivel and tilt
Page 3
LCD monitor with PowerSensor
B-line 21.5" (54.6 cm)
Specifications
221B3PCB/27
Picture/Display
• LCD panel type: TFT-LCD
• Panel Size: 21.5 inch / 54.6 cm
• Effective viewing area: 476.6 (H) x 268.1 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast: 500,000:1
• Pixel pitch: 0.248 x 0.248 mm
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz (V)
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• USB: USB 2.0 x 2
• Sync Input: Separate Sync,
• Audio In/Out: Earphone out (3.5 mm jac
audio-in
Sync on Green
k)x 1, PC
Convenience
• Built-in Speaker: 1.5W x 2
• User convenience: SmartImage, Volume, Power On/
werSensor, Menu
Off, Po
• OSD Languages: English, Fre
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: VESA mount (100x100mm),
sington lock
Ken
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7/Vista/XP
sR
nch, German, Italian,
• Standby mode: 0.1 W
•Off mode: 0 W
• Power LED indicator: Operation - White, Standby
de- White (blinking)
mo
• Power supply: 100-240VAC, 50/60Hz, Built-in
Dimensions
• Product with stand (mm): 507 x 400 x 220 mm
• Product with stand in inch: 19.96 x 15.75 x 8.66 inch
• Product without stand (mm): 507 x 323 x 59 mm
• Product without stand in inch: 19.96 x 12.72 x
2.32 inch
• Packaging in mm (WxHxD): 565 x 466 x 175 mm
• Packaging in inch (WxHxD): 22.24 x 18.35 x
6.89 inch
Weight
• Product with stand (kg): 4.83 kg
• Product with stand (lb): 10.63 lb
• Product without stand (kg): 3.46 kg
• Product without stand (lb): 7.61 lb
• Product with packaging (kg): 6.67 kg
• Product with packaging (lb): 14.67 lb
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature Range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 50,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 5.0, EPEAT
Gold, RoHS
• Recyclable packaging material: 100 %
Stand
• Height adjustment: up to 70 mm
• Swivel: -65/65 degree
• Tilt: -5/20 degree
Power
• ECO mode: 19 W
• On mode: 28.9 W (EnergyStar 5.0 test method)
Issue date 2011-02-23
Version: 1.0.2
12 NC: 8670 000 70286
UPC: 6 09585 20145 3
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class B,
GOST, SEMKO, TCO 5.1, TUV/GS, TUV Ergo, UL/
cUL
Cabinet
• Color: Black
• Finish: Texture
•
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
