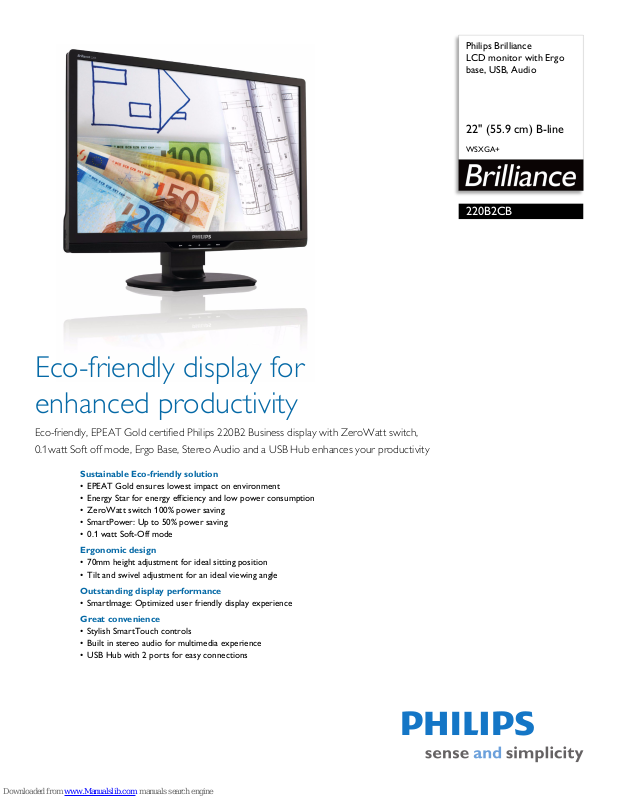

Philips Brilliance
LCD monitor with Ergo
base, USB, Audio
22'' (55.9 cm) B-line
WSXGA+
220B2CB
Eco-friendly display for
enhanced productivity
Eco-friendly, EPEAT Gold certified Philips 220B2 Business display with ZeroWatt switch,
0.1watt Soft off mode, Ergo Base, Stereo Audio and a USB Hub enhances your productivity
Sustainable Eco-friendly solution
• EPEAT Gold ensures lowest impact on environment
• Energy Star for energy efficiency and low power consumption
• ZeroWatt switch 100% power saving
• SmartPower: Up to 50% power saving
• 0.1 watt Soft-Off mode
Ergonomic design
• 70mm height adjustment for ideal sitting position
• Tilt and swivel adjustment for an ideal viewing angle
Outstanding display performance
• SmartImage: Optimized user friendly display experience
Great convenience
• Stylish SmartTouch controls
• Built in stereo audio for multimedia experience
• USB Hub with 2 ports for easy connections
Page 2
LCD monitor with Ergo base, USB, Audio
22'' (55.9 cm) B-line WSXGA+
Highlights
220B2CB/27
Built-in stereo audio
A pair of high quality stereo speakers built into
a
display device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
70mm height adjustment
The Compact Ergo Base is a 'people friendly'
Phili
ps monitor base that tilts, swivels and is
height adjustable so each user can position the
monitor for maximum viewing comfort and
efficiency
Screen tilt and swivel
Screen tilt and swivel is a mechanism built into
the
base permits the monitor to swivel and tilt
backward or forward.
2 Ports USB 2.0 HUB
USB Hub allows user to conveniently connect
the
ir plug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available. The
conveniently located USB 2.0 Hub on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered On
independently, as they have higher power
requirements than the monitor USB Hub can
provide.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface allows
you to select various modes like Office, Image,
Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the contrast,
color saturation and sharpness of images and
videos for ultimate display performance. The
Economy mode option offers you major power
savings. All in real time with the press of a single
button!
SmartPower
SmartPower is an artificial
which dynamically analyzes the content of the
screen image to achieve power saving. The
backlight intensity can be controlled
automatically and pre-set by the system to
reduce the power consumption by up to 50%,
which saves substantially on energy costs
Energy Star 5.0
Energy Star is a US EPA sponsored energy
e
fficiency program also adopted by many other
countries. Energy Star certification ensures that
intelligent technology
you are buying a product which meets the latest
power efficiency standards which operates with
maximum power efficiency at all operational
levels. New Philips monitors are certified for
Energy Star 5.0 specifications and meet or
exceed the standard. For example, in sleep
mode Energy Star 5.0 requires less than 1watt
power consumption, whereas Philips monitors
consume less than 0.5watts. Further details can
be obtained from www.energystar.gov
EPEAT Gold
Philips EPEAT GOLD certified monitors ensure
pro
tection for human health and environment,
and are highly energy efficient ensuring low
emissions of climate changing green house gases.
EPEAT program helps purchasers evaluate,
compare and select Monitors based on 51
environmental criteria supported by US EPA.
GOLD certification ensures that at least 30% of
plastic used is Post Consumer Resin, which
ensures reduction in use of toxic and hazardous
materials. EPEAT Gold is valid only where
Philips registers the product. Please visit
www.epeat.net for registration status in your
country.
SmartTouch controls
SmartTouch controls are intelligent, touch
sensitive
Responding to your lightest touch, SmartTouch
controls, for example, power up your monitor
or brighten and sharpen your display with
SmartImage Lite. When activated, SmartTouch
icons glow to indicate that your commands have
been implemented.
icons that replace protruding buttons.
Built-in Audio
Page 3
LCD monitor with Ergo base, USB, Audio
22'' (55.9 cm) B-line WSXGA+
Specifications
220B2CB/27
Picture/Display
• LCD panel type: TFT-LCD
• Panel Size: 22 inch / 55.9 cm
• Aspect ratio: 16:10
• Optimum resolution: 1680 x 1050 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• SmartContrast: 500,000:1
• Pixel pitch: 0.282 x 0.282 mm
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 -83 kHz (H) / 56 -75 Hz (V)
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• USB: USB 2.0 x 2
• Sync Input: Separate Sync,
• Audio In/Out: Stereo Audio
Sync on Green
Convenience
• Built-in Audio: 1.5Wx2
•User convenience: SmartPower, SmartImage,
lume, PowerSensor, Menu, Power On/Off
Vo
• OSD Languages: English, Fre
Italian, Russian, Simplified Chinese, Portuguese
• Other convenience: VESA mount (100x100mm),
sington lock
Ken
• Plug & Play Compatibility: DDC/CI, Windows 7/
sta/XP/2000/98, Mac OS X, sRGB
Vi
nch, German, Spanish,
Stand
• Height adjustment: 70 mm
• Swivel: -65/65 degree
• Tilt: -5/20 degree
Power
• Smart Power Mode: 15W (Min.)
• On mode: 22.5W (EnergyStar 5.0 test method)
• Standby mode: < 0.1 W
• Off mode: 0 W (with Zero Power Switch)
• Power LED indicator: Operation - White, Standby
de- White (blinking)
mo
• Power supply: Built-in, 100-240VAC, 50/60Hz
Dimensions
• Product with stand (mm): 484 x 505 x 249 mm
• Product with stand in inch: 19.06 x 19.88 x 9.80 inch
• Product without stand (mm): 351 x 505 x 59 mm
• Product without stand in inch: 13.82 x 19.88 x
2.32 inch
• Packaging in mm (WxHxD): 468 x 565 x 175 mm
• Packaging in inch (WxHxD): 18.43 x 22.44 x
6.89 inch
Weight
• Product with stand (kg): 5.17 kg
• Product with stand (lb): 11.37 lb
• Product without stand (kg): 4.15 kg
• Product without stand (lb): 9.13 lb
• Product with packaging (kg): 6.92 kg
• Product with packaging (lb): 15.22 lb
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature Range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 50,000 hour(s)
Sustainability
• Environmental and energy: EPEAT Gold, EnergyStar
5.0, RoHS
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC, Class B,
GOST, SEMKO, TCO 5.0, TUV/GS, TUV Ergo, UL/
cUL
Cabinet
• Color: Black/Black
• Finish: Texture
•
Issue date 2010-07-08
Version: 1.0.2
12 NC: 8670 000 61658
UPC: 6 09585 18838 9
© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
