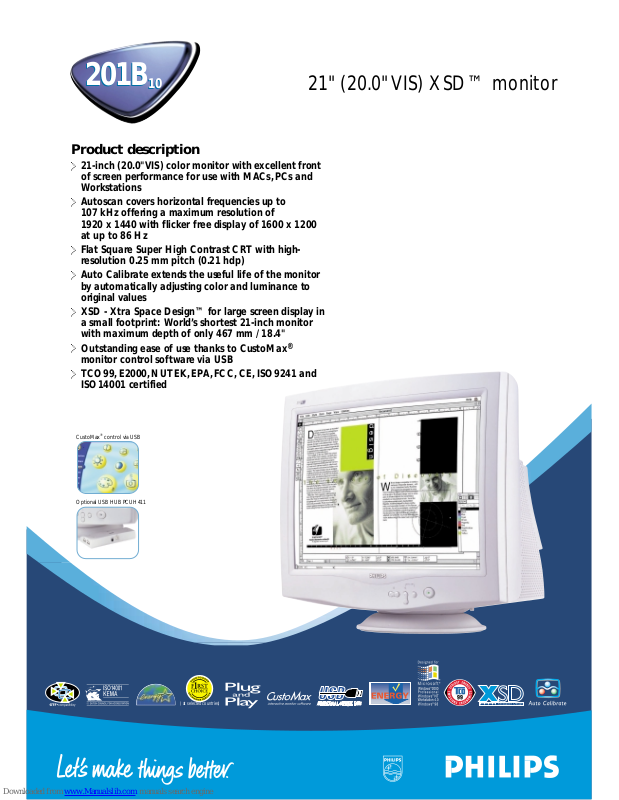

21" (20.0" VIS) XSD™ monitor
Product description
>
21-inch (20.0"VIS) color monitor with excellent front
of screen performance for use with MACs, PCs and
Workstations
>
Autoscan covers horizontal frequencies up to
107 kHz offering a maximum resolution of
1920 x 1440 with flicker free display of 1600 x 1200
at up to 86 Hz
>
Flat Square Super High Contrast CRT with highresolution 0.25 mm pitch (0.21 hdp)
>
Auto Calibrate extends the useful life of the monitor
by automatically adjusting color and luminance to
original values
>
XSD - Xtra Space Design™ for large screen display in
a small footprint: World’s shortest 21-inch monitor
with maximum depth of only 467 mm / 18.4"
>
Outstanding ease of use thanks to CustoMax®
monitor control software via USB
>
TCO99, E2000, NUTEK, EPA, FCC, CE, ISO9241 and
ISO14001 certified
( at selected countries)
CustoMax® control via USB
Optional USB HUB PCUH411
Page 2
All data subject to change without notice
Release date: June 2000
www.philips.com
This monitor fulfills all Nutek requirements regarding power management
Philips is a partner in the EPA’s Energy Star Computers Program.
As an Energy Star partner, Philips has determined that this product meets the Energy Star
guidelines for energy efficiency.
MAC is a registered trademark of Apple Computer, Inc .
MS-DOS is a registered trademark and Windows
®
95/98/NT/2000 is a trademark of
Microsoft Corp. All trademark acknowledged. Copyright ©2000 Philips Electronics N.V.
CRT
• Size (inch/cm) 21"/ 51 cm
• Deflection angle (degrees) 90°
• Dot pitch 0.25 mm
• Horizontal pitch 0.21 mm
-Tube type Shadow mask,Flat Square, Super
High Contrast, Anti Glare,Anti
Static,Anti reflection
Light T ransmission 43%
• Phosphor P22
• Recom.display area(mm) 392 x 294 mm
• Recom.display area(inch) 15.4" x 11.6"
• Max. display area(mm) 406 x 305 mm
• Max. display area(inch) 16.0" x 12.0"
Scanning
• Horizontal scanning 30 - 107 kHz
• Vertical scanning 50 - 160 Hz
Video
• Video dot rate 261 MHz
• Input impedance
-Video 75 Ohm
-Sync 2.2k Ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
Composite sync
• Sync polarities Positive and negative
White color temperature
Chromaticity CIE coordinates:
• at 9300 K: x=0.283,y=0.297
• at 6500 K: x=0.313,y=0.329
• at 5500 K: x=0.332,y=0.347
Resolution and preset modes
• Max. resolution 1920 x 1440
• Recom. resolution 1600 x 1200
• GTF
• 16 user definable modes
• 36 factor y preset modes:
H.freq (kHz)/ V.freq (Hz)
640 x 350 31.5K/70; 37.9K/85
640 x 480 31.5K/60; 37.9K/72;37.5K/75;
43.3K/85;50.6K/100
720 x 400 31.5K/70; 37.9K/85
800 x 600 37.9K/60; 48.1K/72;46.9K/75;
53.7K/85;63.9K/100
832 x 624 49.7K/75
1024 x 768 48.4K/60;56.5K/70; 60.0K/75;
68.7K/85
1152 x 864 67.5K/75
1152 x 870 68.7K/75
1152 x 900 71.8K/76
1280 x 960 60.0K/60;85.9K/85
1280 x 1024 64.0K/60;80.0K/75; 91.1K/85
1600 x 1200 75.0K/60;81.3K/65; 87.5K/70;
93.8K/75;106.3K/85
1792 x 1344 83.6K/60;106.3K/75
1856 x 1392 86.3K/60
1920 x 1440 90.0K/60
Plug and play compatibility
• Display Data Channel DDC 1/2B
• Microsoft®Windows®95/98/NT/2000 compatible
Technical Specifications
Power management
• Operation (typ.) 104 W
• Suspend/Stand By mode (typ.) < 7 W
• Off mode/ Deep Sleep < 2.8 W
Low-emission characteristics
• Complies with MPR-II and TCO ’99 specifications
Monitor controls and functions
• Main 5-button OSD
Brightness +/- direct access
Contrast+/- direct access
Input selection direct access
• On Screen Display Language (English,Spanish, French,
German,Italian), zoom, horizontal,
vertical,pincushion, balanced,
trapezoid,parallelogram, color,
reset,degauss, moire,serial number,
resolution,frequency
Input selection
Auto Calibrate
• CustoMax®via USB Adjustments,test patterns, on
screen help
• Auto Calibrate Automatic and manual calibration of
color temperature,brightness and
contrast levels to original setting.
Connections and Cables
• Connections
-Video 15-pin D-Shell/ 5 BNC
-USB upstream port
• Cables Video, Power and USB
Regulatory approvals
• TCO ‘99
• MPR-II Low Emission
• TüV/GS,TüV-Ergo,TüV-9241-30
• FCC-B, UL, CSA,DHHS
• SEMKO, Poland-B sign,C-Tick
• VCC-I, CE, BCIQ,PSB
Physical specifications
• Dim.incl. base (WxHxD)(mm) 482 x 476 x 467
• Dim.incl. base (WxHxD)(inch) 19.0" x 18.7" x 18.4"
• Dim.excl. base (WxHxD)(mm)482 x 437 x 467
• Dim.excl. base (WxHxD)(inch)19.0" x 17.2" x 18.4"
• Weight (kg) 28.0 kg
• Power supply 90 - 264 VAC,50/60Hz
• Temperature (operational) 0°C to 35°C/ 32°F to 95°F
• Temperature (storage) -25°C to 65°C/ -13°F to 149°F
• Relative humidity 5% to 95%
• MTBF (excl. CRT) > 75,000 H
Other
• USB Hub option type: PCUH411
