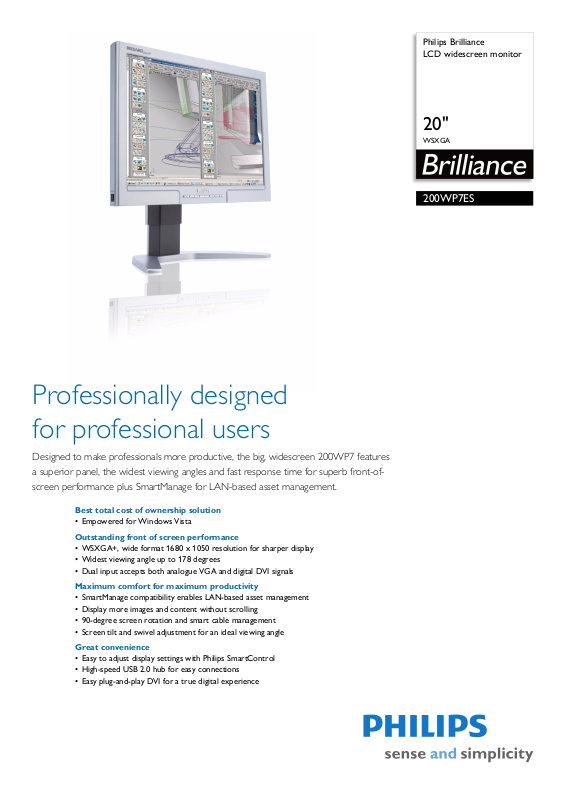

Page 1

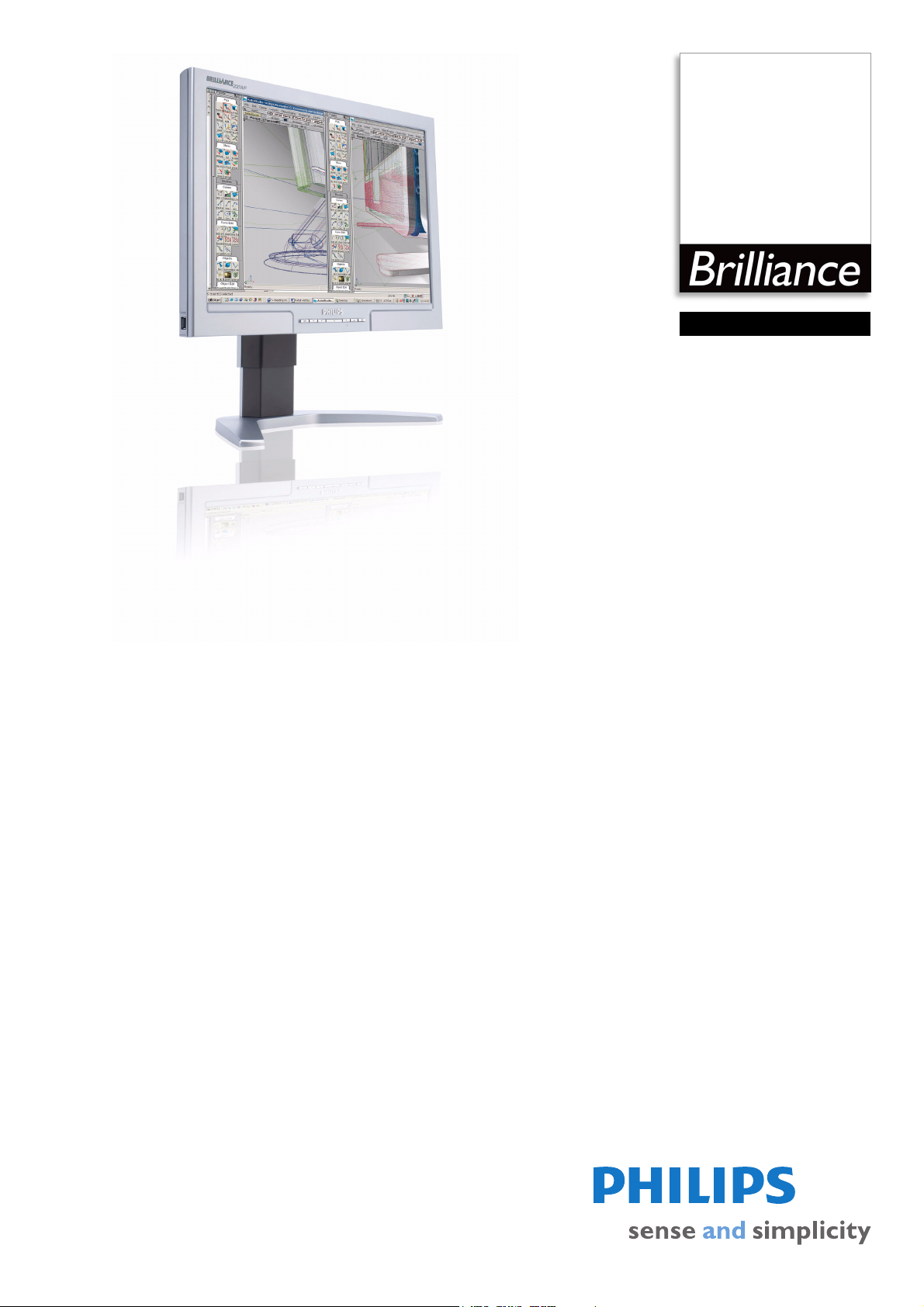

Philips Brilliance
LCD widescreen monitor
20"
WSXGA
200WP7ES
Professionally designed
for professional users
Designed to make professionals more productive, the big, widescreen 200WP7 features
a superior panel, the widest viewing angles and fast response time for superb front-ofscreen performance plus SmartManage for LAN-based asset management.
Best total cost of ownership solution
• Empowered for Windows Vista
Outstanding front of screen performance
• WSXGA+, wide format 1680 x 1050 resolution for sharper display
• Widest viewing angle up to 178 degrees
• Dual input accepts both analogue VGA and digital DVI signals
Maximum comfort for maximum productivity
• SmartManage compatibility enables LAN-based asset management
• Display more images and content without scrolling
• 90-degree screen rotation and smart cable management
• Screen tilt and swivel adjustment for an ideal viewing angle
Great convenience
• Easy to adjust display settings with Philips SmartControl
• High-speed USB 2.0 hub for easy connections
• Easy plug-and-play DVI for a true digital experience
Page 2
LCD widescreen monitor
20" WSXGA
Highlights
200WP7ES/00
Windows Vista-ready
Philips Vista-ready monitors are empowered
for vi
brant, exciting display of this new, visually
sophisticated and demanding Windows
operating system, designed to enhance your
entertainment experience, make you more
productive and help you control your
computing experience at home and in the
office, making viewing, finding and organising
information for work or play quick, efficient
and easy.
WSXGA+, wide format 1680 x 1050
Wide format, super extended graphics array is
a
display specification that is capable of
displaying 1680 x 1050 resolution or
approximately 1.7 million pixels.
Widest viewing angle (178°)
The widest viewing angle up to 178 degree
prov
ides the clearest display from any angle.
Dual input
Dual input provides connectors to
accommodat
digital DVI signals.
e input of both analogue VGA and
SmartManage enabled
SmartManage is a system for monitoring,
managing
devices as well as delivering remote support to
users who experience difficulties - all
accomplished over a LAN.
Large viewing area
Viewing area is the visible portion of a monitor
s
creen available for displaying data.
Super Ergo Base
The Super Ergo base is a monitor base that
d
elivers ergonomic display comfort and
provides intelligent cable management. The
base's people-friendly height, swivel, tilt and
rotation angle adjustments position the
monitor for maximum comfort that can ease
the physical strains of a long working day;
intelligent cable management reduces cable
clutter and keeps the workspace neat and
professional.
Screen tilt and swivel
Screen tilt and swivel mechanism built into the
bas
backwards or forwards.
and checking the status of display
e permits the monitor to swivel and tilt
SmartControl
PC software for fine-tuning display
p
erformance and settings. Philips offers users
two choices for display setting adjustment.
Either navigate the multilevel On Screen
Display menu through buttons on the display
itself or use the Philips SmartControl software
to easily adjust the various display settings in a
familiar way.
High-speed USB 2.0 hub
The universal serial bus or USB is a standard
p
rotocol for linking PCs and peripherals. Since
it delivers high speed at a low cost, USB has
become the most popular method for
connecting peripheral devices to a computer.
A USB 2.0 hub located on the monitor
provides a conveniently located, easy-to-use,
high-speed connection for reading, writing,
loading and transferring programs, data, digital
media or music files to, from or among your
PC and one or more USB devices.
In-box DVI cable
A DVI cable is shipped with the product to
p
rovide high-quality digital display.
Page 3
LCD widescreen monitor
20" WSXGA
Specifications
200WP7ES/00
Picture/Display
• LCD panel type: 1680 x 1050 pixels, Anti-glare
polariser, RGB vertical stripe
• Panel Size: 20.1"/51 cm
• Effective viewing area: 433.4 x 270.9 mm
• Pixel pitch: 0.258 x 0.258 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• Display colours: 16.7 M
• Viewing angle: 178º (H)/178º (V),
• Response time (typical): 8 (Grey to Grey) ms
• White Chromaticity, 6500K: x = 0.313/y = 0.329
• White Chromaticity, 9300K: x = 0.283/y = 0.297
• Maximum Resolution: 1680 x 1050 @ 75Hz
al input)
(digit
• Recommended Resolution: 1680 x 1050 @ 60Hz
al input)
(digit
• Video Dot Rate: 205 MHz
• Horizontal Scanning Frequency: 30–98 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
• Aspect ratio: 16:10
•sRGB
@ C/R > 10
Connectivity
• Signal Input: Analogue (VGA), DVI-D
• USB: 4 x USB 2.0
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Green
Convenience
• Convenience Enhancements: On-screen Display,
SmartManage enabled
• Monitor Controls: Auto, Brightness Control (Up/
), Left/Right, Menu (OK), Power On/Off
Down
• OSD Languages: English, Fr
Russian, Spanish
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC/CI, sRGB,
ws 98/ME/2000/XP/Vista
Windo
• Regulatory Approvals: CE Mark, Energy Star, FCC-
ench, German, Italian,
n lock compatible
, CSA, SEMKO, TCO '03, TÜV/GS, TÜV Ergo
B, UL
•Swivel: +/- 45°
• Tilt: -5° to 25°
• Pivot: 90° (clockwise)
• VESA Mount: 100 x 100 mm
Accessories
• Included Accessories: AC Power Lead, DVI-D
cable, USB cable, VGA cable
• User Manual
Dimensions
•Box dimensions (W x H x D):
579 x 513 x 267 mm
• Box dimensions in inch (W x H x D):
.8 x 20.2 x 10.5 inch
22
•Set dimensions (W x H x D):
3 x 338.5 x 68.7 mm
48
• Set dimensions in inch (W
19 x 13.3 x 2.7 inch
• Set dimensions with stand (W x H x D):
3 x 402 x 215.3 mm
48
•Set dimensions with st
19 x 15.8 x 8.5 inch
• Height adjustment range: 130 mm
• Height adjustment range (inch): 5.1 inch
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 0°C to 35°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 8.6 kg
• Product weight (+stand) (lb): 18.9 lb
• Weight incl. Packaging: 10.7 kg
• Weight incl. Packaging (lb): 23.6 lb
x H x D):
and in inch (W x H x D):
Power
• Complies with: Energy Star
• Consumption: 50 W (Typical)
• Off Mode: < 1 W
• Power LED indicator: Operation - green, Standby/
eep - Amber
sl
• Power supply: Built in, 100-240 VAC, 50/60 Hz
•
Issue date 2012-03-07
Version: 7.0.12
12 NC: 8639 000 16908
EAN: 87 10895 95631 4
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
