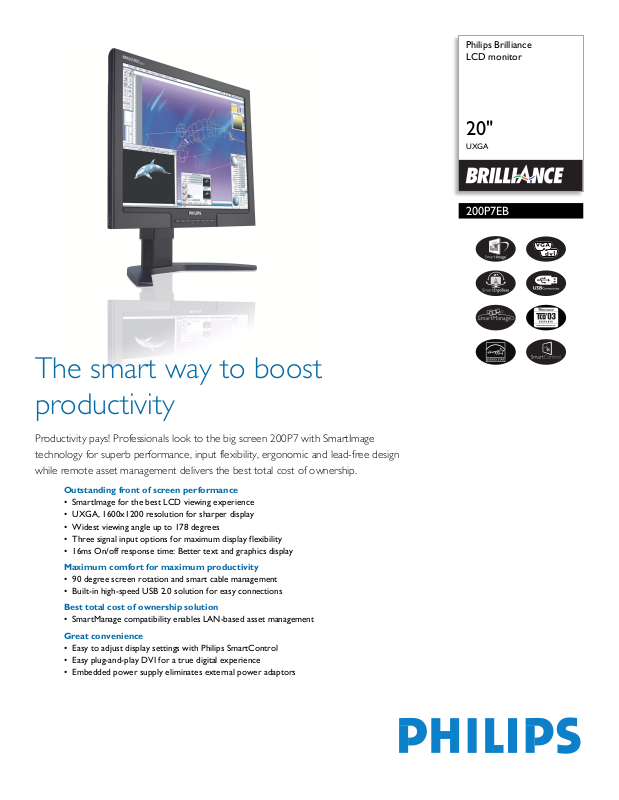

Philips Brilliance
LCD monitor
20"
UXGA
200P7EB
The smart way to boost
productivity
Productivity pays! Professionals look to the big screen 200P7 with SmartImage
technology for superb performance, input flexibility, ergonomic and lead-free design
while remote asset management delivers the best total cost of ownership.
Outstanding front of screen performance
• SmartImage for the best LCD viewing experience
• UXGA, 1600x1200 resolution for sharper display
• Widest viewing angle up to 178 degrees
• Three signal input options for maximum display flexibility
• 16ms On/off response time: Better text and graphics display
Maximum comfort for maximum productivity
• 90 degree screen rotation and smart cable management
• Built-in high-speed USB 2.0 solution for easy connections
Best total cost of ownership solution
• SmartManage compatibility enables LAN-based asset management
Great convenience
• Easy to adjust display settings with Philips SmartControl
• Easy plug-and-play DVI for a true digital experience
• Embedded power supply eliminates external power adaptors
Page 2
For preview purpose only
LCD monitor
20" UXGA
Technical specifications Product highlights
Picture/Display
• LCD panel type: 1600 x 1200 pixels, Antiglare polarizer, RGB vertical stripe
• Panel Size: 20.1"/ 51 cm
• Effective viewing area: 16.1 x 12 inch
• Pixel pitch: 0.255 x 0.255 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 800:1
• Display colors: 16.7 M
• Viewing angle: @ C/R > 10
• Viewing angle (h / v): 178 / 178 degree
• Response time (typical): 16 (on/off) ms; 8
(grey to grey) ms
• White Chromaticity, 6500K: x = 0.313 /
y = 0.329
• White Chromaticity, 9300K: x = 0.283 /
y = 0.297
• Maximum Resolution: 1600 x 1200 @ 60Hz
(digital input)
• Recommended Resolution: 1600 x
1200 @ 60Hz (digital input)
• Video Dot Rate: 202.5 MHz
• Horizontal Scanning Frequency: 30 - 98 kHz
• Vertical Scanning Frequency: 56 - 85 Hz
• Picture enhancement: SmartImage
•sRGB
Connectivity
• Signal Input: Analog (VGA), DVI-I, DVI-D
• USB: 4 x USB 2.0
• Video Sync Input Signal: Composite Sync,
Separate Sync, Sync on Green
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Convenience
• Convenience Enhancements: On-screen
Display, SmartManage enabled
• Monitor Controls: Auto, Brightness Control
(Up/Down), Left/Right, Menu (OK), Power
On/Off, SmartImage
• OSD Languages: English, French, Portuguese,
Simplified Chinese, Spanish
• Other convenience: Kensington lock
compatible
• Plug & Play Compatibility: DDC/CI, sRGB,
Windows 98/ME/2000/XP
Date of issue 2006-09-18
Version: 9.0
12 NC: 8639 000 16918
UPC: 6 09585 11181 3
• Regulatory Approvals: CE Mark, EMC,
Energy Star, FCC-B, UL, CSA, SEMKO, TCO
'03, TÜV/GS, TÜV Ergo
• Swivel: +/- 45°
• Tilt: -5° to 25°
• Pivot: 90° (counter-clockwise)
• VESA Mount: 100 x 100 mm
Accessories
• Included Accessories: AC Power Cord, DVID cable, USB cable, VGA cable
•User Manual
Dimensions
• Box dimensions (W x H x D):
551x520x277mm
• Box dimensions in inch (W x H x D):
21.7 x 20.5 x 10.9 inch
• Set dimensions (W x H x D):
461x378.8x74.7mm
• Set dimensions in inch (W x H x D):
18.1 x 14.9 x 2.9 inch
• Set dimensions with stand (W x H x D):
461x421x215.3mm
• Set dimensions with stand in inch
(W x H x D): 18.1 x 16.6 x 8.5 inch
• Height adjustment range: 130 mm
• Height adjustment range (inch): 5.1 inch
• MTBF: 50,000 hrs
• Relative Humidity: 20% - 80%
• Temperature range (operation): 5°C to
35°C
• Temperature range (storage): -20°C to 60°C
• Product weight (incl. stand): 8.9 kg
• Product weight (+stand) (lb): 19.6 lb
• Weight incl. Packaging: 10 kg
• Weight incl. Packaging (lb): 22 lb
Power
• Complies with: Energy Star
• Consumption: 50 W (Typical)
• Off Mode: 1 W
• Power LED indicator: Operation - green,
Stand by/sleep - Amber
• Power supply: Built-in, 100-240VAC, 50/
60Hz
•
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
200P7EB/27
SmartImage
SmartImage is an exclusive combination of proprietary,
leading edge Philips technologies that analyzes the
content displayed on your screen. Based on a scenario you
select, SmartImage dynamically enhances the contrast,
color saturation, sharpness and text of text applications,
images and videos for ultimate display performance – all
in real time with the press on a single button.
UXGA, 1600 x 1200 resolution
For graphics monitors, the screen resolution signifies the
nu mber o f dots ( pixels ) on the entir e screen . For e xample ,
a 1600-by-1200 pixel screen is capable of displaying
1600 distinct dots on each of 1200 lines, or about 2
million pixels. This ensures a better display performance
and accurate color display effect.
Widest viewing angle (178°)
The widest viewing angle up to 178 degree provides the
clearest display from any angles.
Triple input
Triple input is a means for displaying digital and analog
signals. A triple input monitor provides one D-Sub (VGA)
and one DVI-I interface connector. The DVI-I interface
connector accepts either a digital or an analog signal
input via optional adapter for maximum display flexibility
and 'insurance' from your monitor obsolete.
16ms response time (On-Off)
On-Off response time is the period required for a liquid
crystal cell to go from active (black) to inactive (white) and
back to active (black) again. It is measured in
milliseconds. Faster is better: Lower response time means
faster transitions and, therefore, results in fewer visible
image artifacts in the display of transition of text and
graphics. On-Off response time is a more important
measure in the display of business content like
documents, graphs and photos.
Super Ergo Base
The Super Ergo base is a monitor base that delivers
ergonomic display comfort and provides intelligent cable
management. The base's people-friendly height, swivel,
tilt and rotation angle adjustments position the monitor
for maximum comfort that can ease the physical strains
of a long workday; intelligent cable management reduces
cable clutter and keeps the workspace neat and
professional.
USB connectivity solution
The universal serial bus or USB is a standard protocol for
linking PCs and peripherals. Because it delivers high speed
at a low cost , USB has become the most popular meth od
for connecting peripheral devices to a computer. By
placing a USB 2.0 solution in a monitor, Philips provides
a conveniently located, easy-to-use, high-speed USB
connection for reading, writing, loading and transferring
programs, data, digital media or music files to, from or
among your PC and one or more USB devices.
SmartManage enabled
SmartManage is a system for monitoring, managing and
checking status of display devices as well as delivering
remote support to users who experience difficulties - all
accomplished over a LAN.
SmartControl
PC software for fine tuning display performance and
settings. Philips offers users two choices for display setting
adjustment. Either navigate the multilevel On Screen
Display menu through buttons on the display itself or use
the Philips SmartControl software to easily adjust the
various display settings in a familiar way.
