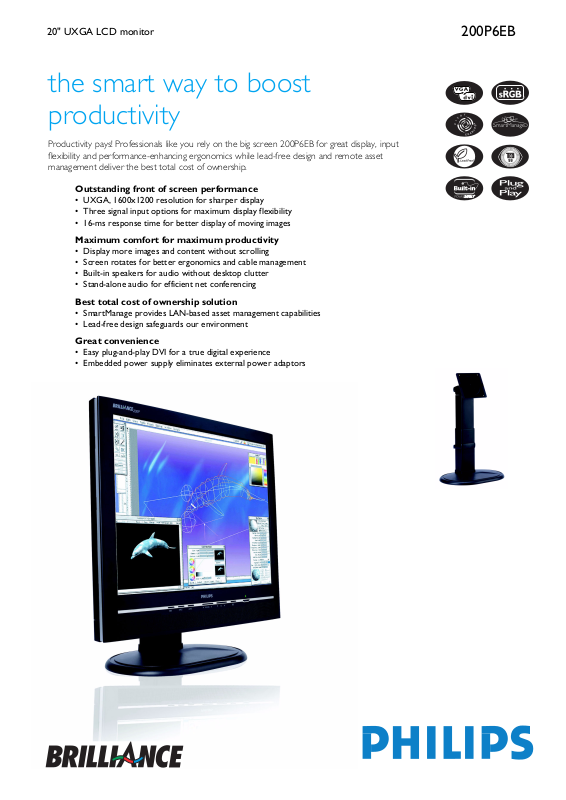

Page 1
20" UXGA LCD monitor
the smart way to boost
productivity
Productivity pays! Professionals like you rely on the big screen 200P6EB for great display, input
flexibility and performance-enhancing ergonomics while lead-free design and remote asset
management deliver the best total cost of ownership.
Outstanding front of screen performance
• UXGA, 1600x1200 resolution for sharper display
• Three signal input options for maximum display flexibility
• 16-ms response time for better display of moving images
Maximum comfort for maximum productivity
• Display more images and content without scrolling
• Screen rotates for better ergonomics and cable management
• Built-in speakers for audio without desktop clutter
• Stand-alone audio for efficient net conferencing
Best total cost of ownership solution
• SmartManage provides LAN-based asset management capabilities
• Lead-free design safeguards our environment
200P6EB
Great convenience
• Easy plug-and-play DVI for a true digital experience
• Embedded power supply eliminates external power adaptors
Page 2
20" UXGA LCD monitor
200P6EB/27
Technical specifications Product highlights
Picture/Display
• LCD panel type: 1600 x 1200 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 20.1"/ 51 cm
• Effective viewing area: 408 x 306 mm
• Pixel pitch: 0.255 x 0.255 mm
• Brightness (nits): 250 nit
• Contrast ratio (typical): 400:1
• Display colors: 16.2 M
• Viewing angle: - C/R > 10
• Viewing angle (H / V): 176/176degree
• Response time (typical): 16 ms
• White Chromaticity, 6500K: x = 0.313 /
y = 0.329
• White Chromaticity, 9300K: x = 0.283 /
y = 0.297
• Maximum Resolution: 1600 x 1200 @ 75Hz
• Recommended Resolution: 1600 x
1200 @ 60Hz
• Factory Preset Modes: 15 modes
• User definable modes: 37 modes
• Video Dot Rate: 202.5 MHz
• Horizontal Scanning Frequency: 30 - 97 KHz
• Vertical Scanning Frequency: 56 - 85 Hz
•sRGB
Connectivity
• Signal Input: Analog (VGA), DVI-I, PC Audio in
• Audio output: Stereo Audio (3.5 mm jack) 1x
• Video Sync Input Signal: Composite Sync,
Separate Sync, Sync on Green
Convenience
• Built-in Audio: 2W RMS x 2 stereo speakers
• Convenience Enhancements: On-screen Display,
SmartManage enabled
• Monitor Controls: Auto, Brightness Control,
Left/Right, Menu (OK), Power On/Off, Up/
Down, Volume control, Input, Size
• OSD Languages: English, French, German, Italian,
Simplified Chinese, Spanish
• Other convenience: Kensington lock compatible
• Plug & Play Compatibility: DDC/CI, sRGB,
Windows 98/ME/2000/XP
• Regulatory Approvals: CE Mark, EMC, Energy
Star, FCC-B, UL, CSA, SEMKO, TCO '99, TÜV/
GS, TÜV Ergo
• Swivel: +/- 65°
• Tilt: -5° to 25°
• VESA Mount: 100 x 100 mm
Accessories
• Included Accessories: AC Power Cord, DVI-D
cable, PC audio cable, VGA cable
•User Manual
Dimensions
• Dimensions (with base) (W x H x D):
461x438x214mm
• Height Adjustment range: 130 mm
• MTBF: 50,000 hrs
• Relative Humidity: 20% - 80%
• Temperature Range (Operation): 5° C to 35° C
• Temperature Range (Storage): -20°C to 60° C
• Weight: 9.85 kg
Power
• Complies with: Energy Star, NUTEK
• Consumption: 52 W (Typical)
• Off Mode: 1.5 W
• Power LED indicator: Operation, Blue, Stand by/
sleep, Amber
• Power supply: Built-in, 90-264 VAC, 50/60 Hz
SmartManage enabled
SmartManage is a system for monitoring, managing
and checking status of display devices as well as
delivering remote support to users who experience
difficulties - all accomplished over a LAN.
Lead-free
Lead-free display products are designed and produced
in compliance with strict European Community
Restriction of Hazardous Substances (RoHS) standards
that restrict lead and other toxic substances that can
harm the environment.
Super Ergo base
The Super Ergo base is a monitor base that displays
ergonomic display comfort and provides intelligent cable
management. The base's height, swivel, tilt and rotation
angle adjustments people friendly display positioning for
maximum comfort that can ease the physical strains of
a long workday; intelligent cable management reduces
cable clutter and keeps workspace neat and
professional.
Triple input
Triple input is a means for displaying VGA, DVI-D, and
DVI-I signals. A triple input monitor provides one D-Sub
(VGA) and one DVI-I interface connector. The DVI-I
interface connector accommodates either a digital DVID or a DVI-I digital/analog input cable.
In-box DVI cable
A DVI cable is shipped with product to provide high
quality digital display.
Large viewing area
Viewing area is the visible portion of a monitor screen
available for displaying data.
16-ms response time
Response time is the period required for a liquid crystal
cell to go from active (black) to inactive (white) and
back to active (black) again. It is measured in
milliseconds. Faster is better: Lower response time
means faster transitions and, therefore, results in fewer
visible image artifacts in the display of fast-moving
images.
Date of issue 2005-08-10
Version: 1.0
12 NC: 8639 000 16331
UPC: 3 78499 60936
Embedded power supply
An embedded power supply is a power adaptor built
into the body of a display device that replaces a bulky
external power adaptor.
UXGA, 1600 x 1200 resolution
Fo r gra phics moni tors, t he sc reen r esol ution sign ifies the
number of dots (pixels) on the entire screen. For
example, a 1600-by-1200 pixel screen is capable of
displaying 1600 distinct dots on each of 1200 lines, or
about 2 million pixels. This ensures a better display
performance and accurate color display effect.
Built-in speakers (B)
Audio speakers built into a display device
Stand-Alone audio function
Built-in advanced firmware that delivers audio output
even if there is no video input.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2005 Koninklijke Philips Electronics N.V.
