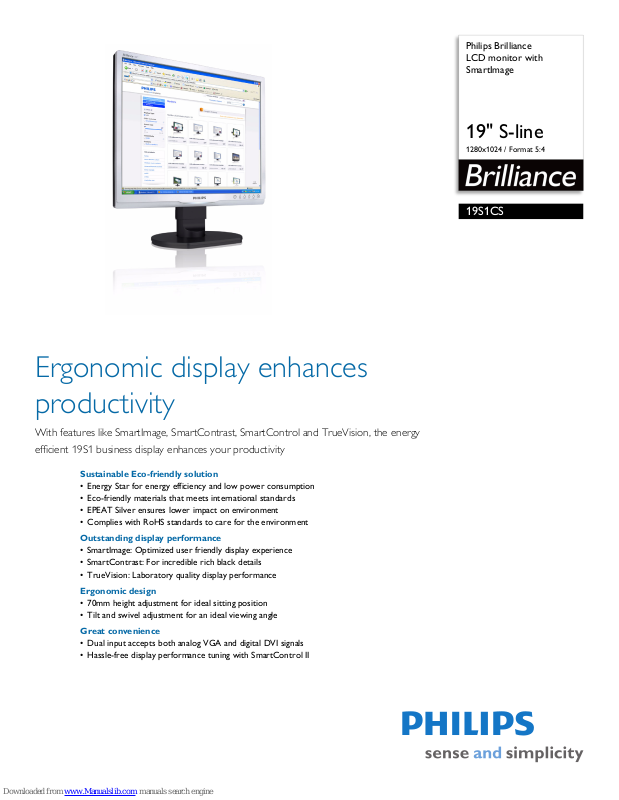

Page 1
Philips Brilliance
LCD monitor with
SmartImage
19" S-line
1280x1024 / Format 5:4
19S1CS
Ergonomic display enhances
productivity
With features like SmartImage, SmartContrast, SmartControl and TrueVision, the energy
efficient 19S1 business display enhances your productivity
Sustainable Eco-friendly solution
• Energy Star for energy efficiency and low power consumption
• Eco-friendly materials that meets international standards
• EPEAT Silver ensures lower impact on environment
• Complies with RoHS standards to care for the environment
Outstanding display performance
• SmartImage: Optimized user friendly display experience
• SmartContrast: For incredible rich black details
• TrueVision: Laboratory quality display performance
Ergonomic design
• 70mm height adjustment for ideal sitting position
• Tilt and swivel adjustment for an ideal viewing angle
Great convenience
• Dual input accepts both analog VGA and digital DVI signals
• Hassle-free display performance tuning with SmartControl II
Page 2
LCD monitor with SmartImage
19" S-line 1280x1024 / Format 5:4
Highlights
19S1CS/00
Dual input
Dual input provides connectors to
accommodate input of both analog VGA and
digital DVI signals.
70mm height adjustment
The Compact Ergo Base is a 'people friendly'
Phili
ps monitor base that tilts, swivels and is
height adjustable so each user can position the
monitor for maximum viewing comfort and
efficiency
Screen tilt and swivel
Screen tilt and swivel is a mechanism built into
the
base permits the monitor to swivel and tilt
backward or forward.
SmartImage
you to select various modes like Office, Image,
Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the contrast,
color saturation and sharpness of images and
videos for ultimate display performance. The
Economy mode option offers you major power
savings. All in real time with the press of a single
button!
SmartControl II
SmartControl II is monitor-based software with
an
easy-to-use on-screen graphic interface that
guides you through fine-tuning resolution, color
calibration and other display settings including
brightness, contrast, clock & phase, position,
RGB, white point and - on models with onboard
speakers - volume adjustments.
TrueVision
Energy Star 5.0
Energy Star is a US EPA s
efficiency program also adopted by many other
countries. Energy Star certification ensures that
you are buying a product which meets the latest
power efficiency standards which operates with
maximum power efficiency at all operational
levels. New Philips monitors are certified for
Energy Star 5.0 specifications and meet or
exceed the standard. For example, in sleep
mode Energy Star 5.0 requires less than 1watt
power consumption, whereas Philips monitors
consume less than 0.5watts. Further details can
be obtained from www.energystar.gov
Eco-friendly materials
With sustainability as a strategic driver of its
busine
ss, Philips is committed to use ecofriendly materials across its new product range.
Lead-free materials are used across the range.
All body plastic parts, metal chassis parts and
packing material uses 100% recyclable material.
Substantial reduction in mercury content in
lamps has been achieved. We strictly adhere to
RoHs standards which ensure that all hazardous
material is removed. You can read more about
sustainability and Philips @ http://
www.asimpleswitch.com/global/
ponsored energy
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface allows
TrueVision is industry-leading, proprietary
Philips testing and algorithm technology for
monitor adjustment and fine tuning, an extensive
process that ensures ultimate display
performance in compliance with a standard
four-times more stringent than Microsoft's Vista
requirements from each and every monitor that
leaves the factory - not just a few review
samples. Only Philips goes to these lengths to
deliver this exacting level of color accuracy and
display quality in every new monitor.
EPEAT Silver
Philips EPEAT Silver certified monitors ensure
pro
tection for human health and environment,
and are highly energy efficient ensuring low
emissions of climate changing green house gases.
EPEAT program helps purchasers evaluate,
compare and select Monitors based on 51
environmental criteria supported by US EPA.
EPEAT Silver is valid only where Philips registers
the product. Please visit www.epeat.net for
registration status in your country.
Page 3
LCD monitor with SmartImage
19" S-line 1280x1024 / Format 5:4
Specifications
19S1CS/00
Picture/Display
• LCD panel type: TFT-LCD
• Panel Size: 19 inch / 48 cm
• Aspect ratio: 5:4
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Pixel pitch: 0.294 x 0.294 mm
• Picture enhancement: SmartImage
• Brightness: 250 cd/m²
• SmartContrast: 25000:1
• Response time (typical): 5 ms
• Optimum resolution: 1280 x 1024 @ 60Hz
• Display colors: 16.7 M
• Scanning Frequency: 30 -83 kHz (H) / 56 -75 Hz (V)
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• Sync Input: Separate Sync,
Sync on Green
Convenience
•User convenience: SmartImage, Brightness, Menu,
Input, Auto, Power On/Off
• OSD Languages: English, Fre
Italian, Russian, Simplified Chinese, Portuguese
• Other convenience: VESA mount (100x100mm),
sington lock
Ken
• Plug & Play Compatibility: DDC/CI, Windows 7/
sta/XP/2000/98, Mac OS X, sRGB
Vi
nch, German, Spanish,
Stand
• Height adjustment: 70 mm
• Swivel: -45/+45 degree
• Tilt: -5/20 degree
Power
• ECO mode: <16.5W
• Power LED indicator: Operation - White, Standby
mo
de- White (blinking)
• Power supply: Built-in, 100-240VAC, 50/60Hz
• On mode: <18W (EnergyStar 5.0 test method)
• Standby mode: <0.8 W
•Off mode: < 0.5 W
Dimensions
• Product with stand (mm): 442 x 404 x 201 mm
• Product without stand (mm): 350 x 404 x 68 mm
• Packaging in mm (WxHxD): 486 x 451 x162 mm
Weight
• Product with stand (kg): 4.57 kg
• Product without stand (kg): 3.47 kg
• Product with packaging (kg): 5.18 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature Range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 50,000 hour(s)
Sustainability
• Environmental and energy: EPEAT Silver, RoHS,
EnergyStar 5.0
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC, Class B,
GOST, SEMKO, TCO '03, TUV Ergo, TUV/GS, UL/
cUL
Cabinet
• Color: Silver/Black
• Finish: Texture
•
Issue date 2010-10-18
Version: 4.0.5
12 NC: 8670 000 54007
EAN: 87 12581 49007 2
© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
