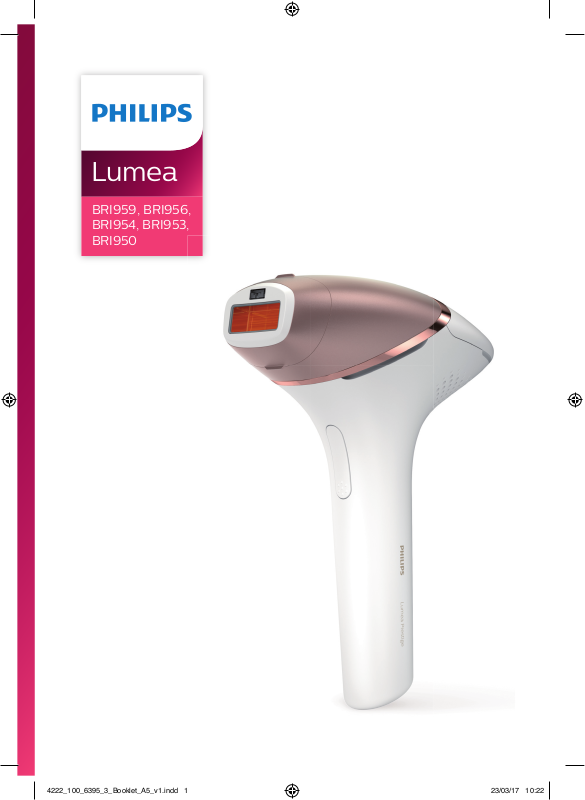

Lumea

BRI959, BRI956, BRI954, BRI953, BRI950

4222_100_6395_3_Booklet_A5_v1.indd 1 23/03/17 10:22

4222_100_6395_3_Booklet_A5_v1.indd 2 23/03/17 10:22

2a736

4222_100_6395_3_Booklet_A5_v1.indd 3 23/03/17 10:22

BRI950 (2a, 2b) BRI954, BRI953 (2a, 2b, 2e) BRI959, BRI956 (2a, 2b, 2c, 2d)

Skin tone table /Tabulka odstínů pleti/Tablica nijansi kože/Bőrszín-táblázat/Tabela odcieni skóry/ Tabel nuanţe de piele/Tabuľka odtieňov pokožky/

Таблица за цвета на кожата

Hair color table /Tabulka barev chloupků/Tablica boja dlačica/Szőrzetszín-táblázat/Tabela kolorów włosów/Tabel culori de păr/Tabuľka odtieňov vlasov/

Tаблица за цвят на телесно окосмяване

4222_100_6395_3_Booklet_A5_v1.indd 4 23/03/17 10:22

English 6 Čeština 32 Hrvatski 58 Magyar 83 Polski 109 Română 136 Slovensky 162 Български 189

4222_100_6395_3_Booklet_A5_v1.indd 5 23/03/17 10:22

English

Contents

Welcome _____________________________________________________________________________ 7 Device overview _______________________________________________________________________ 7 Who should not use Lumea? Contraindication ______________________________________________ 8 General conditions _____________________________________________________________________ 8 Medications/History ___________________________________________________________________ 8 Pathologies/Disorders __________________________________________________________________ 9 Skin condition ________________________________________________________________________ 10 Location/areas _______________________________________________________________________ 10 Important ____________________________________________________________________________ 11 Danger ______________________________________________________________________________ 11 Warning ______________________________________________________________________________ 11 To prevent damage ____________________________________________________________________13 Caution ______________________________________________________________________________13 Electromagnetic elds (EMF) ____________________________________________________________15 How IPL works ________________________________________________________________________15 Suitable body hair colors ________________________________________________________________15 Recommended treatment schedule ______________________________________________________ 16 Initial phase _________________________________________________________________________ 16 Touch-up phase _____________________________________________________________________ 16 Treatment time per area ________________________________________________________________17 What to expect _______________________________________________________________________ 18 After initial treatment phase ____________________________________________________________ 18 During touch-up treatment phase _______________________________________________________ 18 Using your Lumea Prestige before and after tanning ________________________________________ 18 Tanning with natural or articial sunlight __________________________________________________ 18 Tanning with creams __________________________________________________________________ 18 Before you use your Lumea Prestige _____________________________________________________ 19 Pretreating your skin __________________________________________________________________ 19 Skin test ____________________________________________________________________________ 19 Using your Lumea Prestige _____________________________________________________________ 20 Skin tone sensor ______________________________________________________________________ 20 Attachments _________________________________________________________________________ 20 Handling the device ___________________________________________________________________ 22 Two treatment modes: Stamp & Flash and Slide & Flash _____________________________________ 24 After use ____________________________________________________________________________ 24 Common skin reactions ________________________________________________________________ 24 Rare side eects ______________________________________________________________________ 24 Aftercare ____________________________________________________________________________ 26 Charging ____________________________________________________________________________ 26 Cleaning & storage ____________________________________________________________________ 27 Warranty and support _________________________________________________________________ 27 Recycling ___________________________________________________________________________ 28 Technical specications ________________________________________________________________ 28 Troubleshooting ______________________________________________________________________ 29

4222_100_6395_3_Booklet_A5_v1.indd 6 23/03/17 10:22

Welcome

Welcome to the beauty world of Lumea! You are only a few weeks away from silky-smooth skin.

Philips Lumea uses Intense Pulsed Light (IPL) technology, known as one of the most eective methods to continuously prevent hair regrowth. In close collaboration with skin experts we adapted this light-based technology, originally used in professional beauty salons, for easy and eective use in the safety of your home. Philips Lumea is gentle and oers convenient and eective treatment at a light intensity that you nd comfortable. Unwanted hairs are nally a thing of the past. Enjoy the feeling of being hair-free and look and feel amazing every day.

To fully benet from the support that Philips oers, register your product at www.philips.com/welcome. For further information, please go to www.philips.com/lumea to nd our experts' advice, tutorial videos and FAQs and make the most of your Lumea.

Note: Keep these instructions with your product at all times

Device overview

1 Light exit window with integrated UV lter 2 Attachments

a Body attachment b Face attachment c Bikini attachment (BRI956, BRI959) d Armpit attachment (BRI956, BRI959) e Precision attachment (BRI953, BRI954) 3 Skin tone sensor

4 Integrated safety system 5 Reector inside the attachment 6 Electronic contacts 7 Opening for electronic contacts 8 Flash button 9 On/o button 10 Conrmation button 11 Toggle buttons 12 Intensity light indicators 13 Setting advice button 14 Ready to ash indicator’ 15 Air ventilation slots 16 Device socket 17 Adapter 18 Small plug 19 Luxurious pouch (not shown) 20 Cleaning cloth (not shown)

English

4222_100_6395_3_Booklet_A5_v1.indd 7 23/03/17 10:22

English

Who should not use Lumea? Contraindication

General conditions

- Never use the device if you have skin type VI (You rarely to never sunburn, very dark tanning). In this case you run a high risk of developing skin reactions, such as hyperpigmentation and hypopigmentation, strong redness or burns.

Note: To check if your skin type allows usage of the device, consult the skin tone table with number 2 on the foldout page.

- Never use the device if you are pregnant or breast feeding as the device was not tested on pregnant or breast feeding women.

- Never use the device if you have any active implants such as pacemaker, neurostimulator, insulin pump etc.

Medications/History

Never use the device if you take any of the medications listed below:

- If your skin is currently being treated with or has recently been treated in the past week with Alpha-Hydroxy Acids (AHAs), Beta-Hydroxy Acids (BHAs), topical isotretinoinand azelaic acid.

- If you have taken any form of isotretinoin Accutane or Roaccutane in the last six months. This treatment can make skin more susceptible to tears, wounds and irritations.

- If you are taking photosensitizing agents or medications, check the package insert of your medicine and never use the device if it is stated that it can cause photo-allergic reactions, photo-toxic reactions or if you have to avoid sun when taking this medicine.

- If you take anticoagulation medications, including heavy use of aspirin, in a manner which does not allow for a minimum 1-week washout period prior to each treatment.

4222_100_6395_3_Booklet_A5_v1.indd 8 23/03/17 10:22

English

Never use the device:

- If you have received radiation therapy or chemotherapy within the past 3 months.

- If you are on painkillers which reduce the skin‘s sensitivity to heat.

- If you take immunosuppressive medications.

- If you have received radiation therapy or chemotherapy within the past 3 months.

- If you have had surgery in the areas to be treated in the last 3 weeks.

Pathologies/Disorders

Never use the device:

- If you have diabetes or other systemic or metabolic diseases.

- If you have congestive heart disease.

- If you have a disease related to photosensitivity, such as polymorphic light eruption (PMLE), solar urticaria, porphyria etc.

- If you have a history of collagen disorder, including a history of keloid scar formation or a history of poor wound healing.

- If you have epilepsy with ashlight sensitivity.

- If your skin is sensitive to light and easily develops a rash or an allergic reaction.

- If you have a skin disease such as active skin cancer, you have a history of skin cancer or any other localized cancer in the areas to be treated.

- If you have a history of vascular disorder, such as the presence of varicose veins or vascular ectasia in the areas to be treated.

- If you have any bleeding disorder.

- If you have a history of immunosuppressive disease (including HIV infection or AIDS).

4222_100_6395_3_Booklet_A5_v1.indd 9 23/03/17 10:22

English

Skin condition

Never use the device:

- If you have infections, eczema, burns, inammation of hair follicles, open lacerations, abrasions, herpes simplex (cold sores), wounds or lesions and haematomas in the areas to be treated.

- On irritated (red or cut), sunburned, recently tanned or faketanned skin.

- On the following areas without consulting your doctor rst: moles, freckles, large veins, darker pigmented areas, scars and skin anomalies. This can result in a burn and a change in skin color, which makes it potentially harder to identify skin-related diseases.

- On following areas: warts, tattoos or permanent make-up.

Location/areas

Never use the device on the following areas:

- Around the eyes and on or near the eyebrows.

- On lips, nipples, areolas, labia minora, vagina, anus and the inside of the nostrils and ears.

- Men must not use the device on the face and neck including all beard growing area, nor on the whole genital area.

- On areas where you use long-lasting deodorants. This can result in skin reactions.

- Over or near anything articial like silicone implants, subcutaneous injection ports (for instance an insulin dispenser) or piercings.

Note: This list is not exhaustive. If you are not sure whether you can use the device, we advise you to consult your doctor.

4222_100_6395_3_Booklet_A5_v1.indd 10 23/03/17 10:22

English

Important

Danger

- Keep the device and the adapter dry.

- If the device is broken, do not touch any inner part to avoid electric shock.

- Water and electricity are a dangerous combination. Do not use this appliance in wet surroundings (e.g. near a lled bath, a running shower or a lled swimming pool).

Warning

- This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the device.

- The device is not intended for children under the age of 15 years. Teenagers aged between 15 and 18 years can use the device with the consent and/or assistance of their parents or the persons who have parental authority over them. Adults of 18 years and older can use the device freely.

- Always check the device before you use it. Do not use the device or adapter if it is damaged. Always replace a damaged part with one of the original type.

- Do not use the device if the UV lter of the light exit window and/or attachment is broken.

- Do not modify or cut o any part of the adapter or the cord, as this causes a hazardous situation.

4222_100_6395_3_Booklet_A5_v1.indd 11 23/03/17 10:22

English

- Do not use any pencil or pen to mark the areas to be treated. This may cause burns on your skin.

- If you have a dark colored skin, be careful with treating a darker area immediately after a lighter area. The skin tone sensor may not immediately block the treatment on the darker body area.

- Hair removal by intense pulsed light sources can cause increased hair growth in some individuals. Based upon currently available data, the highest risk groups for this response are females of Mediterranean, Middle Eastern and South Asian heritage treated on the face and neck.

- Adapter, light exit window and the lter of the attachments can become very hot after usage. Do not touch the adapter, inner part of the light exit window and the lter or the inner part of the attachments without having these cool down.

- This device has a detachable power supply unit. Only use the detachable supply unit provided with this device (see symbol) Philips REF: AD2069020020HF.

Note: If you notice a skin tone change from last treatment (e.g. due to tanning), we recommend you to perform a skin test and to wait 30 minutes before your next treatment.

4222_100_6395_3_Booklet_A5_v1.indd 12 23/03/17 10:22

English

To prevent damage

- Make sure that nothing obstructs the air ow through the ventilation slots on the sides and the back of the device.

- Never subject the appliance to heavy shocks and do not shake or drop it.

- If you take the appliance from a very cold environment to a very warm environment or vice versa, wait approximately 3 hours before you use it.

- Store the appliance in a dust free and dry place.

- Do not expose the appliance to temperatures lower than 5°C or higher than 35°C during use.

- To prevent damage, do not expose the appliance to direct sunlight or UV light for several hours.

Caution

- This device is only intended for removing unwanted body hair from areas below the cheekbones. Do not use it for any other purpose. Doing so may expose you to a hazardous situation. Men most not use it on the face and neck including all beard growing areas and whole genital area.

- This device is not washable. Never immerse the device in water and do not rinse it under the tap.

- For hygienic reasons, the device should only be used by one person.

- Use the device only at settings suitable for your skin type. Use at higher settings than those recommended can increase the risk of skin reactions and side eects.

4222_100_6395_3_Booklet_A5_v1.indd 13 23/03/17 10:22

English

- Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the device.

- The scattered light produced by the device is harmless to your eyes. Do not look at the ash while using the device. It is not necessary to wear goggles during use. Use the device in a well-lit room so that the light is less glaring to your eyes.

- Always return the device to a service center authorized by Philips for examination or repair. Repair by unqualied people could cause an extremely hazardous situation for the user.

- Never leave the device unattended when it is switched on. Always switch o the appliance after use.

- Do not use the device if any of the conditions mentioned in chapter ‘Who should not use Lumea? Contraindication‘ apply to you.

- Tanning with natural or articial sunlight might inuence the sensitivity and color of your skin. Perform a skin test to determine the appropriate light intensity setting.

- Before you use Lumea, you should clean your skin and make sure it is hair-free, entirely dry and free from oily substances.

- Do not treat the same skin area more than once during a session. This does not improve eectiveness of the treatment, but increases the risk of skin reactions.

- Lumea should never be painful. If you experience discomfort, reduce the light intensity setting.

4222_100_6395_3_Booklet_A5_v1.indd 14 23/03/17 10:22

Electromagnetic elds (EMF)

This Philips device complies with all applicable standards and regulations regarding exposure to electromagnetic elds.

How IPL works

With Intense Pulsed Light technology, gentle pulses of light are applied to the skin and absorbed by the hair root. The lighter the skin and the darker the hair, the better the pulses of light are absorbed.

English

The pulses of light stimulate the hair follicle to go into a resting phase. As a consequence, the hair sheds naturally and hair regrowth is prevented.

The cycle of hair growth consists of dierent phases. IPL technology is only eective when the hair is in its growing phase. Not all hairs are in the growing phase at the same time. This is why we recommend you to follow the initial treatment phase (4-5 treatments, every treatment 2 weeks apart) and then the follow-up treatment phase (touch-ups every 4-8 weeks) to make sure all hairs are eectively treated in the growing phase.

Tip: To assure long lasting hair removal, touch-ups every 4 weeks are recommended.

Note: Treatment with Lumea is not eective if you have light blond, grey, red or white hairs as light hairs do not absorb enough light. Below you can see the hair colors for which Lumea is suitable and eective.

Suitable body hair colors

Note: To check if your body hair color allows usage of the device, consult the hair color table with number 3 on the foldout page.

4222_100_6395_3_Booklet_A5_v1.indd 15 23/03/17 10:22

English

Recommended treatment schedule

Initial phase

For the rst 4 to 5 treatments, we advise you to use Lumea Prestige once every two weeks to ensure that all hairs are treated.

Note: Replacing one of the IPL treatments with another hair removal method

2134 4 6 5 8

Touch-up phase

2012

(waxing, epilating, etc.) will not help to reach the desired hair reduction.

Note: If you want to remove hairs in between the Lumea treatments, you can use your normal hair removal method.

After the initial treatment phase (4-5 treatments), we recommend touch-ups every 4-8 weeks, when you see hairs growing back. This to maintain results and enjoy smooth skin for months. The time between treatments may vary based on your individual hair regrowth and also across dierent body areas. Tip: You can write the treatment schedule in your agenda to remind yourself

of the treatments so you will not forget.

Note: Using the device more often does not enhance the eectiveness.

4222_100_6395_3_Booklet_A5_v1.indd 16 23/03/17 10:22

Treatment time per area

English

BRI950

( , )

1 2

BRI953, BRI954

( , , )

1 52

4.5 min.

7.5 min.

3 4 5

1.5 min.

2.5 min.

1.5 min. 2 min.

6.5 min.

11.5 min.

1 3 5

2 min. 3 min.

BRI956, BRI959 ( , , , )

1 32 4

This symbol means: Using the device corded

This symbol means: Using the device cordless

4222_100_6395_3_Booklet_A5_v1.indd 17 23/03/17 10:22

English

What to expect

After initial treatment phase

- After the rst treatment, it can take 1 to 2 weeks for the hairs to fall out. In the rst weeks following the initial treatments, you still see some hairs growing. These are likely to be hairs that were not in their growing phase during the rst treatments.

- After 2-3 treatments, you should see a noticeable reduction in hair growth. However, to eectively treat all hairs, it is important to keep on treating according to the recommended treatment schedule.

- After 4-5 treatments, you should see a signicant reduction of hair growth in the areas that you treated with Lumea. A reduction of hair density should be visible as well.

During touch-up treatment phase

- Keep on treating with frequent touch-ups (every 4-8 weeks) to maintain the result.

Using your Lumea Prestige before and after tanning

Tanning with natural or articial sunlight

Intentionally exposing your skin to natural or articial sunlight with the aim of developing a tan inuences the sensitivity and color of your skin. Therefore the following is important:

- After each treatment, wait at least 48 hours before tanning. Even after 48 hours, make sure that the treated skin does not show any redness from the treatment anymore.

- In case of exposing your skin to the sun (without tanning intentionally) in the 48 hours after treatment, use a sunblock SPF 50+ on the treated areas. After this period, you can use a sunblock SPF 30+ for two weeks.

- After tanning, wait at least 2 weeks before you use Lumea.

- After recent tanning, perform a skin test to determine the appropriate light intensity setting. For instructions see chapter 'Skin test'.

- Do not use Lumea on sunburned body areas. Note: Occasional and indirect sun exposure does not qualify as tanning.

Tanning with creams

If you have used an articial tanning lotion, wait until the articial tan has disappeared completely before you use the device.

4222_100_6395_3_Booklet_A5_v1.indd 18 23/03/17 10:22

Before you use your Lumea Prestige

Pretreating your skin

Before you use Lumea, you should pretreat your skin by removing hairs on the surface of your skin. This allows the light to be absorbed by the hair parts below the skin surface to ensure eective treatment. You can either shave, short-trim, epilate or wax. Do not use depilatory creams, as chemicals may cause skin reactions.

If you choose to wax, please wait 24 hours before using Lumea to let your skin rest. We recommend that you take a shower before the treatment to ensure that all possible residue of wax has been removed from your skin.

1 Pretreat the areas you intend to treat with Lumea. 2 Clean your skin and make sure it is hair-free, entirely dry and free from

oily substances.

Note: if shaving causes skin irritation, we advise you not to use the device until skin irritation is resolved.

Skin test

When you use Lumea Prestige for the rst time or after recent tanning, perform a skin test on each area to be treated. The skin test is necessary to check your skin's reaction to the treatment and to determine the correct light intensity setting for each body area.

1 Attach the right attachment for the area you want to treat. See chapter:

'Attachments'. Note: do not try the device on dicult or sensitive areas (ankle and bony

area).

2 Turn on the device. Make sure you select setting 1. 3 Place the device at a 90° angle on the skin so that the integrated safety

system is in contact with your skin.

The integrated safety system prevents unintentional ashing without skin contact.

4 Press the ash button to release a ash. 5 Slide the device over the skin to the next area to be treated. 6 Increase the setting by one level, apply a ash and slide the device to

the next area. Repeat this for all levels within the recommended range for your skin type. See the table in: 'Selecting the right light intensity'.

7 After the skin test, wait 24 hours and check your skin for any reaction. If

your skin shows reactions, choose the highest setting that did not result in any skin reaction for subsequent use.

English

4222_100_6395_3_Booklet_A5_v1.indd 19 23/03/17 10:22

English

Using your Lumea Prestige

Skin tone sensor

For extra safety, the Lumea Prestige has integrated skin tone sensor which measures the skin tone at the beginning of each session and occasionally during the session. If it detects a skin tone that is too dark for treatment with Lumea, the 'ready to ash' light starts blinking orange and the device automatically disables to prevent you from developing skin reactions. This means that it does not ash when you press the ash button.

Attachments

For optimal results and safety it is important to change attachments per body area. Lumea Prestige oers full body specic treatment having up to four dierent tailored attachments.

Note: The device might not work any more and show an error when there is dirt on the attachment connector. Clean the contact leads when this occurs.

To place the attachment, simply snap it onto the light exit window.

To remove the attachment, pull it o the light exit window.

Body Attachment

The body attachment has the largest treatment window and a curved-in design to cover eectively and treat areas below the neckline. Especially large areas such as legs, arms and stomach.

Facial Attachment

The facial attachment has a precise at design with extra integrated lter for safe and precise treatment on the sensitive skin on upper lip, chin and sideburns.

Caution:

- Do not treat your eyebrows with Lumea.

- When you treat the area above your upper lip, be careful that you do not ash on the lip.

Armpit attachment (BRI956, BRI959)

The armpit attachment has a specically curved-out design to treat hard to reach armpit hairs.

4222_100_6395_3_Booklet_A5_v1.indd 20 23/03/17 10:22

Bikini attachment (BRI956, BRI959)

The bikini attachment has a specialized design for eective treatment of bikini areas. It has curved out design with transparent bikini lter. Hair in this area tends to be typically thicker and stronger then leg hair, therefore the bikini area attachment has a special lter for treating the coarser hair in the bikini area.

Precision attachment (BRI953, BRI954)

The precision attachment is curved-out for use in bikini and armpit areas. It has a medium sized window with an extra transparent lter. It is designed for precise and eective coverage of bikini and armpit areas.

Selecting the right light intensity

Lumea provides 5 dierent light intensities and advises you on the right setting you should use based on your skin tone. You will always be able to change to a light intensity setting you nd comfortable.

1 Press the on/o button to turn on the device. The device starts to operate

at light intensity setting 1. Note: To adjust the light intensity setting manually without using the skin

advice, use the toggle button until you have reached the required setting. The corresponding intensity light level lights up white.

Press the SmartSkin sensor button( ) and put the device to your skin.

3 After the device scanned your skin, the suggested intensity lights will

blink white to indicate which intensities you can use based on your skin tone.

4 Press the conrmation button ( ) to conrm that you want to use the

suggested setting advice to start using the device.

Philips Lumea will automatically use the highest suggested intensity, indicated by a continuous lighting led indicator.

Lumea gives you the freedom to select the light intensity that you nd most convenient. If you want to set the light intensity setting manually, please consult the table below. This table shows settings that for the majority of users provides a comfortable, but still eective setting.

5 Using Lumea should never be painful. If you experience discomfort,

reduce the light intensity setting. You can do this by using the up-down buttons.

Note: The device automatically disables when your skin tone is too dark (skin type VI), to prevent you from developing skin reactions. The ‘ready to ash’ light will blink orange to indicate if the skin tone is too dark.

6 After moving to another body area or recent tanning, perform a skin test

to determine the right light intensity setting. To re-activate the setting advice feature, press the magnifying glass symbol.

Note: Since body areas might dier in skin color, you need to select the right setting for each body area separately.

English

4222_100_6395_3_Booklet_A5_v1.indd 21 23/03/17 10:22

English

Skin type Skin tone Light intensity setting

I White: you always sunburn,

never tan.

II Beige: you easily sunburn, tan

minimally.

III Light brown: you sunburn easily,

tan slowly to light brown.

IV Mid brown: you rarely sunburn,

tan easily.

V Dark brown: you rarely sunburn,

tan very easily.

VI Brownish black or darker: you

rarely or never sunburn, very dark tanning.

Note: To check if your skin type allows usage of the device, consult the skin tone table with number 2 on the foldout page.

Note: Your skin may react dierently on dierent days/occasions for a number of reasons.

4/5

3/4

1/2/3

You cannot use the device

Handling the device

1 Before use, clean the attachment and the light exit window. 2 Put the small plug in the device and put the adapter in the wall socket.

Note: If the device is not fully charged when you start a treatment, the battery will run out during a full body treatment. We advise you to always fully charge the device before you start a treatment or to use it corded.

3 Switch on the device and select the right light intensity for your skin tone.

For selecting the right skin tone, you can make use of the setting advice, see chapter: 'Selecting the right light intensity'.

4 Place the device at a 90° angle on the skin so that the integrated safety

system is in contact with your skin.

The integrated safety system prevents unintentional ashing without skin contact.

4222_100_6395_3_Booklet_A5_v1.indd 22 23/03/17 10:22

English

5 Press the device rmly onto your skin to ensure proper skin contact. The

‘ready to ash light’ on the back of the device lights up white to indicate that you can proceed with the treatment.

Note: When the ‘ready to ash’ light starts blinking orange, your skin is not suitable for treatment. In this case, the device automatically disables. You can try to use the device on other areas with a lighter skin tone.

Note: If the ' ready to ash' light does not light up white, the device is not completely in contact with your skin.

TIP: If you use Lumea on your bikini area and want to leave some hair in place, make sure that the skin tone sensor is not placed on the remaining hair during the treatment, as this can cause the device to block.

6 Press the ash button to release a ash. The devices makes a soft

popping sound. You should feel a warm sensation because of the ash.

Note: The scattered light produced by the device is harmless to your eyes. Do not look at the ash while using the device. It is not necessary to wear goggles during use. Use the device in a well-lit room so that the light is less glaring to your eyes.

7 Place the device on the next area to be treated. After each ash, it takes

up to 2 seconds until the device is ready to ash again. You can release a ash when the 'ready to ash' light lights up white.

8 To make sure that you have treated all areas, release the ashes close to

each other. Eective light only comes out of the light exit window. Part of the device that is in contact with your skin is slightly larger therefore there should be some overlap. However, make sure you ash the same area only once.

Note: Flashing the same area twice does not improve the eectiveness of the treatment, but increases the risk of skin reactions.

Note: Do not use any pencil or pen to mark the areas to be treated, as this may cause side eects to your skin.

9 When you have nished the treatment, press and hold the on/o button

to switch o the device. Remove the adapter from the wall socket if you used the device corded.

Note: If you did not use the device for a long period of time, it is important to perform a skin test again and have it charged to avoid deep discharge.

4222_100_6395_3_Booklet_A5_v1.indd 23 23/03/17 10:22

English

Two treatment modes: Stamp & Flash and Slide & Flash

- Your Philips Lumea has two treatment modes for more convenient use on dierent body areas:

- The Stamp & Flash mode is ideal to treat small or curvy areas like knees and underarms. Simply press and release the ash button to release a single ash.

- The Slide & Flash mode oers convenient use on larger areas like legs. Keep the ash button pressed while you slide the device over your skin to release several ashes in a row.

Note: The device needs up to 2 seconds (when used with cord, or up to

3.5 seconds when used without cord) in between two ashes, so make sure you ash on every area you wish to treat. Sliding too fast over the skin will cause missed spots.

After use

Common skin reactions

Your skin may show slight redness and/or may prickle, tingle or feel warm. This reaction is absolutely harmless and disappears quickly.

Dry skin and itching may occur due to shaving or a combination of shaving and light treatment. You can cool the area with an ice pack or a wet face cloth. If dryness persists, you can apply a non-scented moisturizer on the treated area.

Rare side eects

- Burns, excessive redness (e.g. around hair follicles) and swelling: these reactions occur rarely. They are the result of using a light intensity that is too high for your skin tone. If these reactions do not disappear within 3 days, we advise you to consult a doctor. Wait with the next treatment until the skin has healed completely and make sure you use a lower light intensity.

- Skin discoloration: this occurs very rarely. Skin discoloration manifests itself as either a darker patch (hyperpigmentation) or a lighter patch (hypopigmentation) than the surrounding

4222_100_6395_3_Booklet_A5_v1.indd 24 23/03/17 10:22

English

area. This is the result of using a light intensity that is too high for your skin tone. If the discoloration does not disappear within 2 weeks, we advise you to consult a doctor. Do not treat discolored areas until the discoloration has disappeared and your skin has regained its normal skin tone.

- Skin infection is very rare but is a possible risk following a (micro)wound, a skin burn, skin irritation etc.

- Epidermal heating (a sharply dened brownish area which often occurs with darker skin tones and is not accompanied with skin dryness): This reaction occurs very rarely. In case this reaction does not disappear within 1 week, we advise you to consult a doctor. Wait with the next treatment until the skin has healed completely and make sure you use a lower light intensity.

- Blistering (looks like small bubbles on the surface of the skin): this occurs very rarely. In case this reaction does not disappear within 1 month or when the skin gets infected, we advise you to consult a doctor. Wait with the next treatment until the skin has healed completely and make sure you use a lower light intensity.

- Scarring: often the secondary eect of a burn, which can take longer than a month to heal.

- Folliculitis (swelling around hair follicles combined with pustule formation): this reaction occurs very rarely and is the result of bacteria penetrating the damaged skin. In case this reaction occurs, we advise you to consult a doctor as folliculitis may need antibiotic ointment.

- Excessive pain: this can occur during or after treatment if you have used the device on skin that is not hair-free, if you use the device at a light intensity that is too high for your skin tone, if you ash the same area more than once and if you use the device on open wounds, inammations, infections, tattoos, burns, etc.

4222_100_6395_3_Booklet_A5_v1.indd 25 23/03/17 10:22

English

Aftercare

Charging

After use, you can safely apply lotions, creams, deodorant, moisturizer or cosmetics to the treated areas. If you experience skin irritation or skin redness after treatment, wait until it disappears before applying any product to your skin. If you experience skin irritation after applying a product to your skin, wash it o with water.

Note: when following all instructions you may still get skin reactions. In this case stop using the device and contact the consumer care center in your country.

Fully charge the batteries before you use the device for the rst time and when the batteries are empty. Fully charging the batteries takes up to 1 hour and 40 minutes. Charge the device when the charging light lights up orange during use to indicate that the battery is low and will run out soon. Fully charged batteries provide at least 130 ashes at light intensity 5. Fully charge the device every 3 to 4 months, even if you do not use the appliance for a longer time.

Charging the device: 1 Switch o the device. 2 Insert the small plug into the device and put the adapter in the wall

socket.

- The charging light ashes white to indicate that the appliance is charging.

- When the batteries are fully charged, the charging light lights up white continuously.

Notes: The adapter and the appliance feel warm during charging. This is normal.

Note: This device is equipped with battery-overheat protection and does not charge if the room temperature exceeds 40°C.

- Never cover the appliance and device during charging.

3 After charging, remove the adapter from the wall socket and pull the

small plug out of the device.

Note:The battery functionality is not enough for a full body treatment.

4222_100_6395_3_Booklet_A5_v1.indd 26 23/03/17 10:22

Cleaning & storage

1 After use, switch o the device, unplug it and let it cool down.

Note: Light exit window and the attachment can become very hot after usage.

2 Remove the attachment.

3 Moisten the soft cloth supplied with the device with a few drops of water

and use it to clean the following parts:

- the light exit window on the device

- the outside surface of the attachments

- the reector inside the attachments

- the transparent lter glass in the bikini and precision attachment

- the reddish lter glass inside the facial attachment

- the skin tone sensor window

4 Let all parts air dry thoroughly. 5 Store the device in a dust-free place at a temperature between

-25° to +70°C and a humidity range between 15-90%.

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaet.

English

4222_100_6395_3_Booklet_A5_v1.indd 27 23/03/17 10:22

English

Recycling

- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

- This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). We strongly advise you to take your product to an ocial collection point or a Philips service centre to have a professional remove the rechargeable battery.

- Follow your country’s rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Technical specications

BRI950, BRI953, BRI954, BRI956, BRI959

Rated voltage 100V-240V

Rated frequency 50Hz-60Hz

Rated input 70W

Protection against electric shock Class II

Protections rating IP 30 (EN 60529)

Operating conditions Temperature: 5 °C to 35 °C

Relative humidity: 15% to 90% (non condensing)

Storage conditions temperature -25° to +70°C

Storage conditions humidity Less than 90% (non condensing)

Maximum variation of the light output over the treatment area

Operating pressure 700hPa-1060hPa

Duration of the pulsetrain Single pulse

Altitude Max. 3000m

Emitted wavelengths 565 to 1400 nm

Lithium-ion battery 2 x 3.6 Volt 1000 mAh

Optical exposure 2.4-6.5 J/cm2

Maximum optical energy 4.8 - 23 J

<20%

4222_100_6395_3_Booklet_A5_v1.indd 28 23/03/17 10:22

BRI950, BRI953, BRI954, BRI956, BRI959

English

Optical homogeneity Max. +/- 20% deviation from average optical exposure in

Repetition time 1-3.5 s

Pulse duration <2.5 ms

Flash interval Between 1-3.5s depending on battery/mains connected use

Pulse sequence Single pulse

Optical spectrum 560-1200 nm

treatment area

Troubleshooting

Problem Possible cause Solution

The device/adapter becomes warm during use.

It is normal for the device and adapter to become warm (but not too hot to touch) during use.

The fan is not working. Check if the attachment is well

Use the device in a slightly cooler environment and/ or let it cool down before continuing use.

connected. Clean the connectors on the attachment if needed. In case the attachment is well connected and it is possible to produce ashes with the device, contact the Consumer Care Center in your country, your Philips dealer or a Philips service center.

The cooling airow of the fan is blocked by hands or a towel

There is no red/blue lter in my body attachment.

When I place the device on the skin, it does not release a ash. The 'ready to ash' light blinks orange.

The ready to ash light blinks orange and all 5 intensity lights blink as well.

The ready to ash light does not light up white.

4222_100_6395_3_Booklet_A5_v1.indd 29 23/03/17 10:22

This is normal. No action required. There is no lter in

Your skin tone in the area to be treated is too dark.

The device needs to be reset. To reset the device take the plug out

The device is not completely in contact with your skin.

Make sure the cooling airow of the fan is unblocked.

the body attachment. Only the facial, bikini and armpit attachments have a specialized lter.

Treat other body areas with lighter skin tones with Lumea.

of the socket, wait for 30 minutes to let the device cool down. The device should function normally again. In case it doesn't work again, contact the Consumer Care Center in your country.

Place the device at a 90 degree angle on the skin so that the integrated safety system in in contact with your skin.

English

Problem Possible cause Solution

The device produces a strange smell.

The device doesn’t ash, the fan is not switched on and all 5 intensity lights blink.

The skin feels more sensitive than usual during treatment. I experience a discomfort when I use the device.

The light exit window or the skin tone sensor is dirty.

You have not removed the hairs on the area to be treated properly. These hairs may get burned and can cause the smell.

The attachment is not attached properly.

The light intensity setting you use is too high.

You did not remove the hairs on the areas to be treated.

The UV lter of the light exit window is broken.

You treated an area for which the device is not intended.

Clean the light exit window and the skin tone sensor carefully.

Pretreat your skin before you use Lumea.

Make sure you attach the attachment completely. If necessary clean the electronic contacts on the attachment.

Check if you have selected the right light intensity setting. If necessary, select a lower setting.

Pretreat your skin before you use Lumea.

If the UV lter is broken, do not use the device anymore. Contact the Consumer Care Center in your country, your Philips dealer or a Philips service center.

Never use the device on the following areas: inner labia, anus, nipples, areolas, lips, moles, freckles, tattoos, piercings. inside the nostrils and ears, around the eyes and near the eyebrows. Men must not use it on the face and neck including all beard growing areas and whole genital area.

There is no glass lter in my attachment.

The skin reaction after treatment lasts longer than usual.

4222_100_6395_3_Booklet_A5_v1.indd 30 23/03/17 10:22

This is normal. No action required: there is no lter in the

You have used a light intensity setting which is too high for you.

body and armpit attachments. Only the facial, precision and bikini attachments have a specialized lter.

Select a lower intensity next time. See chapter 'Using your Philips Lumea', section 'Selecting the right light intensity'.

+ 188 hidden pages
