5.1
SPA4040B
Blast BT
Page 2
General information
Safety instructions
Please read carefully the safety mark on the back side
This mark is intended to alert the user from
the non isolated dangerous voltage within the
constitute a risk of electric shock to persons.
This mark is intented to alert the user for
important operating and servicing instruction.
Warnings
Avoid sustained periods on high-volume use, and
•
do not turn the volume to maximum level while using
high output signal, such as Mobile Phone or DVD,
etc., as this will cause distortion and may damage the
loudspeaker cones.
•
when not in use.
• Please unplug the system from the AC outlet when
unused for a long time.
• Do not open the cover or back panel to avoid
electrical shock or any other accidents. No userserviceable parts are inside.
• Only for indoor use.
• Plug the system to the AC outlet with the right voltage
marked on the back panel of the Subwoofer.
Care and safety information
Avoid high temperatures, moisture, water and dust
•
Apparatus should not be exposed to dripping or
splashing of liquid.
• Do not place any source of danger on the Subwoofer,
• Do not install near heat sources.
Do not block any ventilation opening
•
Place the apparatus in a location with adequate
ventilation to prevent internal heat build up. Allow at
least 100cm (4 inches) of free space all around the
apparatus for adequate ventilation.
• At high volume the back cover of Subwoofer becomes
hot. Do not touch it.
Care of the cabinet
Use a soft cloth slightly moistened to clean the cabinet.
•
Do not use a solution containing alcohol, spirits,
ammonia or abrasives.
Accessories
Item 2RCA to 2RCA cable Remote control User manual FM Antenna cable
Quantity 1 1 1 1
Page 3

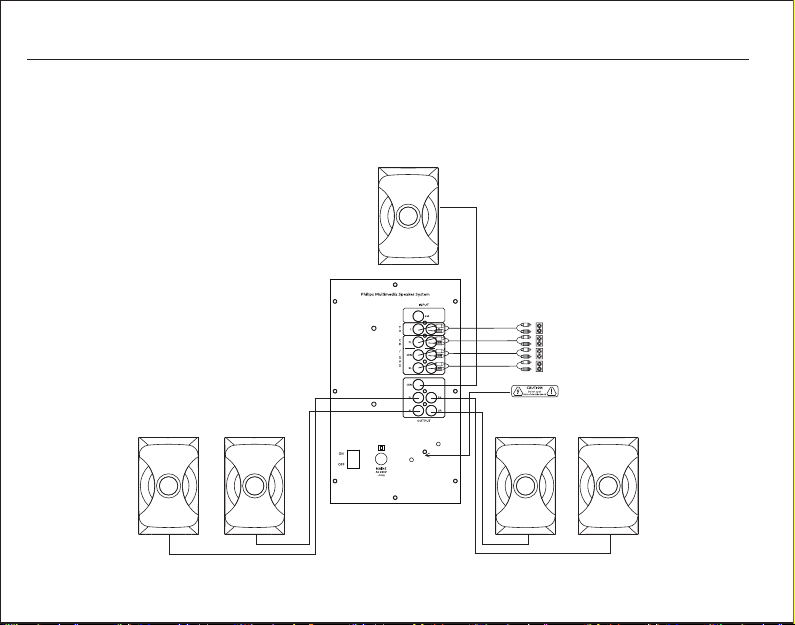

Connections
Back panel
CEN
CD/TV
FL/FR
C/SW
SL/S R
FL
SL
SR
FR
Page 4

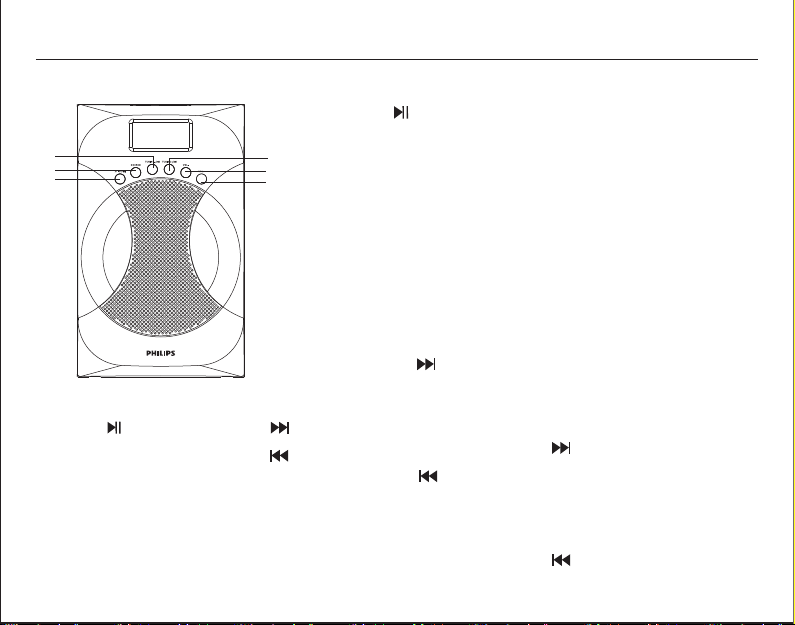

Front panel operation
(6)
(2)
(1)
1. ST-BY/
2. SOURCE
5. TUNING+/
TUNING-/
6.
3. VOL+
4. VOL-
* AVAILABLE IF CONNECTED
(5)
(4)
(3)
1. ST-BY/ :
Press to turn on speaker,long press into stand-by.
PLAY/PAUSE on the USB/SD/BT mode.
2. SOURCE:
Change the input mode-AUX, BT, DVD, USB*,SD*,FM
3. VOL+:
Volume up.
4. VOL-:
Volume down.
5. TUNING+/
Press once to increase the FM frequency 0.1M,
long press to the semi-automatic search for radio.
In USB/SD/BT mode, press “ ” play next song.
6. TUNING-/
Press once to reduce the FM frequency0.1M,
long press to the semi-automatic search for radio.
In USB/SD/BT mode, press “ ” play previous song.
Page 5

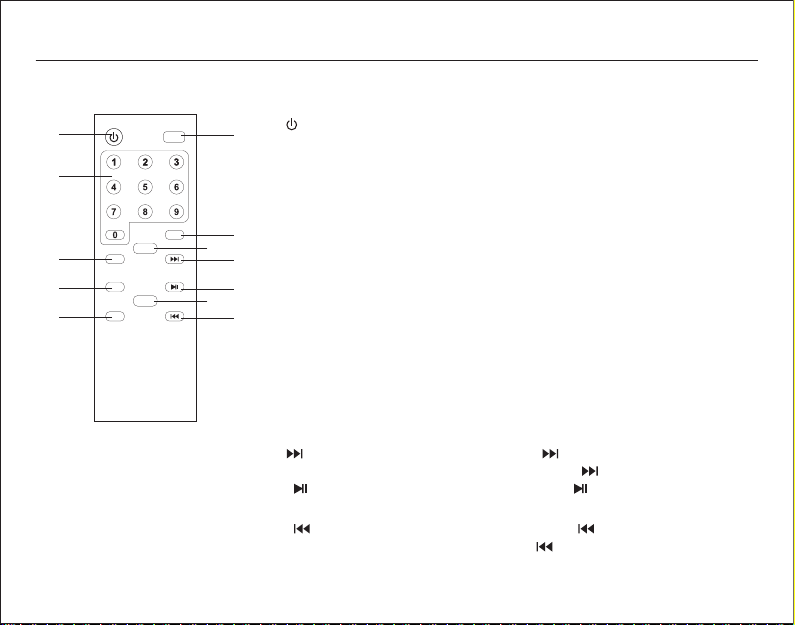

Remote controls
(1)
(2)
(3)
(4)
(5)
1. ST-BY
2. 0~9
3. SOURCE
4. SELECT
5. PRO-LOGIC
6. MUTE
7. SCAN
SOURCE
SELECT
PRO-LOGIC
MUTE
SCAN
VOL+
VOL-
(8)
(11)
8. VOL+
9. NEXT
10. PLAY/PAUSE
11. VOL-
12. PREVIOUS
1. ----- Turn on/Stand-by the speaker.
(6)
2. 0-9 -----
Numeric keys, with the help of these keys you select song or track
in USB, and in FM, you can key in station frequency, i.e. for 92.7 key in 92.7.
3. SOURCE -----
4. SELECT -----Press”SELECT” key can switch to dierent channels(FR/FL/SR/
SL/SW). At the same time, press”VOL+/-” to increase or decrease every
(7)
channel’s volume. The number of numeral tube will change accordingly.
(9)
5. PRO-LOGIC -----
In case of USB/SD/FM/BT, you can switch the output from 2.1 to 5.1 and
(10)
in case of DVD mode, it selects between prologic o (real 5.1) and
prologic on(for surround sound).
(12)
6. MUTE ----- Press “MUTE ” to activate or deactivate mute,display
Select input/Source: “BT/USB/SD/FM”.
Enable or disable the function of the PRO-LOGIC.
blinks when at MUTE mode.
7. SCAN ----- It will enter into automatic search channel and automatic save
channel when pressing “SCAN” for 3 seconds.
(noted: the channel which you saved before will be deleted when you press
“SCAN” for 3 seconds).
8. VOL+ ----- Volume up.
9. -----Play the next song by pressing “ ” at USB/SD/BT
input mode. Choose next channel by pressing “ ”at FM input mode.
10. ----Play or pause the music by pressing “ ” at USB/SD/BT mode.
11. VOL- ----- Volume down.
12. ----- Play the previous song by pressing “ ” at USB/SD/BT input mode.
Choose previous channel by pressing “ ” at FM input mode.
Note: USB/SD available only if connected.
Page 6
Playing the speakers and subwoofer

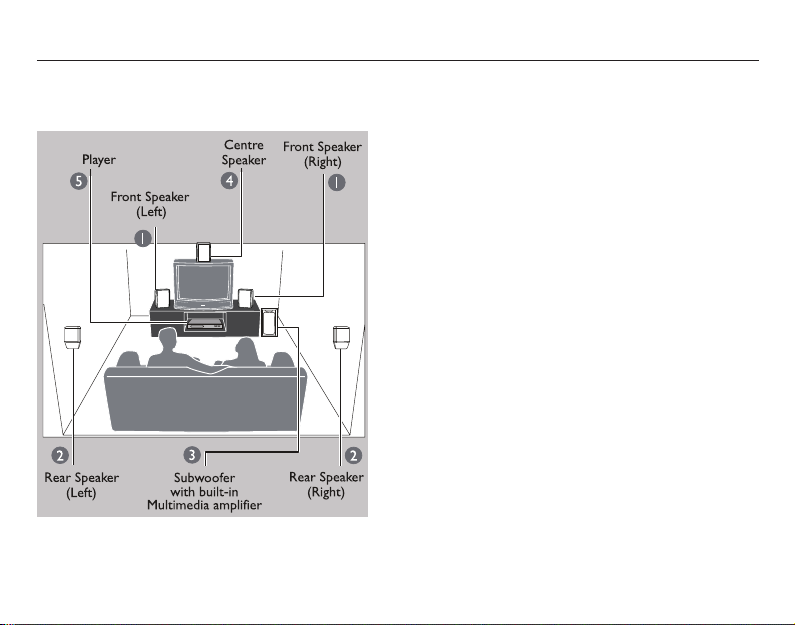

System positioning :
The subwoofer is recommended to be put
on the oor to get a better acoustic eect.
For best possible surround sound, all the
speakers (except subwoofer) should be
placed at the same distance from the
listening position.
Place the front left and right speakers at
equal distances from the TV and at an angle
of approximately 45 degrees (horizontal)
from the listening position.
Place the centre speaker above the TV so
that the centre channel’s sound is localised.
Place the rear surround speakers at normal
listening. ear level facing each other or
mounted on the wall.
Helpful Hints:
- To avoid mognetic interference, do not position
the speakers, too close to your TV.
Page 7
Bluetooth Operating Instruction
1. Press SOURCE key from front panel or remote to go to Bluetooth;
2. When selected the Bluetooth mode, in display, “bt” will start blinking/ashing.;
3. For pairing with mobile or other Bluetooth devices, search the device named “SPA4040B” and
pair it. Once paired, “bt” stops blinking/ashing;
4. Press “ ”for continuous 3 seconds from remote in order to force disconnect the Bluetooth.
Note: While using Bluetooth, if external call comes, then speaker system goes in mute mode in
order to protect privacy of mobile phone user. Operation resumes once the call is disconnected.
Page 8

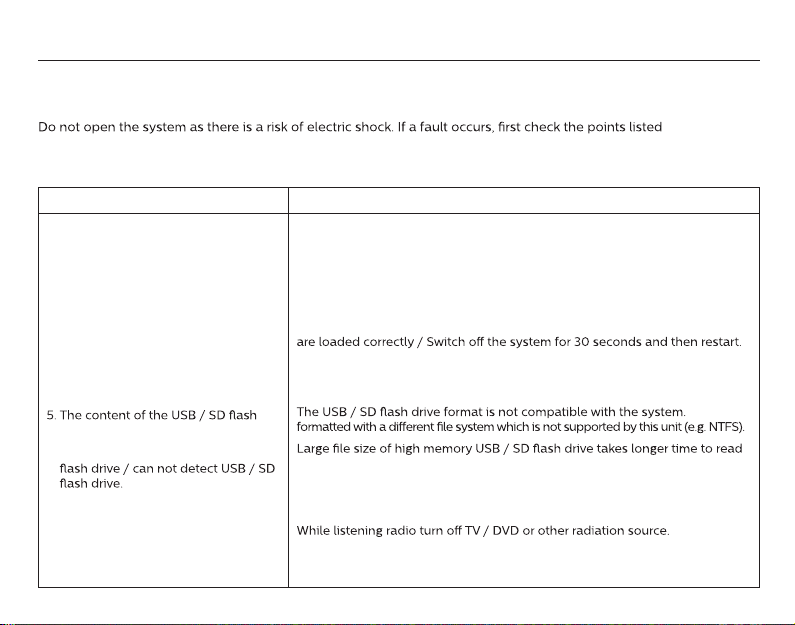

Troubleshooting
Warning -
Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty.
below before taking the system for repair. If you are unable to remedy the problem by following hints
mentioned in below table, Consult your dealer or PHILIPS APSC for help.
Problem Solution
1. No power.
2. No sound or distorted sound.
3. The remote control does not
function properly.
Check if the AC power cord is properly inserted into the AC mains socket.
Adjust the volume / select the correct source to choose the equipment
that you want to hear through the system.
Reduce the distance between the remote control and the system. Replace
the batteries with new ones / Point the remote control directly towards the
IR sensor (located on front panel of the subwoofer) / Check that the batteries
4. Low hum or buzz sound.
drive can not be read.
6. Slow operation of the USB / SD
7. FM not properly tuned.
8. FM reception not good.
9. Bluetooth do not function. 1. Check pairing of the device;
In case these measures do not work contact the nearest PHILIPS service center or call at customer care numbers.
Place the product as far away as possible from electrical devices that may be
causing interference / Check power supply voltage and consult electrician.
and play. / Take out USB / SD drive and insert it again properly.
Match with local frequency.
2. Check device is within 10M distance.
Drive is
Page 9
Warranty
This Philips 5.1 multimedia speakers system is warranted against any defect due to defective materials or
workmanship for 12 months from the date of purchase, should a defect develop during the period of warranty,
Gibson Innovations India Private Limited undertake to repair the apparatus FREE OF CHARGE through the dealer
from whom it has been purchased or at any of the Philips Authorised Service Centres.
The warranty is not valid in case :
1. Proof of purchase is not accompanied with this warranty card.
2. The warranty card is not completed immediately after purchase.
3. The apparatus is not used according to this manual.
4. Defects are caused by improper or reckless use.
5. Any repairs are done by persons other than Philips Authorised service centre.
7. The serial number is tampered with.
8. Defects due to causes beyond control like lightning, abnormal voltage, acts of God or while in
transit to the purchaser’s residence.
All consumables and parts susceptible to normal wear and tear are not covered under warranty.
Week/S.No.: ___________________________ Bill No. ___________________________
Date of purchase _________________________________________________________
Dealer’s name: ___________________________________________________________
Dealers stamp: __________________________________________________________
Customer’s name and address: _____________________________________________
Model No.: _____________________________________________________________
Dealer’s signature: ________________________________________________________
Gibson Innovations India Private Limited 4th Floor, Block-1, Vatika Business Park, Sector 49, Sohna Road,
Gurgaon-122018, Haryana, India
Page 10
Total system power 45W RMS
Satellite 4W x 4+8W RMS
Subwoofer power 21W RMS
Separation >35db
SNR >60db
Audio input socket
RCA Type
Audio output socket RCA Type
Power consumption 45W
Subwoofer speaker 1 Way
Speaker size 5 inch
Impedance 8 Ohm
Frequency range 20Hz - 170Hz
Dimension (mm) W x H x D 160 x 264x 279
Weight 3.57Kg.
The Philips trademark and Philips shield emblem are
registered trademarks of koninklijke Philips N.V. used
under license.
This product has been manufactured by and sold
under the responsibility of Gibson Innovation India
Private Ltd. and Gibson Innovations India private Ltd.
is the warrantor in relation to this product.
Satellite speaker
Speaker size
1 Way, 5 Speakers
3 inch
Impedance 4 Ohm
Frequency range 120Hz - 20KHz
Dimension (mm) W x H x D 105 x 172 x 99
Weight 2.5 Kg.
USB
Class support UMS (USB mass
storage class)
Capacity Upto 16GB
Playability MP3 track
Upto 10MBluetooth Range
