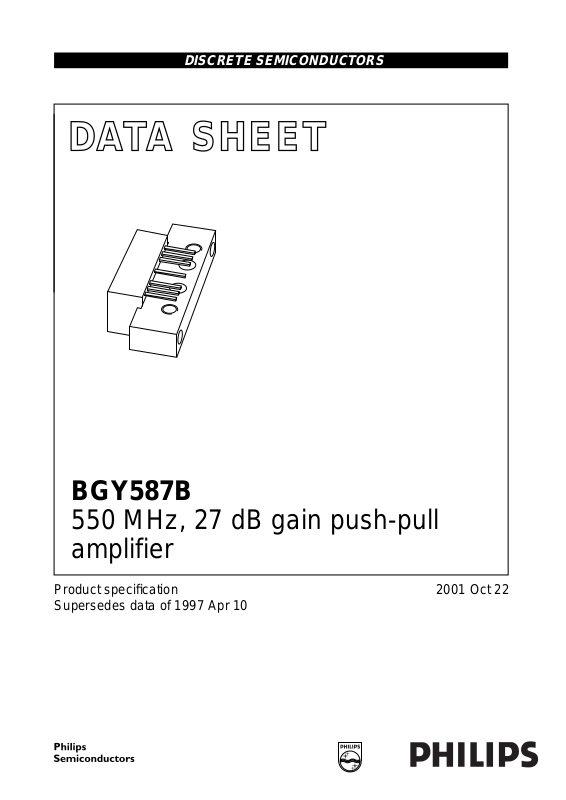

Page 1
DISCRETE SEMICONDUCTORS
DATA SH EET
ook, halfpage
M3D252
BGY587B
550 MHz, 27 dB gain push-pull
amplifier
Product specification
Supersedes data of 1997 Apr 10
2001 Oct 22
Page 2
Philips Semiconductors Product specification
550 MHz, 27 dB gain push-pull amplifier BGY587B
FEATURES
• Excellent linearity
• Extremely low noise
• Silicon nitride passivation
• Rugged construction
• TiPtAu metallized crystals ensure
optimal reliability.
DESCRIPTION
PINNING - SOT115J PIN CONFIGURATION
PIN DESCRIPTION
1 input
2 common
page
2
789
351
3 common
5+V
7 common
8 common
B
Side view
Fig.1 Simplified outline.
9 output
Hybrid amplifier module for CATV
systems operating over a frequency
range of 40 to 550 MHz at a voltage
supply of +24 V (DC).
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
G
p
power gain f = 50 MHz 26.2 27.8 dB
f = 550 MHz 27.5 − dB
I
tot
total current consumption (DC) VB= +24 V − 340 mA
MSA319
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL PARAMETER MIN. MAX. UNIT
V
i
T
stg
T
mb
V
B
RF input voltage − 55 dBmV
storage temperature −40 +100 °C
operating mounting base temperature −20 +100 °C
DC supply voltage − +28 V
2001 Oct 22 2
Page 3
Philips Semiconductors Product specification
550 MHz, 27 dB gain push-pull amplifier BGY587B
CHARACTERISTICS
Table 1 Bandwidth 40 to 550 MHz; T
=30°C; ZS=ZL=75Ω
case
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
G
p
power gain f = 50 MHz 26.2 27.8 dB
f = 550 MHz 27.5 dB
SL slope cable equivalent f = 40 to 550 MHz 0.5 2.5 dB
FL flatness of frequency response f = 40 to 550 MHz −±0.4 dB
S
11
input return losses f = 40 to 80 MHz 20 − dB
f = 80 to 160 MHz 19 − dB
f = 160 to 550 MHz 18 − dB
S
22
output return losses f = 40 to 80 MHz 20 − dB
f = 80 to 160 MHz 19 − dB
f = 160 to 550 MHz 18 − dB
CTB composite triple beat 77 channels flat;V
= 44 dBmV;
o
−−57 dB
measured at 547.25 MHz
X
mod
cross modulation 77 channels flat; Vo= 44 dBmV;
−−60 dB
measured at 55.25 MHz
CSO composite second order
distortion
d
2
V
o
second order distortion note 1 −−68 dB
output voltage dim= −60 dB; note 2 61 − dBmV
77 channels flat; V
= 44 dBmV;
o
measured at 548.5 MHz
−−57 dB
F noise figure f = 550 MHz − 6.5 dB
I
tot
total current consumption DC value; VB= +24 V; note 3 − 340 mA
Notes
= 55.25 MHz; Vp= 44 dBmV;
1. f
p
fq= 493.25 MHz; Vq= 44 dBmV;
measured at fp+fq= 548.5 MHz.
2. Measured according to DIN45004B;
fp= 540.25 MHz; Vp=Vo= 66.5 dBmV;
fq= 547.25 MHz; Vq=Vo−6 dB;
fr= 549.25 MHz; Vr=Vo−6 dB;
measured at fp+fq−fr= 538.25 MHz.
3. The module normally operates at VB= +24 V, but is able to withstand supply transients up to +30 V.
2001 Oct 22 3
Page 4
Philips Semiconductors Product specification
550 MHz, 27 dB gain push-pull amplifier BGY587B
PACKAGE OUTLINE
Rectangular single-ended package; aluminium flange; 2 vertical mounting holes;
2 x 6-32 UNC and 2 extra horizontal mounting holes; 7 gold-plated in-line leads SOT115J
D
E
A
2
A
L
F
S
Z p
1
5
78923
c
d
U
Q
B
U
1
2
y M
p
q
B
0 5 10 mm
W
scale
e
e
1
b
q
2
q
1
y M
B
w
y M
M
B
DIMENSIONS (mm are the original dimensions)
A
UNIT
max.
max.
mm 20.8 9.1
OUTLINE
VERSION
SOT115J
A
2
c
bF
0.51
0.25 27.2 2.54 13.75 2.54 5.08 12.7 8.8
0.38
IEC JEDEC EIAJ
D
max.
d
max.
E
max.
ee
1
REFERENCES
L
min.
2001 Oct 22 4
Q
p
4.15
3.85
q
q1q
max.
2.4 38.1 25.4 10.2 4.2 44.75 8 0.25 0.1 3.8
2
U
1
S
max.
EUROPEAN
PROJECTION
W
U
2
6-32
UNC
yw
ISSUE DATE
99-02-06
Z
max.
Page 5
Philips Semiconductors Product specification
550 MHz, 27 dB gain push-pull amplifier BGY587B
DATA SHEET STATUS
PRODUCT
DATA SHEET STATUS
Objective data Development This data sheet contains data from the objective specification for product
Preliminary data Qualification This data sheet contains data from the preliminary specification.
Product data Production This data sheet contains data from the product specification. Philips
(1)
STATUS
(2)
DEFINITIONS
development. Philips Semiconductors reserves the right to change the
specification in any manner without notice.
Supplementary data will be published at a later date. Philips
Semiconductors reserves the right to change the specification without
notice, in order to improve the design and supply the best possible
product.
Semiconductors reserves the right to make changes at any time in order
to improve the design, manufacturing and supply. Changes will be
communicated according to the Customer Product/Process Change
Notification (CPCN) procedure SNW-SQ-650A.
Notes
1. Please consult the most recently issued data sheet before initiating or completing a design.
2. The product status of the device(s) described in this data sheet may have changed since this data sheet was
published. The latest information is available on the Internet at URL http://www.semiconductors.philips.com.
DEFINITIONS
Short-form specification The data in a short-form
specification is extracted from a full data sheet with the
same type number and title. For detailed information see
the relevant data sheet or data handbook.
Limiting values definition Limiting valuesgiven arein
accordance with the Absolute Maximum Rating System
(IEC 60134). Stress above one or more of the limiting
values may cause permanent damage to the device.
These are stress ratings only and operation of the device
atthese or atanyother conditions abovethosegiven in the
Characteristics sectionsof the specificationis not implied.
Exposure to limiting values for extended periods may
affect device reliability.
Application information Applications that are
described herein for any of these products are for
illustrative purposes only. Philips Semiconductors make
norepresentationor warranty thatsuchapplicationswill be
suitable for the specified use without further testing or
modification.
DISCLAIMERS
Life support applications These products are not
designed for use in life support appliances, devices, or
systems where malfunction of these products can
reasonably be expectedto resultin personal injury.Philips
Semiconductorscustomersusing or sellingtheseproducts
for use in such applications do so at their own risk and
agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.
Right to make changes Philips Semiconductors
reserves the right to make changes, without notice, in the
products, including circuits, standard cells, and/or
software, described or contained herein in order to
improve design and/or performance. Philips
Semiconductors assumes no responsibility or liability for
theuse of any oftheseproducts, conveys nolicenceortitle
under any patent, copyright, or mask work right to these
products,and makes norepresentations or warrantiesthat
these products are free from patent, copyright, or mask
work right infringement, unless otherwise specified.
2001 Oct 22 5
Page 6
Philips Semiconductors Product specification
550 MHz, 27 dB gain push-pull amplifier BGY587B
NOTES
2001 Oct 22 6
Page 7
Philips Semiconductors Product specification
550 MHz, 27 dB gain push-pull amplifier BGY587B
NOTES
2001 Oct 22 7
