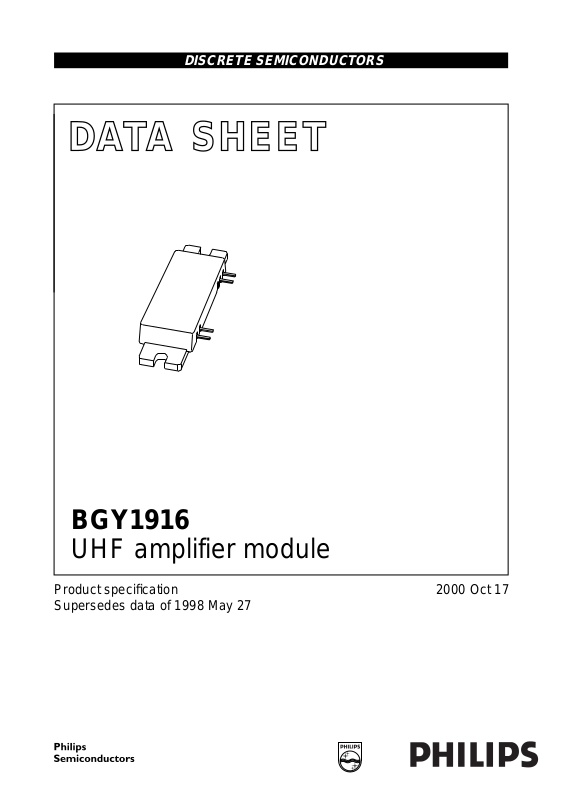

DISCRETE SEMICONDUCTORS
DATA SH EET
andbook, halfpage
M3D167
BGY1916
UHF amplifier module
Product specification
Supersedes data of 1998 May 27
2000 Oct 17
![](/html/92/92c7/92c7ab3d071203c1049d660f54a76f2ac56a1affd3e5bef4893fc80354959e79/bg2.png)
Philips Semiconductors Product specification
UHF amplifier module BGY1916
FEATURES
• 26 V nominal supply voltage
• 16 W output power into a load of 50 Ωwithan RF drive
power of ≤63 mW.
APPLICATIONS
• Base station transmitting equipment operating in the
1930 to 1990 MHz frequency band.
DESCRIPTION
The BGY1916 is a three-stage UHF amplifier module in a
SOT365A package with a plastic cap. It consists of three
NPN silicon planar transistor dies mounted together with
matching and bias circuit components on a metallized
ceramic AlN substrate.
PINNING - SOT365A
PIN DESCRIPTION
1 RF input
2V
3V
4 RF output
Flange ground
handbook, halfpage
Fig.1 Simplified outline.
S1
S2
2134
MSA447
QUICK REFERENCE DATA
RF performance at Tmb=25°C.
MODE OF OPERATION
f
(MHz)
V
(V)
S1
V
(V)
S2
P
(W)
L
G
p
(dB)
η
(%)
ZS; Z
CW 1930 to 1990 5 26 ≥16 ≥24 ≥30 50
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
S1
V
S2
P
D
P
L
T
stg
T
mb
DC supply voltage 4.5 5.5 V
DC supply voltage − 28 V
input drive power − 120 mW
load power Tmb=25°C − 20 W
storage temperature −30 +100 °C
operating mounting base
−10 +90 °C
temperature
L
(Ω)
2000 Oct 17 2
![](/html/92/92c7/92c7ab3d071203c1049d660f54a76f2ac56a1affd3e5bef4893fc80354959e79/bg3.png)
Philips Semiconductors Product specification
UHF amplifier module BGY1916
CHARACTERISTICS
Tmb=25°C; VS1=5V; VS2= 26 V; PL= 16 W; ZS=ZL=50Ω unless otherwise specified.
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
f frequency 1930 − 1990 MHz
I
S1
I
S2
P
L
G
p
η efficiency 30 −−%
H
2
H
3
VSWR
B AM bandwidth corner frequency=3dB;
supply current − 80 − mA
supply current PD< −60 dBm − 430 − mA
load power PD<63mW 16 −−W
power gain 24 − 28 dB
second harmonic −−−35 dBc
third harmonic −−−45 dBc
input VSWR −−1.6:1
in
stability VSWR ≤ 2 : 1 through all phases;
P
≤ 16 W; VS2=25to27V
L
reverse intermodulation P
carrier
= 16 W; P
reverse
= −40 dBc;
−−−60 dBc
−−−53 dBc
fi=fc±200 kHz
2 −−MHz
P
= 16 W; modulation = 20%
carrier
ruggedness VSWR ≤ 5 : 1 through all phases no degradation
30
handbook, halfpage
G
p
(dB)
20
10
0
0
f = 1960 MHz; VS1= 5 V; VS2= 26 V; ZS=ZL=50Ω; Tmb=25°C.
G
p
η
10 20
MGD187
PL (W)
Fig.2 Power gain and efficiency as functions of
load power; typical values.
60
η
(%)
40
20
0
30
30
handbook, halfpage
P
L
(W)
20
10
0
0
f = 1960 MHz; VS1= 5 V; VS2= 26 V; ZS=ZL=50Ω; Tmb=25°C.
40 80
MGD186
PIN (mW)
120
Fig.3 Loadpowerasafunctionofinputpower;
typical values.
2000 Oct 17 3
![](/html/92/92c7/92c7ab3d071203c1049d660f54a76f2ac56a1affd3e5bef4893fc80354959e79/bg4.png)
Philips Semiconductors Product specification
UHF amplifier module BGY1916
APPLICATION INFORMATION
handbook, full pagewidth
C8
C6
R2 L2
C4
C2
V
S2
50 Ω
output
MGM861
Z
2
50 Ω
input
C7
C5
Z
1
R1 L1
C3
C1
V
S1
Fig.4 Test circuit.
List of components (see Figs 4 and 5)
COMPONENT DESCRIPTION VALUE CATALOGUE NO.
C1, C2 electrolytic capacitor 10 µF; 35 V
C3, C4 multilayer ceramic chip capacitor 10 nF; 50 V
C5, C6 multilayer ceramic chip capacitor 100 pF; 50 V
C7, C8 multilayer ceramic chip capacitor 10 pF; 50 V
L1, L2 Grade 4S2 Ferroxcube bead 4330 030 36300
R1, R2 metal film resistor 10 Ω; 0.4 W 2322 195 13109
, Z
Z
1
2
stripline: note 1 50 Ω
Note
1. The striplines are on a double copper-clad printed-circuit board (RO5880) with εr= 2.2 and thickness = 0.79 mm.
