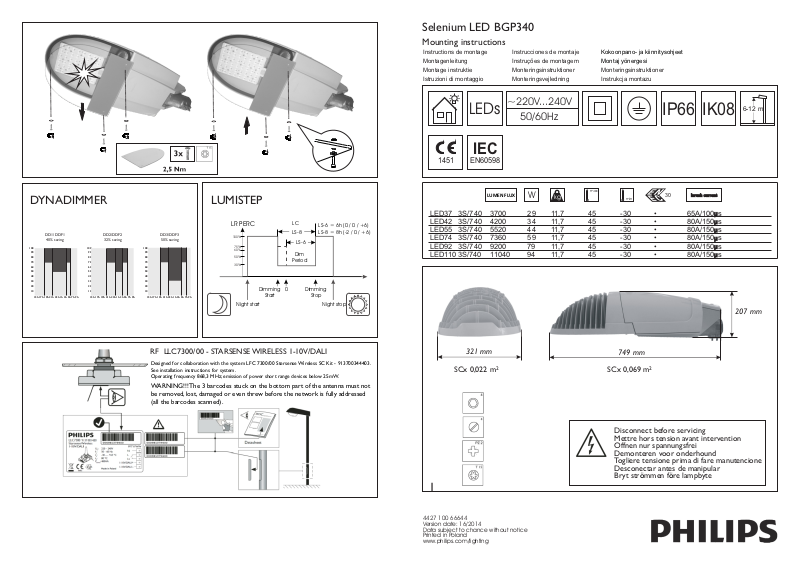

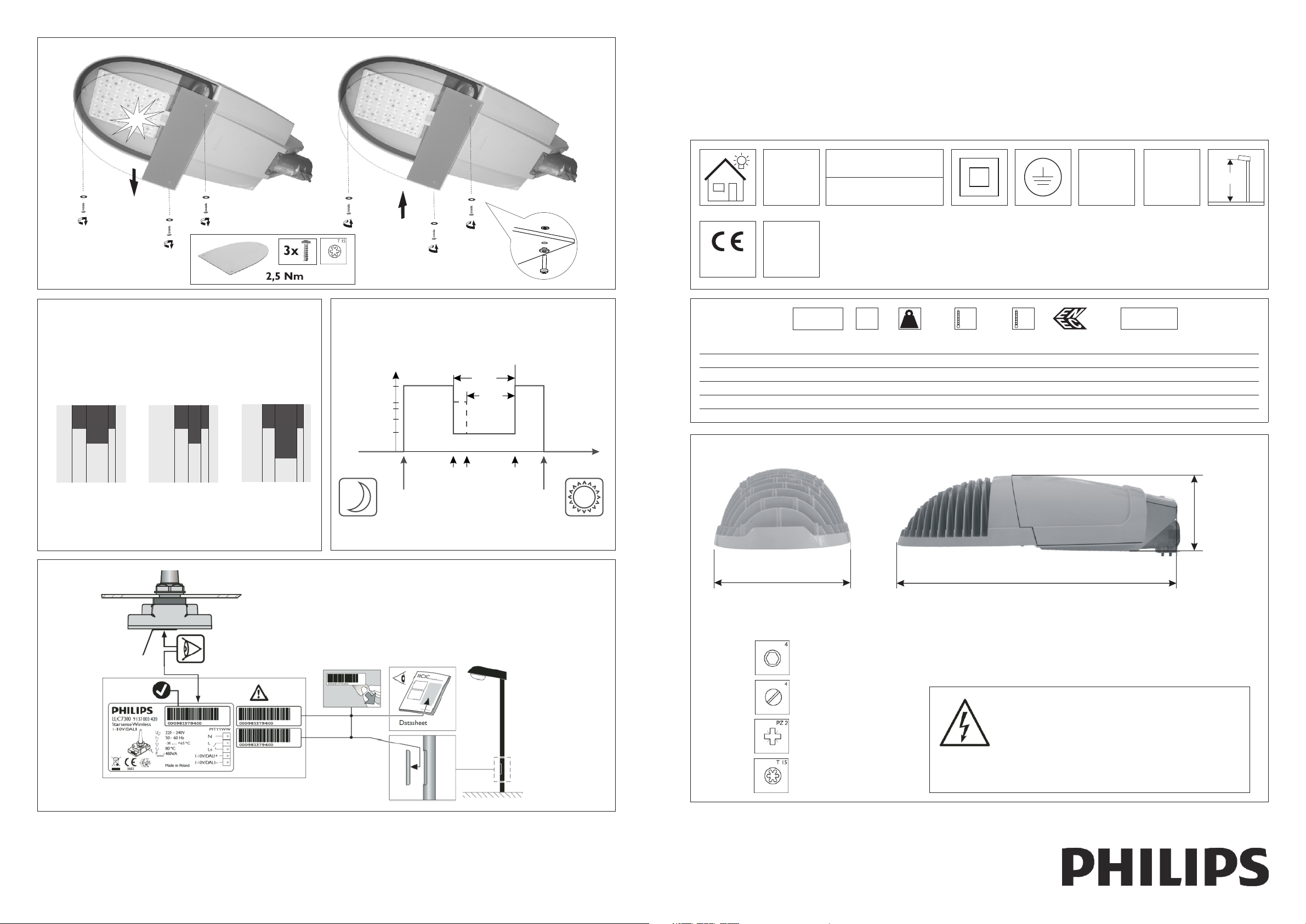

Selenium LED BGP340
Mounting instructions
Instructions de montage
Montagenleitung
Montage instruktie
Istruzioni di montaggio
Instrucciones de montaje
Instruçőes de montagem
Monteringsinstruktioner
Monteringsvejledning
~220V...240V
LEDs
50/60Hz
IEC
1451
EN60598
Kokoonpano- ja kiinnitysohjeet
Montaj yönergesi
Monteringsinstruktioner
Instrukcja montazu
IP66
IK08
6-12 m
DYNADIMMER
DD1/DDF1
40% saving
100
90
80
70
60
50
40
30
20
10
15h 17h 19h 21h 23h 1h 3h 5h 7h 9h 15h 17h 19h 21h 23h 1h 3h 5h 7h 9h 15h 17h 19h 21h 23h 1h 3h 5h 7h 9h
DD2/DDF2
32% saving
100
90
80
70
60
50
40
30
20
10
DD3/DDF3
50% saving
100
90
80
70
60
50
40
30
20
10
RF LLC7300/00 - STARSENSE WIRELESS 1-10V/DALI
Designed for collaboration with the system LFC 7300/00 Stersense Wireless SC Kit - 913700344403.
See installation instructions for system.
Operating frequency 868,3 MHz; emission of power short range devices below 25mW.
WARNING!!! The 3 barcodes stuck on the bottom part of the antenna must not
be removed, lost, damaged or even threw before the network is fully addressed
(all the barcodes scanned).
LUMISTEP
LR PERC
100%
75%
60%
50%
30%
Night start
Dimming
Start
0
LC
LS-8
LS-6
Dim
Period
LS-6 = 6h (0 / 0 / +6)
LS-8 = 8h (-2 / 0 / +6)
Dimming
Stop
Night stop
LUMEN FLUX
W
kg
LED37 3S/740 3700 29 11,7 45 -30 • 65A/100 s
LED42 3S/740 4200 34 11,7 45 -30 • 80A/150 s
LED55 3S/740 5520 44 11,7 45 -30 • 80A/150 s
LED74 3S/740 7360 59 11,7 45 -30 • 80A/150 s
LED92 3S/740 9200 79 11,7 45 -30 • 80A/150 s
LED110 3S/740 11040 94 11,7 45 -30 • 80A/150 s
max
min
30
Inrush current
µ
µ
µ
µ
µ
µ
207 mm
321 mm
SCx 0,022 m
2
749 mm
SCx 0,069 m
2
1
4427 100 66644
Version date: 16/2014
Data subject to chance without notice
Printed in Poland
www.philips.com/lighting
Disconnect before servicing
Mettre hors tension avant intervention
Offnen nur spannungsfrei
Demonteren voor onderhound
Togliere tensione prima di fare manutencione
Desconectar antes de manipular
Bryt str mmen f re lampbyteö ö

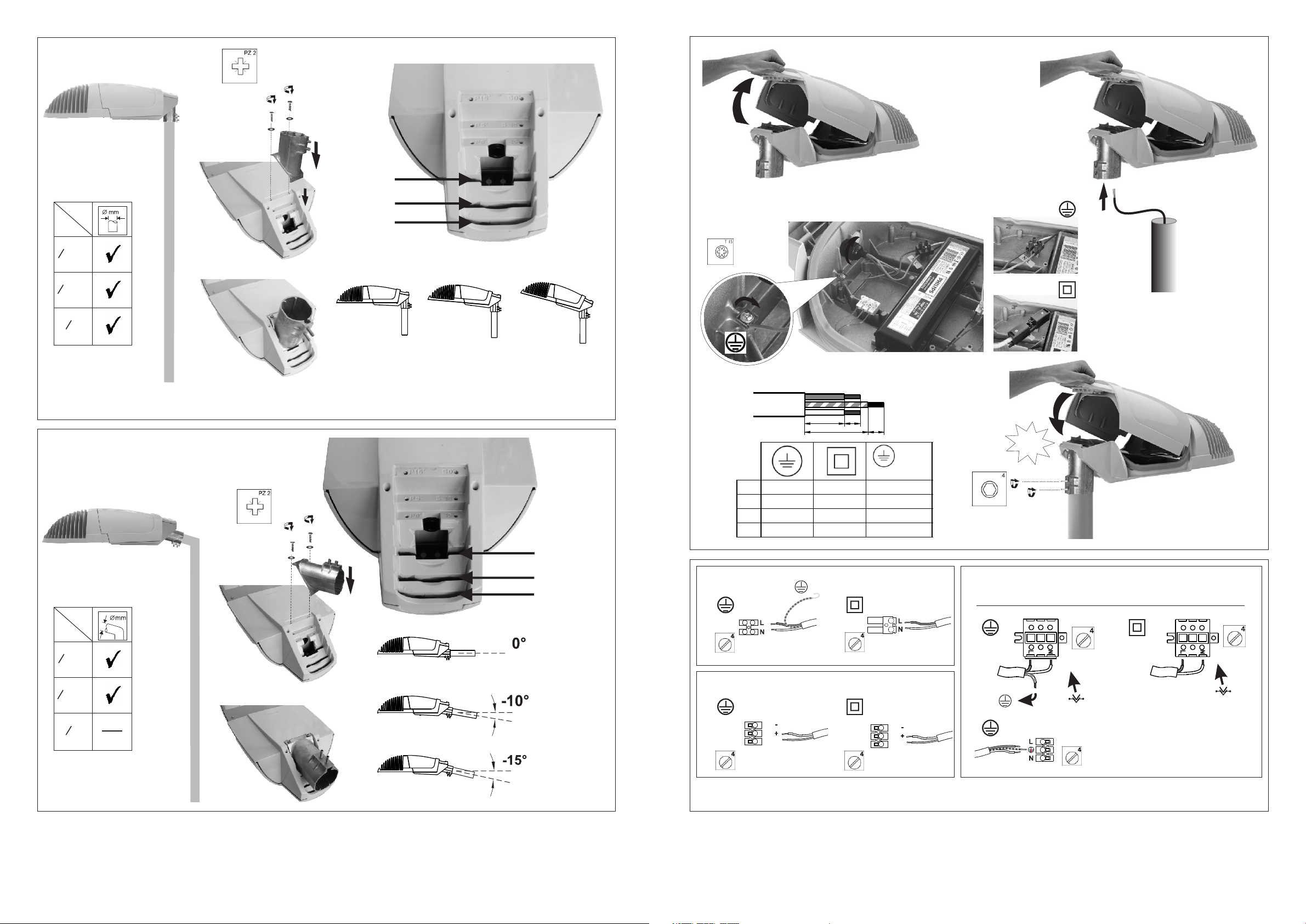

Page 2
NN
L
NN
L
a b
c d
LED 37S ... RF
a 70 ± 5 25 ± 5 25 ± 5
b 8 ± 2 8 ± 5 8 ± 2
c 180 ± 5 ----- 35 ± 5
d 30 ± 2 ----- 8 ± 2
3 Nm
o34-48
o48-60
o76
2
P15
o
P5
o
P0
P0
o
4a
CLASS I
4b
4c
3 Nm
CLASS II
o
P5
o
P15
o
click
o34-42
o48-60
o76
3
3 Nm
o
S0
S-10
S-15
S0°
S-10°
S-15°
15 Nm
4
o
o
CONTROL DALI /1-10V
DA
DA
DA
DA
P1
nema socket
*BGP340 LED37S ... RF
mini cell
(KC)
P3
4d
starsense
RF *
KC
knife connector
(KC)
5
