Philips BDP-5110-F-7-D, BDP-5110-F-7 Service Manual

SERVICE MANUAL

BLU-RAY DISC PLAYER

BDP5110/F7 D

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all P&F Equipment. The service procedures recommended by P&F and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. P&F could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, P&F has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by P&F must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1

How to Initialize the BLU-RAY Disc Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1

Internet Radio (vTuner) Error Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1

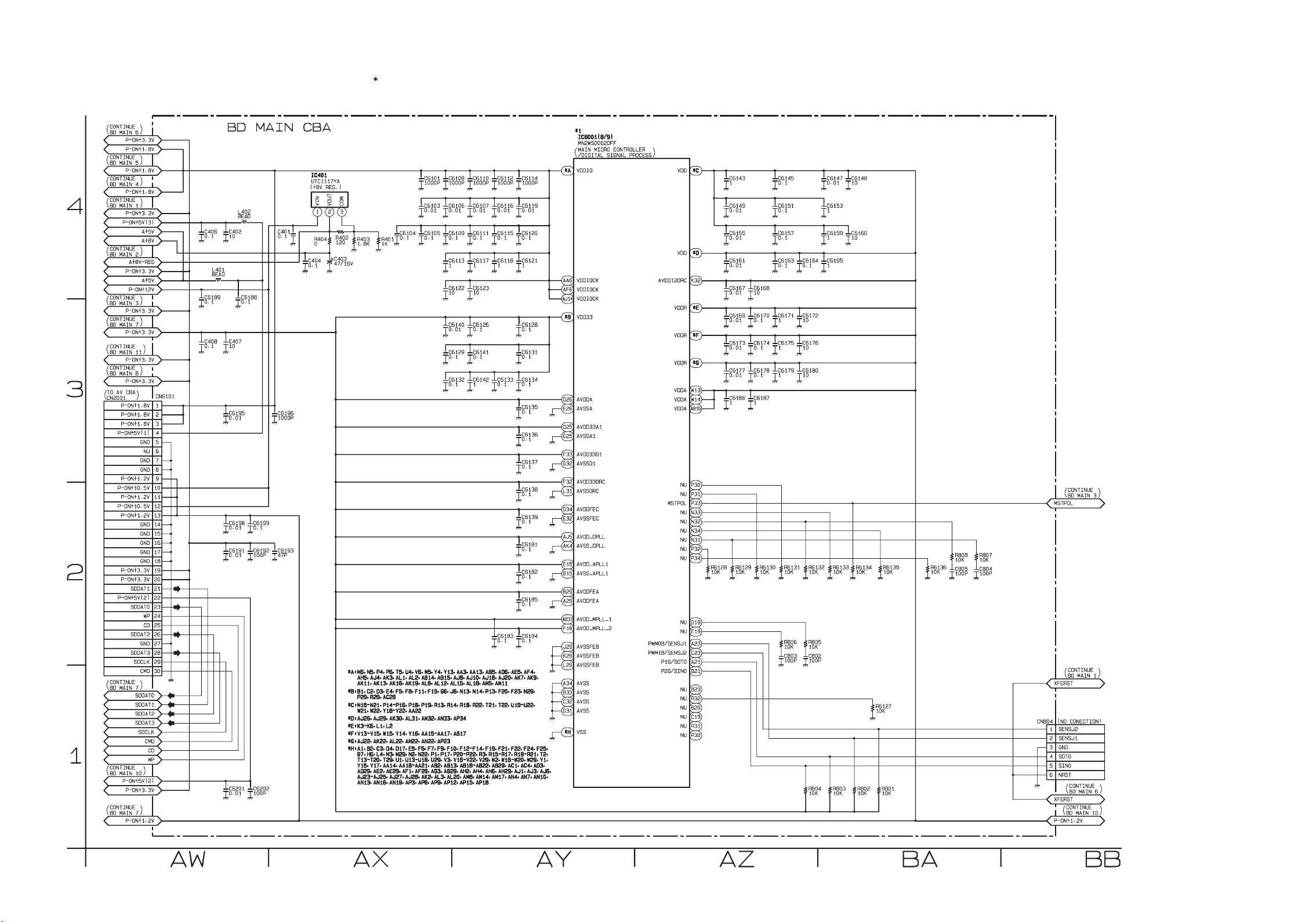

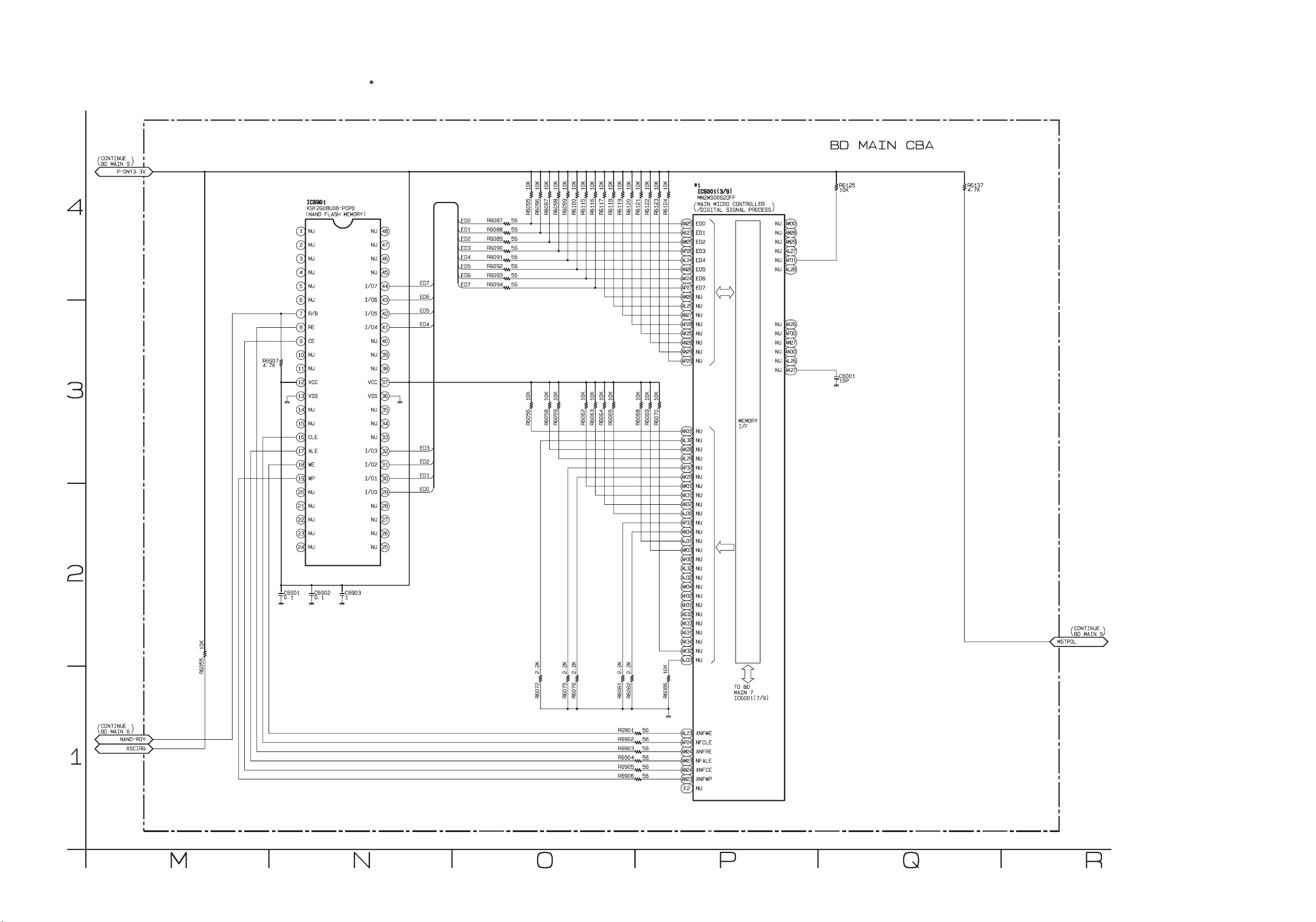

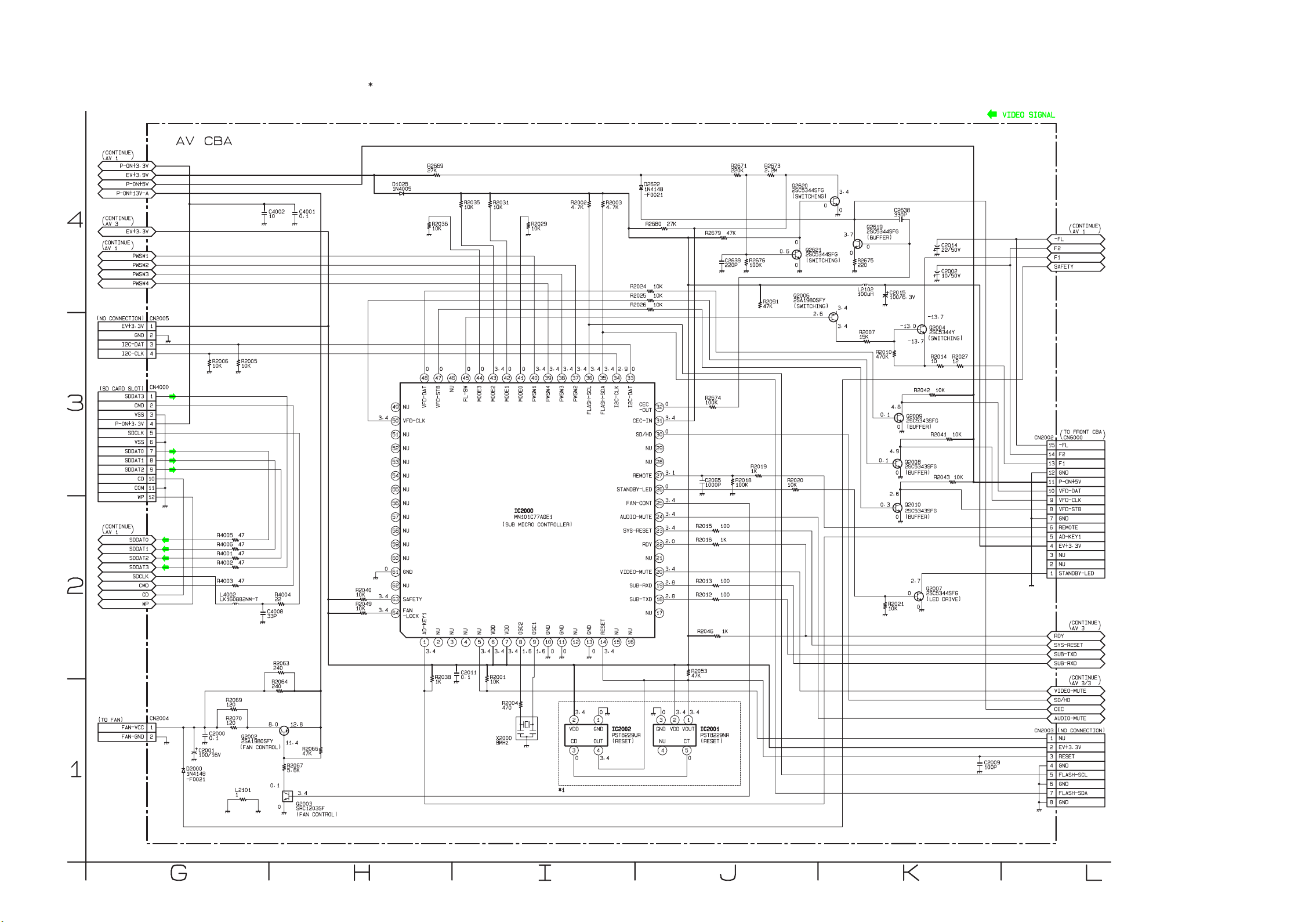

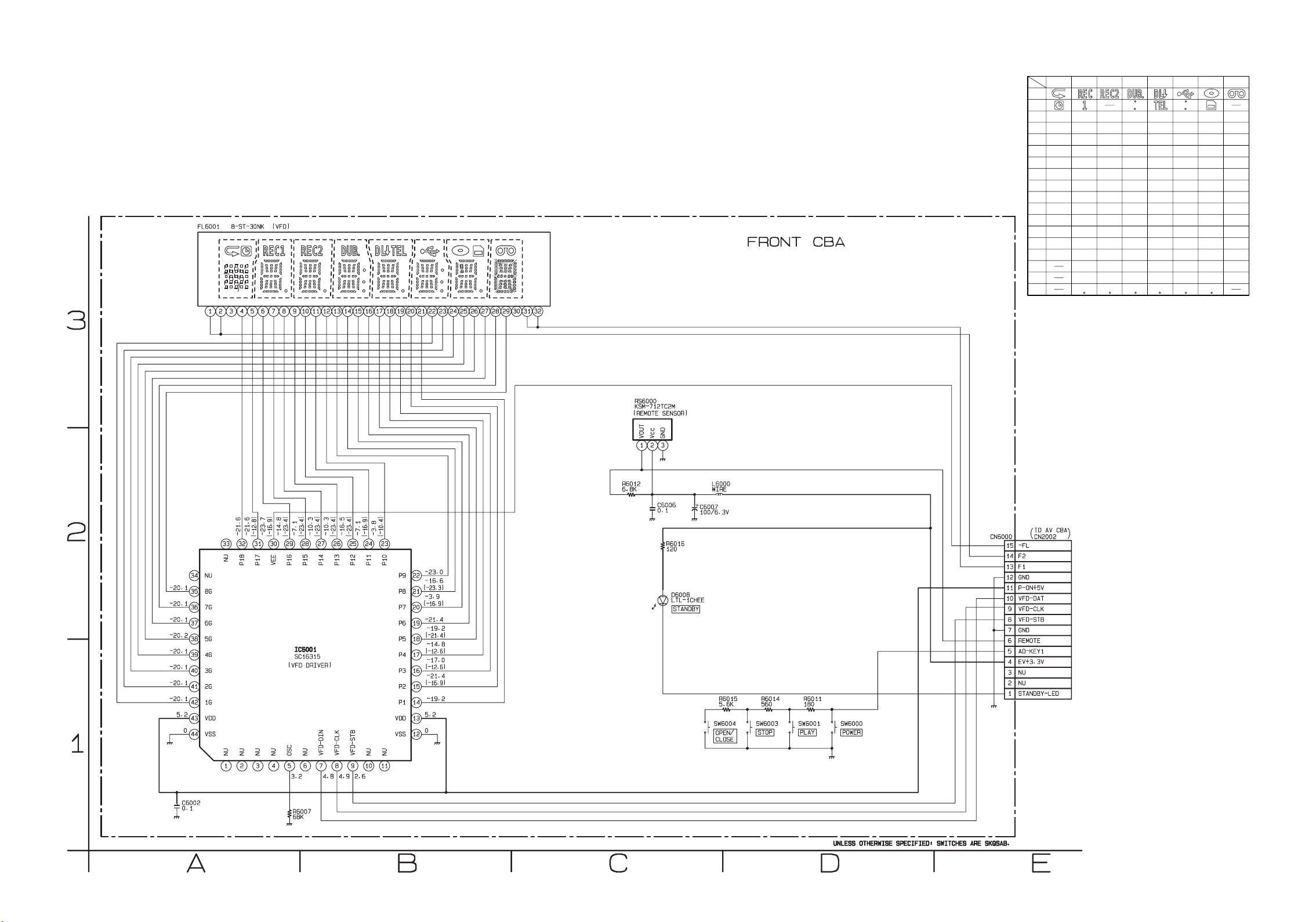

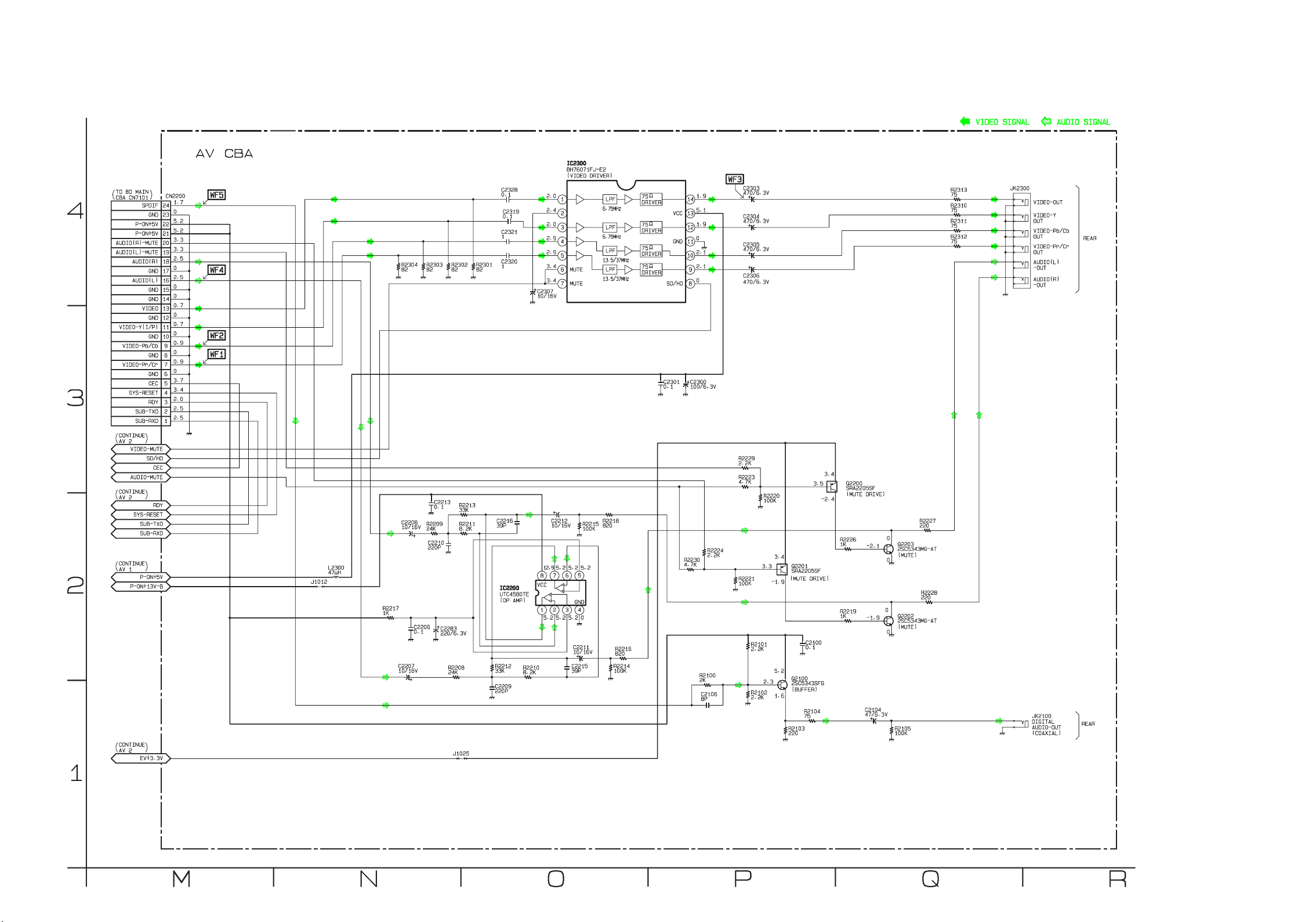

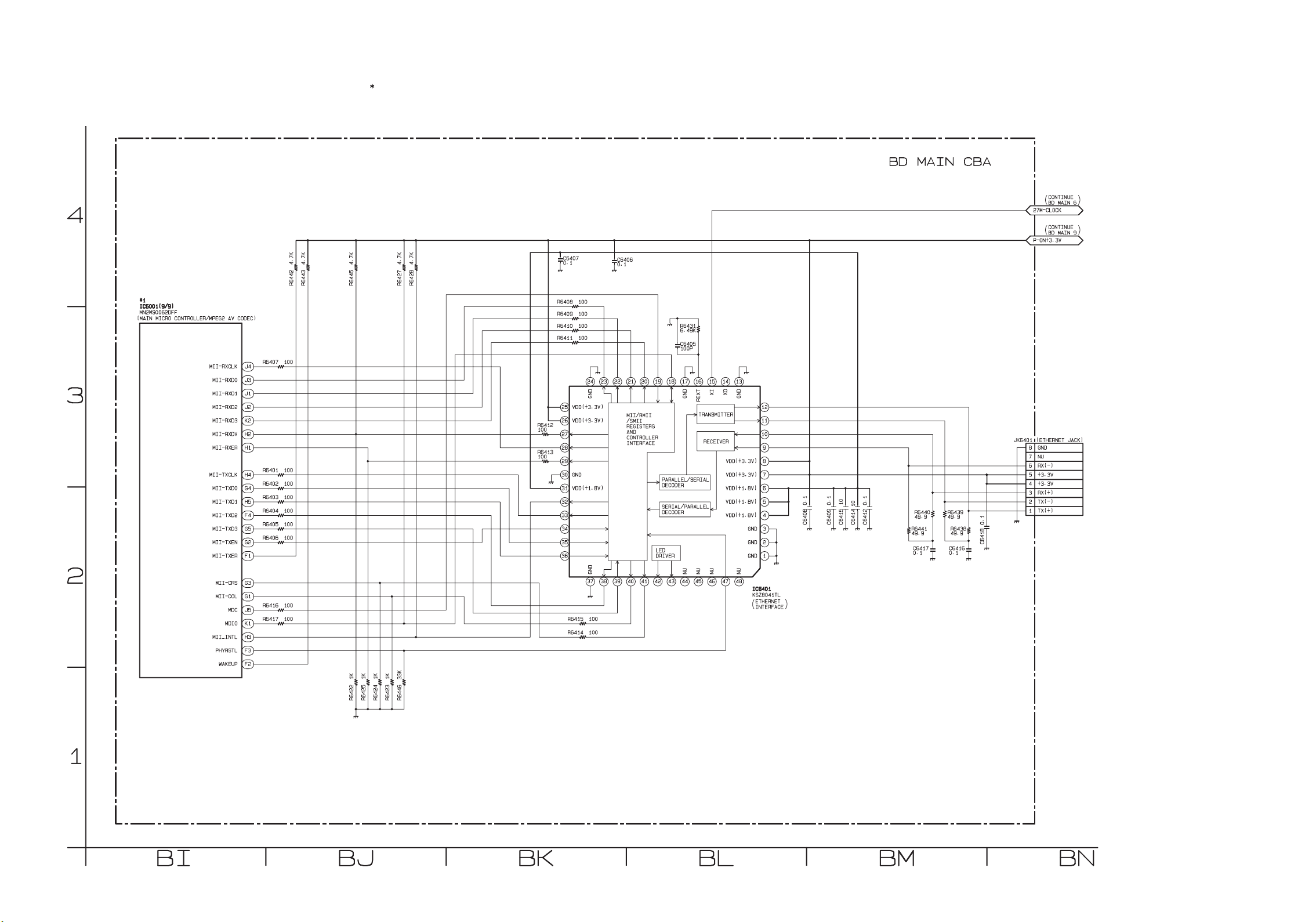

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1

System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1

IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-18-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19-1

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

SPECIFICATIONS

1-1-1 E5S50SP

LASER BEAM SAFETY PRECAUTIONS

This BD player uses a pickup that emits a laser beam.

Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin.

The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser beam.

CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in hazardous radiation exposure.

Drive Mechanism Assembly

Laser Beam Radiation

Laser Pickup

Turntable

Location: Inside Top of BD mechanism.

1-2-1 B2NLBSP

IMPORTANT SAFETY PRECAUTIONS

Product Safety Notice

Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The Product’s Safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are carefully inspected to confirm with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation tape

2) PVC tubing

3) Spacers

4) Insulators for transistors

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.).

G. Check that replaced wires do not contact sharp

edges or pointed parts.

H. When a power cord has been replaced, check that

5 - 6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC outlet.

L. When reassembling, be sure to use the original

screws or specified screws listed in the parts list.

1-3-1 BDN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d’) between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Clearance Distance (d), (d’)

120 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

≥ 3mm(d)

≥ 4mm(d’)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method (Power ON):

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across the terminals of load Z. See Fig. 2 and the following table.

d' d

Exposed Accessible Part

One side of

Power Cord Plug Prongs

Fig. 1

AC Voltmeter (High Impedance)

Table 2: Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i)

2kΩ RES.

Connected in

parallel

120 V

50kΩ RES.

Connected in

parallel

Note:This table is unofficial and for reference only. Be sure to confirm the precise values.

i≤0.7mA AC Peak

i≤2mA DC

i≤0.7mA AC Peak

i≤2mA DC

1-3-2 BDN_ISP

One side of power cord plug

prongs (B) to:

RF or

Antenna terminals

A/V Input, Output

Fig. 2

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

To p Vi ew

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

Bottom View

Pb (Lead) Free Solder

When soldering, be sure to use the Pb free solder.

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

Instructions for Connectors

1. When you connect or disconnect the FFC (Flexible Foil Connector) cable, be sure to first disconnect the AC cord.

2. FFC (Flexible Foil Connector) cable should be inserted parallel into the connector, not at an angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

1-4-1 BDN_SN

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

CBA

Masking Ta pe

Tweezers

Hot-air Flat Pack-IC Desoldering Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Sharp Pin

Fine Tip Soldering Iron

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Fig. S-1-4

1-4-2 BDN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the pin 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

To Solid Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

1-4-3 BDN_SN

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

1-4-4 BDN_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route, and dress the cables as they were originally.

[1] Top Cover

[2] Front Assembly

[4] Rear Panel

[5] BD Main CBA & BD Mechanism Assembly

[6] DC Fan Motor

[7] AV CBA

[3] Front CBA

2. Disassembly Method

ID/

Loc.

No.

[1] Top Cover D1 6(S-1) ---

[2]

[3] Front CBA D2 --------------- ---

[4] Rear Panel D3

[5]

[6]

[7] AV CBA D5

↓

(1)

Part

Front Assembly

BD Main CBA & BD Mechanism Assembly

DC Fan Motor

↓

(2)

Fig.

No.

*4(L-1), *3(L-2),

*4(L-3), *CN6000

(S-2), 3(S-3), (S-4), 2(S-5)

2(S-6), 4(S-7),

*CN6101, *CN7101

D5 *CN2004 ---

5(S-8), Power Holder, Main PCB Bracket, Hook

↓

(3)

Removal

Remove/*Unhook/

Unlock/Release/

Unplug/Desolder

↓

(4)

Note

---

↓

(5)

Note:

(1) Identification (location) No. of parts in the figures (2) Name of the part (3) Figure Number for reference (4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to “Reference Notes.”

Reference Notes

1. CAUTION 1: Locking Tabs (L-1), (L-2) and (L-3)

are fragile. Be careful not to break them.

2. When reassembling, be sure to use the original screws or specified screws listed in the parts list.

3. The BD Main CBA & BD Mechanism Assembly is adjusted as a unit at factory. Therefore, do not disassemble it. Replace the BD Main CBA & BD Mechanism Assembly as a unit.

(S-1)

[1] Top Cover

(S-1)

Fig. D1

1-5-1 E5S50DC

(L-2)

(L-1)

CN6000

(L-3)

[3] Front CBA

[2] Front Assembly

(S-7)

[5] *BD Main CBA & BD Mechanism Assembly

CN7101

(S-6)

CN6101

(L-1)

Fig. D2

*See Reference Notes 2.

[4] *Rear Panel

(S-2)

(S-3)

(S-4)

(S-5)

Fig. D3

* See Reference Notes 3.

(S-8)

Main PCB Bracket

[7] AV CBA

(S-8)

CN2004

Power Holder

Fig. D4

[6] DC Fan Motor

Hook

Fig. D5

1-5-2 E5S50DC

3. How to Eject Manually

1. Remove the Top Cover, Front Assembly and BD Main CBA & BD Mechanism Assembly.

2. Slide the portion A in the direction of the arrow.

3. Pull the tray out manually and remove a disc.

Portion A

1-5-3 E5S50DC

HOW TO INITIALIZE THE BLU-RAY DISC PLAYER

To put the program back at the factory-default, initialize the BD player as the following procedure.

Note: By initializing, network is reset to disconnected

state and “Network Service Disclaimer” appears on the screen.

1. Turn the power on.

2. Remove the disc on the tray and close the tray.

3. Press [1], [2], [3], [4], and [INFO] buttons on the remote control unit in that order. Fig. a appears on the screen.

" differ depending on the models.

*******

Version Info

F/W Name Version Region Pickup ESN DRM

: ******* : *.*** : *-* : ** : *********************************** : OK

EXIT <POWER>EEPROM CLEAR <STOP>

Fig. a

4. Press [ C ] button on the remote control unit. Fig. b appears on the screen and Fig. c appears on the VFD.

" differ depending on the models.

*******

Version Info

F/W Name Version Region Pickup ESN DRM

EEPROM CLEAR : OK

: ******* : *.*** : *-* : ** : *********************************** : OK

EXIT <POWER>EEPROM CLEAR <STOP>

Fig. b

Fig. c

5. To exit this mode, press [ ] button.

1-6-1 E5SK0INT

FIRMWARE RENEWAL MODE

Note: The file extension of the available firmware is

“b35”.

1. Turn the power on and remove the disc on the tray and close the tray.

2. To put the BD player into version up mode, press [9], [8], [7], [6], and [DISC MENU/POP-UP MENU] buttons on the remote control unit in that order. The tray will open automatically. Fig. a appears on the screen and Fig. b appears on the VFD.

" differ depending on the models.

*******

F/W VERSION UP MODE FW Name:******* Ver *.***

Please Insert a Disc For F/W Version Up.

Fig. a Version Up Mode Screen

The appearance shown in (*1) of Fig. c is described as follows:

No. Appearance State

1 Now Loading... Loading the disc

2 Reading...

Sending files into the memory.

Writing new version data,

3 See FL Display.

the progress will be displayed as shown in Fig. f.

" differ depending on the models.

*******

F/W VERSION UP MODE FW Name:******* Ver *.***

1. ALL Version : *.*** **************.b35 CHECKSUM : ****

See FL Display.

EXIT : POWER

Fig. e Version Up Mode

Fig. b VFD in Version Up Mode

3. Load the disc for version up.

4. The BD player enters the F/W version up mode automatically. Fig. c appears on the screen and Fig. d appears on the VFD. Make sure to insert the proper F/W for the state of this model.

" differ depending on the models.

*******

F/W VERSION UP MODE FW Name:******* Ver *.***

(*1)

Now Loading...

Fig. c Programming Mode Screen (Example)

Fig. d VFD in Programming Mode (Example)

Fig. f VFD in Version Up Mode

5. After programming is finished, the checksum on the VFD (Fig. g).

Fig. g

VFD upon Finishing the Programming Mode (Example)

Checksum appears on the VFD then the tray will open automatically. Remove the disc on the tray.

At this time, no button is available.

6. Unplug the AC cord from the AC outlet. Then plug it again.

7. Turn the power on.

Note: All the settings will be put back to factory-

default.

1-7-1 E5SK0FW

How to Verify the Firmware Version

1. Turn the power on.

2. Remove the disc on the tray and close the tray.

3. Press [1], [2], [3], [4], and [INFO] buttons on the remote control unit in that order. Fig. h appears on the screen.

" differ depending on the models.

*******

Version Info

F/W Name Version Region Pickup ESN DRM

4. To exit this mode, press [ ] button.

: ******* : *.*** : *-* : ** : *********************************** : OK

EXIT <POWER>EEPROM CLEAR <STOP>

Fig. h

1-7-2 E5SK0FW

FIRMWARE RENEWAL MODE (for User)

1. Press [ ] button to display Setup menu.

2. Select Settings - Advanced Setup - Others - Software Upgrade - Disc Upgrade.

3. The screen appears in Fig. a when “Yes” is chosen and the tray opens. Insert the disc and press [ A ] button.

Software Upgrade

Please insert a disc for software Upgrade.

If you want to exit Upgrade, press 'BACK'.

Fig. a

4. Disc loading starts. Fig. b will appear on the screen and Fig. c appears on the VFD.

Software Upgrade

Loading Disc....

6. Firmware loading starts. Fig. f will appear on the screen and Fig. g appears on the VFD.

Software Upgrade

1.Loading 2.Upgrading

Loading Software...

If you want to exit the download, press 'BACK'.

Fig. f

Fig. g VFD in Update Mode

7. Updating starts automatically. Fig. h will appear on the screen and update progress will be displayed as shown in Fig. i on the VFD.

Software Upgrade

1.Loading 2.Upgrading

Upgrading Software...

Fig. b

Fig. c VFD in Update Mode

5. Fig. d will appear on the screen, then select “Yes”. Fig. e will appears on the VFD.

Software Upgrade

Current Version : X.XXX

: X.XXXInsert Version

Select 'Yes' and press 'OK' button to start upgrading.

Press 'No' to exit software upgrade .

NoYes

Fig. d

Please wait for a few minutes.

Do not unplug the AC cord or interrupt upgrading process.

When upgrade is completed unit will automatically turn Off.

Upgrade disc will eject after unit automatically turns back on.

Fig. h

Fig. i VFD in Update Mode

8. “GOODBYE” on the VFD and power turns off automatically when it finishes.

9. The power turns on and the tray will open automatically. Remove the disc on the tray.

Note: The setup setting configured before the update

will be kept.

Fig. e VFD in Update Mode

1-7-3 E5SK0FW

FLOW CHART NO.1

The power cannot be turned on.

TROUBLESHOOTING

Is the fuse normal?

Ye s Is normal state restored when once unplugged power cord is plugged again after several seconds?

Ye s Is +5V voltage supplied to the cathode of D1011?

Ye s

Check each rectifying circuit of the secondary circuit and service it if defective.

FLOW CHART NO.2

The fuse blows out.

Check the presence that the primary component is leaking or shorted and service it if defective.

After servicing, replace the fuse.

FLOW CHART NO.3

When the output voltage fluctuates.

Does the photo coupler circuit on the secondary side operate normally?

Ye s

Check IC1001, IC1003, D1005, D1006, D1036, D1037 and their periphery, and service it if defective.

See FLOW CHART No.2 <The fuse blows out.>

Check if there is any leak or short-circuiting on the primary circuit component, and service it if defective. (IC1001,Q1001, Q1002, T1001, D1001, D1002, D1003, D1004, D1007, C1010, R1013)

Check the presence that the rectifying diode or circuit is shorted in each rectifying circuit of secondary side, and service it if defective.

Check IC1003, IC1011 and their periphery, and service it if defective.

FLOW CHART NO.4

When buzz sound can be heard in the vicinity of power circuit.

Check if there is any short-circuit on the rectifying diode and the circuit in each rectifying circuit of the secondary side, and service it if defective. (D1010, D1011, D1013, D1014, D1018, D1023, IC2601, IC2602, IC2700, IC2750, Q1011,Q2603, Q2604, Q2606)

FLOW CHART NO.5

-FL is not outputted.

Is -30V voltage supplied to the anode of D1018?

Ye s Check for load circuit short-circuiting or leak, and service it if defective.

Check D1009, D1018, C1021 and periphery circuit, and service it if defective.

1-8-1 E5S50TR

FLOW CHART NO.6

P-ON+13V-A(-B) is not outputted.

Is 13V voltage supplied to the emitter of Q2603?

Ye s

Is 12V voltage supplied to the base of Q2603?

Ye s

Replace Q2603.

FLOW CHART NO.7

P-ON+5V (P-ON+5V(2)) is not outputted.

Is 5V voltage supplied to the emitter of Q2604?

Ye s

Is 4.4V voltage supplied to the base of Q2604?

Ye s

Replace Q2604.

FLOW CHART NO.8

P-ON+5V (1) is not outputted.

Is 5V voltage inputted to the emitter of Q2606?

Ye s

Check D1023, C1018, C1024, L1003 and their periphery circuit, and service it if defective.

Check Q2601, D2601 and PWSW4 line and service it if defective.

Check D1011, D1013, D1014, C1019, C1025, and their periphery circuit, and service it if defective.

Check Q2605, D2614 and PWSW4 line and service it if defective.

Check D1011, D1013, D1014, C1019, C1025, and their periphery, and service it if defective.

Is 4.4V voltage inputted to the base of Q2606?

Ye s

Replace Q2606.

FLOW CHART NO.9

P-ON+10.5V is not outputted.

Is 13V voltage inputted to Pin(2) of IC2700?

Ye s

Is the "H" signal inputted to Pin(7) of IC2700? Replace IC2000.

Ye s

Replace IC2700.

FLOW CHART NO.10

P-ON+1.2V is not outputted.

Is 5V voltage supplied to Pin(2) of IC2601?

Ye s

Is the "H" signal inputted to the Pin(7) of IC2601?

Ye s Replace IC2601.

Check Q2605, D2605 and PWSW4 line and service it if defective.

Check D1023, C1018, C1024, L1003 and their periphery, and service it if defective.

Check D1011, D1013, D1014, C1019, C1025 the periphery circuit, and service it if defective.

Replace IC2000.

and

1-8-2 E5S50TR

FLOW CHART NO.11

P-ON+1.8V is not outputted.

Is 5V voltage supplied to Pin(2) of IC2602?

Ye s

Is the "H" signal inputted to the Pin(7) of IC2602?

Ye s

Replace IC2602.

FLOW CHART NO.12

EV+3.9V is not outputted.

Is 5V voltage supplied to the

Is 4.8V voltage supplied to the

Replace Q1011.

FLOW CHART NO.13

P-ON+3.3V is not outputted.

Is 5V voltage supplied to Pin(2) of IC2750?

Is the "H" signal inputted to the Pin(7) of IC2750?

Replace IC2750.

collector

Ye s

base

Ye s

of Q1011?

Check D1011, D1013, D1014, C1019, C1025 and their periphery circuit, and service it if defective.

Replace IC2000.

Check D1011, D1013, D1014, C1019, C1025, and their periphery circuit, and service it if defective.

Check IC1012, R1046, R1048, and their periphery circuit, and service it if defective.

Check D1011, D1013, D1014, C1019, C1025 and their periphery circuit, and service it if defective.

Replace IC2000.

FLOW CHART NO.14

The fluorescent display tube does not light up.

Is 5V voltage supplied to Pin(13, 43) of IC6001?

Ye s Is approximately -24V to -28V voltage supplied to Pin(30) of IC6001?

Ye s Is there approximately 500kHz oscillation to Pin(5) of IC6001?

Ye s Are the filament voltage applied between Pin(1, 2)

and Pin(31, 32) of the fluorescent display tube? Also negative voltage applied between these pins and GND?

Ye s Check the fluorescent display tube (FL6001),

service it if defective.

and

Check the P-ON+5V line and service it if defective.

Check the -FL line and service it if defective.

Check R6007, IC6001 and their periphery, and service it if defective.

Check the power circuit, FC1002, D1010, D1017, C1016 and their periphery, and service it if defective.

1-8-3 E5S50TR

FLOW CHART NO.15

The key operation is not functioning.

Are the contact point and the installation state of the key switches (SW6000, SW6001, SW6003, SW6004) normal?

Ye s

When pressing each switches (SW6000, SW6001, SW6003, SW6004), do the voltage of Pin(1) of IC2000 increase?

Ye s

Replace IC2000.

FLOW CHART NO.16

No operation is possible from the remote control unit.(Operation is possible from the unit.)

Is 5V voltage supplied to Pin(2) of RS6000 (remote control receiver) ?

Ye s Is the "L" pulse sent out Pin(1) of RS6000 (remote control receiver) when the remote control unit is activated?

Ye s

Is the "L" pulse inputted to the Pin(27) of IC2000?

Ye s

Replace IC2000.

Re-install the switches (SW6000, SW6001, SW6003, SW6004) correctly or replace the poor switch.

Check the switches (SW6000, SW6001, SW6003, SW6004) and their periphery, and service it if detective.

Check EV+3.3V line and service it if defective.

Replace the RS6000 (remote control receiver) or remote control unit.

Check the line between the RS6000 (remote control receiver) and the Pin(27) of IC2000, and service it if detective.

FLOW CHART NO.17

The disc tray cannot be opened and closed. (It can be done using the remote control unit.)

Is the normal control voltage inputted to Pin(1) of IC2000? Refer to "FLOW CHART NO.13" <The key operation is not functioning.>

Ye s

Replace the BD Main CBA & BD Mechanism Assembly.

Replace the "OPEN/CLOSE" switch (SW6004).

1-8-4 E5S50TR

FLOW CHART NO.18

The disc tray cannot be opened and closed. [No Disc] indicated. Both functions of picture and sound do not operate normally.

Ye s

Replace the BD Main CBA & BD Mechanism Assembly.

FLOW CHART NO.19

Picture does not appear normally.

Set the disc on the disc tray, and playback.

Are the video signals outputted to each pin of CN2200?

CN2200 13PIN VIDEO CN2200 11PIN VIDEO-Y(I/P) CN2200 9PIN VIDEO-Pb/Cb CN2200 7PIN VIDEO-Pr/Cr

Ye s

Are the video signals shown above inputted into each pin of IC2300?

IC2300 1PIN VIDEO IC2300 3PIN VIDEO-Y(I/P) IC2300 4PIN VIDEO-Pb/Cb IC2300 5PIN VIDEO-Pr/Cr

Ye s

Are the video signals outputted to each pin of IC2300?

IC2300 12PIN VIDEO-Y(I/P) IC2300 10PIN VIDEO-Pb/Cb IC2300 9PIN VIDEO-Pr/Cr IC2300 14PIN VIDEO

Ye s

Are the video signals outputted to the specific output terminal?

Are the component video signals outputted to the VIDEO OUT terminal (JK2300)?

Are the composite video signals outputted to the VIDEO OUT terminal (JK2300)?

Replace the BD Main CBA & BD Mechanism Assembly.

Check the line between each pin of CN2200 and each pin of IC2300, and service it if detective.

CN2200 13PIN → IC2300 1PIN VIDEO CN2200 11PIN → IC2300 3PIN VIDEO-Y(I/P) CN2200 9PIN → IC2300 4PIN VIDEO-Pb/Cb CN2200 7PIN → IC2300 5PIN VIDEO-Pr/Cr

Is 5V voltage supplied to the Pin(13) of IC2300?

Ye s

Replace IC2300.

Check the periphery of JK2300 from Pin(9,10,12) of IC2300 and service it if detective.

Check the periphery of JK2300 from Pin(14) of IC2300 and service it if detective.

Check P-ON+5V line and service it if detective.

1-8-5 E5S50TR

FLOW CHART NO.20

Audio is not outputted normally.

Set the disc on the disc tray, and playback.

Are the analog audio signals outputted to each pin of CN2200?

CN2200 16PIN AUDIO(L) CN2200 18PIN AUDIO(R)

Ye s

Are the analog audio signals inputted to each pin of IC2200?

IC2200 6PIN AUDIO(L) IC2200 2PIN AUDIO(R)

Ye s Is the "H" level mute signal outputted to CN2200? CN2200 20PIN AUDIO(R)-MUTE

CN2200 19PIN AUDIO(L)-MUTE

Ye s Is the signal at Pin(24) of IC2000 "H" ?

Ye s

Are the analog audio signals outputted to each pin of IC2200?

IC2200 7PIN AUDIO(L) IC2200 1PIN AUDIO(R)

Ye s

Are the audio signals outputted to the audio terminal (JK2300)?

Replace the BD Main CBA & BD Mechanism Assembly.

Check each line between each pin of CN2200 and each pin of IC2200, and service it if detective.

CN2200 16PIN → IC2200 6PIN AUDIO(L) CN2200 18PIN → IC2200 2PIN AUDIO(R)

Replace the BD Main CBA & BD Mechanism Assembly.

Check AUDIO-MUTE line, and service it if detective.

Replace IC2200.

Check the periphery between Pin(1,7) of IC2200 and JK2300, and service it if detective.

1-8-6 E5S50TR

INTERNET RADIO (vTuner) ERROR CODE

Error Code appears in the error screen when the unit detects an error, as shown below. The code is used to specifically determine the cause of error.

Network Error

Play bac k Error.

Connection Error

OKOK

NE[00103203]

NE[00103404]

Error CodeError message

Fig. 1: Error Code (Example)

Error Code are displayed with “NE[********]” (“*” is error code) as shown above.

Error Code Form

In the Internet Radio(vTuner), Error Code are used as follows.

001XXXXX

Detailed Error Code Summary Error Code

Fig. 2

“Summary Error Code” are shown in the list below.

Summary

Error Code

Cannot connect to server. Please check your settings.

Error message

02 Playback Error 03 Connection Error

• The Detailed Error Code shows the three-digit code used in the HTTP Status Code or used internally in the Application.

• The HTTP Status Codes (200 to 500 series) are defined in the RFC2616.

• Depending on the specification of the station or the server, error codes not listed in the table may appear.

1-9-1 E5P50ER

Detailed Error Code table (vTuner – HTTP Status Code)

Status Code Description

201 Created A new resource was created by this unit’s request.

202 Accepted This unit’s request was accepted but its processing is not completed.

204 No Content Though the server processed the request, there was no content.

304 Not Modified

400 Bad Request The server cannot understand this unit’s request.

401 Unauthorized The resource this unit has requested needs to be authorized.

403 Forbidden

404 Not Found The URI this unit has requested is not found.

500 Internal Server Error Internal server error occurred.

501 Not Implemented

502 Bad Gateway

503 Service Unavailable Because of overloading or maintenance, the server is temporarily unavailable.

This unit caches latest resource and the requested resource is not modified. (exception protocol error)

The server has received the requests from this unit but refused to process them.

The server does not support functionalities required to process the request from this unit.

The proxy server between this unit and the server received an invalid reply from another proxy or the original server.

Detailed Error Code table (vTuner – Application Status Code)

Status Code Description

001 Nothing List

002 LAN Disconnect This unit’s LAN is disconnected.

005 Favorite Error The URL needed to register or delete favorite data is not sent from the server.

601 Stream Stop

602 Unsupported(Info) The stream information of the broadcast is unsupported.

603 Decode Timeout

604 Unsupported(Stream) As a result of analyzing the received stream data, the data is unsupported.

605 Decode Failed The received stream data cannot be decoded.

606 Multi Stream

As a result of list creation process, there is no item to be displayed from the received data.

Because the streaming stopped, decoding has stopped. (This error message is displayed if decoding is disabled for 20 seconds.)

The unit tried to playback the received stream data, but the data was not played correctly even after three minutes elapsed.

Because this unit received multiple streaming data, the data cannot be decoded.

1-9-2 E5P50ER

Status Code Description

701 Protocol Error

702 Start Up Error The application of this unit failed to start.

703 URL Error The URL which this unit specified is in invalid form.

705 Connect Failed

706 Connect Failed Connection with the server or the broadcast has failed. (IP conversion error)

707 Connect Failed Connection with the server or the broadcast has failed.

723 Analyze Error The received protocol data cannot be analyzed.

727 System Error(Memory)

728 Response Timeout A response timeout occurred to unit’s connection request.

743 System Error(Program)

745 System Error(LAN Port)

An exception error occurred during communication between the server or the broadcast.

Connection with the proxy which exists between this unit and the server or the broadcast has failed. (IP conversion error)

A system error occurred in the unit. (memory shortage, internal cURL processing error)

A system error occurred in the unit. (program error, internal cURL processing error)

A system error occurred in the unit. (LAN unusable, internal cURL processing error)

752 Response Timeout A response timeout occurred to unit’s connection request.

755 Disconnect Error(Send)

Disconnect

756

Error(Receive)

761 Analyze Error The received protocol data cannot be analyzed.

790 List Not Found The list information which was sent from the server is invalid or not found.

791 Stream Timeout The stream data is not sent from the broadcast.

* Server: vTuner broadcast list server * Broadcast: Server of internet radio broadcast

Because the connection between this unit and the server or the broadcast was disconnected, it has failed to send the protocol data.

Because the connection between this unit and the server or the broadcast was disconnected, it has failed to receive the protocol data.

1-9-3 E5P50ER

BLOCK DIAGRAMS

System Control Block Diagram

FL6001

TO VIDEO

BLOCK DIAGRAM

VIDEO-MUTE

20VIDEO-MUTE

TO POWER SUPPLY

PWSW1

PWSW2

PWSW3

PWSW137PWSW238PWSW3

BLOCK DIAGRAM

PWSW4

FAN-CONT

25FAN-CONT

PWSW4

FL-SW

45FL-SW

TO AUDIO

BLOCK DIAGRAM

AUDIO-MUTE

24AUDIO-MUTE

REMOTE

RS6000

SENSOR

GRID VFD

VFD-CLK

VFD-STB

IC6001 (VFD DRIVER)

987

VFD-STB

99VFD-CLK

66REMOTE

CN2002 CN6000

BUFFER

Q2008

BUFFER

Q2010

REMOTE

VFD-STB

VFD-CLK

SEGMENT

P16

VFD-DIN

STANDBY-LED

KEY

AD-KEY1

10 10VFD-DAT

Q2007

BUFFER

Q2009

VFD-DAT

AD-KEY1

P17

STANDBY-LED

P18

D6008

STANDBY

EV+3.3V

KEY SWITCH

FRONT CBABD MAIN CBA AV CBA

RESET

(SUB MICRO CONTROLLER)

IC2000

RESET

EV+3.3V

IC2002

RESET

X2000

IC2001

1 NOTE:

Either IC2001 or IC2002 is used for AV CBA.

OSC1 9

6MHz

OSC2 8

X'TAL

CEC-OUT

31 CEC-IN

BUFFER

Q2619

SWITCHING

Q2620, Q2621

CN2200

20 5CEC

CN7101

JK7501

CEC

IC6001

(MAIN MICRO CONTROLLER)

SUB-TXD 18

23 2SUB-TXD

CN7101 CN2200

V32

TXD1

SUB-RXD

SYS-RESET

21 4SYS-RESET

24 1SUB-RXD

U34

RXD1

T34

XRST

A27

AE32

XTRST

XFERST

Q6702

IC6701

P-ON+1.8V

Q6701

RESET

2 1

1-10-1

E5S50BLS

Digital Signal Process 1 Block Diagram

VIDEO SIGNAL AUDIO SIGNAL

(MAIN MICRO CONTROLLER/DIGITAL SIGNAL PROCESS)

IC6001

MPX

MATRIX

B31,C31

A32,B32,

/LPP

WOB

B30,C30

A30,A31,

TO DIGITAL SIGNAL

PROCESS 2 BLOCK

DIAGRAM

(IC6001)

STREAM

CONTROL

DIGITAL

SIGNAL

PROCESS

EQUALIZER

GENERATOR

B34

C33

G30

G31

SD ATA 2

M31

SCLK2

M32

TRACKING-CONTROL

E23

TRACKING

ACTUATOR

IC302 (MOTOR DRIVE)

DRIVE

262524

COPY

FOCUS1-CONTROL

A24

FOCUS 1

ACTUATOR

DRIVE

AACS

PROTECT

FOCUS2-CONTROL

D23

FOCUS 2

ACTUATOR

BD+

DRIVE

CSS

CPRM

EXPA-CONTROL

B22

162815

COLLIMATE

LENS

201918

EXPB-CONTROL

D22

MOTOR DRIVE

SLED1-CONTROL

SLED2-CONTROL

D24

C24

SLED

MOTOR DRIVE

TRAY-OUT

TRAY-IN

LOAD-CONTROL

C22

D21

MOTOR DRIVE

SPINDLE-CONTROL

E217E24

IC301 (MOTOR DRIVE)

242119131415161718

SPINDLE

MOTOR

DRIVE

SPINDLE-FG

B25

Q101

*1: 14, 16, 18, 26

*2: 13, 15, 27, 29

CN101

A-D *1

E-H *2

Q102

BUFFER

RF(-) 21

RF(+) 20

BDRF(+) 23

OEIC

(CD/DVD)

CN101

TD 3

TR 4

FR1 5

FD1 6

FD2 2

LASER

DIODE

FR2 1

DRIVE

EXPA(-) 10

EXPB(-) 8

EXPA(+) 9

EXPB(+) 7

SCLK2 39

SD ATA 2 3 8

BDRF(-) 24

OEIC

(BD)

CN301

SLD2(+) 4

SLD2(-) 3

SLED

CN302

SLD1(-) 1

SLD1(+) 2

MOTOR

LOAD(-) 17

LOAD(+) 16

MOTOR

1-10-2

TRAY-OUT 14

TRAY-OUT

CN302

TRAY-IN 13

TRAY-IN

HU(-) 7

HU(+) 6

SPINDLE

HV(-) 9

VH(-) 12

HV(+) 8

HW(-) 11

HW(+) 10

MOTOR

BD MECHANISM BD MAIN CBA

E5S50BLD1

Digital Signal Process 2 Block Diagram

TO VIDEO

BLOCK DIAGRAM

SCL3

PRMY(0-11)

SDA3

27MHz

OSC

X6701

VIDEO SIGNAL AUDIO SIGNAL

VIDEO

VIDEO-Pr/Cr

VIDEO-Y(I/P)

VIDEO-Pb/Cb

PRMVS

PRMCLK

PRMHS

PRMC(0-11)

TO AUDIO

DAC-SCK

DAC-BCK

BLOCK DIAGRAM

MS1

DAC-LRCK

DATA

SPDIF

TO VIDEO

BLOCK DIAGRAM

HDMI-BCK

HDMI-MCK

HDMI-DATA0

HDMI-DATA1

HDMI-LRCK

HDMI-DATA2

HDMI-DATA3

HDMI-SPDIF

C15

B17

D18

VIDEO

DAC

F17

MEDIA

PROCESSOR

CLK

VSYNC

HSYNC

A4,A8,A9,B4,B9,C5,C9,

C11,D8,D10,E10,E11

A3,A6,A7,B7,C4,C6,C7,

C8,D6,D9,E8,E12

R33

U31

SCL3

SDA3

DIGITAL

VIDEO

OUT

IC6702 (CLOCK GENERATOR)

I/P CONVERTER

/SCALING

231

SCL

SDA

AL5

33M CLOCK

Java (BD-J)

MPEG-2

CLOCK

GENERATOR

789

AL34

E20

A19

33M CLOCK

74M CLOCK

27M CLOCK

DiVX

VC-1

H.264

DECODER

D20

768K CLOCK

HD (TS)

SD (PS)

E13

B10

B11

A10

A11

D11

C12

C10

B14

A12

B13

A13

D12

B12

AC31

C14

DIGITAL

AUDIO

OUT

IC6001 (MAIN MICRO CONTROLLER/DIGITAL SIGNAL PROCESS)

AV CBA BD MAIN CBA

CN4000 CN6101CN2001

SD DATA(0-3)

23 23SDDAT0

SD I/F

AF32,AG34,

AH33,AJ34

21 21SDDAT1

26 26SDDAT2

28 28SDDAT3

CARD

SLOT

SDCLK

AH34

29 29SDCLK

FROM DIGITAL

SIGNAL PROCESS 1

BLOCK DIAGRAM

(IC6001)

MII-RXD (0-3), MII-TXD (0-3)

ETHERNET

INTERFACE

IC6401

JK6401

TX(-) 2

RX(-) 6

TX(+) 1

RX(+) 3

(ETHERNET JACK)

(NAND FLASH MEMORY)

IC6901

ED (0-7)

NAND FLASH

MEMORY (256M x 8bit)

1-10-3

C0A (0-12)

C0DQ (0-31)

DDR2 SDRAM

(DDR2 SDRAM)

IC6501,IC6502

MEMORY

I/F

(1Gbit )

C1A (0-12)

C1DQ (0-31)

DDR2 SDRAM

(DDR2 SDRAM)

IC6601,IC6602

(512Mbit)

E5S50BLD2

Video Block Diagram

VIDEO SIGNAL AUDIO SIGNAL

AV CBABD MAIN CBA

JK2300

WF3

75Ω

2dB

LPF 14

4dB

IC2300 (VIDEO DRIVER)

VIDEO OUT

C2303

DRIVER

75Ω

AMP

2dB

LPF

6.75MHz

AMP

4dB

3 12

VIDEO-Y

OUT

DRIVER

AMP

2dB

13.5/37MHz

4dB

AMP

VIDEO-Pb/Cb

OUT

75Ω

DRIVER

AMP

LPF

13.5/37MHz

AMP

4dB

VIDEO-Pr/Cr

OUT

75Ω

DRIVER

2dB

AMP

LPF

13.5/37MHz

AMP

MUTE

VIDEO-MUTE

JK7501

HDMI-CONNECTOR

DDC

AUTHENT

/CATION

KEY

EXCHANGE

IIC

I/F

IC7501 (HDMI INTERFACE)

CLK

DDC CLOCK

HOT PLUG

DETECT

191516

I/F

DDC DATA

T.M.D.S DATA2-

T.M.D.S DATA2+

T.M.D.S DATA1-

31649

22241820141612

TMDS SERIALIZER

TMDS ENCODER

HDCP CIPHER/ ENCRYPTOR

AV CONTROLLER

VIDEO

I/F

T.M.D.S DATA1+

T.M.D.S DATA0-

T.M.D.S DATA0+

T.M.D.S CLOCK+

AUDIO I/F

86848583918889

T.M.D.S CLOCK-

CN2200CN7101

12 13VIDEO

VIDEO

VIDEO-Y(I/P)

14 11VIDEO-Y(I/P)

16 9VIDEO-Pb/Cb

18 7VIDEO-Pr/Cr

VIDEO-Pb/Cb

VIDEO-Pr/Cr

WF1 WF2

TO SYSTEM CONTROL

BLOCK DIAGRAM

TO DIGITAL

SIGNAL

PROCESS 2

BLOCK DIAGRAM

SCL3

SDA3

PRMCLK

PRMVS

PRMHS

51-56,58,59,

35-37,39-41,

43,44,66-68,70

PRMC(0-11)

PRMY(0-11)

71,72,74,75

HDMI-DATA0

HDMI-DATA1

HDMI-DATA2

HDMI-DATA3

HDMI-MCK

HDMI-BCK

HDMI-LRCK

HDMI-SPDIF

TO DIGITAL

SIGNAL

PROCESS 2

BLOCK DIAGRAM

1-10-4

E5S50BLV

Audio Block Diagram

AUDIO SIGNAL

JK2300

AUDIO(L)-

OUT

MUTE-ON

Q2203

DRIVE

Q2200

AUDIO(R)-

Q2202

Q2201

OUT

MUTE-ON

DRIVE

DIGITAL

JK2100

BUFFER

Q2100

AUDIO OUT

(COAXIAL)

AV CBABD MAIN CBA

IC2200

(OP AMP)

WF4

916AUDIO(L)

CN7101 CN2200

(L-CH)

(R-CH)

718AUDIO(R)

619AUDIO(L)-MUTE

520AUDIO(R)-MUTE

L-CH

MUTE

124SPDIF

WF5

R-CH

MUTE

AUDIO-MUTE

TO SYSTEM CONTROL

BLOCK DIAGRAM

IC7001(AUDIO D/A CONVERTER)

3458276

MCMDDAC-SCK

1-10-5

AUDIO

DAC

DAC-BCK

DAC-LRCK

MS1

DATA

TO DIGITAL

SIGNAL

PROCESS 2

BLOCK DIAGRAM

SPDIF

E5S50BLA

Power Supply Block Diagram

TO BD MAIN

CBA

(CN6101)

P-ON+1.2V

4 P-ON+5V(1)

22 P-ON+5V(2)

1-3 P-ON+1.8V

10,12 P-ON+10.5V

19,20 P-ON+3.3V

CN2001

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

9,11,13

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

P-ON+3.3V

P-ON+13V-B

P-ON+5V

EV+3.3V

P-ON+13V-A

-FL

PWSW1

PWSW2

FL-SW

PWSW3

PWSW4

FAN-CONT

FAN

CONTROL

Q2002,Q2003

2FAN-GND

CN2004

FAN-VCC 1

FAN

"Ce symbole reprèsente un fusible à fusion rapide."

"This symbol means fast operating fuse."

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

ATTENTION : Pour une protection continue les risqes

d'Incele n'utiliser que des fusible de même type.

Risk of fire-replace fuse as marked.

A V

Q2004

Q1011

REG.

+3.9V

Q2603

SW+13V

IC2700

+10.5V REG.

Q2006

Q2601

Q2606

SW+5V

Q2608, Q2609

LIMIT

CURRENT

Q2604

SW+5V

+3.3V

IC2750

REG.

+1.2V

IC2601

REG.

AV CBA

Q2605

REG.

+1.8V

IC2602

COLD

REG.

SHUNT

T1001

BRIDGE

RECTIFIER

D1001 - D1004

LINE

FILTER

L1001

F1001

2.5A 250V

A V

HOT CIRCUIT. BE CAREFUL.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F1001) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

AC1001

AC CORD

Q1001

)

SWITCHING

CONTROL

SWITCHING CONTROL

IC1001

(

VDD

1-10-6

Q1002

IC1003

ERROR

VOLTAGE DET

IC1011

ERROR

VOLTAGE DET

HOT

E5S50BLP

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

6. Electrical parts such as capacitors, connectors, diodes, IC’s, transistors, resistors, switches, and fuses are identified by four digits. The first two digits are not shown for each component. In each block of the diagram, there is a note such as shown below to indicate these abbreviated two digits.

, M = 106).

-6

µF).

1-11-1 BDN_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON

THE FOLLOWING PAGES:

1. CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE

A V

SAME TYPE FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE. RISK OF FIRE-REPLACE FUSE AS MARKED.

This symbol means fast operating fuse. Ce symbole represente un fusible a fusion rapide.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications for PLAY and STOP mode on the schematics are as shown below:

(Unit: Volt)

The same voltage for both PLAY & STOP modes

5.0

5.0 (2.5)

Indicates that the voltage is not consistent here.

PLAY mode STOP mode

5. How to read converged lines

1-D3

Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line numbe "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

AREA D3

ABCD

AREA B1

1-D3

1-B1

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

1-11-2 BDN_SC

AV 1 Schematic Diagram

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

A V

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse. ATTENTION : Pour une protection continue les risqes d'Incele n'utiliser que des fusible de même type. Risk of fire-replace fuse as marked.

"This symbol means fast operating fuse." "Ce symbole reprèsente un fusible à fusion rapide."

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

1-11-3

E5S50SCAV1

AV 2 Schematic Diagram

1 NOTE: Either IC2001 or IC2002 is used for AV CBA.

1-11-4

E5S50SCAV2

AV 3 Schematic Diagram

1-11-5

E5S50SCAV3

Front Schematic Diagram

1G 2G 3G 4G 5G 6G 7G 8G P1 P2 P3 P4 P5 P6 P7 P8 P9

P10 P11 P12 P13 P14 P15 P16 P17 P18

FL5001 MATRIX CHART

S3hhhhhhh

fff

jjj

S10

S11 S12 S13

g s

k b

r p n c d

g s

k b

m e

r p n c d

g s

k b

r p n c d

g s

k b

r p n c d

m e

r p n

c d

g s

k b

r p n c d

g s

k b

r p n c d

aaa

1G 2G 3G 4G 5G 6G 7G 8G

S7 S11

S4 S8

S12

S6S9S10

S13

1-11-6

E5S50SCF

BD Main 1 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1-11-7

E5S50SCBD1

BD Main 2 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1-11-8

E5S50SCBD2

BD Main 3 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1-11-9

E5S50SCBD3

BD Main 4 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1-11-10

E5S50SCBD4

BD Main 5 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1-11-11

E5S50SCBD5

BD Main 6 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1-11-12

E5S50SCBD6

BD Main 7 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1-11-13

E5S50SCBD7

BD Main 8 Schematic Diagram

1-11-14

E5S50SCBD8

BD Main 9 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1-11-15

E5S50SCBD9

BD Main 10 Schematic Diagram

1-11-16

E5S50SCBD10

BD Main 11 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1-11-17

E5S50SCBD11

AV CBA & Front CBA Top View

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used when repairing. Also, in order to have the ability to increase the input slowly, when troubleshooting this type of power supply circuit, a variable isolation transformer is required.

"Ce symbole reprèsente un fusible à fusion rapide."

CAUTION !

"This symbol means fast operating fuse."

A V

CAUTION !

Front CBA

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

AV CBA

1-11-18

BE5S00F01011

AV CBA & Front CBA Bottom View

"Ce symbole reprèsente un fusible à fusion rapide."

CAUTION !

"This symbol means fast operating fuse."

A V

CAUTION !

WF3

C2303 PLUS LEAD

WF1

PIN 7 OF CN2200

WF1

WF2 WF1

PIN 9 OF CN2200

WF4

PIN 16 OF CN2200

WF1

WF5

PIN 24 OF CN2200

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

AV CBA

Front CBA

1-11-19

BE5S00F01011

WF1

Pin 7 of CN2200

WAVEFORMS

WF4

Pin 16 of CN2200

VIDEO-Pr/Cr 0.2V 10

WF2

Pin 9 of CN2200

VIDEO-Pb/Cb 0.2V 10

WF3

C2303 PLUS LEAD

AUDIO(L) 1V 0.5ms

WF5

Pin 24 of CN2200

SPDIF 1V 0.1

20µs0.5VVIDEO-CVBS

NOTE:

Input Signal (DVD) VIDEO: 75% COLOR BAR AUDIO: 1KHz, 0dB

1-12-1 B3NWF

FAN

FRONT CBA

CORD

STANDBY-LED

EV+3.3V

AD-KEY1

REMOTE

GND

VFD-STB

VFD-CLK

CN6000

VFD-DAT

P-ON+5V

GND

-FL

DIGITAL

AUDIO OUT

(COAXIAL)

AUDIO(R)

-OUT

AUDIO(L)

-OUT

VIDEO-Pr/Cr

OUT

VIDEO-Pb/Cb

OUT

VIDEO-Y

OUT

VIDEO

-OUT

FAN-VCC FAN-GND

WIRING DIAGRAM

SD CARD SLOT

FR2

FD2

FR1 FD1

EXPB(+)

EXPB(-)

EXPA(+)

EXPA(-)

SA-INT

THERMO

+5V

GND

RF(+)

RF(-) GND

BDRF(+)

BDRF(-)

GND

VC-PD

LD-TYPE

GND

+3.3V

GND

+5V

GND

+8V

GND

SD ATA 2

SCLK2

SEN-LDD

LDEN

TEST-V

PO0 PO1

FPIO1

SLD1(-)

SLD1(+)

SLD2(-)

SLD2(+)

2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17

TD TR

A E B

D G

2 3 4 5 6 7 8

9 10 11 12 13

14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

RELAY CBA

PICKUP

LENS DRIVEOEIC

BD-LD

CD-LD

PD-LD

DVD-LD

LASER DIODE DRIVE

SLED

MOTOR

SPINDLE

MOTOR

-OUT

TRAY

-IN

TRAY

MOTOR

BD MAIN CBA & BD MECHANISM ASSEMBLY

ETHERNET JACK

HDMI-CONNECTOR

P-ON+1.8V

P-ON+5V(1)

GND

P-ON+1.2V

P-ON+10.5V

P-ON+1.2V

P-ON+10.5V

P-ON+1.2V

GND

CN2001

GND

P-ON+3.3V

SDDAT1

AV CBA

1 2

CN2004

1 2 3 4 5 6 7 8 9

CN2002

10 11 12 13 14 15

P-ON+5V(2)

SDDAT0

SDDAT2

GND

SDDAT3

SDCLK

CMD

SPDIF

GND

P-ON+5V

AUDIO(R)-MUTE

AUDIO(L)-MUTE

AUDIO(R)

GND

AUDIO(L)

GND

VIDEO

GND

VIDEO-Y(I/P)

CN2200

GND

VIDEO-Pb/Cb

GND

VIDEO-Pr/Cr

GND

CEC

SYS-RESET

RDY

SUB-TXD

SUB-RXD

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

CN6101

17 18 19 20 21 22 23 24 25 26 27 28 29 30

9 10 11 12 13 14

CN7101

15 16 17 18 19 20 21 22 23 24

BD MAIN CBA

CN302

CN101CN301

VH(+) HU(+)

HU(-)

HV(+)

HV(-)

HW(+)

HW(-)

VH(-)

TRAY-IN

TRAY-OUT

GND

LOAD(+)

LOAD(-)

E5S50WI1-13-1

SYSTEM CONTROL TIMING CHARTS

Power on

SLED moves

Start

SLED position

initialization

Pick-up position

moves

Power on

SLED moves

End

Hand close

Start

Hand close

detection

[ Tray Close ]

Start

Tray close

SLED position

initialization

Pick-up position

moves

[ Tray Close ]

End

Note:

If other sequence is received during the sequence, it will stops and other sequence starts. Only if SLED is moving, it will stop after the moving is finished.

[ Tray Open ]

Start

SLED inner

around moves

Tray open

[ Tray Open ]

End

1-14-1 B2N_TI

Parameter

V*: Voltage T*: Event timer

V0: 1.5 V T1: 0.3 s V1: 6.8 V T3: 0.4 s

V2: 3.5 V T4: 2.0 s V3: -3.5 V T5: 0.2 s V4: -2.5 V T6: 3.0 s V5: -6.8 V T7: 3.0 s

V6: 0.8 V T8: 2.0 s V7: -4.0 V T9: 0.2 s

T10: 0.2 s

Tray-in-sw

Tray-out-sw

Tray ejection direction

Motor voltage 0[V]

Tray insertion direction

off

If Tray-out-sw is not OFF within T6, it is Time-out.

Tray open

Time-out (T6)

If Tray-out-sw is not OFF within T7, it is Time-out.

Time-out (T7) Time-out (T4)

Brake mode (T9)

(t) X V3 / (T3)

It raise up voltages until Tray-in-sw is ON. If Tray-out-sw is not ON within T4, it is retried.

Tray close

T30

Brake mode (T5)

T10

It raise up voltage until Tray-in-sw is ON. If Tray-out-sw is not ON within T4, it is retried.

T11

Time-out T4

If Tray-in-sw is not ON within T11, it is Time-out.

Brake mode T5

1-14-2 B2N_TI

IC PIN FUNCTION DESCRIPTIONS

IC2000 (SUB MICRO CONTROLLER)

IN/

No.

OUT

1 IN AD-KEY1 Key Date Input 2 - NU Not Used 3 - NU Not Used 4 - NU Not Used 5 - NU Not Used 6 - VDD +3.3V Power Supply 7 - VDD +3.3V Power Supply 8 IN OSC2 Main Clock Input

9 OUT OSC1 Main Clock Output 10 - GND Ground 11 - GND Ground 12 - NU Not Used 13 - GND Ground

14 IN RESET

15 - NU Not Used 16 - NU Not Used 17 - NU Not Used

18 OUT SUB-TXD

19 IN SUB-RXD

20 OUT

21 - NU Not Used

22 IN RDY

23 OUT

24 OUT

25 OUT FAN-CONT Fan Motor Control Signal

26 OUT

27 IN REMOTE Remote Signal Input 28 - NU Not Used 29 - NU Not Used

30 OUT SD/HD

31 IN CEC-IN CEC Signal Input 32 OUT CEC-OUT CEC Signal Output 33 - I2C-DAT Not Used

Signal

Name

VIDEOMUTE

SYSRESET

AUDIOMUTE

STANDBYLED

Function

Micro Controller Reset Signal

Transmission Data to Main Micro Controller

Transmission Data from Main Micro Controller

Video Driver Mute Control Signal

Ready/Busy communication Control Signal

System Reset Signal

Audio Mute Control Signal

Standby LED Control Signal

Video Driver Filter Control Signal

IN/

No.

OUT

34 - I2C-CLK Not Used

35 -

36 -

37 OUT PWSW2 Power On Signal Output 2 38 OUT PWSW3 Power On Signal Output 3 39 OUT PWSW4 Power On Signal Output 4 40 OUT PWSW1 Power On Signal Output 1 41 IN MODE0 Mode Select 0 42 IN MODE1 Mode Select 1 43 IN MODE2 Mode Select 2 44 IN MODE3 Mode Select 3 45 OUT FL-SW FL On/Off Control Signal 46 - NU Not Used 47 OUT VFD-STB VFD Serial Interface Strove 48 OUT VFD-DAT VFD Serial Data 49 - NU Not Used 50 OUT VFD-CLK VFD Serial Clock 51 - NU Not Used 52 - NU Not Used 53 - NU Not Used 54 - NU Not Used 55 - NU Not Used 56 - NU Not Used 57 - NU Not Used 58 - NU Not Used 59 - NU Not Used 60 - NU Not Used 61 - GND Ground 62 - NU Not Used

63 IN SAFETY

64 - FAN-LOCK Not Used

Signal

Name

FLASHSDA

FLASHSCL

Function

Not Used

Power Supply Failure Detection

1-15-1 E5S50PIN

IC6001 ( VFD DRIVER )

IN/

No.

OUT

1 - NU Not Used

2 - NU Not Used

3 - NU Not Used

4 - NU Not Used

5 IN OSC Oscillator Input

6 - NU Not Used

7 IN VFD-DIN Serial Data Input

8 IN VFD-CLK Serial Clock Input

9 IN VFD-STB Serial Interface Input 10 - NU Not Used 11 - NU Not Used 12 - VSS Ground 13 - VDD Power Supply 14 15 P2 16 P3 17 P4 18 P5 19 P6 20 P7 21 P8

OUT

22 P9 23 P10 24 P11 25 P12 26 P13 27 P14 28 P15 29 P16 30 - VEE Pull Down Level 31

OUT

32 P18 33 - NU Not Used 34 - NU Not Used

Signal

Name

P17

Function

Segment Output Serial Data Input

IN/

No.

OUT

35 36 7G 37 6G 38 5G

OUT

39 4G 40 3G 41 2G 42 1G 43 - VDD Power Supply

44 - VSS

Signal

Name

Function

Grid Output

Ground

1-15-2 E5S50PIN

LEAD IDENTIFICATIONS

2SA1980M Y 2SA1980MG-AT 2SC5343MG-AT

ECB

BD9321EFJ-E2 FA5573N-D1-TE1

8 5

1 4

ECB

PS2561A-1(W)

2SA1981Y-AT 2SC5344 Y STB1277LY-AT

1: Anode 2: Cathode 3: Emitter 4: Collector

RA K

PST8229NR PST8229UR

123

SL431A-AT

2SA1980SFY 2SC5343SFG SRA2205SF SRC1203SF

48 33

116

SC16315

BH76071FJ-E2

2SK3561(Q.M)

GDS

UTC4580TEM101C77AGE1

Note:

A: Anode K: Cathode E: Emitter C: Collector B: Base R: Reference G: Gate D: Drain S: Source

1-16-1 E5SK6LE

Cabinet

EXPLODED VIEWS

1B1

BD Main CBA &

BD Mechanism Assembly

2L049

AV CBA

2L082

2L085

2L034

B12

F1001

2L034

2L081

2L082

2L070

2L083

2L082

2L071

A1X

A22

A21

A20

Front CBA

2L034

FM1001

B14

See Electrical Parts List for parts with this mark.

Some Ref. Numbers are not in sequence.

AC1001

1-17-1 E5S50CEX

Packing

S1-A

X14

A20

X33

A16

X19

S1-B

Lower SideUpper Side

A20A20

X2-A X34

X10

Some Ref. Numbers are not in sequence.

A20

1-17-2 E5S50PEX

BDP5110/F7 D(E5S50UD)

Ref. No. Description Parts No. MECHANICAL PARTS A1X FRONT ASSEMBLY E5P50UD 1VM228697D A2 CHASSIS E5P00UD 1VM123099J A3 TOP COVER E5P00UD 1VM123100 A4 REAR PANEL E5P10U A6 FOOT E5730JD 0VM415425 A16 REGISTRATION CARD(PHILIPS) A01F2UH 1EMN25799B A20 BAR CODE LABEL E5S50UD ---------A21 MODEL NO. LABEL E5S50UD ---------A22 LICENSE LABEL E5S50UD ---------2L034 SCREW C-TIGHT M3X6 E5610UD 0VM412937 2L049 SCREW C-TIGHT M3X6 E5610UD 0VM412937 2L070 SCREW B-TIGHT M3X8 BIND HEAD+ GBHB3080 2L071 SCREW B-TIGHT M3X8 BIND HEAD+ GBHB3080 2L081 SCREW TAP TIGHT M3X5 BIND HEAD+BLK NI GBHC3050 2L082 SCREW TAP TIGHT M3X5 BIND HEAD+BLK NI GBHC3050 2L083 SCREW TAP TIGHT M3X5 BIND HEAD+BLK NI GBHC3050 2L085 SCREW S-TIGHT M3X10 E5610UD 0VM412936 B4 POWER HOLDER E5P00UD 1VM227297F B12 MAIN PCB BRACKET E5P00U B14 INSULATION COVER E5P00UD 1VM331217 FM1001! DC FAN MOTOR ASB0412HA-9U51 MMEZ12DEL003 S1-A PAD L E5P51UD 1VM333978 S1-B PAD R E5P51UD 1VM333979 S2 GIFT BOX CARTON E5S50UD 1VM334520 S3 SET BAG E5P00UD 1VM432440 S5 SLEEVE CARTON E6MW1UD 1VM435439 X1! OWNERS MANUAL E5S50UD 1VMN29833 X2-A QUICK GUIDE E5P50UD 1VMN28494B X6 BATTERY GR03M XB0M371GLP01 X10 ACCESSORY BAG E5795ED 0VM416059 X14 AV CORD 1500/BLAC X19 REMOTE CONTROL UNIT NB540UD NB540UD X33 BROCHURE (PHILIPS) A01N2UH 1EMN26419 X34 NETFLIX GUIDE E5PG0UD 1VMN28453

ELECTRICAL PARTS

1B1 BD MAIN CBA & BD MECHANISM ASSEMBL

AV ASSEMBL Consists of the following AV CBA (AV PCB A) FRONT CBA (AV PCB B)

AV CBA (AV PCB A) C1001 CERAMIC CAP. SL K 56PF/1K C1002! CAP METALIZED FILM 0.068UF/250V/K/MP C1003! SAFETY CAP. 2200PF/250 C1004 CHIP CERAMIC CAP.(1608) CH J 22PF/50 C1005 CHIP CERAMIC CAP.(1608) B K 1000PF/50 C1006 CHIP CERAMIC CAP.(1608) B K 0.033UF/50 C1007! SAFETY CAP. 2200PF/250 C1008 ELECTROLYTIC CAPACITOR ZR200TA151K16D

1 / 7 page

20100624

1VM228136

1VM329997

WPZ0152TM018

N7JP3CUN

1VSA25585

----------

---------CCD3AKPSL56 CT2E683EUR01 CCG2EMA0F222 CHD1JJ3CH220 CHD1JK30B102 CHD1JK30B333 CCG2EMA0F222 CA2D151DYG03

BDP5110/F7 D(E5S50UD)

C1009 ELECTROLYTIC CAP. 47UF/35V/M CEE47RENW016 C1010 METALIZED FILM CAP. 0.0022UF/400V C1012 CHIP CERAMIC CAP. B K 0.068UF/50 C1013 CHIP CERAMIC CAP.(1608) B K 0.01UF/50 C1016 ELECTROLYTIC CAP. 47UF/16V/M CEC47RENW016 C1018 ELECTROLYTIC CAP. 1000UF/25V/M CED102ENW016 C1019 ELECTROLYTIC CAP 4700UF/6.3V S C1021 ELECTROLYTIC CAP. 33UF/50V/M CEF33RENW016 C1022 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C1024 ELECTROLYTIC CAP. 1000UF/25V/M CED102ENW016 C1025 ELECTROLYTIC CAP 3300UF/6.3V/M CEA332ENW013 C1033 CHIP CERAMIC CAP.(1608) B K 0.01UF/50 C1037 ELECTROLYTIC CAP. 47UF/6.3V/M CEA47RENW016 C2000 CHIP CERAMIC CAP.(1608) B K 0.1UF/25 C2001 ELECTROLYTIC CAP. 100UF/16V/M CEC101ENW016 C2002 ELECTROLYTIC CAP. 10UF/50V M CEF10RENW016 C2009 CHIP CERAMIC CAP.(1608) CH J 100PF/50 C2011 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C2014 ELECTROLYTIC CAP. 22UF/50V/M CEF22RENW016 C2015 ELECTROLYTIC CAP. 100UF/6.3V/M CEA101ENW016 C2065 CHIP CERAMIC CAP.(1608) B K 1000PF/50 C2100 CHIP CERAMIC CAP.(1608) B K 0.1UF/25 C2104 ELECTROLYTIC CAP. 47UF/6.3V/M CEA47RENW016 C2106 CHIP CERAMIC CAP. CH D 8PF/50 C2206 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C2207 ELECTROLYTIC CAP. 10UF/16V/M CEC10RENW016 C2208 ELECTROLYTIC CAP. 10UF/16V/M CEC10RENW016 C2209 CHIP CERAMIC CAP. CH J 220PF/50 C2210 CHIP CERAMIC CAP. CH J 220PF/50 C2211 ELECTROLYTIC CAP. 10UF/16V/M CEC10RENW016 C2212 ELECTROLYTIC CAP. 10UF/16V/M CEC10RENW016 C2213 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C2215 CHIP CERAMIC CAP. CH J 39PF/50 C2216 CHIP CERAMIC CAP. CH J 39PF/50 C2283 ELECTROLYTIC CAP. 220UF/6.3V/M CEA221ENW016 C2300 ELECTROLYTIC CAP. 100UF/6.3V/M CEA101ENW016 C2301 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C2303 ELECTROLYTIC CAP. 470UF/6.3V/M CEA471ENW016 C2304 ELECTROLYTIC CAP. 470UF/6.3V/M CEA471ENW016 C2305 ELECTROLYTIC CAP. 470UF/6.3V/M CEA471ENW016 C2306 ELECTROLYTIC CAP. 470UF/6.3V/M CEA471ENW016 C2307 ELECTROLYTIC CAP. 10UF/16V/M CEC10RENW016 C2319 CHIP CERAMIC CAP.(1608) B K 0.1UF/50 C2320 CHIP CERAMIC CAP.(1608) B K 1UF/10 C2321 CHIP CERAMIC CAP.(1608) B K 1UF/10 C2328 CHIP CERAMIC CAP.(1608) B K 0.1UF/50 C2601 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016 C2602 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016 C2605 ELECTROLYTIC CAP. 47UF/25V/M CED47RENW016 C2607 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016 C2608 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016 C2609 CHIP CERAMIC CAP.(1608) B K 1UF/10 C2615 ELECTROLYTIC CAP. 100UF/6.3V/M CEA101ENW016 C2616 CHIP CERAMIC CAP. F Z 1UF/10 C2618 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C2619 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C2620 CHIP CERAMIC CAP. B K 8200PF/50 C2622 CHIP CERAMIC CAP.(2125) F Z 10UF/10 C2623 CHIP CERAMIC CAP.(2125) F Z 10UF/10 C2626 ELECTROLYTIC CAP. 100UF/6.3V/M CEA101ENW016

2 / 7 page

CT2H222DT034 CHD1JK30B683 CHD1JK30B103

CEA472ENW013

CHD1JK30B103

CHD1EK30B10

CHD1JJ3CH101

CHD1JK30B102 CHD1EK30B10

CHD1JD3CH8R

CHD1JJ3CH221 CHD1JJ3CH221

CHD1JJ3CH390 CHD1JJ3CH390

CHD1JK30B104 CHD1AK30B105 CHD1AK30B105 CHD1JK30B104

CHD1AK30B105

CHD1AZ30F105

CHD1JK30B822 CHE1AZ30F106 CHE1AZ30F106

BDP5110/F7 D(E5S50UD)

C2627 CHIP CERAMIC CAP. F Z 1UF/10

CHD1AZ30F105 C2629 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C2630 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C2631 CHIP CERAMIC CAP.(1608) B K 5600PF/50 C2632 CHIP CERAMIC CAP.(2125) F Z 10UF/10 C2633 CHIP CERAMIC CAP.(2125) F Z 10UF/10 C2634 CHIP CERAMIC CAP.(2125) F Z 10UF/10 C2638 CHIP CERAMIC CAP. CH J 330PF/50 C2639 CHIP CERAMIC CAP. CH J 220PF/50

CHD1JK30B562

CHE1AZ30F106

CHD1JJ3CH331

CHD1JJ3CH221 C2651 ELECTROLYTIC CAP. 330UF/6.3V/M CEA331ENW016 C2652 ELECTROLYTIC CAP. 330UF/6.3V/M CEA331ENW016 C2653 ELECTROLYTIC CAP. 330UF/6.3V/M CEA331ENW016 C2700 ELECTROLYTIC CAP. 100UF/16V/M CEC101ENW016 C2701 CHIP CERAMIC CAP. (1608) F Z 1UF/16V CHD1CZ30F105 C2702 CAP CHIP 2125 R6/K/10000000PF/16

CHM1060MR010 C2704 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C2705 CHIP CERAMIC CAP.(1608) B K 1000PF/50

CHD1JK30B102 C2706 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C2707 CAP CHIP 2125 R6/K/10000000PF/16 C2708 CAP CHIP 2125 R6/K/10000000PF/16

CHM1060MR010

CHM1060MR010 C2710 ELECTROLYTIC CAP. 470UF/16V/M CEC471ENW016 C2750 ELECTROLYTIC CAP. 100UF/6.3V/M CEA101ENW016 C2751 CHIP CERAMIC CAP. F Z 1UF/10 C2752 CHIP CERAMIC CAP.(2125) F Z 10UF/10

CHD1AZ30F105

CHE1AZ30F106 C2754 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C2755 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C2756 CHIP CERAMIC CAP.(1608) B K 3300PF/50 C2757 CHIP CERAMIC CAP.(2125) F Z 10UF/10 C2758 CHIP CERAMIC CAP.(2125) F Z 10UF/10

CHD1JK30B332

CHE1AZ30F106

CHE1AZ30F106 C2760 ELECTROLYTIC CAP. 330UF/6.3V/M CEA331ENW016 C4001 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C4002 CHIP CERAMIC CAP.(2125) F Z 10UF/10 C4008 CHIP CERAMIC CAP.(1608) CH J 33PF/50

CHE1AZ30F106

CHD1JJ3CH330 CN2001 CONNECTOR PRINT OSU 30PIN IMSA-9195B-30Z05 J391300ER003 CN2002 WIRE ASSEMBLY AV-VFD 15P WX1E5S50-001 WX1E5S50-001 CN2004 PH CONNECTOR TOP 2P B2B-PH-K-S (LF)(SN) J3PHC02JG029 CN2200 WIRE ASSEMBLY AV-MAIN 24P WX1E5P00-001 WX1E5P00-001 CN4000 CONNECTOR IC CARD MES 9PIN 1903572 JF19090AP001 D1001 RECTIFIER DIODE 1N4005 NDQZ001N4005 D1002 RECTIFIER DIODE 1N4005 NDQZ001N4005 D1003 RECTIFIER DIODE 1N4005 NDQZ001N4005 D1004 RECTIFIER DIODE 1N4005 NDQZ001N4005 D1005 DIODE ZENER 27BSB-T26 NDTB027BST26 D1006 RECTIFIER DIODE BA159 NDQZ000BA159 D1007 RECTIFIER DIODE BA157 NDQZ000BA157 D1008 WIRE CP STP-S-0.60 XZ40F0REN002 D1009 DIODE ZENER 24BSB-T26 NDTB024BST26 D1010 RECTIFIER DIODE BA157 NDQZ000BA157 D1011 SCHOTTKY BARRIER DIODE SMD SK5

ND1Z0000SK54 D1013 SCHOTTKY BARRIER DIODE SB540-B/P NDLZ000SB540 D1014 SCHOTTKY BARRIER DIODE SB540-B/P NDLZ000SB540 D1017 DIODE ZENER 18BSC-T26 NDTC018BST26 D1018 RECTIFIER DIODE BA157 NDQZ000BA157 D1022 SCHOTTKY BARRIER DIODE SB14 D1023 SCHOTTKY BARRIER DIODE SMD SK3

NDQZ000SB140

ND1Z0000SK39 D1024 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148 D1025 RECTIFIER DIODE 1N4005 NDQZ001N4005 D1036 DIODE ZENER 27BSB-T26 NDTB027BST26 D1037 DIODE ZENER 27BSB-T26 NDTB027BST26 D2000 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148

3 / 7 page

BDP5110/F7 D(E5S50UD)

D2601 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148 D2605 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148 D2608 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148 D2610 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148 D2614 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148 D2615 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148 D2620 SCHOTTKY BARRIER DIODE SMD SK3 D2621 SCHOTTKY BARRIER DIODE SMD SK3

ND1Z0000SK34

ND1Z0000SK34 D2622 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148 D2700 SCHOTTKY BARRIER DIODE SMD SK3

ND1Z0000SK34 D2701 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148 D2750 SCHOTTKY BARRIER DIODE SMD SK3

ND1Z0000SK34 D2751 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148 IC1001! IC SWITCHING FA5573N-D1-TE1 SOP8 QSCA0T0FD002 IC1003! PHOTOCOUPLER PS2561A-1(W) QPEWPS2561A1 IC1011 IC SHUNT REGULATOR SL431A-A IC1012 IC SHUNT REGULATOR SL431A-A

NSZBA0TAUK01

NSZBA0TAUK01 IC2000 IC SUB MICON MN101C77AGE1 QSAA0R0MS019 Either IC2001 or IC2002 is used. IC2001 RESET IC IC-PST8229NR QSZBA0TMM177 IC2002 IC (RESET) IC-PST8229UR QSCA0T0MM216 IC2200 IC OP AMP UTC4580TE NSCA0T02H001 IC2300 IC VIDEO DRIVER BH76071FJ-E2 QSCA0T0RM103 IC2601 IC DC-DC CONVERTER BD9321EFJ-E IC2602 IC DC-DC CONVERTER BD9321EFJ-E IC2700 IC DC-DC CONVERTER BD9321EFJ-E IC2750 IC DC-DC CONVERTER BD9321EFJ-E

QSCA0T0RM102

QSCA0T0RM102 L1001! COIL LINE FILTER ST0603FT20-009 0.027 LLEB0Z0Y2001 L1003 POWER INDUCTORS CWKBNP-220

LLF2200KV002 L2101 CHIP RES. 1/10W J 1 OHM RRXAJR5Z01R0 L2102 INDUCTOR(100UH K) LAP02TA101 L2201 POWER INDUCTORS CWKBNP-100 L2202 POWER INDUCTORS CWKBNP-100 L2300 RADIAL TYPE CHOKE COIL CW68-470K-841040N L2400 CHOKE COIL 22UHL2600 CHOKE COIL 22UHL2601 CHOKE COIL 22UHL2700 POWER INDUCTORS CWKBNP-100 L2750 POWER INDUCTORS CWKBNP-100 L4002 CHIP INDUCTOR LK160882NM-

LLAXKATTU101

LLF1000KV002

LLBD00PKV023

LLBD00PKV021

LLF1000KV002

LLACMB3TU82N Q1001! MOS FET 2SK3561(Q.M) QFQZSK3561QM Q1002 PNP TRANSISTOR 2SA1980M Q1011 NPN TRANSISTOR 2SC5344 Q2002 PNP TRANSISTOR SMD 2SA1980SF Q2003 TRANSISTOR SRC1203S Q2004 NPN TRANSISTOR 2SC5344 Q2006 PNP TRANSISTOR SMD 2SA1980SF

NQSY2SA1980M

NQSY02SC5344

NQ1Y2SA1980S

NQ1ZSRC1203S

NQSY02SC5344

NQ1Y2SA1980S Q2007 NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S Q2008 NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S Q2009 NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S Q2010 NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S Q2100 NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S Q2200 PNP TRANSISTOR DIGITAL SMD SRA2205S Q2201 PNP TRANSISTOR DIGITAL SMD SRA2205S Q2202 NPN TRANSISTOR 2SC5343MG-A Q2203 NPN TRANSISTOR 2SC5343MG-A

NQ1ZSRA2205S

NQSG2SC5343M

NQSG2SC5343M Q2601 NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S Q2603 PNP TRANSISTOR 2SA1981Y-A Q2604 PNP TRANSISTOR STB1277LY-A Q2605 NPN TRANSISTOR 2SC5344

NQSY02SA1981

NQSYSTB1277

NQSY02SC5344

4 / 7 page

BDP5110/F7 D(E5S50UD)

Q2606 PNP TRANSISTOR STB1277LY-A Q2608 PNP TRANSISTOR 2SA1980MG-A Q2609 NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S Q2619 NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S Q2620 NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S Q2621 NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S R1001 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222 R1002 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222 R1003 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822 R1004 CHIP RES RMC1/8-104JTP RRX4JR7Z0104 R1005 CHIP RES. 1/10W J 10 OHM RRXAJR5Z0100 R1006 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104 R1008 CHIP RES. 1/10W J 56 OHM RRXAJR5Z0560 R1009 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101 R1011 CHIP RES. 1/10W J 10 OHM RRXAJR5Z0100 R1012 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472 R1013 METAL OXIDE FILM RES. 2W J 47K OHM RN02JZLZ0473 R1014 METAL OXIDE RES. 2W J 0.68 OHM RN02JZLZ0R68 R1016 CHIP RES. 1/10W J 470 OHM RRXAJR5Z0471 R1017 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822 R1019 CHIP RES. 1/10W J 680 OHM RRXAJR5Z0681 R1020 CHIP RES. 1/10W F 2K OHM RRXAFR5H2001 R1021 CARBON RES. 1/4W J 1.5K OHM RCX4JATZ0152 R1023 CHIP RES. 1/10W J 5.1K OHM RRXAJR5Z0512 R1024 CHIP RES. 1/10W F 150 OHM RRXAFR5H150 R1025 CHIP RES. 1/10W F 1.0K OHM RRXAFR5H1001 R1026 CHIP RES. 1/10W F 1.0K OHM RRXAFR5H1001 R1027 CARBON RES. 1/4W J 3.9K OHM RCX4JATZ0392 R1039 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102 R1040 CARBON RES. 1/4W J 100 OHM RCX4JATZ0101 R1046 CHIP RES. 1/10W F 2.2K OHM RRXAFR5H2201 R1048 CHIP RES. 1/10W F 3.3K OHM RRXAFR5H3301 R2001 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2002 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472 R2003 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472 R2004 CHIP RES. 1/10W J 470 OHM RRXAJR5Z0471 R2005 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2006 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2007 CHIP RES. 1/10W J 15K OHM RRXAJR5Z0153 R2010 CHIP RES. 1/10W J 470K OHM RRXAJR5Z0474 R2012 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101 R2013 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101 R2014 CARBON RES. 1/4W J 2.2 OHM RCX4JATZ02R2 R2015 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101 R2016 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102 R2018 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104 R2019 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102 R2020 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2021 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2024 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2025 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2026 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2027 WIRE CP STP-S-0.60 XZ40F0REN002 R2029 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2031 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2035 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2036 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2038 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102 R2040 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2041 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

5 / 7 page

NQSYSTB1277 NQSG2SA1980M

BDP5110/F7 D(E5S50UD)

R2042 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2043 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2049 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2053 CHIP RES. 1/10W J 47K OHM RRXAJR5Z0473 R2063 CARBON RES. 1/4W J 240 OHM RCX4JATZ0241 R2064 CARBON RES. 1/4W J 240 OHM RCX4JATZ0241 R2066 CHIP RES. 1/10W J 47K OHM RRXAJR5Z0473 R2067 CHIP RES. 1/10W J 5.6K OHM RRXAJR5Z0562 R2069 CARBON RES. 1/4W J 120 OHM RCX4JATZ0121 R2070 CARBON RES. 1/4W J 120 OHM RCX4JATZ0121 R2091 CARBON RES. 1/4W J 47K OHM RCX4JATZ0473 R2100 CHIP RES. 1/10W J 2K OHM RRXAJR5Z0202 R2101 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222 R2102 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222 R2103 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221 R2104 CHIP RES. 1/10W J 75 OHM RRXAJR5Z0750 R2105 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104 R2208 CHIP RES. 1/10W F 24K OHM RRXAFR5H2402 R2209 CHIP RES. 1/10W F 24K OHM RRXAFR5H2402 R2210 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822 R2211 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822 R2212 CHIP RES. 1/10W F 33.0K OHM RRXAFR5H3302 R2213 CHIP RES. 1/10W F 33.0K OHM RRXAFR5H3302 R2214 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104 R2215 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104 R2216 CHIP RES. 1/10W J 820 OHM RRXAJR5Z0821 R2217 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102 R2218 CHIP RES. 1/10W J 820 OHM RRXAJR5Z0821 R2219 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102 R2220 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104 R2221 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104 R2223 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472 R2224 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222 R2226 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102 R2227 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221 R2228 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221 R2229 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222 R2230 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472 R2301 CHIP RES.(1608) 1/10W F 82.0 OHM RRXAFR5H82R R2302 CHIP RES.(1608) 1/10W F 82.0 OHM RRXAFR5H82R R2303 CHIP RES.(1608) 1/10W F 82.0 OHM RRXAFR5H82R R2304 CHIP RES.(1608) 1/10W F 82.0 OHM RRXAFR5H82R R2310 CHIP RES. 1/10W J 75 OHM RRXAJR5Z0750 R2311 CHIP RES. 1/10W J 75 OHM RRXAJR5Z0750 R2312 CHIP RES. 1/10W J 75 OHM RRXAJR5Z0750 R2313 CHIP RES. 1/10W J 75 OHM RRXAJR5Z0750 R2601 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472 R2606 CHIP RES. 1/10W J 47K OHM RRXAJR5Z0473 R2607 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472 R2608 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472 R2609 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472 R2612 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2621 CARBON RES. 1/4W J 82 OHM RCX4JATZ0820 R2622 CARBON RES. 1/4W J 82 OHM RCX4JATZ0820 R2637 METAL OXIDE FILM RES. 1W J 1.2 OHM RN011R2ZU001 R2638 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2639 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 R2654 CHIP RES. 1/10W J 5.1K OHM RRXAJR5Z0512 R2655 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822 R2660 CHIP RES. 1/10W F 1.5K OHM RRXAFR5H1501

6 / 7 page

BDP5110/F7 D(E5S50UD)

R2661 CHIP RES. 1/10W F 3.3K OHM RRXAFR5H3301 R2662 CHIP RES. 1/10W F 1.5K OHM RRXAFR5H1501 R2663 CHIP RES. 1/10W F 2.2K OHM RRXAFR5H2201 R2664 CHIP RES. 1/10W F 3.3K OHM RRXAFR5H3301 R2669 CHIP RES. 1/10W J 27K OHM RRXAJR5Z0273 R2671 CHIP RES. 1/10W J 220K OHM RRXAJR5Z0224 R2673 CHIP RES. 1/10W J 2.2M OHM RRXAJR5Z0225 R2674 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104 R2675 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221 R2676 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104 R2679 CHIP RES. 1/10W J 47K OHM RRXAJR5Z0473 R2680 CHIP RES. 1/10W J 27K OHM RRXAJR5Z0273 R2701 CHIP RES. 1/10W J 47K OHM RRXAJR5Z0473 R2702 CHIP RES. 1/10W F 2.2K OHM RRXAFR5H2201 R2703 CHIP RES. 1/10W F 33.0K OHM RRXAFR5H3302 R2704 CHIP RES. 1/10W F 3.3K OHM RRXAFR5H3301 R2705 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472 R2706 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472 R2707 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472 R2751 CHIP RES. 1/10W J 15K OHM RRXAJR5Z0153 R2753 CHIP RES. 1/10W F 9.1K OHM RRXAFR5H9101 R2754 CHIP RES. 1/10W F 3.3K OHM RRXAFR5H3301 R4001 CHIP RES. 1/10W J 47 OHM RRXAJR5Z0470 R4002 CHIP RES. 1/10W J 47 OHM RRXAJR5Z0470 R4003 CHIP RES. 1/10W J 47 OHM RRXAJR5Z0470 R4004 CHIP RES. 1/10W J 22 OHM RRXAJR5Z0220 R4005 CHIP RES. 1/10W J 47 OHM RRXAJR5Z0470 R4006 CHIP RES. 1/10W J 47 OHM RRXAJR5Z0470 AC1001! AC CORD W/O A GND WIRE PB8K9F9110AB057 WAC1720LW003 F1001! FUSE TIME RAG FIH 250V 2.5A PDGJBB0NG252 F1002 CHIP FUSE FCC16501ABT FH1001 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002 FH1002 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002 JK2100 RCA JACK(BLACK) MSP-251V-01 NI FE L JK2300 RCA JACK MSD-246V-65 NI FE LF JXRL060LY131 SA1001! VARISTOR 10D 221K SVR NVQZVR10D221 T1001! TRANS POWER 10706 LTT2PC0KT062 X2000 CERAMIC RESONATOR ZTT8.00MT47 FY0805PLN004

PDDAEC0KE501

JXRL010LY125

C6002 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 C6006 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 CN6000 CONNECTOR PRINT MES 00 6203 301 015 000+ JC62150UG016 D6008 LED(RED) LTL-1CHEE NPQZLTL1CHEE IC6001 VFD DRIVER IC SC16315 NSZBA0TQ0010 L6000 WIRE CP STP-S-0.60 XZ40F0REN002 R6007 CHIP RES. 1/10W J 68K OHM RRXAJB5Z0683 R6011 CHIP RES. 1/10W J 180 OHM RRXAJR5Z0181 R6012 CHIP RES. 1/10W J 6.8K OHM RRXAJB5Z0682 R6014 CHIP RES. 1/10W J 560 OHM RRXAJB5Z0561 R6015 CHIP RES. 1/10W J 5.6K OHM RRXAJB5Z0562 R6016 CHIP RES. 1/10W J 120 OHM RRXAJR5Z0121 SW6000 TACT SWITCH SKQSAB SST0101AL038 SW6001 TACT SWITCH SKQSAB SST0101AL038 SW6003 TACT SWITCH SKQSAB SST0101AL038 SW6004 TACT SWITCH SKQSAB SST0101AL038 FL6001 FL 8-ST-30N RS6000 SENSOR REMOTE RECEIVER KSM-712TC2M USEJRS0KK002

FRONT CBA (AV PCB B)

7 / 7 page

----------

TVFD1C0FT059

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

BDP5110/F7 D

E5S50UD

2010-08-03

Philips BDP-5110-F-7-D, BDP-5110-F-7 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

TROUBLESHOOTING
