Philips BDP3210B, BDP3215B, BDP3290B User Manual

www.philips.com/support

User manual

Register your product and get support at

Blu-raydisc/
DVD player

BDP3210B
BDP3215B

Blu-raydisc/
DVD player

1

Safety and
important notice

Read and understand all instructions
before you use this Blu-ray disc/ DVD
player. If damage is caused by failure
to follow the instructions, the warranty
does not apply.

Safety

Risk of electric shock or re!

• Before you make or change any
connections, make sure that all
devices are disconnected from the
power outlet.

• Never expose the product and
accessories to rain or water. Never
place liquid containers, such as
vases, near the product. If liquids
are spilt on or into the product,
disconnect it from the power
outlet immediately. Contact Philips
Consumer Care to have the product
checked before use.

• Never place the product and
accessories near naked ames or
other heat sources, including direct
sunlight.

• Never insert objects into the
ventilation slots or other openings
on the product.

• Where the mains plug or an
appliance coupler is used as the
disconnect device, the disconnect
device shall remain readily
operable.

• Batteries (battery pack or batteries
installed) shall not be exposed to
excessive heat such as sunshine,
re or the like.

• Disconnect the product from the
power outlet before lightning
storms.

• When you disconnect the power cord,
always pull the plug, never the cable.

Risk of short circuit or re!

• For identication and supply ratings,
see the type plate at the back or
bottom of the product.

• Before you connect the product to
the power outlet, ensure that the
power voltage matches the value
printed on the back or bottom of
the product. Never connect the
product to the power outlet if the
voltage is dierent.

Risk of injury or damage to the product!

• For wall mounting, this product
must be securely attached to
the wall in accordance with the
installation instructions. Use only
the supplied wall mount bracket (if
available). Improper wall mounting
may result in accident, injury or
damage. If you have any query,
contact Consumer Care in your
country.

• Visible and invisible laser radiation
when open. Avoid exposure to beam.

• Do not touch the disc optical lens
inside the disc compartment.

• Never place the product or any
objects on power cords or on other
electrical equipment.

• If the product is transported in
temperatures below 5°C, unpack
the product and wait until its
temperature matches room
temperature before connecting it to
the power outlet.

Risk of overheating!

• Never install this product in a
conned space. Always leave a
space of at least four inches around
the product for ventilation. Make
sure that curtains or other objects
never cover the ventilation slots on
the product.

2

Risk of contamination!

• Do not mix batteries (old and new
or carbon and alkaline, etc.).

• Danger of explosion if batteries are
incorrectly replaced. Replace only
with the same or equivalent type.

• Remove batteries if they are
exhausted or if the remote control is
not to be used for a long time.

• Batteries contain chemical
substances, they should be
disposed of properly.

Risk of swallowing batteries!

• The product/remote control may
contain a coin/button type battery,
which can be swallowed. Keep the
battery out of reach of children at
all times! If swallowed, the battery
can cause serious injury or death.
Severe internal burns can occur
within two hours of ingestion.

• If you suspect that a battery
has been swallowed or placed
inside any part of the body, seek
immediate medical attention.

• When you change the batteries,
always keep all new and
used batteries out of reach of
children. Ensure that the battery
compartment is completely secure
after you replace the battery.

• If the battery compartment cannot
be completely secured, discontinue
use of the product. Keep out of
reach of children and contact the
manufacturer.

This is CLASS II apparatus with double
insulation, and no protective earth
provided.

Use only the power supplies listed in
the user manual.

CLASS 1

LASER PRODUCT

Care for your product

• Do not insert any objects other than

discs into the disc compartment.

• Do not insert warped or cracked
discs into the disc compartment.

• Remove discs from the disc
compartment if you are not using
the product for an extended period
of time.

• Only use microber cloth to clean
the product.

Care of the environment

Disposal of your old product and
battery

Your product is designed and
manufactured with high quality
materials and components, which can
be recycled and reused.

This symbol on a product means that
the product is covered by European
Directive 2012/19/EU.

3

This symbol means that the product
contains batteries covered by European
Directive 2013/56/EU which cannot be
disposed of with normal household
waste.
Inform yourself about the local separate
collection system for electrical and
electronic products and batteries.
Follow local rules and never dispose of
the product and batteries with normal
household waste. Correct disposal
of old products and batteries helps
prevent negative consequences for the
environment and human health.

Removing the disposable batteries

To remove the disposable batteries, see
battery installation section.

Compliance

This product complies with the radio
interference requirements of the
European Community.

Copyright

This item incorporates copy protection
technology that is protected by U.S.
patents and other intellectual property
rights of Rovi Corporation. Reverse
engineering and disassembly are
prohibited.
This product incorporates proprietary
technology under license from Verance

Corporation and is protected by U.S.
Patent 7,369,677 and other U.S. and
worldwide patents issued and pending
as well as copyright and trade secret
protection for certain aspects of such
technology. Cinavia is a trademark
of Verance Corporation. Copyright
2004-2013 Verance Corporation. All
rights reserved by Verance. Reverse
engineering or disassembly is
prohibited.

Cinavia notice

This product uses Cinavia technology
to limit the use of unauthorized copies
of some commercially-produced lm
and videos and their soundtracks. When
a prohibited use of an unauthorized
copy is detected, a message will be
displayed and playback or copying will
be interrupted.
More information about Cinavia
technology is provided at the Cinavia
Online Consumer Information Center
at http://www.cinavia.com. To request
additional information about Cinavia
by mail, send a postcard with your
mailing address to: Cinavia Consumer
Information Center, P.O. Box 86851, San
Diego, CA, 92138, USA.

Open source software

Philips Electronics Hong Kong hereby
oers to deliver, upon request, a copy
of the complete corresponding source
code for the copyrighted open source
software packages used in this product
for which such delivery is requested by
the respective licenses. This oer is valid
up to three years after product purchase
to anyone in receipt of this information.
To obtain source code, please send
your request in English with product
type to [e-mail]. If
you prefer not to use email or if you

4

do not receive conrmation receipt
within 2 weeks after mailing to this
email address, please write in English to
“Open Source Team, Philips Intellectual
Property & Standards, P.O. Box 220,
5600 AE Eindhoven, The Netherlands”.
If you do not receive timely conrmation
of your letter, please email to the email
address above. The texts of the licenses
and acknowledgements for open
source software used in this product are
included on a separate leaet.

5

User Manual

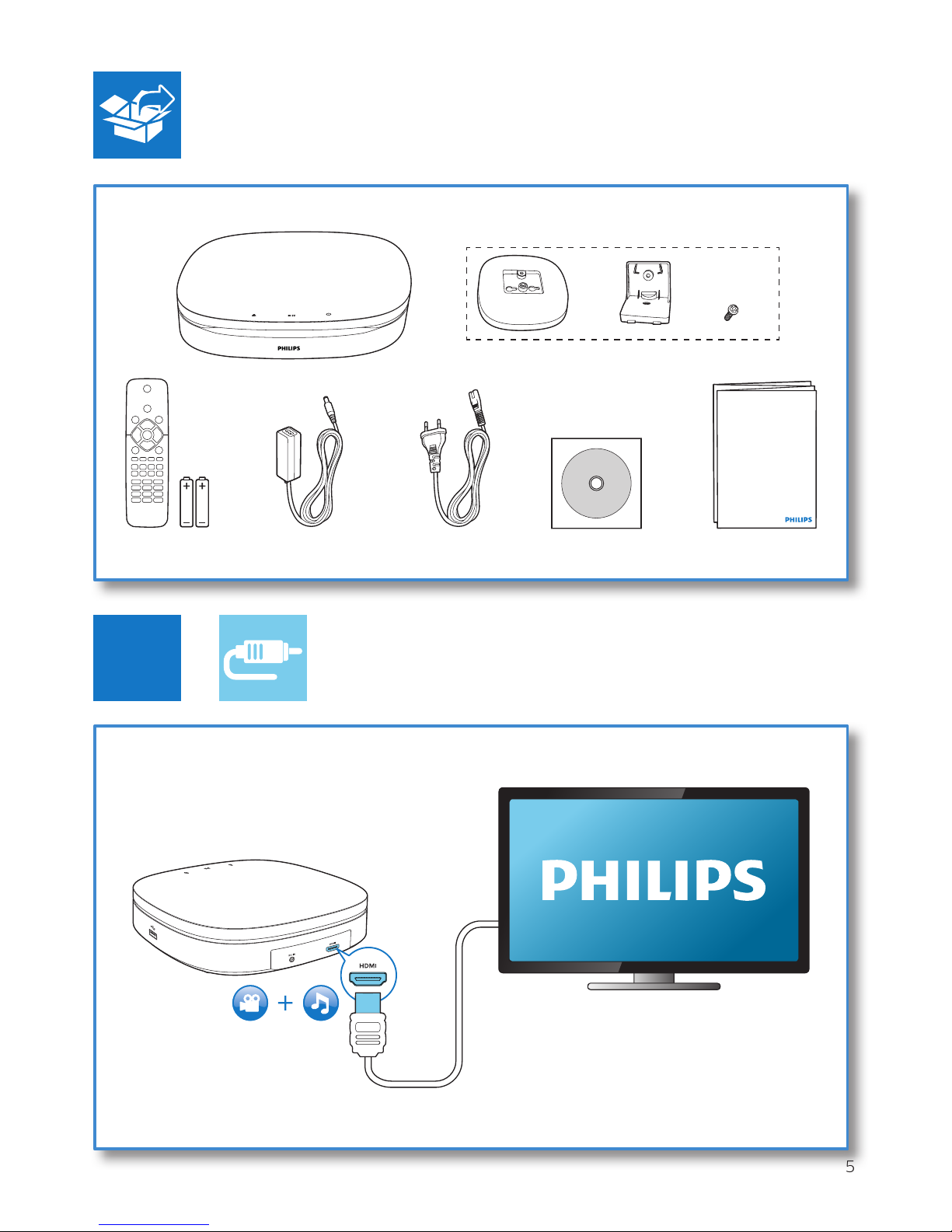

Quick start guide

x 2

1

HDMI OUT

6

3

2

4

1

2

3

SOURCE

1

2

TV

7

5

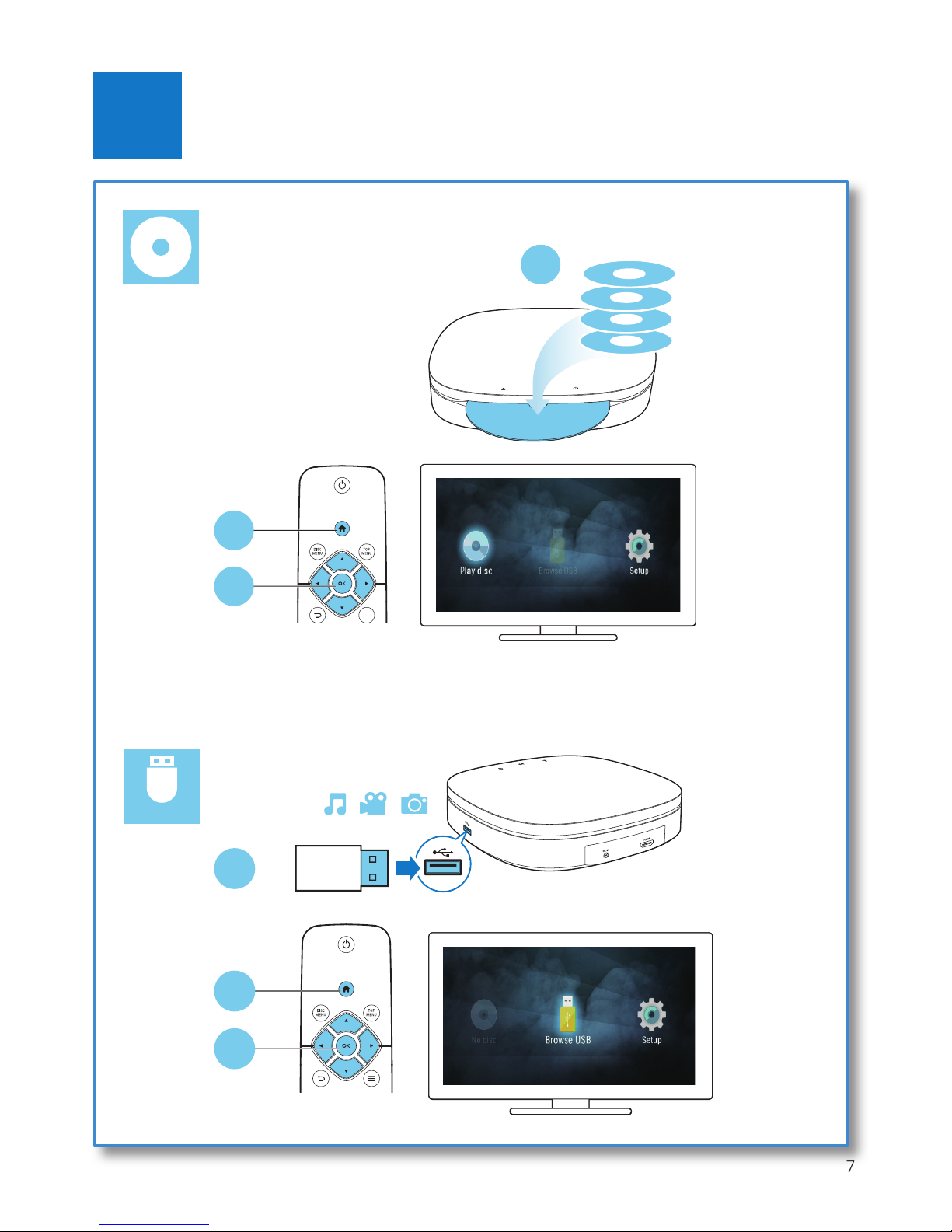

USB

1

2

3

DVD/VCD/CD
DivX Plus HD/MK

V

BD

MP3 / JPEG

1

2

3

8

31 mm

2

2

2x

2x

X

4~4.5 mm

8-9 mm

3.5-4 mm

>25 mm

1

1EN

Contents

1 Use your Blu-ray disc/ DVD

player 2

Basic play control 2
“Smile” light indication 3
Video, audio and picture options 3
DivX videos 4
Play a musical slideshow 5
Auto play 5
BonusView on Blu-ray 6
Use Philips EasyLink 6

2 Change settings 7

Picture 7
Sound 7
Preference (languages, parental

control...) 7

Advanced options (clear memory...) 8

3 Update software 9

Update software via USB 9

4 Optional placement 10

Vertical placement 10
Wall mount 10

5 Product specications 11

6 Trouble shooting 14

2 EN

1 Use your Blu-

ray disc/ DVD
player

Congratulations on your purchase, and
welcome to Philips! To fully benet
from the support that Philips oers (e.g.
product software upgrade), register your
product at www.philips.com/welcome.

Basic play control

During play, press the following buttons
to control.

Button Action

Turn on the player, or
switch to standby.

Access the home menu.

3EN

Button Action

DISC MENU Access or exit the disc

menu or Pop-up menu.

TOP MENU Access the main menu

of a video disc.

Navigate the menus.

Press

to rotate a
picture clockwise or
counter-clockwise
during slideshow.

OK Conrm a selection or

entry.
Return to a previous

display menu.
Access more options

during play.

Color buttons Select tasks or options

for Blu-ray discs.
Eject a disc from the

disc compartment.
Start or resume play.
Pause play.

Press repeatedly to slow
forward frame by frame.

Stop play.

/ Skip to the previous or

next track, chapter or
le.

/ Fast backward or

forward.
Press repeatedly to
change the search
speed.
Press

once, and

then press

to slow

forward.

AUDIO Select an audio

language or channel.

SUBTITLE Select a subtitle

language.

Alphanumeric
buttons

Select an item to play.
Enter values.
Enter letters via SMS
style entry.

“Smile” light indication

This product is designed with an
animated light strip to form an
expression of this product’s current
status.

• Light o: standby.

• Light on: power on and ready.

• Light dim: playback in progress.

• 2 lights ashing: Error or unable to

read disc.

• Other light animation: Like starting
up, loading disc, pause, stop, skip
to next/previous, forward/backward
play, and ejecting disc.

Video, audio and picture
options

More options are available for video or
picture play from a disc or USB storage
device.

Video options

Access more options during video play.

• [Audio language]: Select an audio
language.

• [Subtitle language]: Select a subtitle
language.

• [Subtitle shift]: Change the subtitle
position on the screen. Press

to

change the subtitle position.

• [Info]: Display play information.

2

3

1

4 EN

• [Character set]: Select a character
set that supports the DivX video
subtitle (only for DivX videos).

• [Time search]: Skip to a specic
time via the numeric buttons on the
remote control.

• [2nd audio language]: Select the
second audio language (only
for Blu-ray discs that support
BonusView).

• [2nd subtitle language]: Select the
second subtitle language (only
for Blu-ray discs that support
BonusView).

• [Titles]: Select a title.

• [Chapters]: Select a chapter.

• [Angle list]: Select a camera angle.

• [Menus]: Display a disc menu.

• [PIP selection]: Display a picture-

in-picture window (only for Blu-ray
discs that support BonusView).

• [Zoom]: Zoom into a video picture.
Press

to select a zoom factor.

• [Repeat]: Repeat a chapter or title.

• [Repeat A-B]: Mark two points

within a chapter for repeat play, or
turn o repeat mode.

• [Picture settings]: Select a
predened color setting.

Note

•

Available video options depend on the
video source.

Picture options

2

3

1

Access more options during slideshow.

• [Rotate +90]: Rotate a picture
90 degrees clockwise.

• [Rotate -90]: Rotate a picture
90 degrees counter-clockwise.

• [Zoom]: Zoom into a picture.
Press

to select a zoom factor.

• [Info]: Display picture information.

• [Duration per slide]: Set a display

interval for a slideshow.

• [Slide animation]: Select a transition
eect for a slideshow.

• [Picture settings]: Select a
predened color setting.

• [Repeat]: Repeat a selected folder.

Audio options

Press repeatedly to cycle through the
following options.

• Repeat the current track.

• Repeat all the tracks on the disc or

folder.

• Play audio tracks in a random loop.

• Turn o a repeat mode.

DivX videos

You can play DivX videos from a disc or
a USB storage device.

VOD code for DivX

• Before you purchase DivX videos
and play them on this player,
register this player on www.divx.com
using the DivX VOD code.

5EN

• Display the DivX VOD code: press ,
and select [Setup] > [Advanced] >

[DivX® VOD Code].

DivX subtitles

• Press SUBTITLE to select a
language.

• If the subtitle is not displayed
correctly, change the character set
that supports the DivX subtitle.
Select a character set: press

, and

select [Character set].

Character
set

Languages

[Standard] English, Albanian,

Danish, Dutch, Finnish,
French, Gaelic, German,
Italian, Kurdish (Latin),
Norwegian, Portuguese,
Spanish, Swedish, and
Turkish

[Central
Europe]

Albanian, Croat, Czech,
Dutch, English, German,
Hungarian, Irish, Polish,
Romanian, Slovak,
Slovene, and Serbian

[Cyrillic] Bulgarian, Belorussian,

English, Macedonian,
Moldavian, Russian,
Serbian, and Ukrainian

[Greek] Greek
[Baltic] Estonian, Latvian and

Lithuanian

[Chinese] Simplied Chinese
[Chinese-

Traditional]

Traditional Chinese

[Korean] English and Korean

Note

•

To use the subtitles, make sure that the
subtitle le has the same name as the DivX
video le name. For example, if the DivX
video le is named “movie.avi", save the
subtitle le as “movie.srt”, or “movie.sub”.

• This player can play subtitle les in the

following formats: .srt, .sub, .txt, .ssa, and
.smi.

Play a musical slideshow

Play music and pictures simultaneously
to create a musical slideshow.

1 From a disc or connected USB

storage device, play a music le.

2 Press , and go to the picture

folder.

3 Select a picture from the same

disc or USB, and press OK to start
slideshow.

4 Press to stop slideshow.
5 Press again to stop music play.

Auto play

This player can automatically play a disc
or a video le.

Auto play disc

When this player is switched on, the
disc automatically plays.

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Auto play

disc]> [On].

• The feature is turned on.

• To turn o the feature,

select [O]. The disc will not
automatically play.

6 EN

Auto play video sequentially

If two or more video les are available
in the same folder from a USB storage
device, the next video le automatically
plays after the end of a video.

1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Preference] > [Auto play

after video]> [On].

• The feature is turned on.

• To turn o the feature, select

[O]. The next video le will not
automatically play after the end
of a video in the same folder.

BonusView on Blu-ray

View special content (such as
commentaries) in a small screen
window.
This feature is only applicable to Blu-ray
discs compatible with BonusView (also
known as picture in picture).

1 During play, press .

» The options menu is displayed.

2 Select [PIP selection] > [PIP], and

press OK.

» PIP options [1]/[2] depend on

the video contents.

» The secondary video window is

displayed.

3 Select [2nd audio language] or [2nd

subtitle language], and press OK.

Use Philips EasyLink

This player supports Philips EasyLink
which uses the HDMI CEC (Consumer
Electronics Control) protocol. You can
use a single remote control to control
EasyLink compliant devices that are
connected through HDMI. Philips does
not guarantee 100% interoperability
with all HDMI CEC devices.

1 Connect the HDMI CEC compliant

devices through HDMI, and turn on
the HDMI CEC operations on the TV
and other connected devices (see
the user manual of the TV or other
devices for details).

2 Press .
3 Select [Setup]> [EasyLink].
4 Select [On] under the options:

[EasyLink], [One Touch Play] and
[One Touch Standby].

» EasyLink function is turned on.

One Touch Play

When a video disc is in the disc
compartment, press

to wake up the

TV from standby, and then play a disc.

One Touch Standby

When a connected device (for
example TV) is put to standby with its
own remote control, this player is put
to standby automatically.

7EN

2 Change

settings

This section helps you change the
settings of this player.

Note

•

You cannot change a menu option that is
grayed out.

• To return to the previous menu, press .

To exit the menu, press .


1

Press .

2 Select [Setup] > [Video] to access

the video setup options.

• [TV display]: Select a picture display
format to t the TV screen.

• [HDMI video]: Select an HDMI video
resolution.

• [HDMI Deep Color]: Display colors
with more shades and hues when
the video content is recorded in
Deep Color and the TV supports this
feature.

• [Picture settings]: Select a
predened color setting.

1

3

2

3

TV display

HDMI video

16:9 Widescreen

Picture settings

Note

•

If you change a setting, make sure that the
TV supports the new setting.

Sound

1

Press .

2 Select [Setup] > [Audio] to access

the audio setup options.

• [Night mode]: Select quiet or
full dynamic sound. Night mode
decreases the volume of loud
sound and increases the volume of
soft sound (such as speech).

• [HDMI audio]: Set an HDMI
audio format when this player is
connected through HDMI.

Note

•

Night mode is only available for Dolby®
TrueHD / Dolby® Digital Plus encoded DVD
and Blu-ray discs.

Preference (languages,
parental control...)

1

Press .

2 Select [Setup] > [Preference]

to access the preference setup
options.

• [Menu language]: Select an
onscreen display menu language.

• [Audio]: Select an audio language
for video.

• [Subtitle]: Select a subtitle language
for video.

• [Disc menu]: Select a menu
language for a video disc.

8 EN

• [Parental control]: Restrict access
to discs that are encoded with
ratings. Input "0000" to access the
restriction options. To play all discs
irrespective of the rating, select
level "8".

• [Screen saver]: Enable or disable
screen saver mode. If enabled,
the screen enters idle mode
after 10 minutes of inactivity (for
example, in pause or stop mode).

• [Auto subtitle shift]: Enable or
disable subtitle shift. If enabled,
the subtitle position is changed
automatically to t the TV screen
(this feature works with some
Philips TVs only).

• [Change password]: Set or change
a password to play a restricted disc.
Input "0000" if you do not have a
password or if you have forgotten
your password.

• [Auto standby]: Enable or disable
auto standby. If enabled, the player
switches to standby after 18 minutes
of inactivity (for example, in pause
or stop mode).

• [Fast wake up]: Enable or disable
the player to wake up faster from
standby. If fast wakeup is turned
o, less power is consumed during
standby.

• [VCD PBC]: Display or skip the
content menu for VCD and SVCD.

• [Auto play disc]: Enable or disable
the automatic disc playback after
power on.

• [Auto play after video]: Enable
or disable sequential playback of
videos from USB.

Note

•

If your preferred language is not available
for disc language, audio or subtitle, you can
select [Other] from the menu options and
input 4-digit language code which can be
found at the back of this user manual.

• If you select a language which is not

available on a disc, this player uses the
default language of the disc.

Advanced options (clear
memory...)

1

Press .

2 Select [Setup] > [Advanced] to

access the advanced setup options.

• [Downmix mode]: Control
2-channel stereo audio output.

• [Software update]: Update software
through a USB storage device.

• [Clear memory]: Remove some Blu-
ray disc data (such as BonusView)
that are automatically copied on
the connected USB device. A folder
named “BUDA” is automatically
created to store some necessary
data from Blu-ray disc.

• [DivX® VOD Code]: Display the
DivX® registration code or the
deregistration code for this player.

• [Version information]: Display the
software version of this player.

• [Restore default settings]: Reset
this player to the default settings
made at the factory, except for
password and parental control level.

Note

•

You cannot restrict Internet access on
commercial Blu-ray discs.

• Before you purchase DivX videos and play

them on this player, register this player on
www.divx.com with the DivX VOD code.

9EN

3 Update

software

Before you update the software of
this player, check the current software
version:

• Press

, and then select [Setup] >
[Advanced] > [Version information],
and press OK.

Update software via USB

1

Check the latest software version on
www.philips.com/support.

• Search for your model and click

on "Software and drivers".

2 Download the software into a USB

storage device.

a Unzip the download, and make

sure that the unzipped folder is
named "UPG".

b Put the "UPG" folder in the root

directory.

3 Connect the USB storage device

to the

(USB) connector on this

player.

4 Press , and select [Setup].
5 Select [Advanced] > [Software

update]> [USB].

» If an upgrade media is detected,

you are prompted to start the
update.

6 Follow the instructions on the TV

screen to update the software.

» When the update is complete,

this player automatically turns
o and on again.

Caution

•

Do not turn o the power or remove the
USB storage device when the software
update is in progress because you might
damage this player.

10 EN

4 Optional

placement

The design of this product allows you to
place this product in the following ways:

• Horizontal placement on the
tabletop.

• Vertical placement on the tabletop.

• Wall mount

You may simply place this product
horizontally on the tabletop.

Vertical placement

You may place this product vertically
on the tabletop. See the section of the
quick start guide in this user manual for
placement illustration.

1) Assemble the supplied brackets.

2) Fix the assembled bracket to this

product.

Wall mount

Note

•

Before wall mounting, make sure the wall
can support the weight of this product.

• For wall mounting, this product must be

securely attached to the wall in accordance
with the installation instructions. Improper
wall mounting may result in accident, injury
or damage. If you have any query, contact
Consumer Care in your country.

You may mount this product on the
wall. See the section of the quick start
guide in this user manual for placement
illustration.

1) Fix the supplied bracket to this

prodcut.

2) Drill two holes on the wall, then
secure the dowels and screws in the
holes.

3) Hang this product on the wall.

11EN

5 Product

specifications

Note

•

Specications and design are subject to
change without notice.

Region code

This player can play discs with the
following region codes.

DVD Blu-ray Countries

Europe, United
Kingdom

Media formats

• BD-Video

• DVD-Video, DVD+R/+RW,

DVD-R/-RW, DVD+R/-R DL
(Dual Layer)

• VCD/SVCD

• Audio CD, CD-R/CD-RW,

MP3 media, WMA media, JPEG les

• DivX (Ultra)/DivX Plus HD media,
MKV media

• USB storage device

File formats

• Audio:

• .aac, .mka, .mp3, .wma, .wav,

.m4a, .ac, .ogg

• Video:

• .avi, .divx, .mp4, .m4v, .ts, .mov,

.mkv, .m2ts, .mpg, .mpeg, .3gp

• Picture: .jpg, .jpeg, .gif, .png

B

Audio formats

This product supports the following
audio les.

Exten­sion

Con­tainer

Audio
codec

Bit rate

.mp3 MP3 MP3 Up to

320 kbps

.wma ASF WMA Up to

192 kbps

.aac AAC AAC, HE-

AAC

Up to

192 kbps
.wav WAV PCM 27.648 Mbps
.m4a MKV AAC 192 kbps

ALAC Up to 192kHz

sampling rate
.mka MKA PCM 27.648 Mbps
AC-3 640kbps
DTS core 1.54 Mbps
MPEG 912 kbps
MP3 Up to

320 kbps
WMA Up to

192 kbps
AAC, HE-

AAC

Up to

192 kbps
.ac FLAC FLAC Up to 24 bit

per sample
.ogg OGG Vorbis Variable

bit rate,

maximum

block size

4096

FLAC Up to 192kHz

sampling rate

OGGPCM No limitation

MP3 Upto

320 kbps

12 EN

Video formats

If you have a high denition TV, this
product allows you to play your video
les with:

• Resolution: 1920 x 1080 pixels at

• Frame rate: 6 ~ 30 frames per

second.

.avi les in AVI container (or .ts les in
TS container)

Audio codec Video codec Bit rate

PCM, AC-3,
DTS core,
MP3, WMA,
DD+

DivX 3.11,
DivX 4.x,
DivX 5.x,
DivX 6.x

10 Mbps
max

MPEG 1,

MPEG 2

40 Mbps

MPEG 4 SP

/ ASP

38.4 Mbps

H.264/

AVC up to
HiP@5.1

25 Mbps

WMV9 45 Mbps

.divx les in AVI container

Audio codec

Video codec Bit rate

PCM, AC-3,
DTS core,
MP3, WMA,
DD+

DivX 3.11,
DivX 4.x,
DivX 5.x,
DivX 6.x

10 Mbps
max

.mp4 or .m4v les in MP4 container

Audio codec Video codec Bit rate

AC-3,
MPEG,
MP3, AAC,
HE-AAC,
DD+

MPEG 1,
MPEG 2

40 Mbps

MPEG
4 ASP

38.4 Mbps

H.264/
AVC up to
HiP@5.1

25 Mbps

.mov les in MOV container

Audio codec Video codec Bit rate

AC-3,
MPEG,
MP3, AAC,
HE-AAC

MPEG 1,
MPEG 2

40 Mbps

MPEG
4 ASP

38.4 Mbps

H.264/
AVC up to
HiP@5.1

25 Mbps

.mkv les in MKV container

Audio codec Video codec Bit rate

PCM, AC-3,
DTS core,
MPEG,
MP3, WMA,
AAC, HE­AAC, DD+,
FLAC

DivX Plus HD30 Mbps

MPEG 1,
MPEG 2

40 Mbps

MPEG
4 ASP

38.4 Mbps

H.264/
AVC up to
HiP@5.1

25 Mbps

WMV9 45 Mbps

.m2ts les in MKV container

Audio codec Video codec Bit rate

PCM, AC-3,
DTS core,
MPEG,
MP3, WMA,
AAC, HE­AAC, DD+

MPEG 1,
MPEG 2

40 Mbps

MPEG
4 ASP

38.4 Mbps

H.264/
AVC up to
HiP@5.1

25 Mbps

13EN

Audio codec Video codec Bit rate

WMV9 45 Mbps

.mpg and .mpeg les in PS container

Audio codec Video codec Bit rate

PCM, DTS
core, MPEG,
MP3

MPEG 1,
MPEG 2

40 Mbps

.3gp les in 3GP container

Audio codec Video codec Bit rate

AAC, HE­AAC

MPEG
4 ASP

38.4 Mbps

H.264/

AVC up to
HiP@5.1

25 Mbps
max

Video

• Signal system: PAL / NTSC

• HDMI output: 480i/576i,

480p/576p, 720p, 1080i, 1080p,
1080p/24Hz

Audio

• HDMI output

• Sampling frequency:

• MP3: 32 kHz, 44.1 kHz, 48 kHz

• WMA: 44.1 kHz, 48 kHz

• Constant bit rate:

• MP3: 112 kbps - 320 kpbs

• WMA: 48 kpbs - 192 kpbs

USB

• Compatibility: Hi-Speed USB (2.0)

• Class support: USB Mass Storage

Class

• File system: FAT16, FAT32

• USB port: 5V

, 500mA

• Support HDD (a portable hard disc
drive): an external power source
may be needed.

Main unit

• Power supply:

• Model (Philips branded AC
power adapter): NU010A120080

• Input: 100-240 V~, 50/60 Hz

0.2 A

• Output: 12 V

, 0.8 A

• Power consumption in standby
mode: < 0.5 W

• Dimensions (w x h x d):
210 x 52.5 x 210 (mm)

• Net Weight: 0.75 kg

Operating Temperature & Humidity

• 0°C to 45°C, 5% to 90% Humidity for
all climates.

Storage Temperature & Humidity

• -40 °C to 70 °C, 5% to 95%

Accessories

• Remote control and batteries

• Quick start guide

• CD-ROM built in multi-lingual user

manual (Continental Europe only)

• 2 brackets and 2 screws

Laser

• Laser Type (Diode): AlGaInN (BD),

AlGaInP (DVD/CD)

• Wave length: 398nm to 413nm (BD),
645nm to 664nm (DVD),
770nm to 800nm(CD)

• Output power: 1.7mW (BD),

0.19mW(DVD), 0.25mW (CD)

Standby information

• When the product remains inactive

for 18 minutes, it automatically
switches to standby or networked
standby.

• The power consumption in standby
or networked standby is less than

0.5W.

14

6 Trouble-

shooting

Warning

•

Risk of electric shock. Never remove the
casing of the player.

To keep the warranty valid, never try to
repair the player yourself.
If you have problems using this player,
check the following points before
you request service. If you still have a
problem, register your player and get
support at www.philips.com/support.
If you contact Philips, you will be asked
for the model and serial number of this
player. The model number and serial
number are on the back of this player.
Write the numbers here:
Model No. _______________________
Serial No. ________________________

Main unit

The buttons on this player do not work.

• Disconnect this player from the
power supply for a few minutes, and
then reconnect.


No picture.

• Make sure that the TV is switched
to the correct source input for this
player.

No picture on HDMI connection.

• Make sure that the HDMI cable is
not faulty. If it is faulty, replace with
a new HDMI cable.

• On the remote control, press

and
then press “731” (numeric buttons)
to recover picture display. Or wait
for 10 seconds for auto recovery.

• If this player is connected to an
unauthorized display device with an
HDMI cable, the audio and video
signals may not be output.

The disc does not play high-denition
video.

• Make sure that the disc contains
high-denition video.

• Make sure that the TV supports
high-denition video.

Sound

No sound on HDMI connection.

• You may not hear any sound from
the HDMI output if the connected
device is non-HDCP compliant or
only DVI-compatible.

No secondary audio output for Picture­in-Picture feature.

• When [Bitstream] under the [HDMI
audio] menu is selected, interactive

sound like secondary sound for
Picture-in-Picture feature is muted.
De-select [Bitstream].

Play

Cannot play a disc.

• Clean the disc.

• Make sure that the disc is correctly

loaded.

• Make sure that this player supports
the disc. See "Specications".

• Make sure that this player supports
the region code of the DVD or BD.

• For DVD±RW or DVD±R, make sure
that the disc is nalized.

Cannot play DivX video les.

• Make sure that the DivX video le is

complete.

• Make sure that the video le name

extension is correct.

EN

15

DivX subtitles do not display correctly.

• Make sure that the subtitle le has

the same name as the DivX video
le.

• Make sure that the subtitle le has

an extension name supported by
this player (.srt, .sub, .txt, .ssa, or
.smi).

Cannot read the contents of a
connected USB storage.

• Make sure that the format of the

USB storage device is compatible
with this player.

• Make sure that the le system on

the USB storage device is supported
by this player.

• For a USB HDD (a portable hard

disc drive), an external power
source may be needed.

'No entry' or 'x' sign is displayed on the
TV.

• The operation is not possible.

EasyLink feature does not work.

• Make sure that this player is
connected to the Philips brand
EasyLink TV, and the EasyLink
option is turned on (see "Use your
Blu-ray disc/ DVD player" > "Use
Philips EasyLink").

EN

16

‘Blu-ray Disc ‘ and ‘Blu-ray Disc ‘
logo are trademarks of Blu-ray Disc
Association.

HDMI, and HDMI logo and High­Denition Multimedia Interface are
trademarks or registered trademarks of
HDMI licensing LLC in the United States
and other countries.

Dolby and the double-D symbol
are registered trademarks of Dolby
Laboratories.

This DivX Certied device has passed
rigorous testing to ensure it plays DivX
video.
To Play purchased DivX movies, rst
register your device at vod.divx.com.

Find your registration code in the DivX
VOD section of your device setup menu.
DivX Certied

to play DivX and

DivX Plus

HD (H.264/MKV) video up to
1080p HD, including premium content.
DivX

, DivX Certied , DivX Plus HD

and associated logos are trademarks of

DivX, LLC and are used under license.

For DTS patents,see http://patents.
dts.com. Manufactured under license
from DTS Licensing Limited. DTS, the
Symbol, & DTS and the Symbol together
are registered trademarks, and DTS

2.0+Digital Out is a trademark of DTS,
Inc. © DTS, Inc. ALL Rights Reserved.

'DVD Video' is a trademark of DVD
Format/Logo Licensing Corporation.

Oracle and Java are registered
trademarks of Oracle and/or its aliates.
Other names may be trademarks of their
respective owners.

EN

17EN

Abkhazian 6566
Afar 6565
Afrikaans 6570
Amharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Avestan 6569
Aymara 6589
Azerhaijani 6590
Bahasa Melayu 7783
Bashkir 6665
Belarusian 6669
Bengali 6678
Bihari 6672
Bislama 6673
Bokmål, Norwegian 7866
Bosanski 6683
Brezhoneg 6682
Bulgarian 6671
Burmese 7789
Castellano, Español 6983
Catalán 6765
Chamorro 6772
Chechen 6769

Chewa; Chichewa; Nyanja

7889
9072
Chuang; Zhuang 9065
Church Slavic; Slavonic 6785
Chuvash 6786
Corsican 6779
Česky 6783
Dansk 6865
Deutsch 6869
Dzongkha 6890
English 6978
Esperanto 6979
Estonian 6984
Euskara 6985

6976
Faroese 7079
Français 7082
Frysk 7089
Fijian 7074
Gaelic; Scottish Gaelic 7168
Gallegan 7176
Georgian 7565
Gikuyu; Kikuyu 7573
Guarani 7178
Gujarati 7185
Hausa 7265
Herero 7290
Hindi 7273
Hiri Motu 7279
Hrwatski 6779
Ido 7379
Interlingua (International)7365
Interlingue 7365
Inuktitut 7385

Inupiaq 7375

Irish 7165
Íslenska 7383
Italiano 7384
Ivrit 7269
Japanese 7465
Javanese 7486
Kalaallisut 7576
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kernewek 7587
Khmer 7577
Kinyarwanda 8287
Kirghiz 7589
Komi 7586
Korean 7579
Kuanyama; Kwanyama 7574
Kurdish 7585
Lao 7679
Latina 7665
Latvian 7686
Letzeburgesch; 7666
Limburgan; Limburger 7673
Lingala 7678
Lithuanian 7684
Luxembourgish; 7666
Macedonian 7775
Malagasy 7771
Magyar 7285
Malayalam 7776
Maltese 7784
Manx 7186
Maori 7773
Marathi 7782
Marshallese 7772
Moldavian 7779
Mongolian 7778
Nauru 7865
Navaho; Navajo 7886
Ndebele, North 7868
Ndebele, South 7882
Ndonga 7871
Nederlands 7876
Nepali 7869
Norsk 7879
Northern Sami 8369
North Ndebele 7868
Norwegian Nynorsk; 7878
Occitan; Provencal 7967
Old Bulgarian; Old Slavonic 6785
Oriya 7982
Oromo 7977
Ossetian; Ossetic 7983
Pali 8073
Panjabi 8065
Persian 7065
Polski 8076
Português 8084

Pushto 8083
Russian 8285
Quechua 8185
Raeto-Romance 8277
Romanian 8279
Rundi 8278
Samoan 8377
Sango 8371
Sanskrit 8365
Sardinian 8367
Serbian 8382
Shona 8378
Shqip 8381
Sindhi 8368
Sinhalese 8373
Slovensky 8373
Slovenian 8376
Somali 8379
Sotho; Southern 8384
South Ndebele 7882
Sundanese 8385
Suomi 7073
Swahili 8387
Swati 8383
Svenska 8386
Tagalog 8476
Tahitian 8489
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
To nga (Tonga Islands) 8479
Tsonga 8483
Tswana 8478
Türkçe 8482
Turkmen 8475
Tw i

8487
Uighur 8571
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapuk 8679
Walloon 8765
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 8973
Yoruba 8979
Zulu 9085

Language Code

Specifications are subject to change without notice
© 2017 Koninklijke Philips N.V. All rights reserved.
Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

BDP3210B/3215B_12_UM_V3.0
