Philips BDP-3000 Service manual

Blu-ray Disc Player

BDP3000/12/05/51

TABLE OF CONTENTS

Page

Technical Speci cations .......................................................1-2

Safety Instruction, Warning & Notes .....................................1-3

QSG & DFU Instruction ........................................................... 2

Mechanical and Dismantling Instructions ................................ 3

Software Version & Upgrades, Region Code Change ............. 4

Trouble Shooting Chart ...........................................................5

Set Wiring Diagram .................................................................6

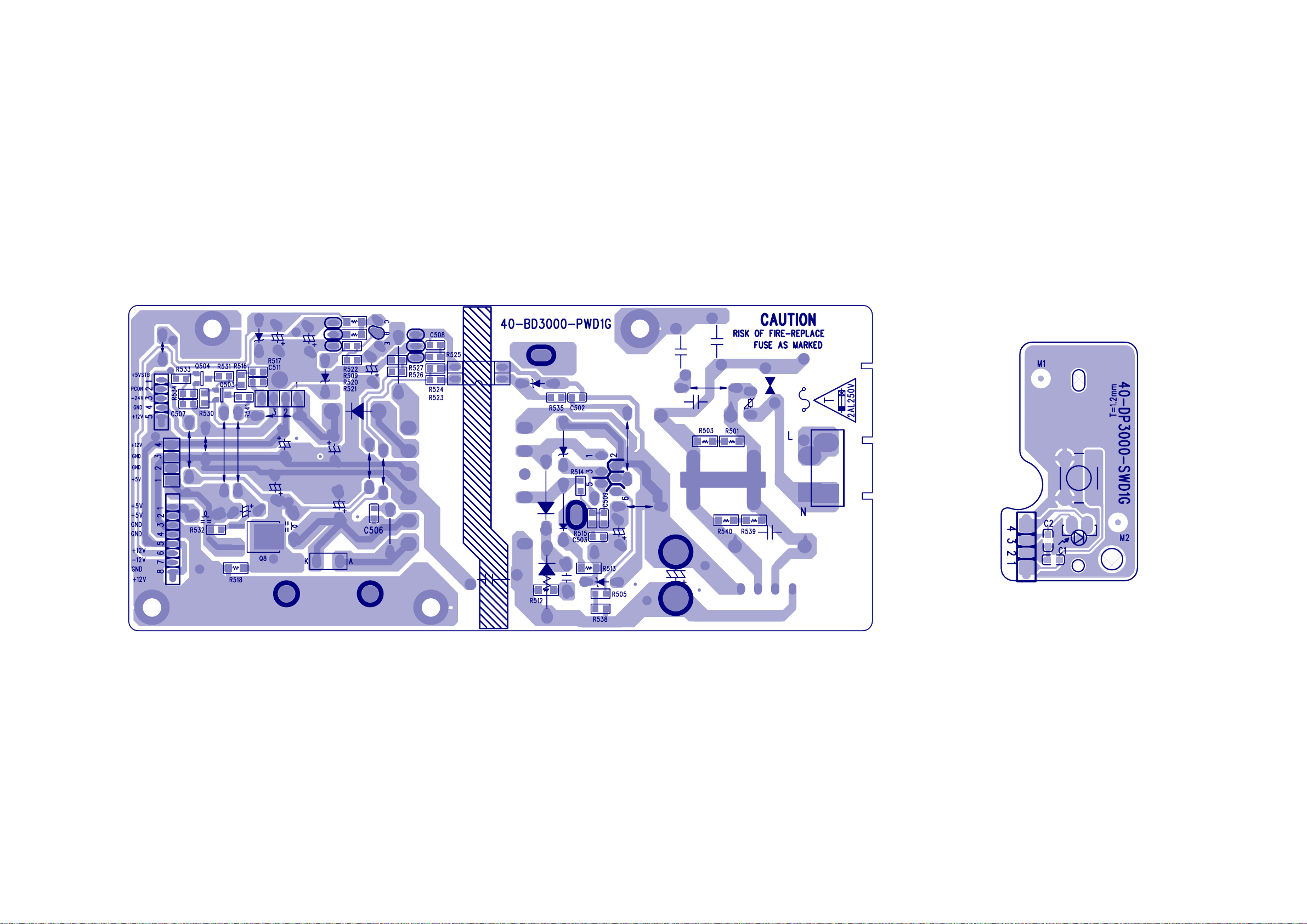

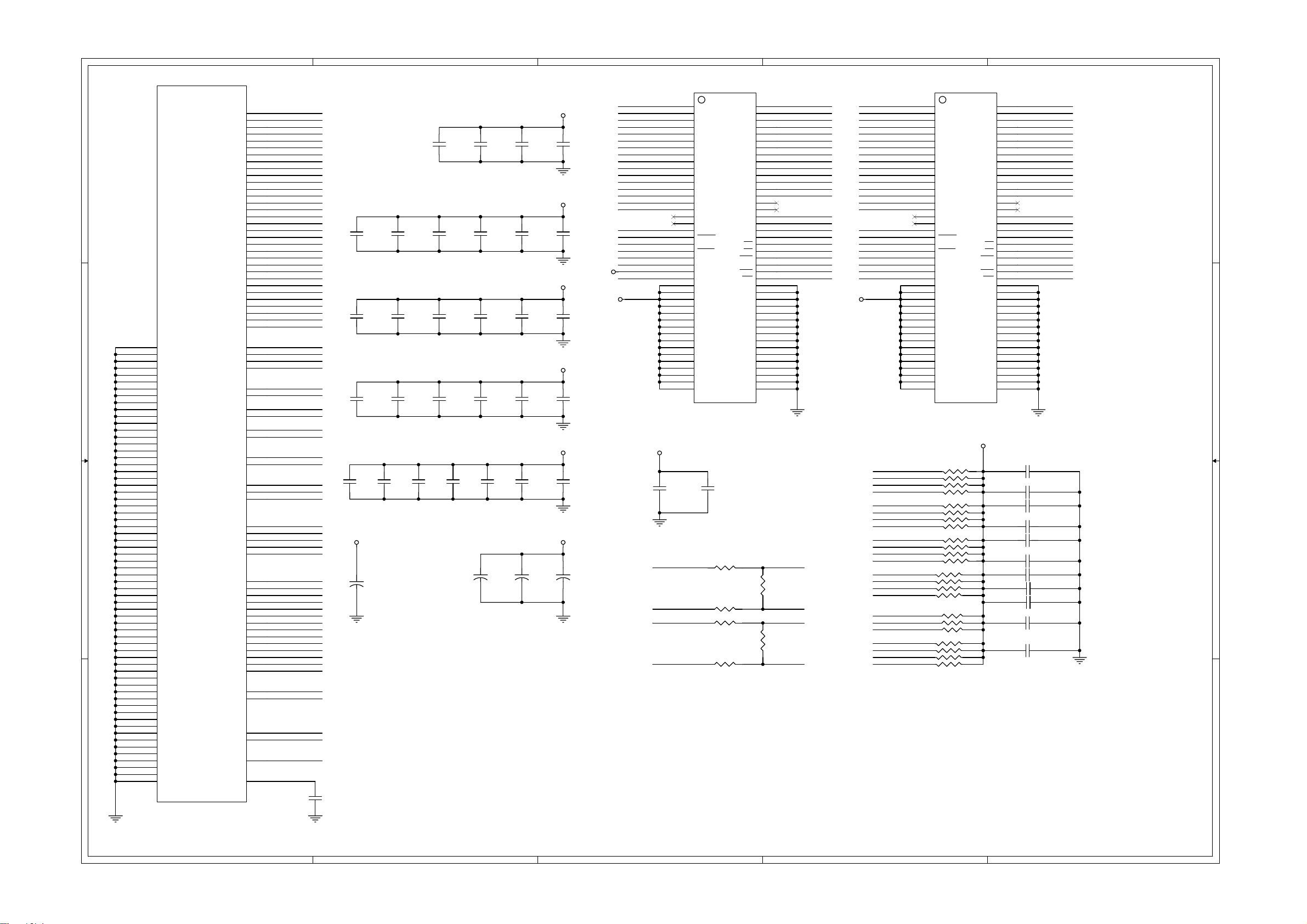

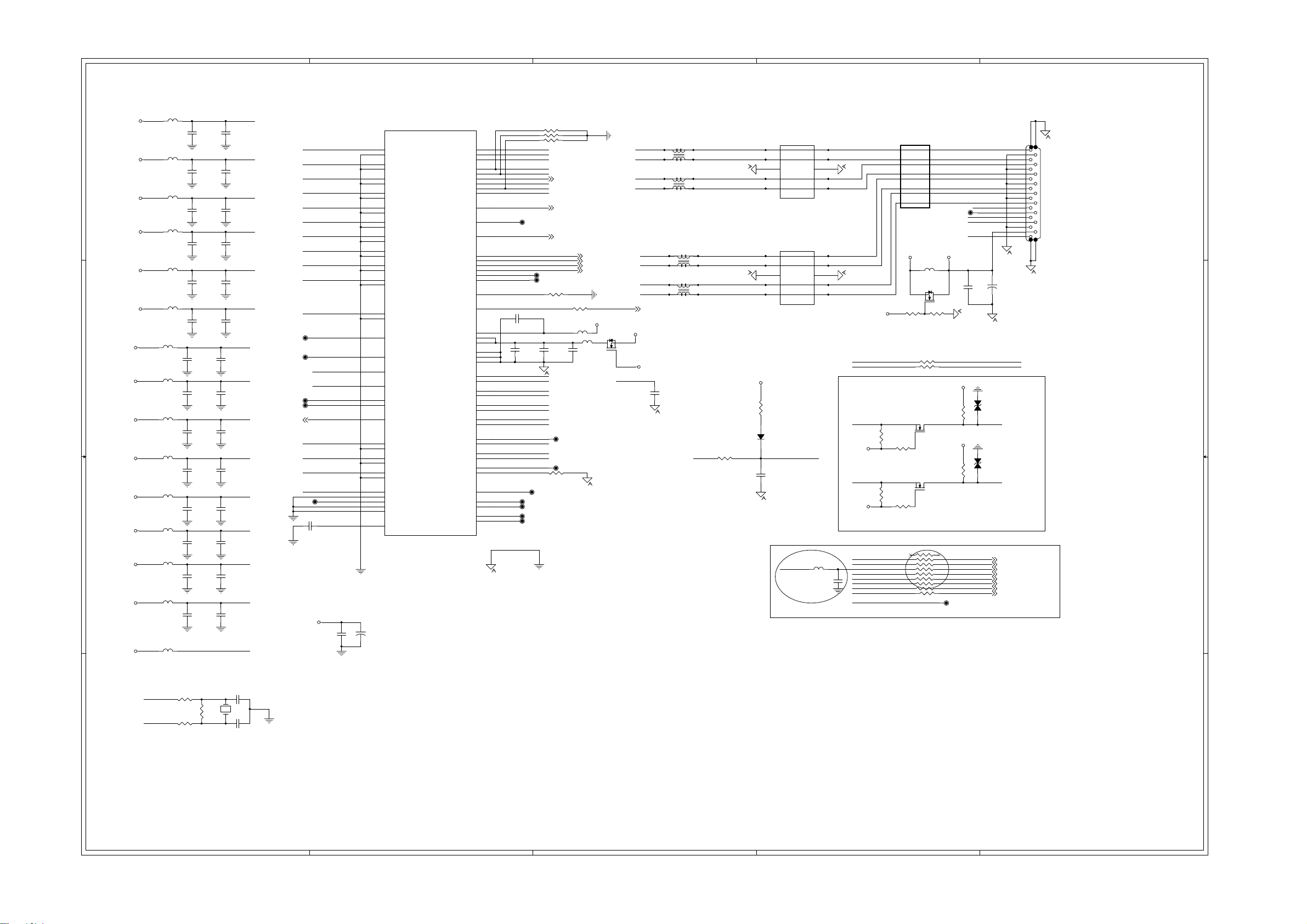

Electrical Diagrams and PCB layouts ...................................... 7

Set Mechanical Exploded view & Parts List ............................8

Revision List ............................................................................ 9

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.

Published by SL0938 Service Audio Printed in The Netherlands Subject to modification

Version 1.2

CLASS 1

LASER PRODUCT

3141 785 34092

Speciﬁ cations

1-2

Note

•

Speciﬁ cation and design are subject to change withou t notice

Play media

BD-Video, DVD -Video, DVD+R/+RW, DVD-R/RW, DVD+R/-R DL, CD-R/CD-RW, Audio CD, Video CD/SVCD, Picture CD, MP3-CD, WMA-CD, DivX (Ultra)-CD.

Accessories supplied

Remote control and batteries• Audio/Video cables• Power cable• Quick start guide•

User manual• CD-ROM built in multi-lingual user manual • (not availabe for UK version)

Video

Signal system: PAL / NTSC• Composite video output: 1 Vp-p (75 ohm)• Component video output: 480/576i, 480/576p, • 720p, 1080i

Y: 1 Vp-p (75 ohm)• Pb: 0.7 V-pp (75 ohm)•

Pr: 0.7 V-pp (75 ohm)• HDMI output 480p, 576p, 720p, 1080i, 1080p, • 1080p24

Audio

2 Channel analog output•

Audio Front L + R : 2 Vrms (> 1 kohm)• Digital output: 0.5 Vp-p (75 ohm)•

Coaxial• HDMI output• Sampling frequency:•

MP3: 32 kHz, 44.1 kHz, 48 kHz•

WMA: 44.1 kHz, 48 kHz• Constant bit rate:•

MP3: 112 kbps - 320 kpbs•

WMA: 48 kpbs - 192 kpbs•

USB

As additional memory for software updates • and BD-Live bonus contents. Not for media play.

Main unit

Power supply rating•

Europe: 220~240V ~AC, ~50 Hz•

Russia: 220~230V ~AC, ~50 Hz•

Asia Paciﬁ c: 110~240V ~AC, 50~60 Hz•

Latin America: 110~240V ~AC, 50~60 •

China: 110~240V ~AC, ~50 Hz• Power consumption: 25W• Power consumption in standby mode: 0.25W• Dimensions (w x h x d): 435 x 62 x 237 (mm) • Net Weight: 2.5 kg•

Laser Speciﬁ cation

Laser Type: •

BD Laser Diode: InGaN/AIGaN• DVD Laser Diode: InGaAIP• CD Laser Diode: A IGaAs•

Wave leng th: •

BD: 405 +5nm/-5nm• DVD: 650 +13nm/-10nm• CD: 790 +15nm/-15nm•

Output power: •

BD: Max. ratings: 20mW• DVD: Max. ratings: 7mW• CD: Max. ratings: 7mW•

1-3

Safety instruction, Warning & Notes

Safety instruction

1. General safety

Safety regulations require that during a repair:

. Connect the unit to the mains via an isolation transformer.

. Replace safety components indicated by the symbol

only by components identical to the original ones. Any

other component substitution (other than original type)

may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, you must

return the unit in its original condition. Pay, in particular,

attention to the following points:

. Route the wires/cables correctly, and fix them with the

mounted cable clamps.

. Check the insulation of the mains lead for external

damage.

. Check the electrical DC resistance between the mains

plug and the secondary side:

1) Unplug the mains cord, and connect a wire between

the two pins of the mains plug.

2) Set the mains switch the “on” position (keep the

mains cord unplug).

3) Measure the resistance value between the mains

plug and the front panel, controls, and chassis

bottom.

4) Repair or correct unit when the resistance

measurement is less than 1M

5) Verify this, before you return the unit to the

customer/user (ref. UL-standard no. 1492).

6) Switch the unit “off”, and remove the wire between

the two pins of the mains plug.

2.Laser safety

This unit employs a laser. Only qualified service personnel

may remove the cover, or attempt to service this device

(due to possible eye injury).

Laser device unit

Type : Semiconductor laser GaAlAs

Wavelength : 650nm (DVD)

: 780nm (VCD/CD)

Output power : 7mW (DVD)

: 10mW (DVD /CD)

Beam divergence: 60 degree

Note: Use of controls or adjustments or performance of

procedure other than those specified herein, may result in

hazardous radiation exposure. Avoid direct exposure to

beam.

Warning

1-4

1.General

. All ICs and many other semiconductors are susceptible to

electrostatic discharges (ESD). Careless handing during

repair can reduce life drastically. Make sure that, during

repair, you are at the same potential as the mass of the

set by a wristband with resistance. Keep components and

tools at this same potential. Available ESD protection

equipment:

1) Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable and earth cable)

4822 310 10671.

2) Wristband tester 4822 344 13999.

. Be careful during measurements in the live voltage

section. The primary side of the power supply , including

the heat sink, carries live mains voltage when you

connect the player to the mains (even when the player is

“off”!). It is possible to touch copper tracks and/or

components in this unshielded primary area, when you

service the player. Service personnel must take

precautions to prevent touching this area or components

in this area. A “lighting stroke” and a stripe-marked

printing on the printed wiring board, indicate the primary

side of the power supply.

. Never replace modules, or components, while the unit is

“on”.

2. Laser

. The use of optical instruments with this product, will

increase eye hazard.

. Only qualified service personnel may remove the cover

or attempt to service this device, due to possible eye

injury.

. Repair handing should take place as much as possible

with a disc loaded inside the player.

. Text below is placed inside the unit, on the laser cover

shield:

CAUTION: VISIBLE AND INVISIBLE LASER

RADIATION WHEN OPEN, AVOID EXPOSURE

TO BEAM.

Notes: Manufactured under licence from Dolby

Laboratories. The double-D symbol is trademarks of Dolby

Notes

Lead-Free requirement for service

1-5

INDENTIFICATION:

Regardless of special logo (not always indicated)

One must treat all sets from 1.1.2005 onwards, according next rules.

Important note be treated in this way as long as you avoid mixing solder-alloys (leaded/ lead-free). So best to always use SAC305 and the higher temperatures belong to this.

Due to lead-free technology some rules have to be respected by the workshop during a repair:

x Use only lead-free solder alloy Philips SAC305 with

order code 0622 149 00106. If lead-free solder-paste is

required, please contact the manufacturer of your

solder-equipment. In general use of solder-paste within

workshops should be avoided because paste is not easy

to store and to handle.

x Use only adequate solder tools applicable for lead-free

solder alloy. The solder tool must be able

o To reach at least a solder-temperature of 400°C,

o To stabilize the adjusted temperature at the

o To exchange solder-tips for different applications.

x Adjust your solder tool so that a temperature around

360°C

joint. Heating-time of the solder-joint should not exceed

~ 4 sec. Avoid temperatures above 400°C otherwise

wear-out of tips will rise drastically and flux-fluid will be

destroyed. To avoid wear-out of tips switch off un-used

equipment, or reduce heat.

x Mix of lead-free solder alloy / parts with leaded solder

alloy / parts is possible but PHILIPS recommends

strongly to avoid mixed

solder alloy types (leaded and lead-free). If one cannot

avoid, clean carefully the

solder-joint from old solder alloy and re-solder with new

solder alloy (SAC305).

: In fact also products a little older can also

solder-tip

– 380°C is reached and stabilized at the solder

x Use only original spare-parts listed in the

Service-Manuals. Not listed standard-material

(commodities) has to be purchased at external

companies.

x Special information for BGA-ICs:

- always use the 12nc-recognizable soldering

temperature profile of the specific BGA (for

de-soldering always use highest lead-free

temperature profile, in case of doubt)

- lead free BGA-ICs will be delivered in so-called

‘dry-packaging’ (sealed pack including a silica gel

pack) to protect the IC against moisture. After

opening, dependent of MSL-level seen on

indicator-label in the bag, the BGA-IC possibly

still has to be baked dry. This will be

communicated via AYS-website.

Do not re-use BGAs at all.

x For sets produced before 1.1.2005, containing

leaded soldering-tin and components, all needed

spare-parts will be available till the end of the

service-period. For repair of such sets nothing

changes.

x On our website:

www.atyourservice.ce.Philips.com

You find more information to:

BGA-de-/soldering (+ baking instructions)

Heating-profiles of BGAs and other ICs used in

Philips-sets

You will find this and more technical information

within the “magazine”, chapter “workshop news”.

For additional questions please contact your local

repair-helpdesk.

2-1

The following excerpt of the Quick Start Guide serves as an introduction to the set.

The complete Direction For Use can be download in different languages from

Philips Customer Contact & Support site: www.p4c.philips.com

BDP300

www.philips.com/welcome

Play Disc

Settings

PHILIPS

User Manual

CD-ROM

(not available for UK version)

(For UK version only)

BDP3000_QSG_V1.0_918

HDMI

Settings

2-2

Settings

B PR & AV OUTPUT L/R

Y P

VIDEO & AV OUTPUT L/R

Video Setup

Audio Setup

Preference Setup

EasyLink Setup

Advanced Setup

OSD Language

Parental Control

Screen Saver

Change PIN

Display Panel

Auto Standby

PBC

English

Off

Normal

Video Setup

Audio Setup

Preference Setup

EasyLink Setup

Advanced Setup

OSD Language

Parental Control

Screen Saver

Change PIN

Display Panel

Auto Standby

PBC

www.philips.com/welcome

BDP300

Settings

HDMI

Y PB PR & AV OUTPUT L/R

VIDEO & AV OUTPUT L/R

Video Setup

Audio Setup

Preference Setup

EasyLink Setup

Advanced Setup

Menu Language

Parental Control

Screen Saver

Change Password

Display Panel

Auto Standby

VCD PBC

Menu Language

Parental Control

Screen Saver

Change Password

Display Panel

Auto Standby

VCD PBC

English

Off

Normal

Product overview

Main unit

Turn on the disc player or switch to •

standby mode.

When EasyLink is enabled, switch the •

disc player and all EasyLink devices to

standby. Note that you must press and

hold

for at least 3 seconds for this to

occur.

b Disc compartment c

Open or close the disc compartment. •

d IR sensor

Point the remote control at the IR sensor.•

e Display panel f

Star t or resume play.•

Pause play.•

Move the paused picture one step •

forward.

2-3

Front panel display

LOADING Loading a disc. UNSUPP The disc is not supported. BD Blu-ray disc is recognized. HDMI ERR The HDMI video resolution is

FASTFWD Fast forward mode. FASTBWD Fast reverse mode. SLOWFWD Slow forward mode. SETTINGS Setup menu is displayed. HOME Home menu is displayed. CHAPTER Current chapter is in chapter

RESUME Resume play is possible. DOLBY D Dolby Digital audio is being

DOLBY HD Dolby HD audio is being

UPGRADE Software upgrade is in

Description

not supported by TV.

repeat mode.

played.

progress.

2-4

Remote control

Turn on the disc player or switch to • standby mode. When EasyLink is enabled, switch the • disc player and all EasyLink devices to standby. Note that you must press and hold

for at least 3 seconds for this to

occur.

b BONUSVIEW

Turn on or off the secondary video • in a small screen window during play (applicable only to BD-video that supports the BONUSVIEW or PictureIn-Picture feature).

c TOP MENU

• BD: Display the top menu.

• DVD: Display the title menu.

Access the home menu.•

e DISC MENU / POP-UP MENU

• BD: Access or exit the pop-up menu.

• DVD: Access or exit the disc menu.

f OK

Conﬁ rm an entry or selection.•

Navigate through the menus.•

BACK

Return to a previous display menu.•

Skip to the previous or next title, chapter, • or track.

m SUBTITLE

n AUDIO

o Alphanumeric buttons

q TV CH +/-

v OPTIONS

w Color buttons

x HDMI

y REPEAT

Search backward or forward.•

Mute volume (applicable only to certain • Philips brand TVs).

+/-

Adjust volume (applicable only to certain • Philips brand TVs).

Select a subtitle language on a disc.•

Select an audio language or channel on • a disc.

Select an item to play.• Enter values or letters (via SMS style • entry).

Open or close the disc compartment.•

Select a TV channel (applicable only to • certain Philips brand TVs).

Stop play.•

Pause play.• Move the paused picture one step • forward.

Star t or resume play.•

INFO

Display the current status or the disc • information.

Access options for the current activity or • selection.

• BD: Select tasks or options.

Select the video resolution of HDMI • output.

Select repeat play or random play.•

3-1

Mechanical and Dismantling Instructions

Dismantling Instruction

The following guidelines show how to dismantle the player. Step1: Remove 6 screws around the Top Cover, and then remove the Top Cover (Figure 1).

Detailed information please refer to the model set.

Figure 1

Step2: If it is necessary to dismantle Loader or Front Panel, the Front door should be removed first. (Figure 2) Note: Make sure to operate gently otherwise the guider would be damaged.

Please kindly note that dismantle the front door

assembly carefully to avoid damage tray and the front door.

Figure 2

3-2

CN502

Mechanical and Dismantling Instructions

Dismantling Instruction

Step3: If the tray can’t open in normal way, you can make it through the instruction as below (Figure 3).

Note: Make sure to operate gently otherwise the guider would be damaged.

Detailed information please refer to the model set.

Step4: Dismantling Front Panel, disconnect the connectors (J306, CN502), need release 5 snaps of Front Panel

and 2 snaps of bottom cabinet , then gently pull the Panel out from the set. (Figure 4 - Figure 6)

Figure 3

J303

PWR1

J320

J306

CN504

Figure 4

+ 30 hidden pages

Philips BDP-3000 Service manual

Specifications and Main Features

Frequently Asked Questions

User Manual
