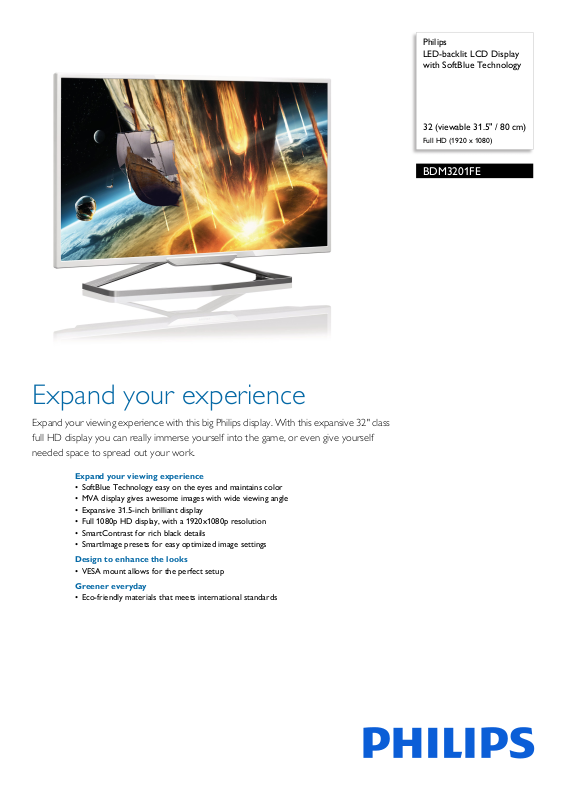

Page 1
Philips
LED-backlit LCD Display
with SoftBlue Technology
32 (viewable 31.5" / 80 cm)
Full HD (1920 x 1080)
BDM3201FE
Expand your experience
Expand your viewing experience with this big Philips display. With this expansive 32" class
full HD display you can really immerse yourself into the game, or even give yourself
needed space to spread out your work.
Expand your viewing experience
• SoftBlue Technology easy on the eyes and maintains color
• MVA display gives awesome images with wide viewing angle
• Expansive 31.5-inch brilliant display
• Full 1080p HD display, with a 1920x1080p resolution
• SmartContrast for rich black details
• SmartImage presets for easy optimized image settings
Design to enhance the looks
• VESA mount allows for the perfect setup
Greener everyday
• Eco-friendly materials that meets international standards
Page 2
BDM3201FE/93
LED-backlit LCD Display
32 (viewable 31.5" / 80 cm) Full HD (1920 x 1080)
Highlights
SoftBlue Technology
SoftBlue LED technology uses a smart
technology to reduce harmful shortwave blue
light without affecting the color or image of the
display. SoftBlue LED technology is certified by
international testing organizations TUV
Rheinland to reduce harmful blue light.
MVA LED display
Full 1080p HD display
The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.
SmartContrast
for just-right display of everyday office
applications and lower power consumption.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
Philips MVA LED display uses an advanced
multi-domain vertical alignment technology
which gives you super-high static contrast
ratios for extra vivid and bright images. While
standard office applications are handled with
ease, it is especially suitable for photos, webbrowsing, movies, gaming, and demanding
graphical applications. It's optimized pixel
management technology gives you extra wide
viewing angle, resulting in crisp images.
SmartContrast is a Philips technology that
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
Eco-friendly materials
"Philips is committed to use sustainable, ecofriendly
materials across its display range. All
body plastic parts, metal chassis parts and
packing materials use 100% recyclable
materials. In some selected models we utilize
upto 65% post consumer recycled plastics.
Strict adherence to RoHS standards ensure
substantial reduction or elimination of toxic
substances like Lead, for example. Mercury
content in displays with CCFL backlight has
been reduced significantly, while eliminated in
displays with LED backlight completely. Visit
Philips @ http://www.asimpleswitch.com/
global/ to learn more.
Page 3
BDM3201FE/93
LED-backlit LCD Display
32 (viewable 31.5" / 80 cm) Full HD (1920 x 1080)
Specifications
Picture/Display
• LCD panel type: MVA
• Backlight type: W-LED system
• Panel Size: 31.5 inch / 80 cm
• Effective viewing area: 698.4 (H) x 392.85 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 6.5 (Gray to Gray) ms
• SmartResponse (typical): 3 ms (Gray to Gray)
• Brightness: 250 cd/m²
• Contrast ratio (typical): 4,000:1
• SmartContrast:
• Pixel pitch: 0.364 x 0.364 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 20
• Picture enhancement: SmartImage
•SoftBlue
• Display colors: 16.7M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz
(V)
•sRGB
20,000,000:1
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• Sync Input: Separate Sync, Sync on Green
Convenience
• User convenience: Power On/Off, 4:3 / Wide,
Input, Menu, SmartImage
• OSD Languages: Dutch, English, Finnish, French,
man, Greek, Hungarian, Italian, Japanese,
Ger
Korean, Polish, Portuguese, Russian, Simplified
Chinese, Spanish, Swedish, Traditional Chinese,
Turkish, Ukranian, Brazil Portuguese, Czech
• Other convenience: VESA mount (100x100mm)
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7, Windows 8
sR
Power
• ECO mode: 22.21 W (typ.)
• On mode: 48 W (typ.)
• Standby mode: <0.5 W (typ.)
• Off mode: <0.5 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand(max height): 726 x 495 x
180 mm
• Product without stand (mm): 726 x 435 x 88 mm
• Packaging in mm (WxHxD): 863 x 581 x 186 mm
Weight
• Product with stand (kg): 6.00 kg
• Product without stand (kg): 4.90 kg
• Product with packaging (kg): 8.29 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 6.0, EPEAT
Silver, RoHS
• Recyclable packaging material: 100 %
• Specific Substances: Mercury free, Lead free
Compliance and standards
• Regulatory Approvals: CCC, WEEE, CEL
Cabinet
• Front bezel: White
• Rear cover: White
•Foot: White
• Finish: Texture
•
Issue date 2022-04-21
Version: 2.0.1
12 NC: 8670 001 24794
EAN: 69 51613 90774 0
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* Smart response time is the optimum value from either GtG or GtG
(BW) tests.
