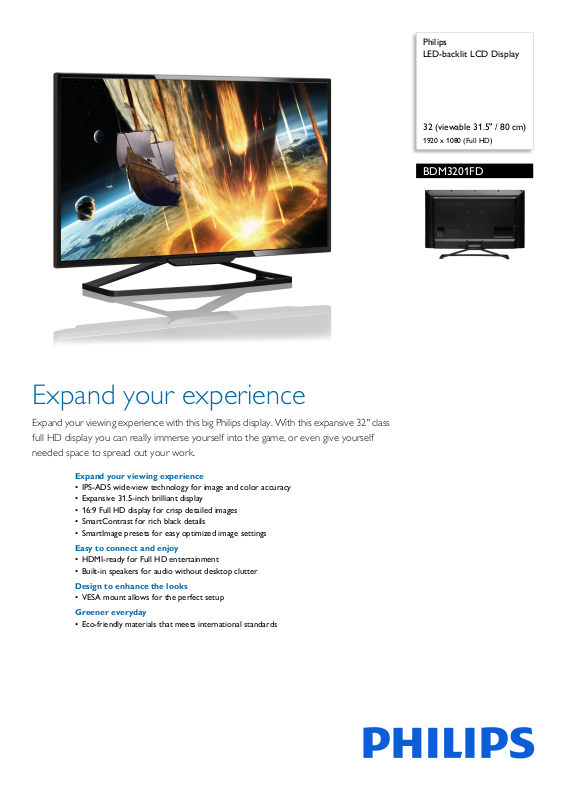

Page 1
Philips
LED-backlit LCD Display
32 (viewable 31.5" / 80 cm)
1920 x 1080 (Full HD)
BDM3201FD
Expand your experience
Expand your viewing experience with this big Philips display. With this expansive 32" class
full HD display you can really immerse yourself into the game, or even give yourself
needed space to spread out your work.
Expand your viewing experience
• IPS-ADS wide-view technology for image and color accuracy
• Expansive 31.5-inch brilliant display
• 16:9 Full HD display for crisp detailed images
• SmartContrast for rich black details
• SmartImage presets for easy optimized image settings
Easy to connect and enjoy
• HDMI-ready for Full HD entertainment
• Built-in speakers for audio without desktop clutter
Design to enhance the looks
• VESA mount allows for the perfect setup
Greener everyday
• Eco-friendly materials that meets international standards
Page 2
BDM3201FD/71
LED-backlit LCD Display
32 (viewable 31.5" / 80 cm) 1920 x 1080 (Full HD)
Highlights
IPS-ADS technology
IPS-ADS displays use an advanced technology
which gives you extra wide viewing angles of
178/178 degree, making it possible to view the
display from almost any angle. Unlike standard
TN panels, IPS-ADS displays give you
remarkably crisp images with vivid colors,
making it ideal not only for Photos, movies and
web browsing, but also for professional
applications which demand color accuracy and
consistent brightness at all times.
16:9 Full HD display
SmartContrast
SmartContrast is a Philips technology that
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
SmartImage
offers you major power savings. All in real time
with the press of a single button!
HDMI Ready
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input. A HDMI
cable enables high-quality digital video and
audio all transmitted over a single cable from a
PC or any number of AV sources (including
set-top boxes, DVD players, A/V receivers and
video cameras).
Built-in speakers
A pair of stereo speakers built into a display
device.
It can be visible front firing, or invisible
down firing, top firing, rear firing, etc
depending on model and design.
Picture quality matters. Regular displays deliver
quality, but you expect more. This display
features enhanced Full HD 1920 x 1080
resolution. With Full HD for crisp detail paired
with high brightness, incredible contrast and
realistic colors expect a true to life picture.
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
Eco-friendly materials
"Philips is committed to use sustainable, ecofriendly
materials across its display range. All
body plastic parts, metal chassis parts and
packing materials use 100% recyclable
materials. In some selected models we utilize
upto 65% post consumer recycled plastics.
Strict adherence to RoHS standards ensure
substantial reduction or elimination of toxic
substances like Lead, for example. Mercury
content in displays with CCFL backlight has
been reduced significantly, while eliminated in
displays with LED backlight completely. Visit
Philips @ http://www.asimpleswitch.com/
global/ to learn more.
Page 3
BDM3201FD/71
LED-backlit LCD Display
32 (viewable 31.5" / 80 cm) 1920 x 1080 (Full HD)
Specifications
Picture/Display
• LCD panel type: IPS-ADS LCD
• Backlight type: W-LED system
• Panel Size: 31.5 inch / 80 cm
• Effective viewing area: 698.4 (H) x 392.85 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 3 ms (Gray to Gray)*
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1,200:1
• SmartContrast:
• Pixel pitch: 0.364 x 0.364 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 20
• Picture enhancement: SmartImage
• Display colors: 16.7M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz
(V)
•sRGB
20,000,000:1
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital,
HDCP), HDMI (digital, HDCP)
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 5 W x 2
• User convenience: SmartImage/Return, Input/Up,
/OK, Volume/Down, Power On/Off
Menu
• OSD Languages: Dutch, English, Finnish, French,
man, Greek, Hungarian, Italian, Japanese,
Ger
Korean, Polish, Portuguese, Russian, Simplified
Chinese, Spanish, Swedish, Traditional Chinese,
Turkish, Ukranian, Brazil Portuguese, Czech
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 8.1 / 8 / 7
sR
Power
• ECO mode: 18.69 W (typ.)
• On mode: 39.43 W (typ.) (EnergyStar 6.0 test
met
hod)
• Standby mode: < 0.5 W (typ.)
• Off mode: < 0.3 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand(max height): 726 x 495 x
180 mm
• Product without stand (mm): 726 x 435 x 88 mm
• Packaging in mm (WxHxD): 863 x 581 x 186 mm
Weight
• Product with stand (kg): 6.30 kg
• Product without stand (kg): 5.20 kg
• Product with packaging (kg): 8.59 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 6.0, RoHS
• Recyclable packaging material: 100 %
• Specific Substances: Mercury free
Compliance and standards
• Regulatory Approvals: CCC, CEL, BSMI, PSB, CE
Mark, RCM, VCCI, WEEE
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
Issue date 2021-02-17
Version: 3.0.1
12 NC: 8670 001 47155
EAN: 87 12581 74751 0
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* Response time value equal to SmartResponse
