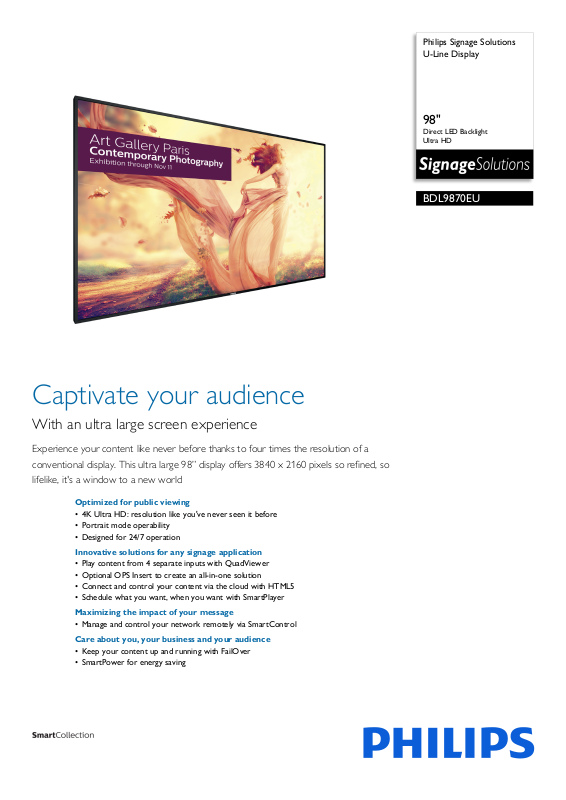

Philips BDL9870EU User Manual

Philips Signage Solutions
U-Line Display

98"

Direct LED Backlight
Ultra HD

BDL9870EU

Captivate your audience

With an ultra large screen experience

Experience your content like never before thanks to four times the resolution of a
conventional display. This ultra large 98” display offers 3840 x 2160 pixels so refined, so
lifelike, it's a window to a new world

Optimized for public viewing

• 4K Ultra HD: resolution like you've never seen it before

• Portrait mode operability

• Designed for 24/7 operation

Innovative solutions for any signage application

• Play content from 4 separate inputs with QuadViewer

• Optional OPS Insert to create an all-in-one solution

• Connect and control your content via the cloud with HTML5

• Schedule what you want, when you want with SmartPlayer

Maximizing the impact of your message

• Manage and control your network remotely via SmartControl

Care about you, your business and your audience

• Keep your content up and running with FailOver

• SmartPower for energy saving

BDL9870EU/00

U-Line Display

OPSInsert

98" Direct LED Backlight, Ultra HD

Highlights

4K Ultra HD Resolution

See your Signage Solutions like never before
th

anks to four times the resolution of a
conventional Full HD display. 3840 x 2160
pixels provide and image so refined, so lifelike,
it's a window to a new world.

Portrait mounting possible

This display is also able to be safely and reliably
mounte

d in portrait position.

SmartControl

SmartControl lets you remotely control and
manage

your network of displays via RJ45 and
RS232C. Easily fine-tune all display settings
including resolution, brightness, contrast and
cloning of your settings over your complete
network.

FailOver

Keeping your content up and running is critical
for demanding commercial applications. While
it is unlikely you will face a content disaster,
FailOver provides 24/7 protection with a
revolutionary technology that plays back-up
content on screen in the event of a media
player failure. FailOver automatically kicks in
when the primary input fails. Simply select a
primary input connection and a FailOver
connection and your ready for instant
protection.

SmartPower

The backlight intensity can be controlled and
pre-set by the system to reduce the power
consumption by up to 50%, which saves
substantially on energy costs.

OPS Insert

Turn your display into an all-in-one digital
signage solution and create a display network
which is connected, intelligent and secure.
Open Pluggable Specification (OPS) is an
industry standard slot into which you can add
an OPS-standardized media player. This cable
free solution gives you the ability to install, use
or maintain your hardware whenever you
need.

QuadViewer

Be more flexible with your screen real estate.
With the ability to play content from up to four
separate inputs, all on one screen.
QuadViewer is ideal for control rooms,
corporate environments, and meeting rooms.

Integrated HTML5 browser

Connect and control your content via the
cloud with the integrated HTML5 browser.
Design your signage content online and
connect it with a display or with your complete
network. Simply plug in a RJ45 internet cable
for network connection, connect the display
with the dedicated url-address and you are
ready to play your cloud based content.

SmartPlayer

Turn your USB into a true cost effective digital
signage device. Simply save your content
(video, audio, pictures) on your USB and plug
into your display.Create your playlist and
schedule your content via the on screen menu,
and enjoy your own created playlists anytime,
anywhere.

SmartCollection

SmartCollection offers you customizable
sol

utions to meet your specific
requirements.
Both integrators and solution providers
are

offered the latest innovations, while
the audience can enjoy impactful
solutions. When developing smart
innovations we focus on Caring,
Innovative and Impactful solutions.
