Page 1

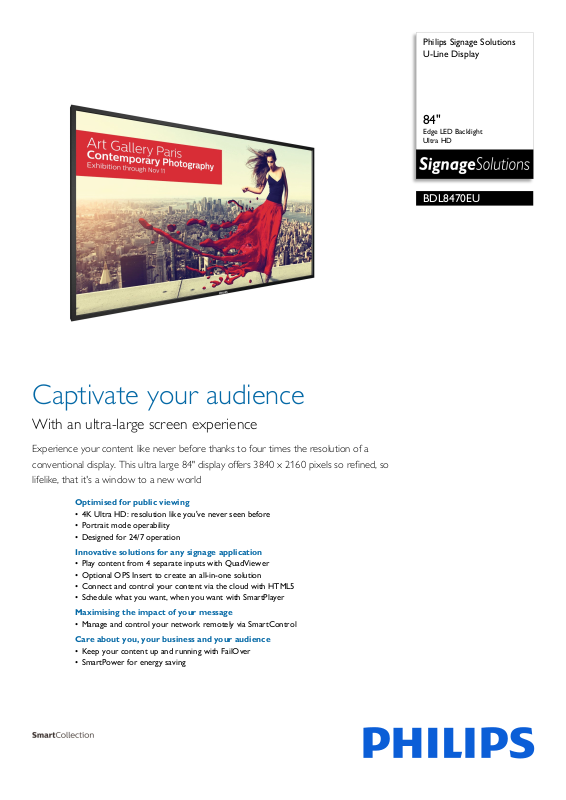

Philips Signage Solutions U-Line Display

84"

Edge LED Backlight Ultra HD

BDL8470EU

Captivate your audience

With an ultra-large screen experience

Experience your content like never before thanks to four times the resolution of a conventional display. This ultra large 84" display offers 3840 x 2160 pixels so refined, so lifelike, that it's a window to a new world

Optimised for public viewing

• 4K Ultra HD: resolution like you've never seen before

• Portrait mode operability

• Designed for 24/7 operation

Innovative solutions for any signage application

• Play content from 4 separate inputs with QuadViewer

• Optional OPS Insert to create an all-in-one solution

• Connect and control your content via the cloud with HTML5

• Schedule what you want, when you want with SmartPlayer

Maximising the impact of your message

• Manage and control your network remotely via SmartControl

Care about you, your business and your audience

• Keep your content up and running with FailOver

• SmartPower for energy saving

Page 2

BDL8470EU/00

U-Line Display

84" Edge LED Backlight, Ultra HD

Highlights

4K Ultra-HD Resolution

See your Signage Solutions like never before th

anks to four times the resolution of a conventional Full HD display. 3840 x 2160 pixels provide and image so refined, so lifelike, it's a window to a new world.

Portrait mounting possible

This display can also be safely and reliably mounte

d in portrait position.

SmartControl

SmartControl lets you remotely control and manage

your network of displays via RJ45 and RS232C. Easily fine-tune all display settings including resolution, brightness, contrast and cloning of your settings over your complete network.

FailOver

Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and you're ready for instant protection.

SmartPower

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

OPS Insert

Turn your display into an all-in-one digital signage solution and create a display network that is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industrystandard slot into which you can add an OPSstandardised media player. This cable-free solution gives you the ability to install, use or maintain your hardware whenever you need to.

QuadViewer

Be more flexible with your screen real estate. With the ability to play content from up to four separate inputs, all on one screen, QuadViewer is ideal for control rooms, corporate environments and meeting rooms.

SmartBrowser

Connect and control your content via the cloud with the integrated HTML5 browser. Design your signage content online and connect it with a display or with your entire network. Simply plug in a RJ45 Internet cable for network connection and connect the display with the dedicated URL address, and you are ready to play your cloud-based content.

SmartPlayer

Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.

SmartCollection

SmartCollection offers you customisable sol

utions to meet your specific requirements. Both integrators and solution providers are

offered the latest innovations, while the audience can enjoy impactful solutions. When developing smart innovations we focus on Caring, Innovative and Impactful solutions.

Page 3

BDL8470EU/00

U-Line Display

84" Edge LED Backlight, Ultra HD

Specifications

Picture/Display

• Diagonal screen size: 84 inch / 213.5 cm

• Panel technology: IPS

• Optimum resolution: 3840 x 2160 @ 60 Hz

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1400:1

• Dynamic contrast ratio: 500,000:1

• Aspect ratio: 16:9

• Response time (typical): 12 ms

• Pixel pitch: 0.4845 x 0.4845 mm

• Display colours: 1073 M

• Viewing Angle (H / V): 178 / 178 degree

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfilter, 3D MA deinterlacing, Dynamic

3D Co contrast enhancement, Motion compens. deinterlacing, Progressive scan

Connectivity

• Video input: VGA (Analogue D-Sub), DisplayPort

(1.2), DVI-D, HDMI (x 3), Composite (BNC), Component (BNC)

• Video output: DisplayPort

• Audio input: 3.5 mm jack

• Audio output: 3.5 mm jack, External speaker

nnector

• External control: RS232C (in/out) 2.5 mm jack,

• Other connections: USB, OPS

Dimensions

• Product weight (lb): 154 lb

• Set dimensions (W x H x D):

10.00 x 1102.00 x 77.80 mm

• Bezel width: 22.60 (R/L), 25.60 (T/B) mm

• Product weight: 70 kg

• VESA Mount: 600 x 500 mm, M8

Convenience

• Placement: Landscape, Portrait

• Network controllable: RS232, HDMI (One Wire),

AN (RJ45)

• Signal loop through: RS232, DisplayPort

• Energy-saving functions: Smart Power

• Remote control signal: Lockable

• Keyboard control: Hidden, Lockable

• Ease of installation: Smart Insert

• Other convenience: Carrying handles

• Screen-saving functions: Pixel Shift, Low Brightness

Power

• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

• Consumption (Typical): 400 W

• Standby power consumption: <0.5 W

Sound

• Built-in speakers: 2 x 10 W RMS

Operating conditions

• Temperature range (operation): 5 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 ~ 80 %

• MTBF: 50,000 hour(s)

Accessories

• Included accessories: AC Power Cord, Batteries for remote control, Quick start guide, Remote Control, User manual on CD-ROM, RS232 cable, HDMI cable

• Optional accessories: ColourCalibrationKit

4602), HDBaseT OPS Receiver (CRD25)

(CCK

Miscellaneous

• On-Screen Display Languages: English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese, Arabic, Japanese

• Regulatory approvals: CE, UL/cUL, CCC, C-Tick,

oHS, GOST, FCC, Class A

•Warranty: 3 year warranty

•

Issue date 2020-11-13

Version: 4.0.1

12 NC: 8670 001 22719 EAN: 87 12581 73058 1
