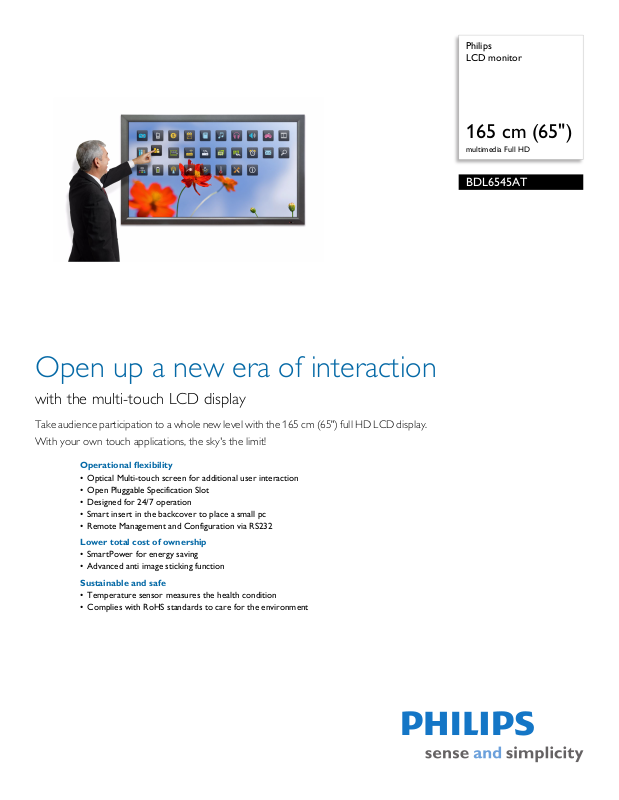

Page 1
Philips
LCD monitor
165 cm (65")
multimedia Full HD
BDL6545AT
Open up a new era of interaction
with the multi-touch LCD display
Take audience participation to a whole new level with the 165 cm (65") full HD LCD display.
With your own touch applications, the sky's the limit!
Operational flexibility
• Optical Multi-touch screen for additional user interaction
• Open Pluggable Specification Slot
• Designed for 24/7 operation
• Smart insert in the backcover to place a small pc
• Remote Management and Configuration via RS232
Lower total cost of ownership
• SmartPower for energy saving
• Advanced anti image sticking function
Sustainable and safe
• Temperature sensor measures the health condition
• Complies with RoHS standards to care for the environment
Page 2
LCD monitor
165 cm (65") multimedia Full HD
Highlights
BDL6545AT/01
Optical Multitouch
A brand new level of client interaction is now
po
ssible thanks to the integrated optical touch
screen. The sensors on the edge of the screen
give you perfect clarity whilst at the same time
offering dual touch (multi-touch with Windows
7), opening up all kinds of possibilities for new,
interactive applications.
OPS Slot
Developed for the Digital Signage market, the
Open Pl
uggable Specification (OPS) slot is
designed to make changing or upgrading your
media player mere child’s play. Simply plug your
media player in to the display - and you’re ready.
No matter whether you have an entry level,
mid-range or high-end media player, OPS is fully
compatible bringing you a lower TCO over the
longer term.
SmartPower
The backlight intensity can be controlled and
p
re-set by the system to reduce the power
consumption by up to 50%, which saves
substantially on energy costs.
Remote Management:: RS232
Remote Management allows the user to control
an
d adjust the displays remotely via the RS232
protocol. Using CEC commands, you are able to
have full control over all the displays in your
signage network at any time.
Advanced anti image sticking
Static images left on-screen for extended
periods of
image sticking effect on LCD displays. Although
image sticking in LCD displays is not permanent,
you want to prevent this to happen, especially in
locations where content is shown 24/7.
time may leave a "ghost image" or
Page 3
LCD monitor
165 cm (65") multimedia Full HD
Specifications
BDL6545AT/01
Picture/Display
• Diagonal screen size: 65 inch / 165.1 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60Hz
• Brightness: 500 cd/m²
• Contrast ratio (typical): 5000:1
• Response time (typical): 5 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.744 x 0.744 mm
• Display colors: 1.07 billion
• Picture enhancement: 3/2 - 2/2 motion pull down,
tion compens. deinterlacing, Progressive scan,
Mo
Dynamic contrast enhancement
• Display screen type: LCD Full HD W-UXGA Act.
rix
mat
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60Hz
1280 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz
1440 x 900 60Hz
1600 x 1200 60Hz
1920 x 1080 60Hz
1920 x 1200 60Hz
deo formats
• Vi
Resolution Refresh rate
480i 60Hz
480p 60Hz
576p 50Hz
576i 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50, 60Hz
Convenience
• Tiled Matrix: Up to 5 x 5
• Picture in picture:: PIP
• Signal Loop Through:: RS232, VGA
• Keyboard control:: Hidden, Lockable
• Remote control signal:: Lockable
• Ease of installation: AC Out, Carrying Handles,
Smart Insert
• Energy saving functions:: Ambient light sensor, Smart
r
Powe
• Packaging:: Reusable box
• Network controllable: RS232
Operating conditions
• Temperature range (operation): 0 - 40 °C
• Relative humidity: 5 - 90 %
• MTBF: 50,000 hour(s)
Sound
• Built-in speakers: 2 x 10W (8 Ohm)
Accessories
• Included accessories: Remote Control, Batteries for
remote control, AC Power Cord, VGA cable, User
manual on CD-ROM, Quick start guide
• Optional accessories: Fixed wall mount, Flexible wall
unt, Ceiling mount
mo
Miscellaneous
• On-Screen Display Languages: English, French,
German, Italian, Polish, Turkish, Russian, Simplified
Chinese
• Regulatory approvals: CE, FCC, Class B, CCC, RoHS
Product dimensions
• Product dimensions (W x H x D):
87.6 x 150 x 12.3 cm
•Weight: 50 kg
Packaging dimensions
• EAN: 87 12581 64672 1
• Number of products included: 1
• Packaging type: Carton
Connectivity
• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD,
RS232 D-Sub9, RS232 D-sub9 output
• AV input: HDMI x1, S-video x1, DVI-D x1,
mponent RCA
Co
• AV output: Audio (L/R) x2
• Other connections: OPS
• Audio output: Audio L/R x1
Power
• Standby power consumption: <1W
Technical specifications
• Touchpoints: Optical Sensing Touch s
Dimensions
• Bezel thickness: 45.5mm r/l, 42mm top, 39mm
bottom
• Set dimensions (W x H x D): 1524 x 889 x 139 mm
• Set dimensions in inch (W x H x D):
60.0 x 35.0 x 5.4 inch
• VESA Mount: 400 x 400mm
• MTBF: 50,000 (excl. CCFL 60,000) hrs
• Product weight: 72 kg
•
Issue date 2012-06-18
Version: 1.0.1
12 NC: 8670 000 85137
EAN: 87 12581 64672 1
