Philips BDL6531E/01 leaflet

Download

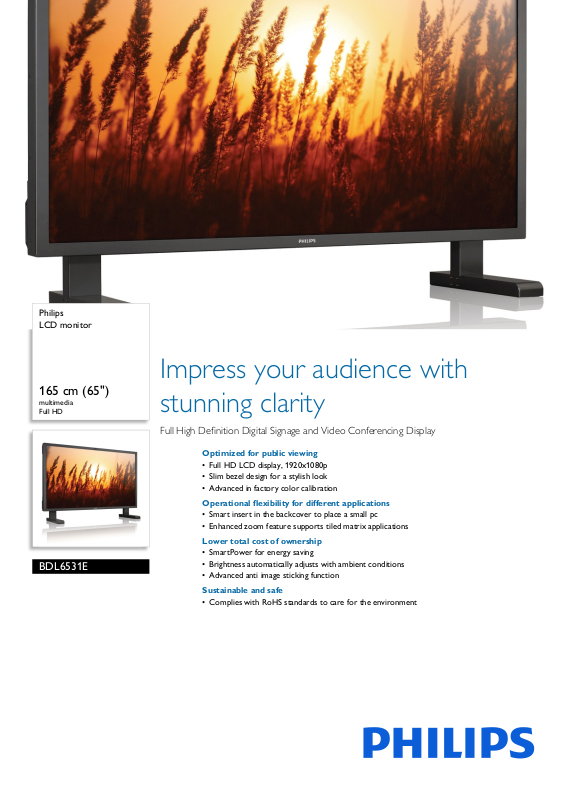

Page 1

Philips LCD monitor

165 cm (65")

multimedia Full HD

BDL6531E

Impress your audience with stunning clarity

Full High Definition Digital Signage and Video Conferencing Display

Optimized for public viewing

• Full HD LCD display, 1920x1080p

• Slim bezel design for a stylish look

• Advanced in factory color calibration

Operational flexibility for different applications

• Smart insert in the backcover to place a small pc

• Enhanced zoom feature supports tiled matrix applications

Lower total cost of ownership

• SmartPower for energy saving

• Brightness automatically adjusts with ambient conditions

• Advanced anti image sticking function

Sustainable and safe

• Complies with RoHS standards to care for the environment

Page 2

BDL6531E/01

LCD monitor

165 cm (65") multimedia, Full HD

Highlights

Advanced anti image sticking

Static images left on-screen for extended pe

riods of time may leave a "ghost image" or image sticking effect on LCD displays. Although image sticking in LCD displays is not permanent, you want to prevent this to happen, especially in locations where content is shown 24/7.

Advanced color calibration

Whether installing a video wall in a 3x3, 2x4 or 5x

5 set up, you want the color performance of each image to be consistent in each display used. Therefore each display is specially calibrated in the factory to meet the highest standard of advanced video walls.

Automatic brightness control

The adjustment of display settings to corre

spond with ambient light without user

intervention.

SmartPower

The backlight intensity can be controlled and pre-se

t by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Smart insert

Professional PC's are part of most public s

ignage installations. Quite often they increase

the overall depth to the display and cause a lot

of cable clutter. So we have designed this display with Smart insert in the backcoverwhich is ideal for the integration of a professional small form factor PC. On top of that, the cable management system offers a great solution to keep your cables neat and professional looking.

Zoom function for tiled matrix

The internal zoom function enables easy i

mplementation of a video wall matrix, without the need for expensive external equipment. Capable of a vidiwall of 25 displays by dividing up to 5 displays each horizontally and vertically.

Page 3

BDL6531E/01

LCD monitor

165 cm (65") multimedia, Full HD

Specifications

Picture/Display

• Diagonal screen size: 65 inch / 165.1 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60Hz

• Brightness: 500 cd/m²

• Contrast ratio (typical): 2500:1

• Response time (typical): 8 ms

• Aspect ratio: 16:9

• Viewing angle (H / V): 178 / 178 degree

• Pixel pitch: 0.63 x 0.63mm

• Display colors: 16.7 million colors

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfi

3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

lter, Motion compens. deinterlacing,

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60Hz 1280 x 768 60Hz 1280 x 800 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz 1366 x 768 60Hz 1440 x 900 60Hz 1600 x 1200 60Hz 1920 x 1080 60Hz 1920 x 1200 60Hz

deo formats

• Vi

Res

olution Refresh rate 480i 60Hz 480p 60Hz 576p 50Hz 576i 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 50, 60Hz

Connectivity

• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD, DVI-D x1, RS232 D-Sub9, RS232 D-sub9 output,

3.5 mm PC audio input x1

• AV input: HDMI x1, Composite (RCA) x1,

osite (BNC) x1, S-video x1, Audio (L/R) x1

• AV output: Composite (BNC) x1, Audio (L/R) x1

• Other connections: External loudspeaker

ector

Convenience

• Placement: Portrait, Landscape

• Tiled Matrix: Up to 5x5

• Picture in picture:: PBP, PIP, POP

• Screen saving functions: Pixel Shift, Low Brightness

• Signal Loop Through:: RS232, VGA

• Keyboard control:: Hidden, Lockable

• Remote control signal:: Lockable

• Ease of installation: Carrying Handles, Smart Insert

• Energy saving functions:: Ambient light sensor, Smart Pow

• Safety control functions:: Heat Control,

ature Sensor

Temper

• Picture performance: Advanced color control

• Packaging:: Reusable box

• Network controllable: RS232

Dimensions

• Bezel thickness: 31

• Smart insert (WxHxD): 300 x 320 x 64 mm

• Smart insert in inch (WxHxD): 11.81 x 11.89 x

2.52" et dimensions (W x H x D):

•S x 876 x 123.5 mm

1500

• Set dimensions in inch (W x H x D):

x 34.5 x 4.8 inch

59.1

• Product weight: 50 kg

• Product weight (lb): 110.2

• VESA Mount: 400 x 400mm (15.7 x 15.7")

Operating conditions

• Temperature range (operation): 0 - 40 °C

• Relative humidity: 5 - 90 %

• MTBF: 50,000 hours hour(s)

Power

• Mains power: 90-264V AC/50-60 Hz

•Consumption (On mo

• Standby power consumption: <1W

de): 358

Sound

• Built-in speakers: 2 x 12W (8 Ohm)

Accessories

• Included accessories: Remote Control, Batteries

for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Quick start guide

• Optional accessories: Fixed wall mount, Flexible

wall mo

unt, C

eiling mount

Miscellaneous

• Bezel: metallic anthracite

• Warranty: Europe/North America 3 years

• On-Screen Display Languages: English, French,

erman, Italian, Polish, Turkish, Russian, Simplified

G Chinese

• Regulatory approvals: CE, FCC, Class B, CCC,

Packaging dimensions

• Packaging dimensions (W x H x D):

164.7 x 104.6 x 29.8 cm

• Nett weight: 54 kg

•Gross weight: 63 kg

• Tare weight: 9 kg

• EAN: 87 12581 60686 2

• Number of products included: 1

• Packaging type: Carton

Product dimensions

• Product dimensions (W x H x D):

152.36 x 89.16 x 12.48 cm

•Weight: 54 kg

• Product dimensions with stand (W x H x D):

2.36

x 102.57 x 42.17 cm

•

Issue date 2022-04-21

Version: 1.0.2

12 NC: 8670 000 77979 EAN: 87 12581 60686 2

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
