Philips BDL6531E User Manual

BDL6531E

www.philips.com/welcome

EN User manual

Cleaning and troubleshooting

User Manual BDL6531E

SAFETY AND TROUBLESHOOTING INFORMATION

Safety precautions and maintenance

WARNING: Use of controls, adjustments or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards.

Read and follow these instructions when connecting and using your display:

Operation:

• Keep the display out of direct sunlight and away from stoves or any other heat sources.

• Remove any object that could fall into the ventilation holes or prevent proper cooling of the display’s electronics.

• Do not block the ventilation holes on the cabinet.

• When positioning the display, make sure the power plug and outlet are easily accessible.

• When turning off the display by detaching the power cord, wait for 6 seconds before re-attaching the power cord for normal operation.

• Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center.

• Do not subject the display to severe vibration or high impact conditions during operation.

• Do not knock or drop the display during operation or transportation.

Maintenance:

• To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift; do not lift the display by placing your hand or fingers on the LCD panel.

• Unplug the display if you are not going to use your display for an extensive period of time.

• Unplug the display if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry cloth when the power is off. However, never use organic solvent, such as alcohol, or ammonia-based liquids to clean your display.

• To avoid the risk of shock or permanent damage to the set, do not expose the display to dust, rain, water or an excessively moist environment.

• If your display becomes wet, wipe it with a dry cloth as soon as possible.

• If a foreign substance or water gets in your display, turn the power off immediately and disconnect the power cord. Then remove the foreign substance or water, and send the display to the maintenance center.

• Do not store or use the display in locations exposed to heat, direct sunlight or extreme cold.

• In order to maintain the best performance of your display and ensure a longer lifetime, please use the display in a location that falls within the following temperature and humidity ranges.

- Temperature: 0 ~ 40 C 32-104 F

- Humidity: 20-80% RH

IMPORTANT: Always activate a moving screen saver program when you leave your display unattended. Always activate a periodic screen refresh application if your display will show unchanging static content. Uninterrupted display of still or static images over an extended period may cause “burn in”, also known as “after-imaging” or “ghost imaging”, on your screen. This is a well-known phenomenon in LCD panel technology. In most cases, the “burned in” or “after-imaging” or “ghost imaging” will disappear gradually over a period of time after the power has been switched off.

WARNING: Severe "burn-in" or "after-image" or "ghost image" symptoms will not disappear and cannot be repaired. This is also not covered under the terms of your warranty.

User Manual BDL6531E

Service:

• The casing cover should be opened only by qualified service personnel.

• If there is any need for repair or integration, please contact your local service center.

• Do not leave your display under direct sunlight.

Consult a service technician if the display does not operate normally, or you are not sure what procedure to take when the operating instructions given in this manual have been followed.

Read and follow these instructions when connecting and using your LCD display:

• Unplug the display if you are not going to use it for an extensive period of time.

• Unplug the display if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids.

• Consult a service technician if the display does not operate normally after having followed the instructions in this manual.

• The casing cover should be opened only by qualified service personnel.

• Keep the display out of direct sunlight and away from stoves or any other heat sources.

• Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics.

• Do not block the ventilation holes on the cabinet.

• Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture.

• If turning off the display by detaching power cable or DC power cord, wait for 6 seconds before re-attaching the power cable or DC power cord for normal operation.

• To avoid the risk of shock or permanent damage to the set do not expose the display to rain or excessive moisture.

• When positioning the display, make sure the power plug and outlet are easily accessible.

• IMPORTANT: Always activate a screen saver program during your application. If a still image in high contrast remains on the screen for an extended period of time, it may leave an “afterimage” or “ghost image” on the front of the screen. This is a well-known phenomenon that is caused by the shortcomings inherent in the LCD technology. In most cases the afterimage will disappear gradually over a period of time after the power has been switched off. Be aware that the after-image symptoms cannot be repaired and are not covered under warranty.

User Manual BDL6531E

REGULATORY INFORMATION

CE DECLARATION OF CONFORMITY

MMD declares under our responsibility that the product is in conformity with the following standards

• EN60950-1:2006+A11:2009 (Safety requirement of Information Technology Equipment)

• EN55022:2006+A1:2007 (Radio Disturbance requirement of Information Technology Equipment)

• EN55024:1998+A1:2001+A2:2003 (Immunity requirement of Information Technology Equipment)

• EN61000-3-2:2006 (Limits for Harmonic Current Emission)

• EN61000-3-3:1995+A1:2001+A2:2005 (Limitation of Voltage Fluctuation and Flicker)

• EN55013:2001+A1:2003 +A2:2006 (Limits and Methods of Measurement of Radio Disturbance Characteristics of Broadcast Receivers and Associated Equipment)

• EN55020:2007 (Electromagnetic Immunity of Broadcast Receivers and Associated Equipment)

following provisions of directives applicable

• 2006/95/EC (Low Voltage Directive)

• 2004/108/EC (EMC Directive)

• 93/68/EEC (Amendment of EMC and Low Voltage Directive) and is produced by a manufacturing organization on ISO9000 level.

FEDERAL COMMUNICATIONS COMMISSION (FCC) NOTICE (U.S. Only)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the users’

authority to operate the equipment.

Use only RF shielded cable that was supplied with the display when connecting this display to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture.

THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.

FCC DECLARATION OF CONFORMITY

Trade Name: Philips

Declaration of Conformity for Products Marked with FCC Logo, United States Only: This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

User Manual BDL6531E

POLISH CENTER FOR TESTING AND CERTIFICATION NOTICE

The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer and so on) should have the same power supply source.

The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 Amperes (A).

To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible.

A protection mark “B” confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/E-06251.

ELECTRIC, MAGNETIC AND ELECTRONMAGNETIC FIELDS (“EMF”)

1. MMD manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general

have the ability to emit and receive electromagnetic signals.

2. One of MMD’s leading Business Principles is to take all necessary health and safety measures for our products, to

comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of manufacturing the products.

3. MMD is committed to developing, producing and marketing products that cause no adverse health effects.

4. MMD confirms that if its products are handled properly for their intended use, they are safe to use according to

scientific evidence available today.

5. MMD plays an active role in the development of international EMF and safety standards, enabling MMD to anticipate

further developments in standardization for early integration in its products.

User Manual BDL6531E

INFORMATION FOR UK ONLY

WARNING - THIS APPLIANCE MUST BE EARTHED. Important:

This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:

1. Remove fuse cover and fuse.

2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type.

3. Refit the fuse cover. If the fitted plug is not suitable for your socket outlets, it should be cut off and an

appropriate 3-pin plug fitted in its place.

If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A.

Note: Any severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured in accordance with the following code:

BLUE - “NEUTRAL” (“N”)

BROWN - “LIVE” (“L”)

GREEN & YELLOW - “EARTH” (‘E”)

1. The GREEN AND YELLOW wire must be connected to the terminal in the plug which is marked with the letter “E” or by the Earth symbol or coloured GREEN

or GREEN AND YELLOW.

2. The BLUE wire must be connected to the terminal which is marked with the letter “N” or coloured BLACK.

3. The BROWN wire must be connected to the terminal which marked with the letter “L” or coloured RED.

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the three wires.

User Manual BDL6531E

中国电子信息产品污染控制表示要求 ( 中国 RoHS 法规标示要求 ) 产品中有毒有害物质或元素的名称及含量

有毒有害物质或元素

部件名称

外壳

液晶面板

电路板组件

附件

( 遥控器，电源线，连接线 )

遥控器电池

O：表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。

铅

(Pb)

OOOO O O XXOO O O XOOO O O

XOOO O O

汞

(Hg)

镉

(Cd)

六价铬

(Cr 6+)

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

环保使用期限

此标识指期限 ( 十年 )，电子信息产品中含有的有毒有害物质或元素在正常使用的条件下不会发生外泄或突变，电子信息产品用户使用该电子信息产品不会对环境造成严重污染或对其人身、财产造成严重损害的期限。

《废弃电器电子产品回收处理管理条例》提示性说明

为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。

User Manual BDL6531E

NORTH EUROPE (NORDIC COUNTRIES) INFORMATION

Placering/Ventilation

VARNING:

FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS.

Placering/Ventilation

ADVARSEL:

SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE.

Paikka/Ilmankierto

VAROI TUS:

SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA.

Plassering/Ventilasjon

ADVARSEL:

NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR STØMTILFØRSEL ER LETTE Å NÅ.

END-OF-LIFE DISPOSAL

Your new Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.

Please find out about the local regulations on how to dispose of your old display from your local Philips dealer.

(For customers in Canada and U.S.A.)

This product may contain lead and/or mercury. Dispose of in accordance to local state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative)

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT-WEEE Attention users in European Union: private households

This marking on the product or on its packaging illustrates, under European Directive 2002/96/EG governing used electrical and electronic appliances, that this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection. To determine the locations for dropping off such electrical and electronic waste, contact your local government office or the waste disposal organization that serves your household area.

Attention users in United States:

Like all LCD products, this set contains a lamp with Mercury. Please dispose of according to all Local, State and Federal Laws. For the disposal or recycling information, contact: www.mygreenelectronics.com or www.eiae.org.

END OF LIFE DIRECTIVES - RECYCLING

Your new Display contains several materials that can be recycled for new uses. Like all LCD products, this set contains a lamp with Mercury, please dispose of according to all local State

and Federal laws.

As an ENERGY STAR Partner, MMD has determined that this product meets the ENERGY STAR guidelines

R R

for energy efficiency.

User Manual BDL6531E

TABLE OF CONTENTS

1. UNPACKING AND INSTALLATION

1.1. UNPACKING

1.2. PACKAGE CONTENTS

1.3. INSTALLATION NOTES

1.4. MOUNTING THE DISPLAY

2. PARTS AND FUNCTIONS

2.1. FRONT VIEW

2.2. REAR VIEW

2.3. INPUT/OUTPUT TERMINALS

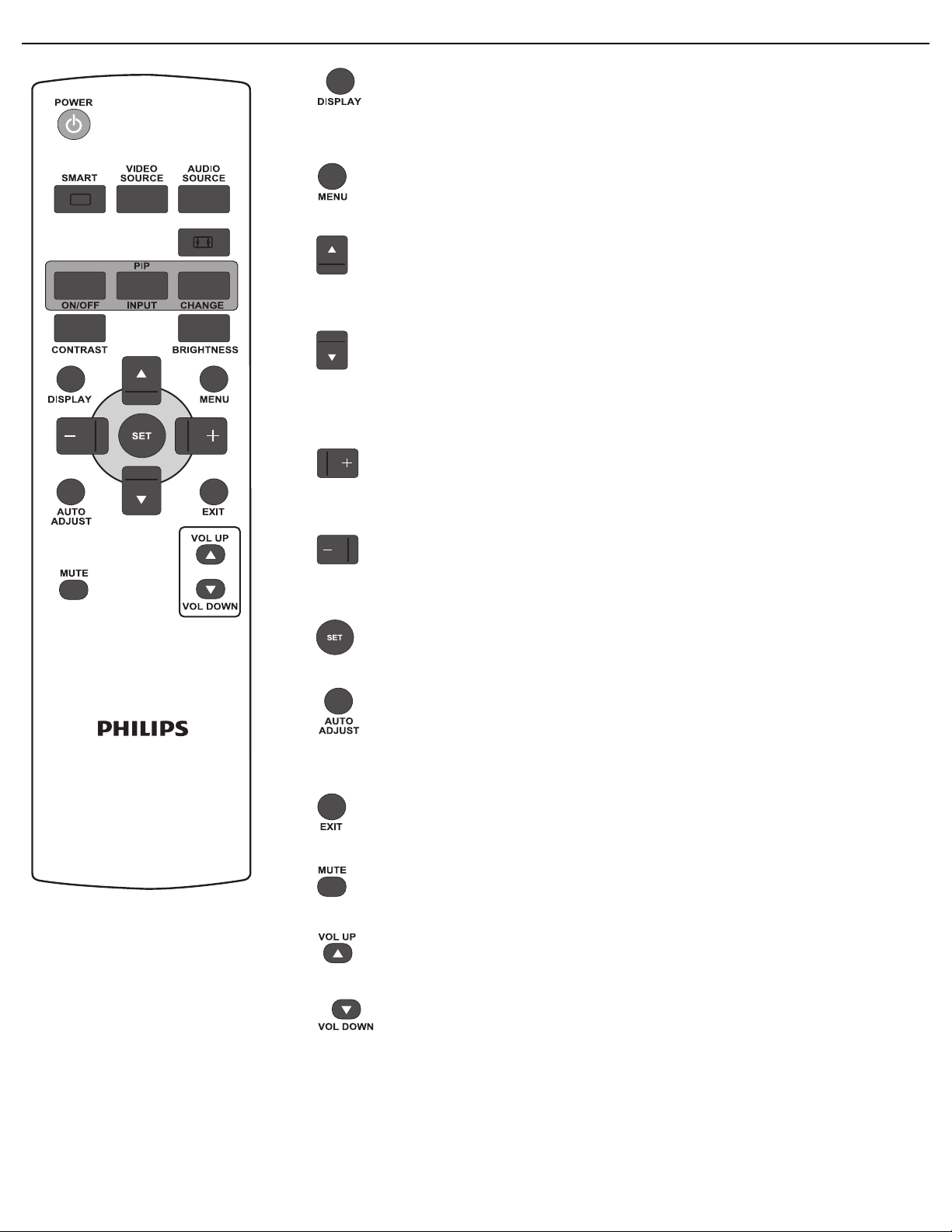

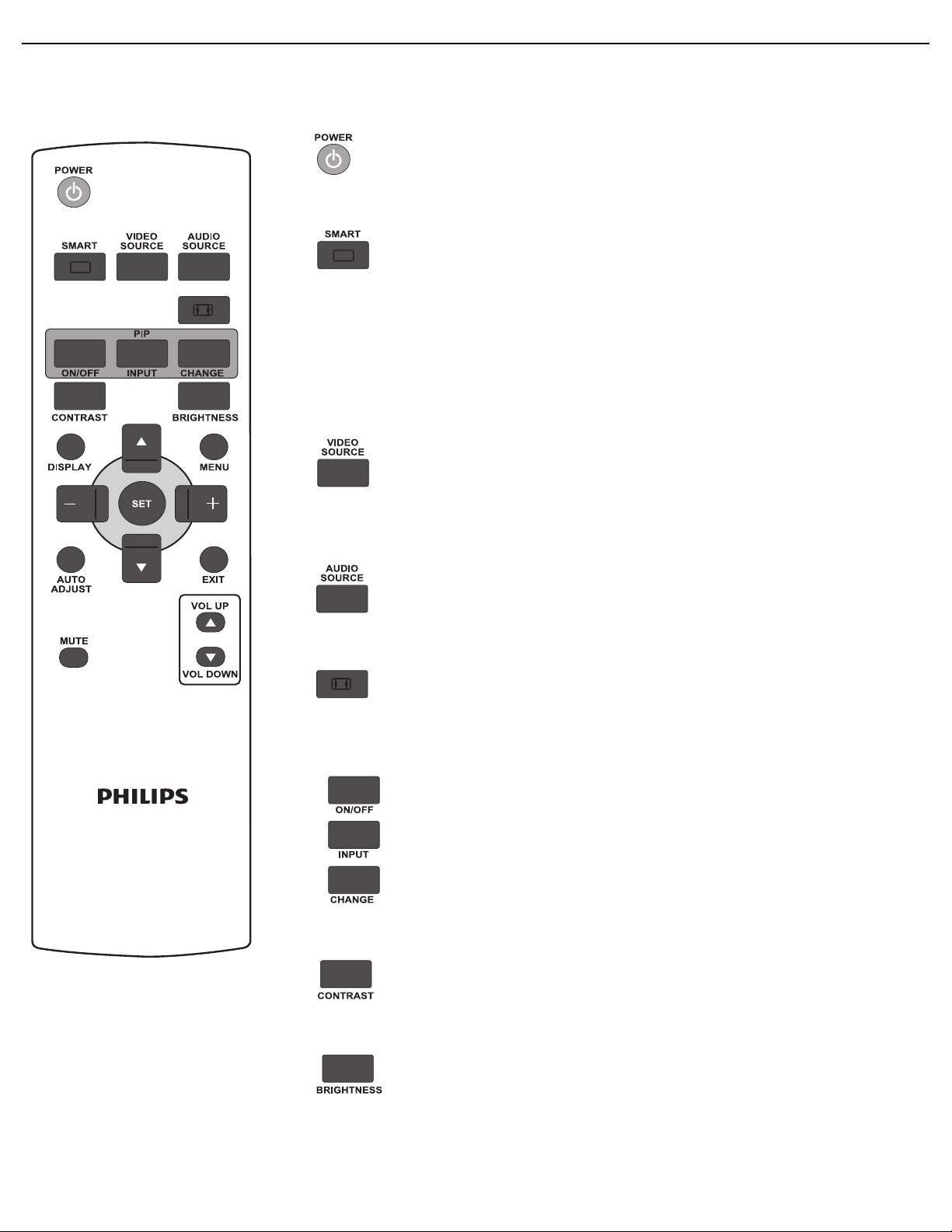

2.4. REMOTE CONTROL

2.4.1. GENERAL FUNCTIONS

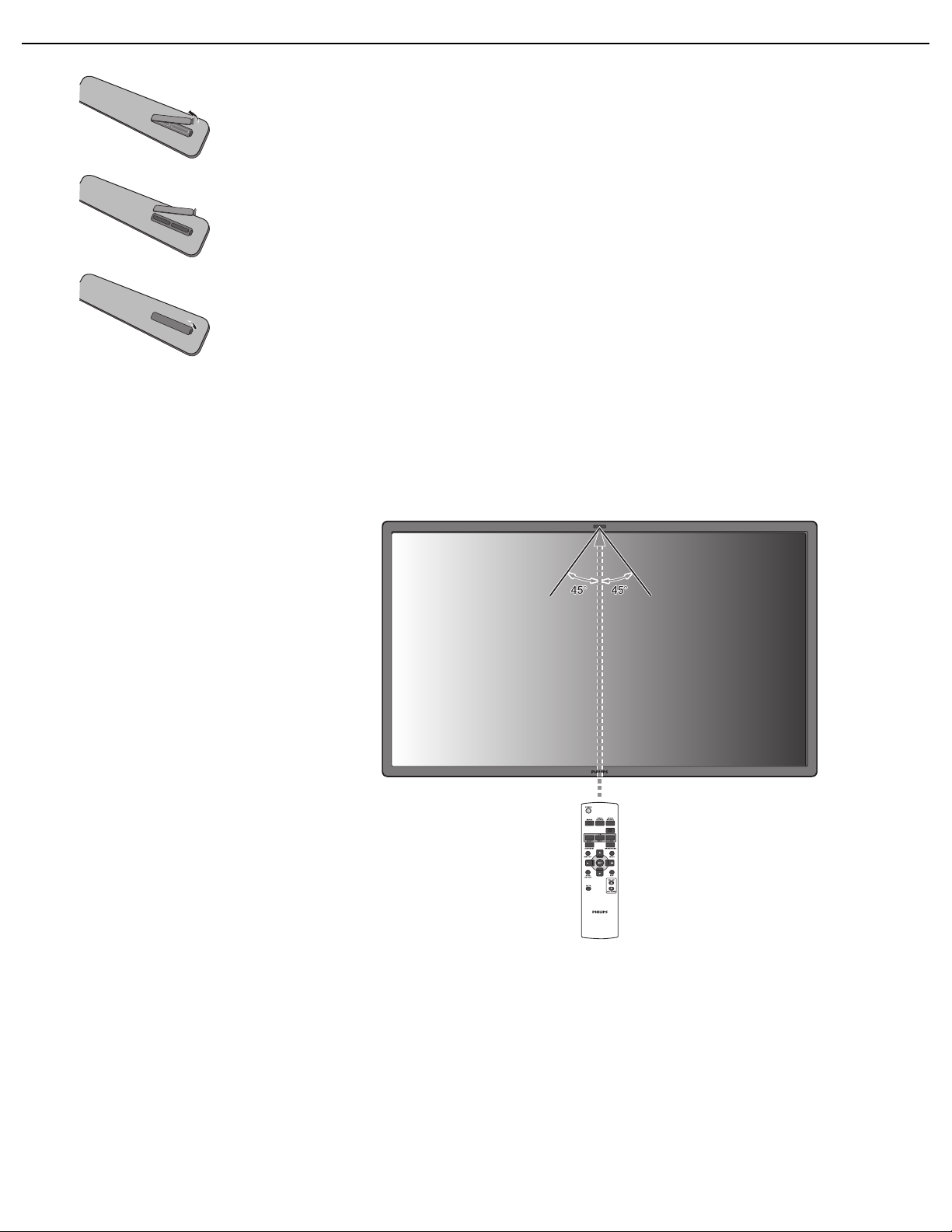

2.4.2. INSERTING THE BATTERIES IN THE REMOTE CONTROL

2.4.3. OPERATING RANGE OF THE REMOTE CONTROL

3. CONNECTIONS TO EXTERNAL EQUIPMENT

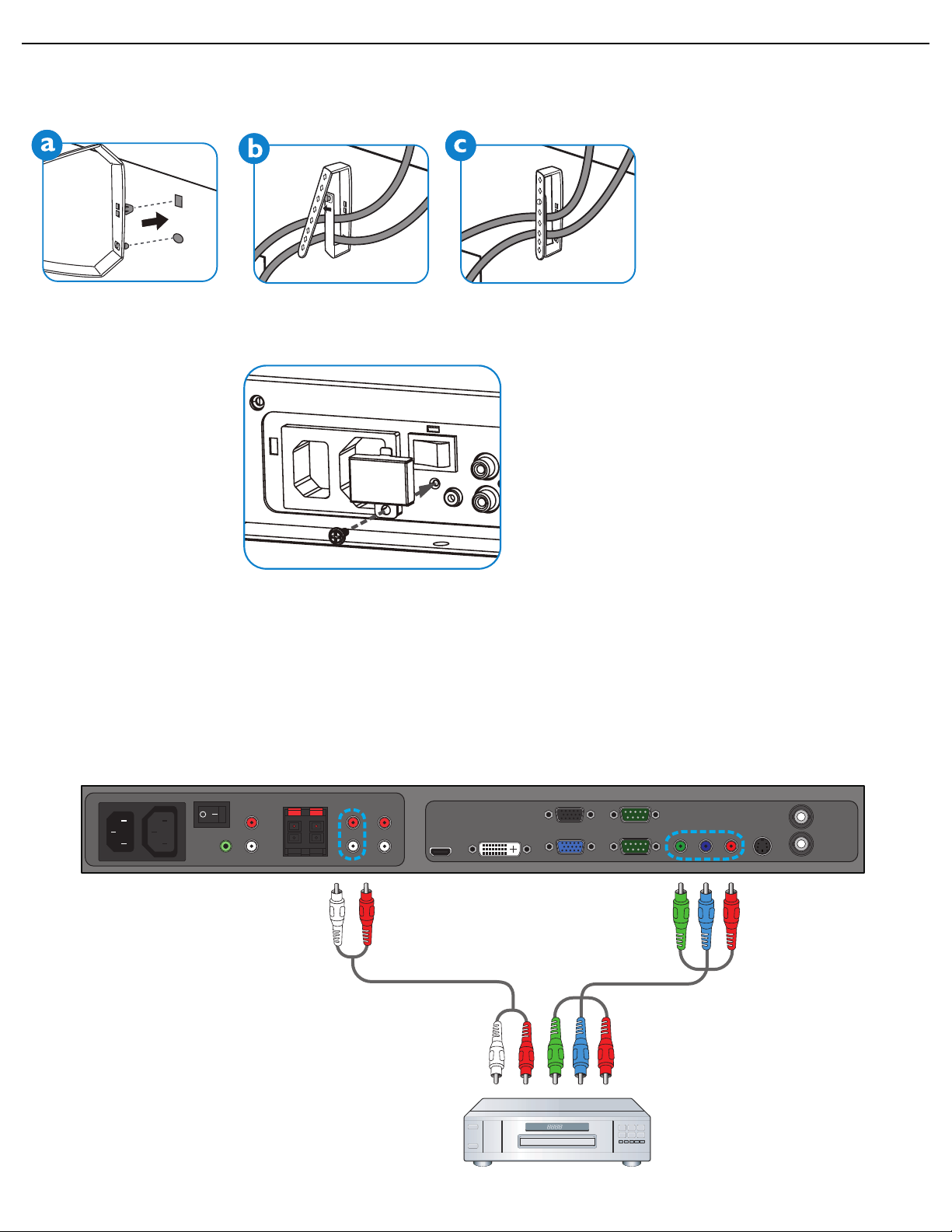

3.1. USING THE CABLE RETAINER

3.2. USING THE SWITCH COVER

3.3. CONNECTING EXTERNAL EQUIPMENT (DVD/VCR/VCD)

3.3.1. USING COMPONENT VIDEO INPUT

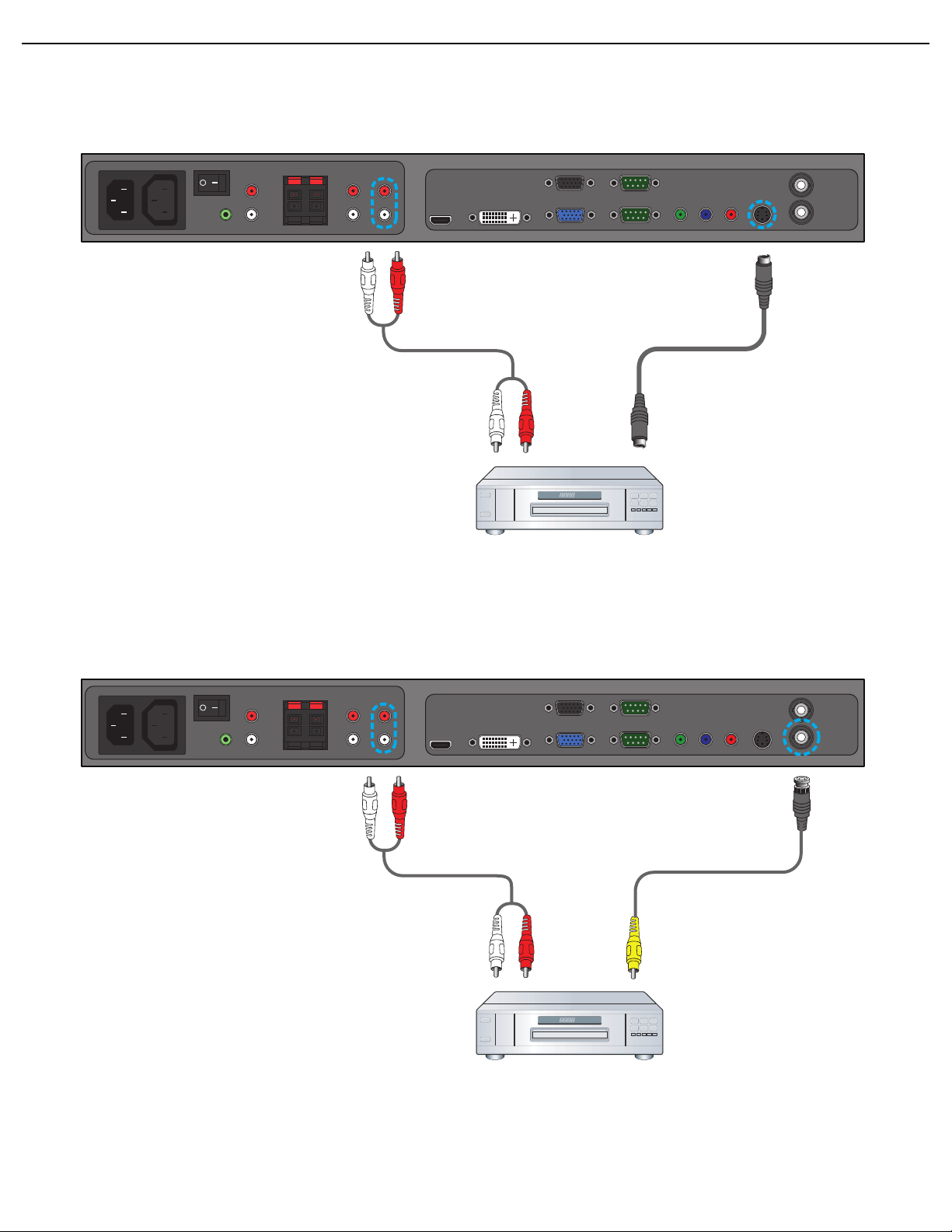

3.3.2. USING S-VIDEO INPUT

3.3.3. USING VIDEO INPUT

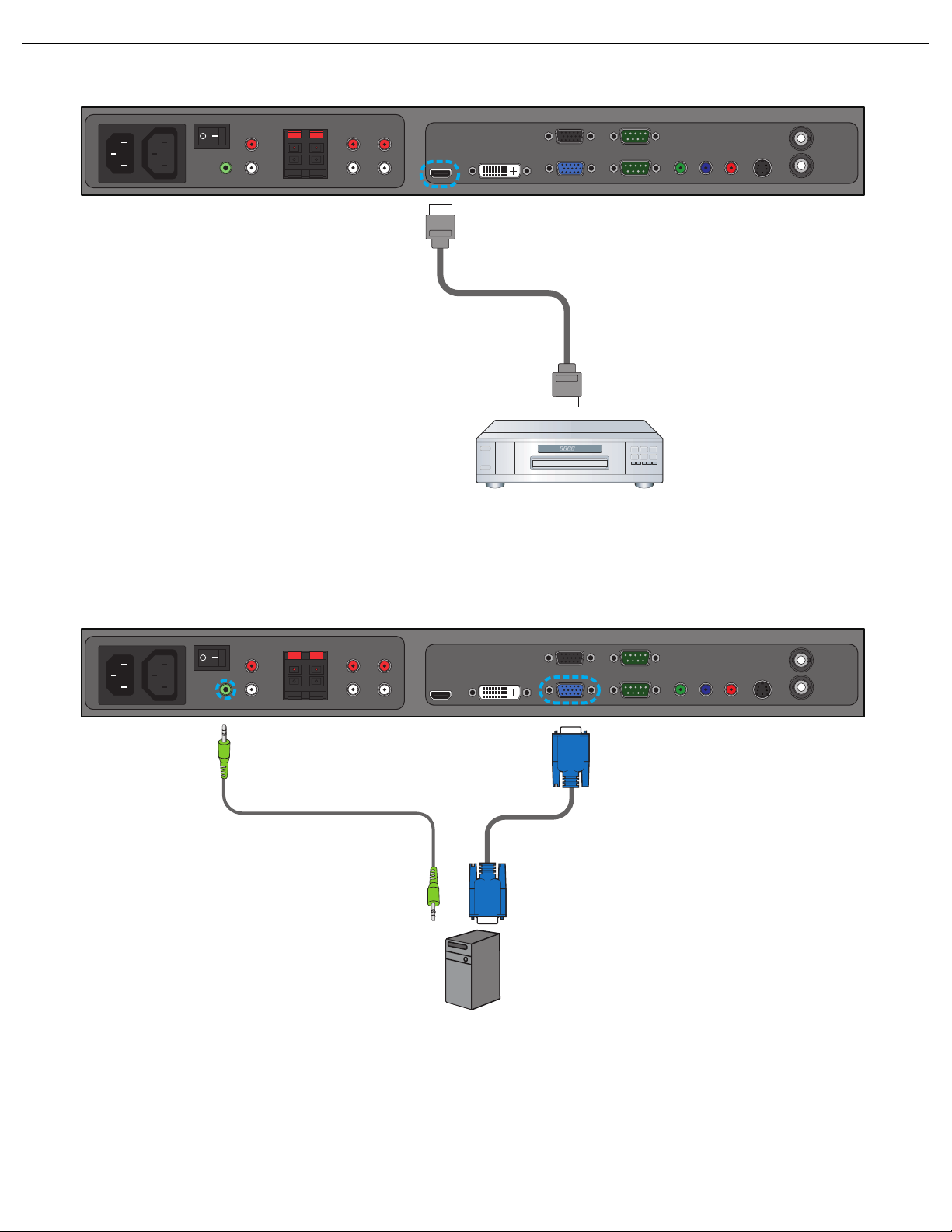

3.3.4. USING HDMI INPUT

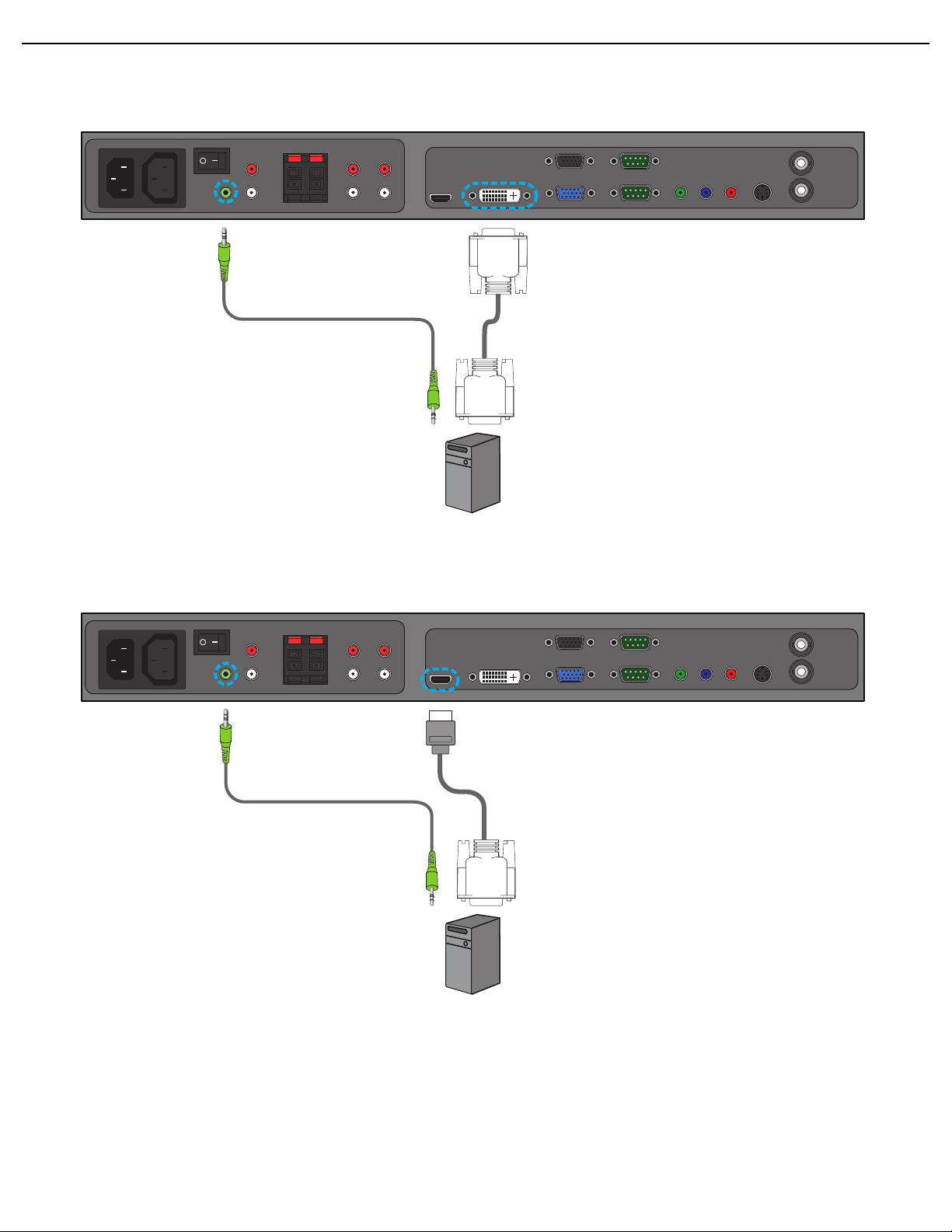

3.4. CONNECTING A PC

3.4.1. USING VGA INPUT

3.4.2. USING DVI INPUT

3.4.3. USING HDMI INPUT

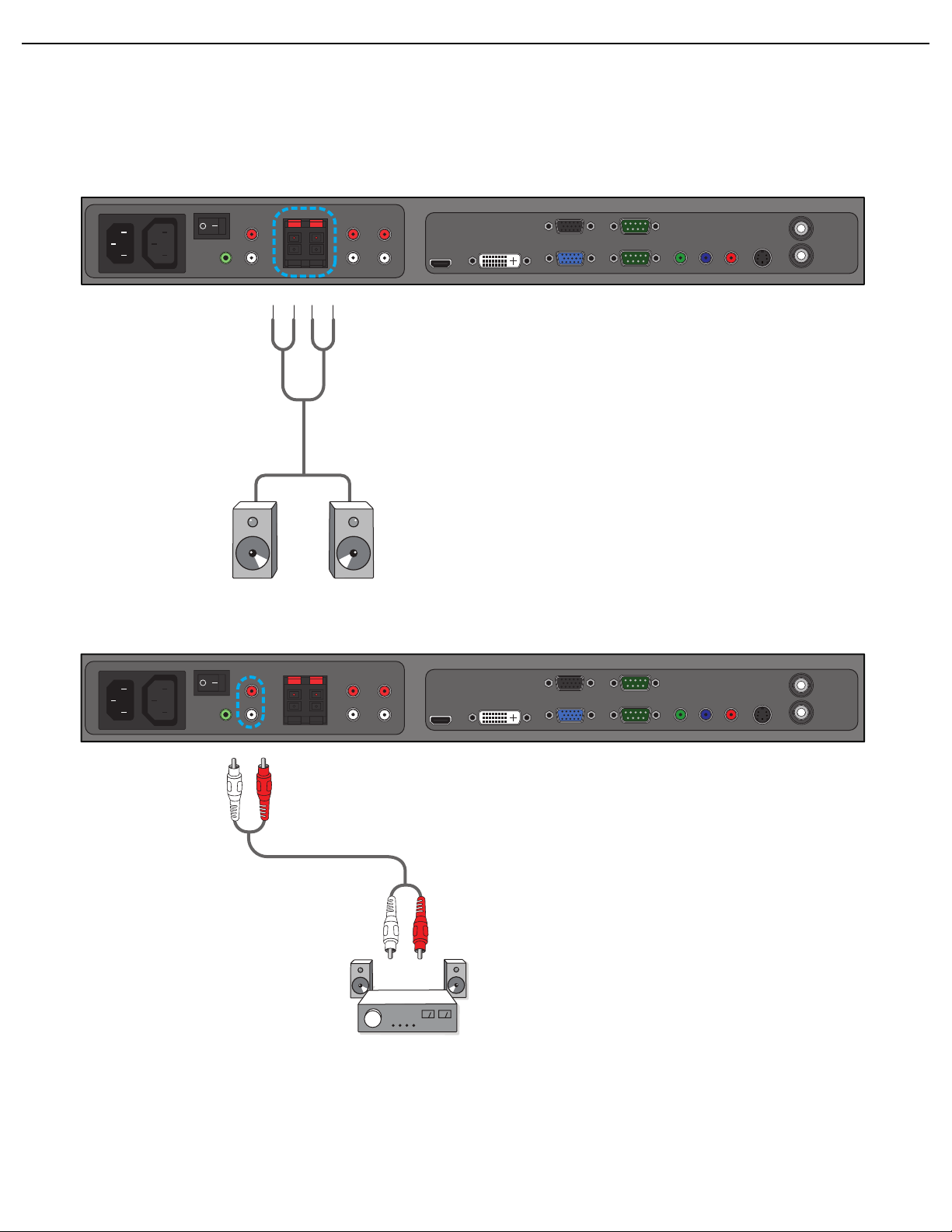

3.5. EXTERNAL AUDIO CONNECTION

3.5.1. CONNECTING EXTERNAL SPEAKERS

3.5.2. CONNECTING EXTERNAL AUDIO DEVICE

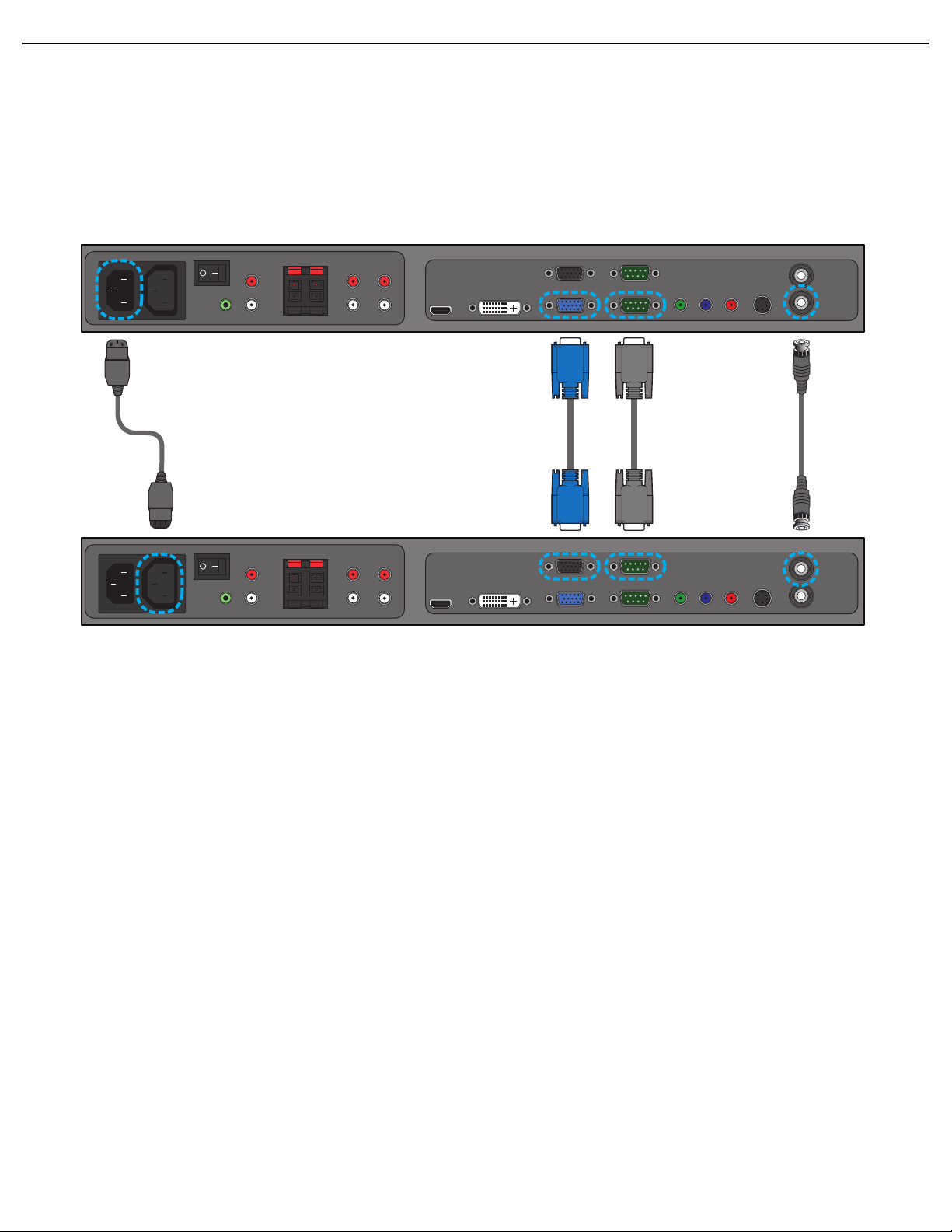

3.6. CONNECTING ANOTHER BDL6531E DISPLAY

4. OSD MENU

4.1. NAVIGATING THE OSD MENU

4.1.1. NAVIGATING THE OSD MENU USING THE REMOTE CONTROL

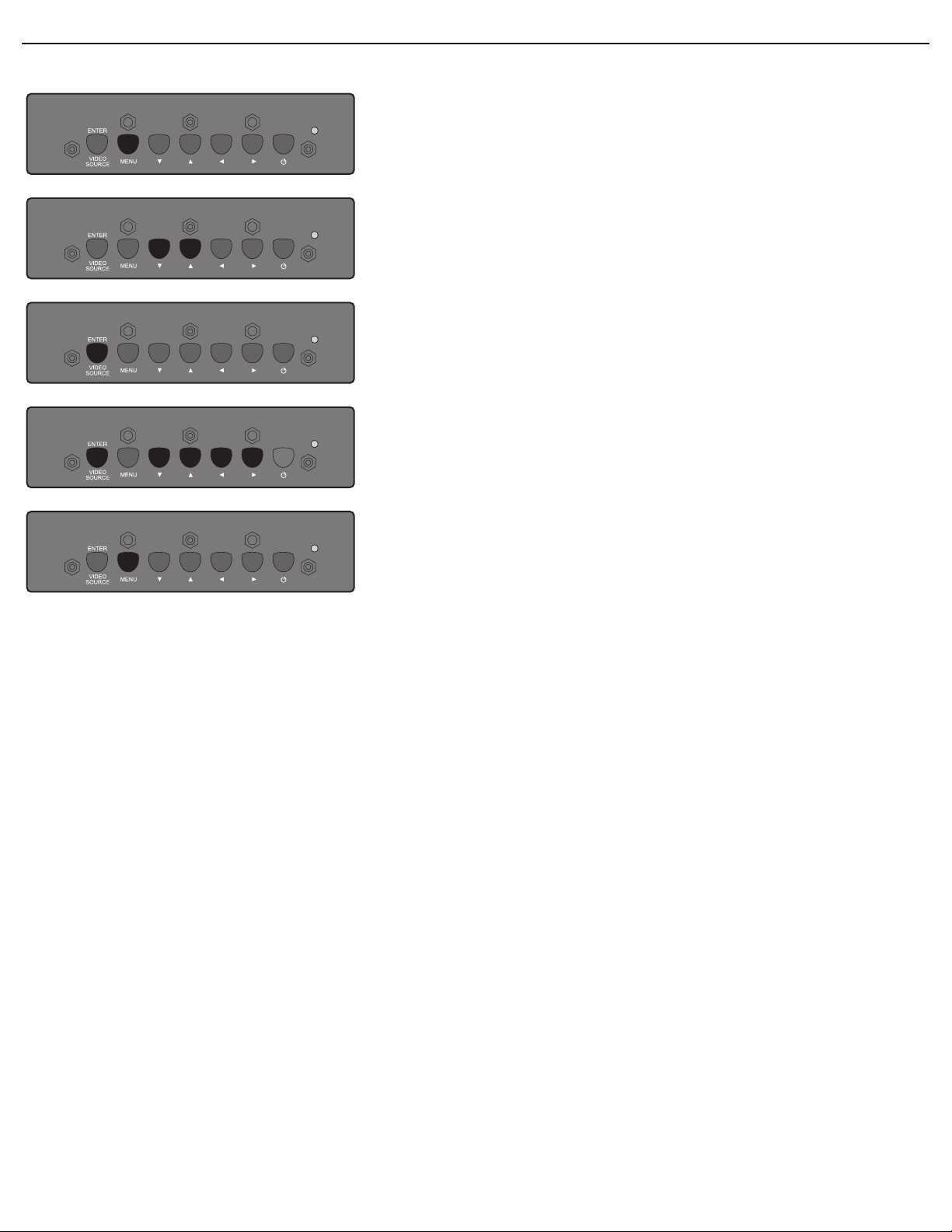

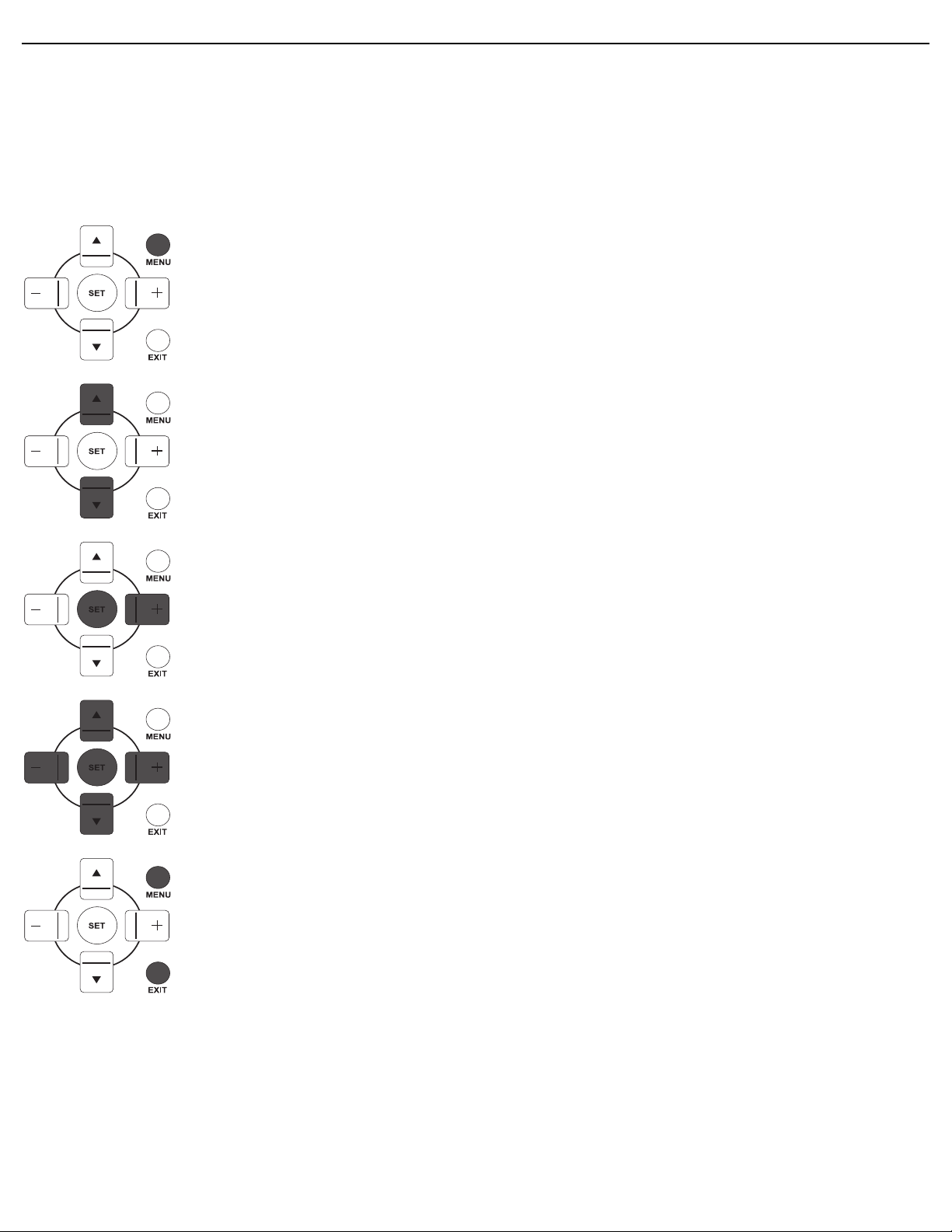

4.1.2. NAVIGATING THE OSD MENU USING THE DISPLAY’S CONTROL BUTTONS

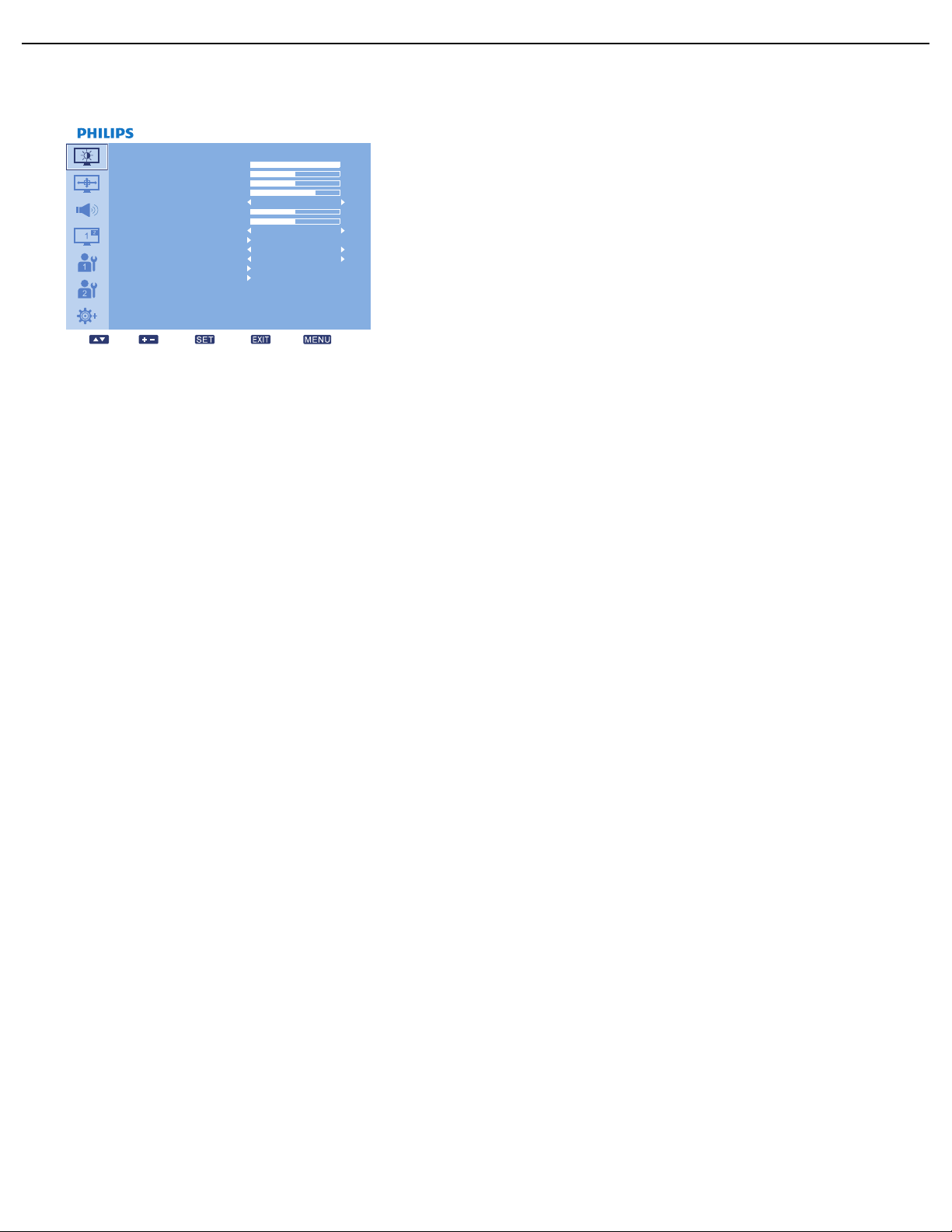

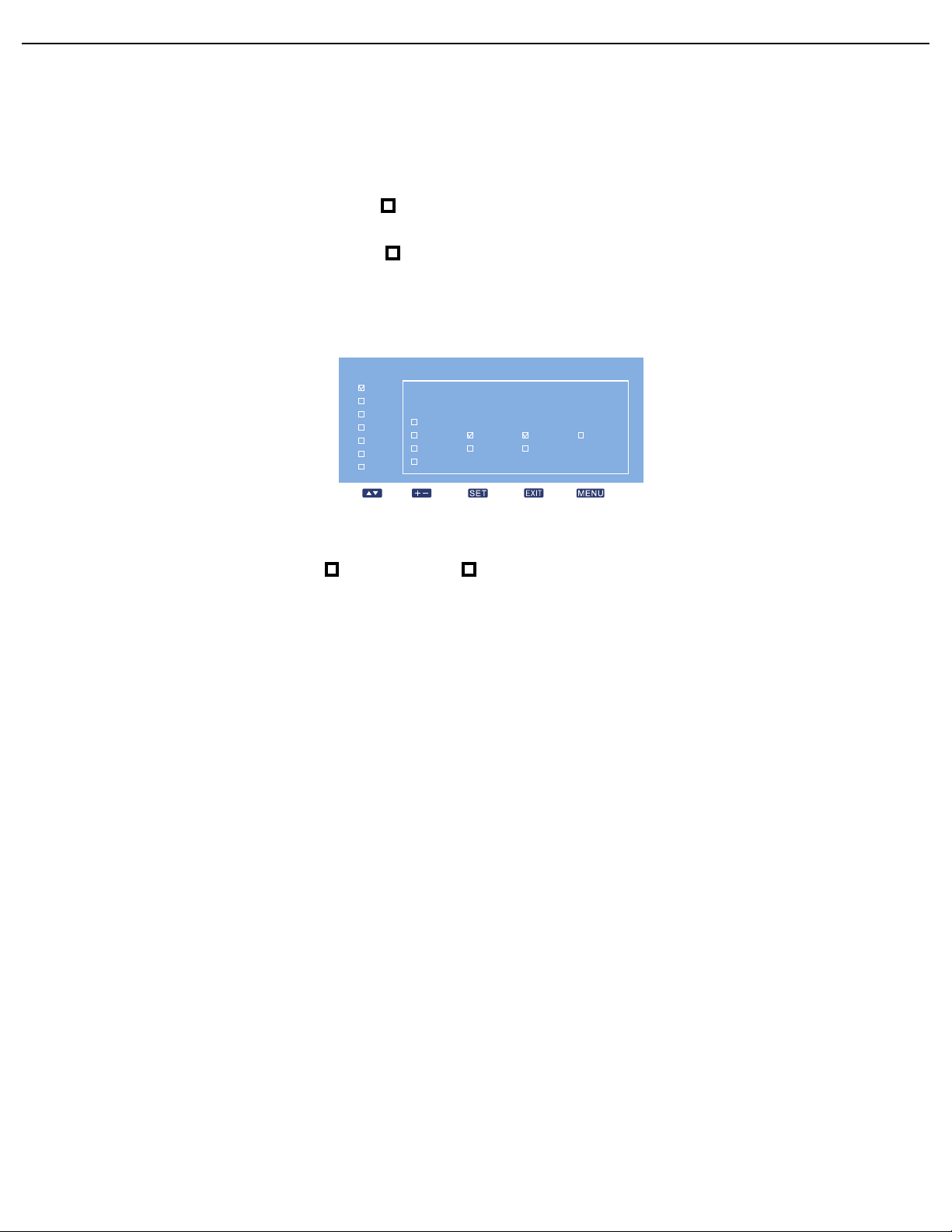

4.2. OSD MENU OVERVIEW

4.2.1. PICTURE MENU

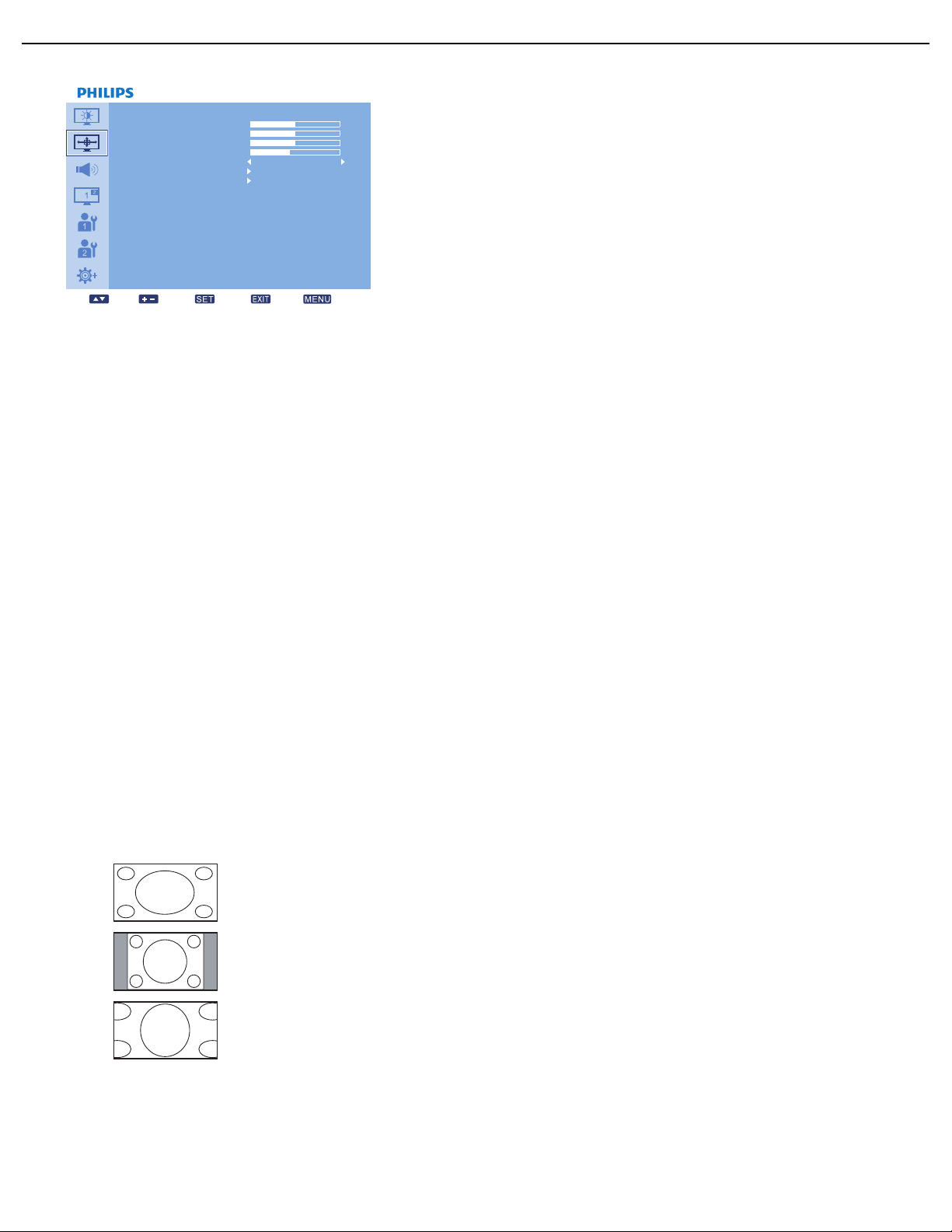

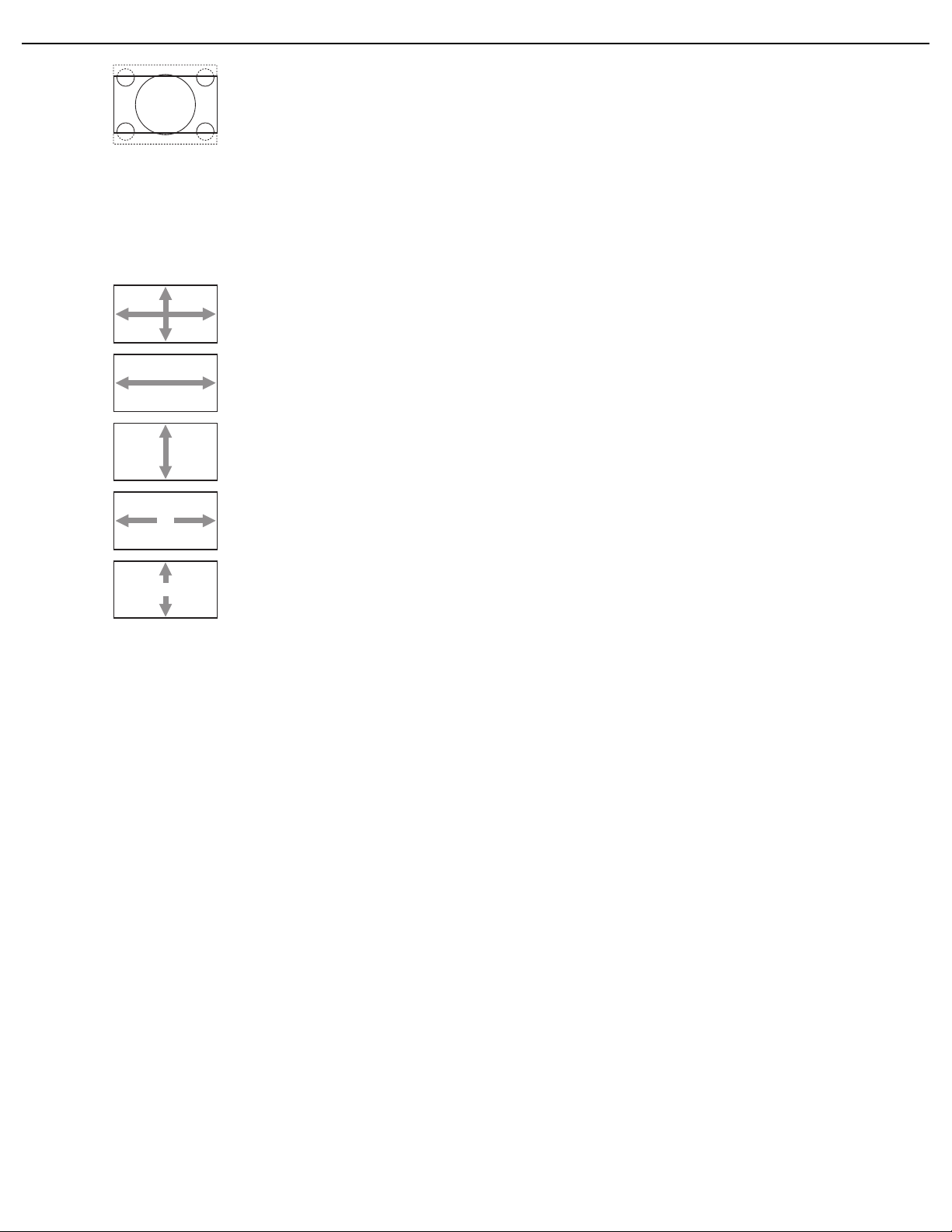

4.2.2. SCREEN MENU

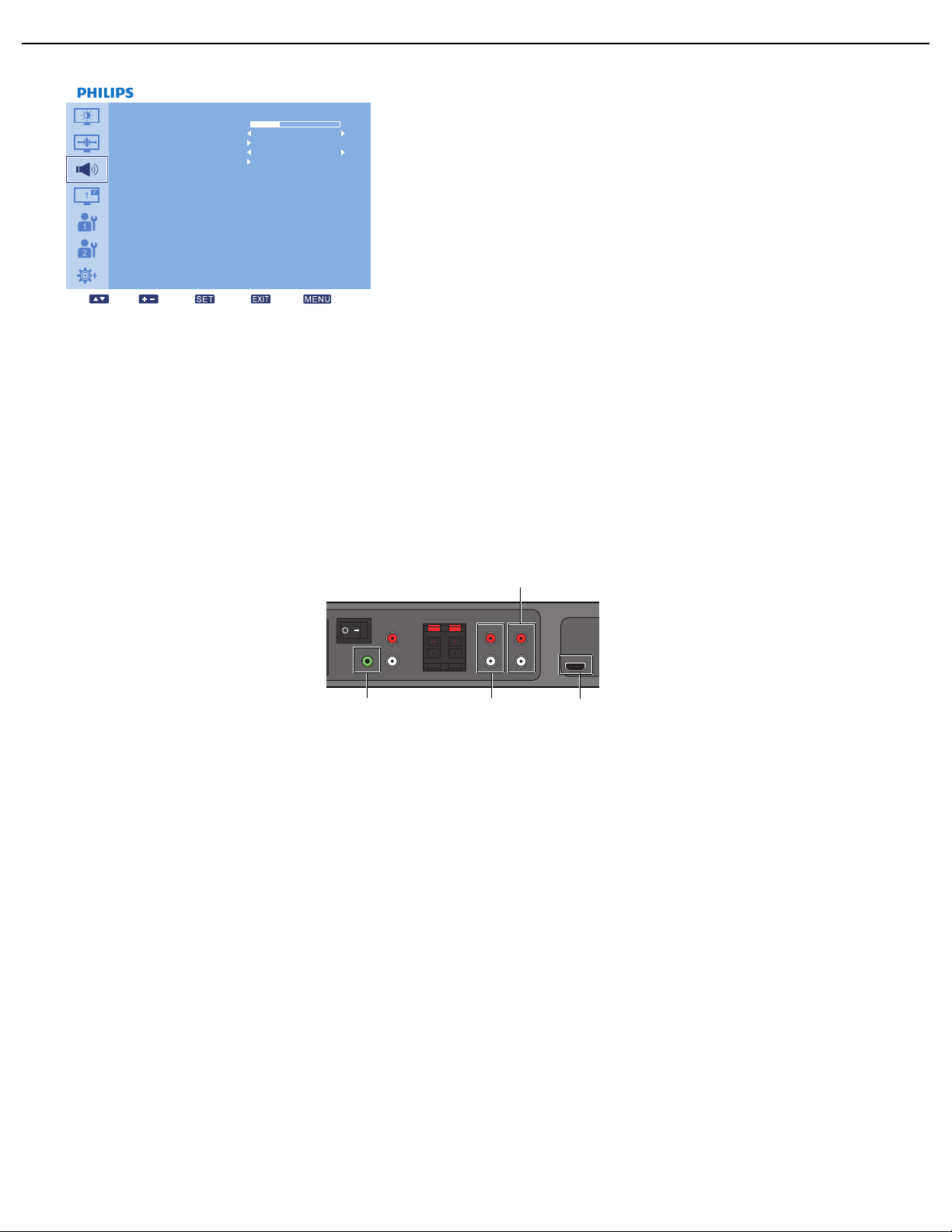

4.2.3. AUDIO MENU

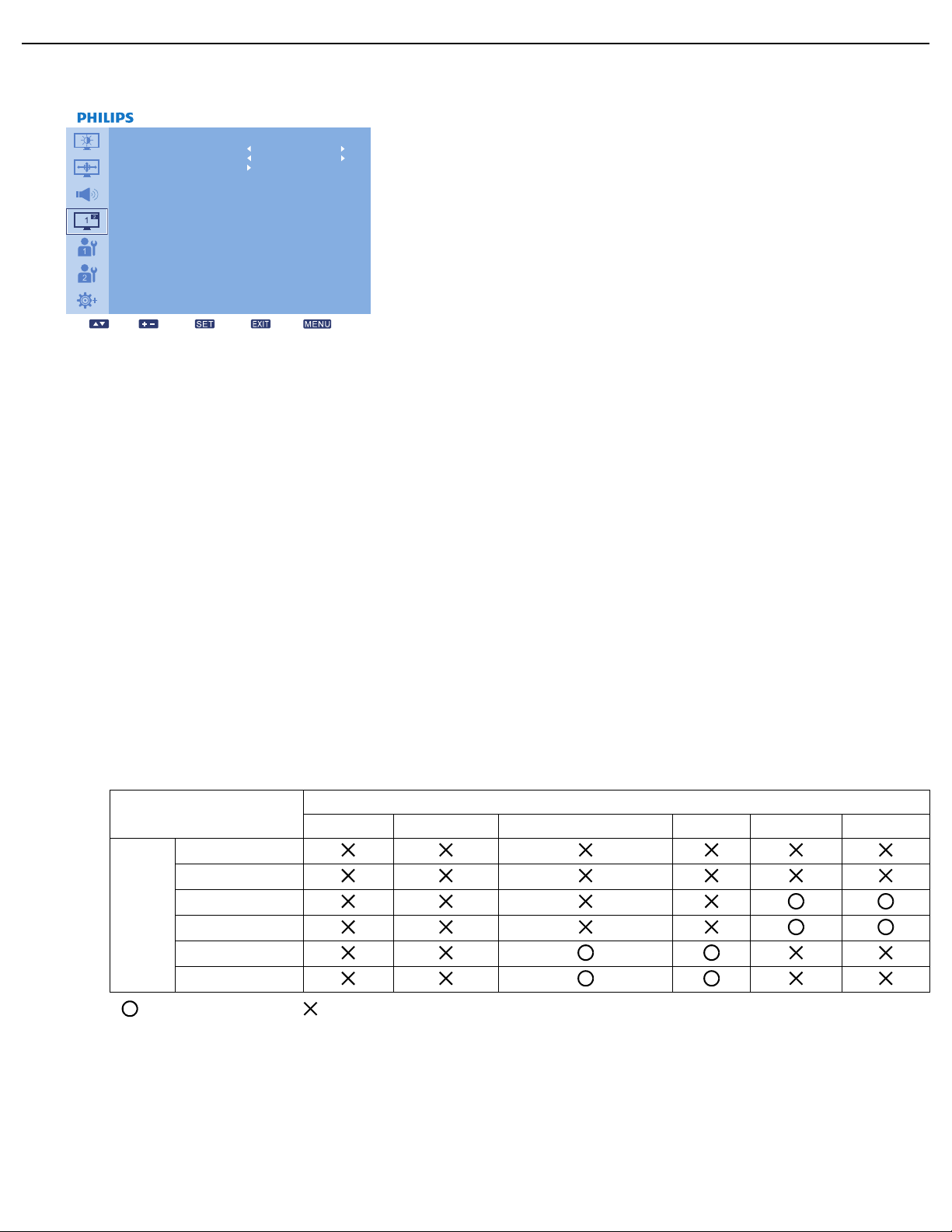

4.2.4. PIP MENU

4.2.5. CONFIGURATION 1 MENU

4.2.6. CONFIGURATION 2 MENU

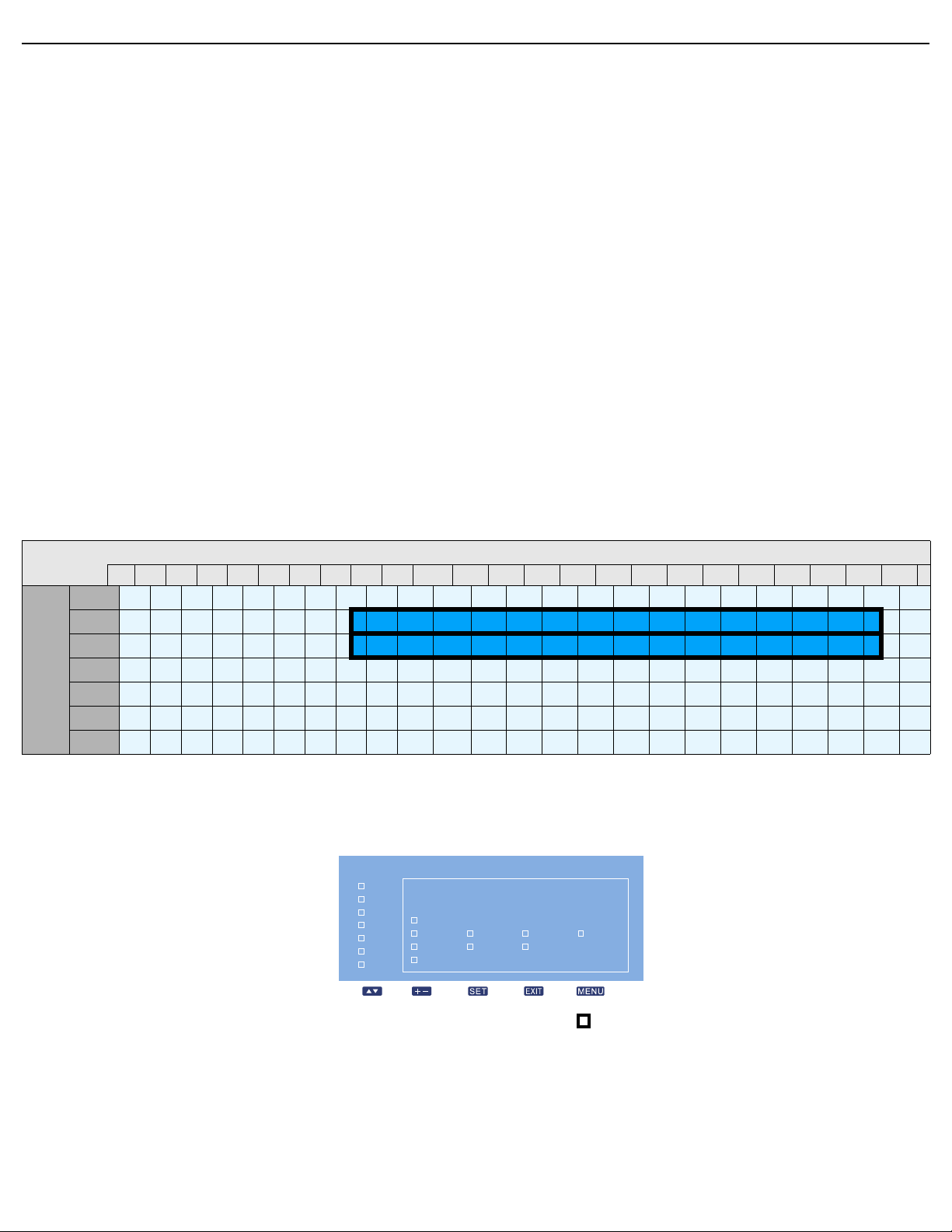

4.2.7. ADVANCED OPTION MENU

5. INPUT MODE

6. PIXEL DEFECT POLICY

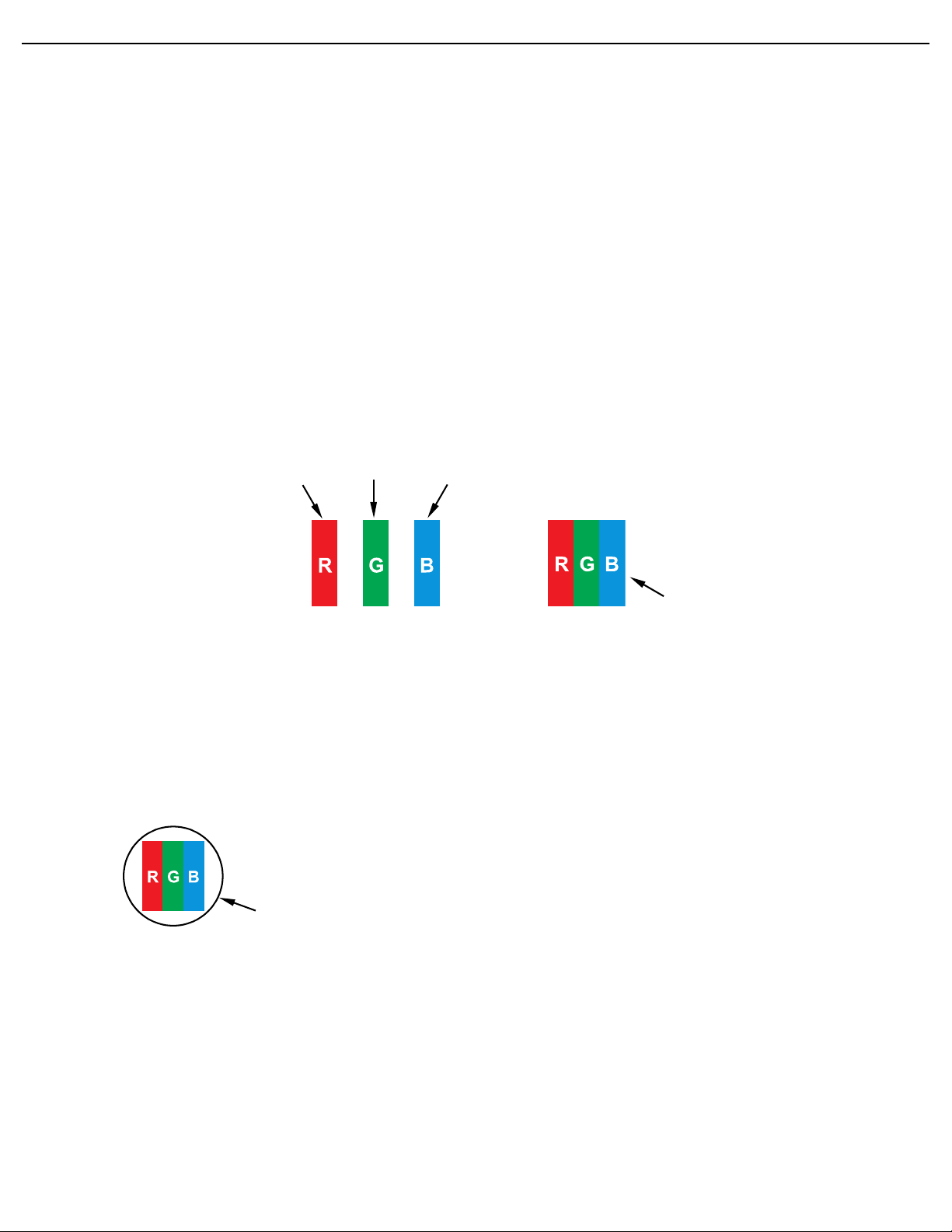

6.1. PIXELS AND SUB-PIXELS

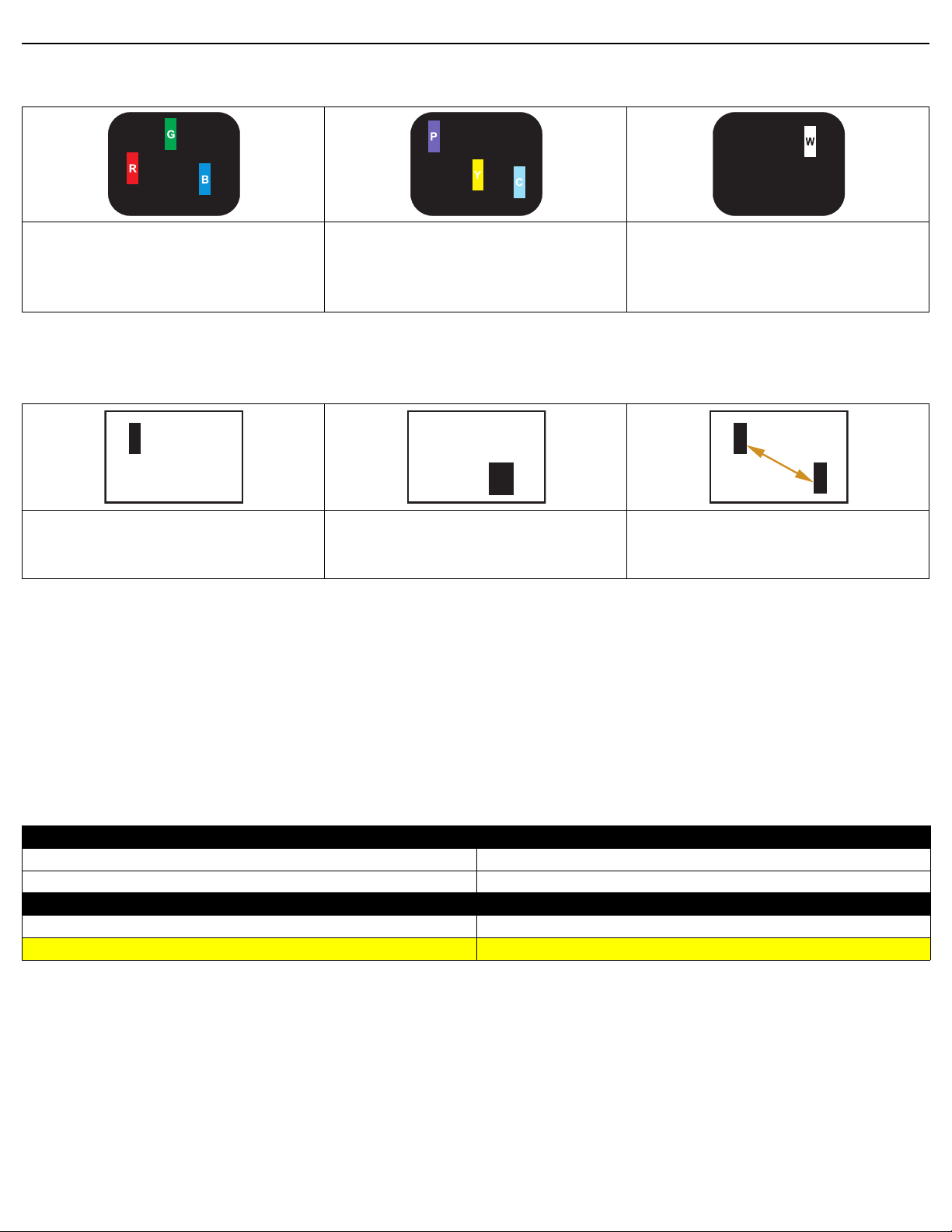

6.2. TYPES OF PIXEL DEFECTS + DOT DEFINITION

User Manual BDL6531E

6.3. BRIGHT DOT DEFECTS

6.4. DARK DOT DEFECTS

6.5. PROXIMITY OF PIXEL DEFECTS

6.6. PIXEL DEFECT TOLERANCES

7. CLEANING AND TROUBLESHOOTING

7.1. CLEANING

7.2. TROUBLESHOOTING

8. TECHNICAL SPECIFICATIONS

User Manual BDL6531E

1. UNPACKING AND INSTALLATION

1.1. UNPACKING

• This product is packed in a carton, together with the standard accessories.

• Any other optional accessories will be packed separately.

• Due to the size and weight of this display it is recommended for two people to move it.

• The protective glass and the glass substrate are installed on the front of the product. Since glass can be both broken and scratched easily, the product should be handled with care. Never place the product with the glass faced down unless with proper protection and padding.

1.2. PACKAGE CONTENTS

Please verify that you received the following items with your package content:

1. LCD display

2. Remote control with batteries

3. CD-ROM (EDFU and SICP)

4. Quick Start Guide

5. Logo guider

123 56

NAFTA Europe UK China 11

6. PHILIPS logo

7. BNC-to-RCA adapter (x 2)

8. RCA-to-BNC adapter (x 3)

9. Cable retainer (x 2)

10. Power cords

11. VGA cable

12. Main switch cover

• For regions not covered by our standard power plugs, apply a power cord that conforms to the AC voltage of the power socket and has been approved by and complies with the safety regulations of the particular country.

• The package box and material can be saved for any event where the display needs to be shipped to another location.

• External speakers and table stands are offered as optional extras, and are not included with your display.

1.3. INSTALLATION NOTES

• Due to the high power consumption, always use the plug exclusively designed for this product. If an extended line is required, please consult your service agent.

• The product should be installed on a flat surface to avoid tipping. Maintain a distance of at least 6cm between the back of the product and the wall for proper ventilation. Avoid installing the product in a kitchen, bathroom or any other place with high humidity so as not to shorten the service life of the electronic components.

• Do not place this product on the floor and keep away from children.

• The product can normally operate only under 4000m in altitude. In installations at altitudes above 4000m, some abnormalities may be experienced.

RETURN TO THE CONTENTS

User Manual BDL6531E

1.4. MOUNTING THE DISPLAY

Wall mounting holes

Notes:

• Metric 6 (10mm) screws (having a length 10-15mm longer

than the thickness of the mounting bracket) are needed for wall mounting (not included). Tighten the screws securely (recommended torque: 470 - 635N•cm)

• The mounting interface should comply with the UL1678

standard in North America. The mounting means should strong enough to bear the weight of the display (approx. 54 kg (125 lb) without stand).

How to use the logo guider?

Warning: not for use in portrait mode. Warranty will be void if installed in any orientation other than landscape.

How to remove the logo

Note: When installing the display on the wall, please consult a professional technician for proper installation. The manufacturer accepts no liability for installations not performed by a professional technician.

RETURN TO THE CONTENTS

User Manual BDL6531E

2. PARTS AND FUNCTIONS

2.1. FRONT VIEW

1. Remote control sensor, ambient light sensor and power indicator

• Receives command signals from the remote control.

• Detects the ambient lighting conditions around the display.

• Indicates the operating status of the display:

- lights blue when the display is turned on

- lights amber in standby mode

- blinks blue when remote control signal is received

- blinks amber when the display enters DPMS mode

- off when the main power of the display is turned off

RETURN TO THE CONTENTS

User Manual BDL6531E

2.2. REAR VIEW

1 3 42 5 6

Dent depth:

6mm

1. ENTER/VIDEO SOURCE button

• Use this button to select the input source.

• When the On Screen Display menu is active, this is also used as the SET button.

2. MENU button

• Use this button to engage the On Screen Display menu.

• When the On Screen Display menu is active, use this button to return to the previous menu.

3. / button

• When the On Screen Display menu is active, use these as the UP/DOWN menu buttons.

• Press and hold the  and  buttons simultaneously for 3 seconds to lock or unlock all buttons.

4. / button

• When the On Screen Display menu is active, use these as the PLUS/MINUS menu buttons.

5. POWER button

Use this button to turn the display on or put the display to standby.

6. Power indicator

Indicates the operating status of the display:

- lights green when the display is turned on

- lights red when the display is in standby mode

- blinks red when the display enters DPMS mode

- off when the main power of the display is turned off

7. Smart Insert installation holes

Location for the Smart Insert (for integration of a small form factor PC) and M4 screws. (Maximum load: 2kg)

8. Carrying handle

Use these handles when carrying the display by hand.

9. Cable retainer installation holes

Install the cable retainer using these holes.

RETURN TO THE CONTENTS

User Manual BDL6531E

2.3. INPUT/OUTPUT TERMINALS

1 2

4 5 6 7

1. AC IN (10 A)

Connects the supplied power cord to the wall outlet.

2. AC OUT (5.0 A)

Connects to the AC IN socket of another BDL6531E display or external media device.

3. Main power switch

Press to switch the main power on/off.

4. AUDIO IN (AUDIO1)

Connects to the audio output of a computer.

5. AUDIO OUT R/L

Outputs the audio signal from the AUDIO IN (AUDIO1/AUDIO2/AUDIO3) or HDMI jack.

6. SPEAKERS R/L

Outputs the audio signal from the AUDIO IN (AUDIO1/AUDIO2/AUDIO3) or HDMI jack to external speakers.

7. AUDIO IN (AUDIO2/AUDIO3)

Connects to the audio output of an AV device.

8. VIDEO IN (HDMI)

Connects to the HDMI output of an AV device or to the DVI-D output of a PC. (Using a DVI-HDMI cable)

8 9 11 12

9. VIDEO IN (DVI-D)

Connects to the DVI-D output of a PC or to the HDMI output of an AV device (Using a DVI-HDMI cable).

10. VGA OUT

Outputs the VGA signal from the VGA IN jack.

11. VGA IN

Connects to the VGA output of a computer.

12. RS232C (OUT/IN)

RS232C network connection input/output for the use of loop through function.

13. VIDEO IN (COMPONENT)

Component video input (YPbPr) for connecting to the component output of an AV device.

14. VIDEO IN (S-VIDEO)

S-Video input for connecting to the S-Video output of an AV device .

15. VIDEO OUT

Connects to the video input of an AV device or another BDL6531E display.

16. VIDEO IN

Connects to the video output of an AV device or another BDL6531E display.

13 14 16

RETURN TO THE CONTENTS

+ 35 hidden pages
