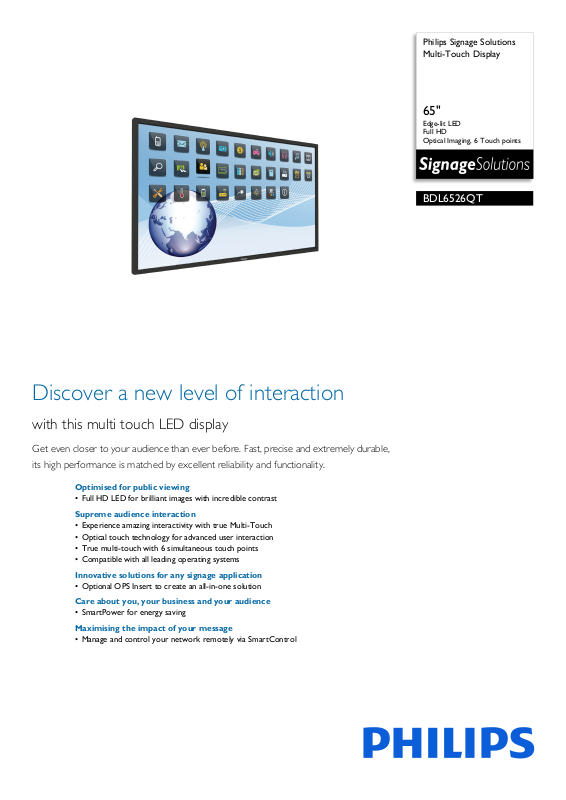

Page 1
Philips Signage Solutions
Multi-Touch Display
65"
Edge-lit LED
Full HD
Optical Imaging, 6 Touch points
BDL6526QT
Discover a new level of interaction
with this multi touch LED display
Get even closer to your audience than ever before. Fast, precise and extremely durable,
its high performance is matched by excellent reliability and functionality.
Optimised for public viewing
• Full HD LED for brilliant images with incredible contrast
Supreme audience interaction
• Experience amazing interactivity with true Multi-Touch
• Optical touch technology for advanced user interaction
• True multi-touch with 6 simultaneous touch points
• Compatible with all leading operating systems
Innovative solutions for any signage application
• Optional OPS Insert to create an all-in-one solution
Care about you, your business and your audience
• SmartPower for energy saving
Maximising the impact of your message
• Manage and control your network remotely via SmartControl
Page 2
Multi-Touch Display
Multi-Touch
Plug & Play
OPSInsert
65" Edge-lit LED, Full HD, Optical Imaging, 6 Touch points
Highlights
BDL6526QT/00
Full HD LED technology
Picture Quality matters. Standard displays
deli
ver quality, but you expect more. Imagine
crisp detail paired with high brightness,
incredible contrast and realistic colours for a
true-to-life picture.
Plug-and-Play Multi-Touch
A brand new level of interactivity is now
available thanks to integrated touch
technology. More flexibility and optimum
simultaneous touch performance coupled with
excellent operability opportunities give you
the ultimate in user interaction. Multi-Touch
displays are equipped with automatic touch
recognition. The USB connector is HIDcompliant, providing true plug-and-play
operation.
Optical multi-touch
The sensors on the edge of the screen give you
pe
rfect clarity whilst at the same time offering
multi-touch interaction, opening up all kinds of
possibilities for new interactive applications.
6 simultaneous touch points
Enjoy a more interactive experience with up to
6 touch
points at the same time. Ideal for when
you have more than one user interacting with
your application simultaneously, the 6 touch
points offer an extremely cost-effective
solution.
Software compatibility
Our touch displays are software-independent
and support
XP, Mac OS and Linux.
OPS Insert
Turn your display into an all-in-one digital
signage sol
that is connected, intelligent and secure. Open
Pluggable Specification (OPS) is an industrystandard slot into which you can add an OPSstandardised media player. This cable-free
Windows 8, Windows 7, Vista,
ution and create a display network
solution gives you the ability to install, use or
maintain your hardware whenever you need
to.
SmartPower
The backlight intensity can be controlled and
pre-set by the system to reduce the power
consumption by up to 50%, which saves
substantially on energy costs.
SmartControl
The SmartControl software suite lets you
remote
ly control and manage your network of
displays via RJ45 and RS232C. Easily identify
your displays and fine-tune all display settings
including resolution, brightness, contrast,
video wall configurations and cloning of your
settings over your entire network.
Page 3
Multi-Touch Display
65" Edge-lit LED, Full HD, Optical Imaging, 6 Touch points
Specifications
BDL6526QT/00
Picture/Display
• Diagonal screen size: 64.5 inch / 163.9 cm
• Panel resolution: 1920 x 1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 350 cd/m²
• Contrast ratio (typical): 5000:1
• Dynamic contrast ratio: 500,000:1
• Surface treatment: Anti-Glare coating
• Aspect ratio: 16:9
• Response time (typical): 8 ms
• Pixel pitch: 0.74 x 0.74 mm
• Display colours: 1.07 Billion
• Viewing Angle (H / V): 178 / 178 degree
• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Co
Progressive scan, 3D MA deinterlacing, Dynamic
contrast enhancement
lter, Motion compens. deinterlacing,
mbfi
Interactivity
• Multi-touch technology: Optical sensing
• Touch points: 6 simultaneous touch points
• Plug and play: HID compliant
• Protection glass: 5 mm tempe
r
ed safety glass
Connectivity
• Video input: DisplayPort (1.2), HDMI (x 2), DVI-D,
VGA (Analogue D-Sub), Component (RCA),
Composite (RCA), USB
• Video output: DisplayPort, DVI-I, VGA (Analogue
)
D-Sub
•
Audio input: Audio Left/Right (RCA), 3.5-mm jack
• Audio output: Audio Left/Right (RCA), External
eaker
connector
sp
• External control: RJ45, IR (in/out) 3.5 mm jack,
RS232C (in/
• Other connections: USB, OPS
out) 2.5 mm jack
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75 Hz
800 x 600 56, 60, 72, 75 Hz
1024 x 768 60 Hz
1280 x 768 60 Hz
1280 x 800
1280 x 1024 60 Hz
1360 x 768 60 Hz
1366 x 768 60 Hz
1440 x 900 60 Hz
1600 x 1200 60 Hz
1920 x 1080 60 Hz
1920 x 1200 60 Hz
deo formats
• Vi
olution Refresh rate
Res
480i 60 Hz
480p 60 Hz
576p 50 Hz
60
Hz
576i 50 Hz
720p 50, 60 Hz
1080i 50, 60 Hz
1080p 50, 60 Hz
Convenience
• Placement: Landscape
• Signal Loop Through: RS232, VGA, IR Loop
ugh
thro
• Network controllable: Card OPS RS232, RS232,
45, One Wire (HDMI-CEC)
RJ
• Picture performance: Advanced colour control
• Picture in picture: PIP
Screen-saving functions: Pixel Shift, Low Brightness
•
• Keyboard control: Hidden, Lockable
• Remote control signal: Lockable
• Energy-saving functions: Smart Power
• Other convenience: Carrying handles
• Ease of installation: Smart Insert
Dimensions
•Set dimensions (W x H x D):
1488.4 x 863.4 x 78.1 mm
• Product weight: 54.4 kg
• VESA Mount: 400 x 400 mm, M6
•Bezel width: 26.2 mm
Sound
• Built-in speakers: 2 x 10 W
Operating conditions
• Temperature range (operation): 5 ~ 40 °C
• Relative humidity: 20 ~ 80 %
• MTBF: 50,000 hour(s)
Power
• Mains power: 90 ~ 240 VAC, 50/60Hz
• Standby power consumption: <0.5 W
Accessories
• Included accessories: AC Power Cord, VGA cable,
RS232 cable, USB cable, Remote Control, Batteries
for remote control, Quick start guide, User manual
on CD-ROM
• Optional accessories: HDBaseT OPS Receiver
RD25)
(C
Miscellaneous
• On-Screen Display Languages: Arabic, English,
French, German, Italian, Japanese, Polish, Spanish,
Turkish, Russian, Simplified Chinese, Traditional
Chinese
• Regulatory approvals: CE, CCC, FCC, Class B, UL/
L
, RoHS, EPA, CB, C-Tick, EAC, EMF, KUCAS,
cU
SASO
• Warranty: 3-year warranty
•
Issue date 2015-04-10
Version: 1.0.1
12 NC: 8670 001 19772
EAN: 87 12581 72816 8
© 2015 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
