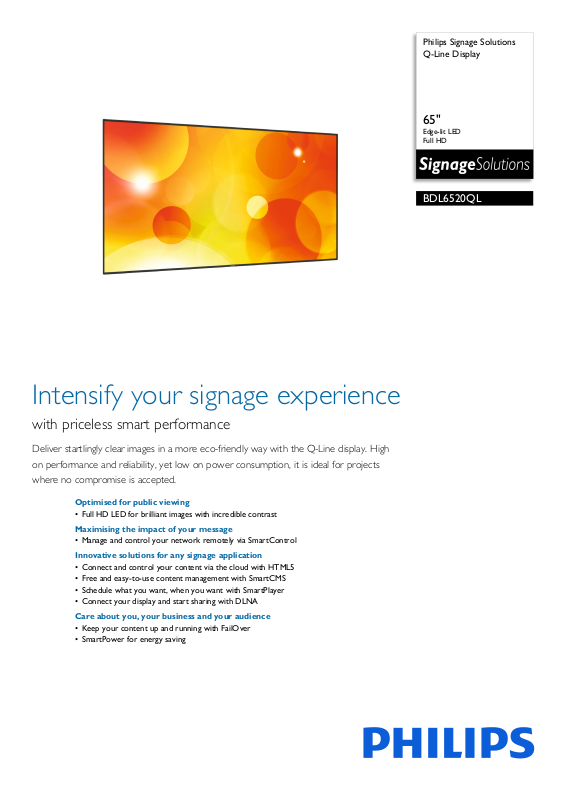

Philips Signage Solutions Q-Line Display

65"

Edge-lit LED Full HD

BDL6520QL

Intensify your signage experience

with priceless smart performance

Deliver startlingly clear images in a more eco-friendly way with the Q-Line display. High on performance and reliability, yet low on power consumption, it is ideal for projects where no compromise is accepted.

Optimised for public viewing

• Full HD LED for brilliant images with incredible contrast

Maximising the impact of your message

• Manage and control your network remotely via SmartControl

Innovative solutions for any signage application

• Connect and control your content via the cloud with HTML5

• Free and easy-to-use content management with SmartCMS

• Schedule what you want, when you want with SmartPlayer

• Connect your display and start sharing with DLNA

Care about you, your business and your audience

• Keep your content up and running with FailOver

• SmartPower for energy saving

Page 2

BDL6520QL/00

Q-Line Display

65" Edge-lit LED, Full HD

Highlights

Full HD LED technology

Picture Quality matters. Standard displays deli

ver quality, but you expect more. Imagine crisp detail paired with high brightness, incredible contrast and realistic colours for a true-to-life picture.

SmartControl

SmartControl lets you remotely control and manage your network of displays via RJ45 and RS232C. Easily fine-tune all display settings including resolution, brightness, contrast and cloning of your settings over your complete network.

SmartBrowser

Connect and control your content via the cloud with the integrated HTML5 browser. Design your signage content online and connect it with a display or with your entire network. Simply plug in a RJ45 Internet cable for network connection and connect the

display with the dedicated URL address, and you are ready to play your cloud-based content.

SmartPlayer

Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.

SmartCMS

Free and easy-to-use content management system that works exclusively with Philips Signage Solutions displays to manage your digital signage content. With SmartCMS you can create and schedule your own content over 24 hours every day. Simply create your ne

twork, design your content and schedule

your playlist, and you are ready to play!

Share and Stream with DLNA

Simply share and stream cont mobile device or media player to your display with all DLNA compliant media devices. Connect each display with an ethernet cable and manage your content in real time within your local network. Simply connect your display and start sharing.

SmartPower

The backlight intensity can be controlled and p

re-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

FailOver

Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides 24/7 protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and you're ready for instant protection.

ent from your

SmartCollection

SmartCollection offers you customisable sol

utions to meet your specific requirements. Both integrators and solution providers are

offered the latest innovations, while the audience can enjoy impactful solutions. When developing smart innovations we focus on Caring, Innovative and Impactful solutions.

Page 3

BDL6520QL/00

Q-Line Display

65" Edge-lit LED, Full HD

Specifications

Picture/Display

• Diagonal screen size: 65 inch / 163.9 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 350 cd/m²

• Contrast ratio (typical): 5000:1

• Dynamic contrast ratio: 500,000:1

• Response time (ty

• Aspect ratio: 16:9

• Viewing Angle (H / V): 178 / 178 degree

• Pixel pitch: 0.74 x 0.74 mm

• Display colours: 1.07 Billion

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfi

3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

ical): 6.5 ms

lter, Motion compens. deinterlacing,

Supported Display Resolution

mputer formats

• Co

Res

olution Refresh rate 640 x 480 60, 67, 72, 75 Hz 800 x 600 56, 60, 72, 75 Hz 1024 x 768 60 Hz 1280 x 768 60 Hz 1280 x 800 1360 x 768 60 Hz 1366 x 768 60 Hz 1440 x 900 60 Hz 1600 x 1200 60 Hz 1920 x 1080 60 Hz 1920 x 1200 60 Hz

deo formats

• Vi olution Refresh rate

Res 480i 60 Hz 480p 60 Hz 576p 50 Hz 576i 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 50, 60 Hz

Connectivity

• Video input: DisplayPort, HDMI (x 2), DVI-D, VGA

(Analogue D-Sub), Component (RCA), Composite (RCA), USB

• Audio input: 3.5-mm jack, Audio Left/Right (RCA)

• Audio output: Audio Left/Right (RCA), External

eaker

connector

• External control: RJ45, RS232C (in/out) 2.5 mm

jack Video output: DisplayPort, DVI-I, VGA (via DVI-D)

•

Convenience

• Screen-saving functions: Pixel Shift, Low Brightness

• Keyboard control: Hidden, Lockable

• Network controllable: LAN (RJ45), RS232, One HDMI-CEC)

Wire (

• Signal Loop Through: DisplayPort, DVI, VGA,

RS23

• Ease of installation: Smart Insert, AC Out

• Energy-saving functions: Smart Power

• Other convenience: Carrying handles

Dimensions

•Set dimensions (W x H x D):

1450.5 x 828.5 x 61.5 mm

• Bezel width: 7.5 (Top/Left/Right) 10.5 (Bottom)

• Product weight: 36.2 kg

• VESA Mount: 400 x 400 mm, M8

Operating conditions

• Altitude: 0 ~ 3000 m

• Temperature range (operation): 0 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 ~ 80 %

• MTBF: 50,000 hour(s)

Power

• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

• Consumption (On mode): 122.52 W

• Standby power consumption: <0.5 W

Sound

• Built-in speakers: 2 x 10 W RMS

Accessories

• Included accessories: AC Power Cord, RS232

cable, VGA cable, Remote Control, Batteries for remote control, User manual on CD-ROM, Quick start guide

Multimedia Applications

• USB Playback Video: M2TS, M4V, MK3D, MKV,

MP4, MPEG, MPG, MTS, TS, TTS, VOB, WMV

• USB Playback Picture: BMP, GIF, JPEG, JPG

• USB Playback Audio: AAC, AIF, AIFF, ASF, M4A,

, M3U, MP3, MP4, WAV, WMA

LPC

Miscellaneous

• Warranty: 3-year warranty

• On-Screen Display Languages: Arabic, Simplifie

Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Polish, Russian, Spanish,

rkish

• Regulatory approvals: EPEAT, CE, FCC, Class B, /c

UL, CB, GOST

•

Issue date 2016-06-14

Version: 3.0.1

12 NC: 8670 001 19722 EAN: 87 12581 72806 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
